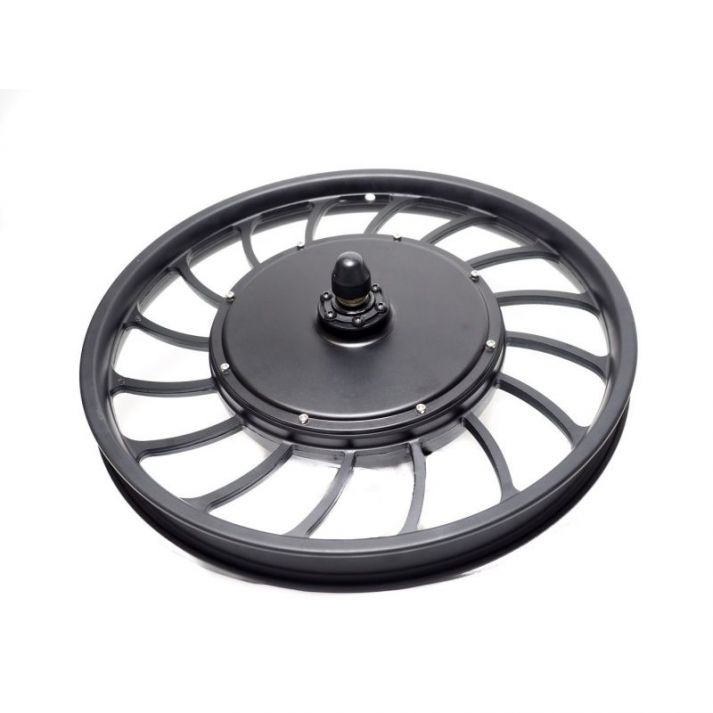

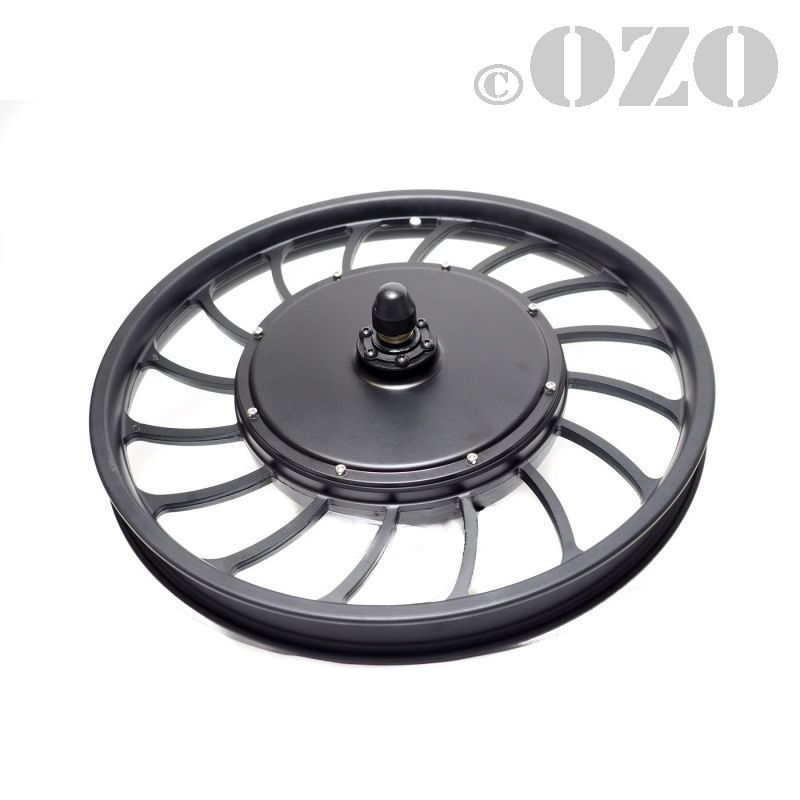

Electric motor wheel 20" 1000W-1500W Aluminum electric
For heavy or special applications such as tricycles, taxi bikes or drift trikes, we offer electric motors made of aluminum to prevent spokes from breaking.
Compatible with all 20" bicycle tires
Available in two different speed indices: 25km/h under 36V or 40km/h under 48V
3.7 cm inner rim
Electrify your tricycle, trike, scooter, bike taxi, cargo, biporteur thanks to this 1000W-1500W brushless motor.
For professionals, we can offer you different configurations, especially regarding the rotation speed (Kv)
2D plan of the wheel
| Guarantee | 2 ans |
| Masse de la roue motorisée | 8,5Kg avec pneu |
| Technologie | Brushless direct drive |
| Couple max en 48V | 60 N.m |
| Rendement | 86% |
| Puissance max | 1800W |
| Permissible voltages | 24V, 36V, 48V, 60V, 72V |
| Motor Kv (RPM / V) | 10 RPM/Volt (Nous contacter pour Kv spécifique) |
| Motor power range | 250W - 1800W |
| Magnets height | 30mm |
| Hall sensors | OUI |
| Waterproof grade | IP54 |
