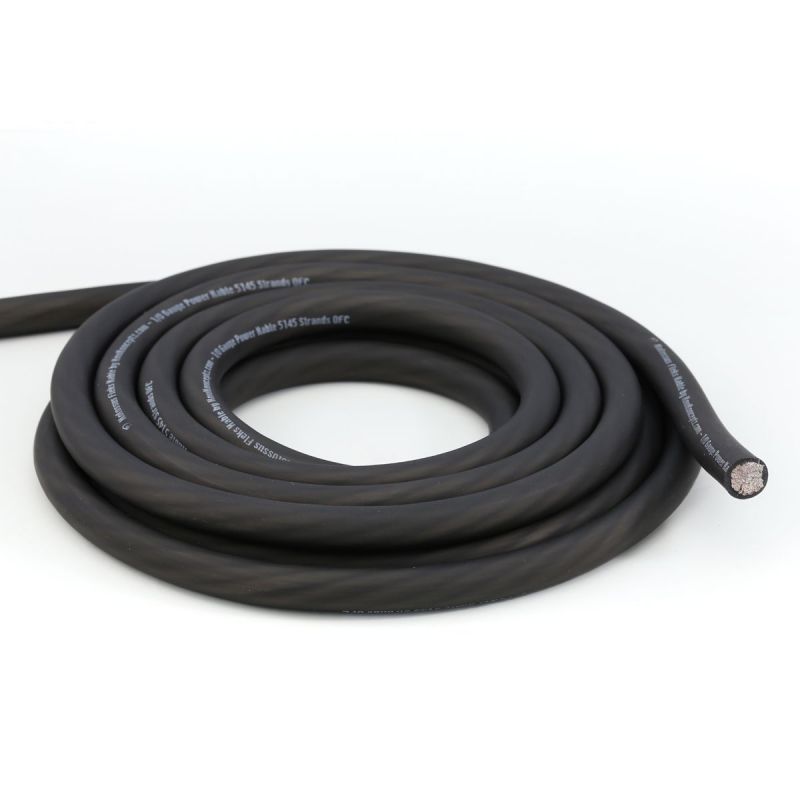

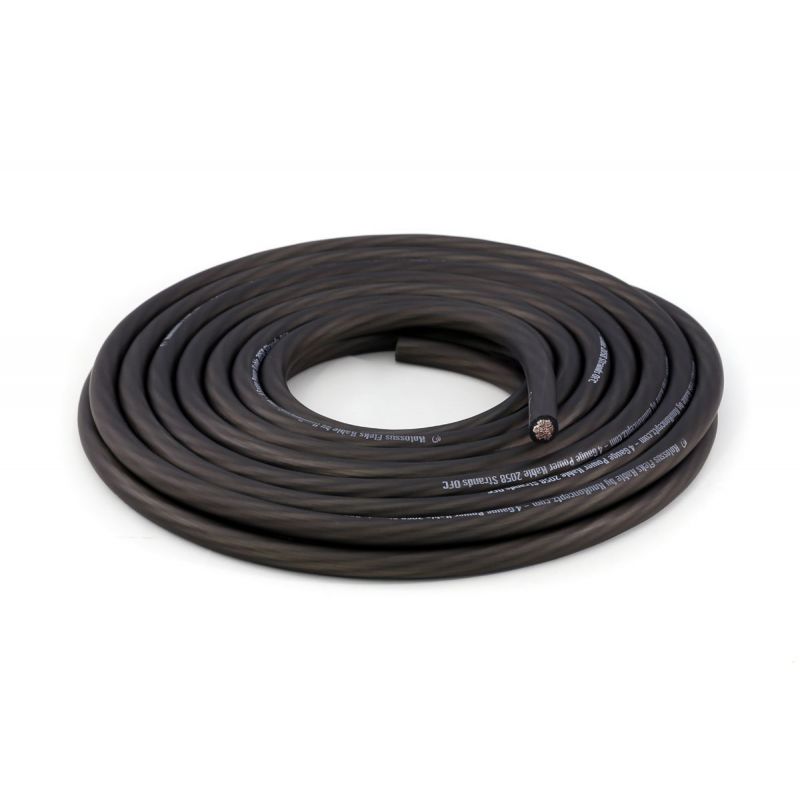

Black power cable 6AWG 13mm2 140A 600V DC hyper flex

6AWG section power cable, i.e. 13mm2 for battery or DC motor power supply. Extra flexible cable with high-temperature silicone insulation resistant to 200°C.

Nominal intensity 140A under 600V DC

Sale by the meter

More details

001284

New product

10,90 €

IN STOCK

- +


More info

6 AWG cable or 13mm2

The 6AWG power supply cable is 13mm2 of tinned copper flexible strands without pure oxygen and a new ultra-flexible silicone sheath. This coating provides enhanced flexibility and maintains exceptional resistance to abrasion, oil and extreme temperatures (-40°C to 200°C).

Max discharge current: 140A.

This product can be used in marine applications or for the power circuit on the DC electric motor or battery side.

Sale by the meter.


Data sheet
Tension nominale600V
Intensité nominale140A
flame retardant gradeFT2
Environmental standardROHS
Résistance1,9 Ohm/km
External diameter8,5mm
cable gauge6AWG
