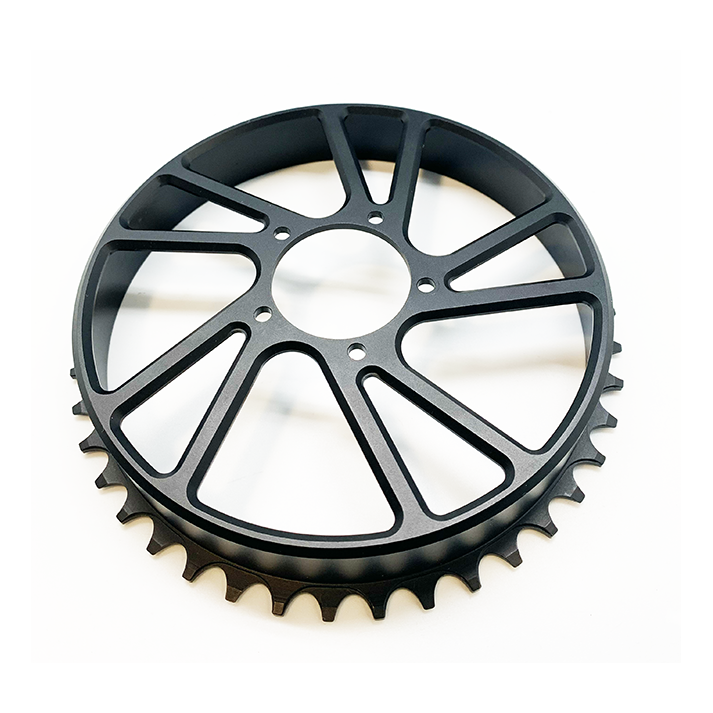

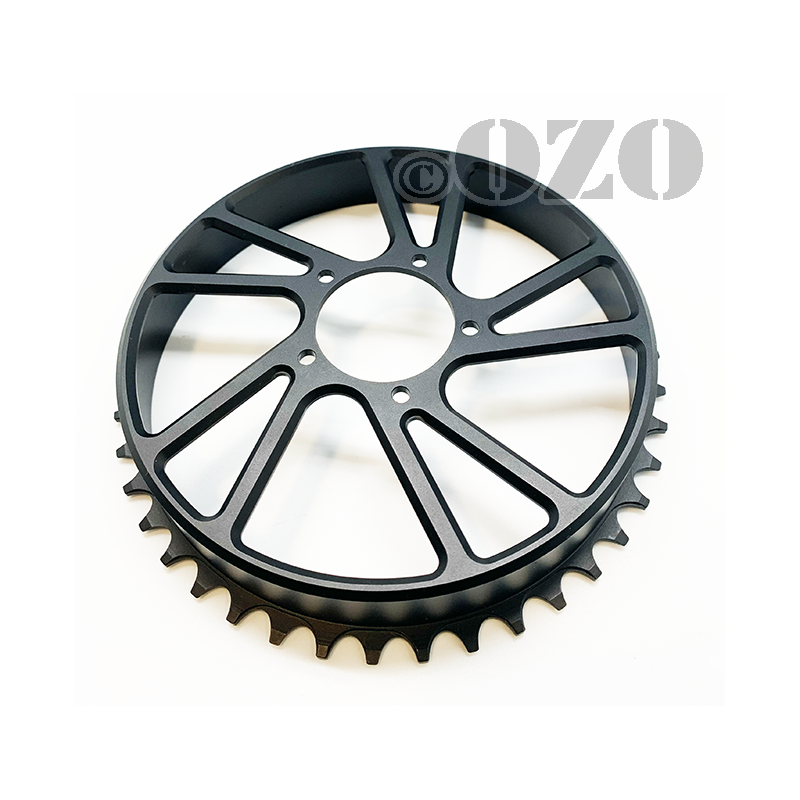

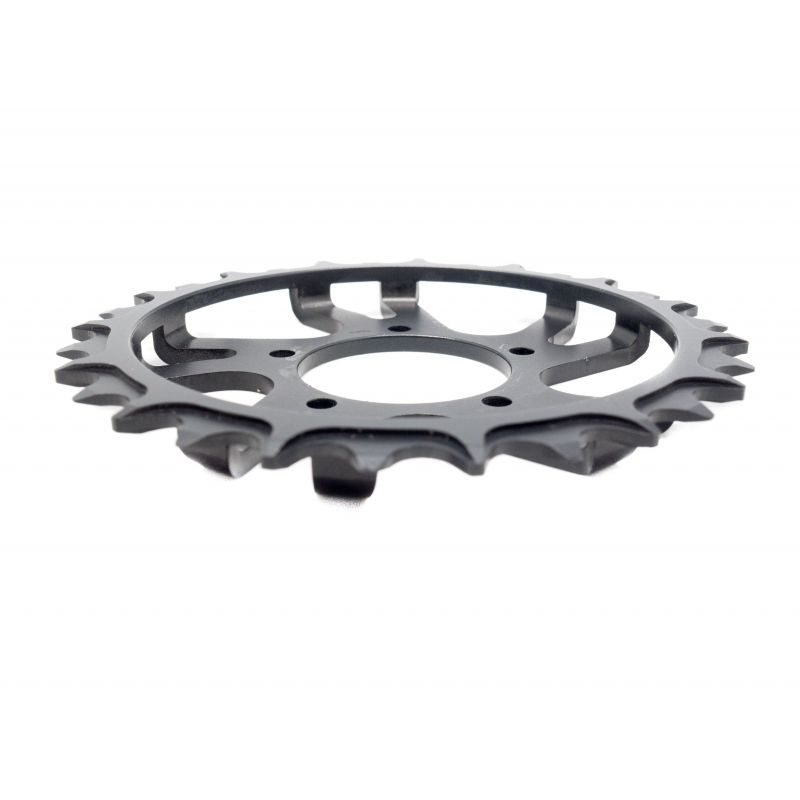

Offset BBSHD Narrow Wide tray for Bafang crankset engine
Offset Narrow Wide chainring for Bafang BBSHD crankset engine. CNC machined in Alu 7075, which gives them great longevity and a weight gain of 400g compared to the original steel tabletop.
The torque gain is impressive and the chain line is preserved.
The best modification you can consider on your engine.
COMPATIBLE ONLY WITH BBSHD
We highly recommend this tray for mounting on mountain bikes, utility bikes or cargo bikes because of its impressive torque gain.
On a crankset motor such as the Bafang BBSHD, the size of the drive plate directly influences the torque. In other words, the smaller the plateau, the greater the torque. To illustrate, with the same cassette ratio, the torque gain between a 34-tooth plate and a 44-tooth plate reaches 30%. In other words, you will benefit from an exceptional couple that will allow you to overcome all the difficulties.

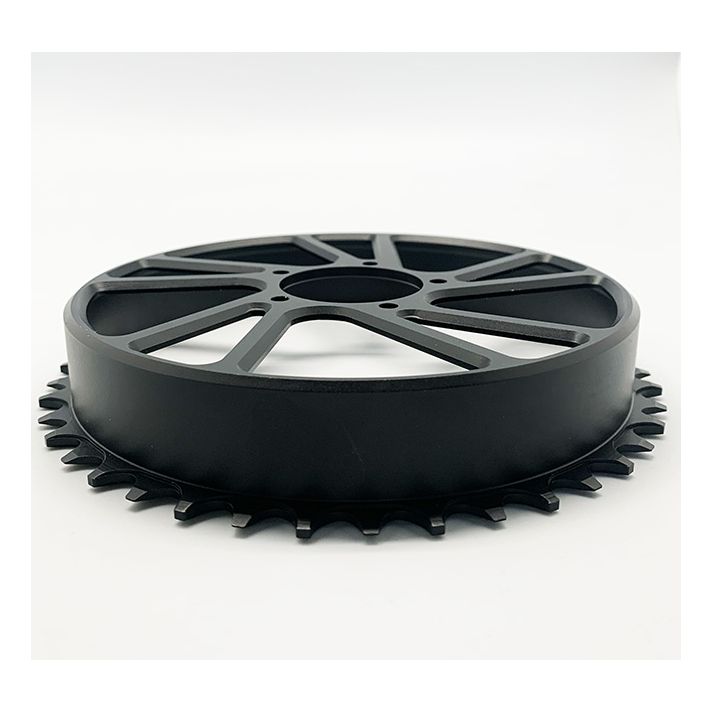

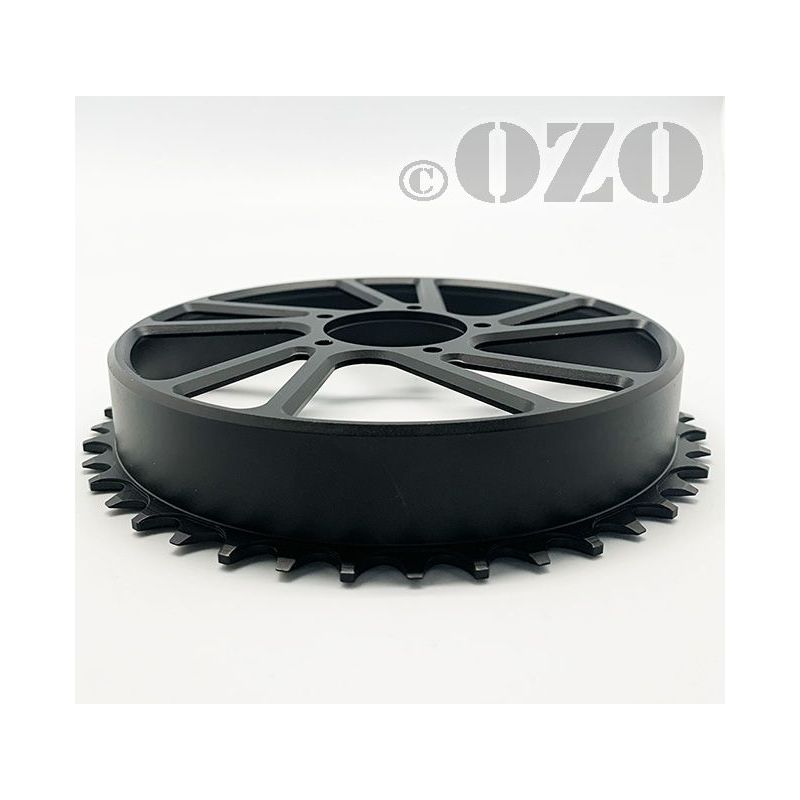

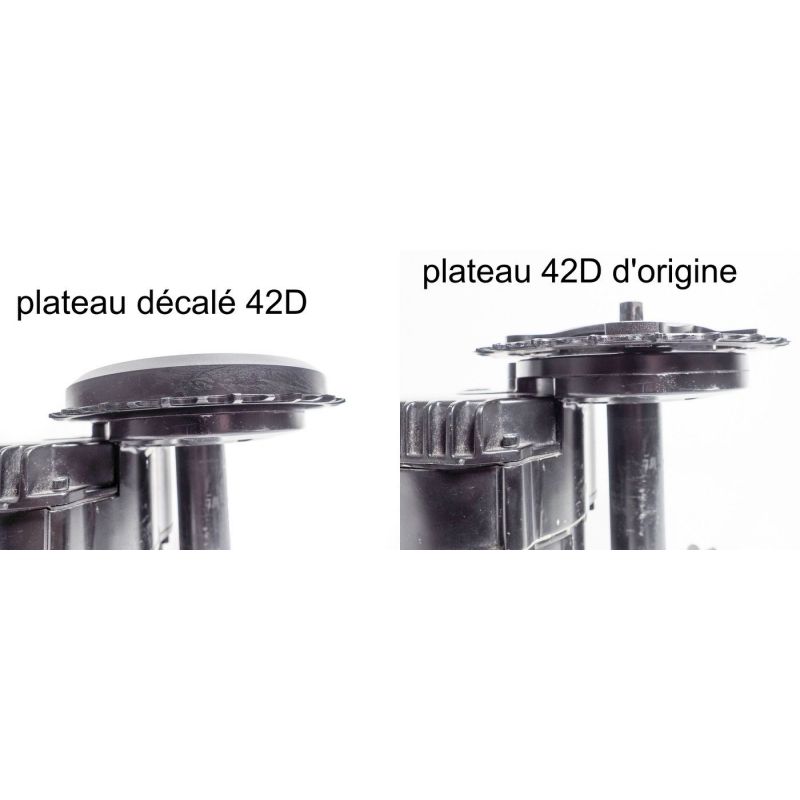

The 42D plate has an additional 10 mm offset compared to the 34-tooth narrow wide plates and the original 42D plate. We recommend the offset 42-tooth plate if you want to optimize your chain line.

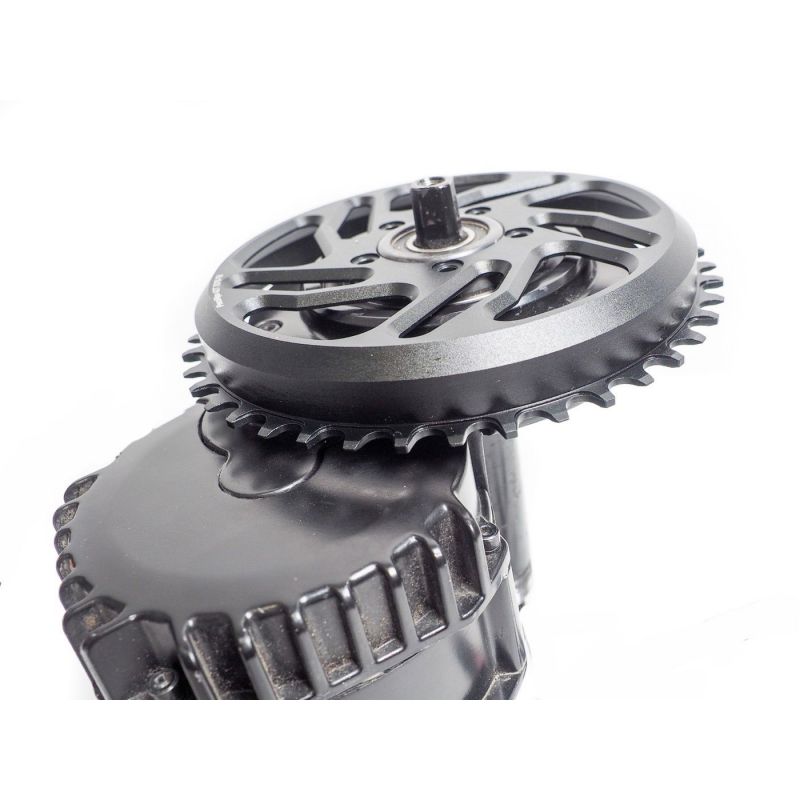

The installation is done in only 5 minutes, replacing the original tray. In addition, the "Narrow Wide" technology of these trays maintains the chain optimally, thus preventing derailments.
All offset plates are CNC machined in 7075 aluminum, giving an excellent life with a weight of only 100 grams, compared to the 540 grams of the original 46 teeth steel plate. This also contributes to the gain in torque and increased ease of pedaling.
The 42-tooth chain is compatible with chains from 7 to 11 speeds.

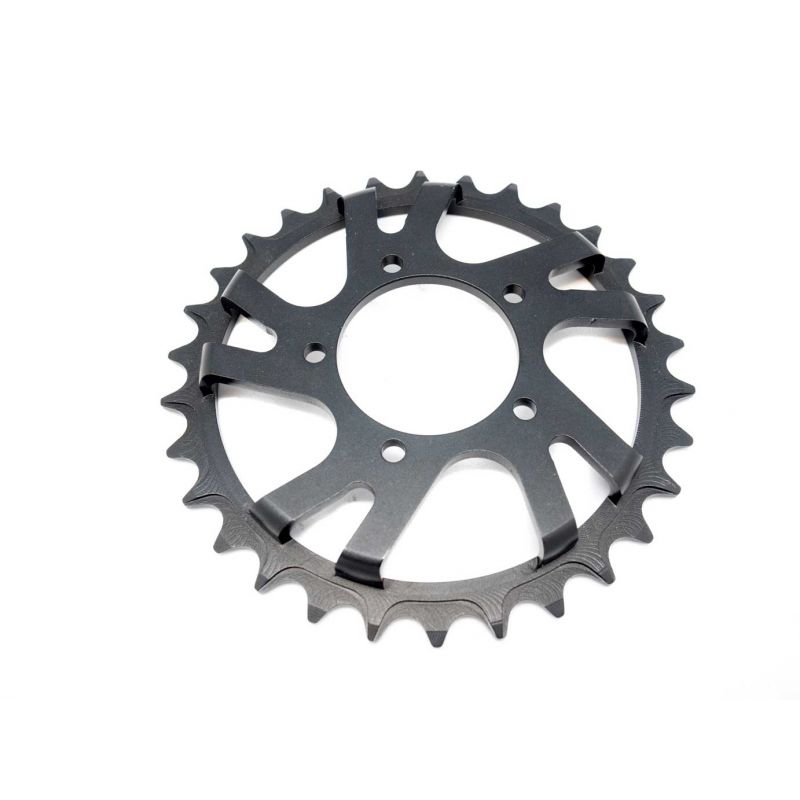

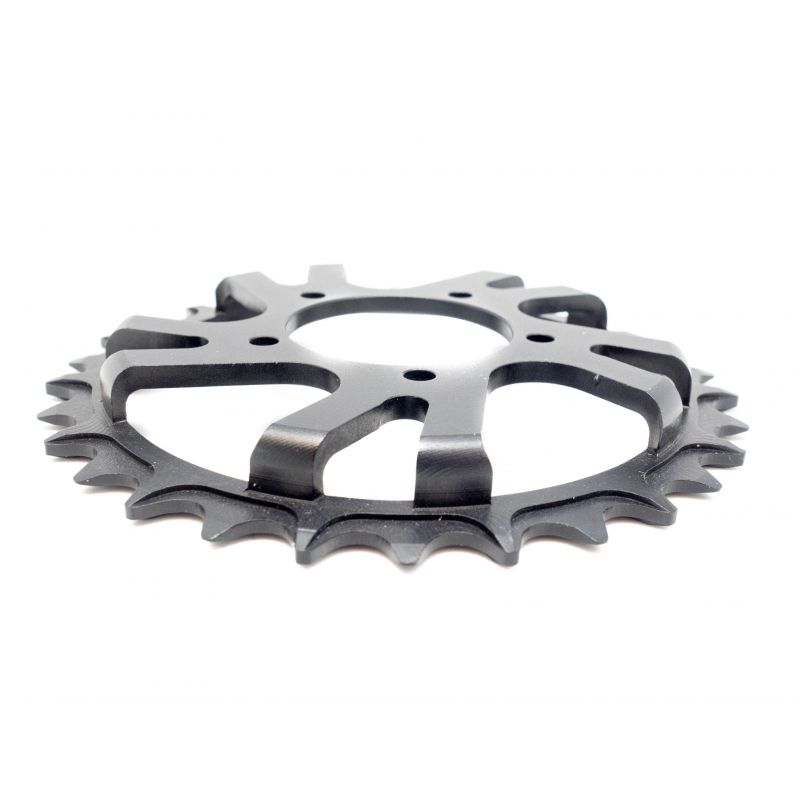

The 34-tooth chain is compatible with 7-8-9-10 speed chains.
