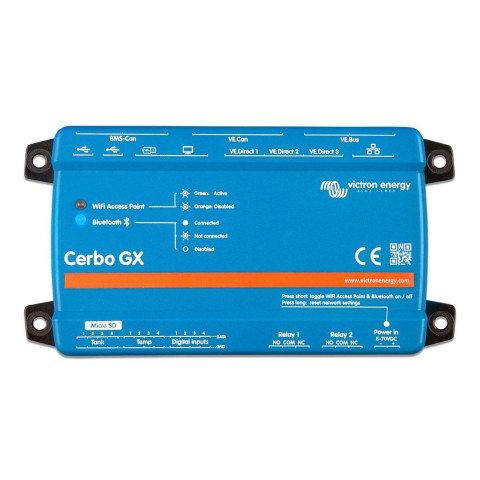

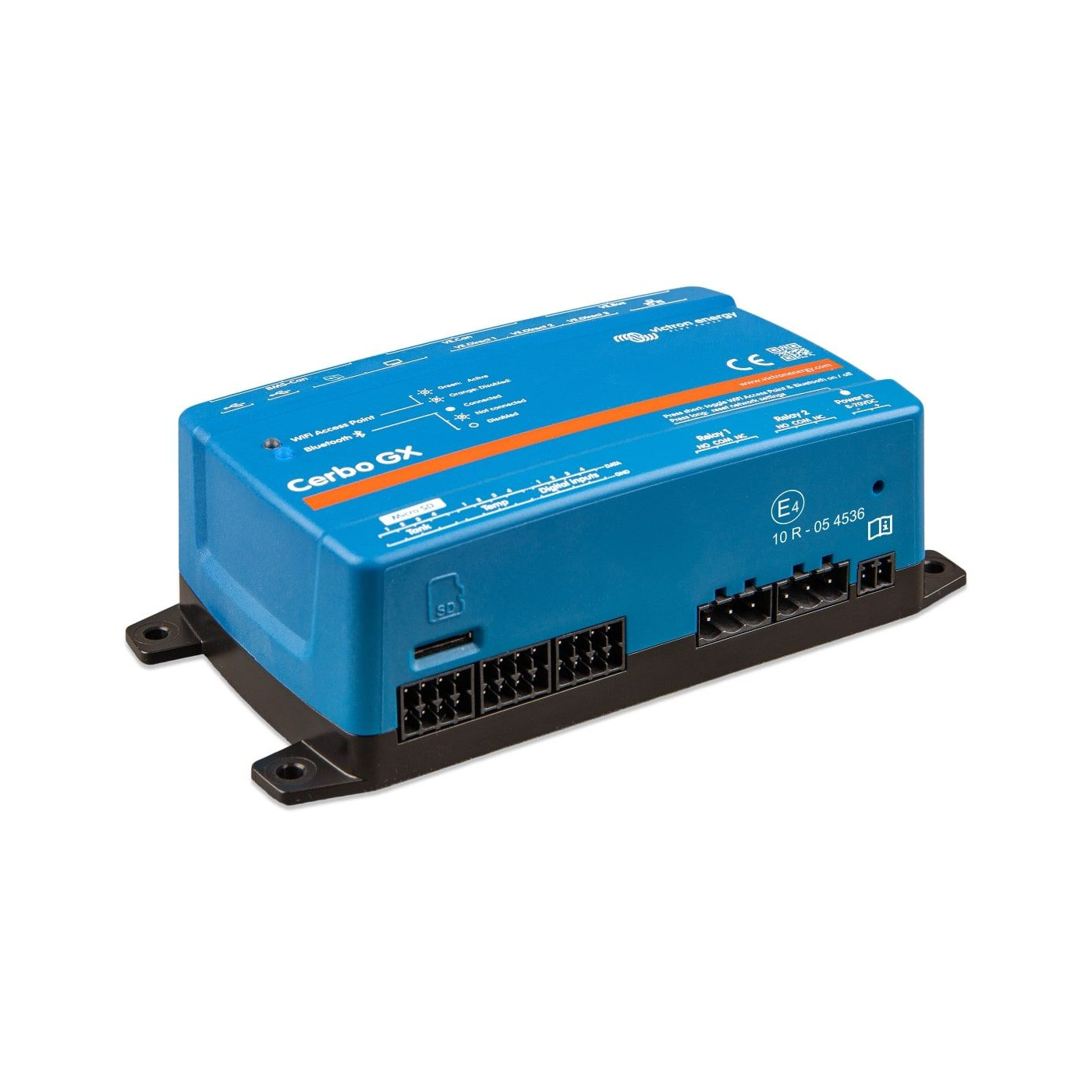

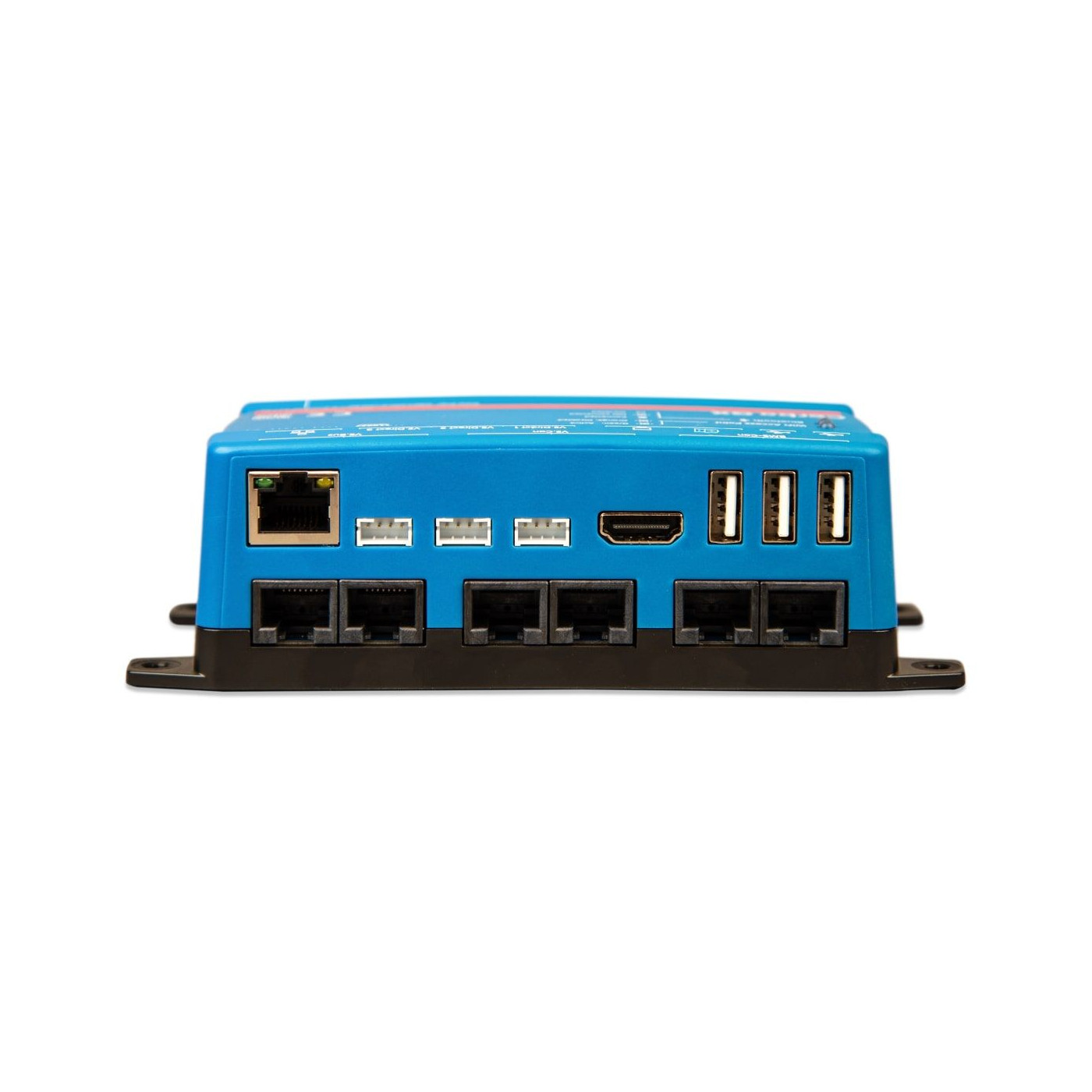

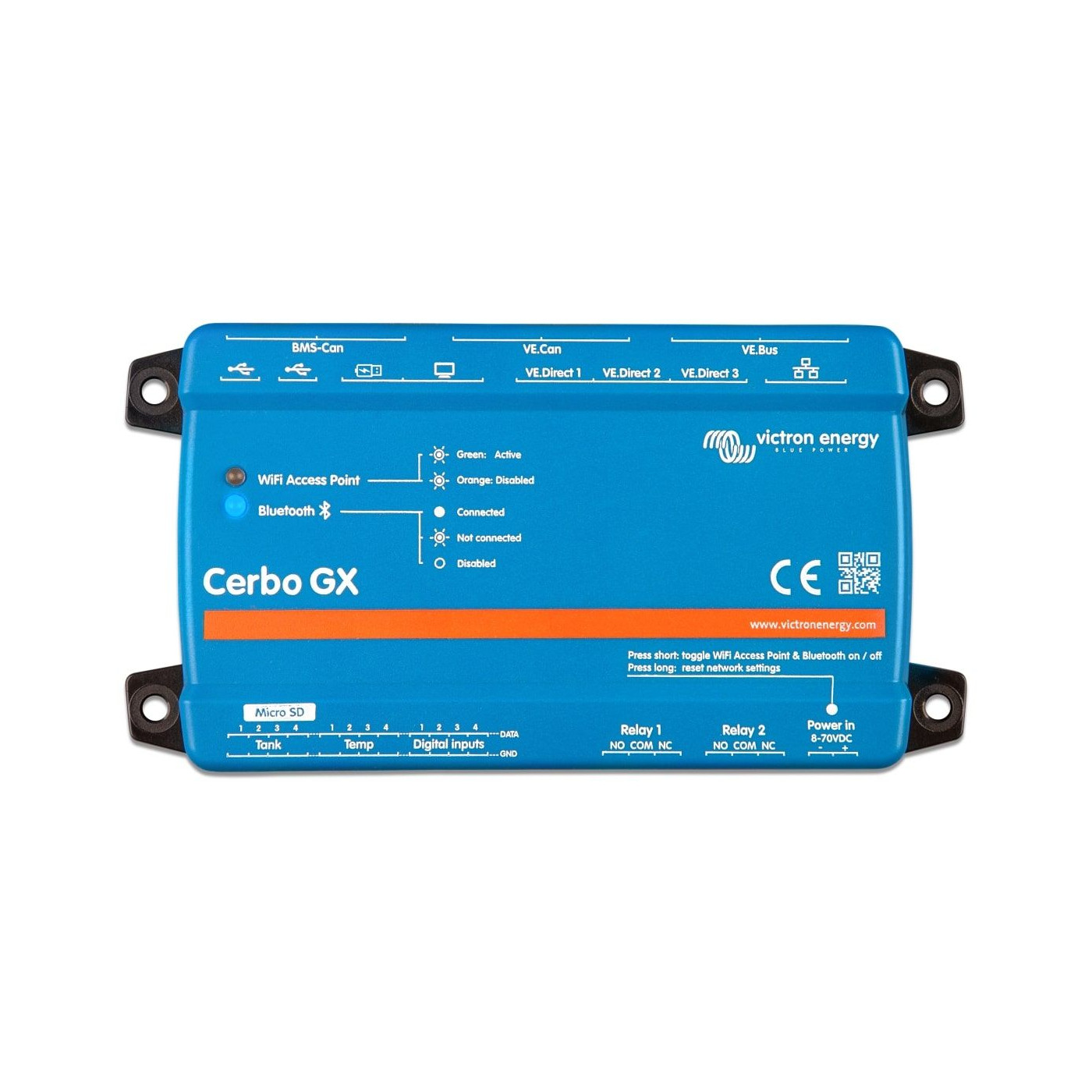

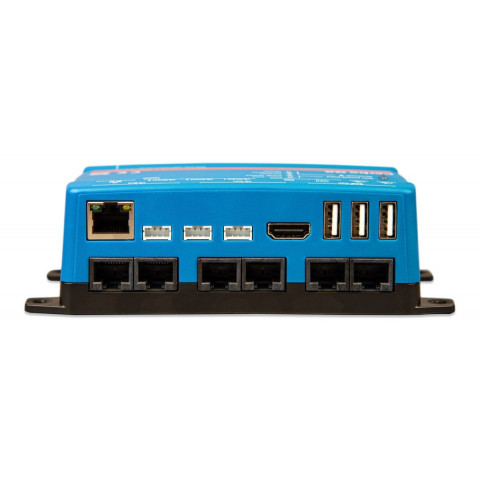

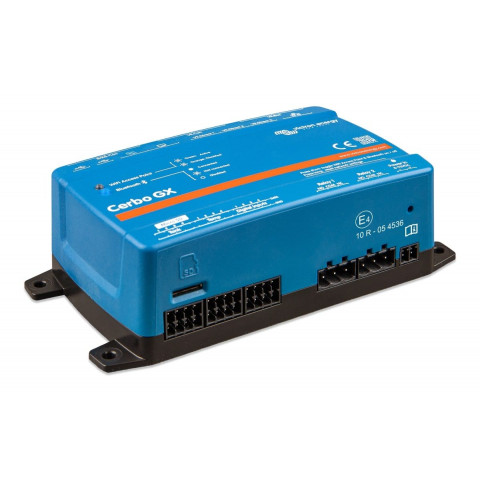

Victron Cerbo GX
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its built-in WiFi Access Point. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Perfect supervision and control
Instantly monitor battery charge status, power consumption, power generation from your PV system, generator or mains; also check tank levels and temperature readings. Easily control the input current limit of the dock power, the (automatic) start/stop of the generator or generators; change any setting to optimize the system. Track alerts, perform diagnostics, and remotely solve any challenges. The Cerbo GX turns any challenge in your energy system into an effortless experience.
Maximize the performance of your system
The Cerbo GX maximizes the performance of your system elements in real time and keeps them in perfect harmony. Thanks to its Dual Core processor and the addition of an additional Bus-CAN port, you can now manage larger systems; closely monitor (lithium) batteries that are managed in the system, while the second port can simultaneously support up to 25 connected VE.Can solar chargers. Thanks to the new support of the NMEA 2000 protocol, the GX can easily be integrated into any boat network. With four tanks and four more for temperature, as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays, you can take control of your system to the next level. Maximizing the performance of your systems has never been easier.
Expand your field of vision
The new (optional) GX Touch screen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Waterproof, its extra-thin design of 5 or 7 inches, its mounting in height, and its ease of installation bring great flexibility to the creation of a clean and clear dashboard.
Simple configuration and assembly
The Cerbo GX has been optimized to do more than meet the standards of professional installers. The device easily mounts to a DIN profile (with a DIN35 adapter small, not included) and its independent touch screen can be screwed to the top of a dashboard. Thus, no need to make perfectly accurate cuts (as for the Color Control GX): just plug it in with a single cable, which saves you the hassle of pulling many wires to the dashboard. Its new Bluetooth function allows quick connection and configuration through the VictronConnect app.
Face the energy challenges without fear
The Cerbo GX meets an endless number of objectives, extending total control to the most diverse applications. For solutions including generators, such as marine, standby and off-grid applications, it will start/stop your generator, or it will delay ignition until the end of the «quiet» periods. For energy storage systems, it keeps backup batteries at 100%, intervenes during power outages, and diverts excess (solar) energy to self-consumption, saving you money. For motorhomes and emergency vehicles, it allows the vital functions of the systems to be maintained without the slightest defect. And all this to name just a few of the functions available...
