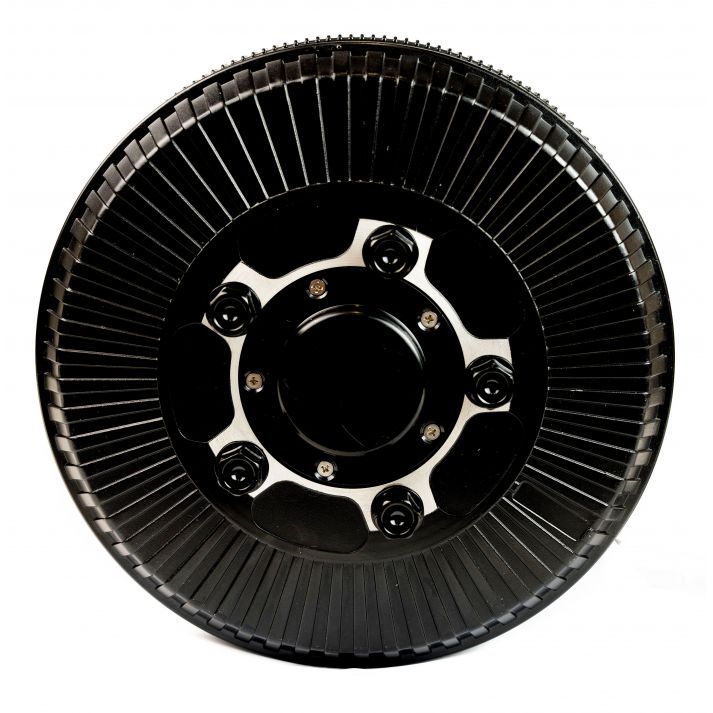

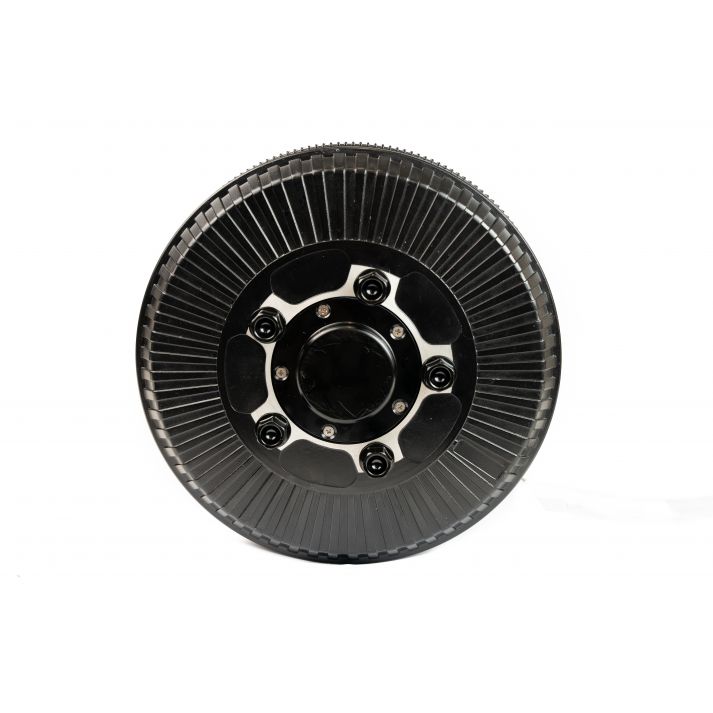

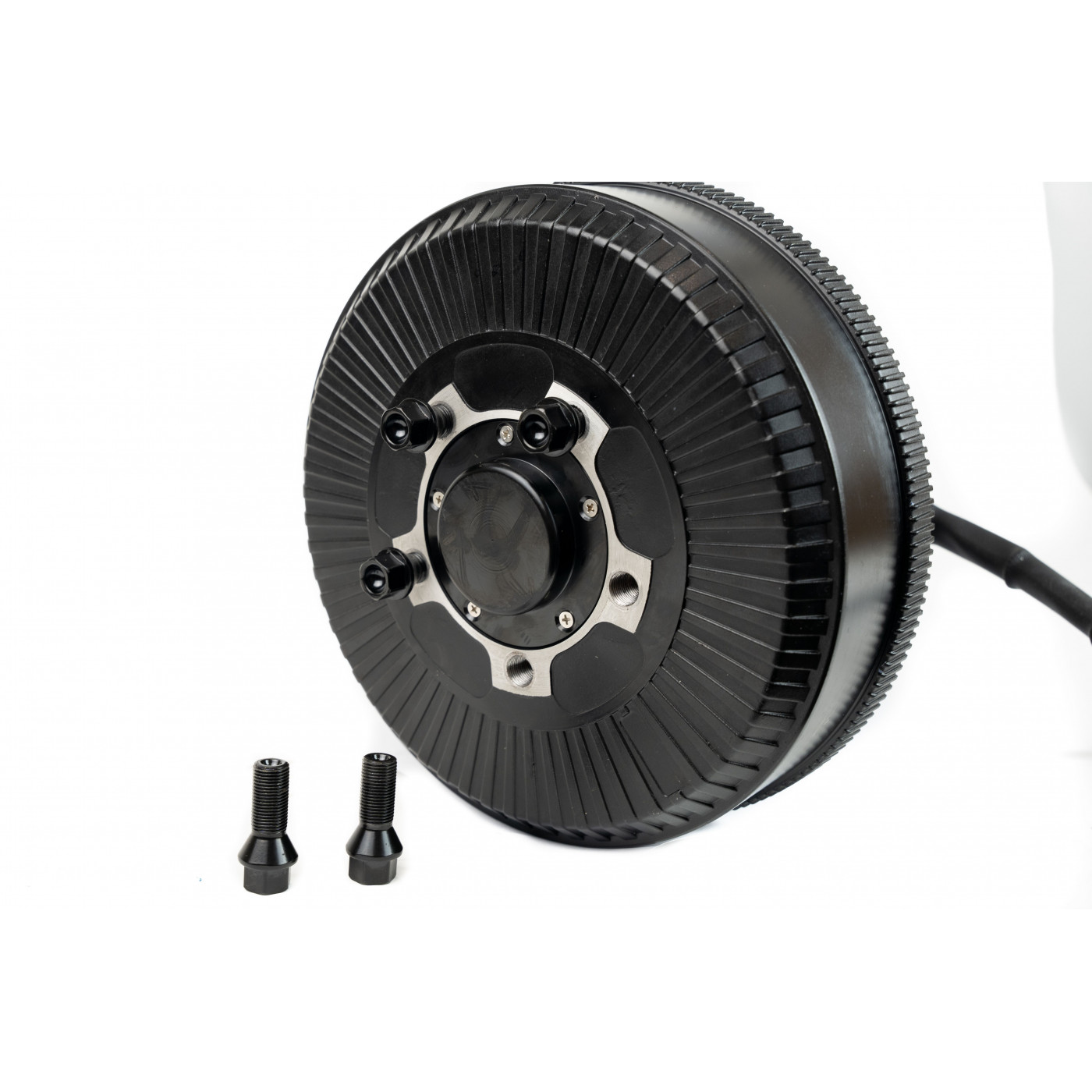

Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

Create a new type of vehicle with this electric hub; it will perfectly fit your chassis in place of your current wheel.

This brushless motor is equipped with three Hall effect sensors. You will need a Hall effect FOC brushless controller.

We recommend using a 200A controller with this motor.

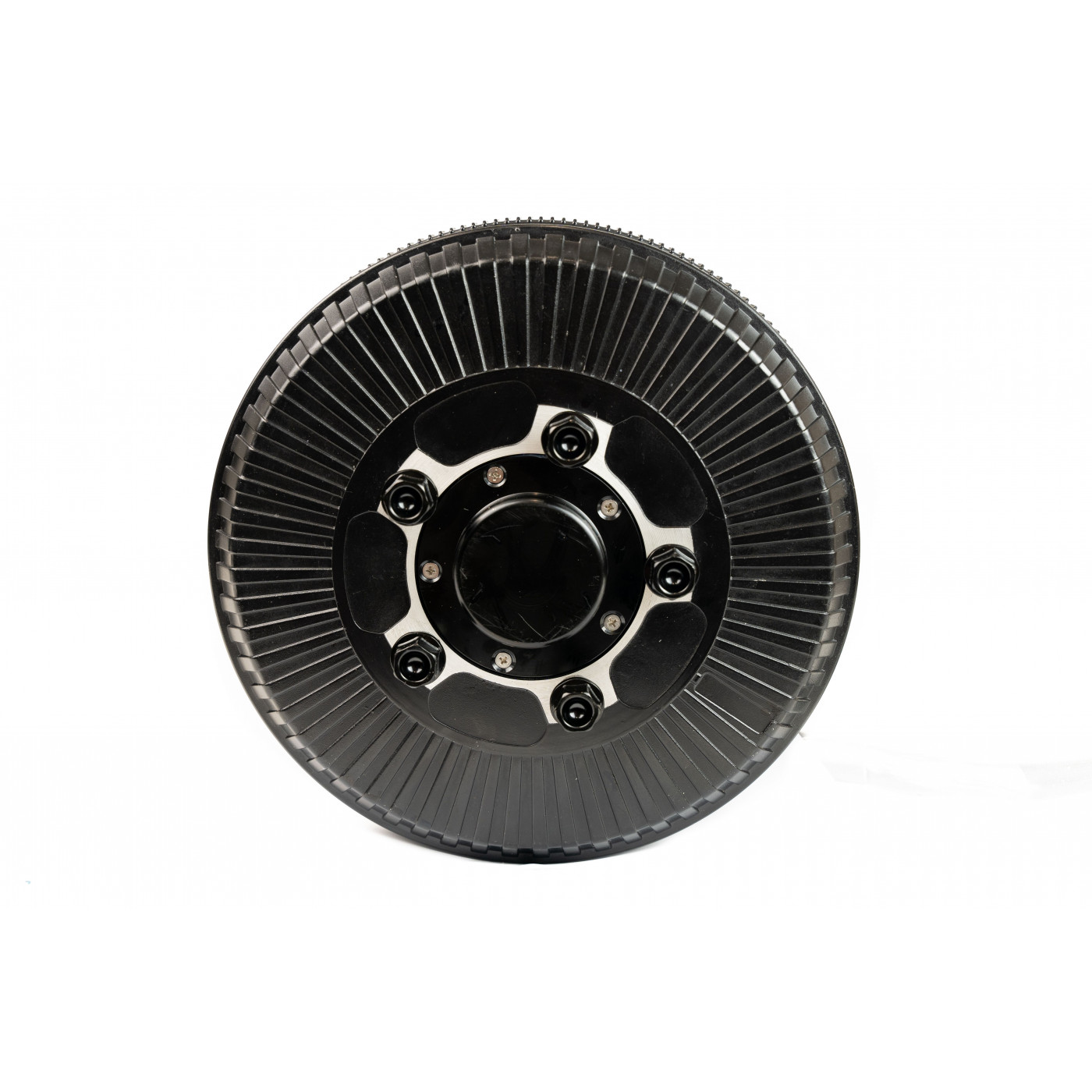

Compatible with 5-hole x 114.3mm automotive rims, the standard size found on most cars on the market.

Please note that the minimum rim diameter must be 12 inches.

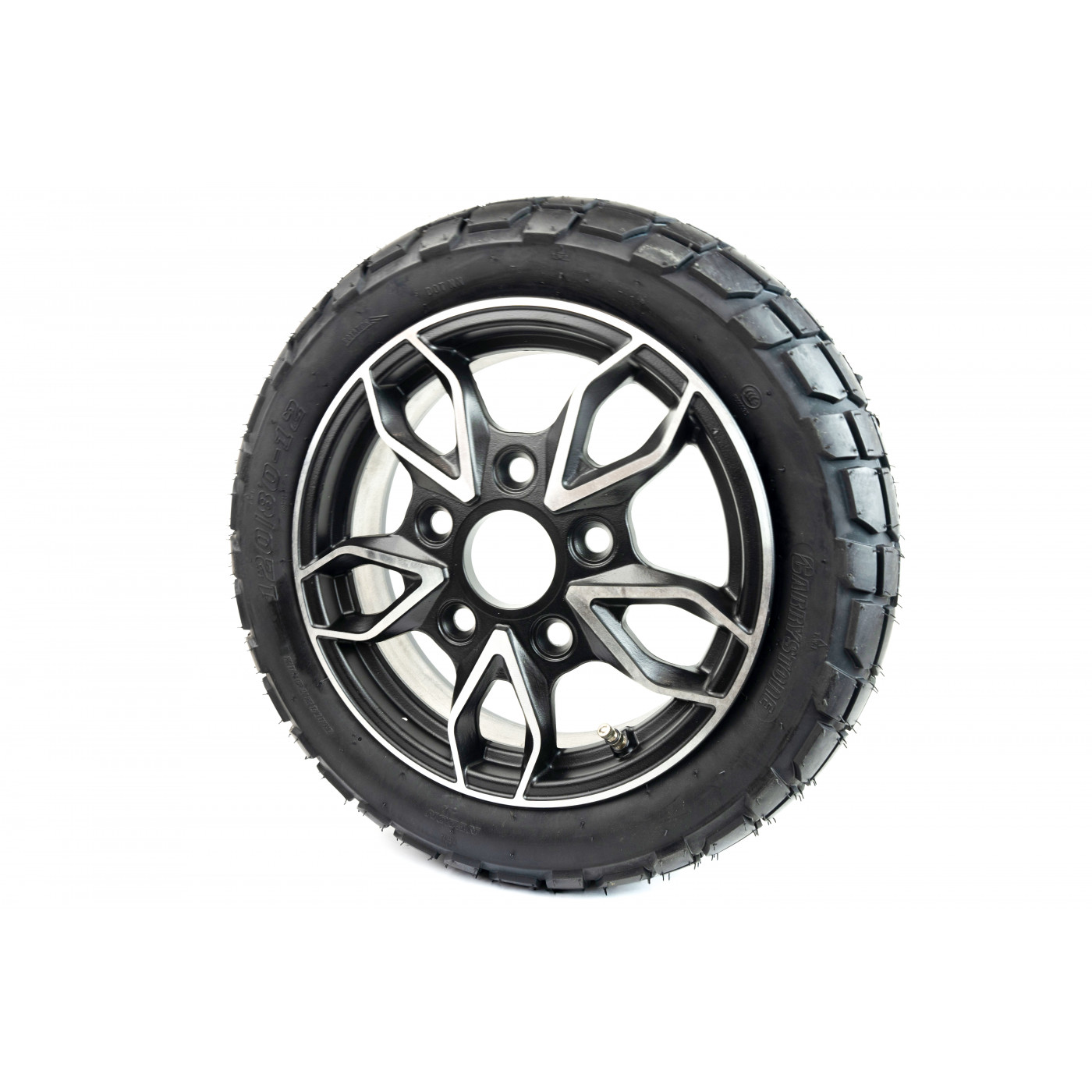

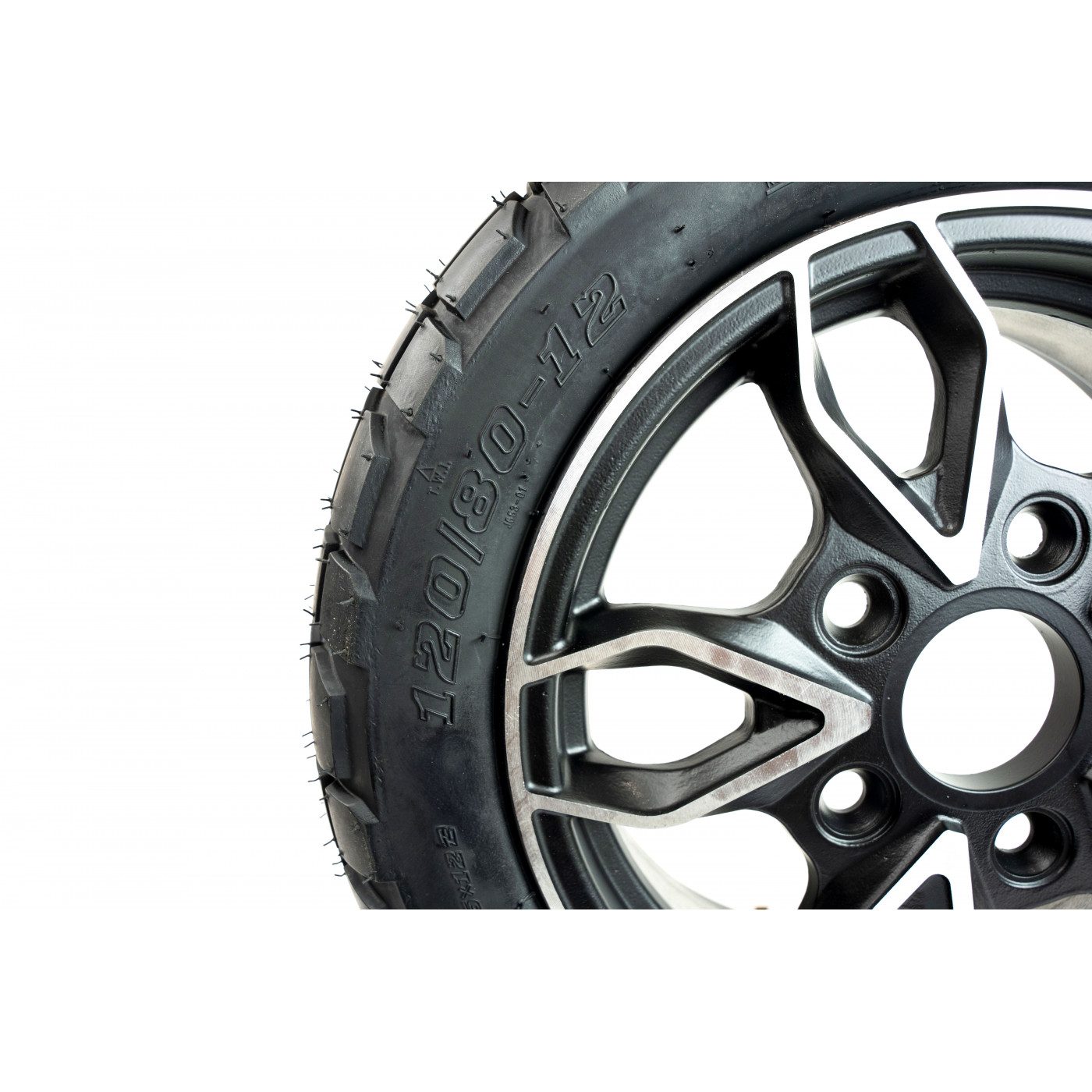

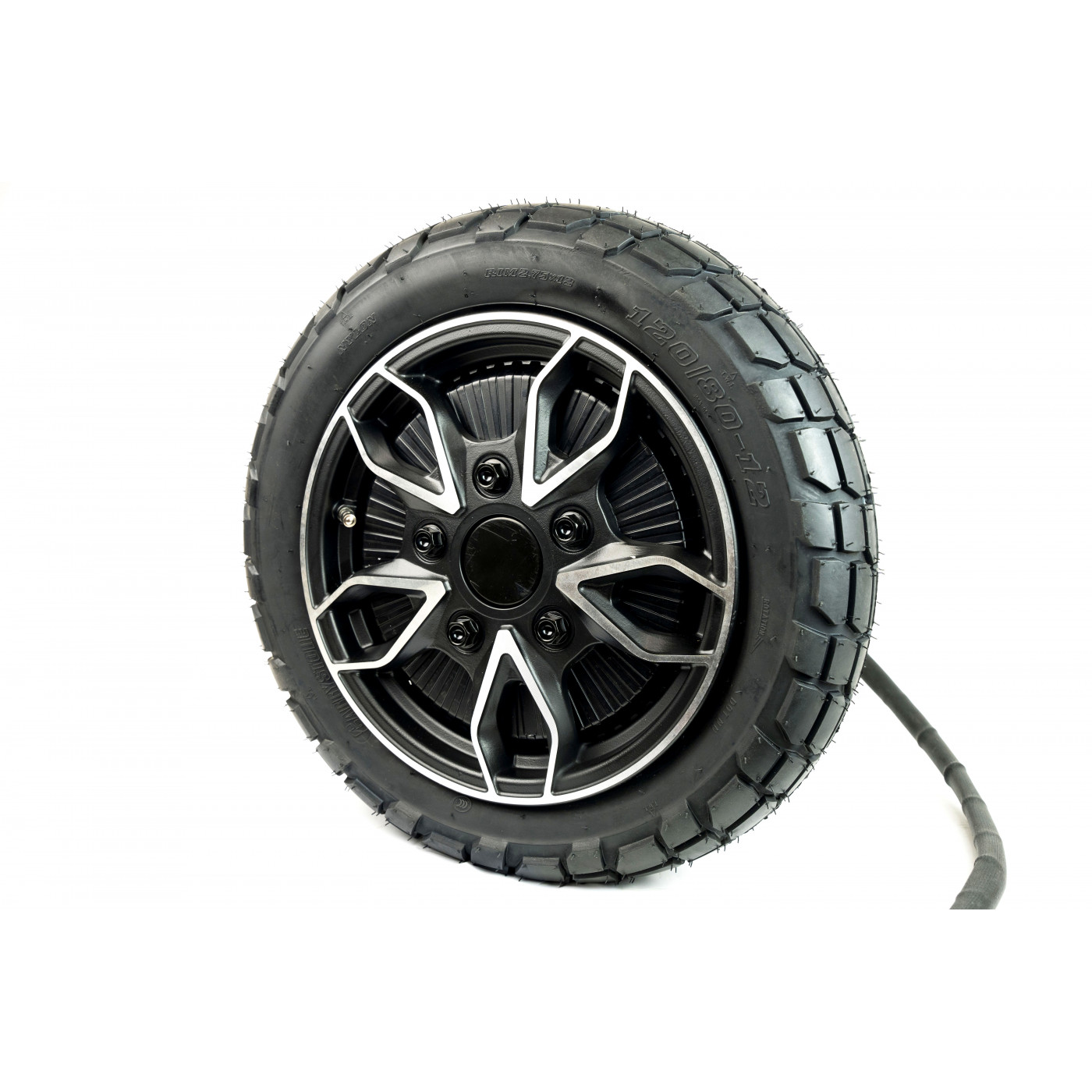

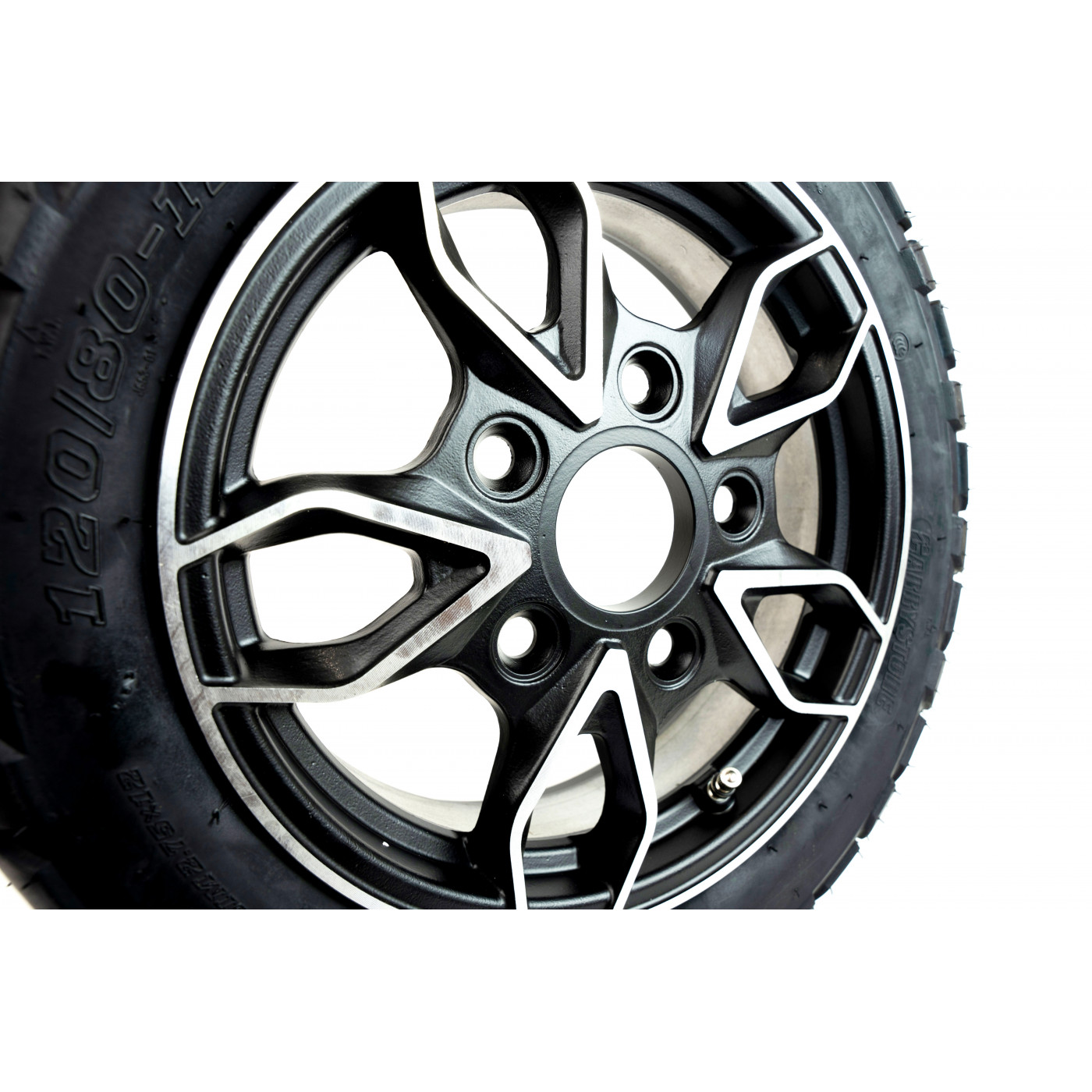

For 12-inch rims, we can offer our own rims.

This brushless electric motor with direct drive technology is among the most robust motors on the market, requiring no maintenance, offering high endurance and maximum efficiency.

Delivering 200 Nm of torque at 48V, this electric hub motor is perfectly suited for all your vehicle projects, with speeds of around 45 km/h.

We offer a standard speed rating of 10.8 RPM/Volt, allowing you to reach 45 km/h at 48V with 12" wheels. However, if you are a vehicle manufacturer or designer and require modifications to the motor beyond the original specifications, please contact us. We can adjust the Kv rating from 5 to 20 RPM/Volt.

With its IP67 rating, this motor hub can withstand harsh weather and the tropical environments of your greenhouses, rainforests, and more.

This brushless motor accepts a supply voltage between 40 and 87V.

We offer a complete kit (controller, battery, control system) adapted to this motor, allowing you to add an electric motor to your vehicle.
