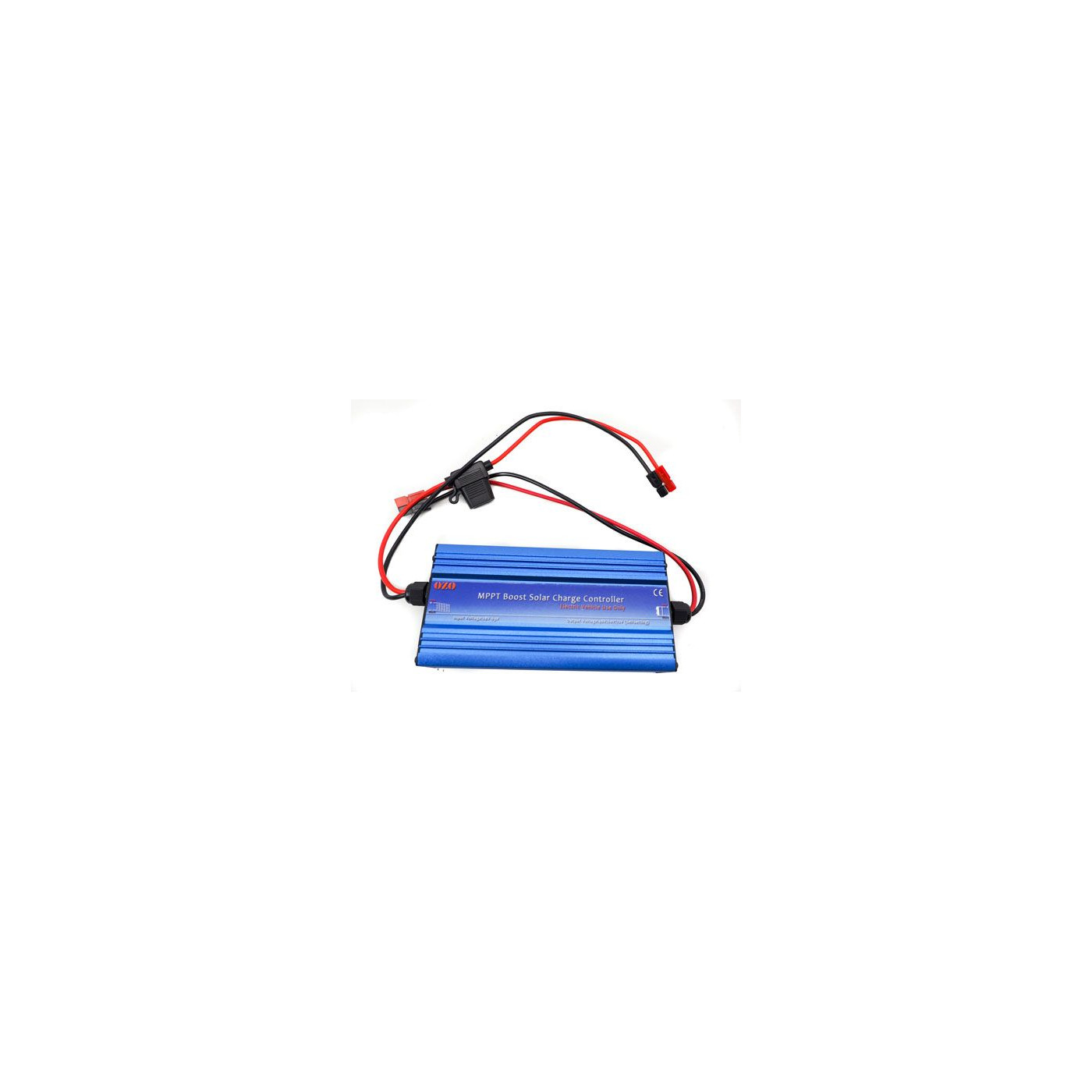

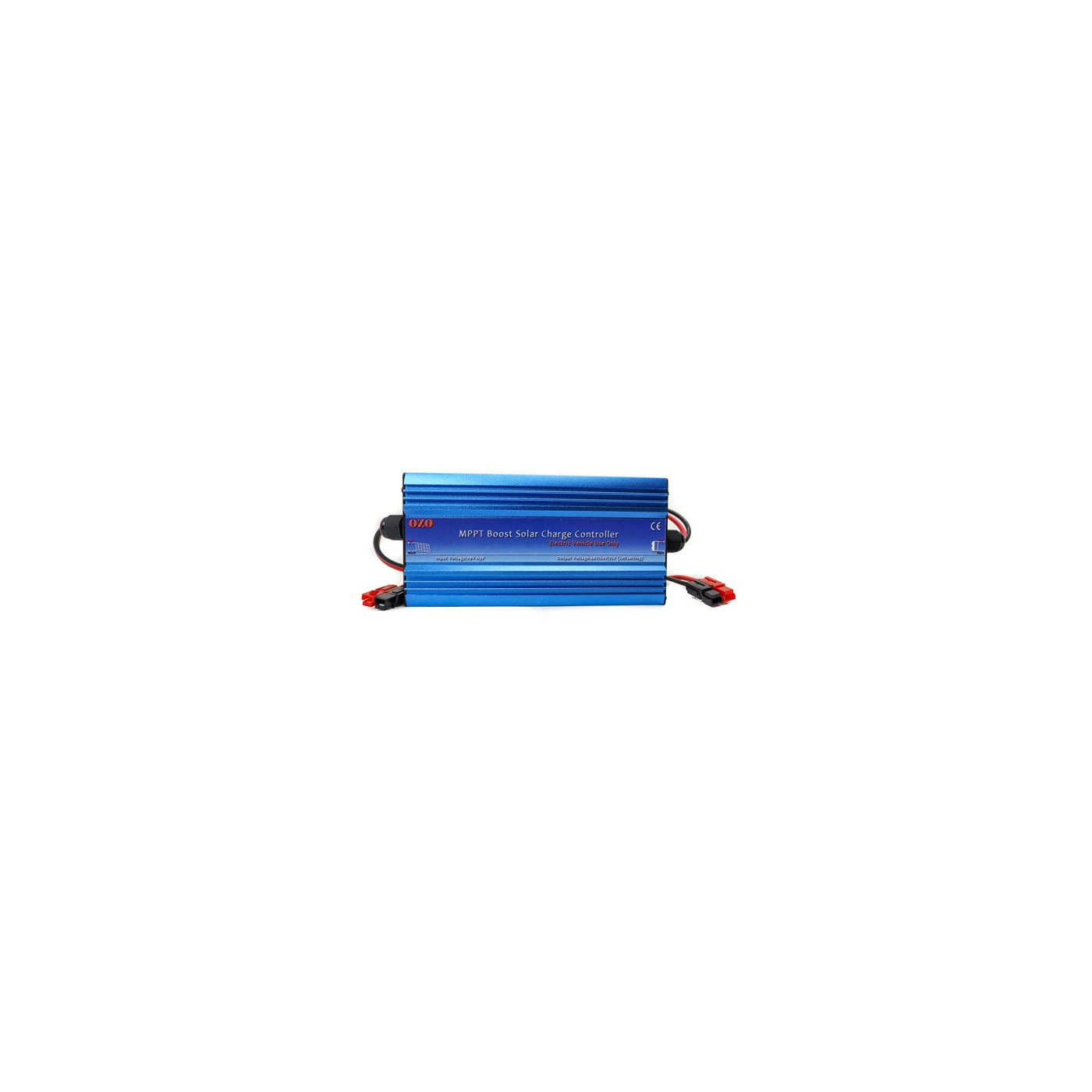

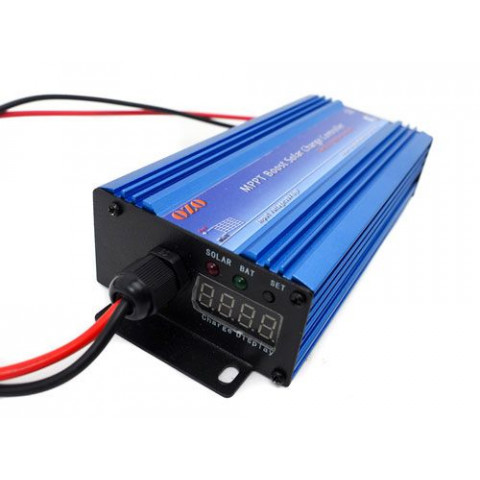

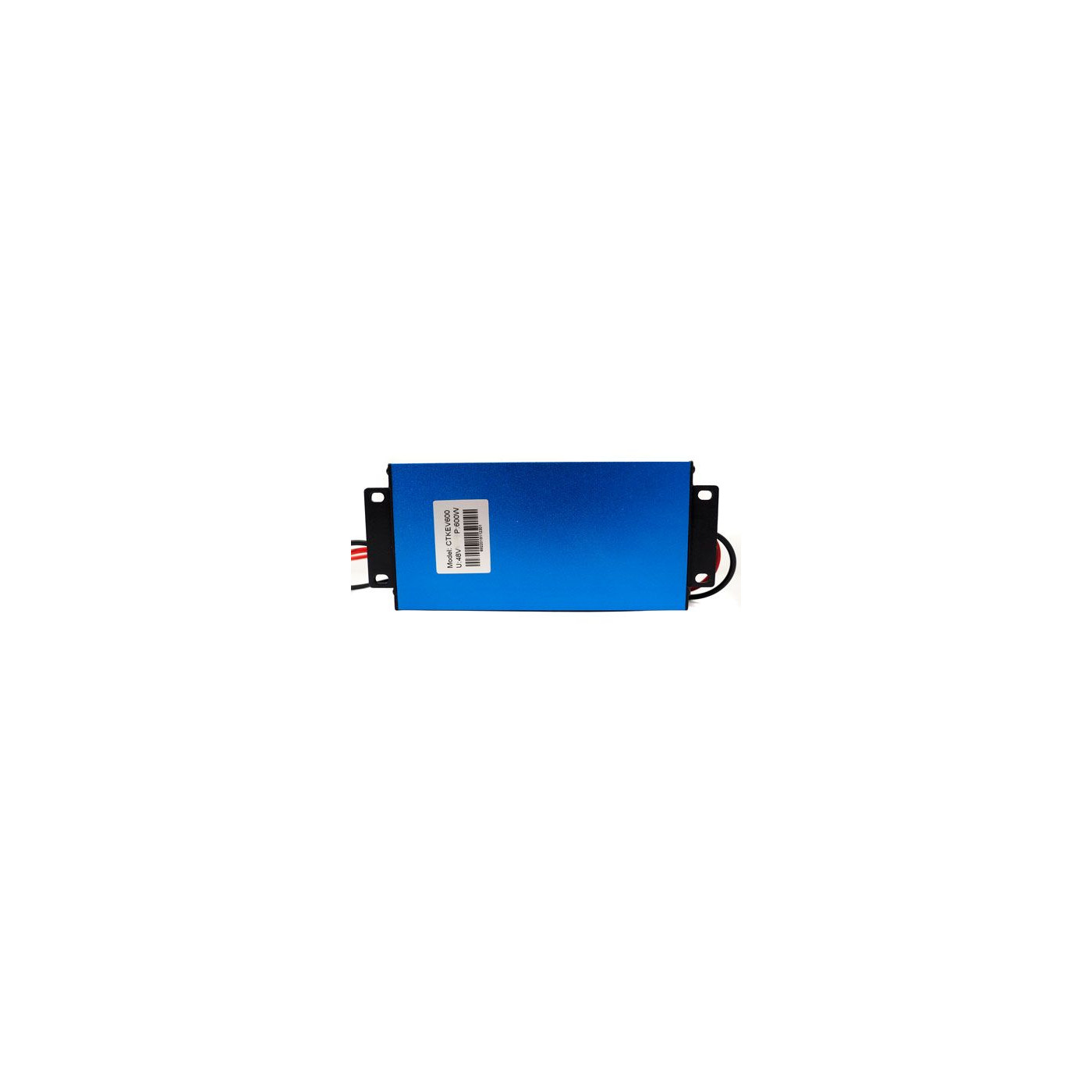

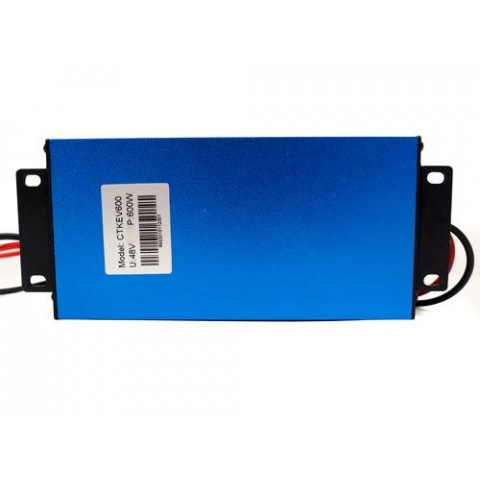

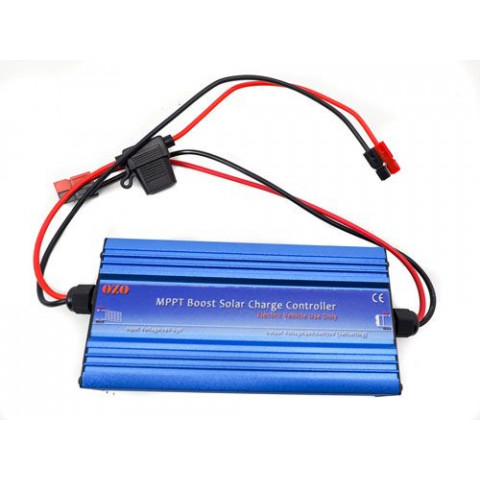

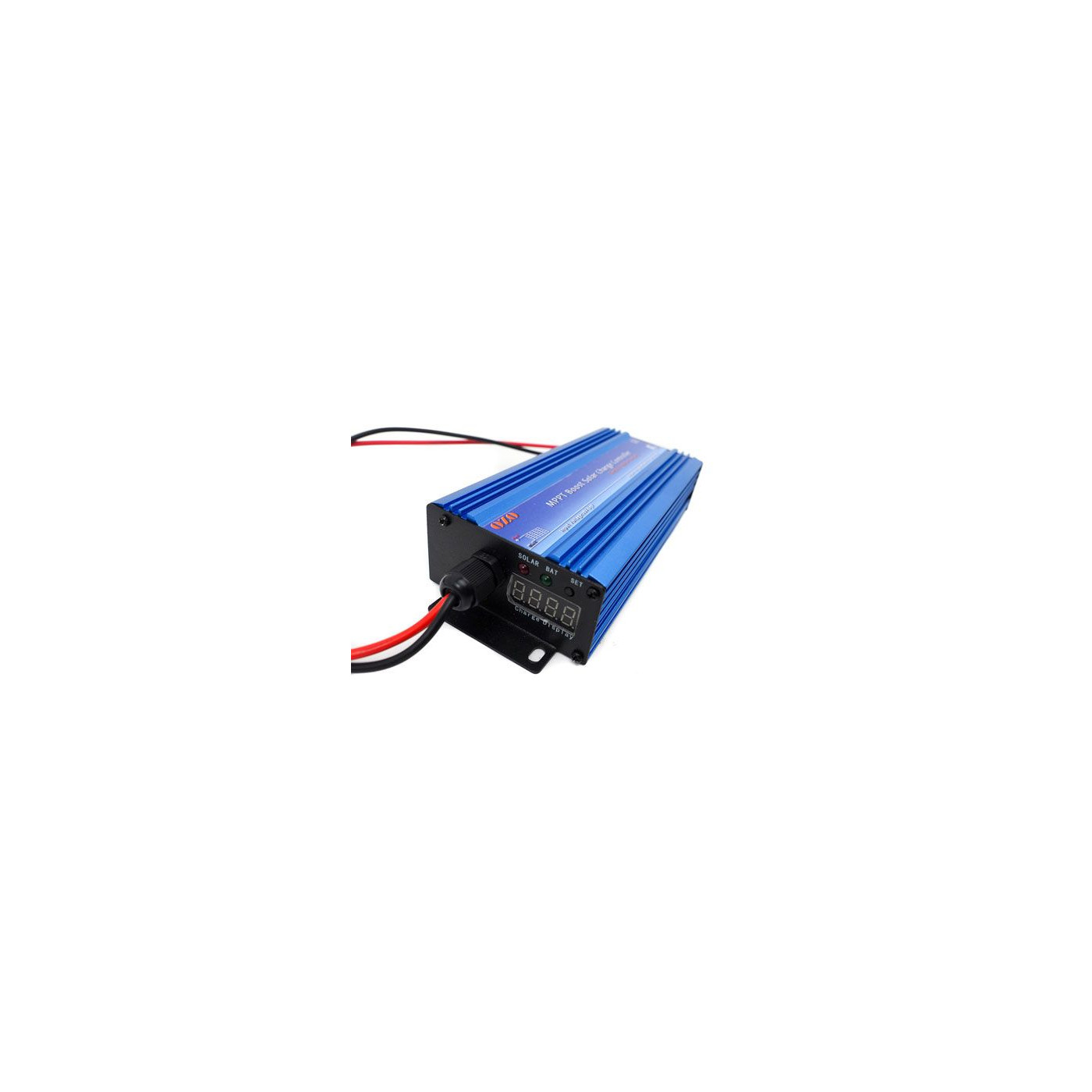

THE 600W MPPT BOOST SOLAR CHARGER
This MPPT Boost controller solar charger is configurable, which will allow you to recharge any battery from 48V to 72V regardless of its technology. Indeed, this charger is compatible with lithium batteries (LiMn and LiFePO4) but also with lead, gel, NiMh, NiCd batteries.
MPPT technology is the technology that will bring you the best charging efficiency. The "boost controller" integrated into the charger allows you to use a panel output voltage lower than the voltage of the battery to be recharged.
Note that you will need a panel output voltage higher than 26V, so two 12V panels in series will suffice. The charging speed will depend on the panel’s power and sunshine conditions. Note that this charger is not waterproof.
CONNECTION DIAGRAM
Serial and parallel mounting possible:
- 2x 100W series
- 2x 150W series
- 2x parallel 100W
SERIES
PARALLEL
Consult here the use sheet
000432
Data sheet
- Guarantee
- 2 ans
- Puissance
- 300W
- Dimensions
- Longueur : 140 mm | Largueur : 74 mm | Hauteur : 43 mm
- Affichage tension batterie
- OUI
- Tension
- 48V, 60V, 72V
- poids en 26 pouces
- 450 gr
- Technologie
- MPPT à Boost controller
- Tension d'alimentation
- 24V à 36V
- Tension de sortie
- réglable de 24V à 86,4V
