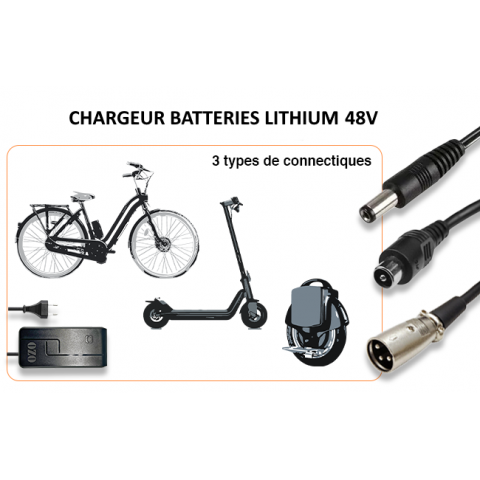

Charger for Lithium battery of VAE, electric bike and electric scooter equipped with a Lithium 48V LiMn battery.
We offer 3 charging current values, directly influencing the speed of the battery recharge.
The standard version in 2A (Ampere), the 4A version (2x faster than the 2A version) and the 5A version (the fastest version for a standard 48V battery in a streamlined or PVC format)

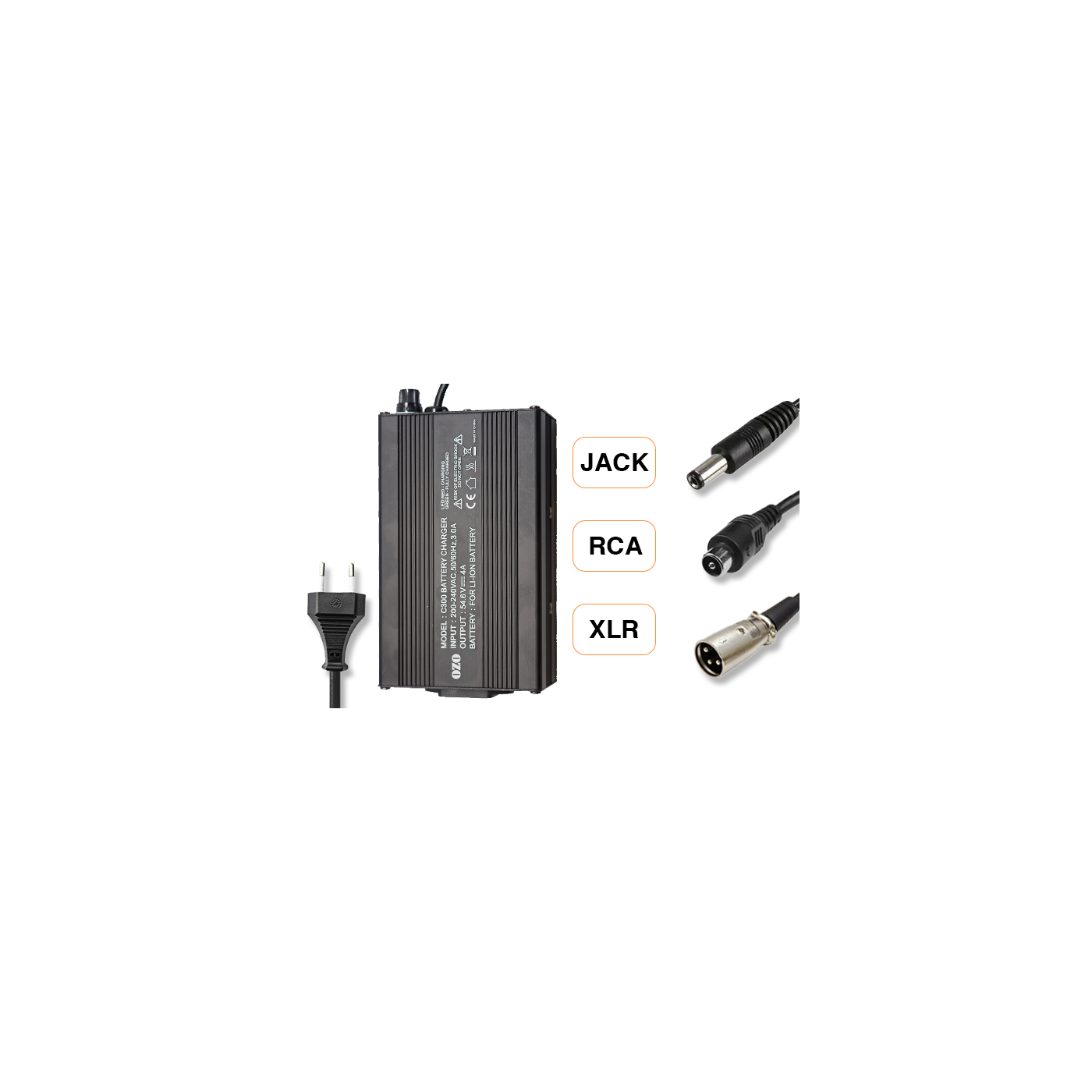

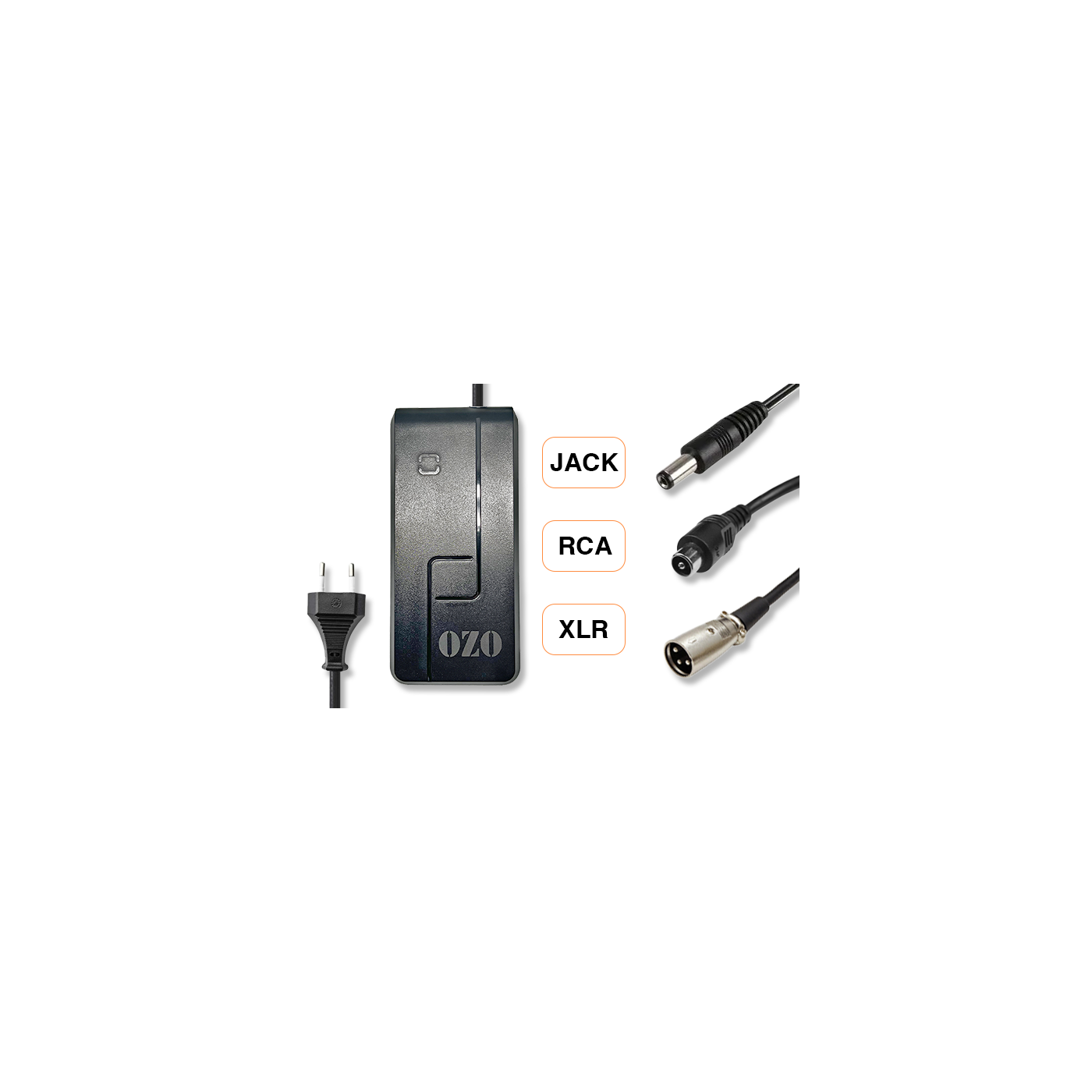

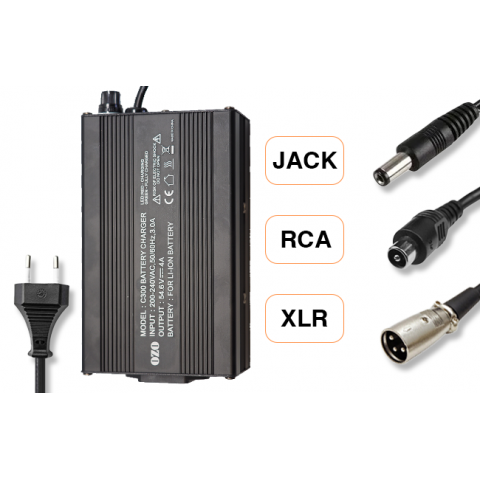

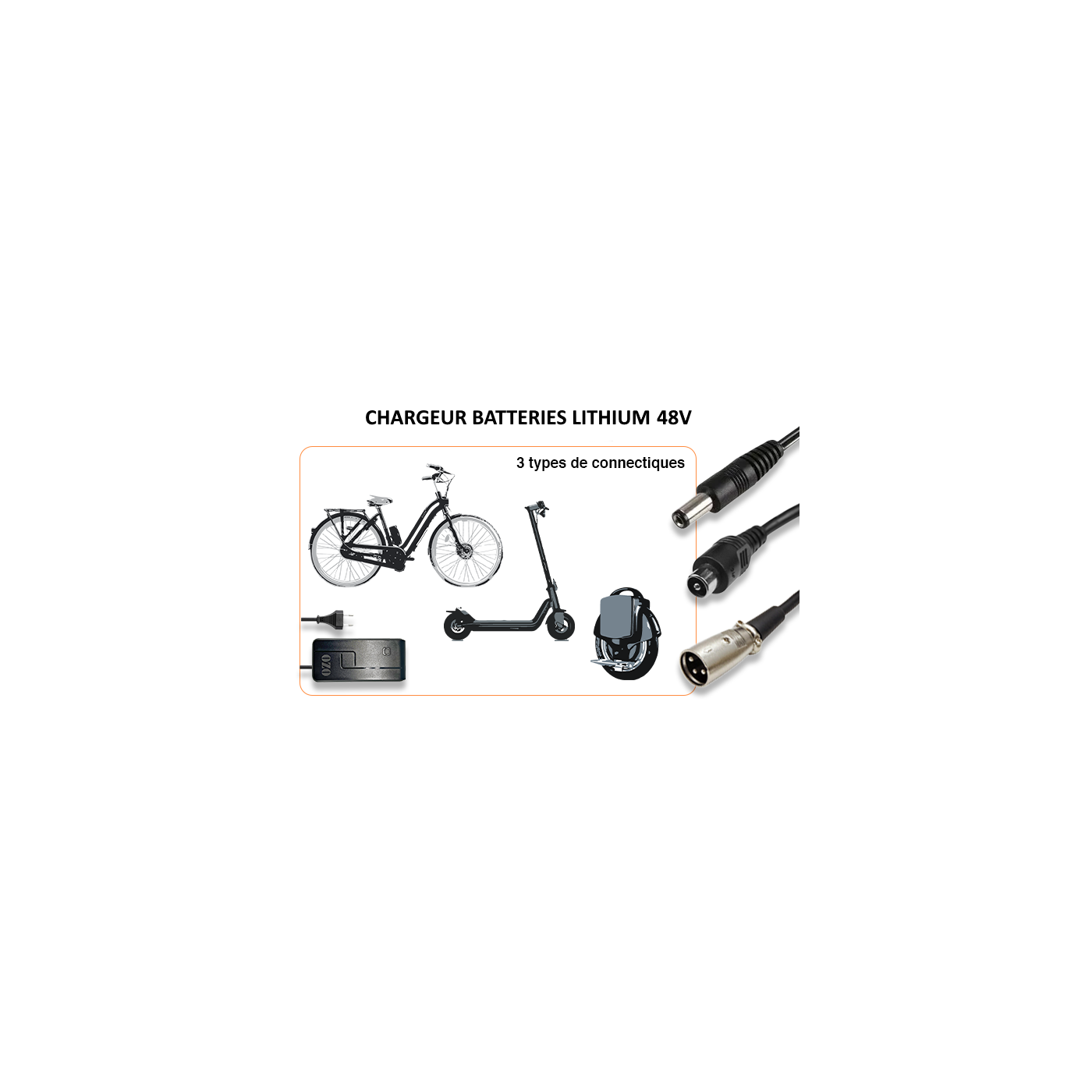

We offer 3 different types of charging connectors: RCA, XLR or Jack DC 2.1mm (2.1x5.5x12mm)
Charging voltage = 54.6V
Charging current = 2A or 4A or 5A
To choose your electric bike charger correctly, check the voltage of your battery and its connectivity.
This charger is designed to charge Lithium LiMn and LiPo batteries with a nominal voltage of 48V and 54.6V max.

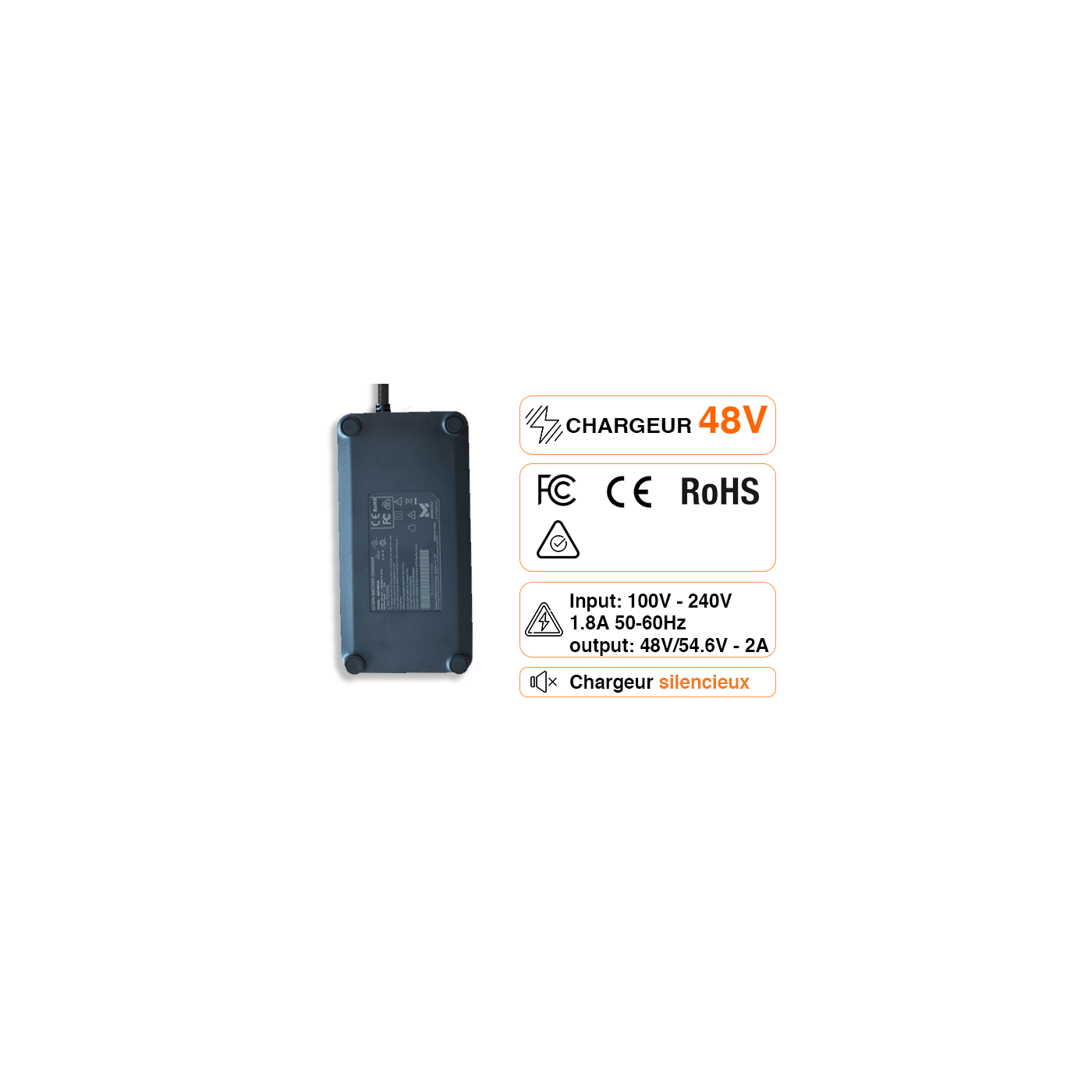

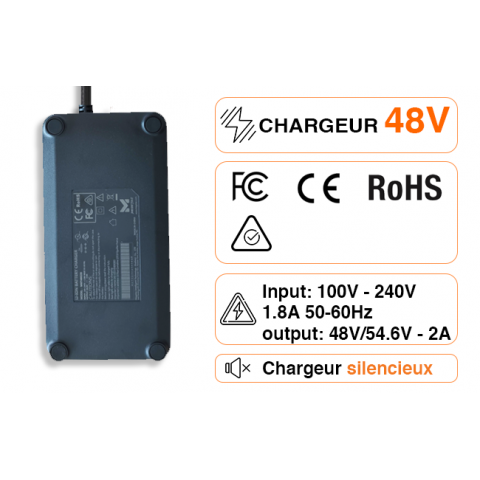

The 48V 2A charger allows you to recharge a 48V 14Ah 670Wh Lithium battery in 7 hours.
Charging connector: RCA, JACK or XLR
Power cable length: 1150 mm
Power cord length: 1500 mm

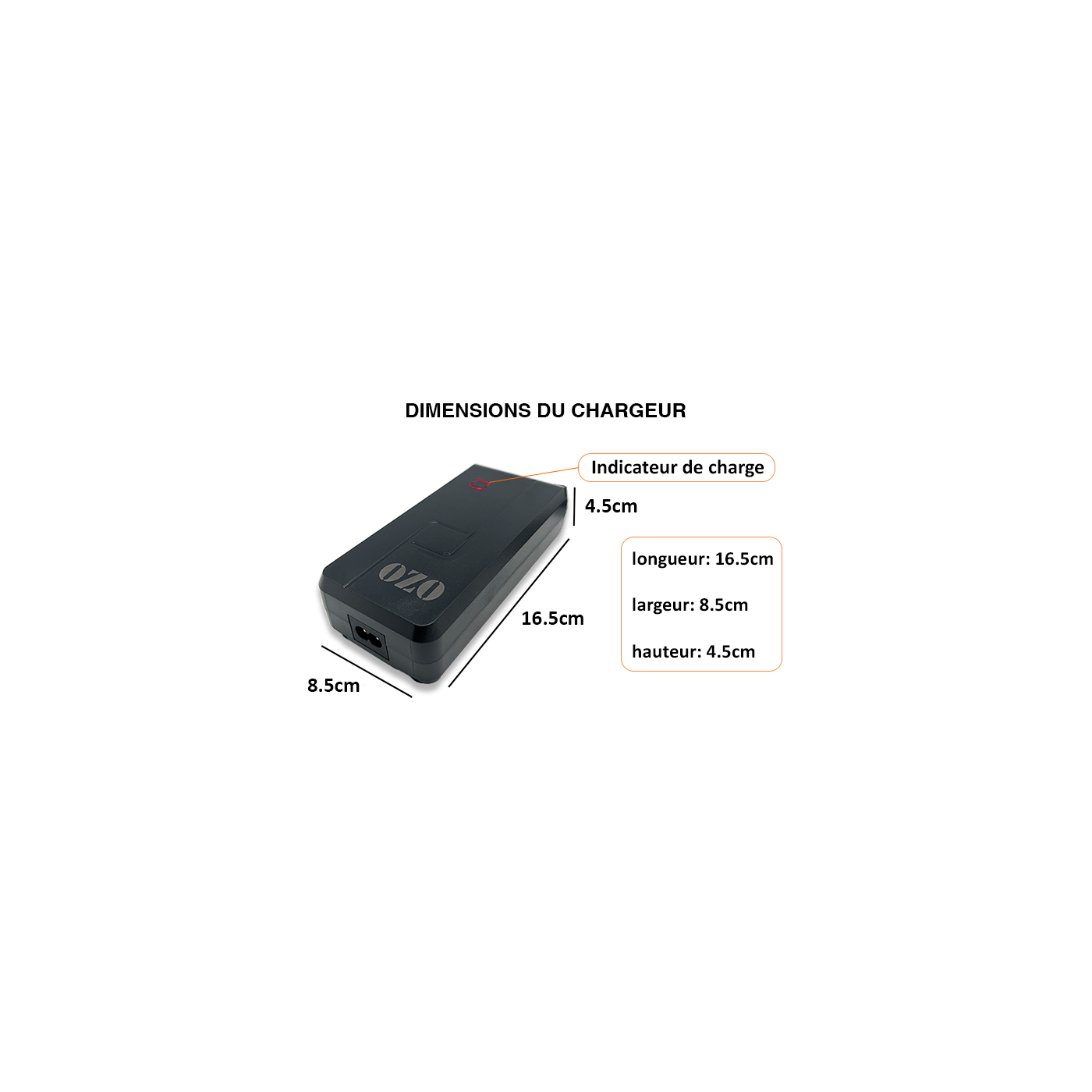

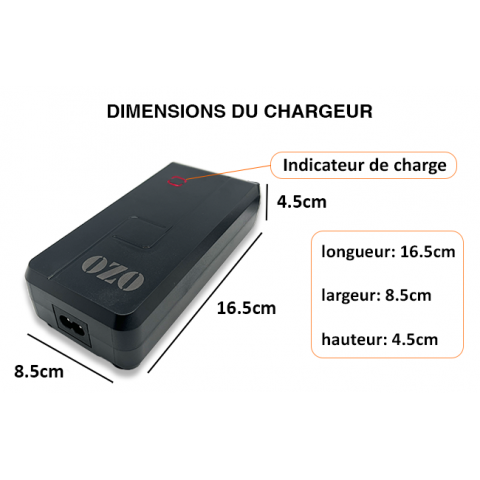

Charger dimensions: 165x85x45 mm
Fan: No
Weight: 510 gr.

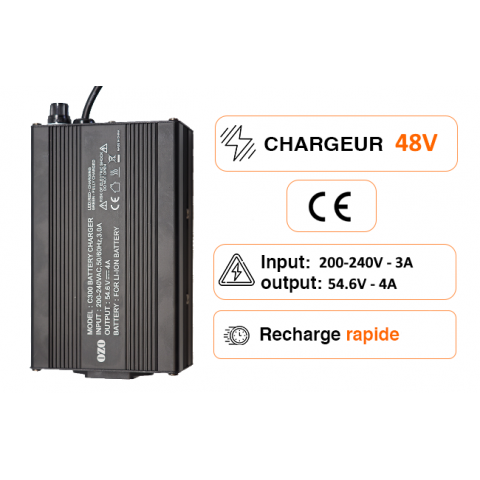

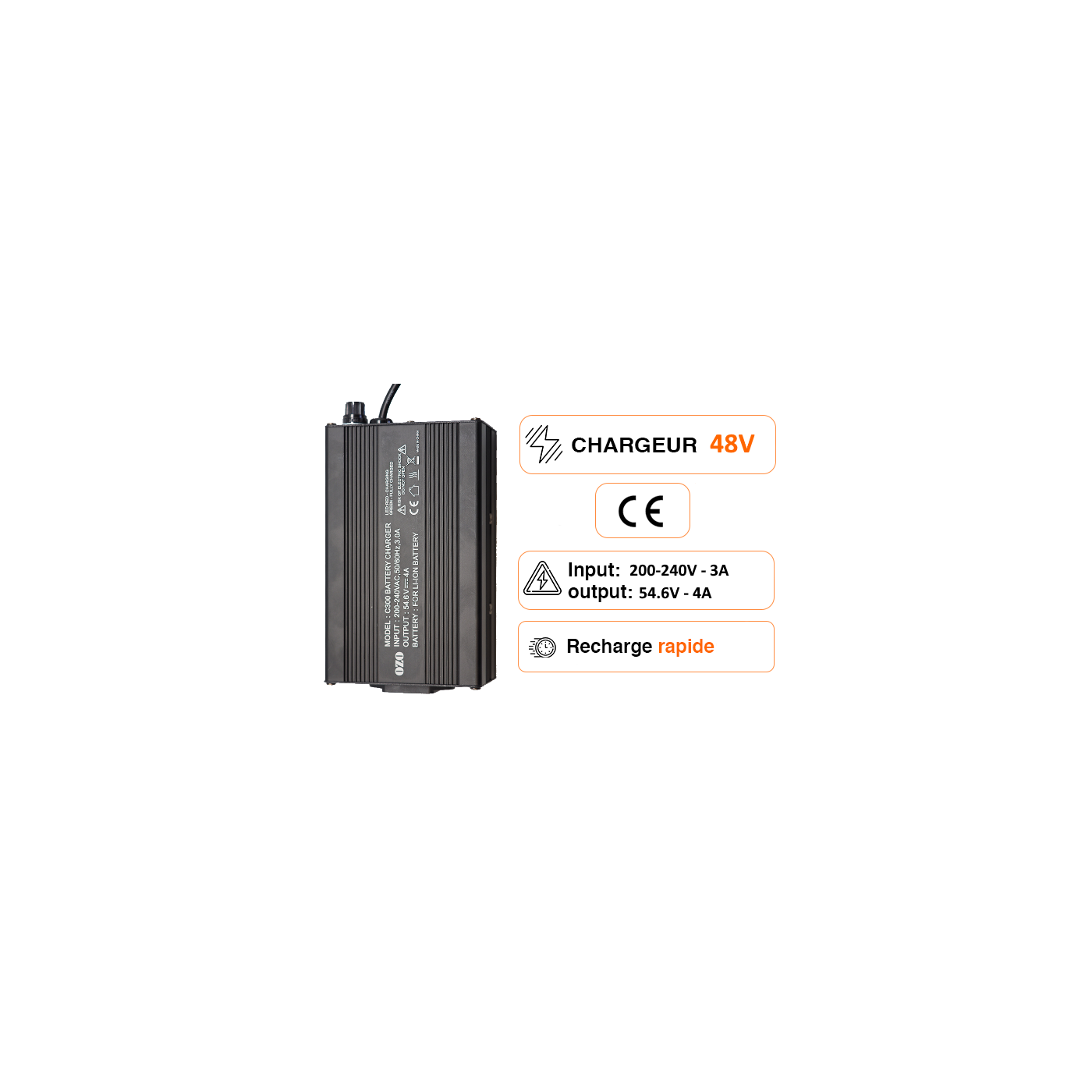

The 48V 4A charger allows you to recharge a 48V 14Ah 670Wh Lithium battery in 3 hours 30 min.
Charging connector: RCA, JACK or XLR
Power cable length: 1000 mm
Power cord length: 1500 mm

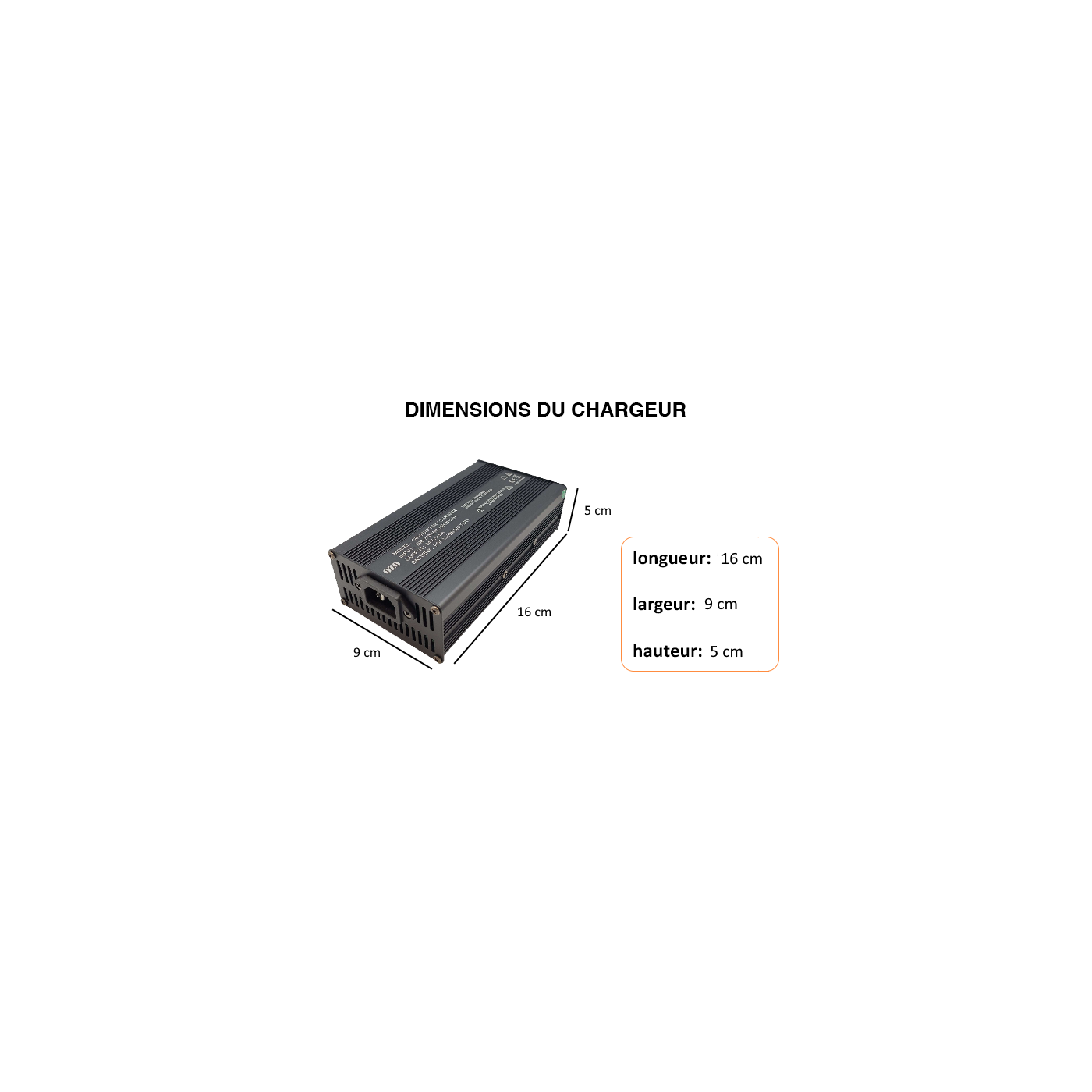

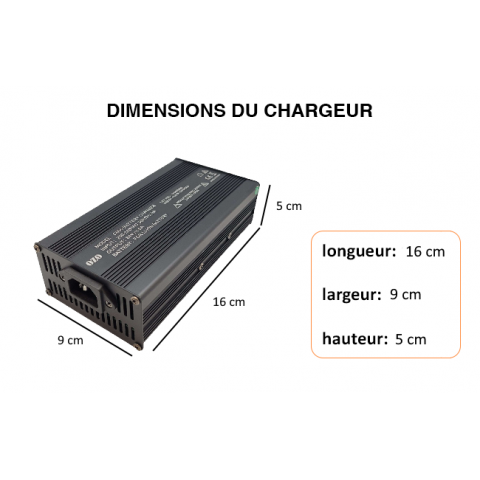

Charger dimensions: 160x90x50 mm

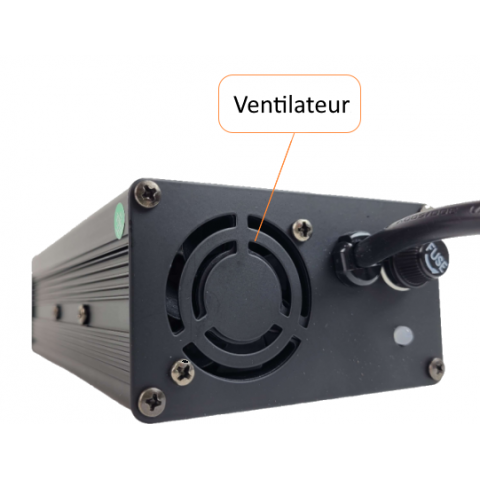

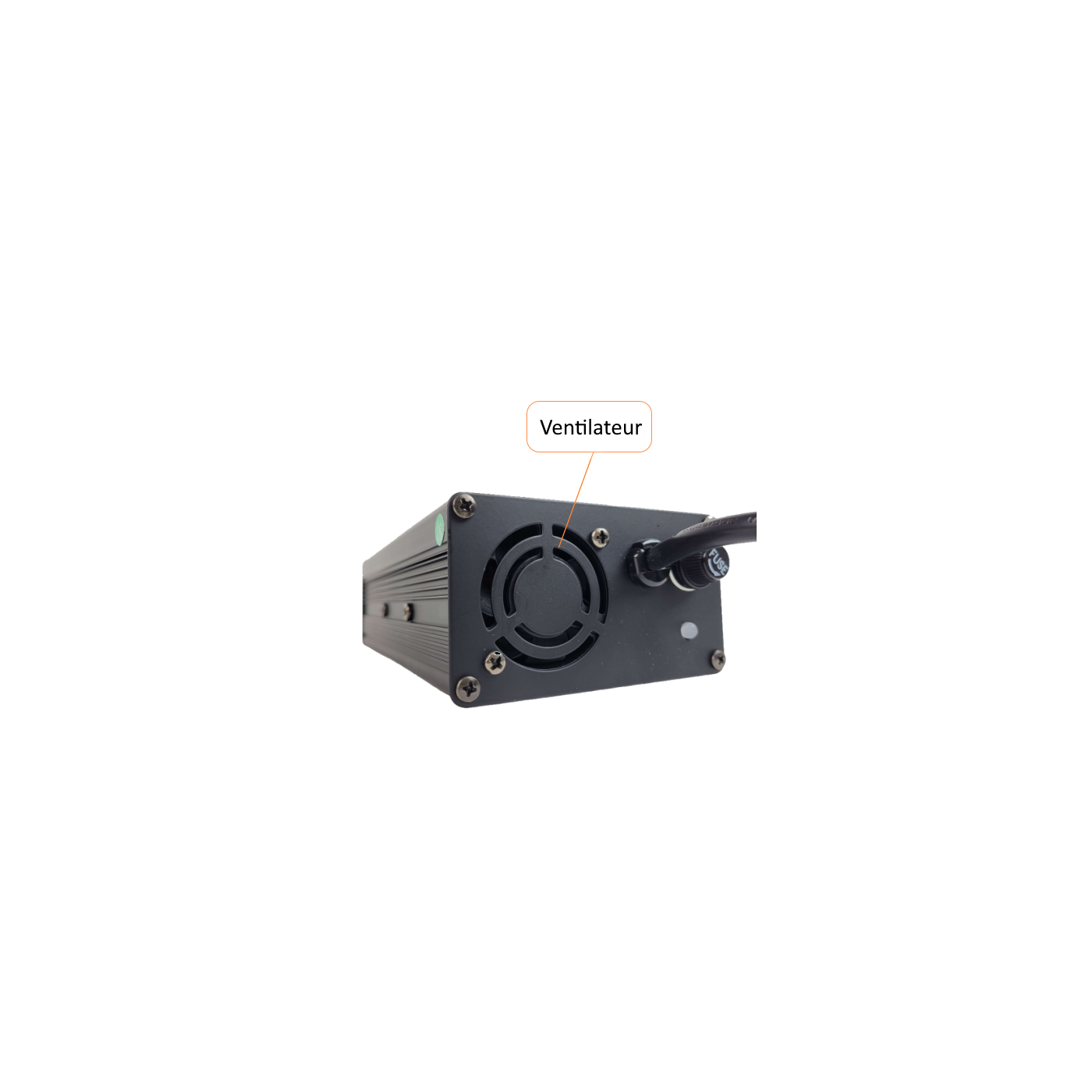

Fan: Yes
Weight: 650 gr.
The 48V 5A charger allows you to recharge a 48V 14Ah 670Wh Lithium battery in 3 hours.
Charging connector: RCA, Jack , XLR
Power cable length: 1000 mm
Power cord length: 1500 mm
Charger dimensions: 160x90x50 mm
Fan: Yes
Weight: 670 gr.
These charging current values do not affect the lifespan of your battery as these values remain well below the recommendations of cell manufacturers.
If you have a different charging socket, we can offer you charging adapters.

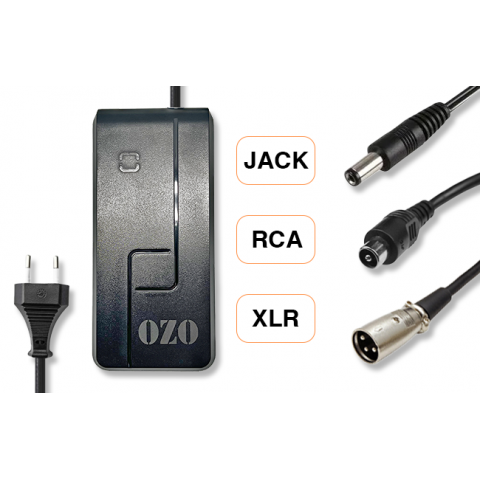

We offer three types of charging connectors to choose from for this charger:
