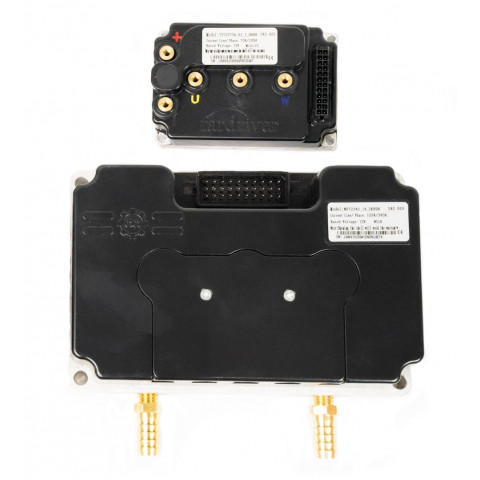

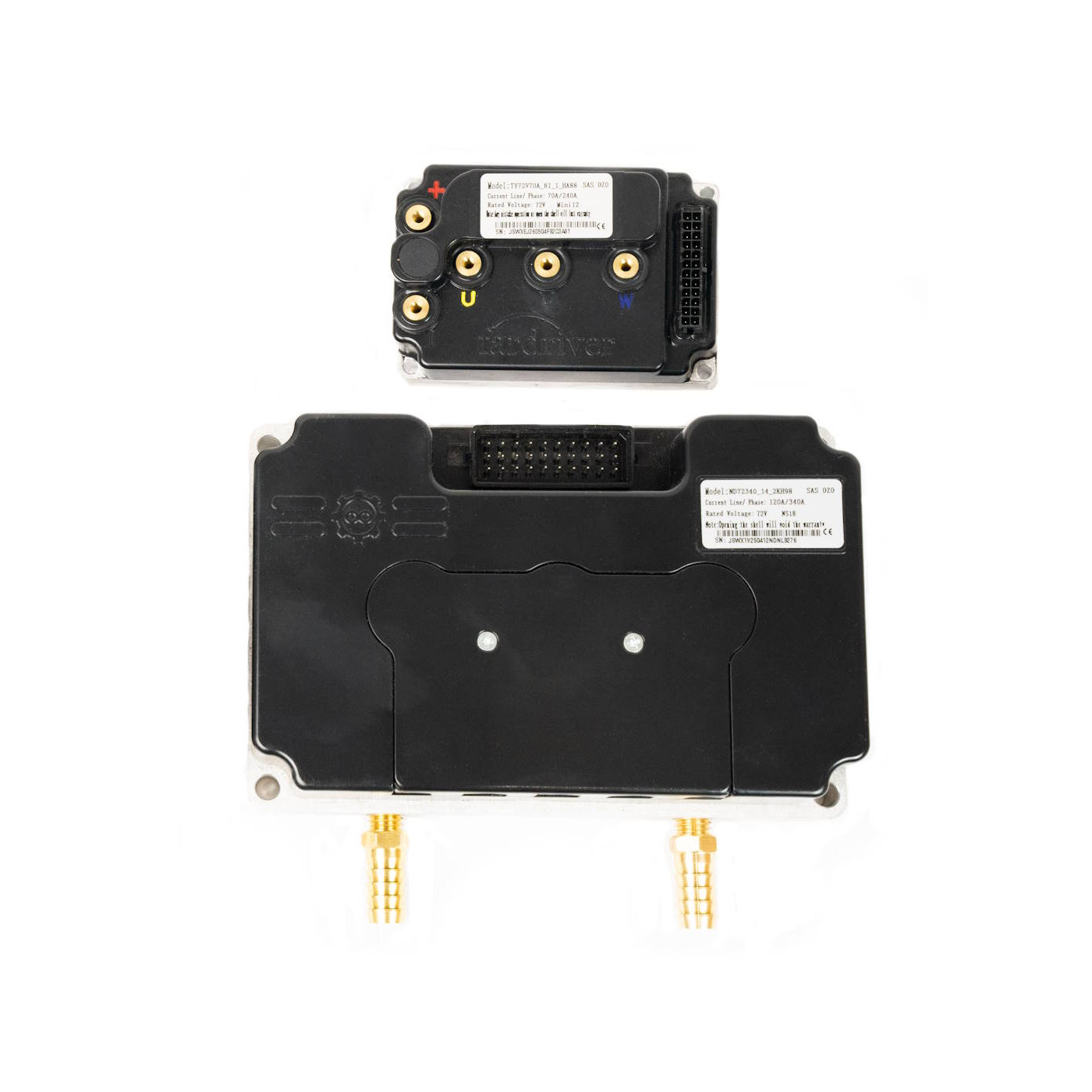

OZO Bluetooth 100A , 190A and 350A controller for Brushless motors with Hall sensors

Bluetooth 100A, 190A and 350A FOC vector controller for brushless motors.

Compatible with 48V, 60V and 72V batteries.

This controller is the perfect choice for electrifying motorcycles, karts, boats or any other project requiring sophisticated management of multiple parameters and high power.

The smartphone application (IOS and Android) makes it quick and easy to set parameters and customize your vehicle's behavior. Engine mapping tailored to your needs at your fingertips.

Supplied with Bluetooth module

IPM PMSM motor controller IP68 with encoder

€499.00 (tax incl.)

FOC liquid cooling controller 190A and 350A for BLDC PMSM motors with encoder

€349.00 (tax incl.)

Bluetooth 100A, 190A 350A, 450A and 500A FOC vector controller for brushless motors. Compatible with 48V, 60V and 72V batteries. This controller is the perfect choice for electrifying motorcycles, karts, boats or...

Kelly Mini Puma KLS 36-72V 100A 150A programmable sinewave controller.

€189.00 (tax incl.)

Kelly KLS7210ND KLS7215ND 7220ND and 7230ND Mini Controller Operating voltage range: 39V to 84V 150A rated et 300A max for the KLS7230ND 100A rated et 200A max for the KLS7220ND 80A rated and 150A max for the...

Controller 25A 12V 24V 36V 48V dual sensored/sensorless

60A BLDC FOC industrial Controller 24V 36V 48V

€199.00 (tax incl.)

The OZO controller 24V 36V 48V 60A integrates high quality electronic components from the automotive world. For electric motors above 1500W and up to 5000W Dual sensored / sensorless adaptive field-oriented...

Gigt Voucher 50€,100€,150€, 200€

€50.00 (tax incl.)

Gift voucher worth 50 € to 200 € Valid for 1 year on all products on the site

Description

MAIN FEATURES

Outstanding performance :

Explore the Brushless Motor Controller, a robust solution designed to drive BLDC or IPSM motors with unparalleled precision. Thanks to the FOC technology (Field Oriented Control, English equivalent of Vector Control), this controller delivers remarkable performance, specially adapted to the 6kW and 15 kW central motors offered in our range. Also allows you to control all types of brushless motors with hall effect sensors. Automatic and fast pairing between the motor and this controller model.

Personnalisation avancée :

Fully customizable thanks to the smartphone application (Android or IOS) In a few minutes, you can drive any type of motor wheel, center, hub Brushless technology with Hall Sensor. Control your motor easily with various interfaces such as a trigger, a handle or even a pedal. Easily switch between forward and reverse via a two-position knob or WigWag-type joystick. Enjoy three speed modes adjustable in power and speed, offering optimal customization. Explore advanced features such as cruise control, boost mode and regenerative braking adjustable in 500 rpm increments. OZO remains at your disposal to help you find the best possible configuration for the chosen engine and your need.

Refroidissement liquide :

The 190A and 350A versions are specially designed for use with a liquid cooling system, ideal for applications requiring continuous high power. Enjoy maximum performance with efficient thermal management for long-lasting performance.

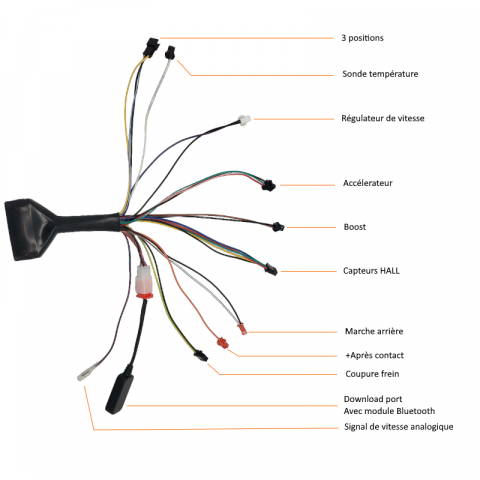

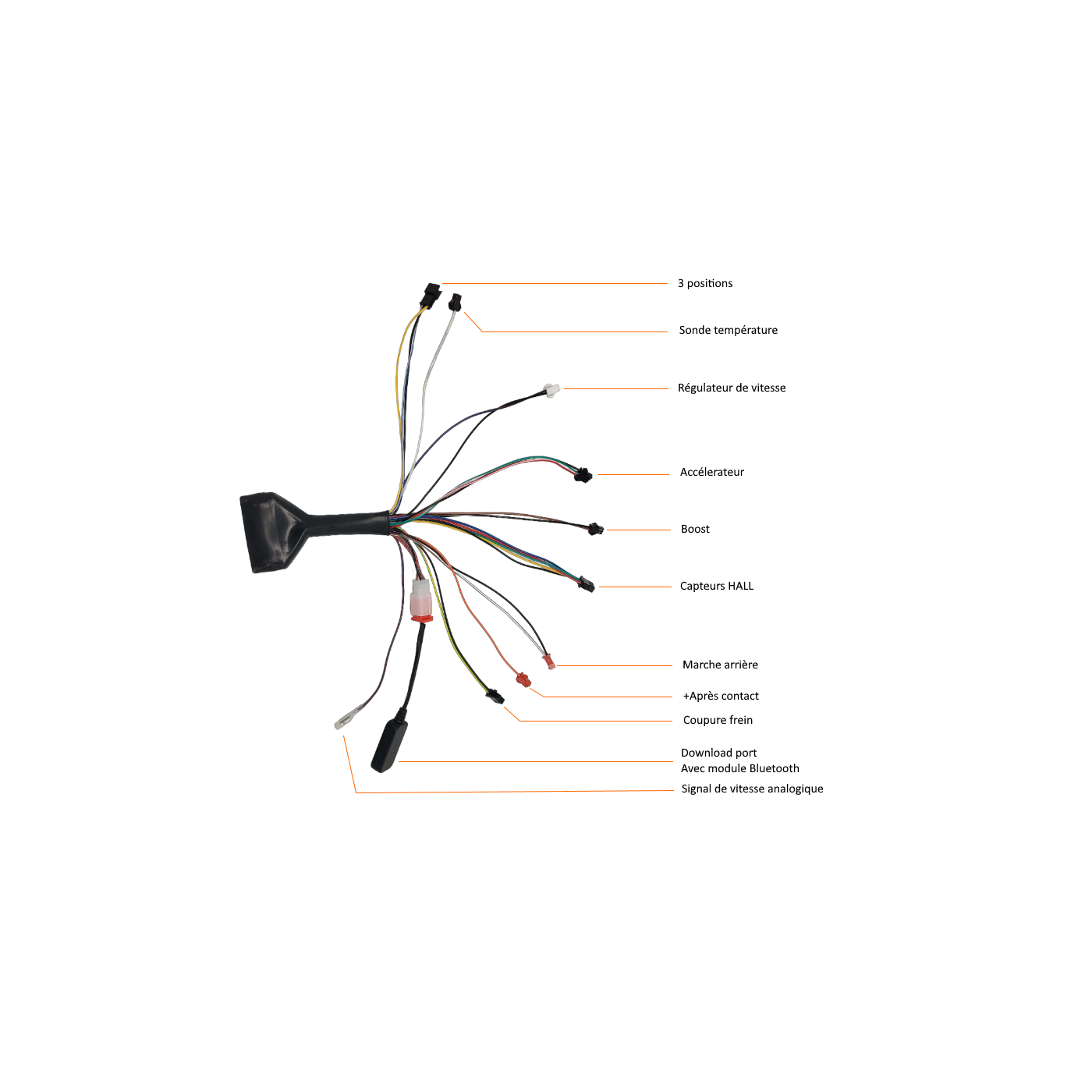

DÉTAIL CONNECTIQUE

3 positions :

Sonde température :

Régulateur de vitesse :

Accélerateur :

Boost :

Capteur Hall :

Marche arrière :

+Après contact :

Coupure frein :

Module Bluetooth :

Signal de vitesse analogique :

Signal de vitesse linéaire :

APPLICATION CONNECTÉE

Faites votre choix parmi trois versions : 100A, 190A, 350A. Toutes compatibles avec l' application Bluetooth . Cette application permet un réglage des paramètres du contrôleur et la lecture en temps réel des datas moteur, contrôleur et batterie pour répondre parfaitement à vos besoins spécifiques.
