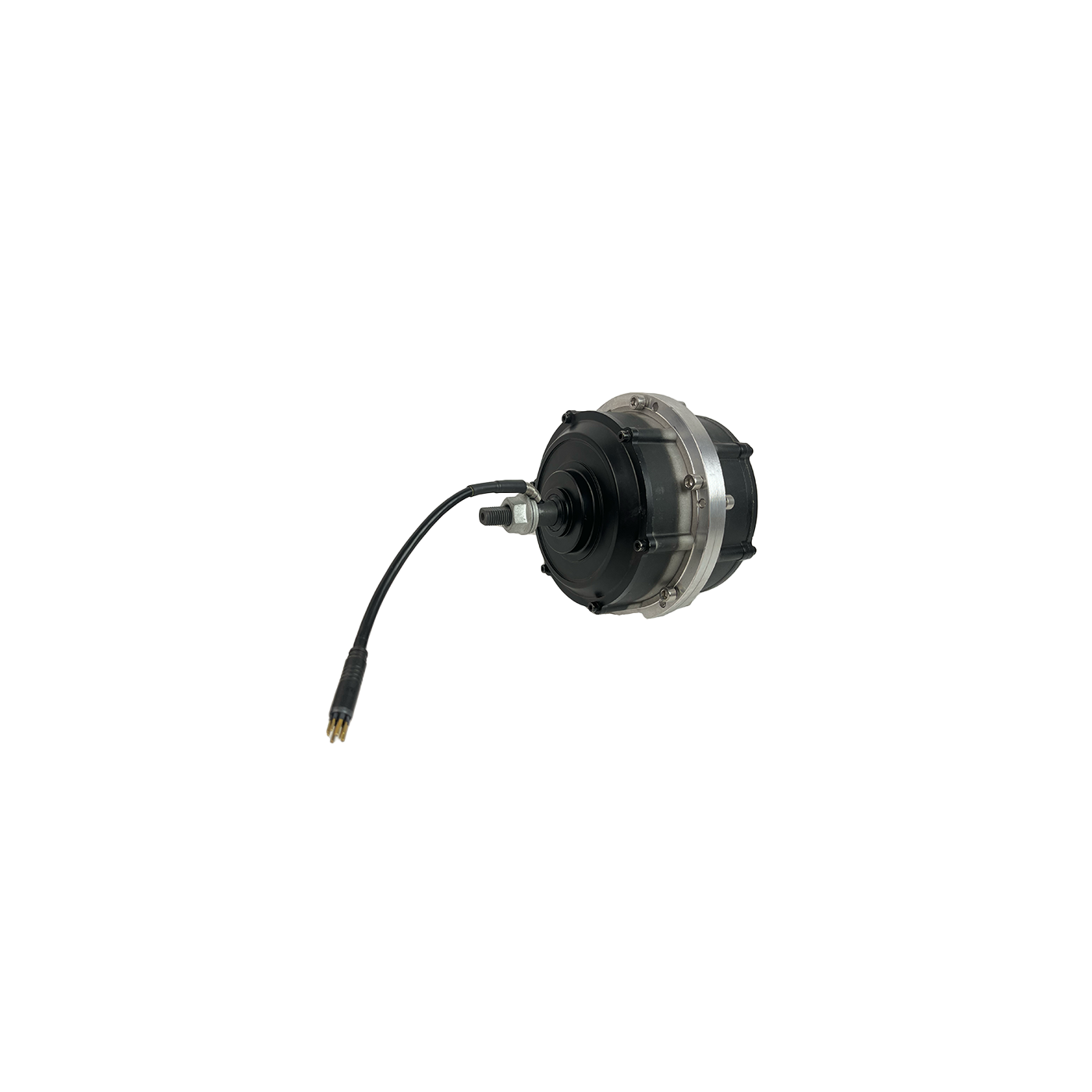

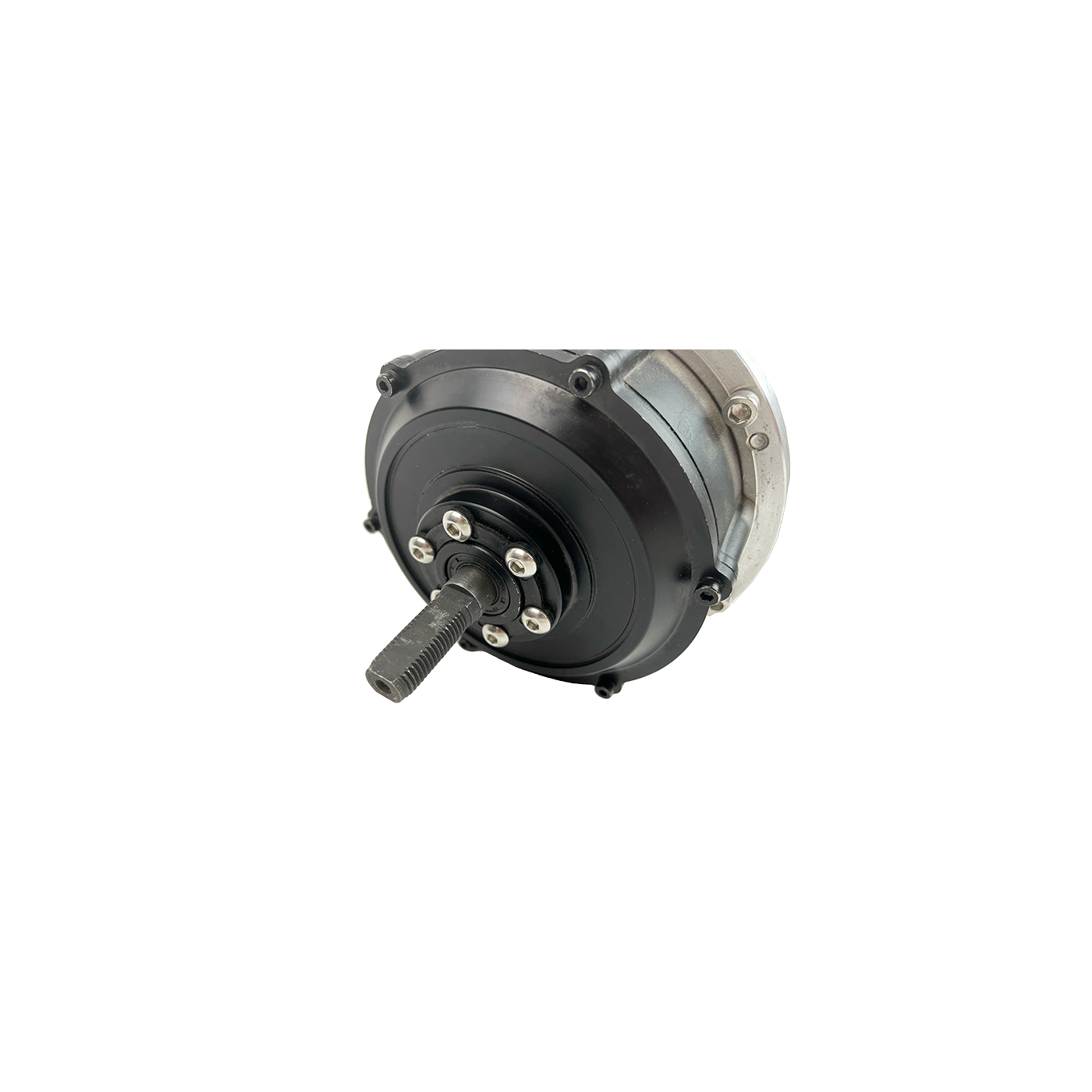

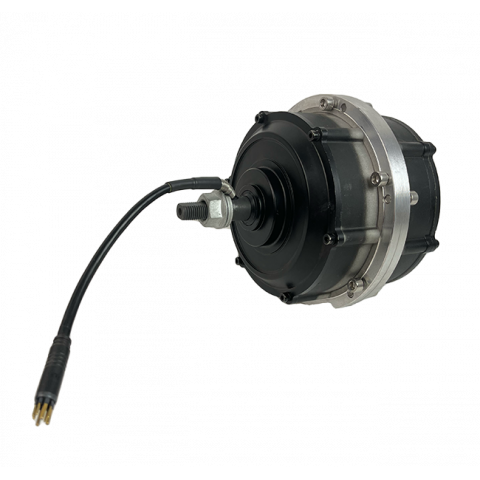

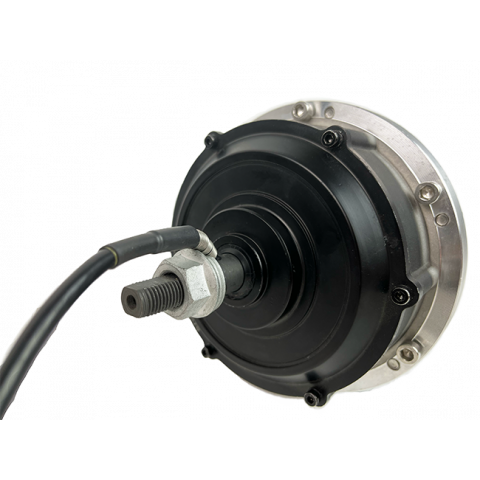

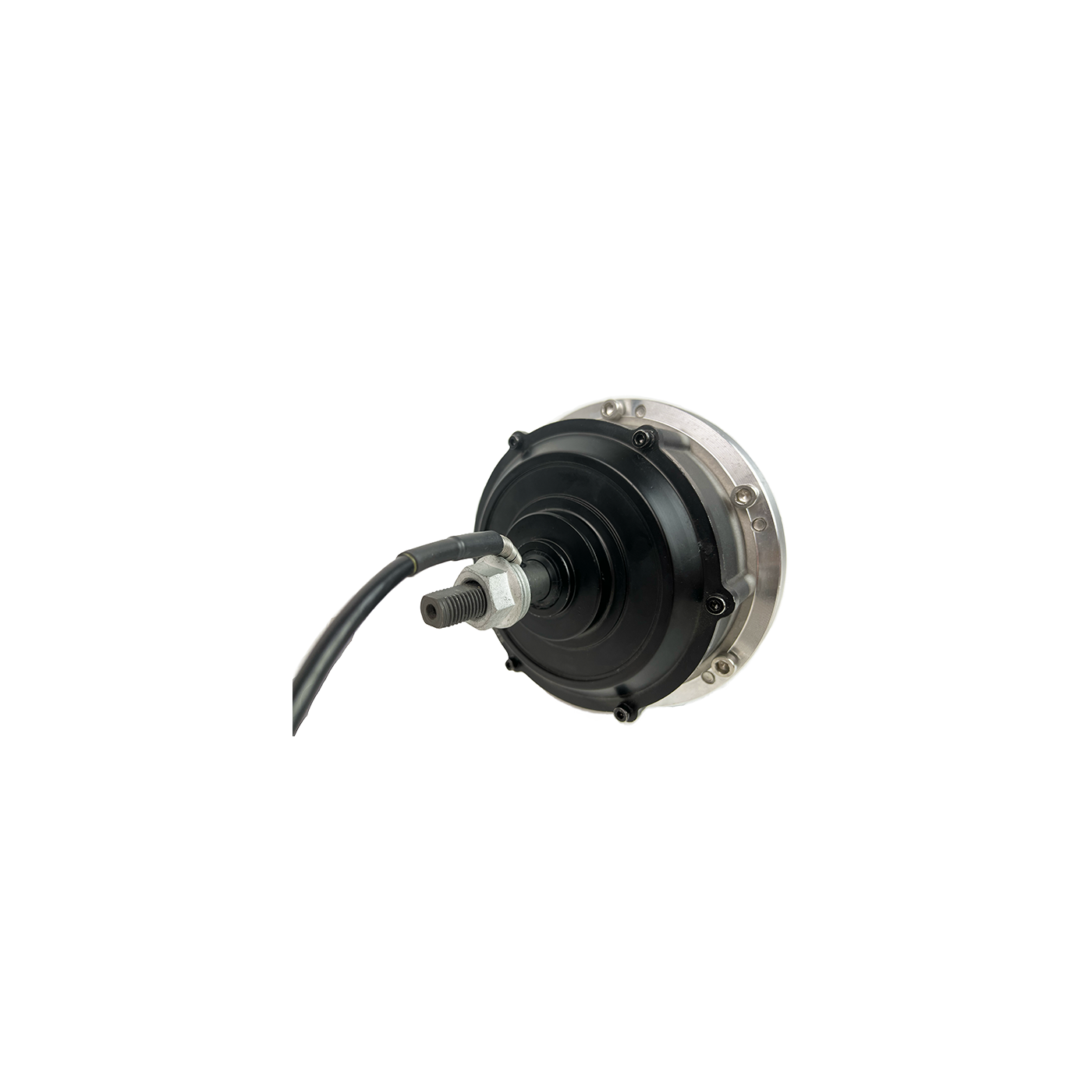

Agriculture electric brushless motor 500W 1000W

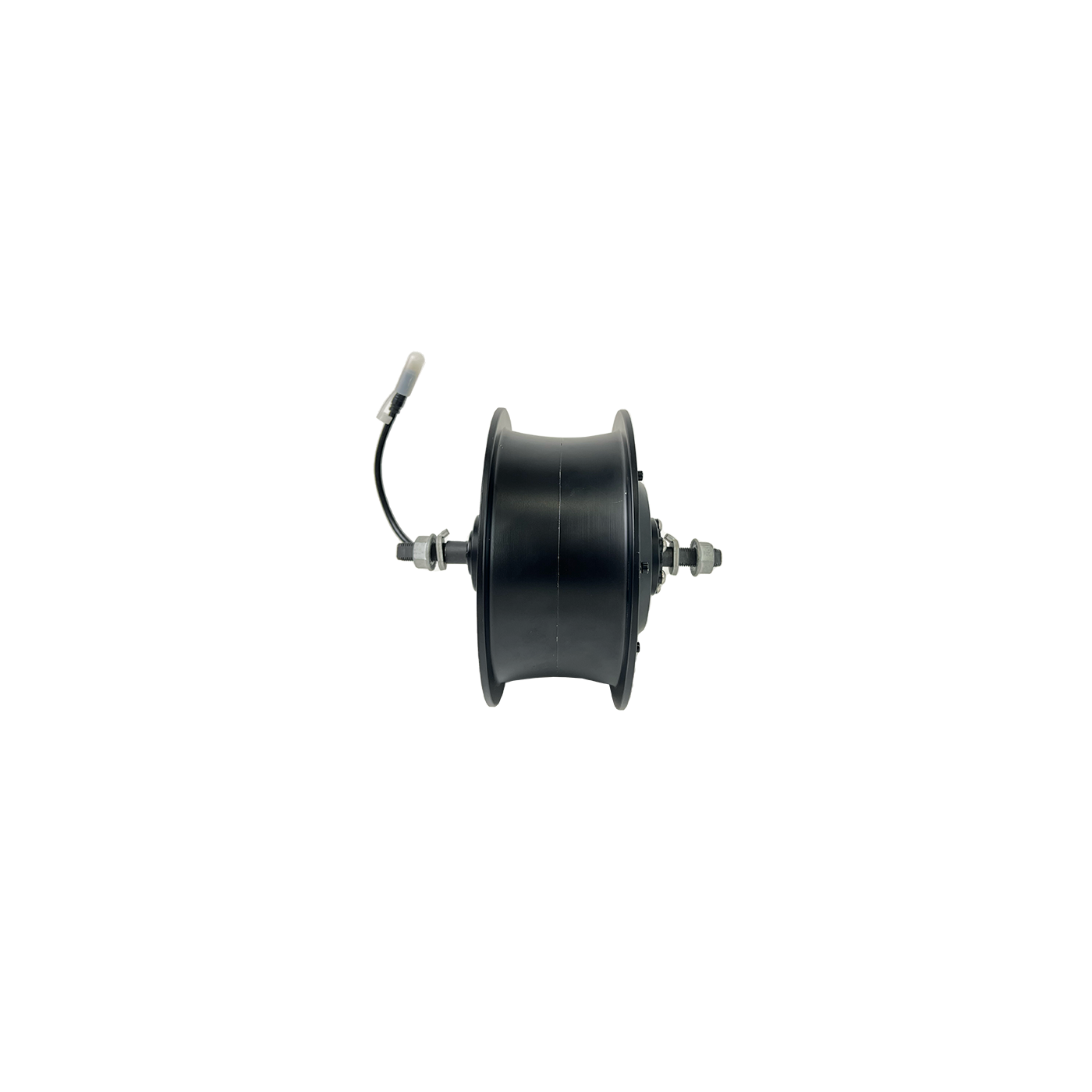

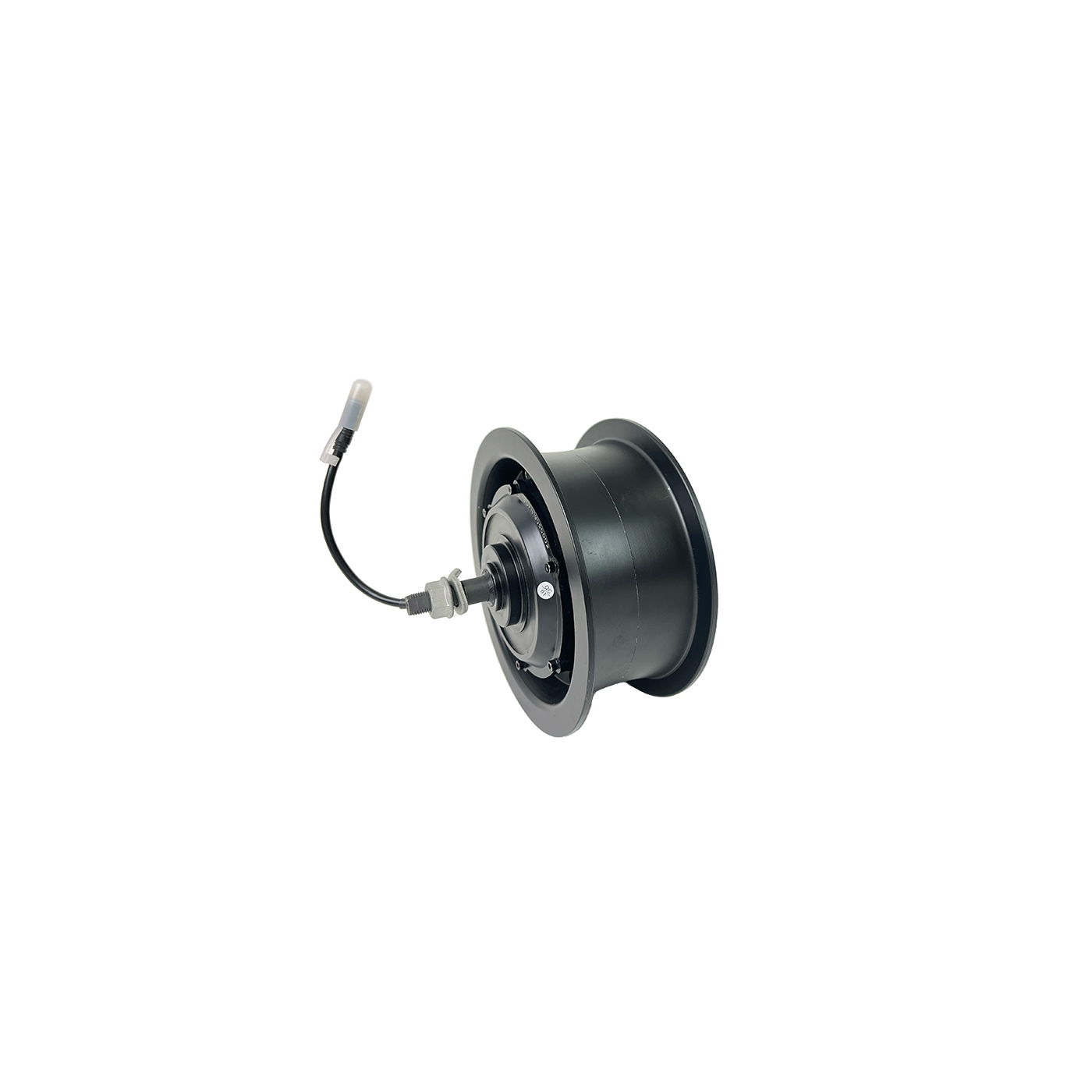

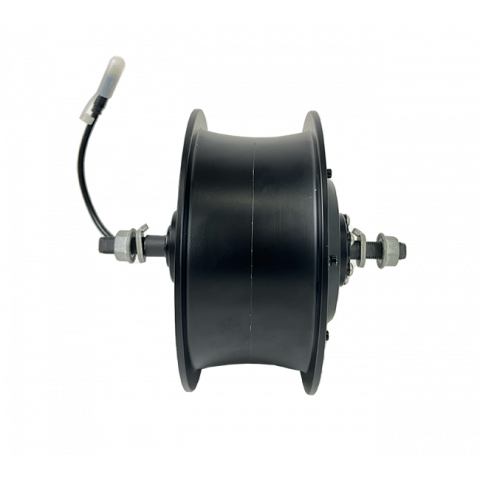

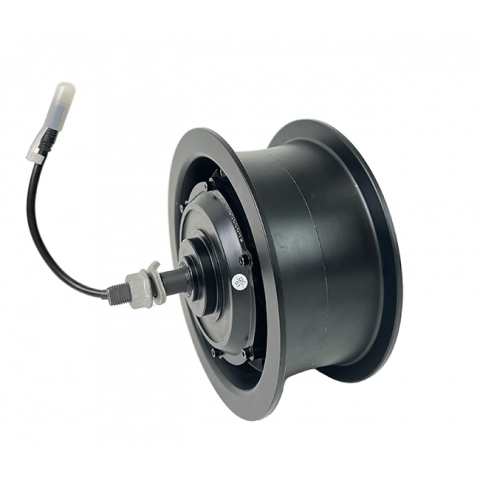

The 500W 1000W Universal electric brushless motor for agriculture and farming offers the ability to choose different wheel diameters and tire widths with its removable aluminum machined rim flanges.
The ability to remove the rims makes tire installation much easier.
As a standard, we offer 7" and 8" diameter rims, but we can also machine rims to your specifications if needed.
The universal agricultural motor can deliver a maximum torque of 110N.m at 48V and 60N.m continuously. It can be used under 48V 25A or 36V 30A. The magnets are 30x and measure 30mm x 3mm.
2D DRAWING :
| Paires de pôles magnétiques | 15 |
| poids en 26 pouces | 4,9kg without the rims |
| Rapport de réduction | 1:6.9 |
| Puissance max | 1000 W |
| Hall sensors | yes |
| Waterproof grade | IP65 |

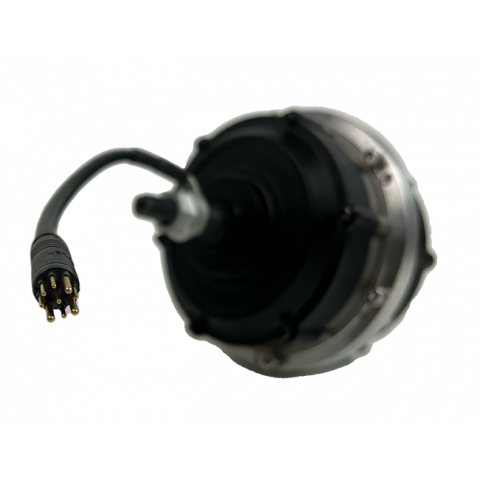

| connecteur moteur | waterproof 9 pins connectors |
| Nombre d'aimants | 30 |
| Motor axle | 14mm |
| Vitesse max sous 24V | 6 km/h |
| Vitesse max sous 36V | 8 km / h |
| 48V max speed | 10 km/ h |
| Cable lenght | 20 cm |
