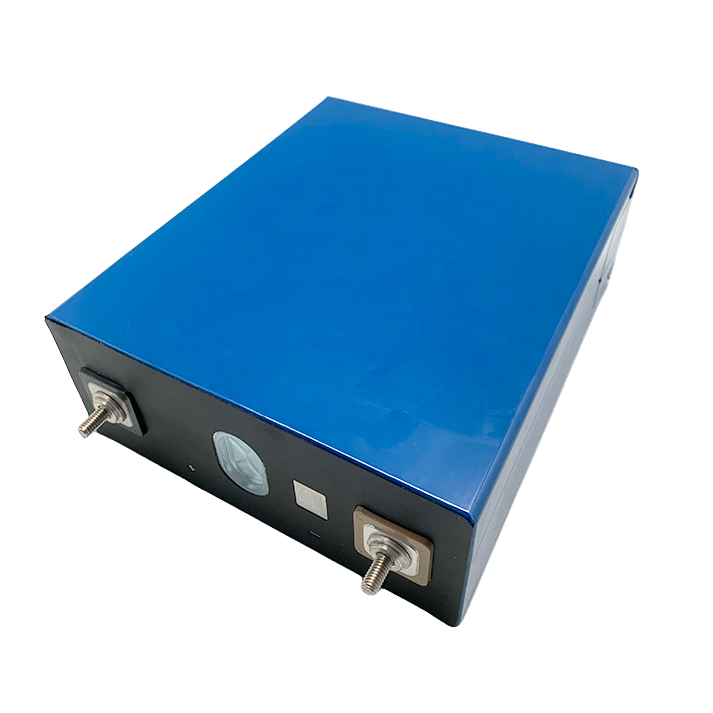

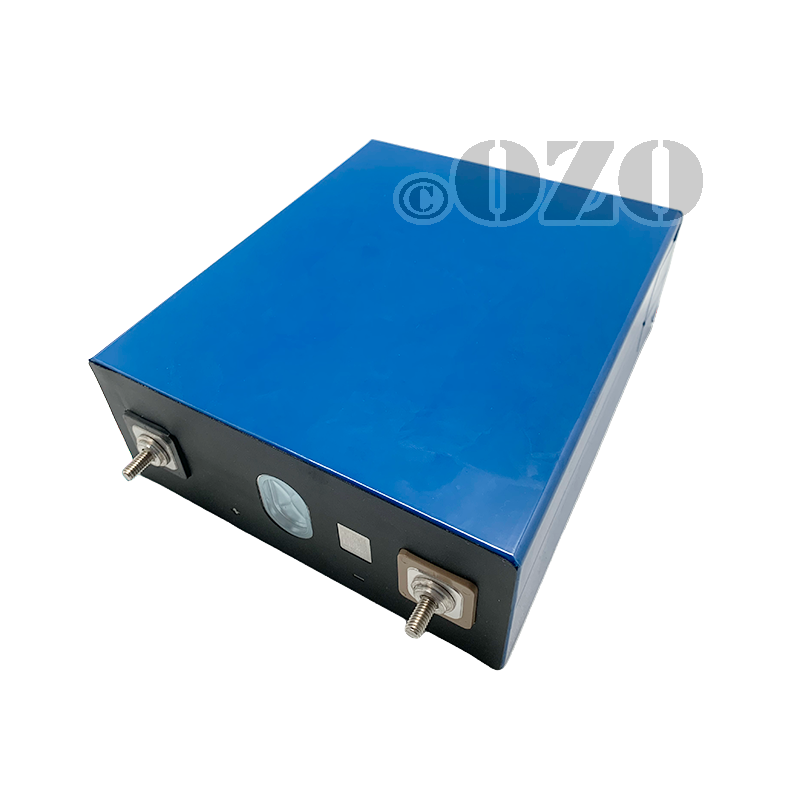

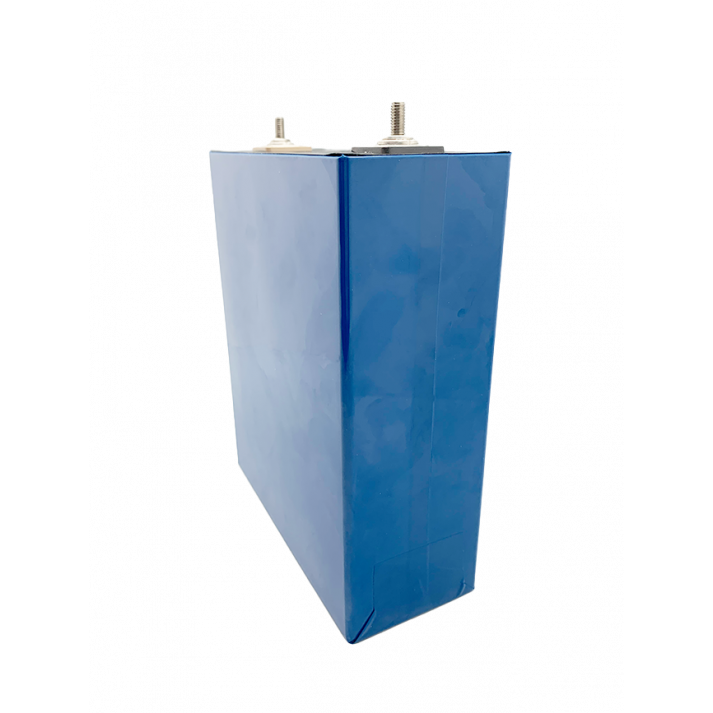

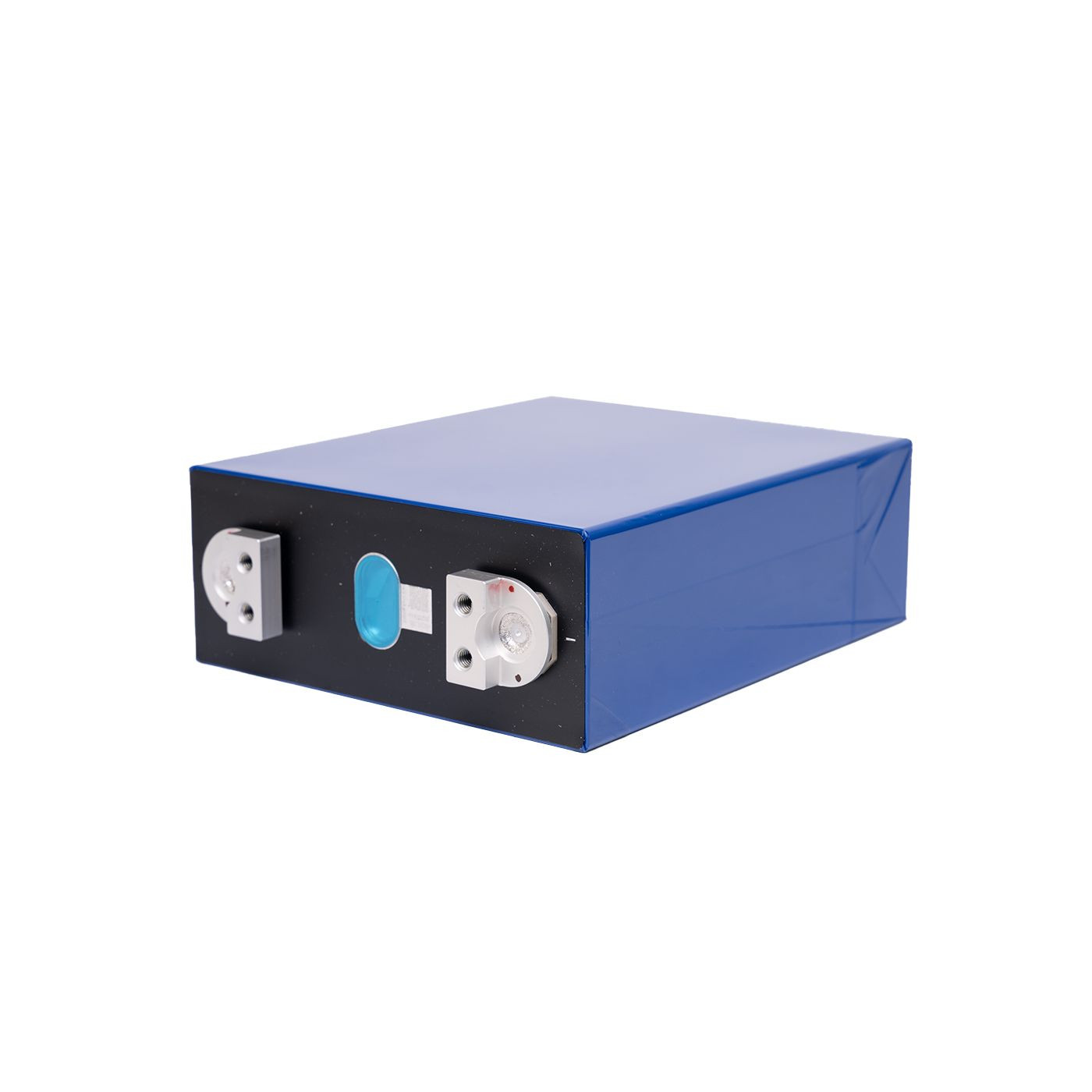

Lithium Iron LFP cell LiFeP04 3.2V 314Ah

LiFeP04 LFP 3,2V 314Ah grade A cell

Capacity: 314Ah

Nominal voltage: 3.2V

Min / max voltage: 2,5V / 3,65V

Lifetime: 8000 charge cycles

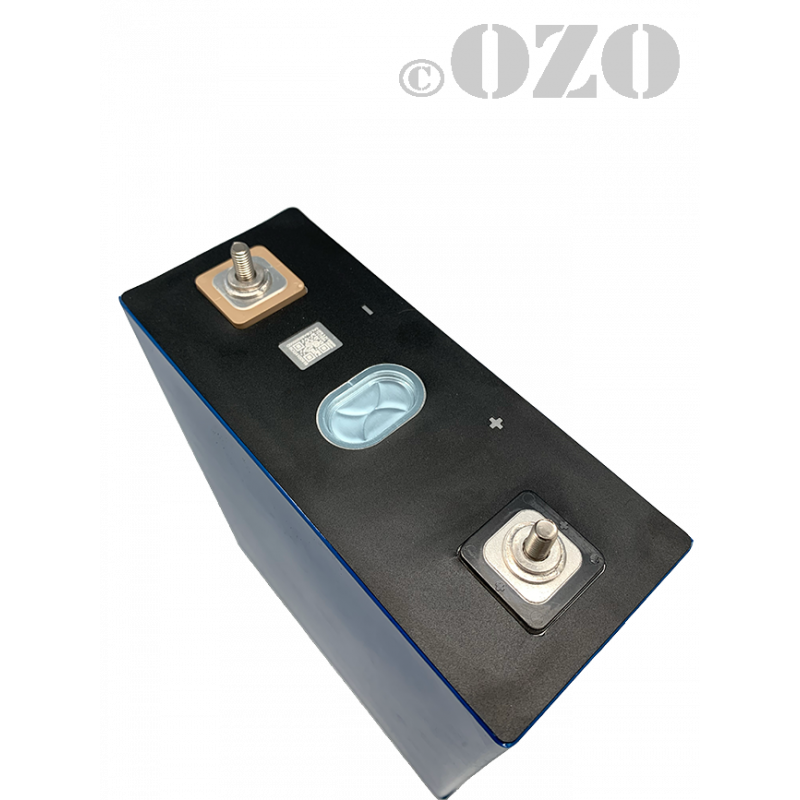

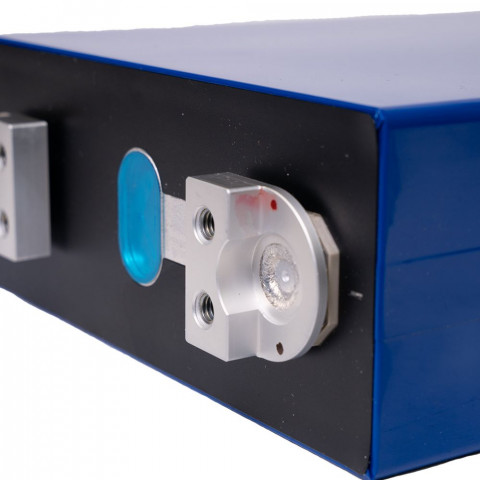

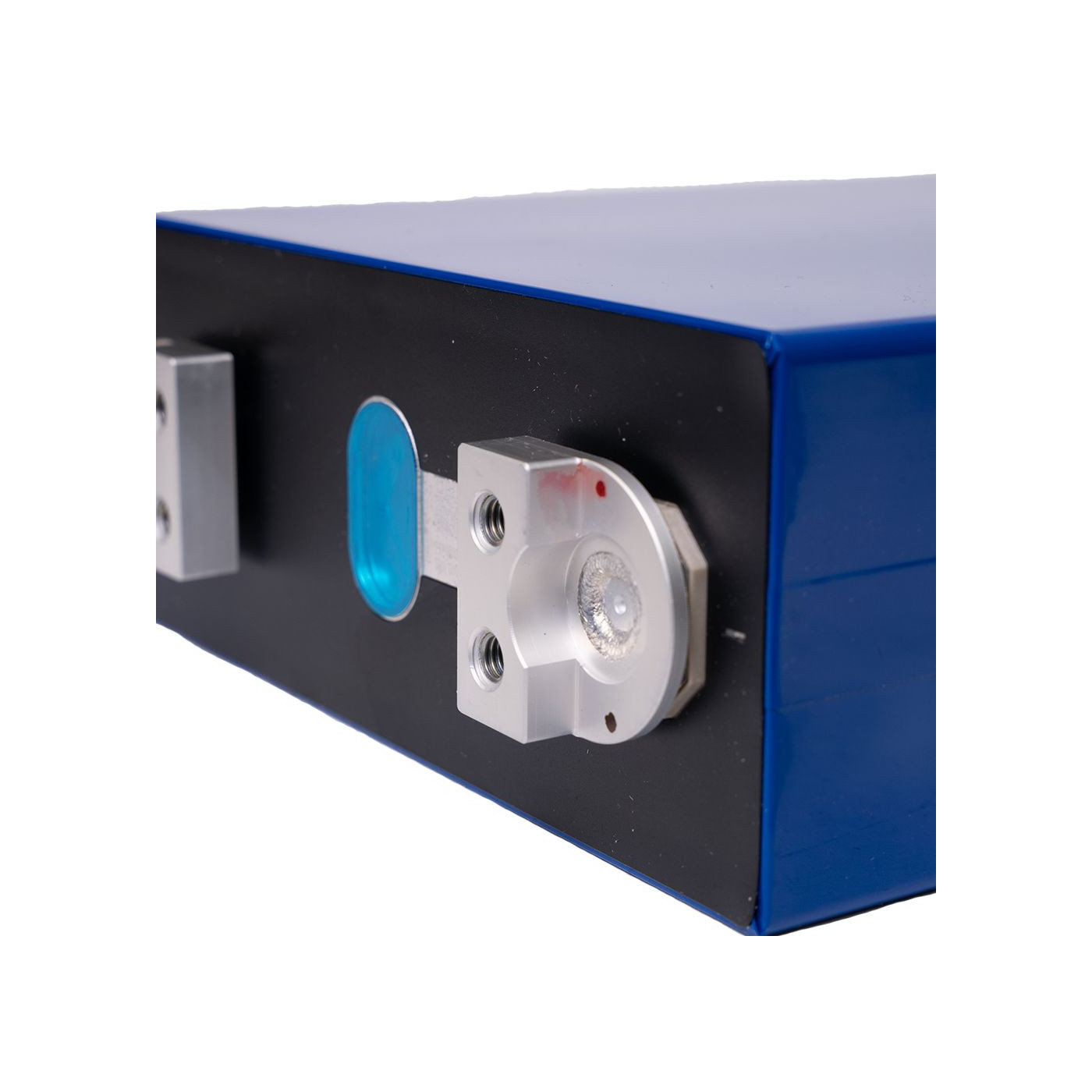

M6 threaded terminals

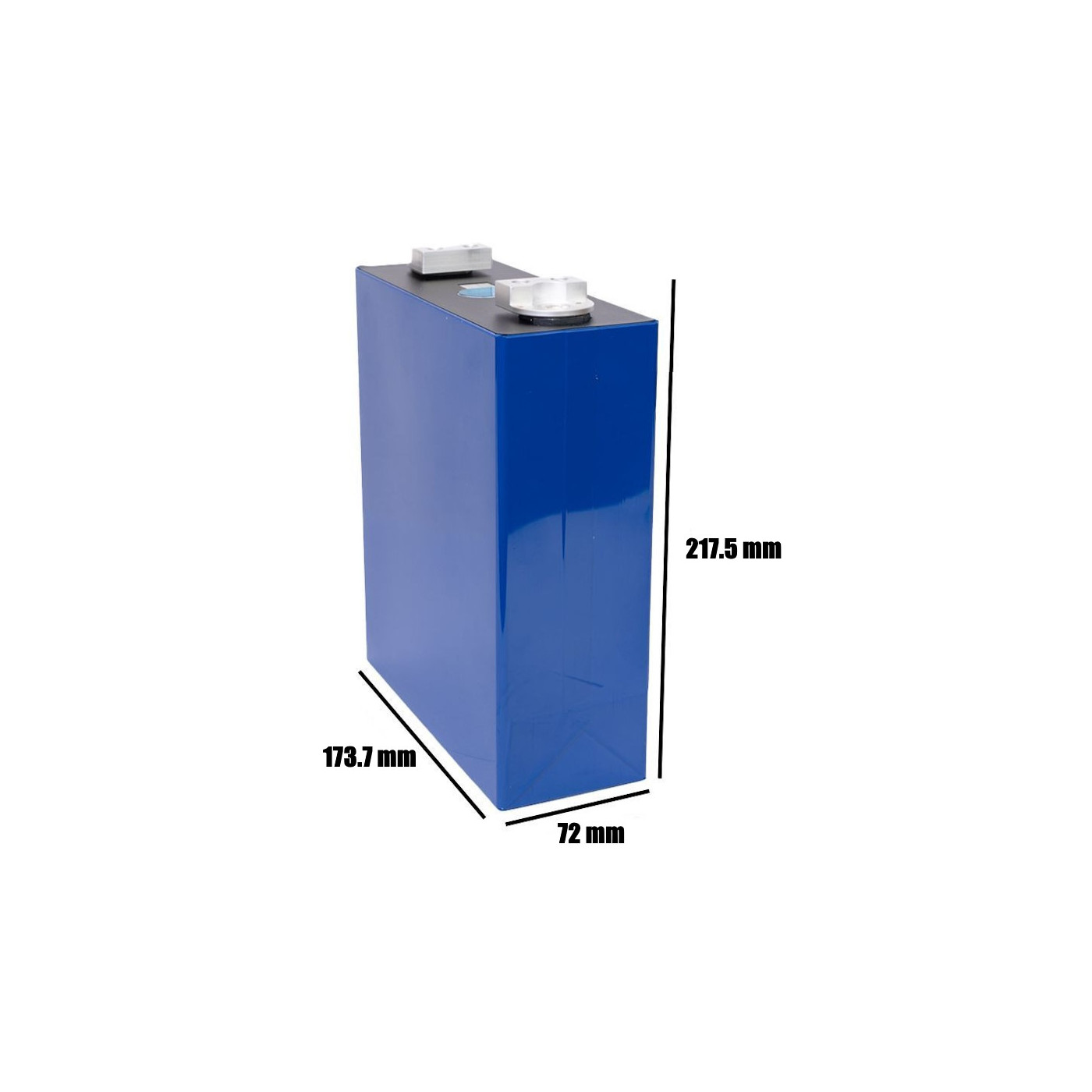

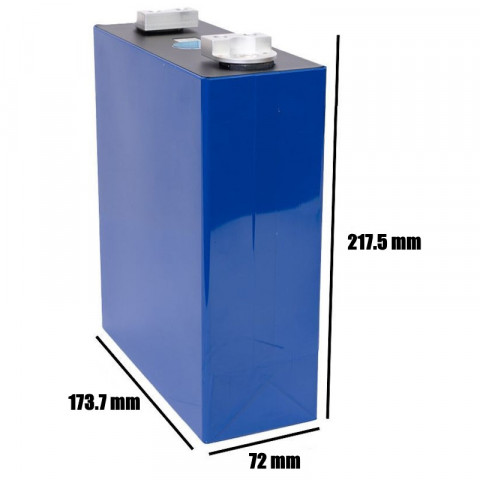

Dimensions => Height: 217,5mm; Length: 173,7mm; Width: 72mm

Weight = 5,6kg

Read moreShow less
€109.00 (tax incl.)

Volume discounts

Quantity Unit discount You Save
20 €9.00 €180.00
In stock 103 Items
Reference:
009382
You may also like
Cellule Lithium haute performance EVE 21700 50E 5000mAh Cellule Lithium haute performance EVE 21700 50E 5000mAh

€5.90 (tax incl.)
High energy density Lithium cell EVE 21700 50E. This cell efficiently replaces the Sony VT6C cells that we used in high-performance motorcycle or competition karting batteries. Nominal capacity: 5000mAh Weight: 69g...
EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate

€4.40 (tax incl.)
Cylindrical Lithium Cell 18650 35V EVE 3500mAh This cell is an effective replacement for LG MJ1 or Samsung 35E 18650 cells. Nominal capacity: 3500mAh Weight: 50g Nominal voltage: 3.65V Max / min voltage: 4.2V / 2.5V...
Cell 21 700 4Ah Cell 21 700 4Ah Cell 21 700 4Ah

€6.20 (tax incl.)
High-performance EVE 21700 40P lithium cell with a high discharge rate (12.5C). This cell is one of the best cells for electric vehicle racing applications. It supports a 12.5C discharge rate, meaning 50A per cell......
Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2

€12.90 (tax incl.)
Red power cable 4AWG or 20mm2 coated high temperature silicone for the motor or battery cables of your electric motorcycle, electric car, go-karting, quad, audio, solar, boat... Sale by the meter: increase the...
Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2

€14.90 (tax incl.)
Blue power cable 4AWG, or 20mm2 coated high temperature silicone for the motor or battery cables of your electric motorcycle, electric car, go-karting, quad, audio, solar, boat... Sale by the meter: increase the...
Valise étanche Valise étanche Valise étanche

€75.00 (tax incl.)
This waterproof case IP67 will allow you to transport your goods safely, without fear of water splashes and dust.
Description

Sold individually, this 314Ah Lithium Iron Phosphate (LiFePO4) cell allows you to easily build high-capacity stationary batteries or traction batteries with a minimum number of cells.

For example, you can build a 15kWh battery with only 16 cells assembled in series (16S1P) to obtain 48V 314Ah.

Easy assembly thanks to the M6 screw terminals.

Read moreShow less
Product Details
009382

Data sheet

Guarantee
2 ans
Capacité
314Ah
Plage de température pour la décharge
-30 ~ 60°C
Mass
5,6Kg
Plage de température pour le stockage
-20 ~ 40°C
Plage de température pour la charge
0 ~ 60°C
Tension Min
2,5V
Tension Max
3.65V
continuous discharge current
1C (314A)
courant de décharge conseillé
0,5C
standard charge current
0,5C
max charge current
1C (314A)
Attachments
2D plan EVE 314Ah
Download (603.79KB)
Datasheet EVE 314Ah
Download (3.29MB)
