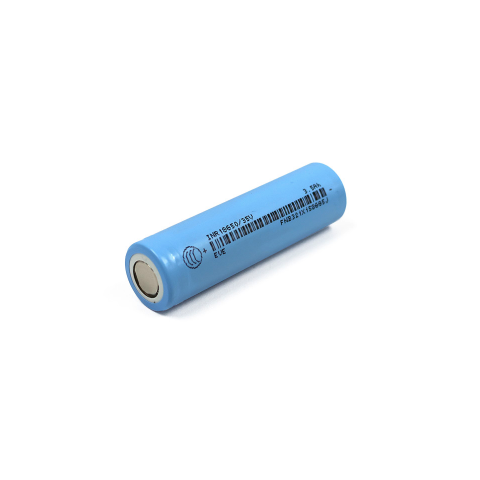

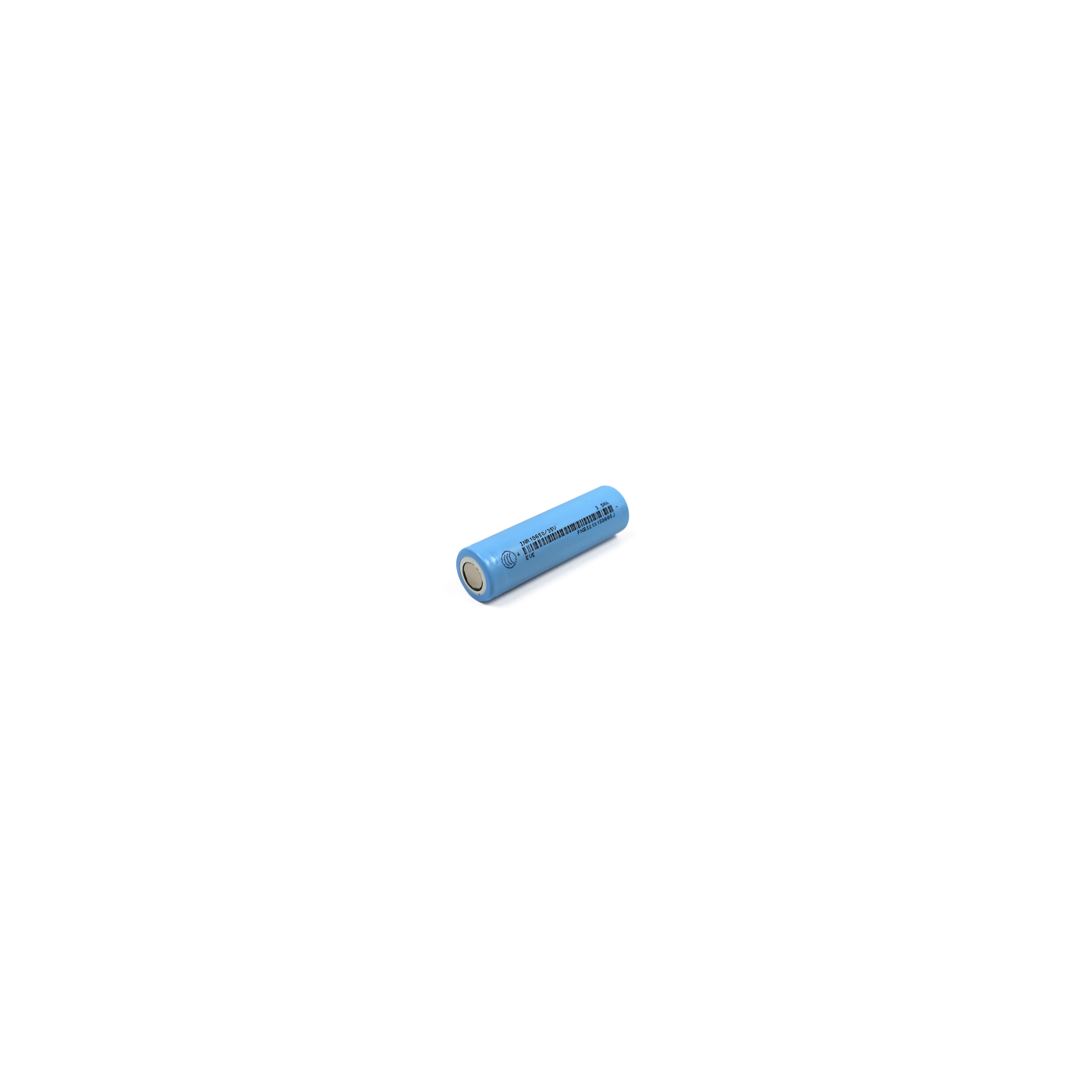

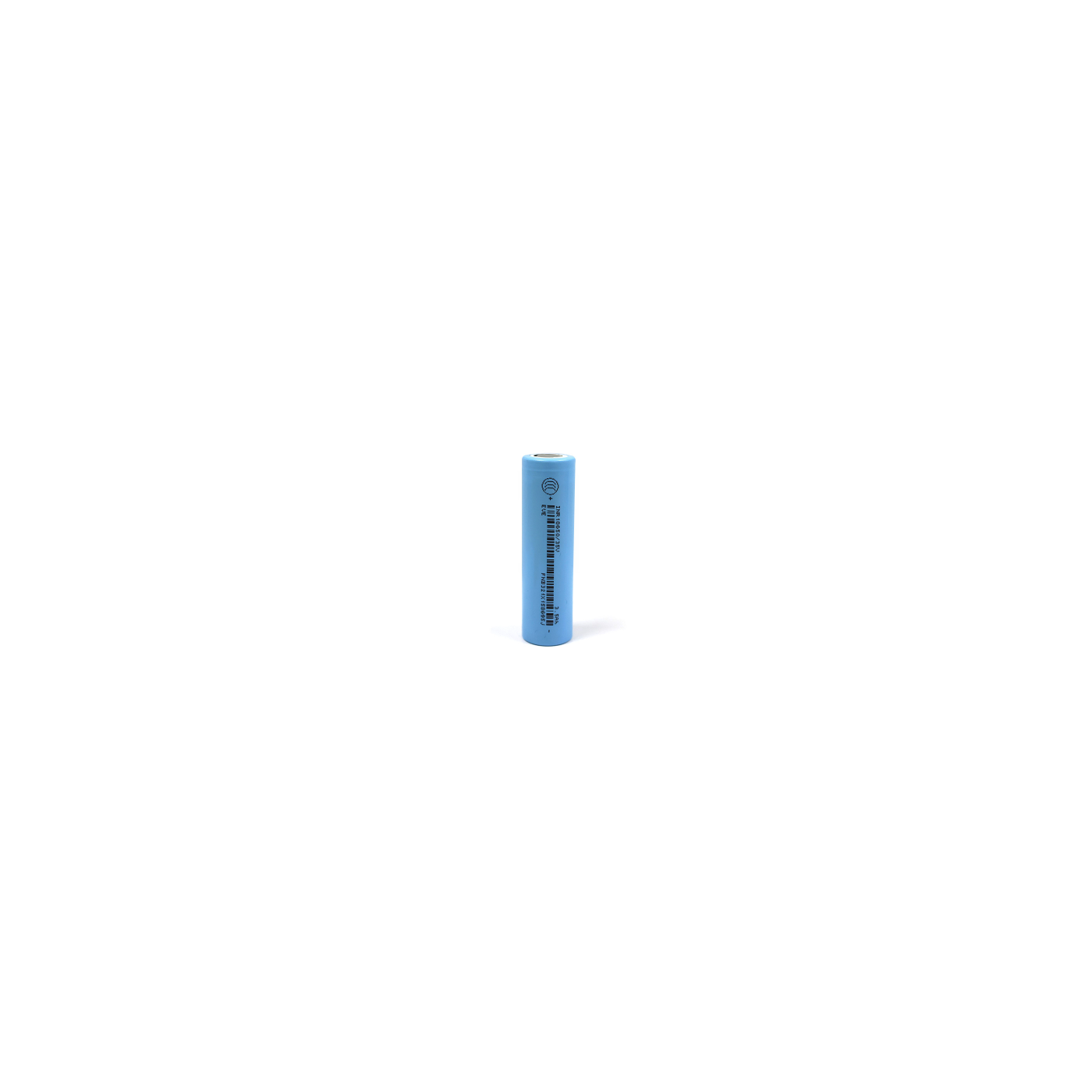

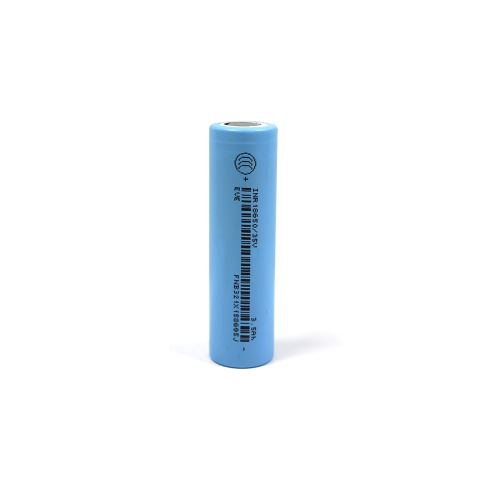

EVE Lithium cell 18650 3500mAh

Cylindrical Lithium Cell 18650 35V EVE 3500mAh

This cell is an effective replacement for LG MJ1 or Samsung 35E 18650 cells.

Nominal capacity: 3500mAh

Weight: 50g

Nominal voltage: 3.65V

Max / min voltage: 4.2V / 2.5V

Max discharge current: 10.2A (3C)

Nominal discharge current: 0.68A (0.2C)

Max charging current: 3.4A (1C)

Nominal charging current: 0.68A (0.2C)

Read moreShow less
€4.40 (tax incl.)

Volume discounts

Quantity Unit discount You Save
100 €0.28 €28.00
IN STOCK 995 Items
Reference:
009274
You may also like
Cellule Lithium haute performance EVE 21700 50E 5000mAh Cellule Lithium haute performance EVE 21700 50E 5000mAh

€5.90 (tax incl.)
High energy density Lithium cell EVE 21700 50E. This cell efficiently replaces the Sony VT6C cells that we used in high-performance motorcycle or competition karting batteries. Nominal capacity: 5000mAh Weight: 69g...
Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah

€109.00 (tax incl.)
LiFeP04 LFP 3,2V 314Ah grade A cell Capacity: 314Ah Nominal voltage: 3.2V Min / max voltage: 2,5V / 3,65V Lifetime: 8000 charge cycles M6 threaded terminals Dimensions => Height: 217,5mm; Length: 173,7mm; Width:...
Cell 21 700 4Ah Cell 21 700 4Ah Cell 21 700 4Ah

€6.20 (tax incl.)
High-performance EVE 21700 40P lithium cell with a high discharge rate (12.5C). This cell is one of the best cells for electric vehicle racing applications. It supports a 12.5C discharge rate, meaning 50A per cell......
Headway LiFePO4 cell 40152S 17 Ah 3,2V Headway LiFePO4 cell 40152S 17 Ah 3,2V Headway LiFePO4 cell 40152S 17 Ah 3,2V

€23.00 (tax incl.)
Headway cylindric cell 38120 LiFeP04 Lithium Iron cells Capacity : 8Ah Dimensions => Diameter : 38 mm ; Length : 120 mm (135 mm incl Terminals) Weight : 335g Max continuous current = 120A recommanded discharge...
3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery 3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery 3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery

€7.00 (tax incl.)
18650 format Lithium cell Brand: SONY Model: VTC6 Capacity: 3000mAh. Nominal voltage: 3.6V Max voltage: 4.2V Discharge current: 30A Dimensions: Diameter: 18mm Height: 65mm Weight : 50 g. Lifespan : 600 charge...
Description

Discharge curve

EVE INR 18650 35V discharge curve

2D plan

EVE INR 21700 plan 2D

Read moreShow less
Product Details
009274

Data sheet

Capacité
3.5Ah
Tension nominale
3.65V
Mass
50g
Intensité max de décharge
10.2A (3C)
Intensité nominale de décharge
0.68A (0.2C)
Intensité max de charge
3.4A (1C)
Intensité nominale de charge
0.68A (0.2C)
Tension Min
2.5V
Tension Max
4.2V
Attachments
Datasheet EVE INR 18650 35V
Download (5.52MB)
