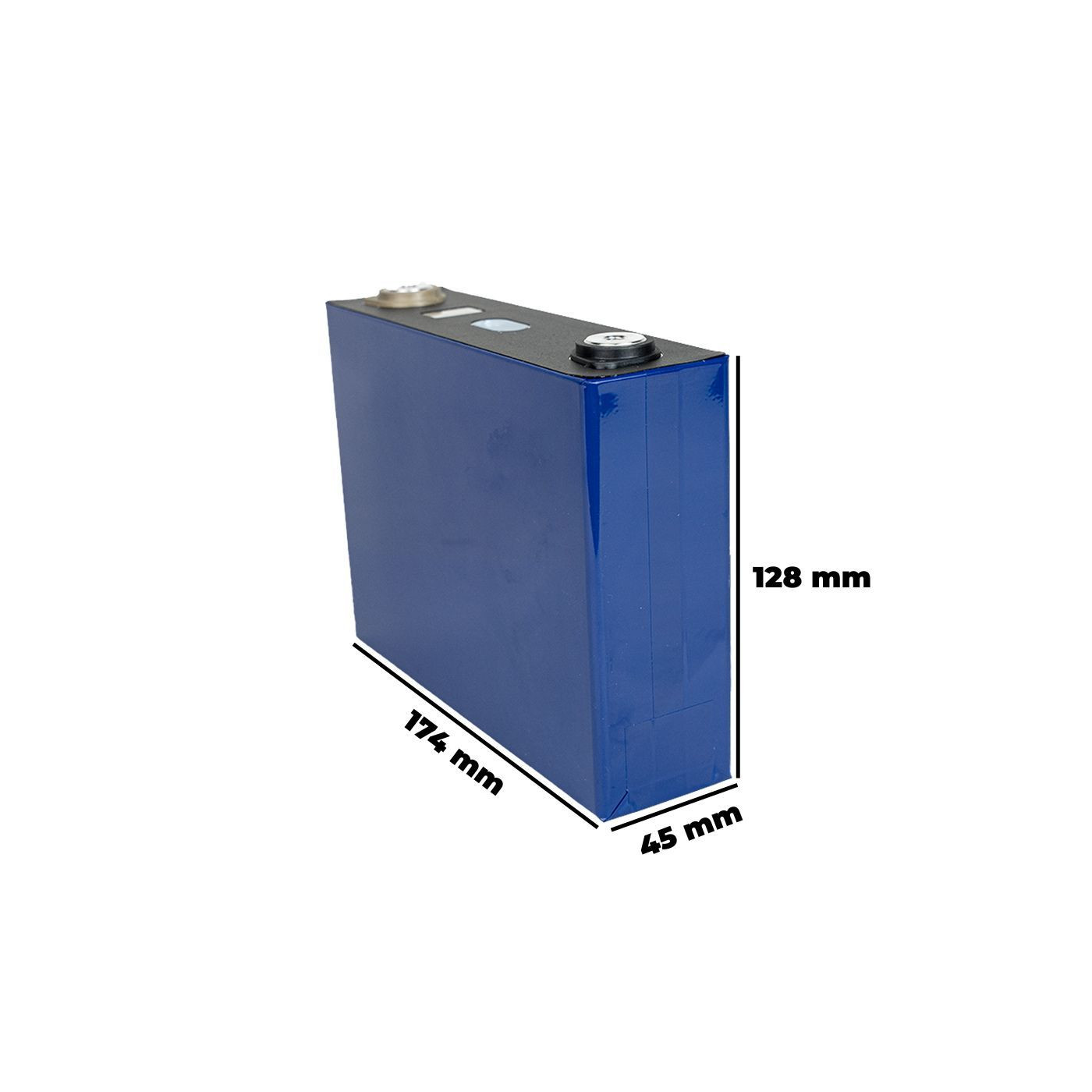

LiFeP04 3.2V 100Ah cell for Lithium Iron Battery pack

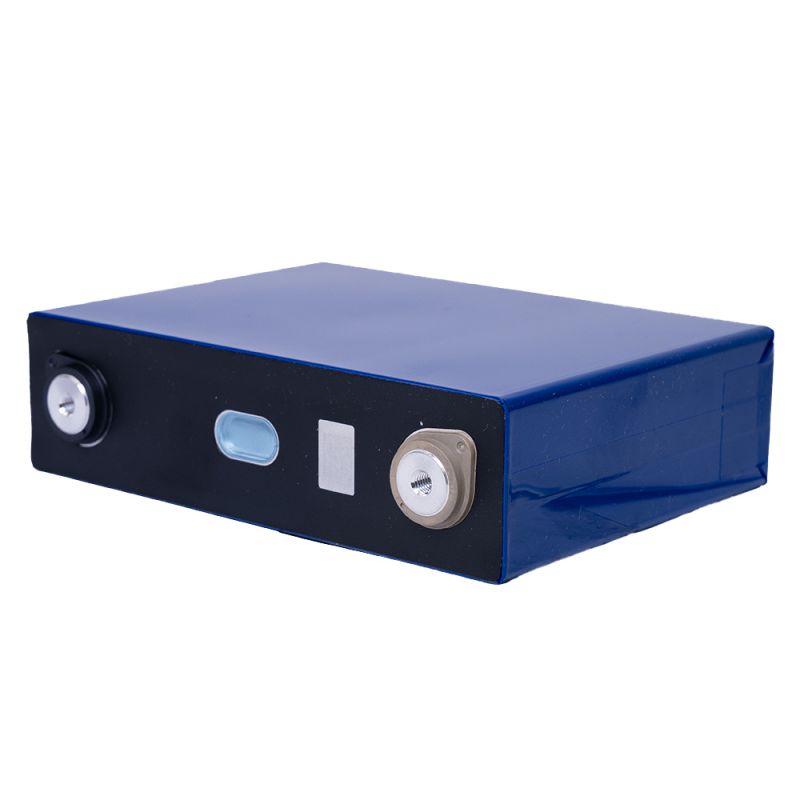

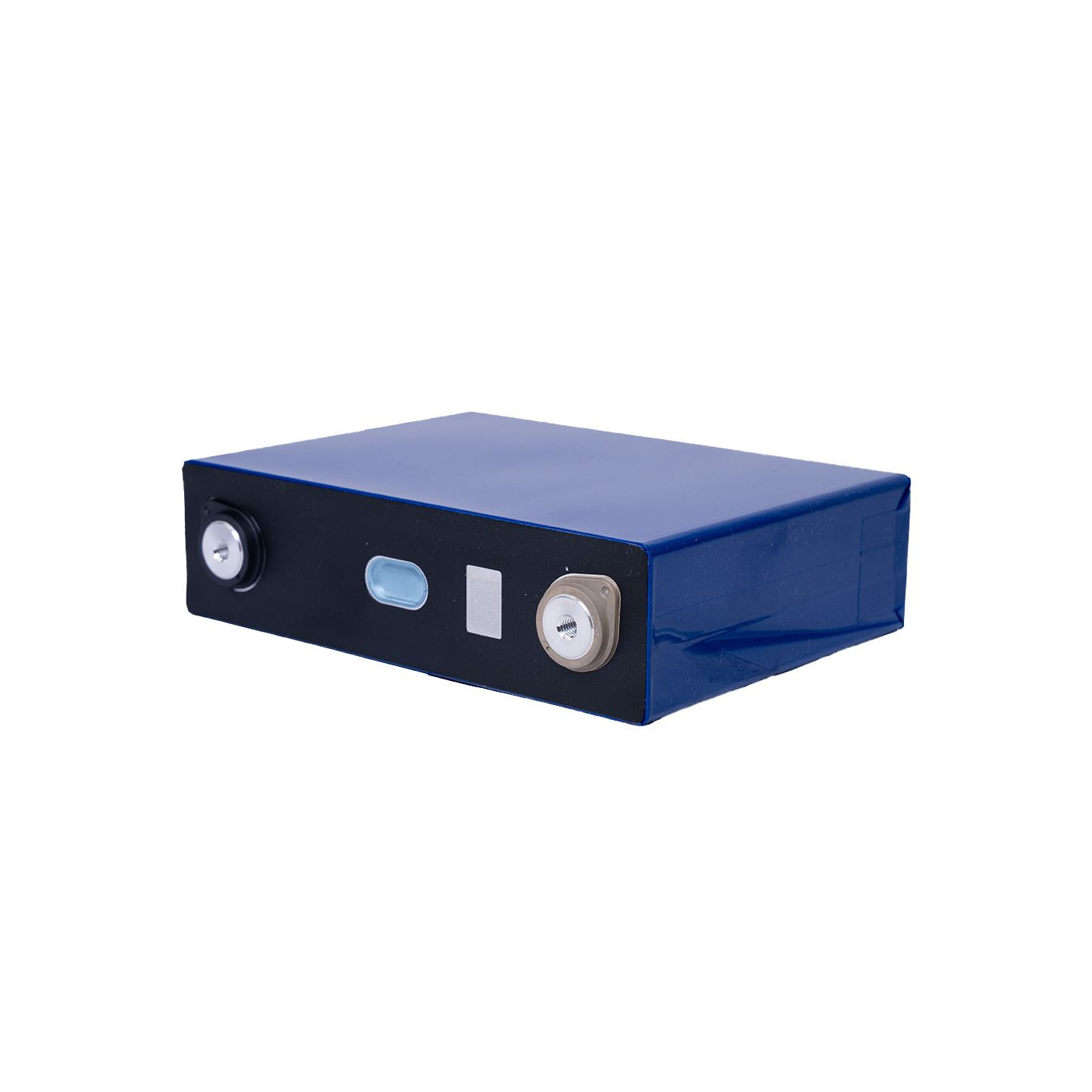

LiFeP04 prismatic cell.

Capacity: 100Ah.

Voltage: 3.2V

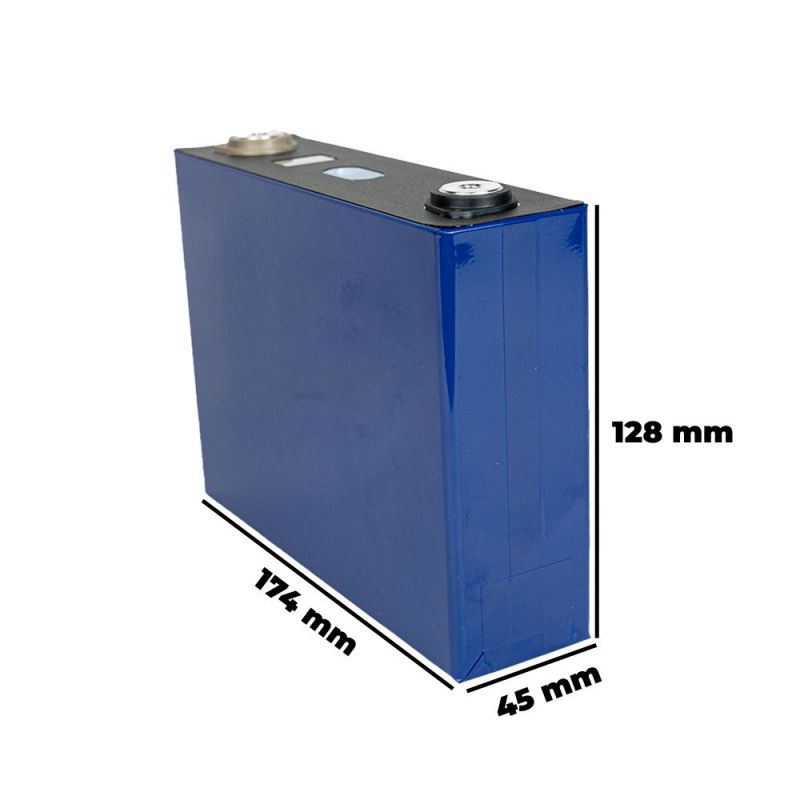

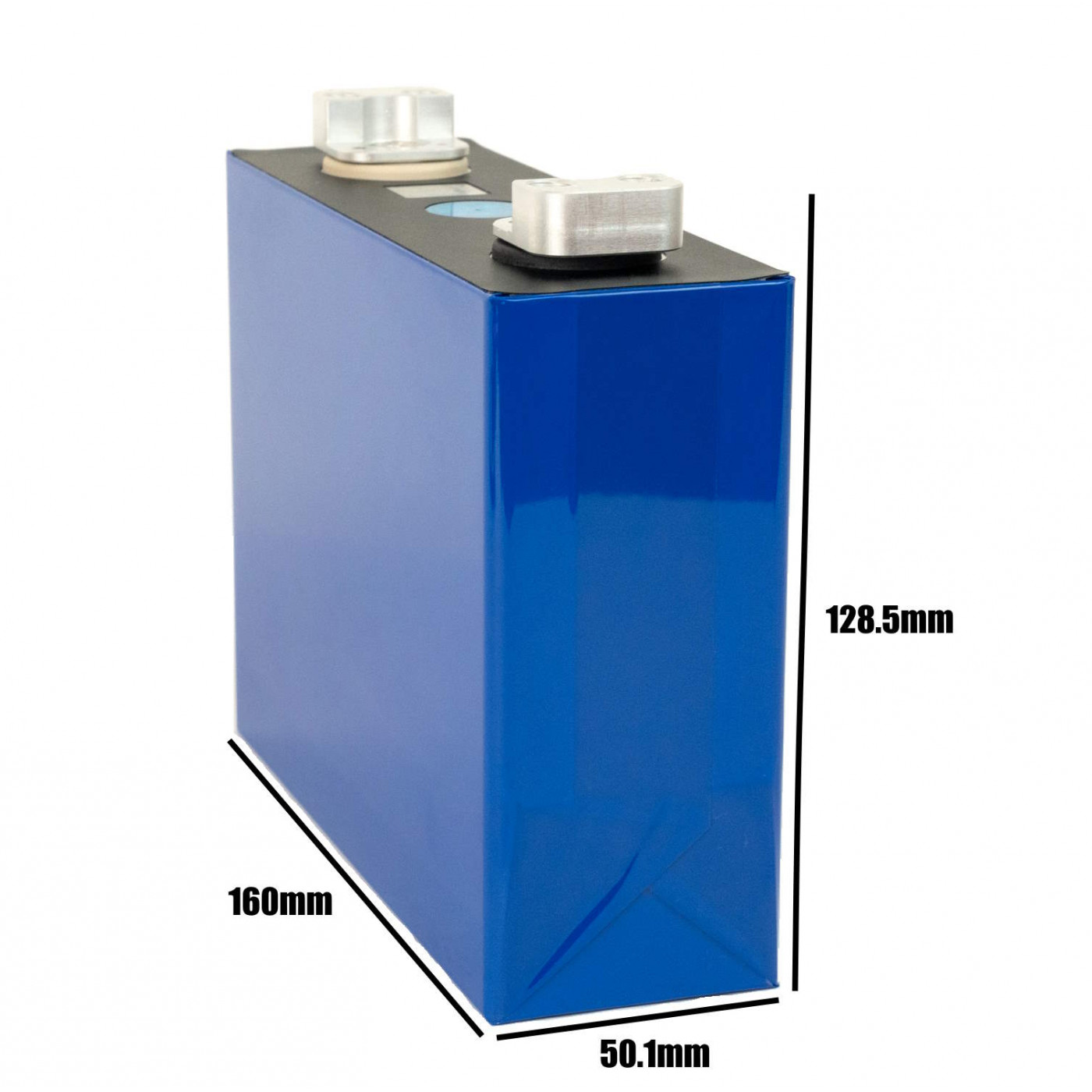

Dimensions => Height: 128.5mm; Length: 160mm; Width 50.1mm

Weight: 1985g.

Lifetime: 5000 charge cycles.

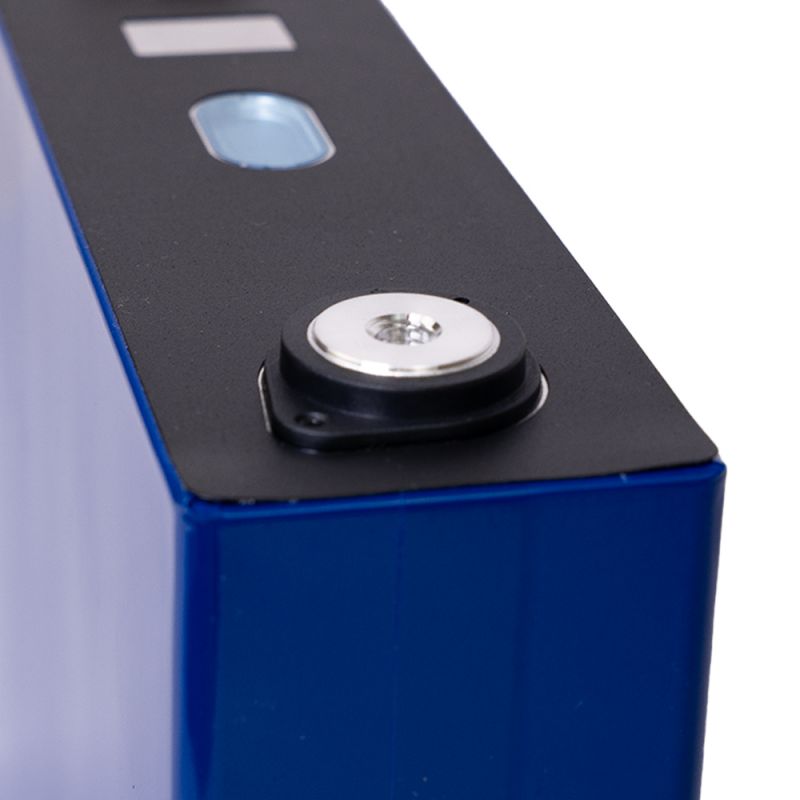

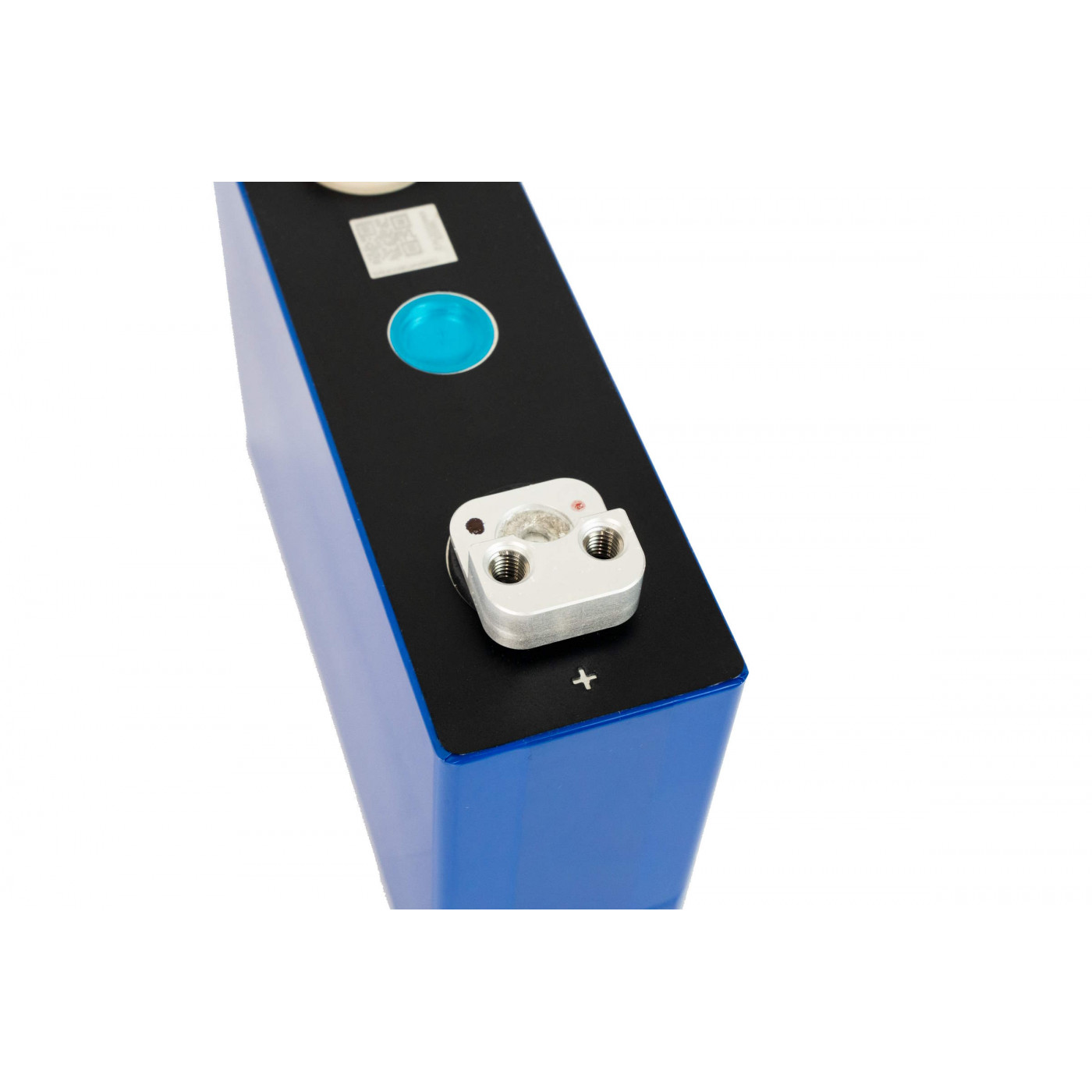

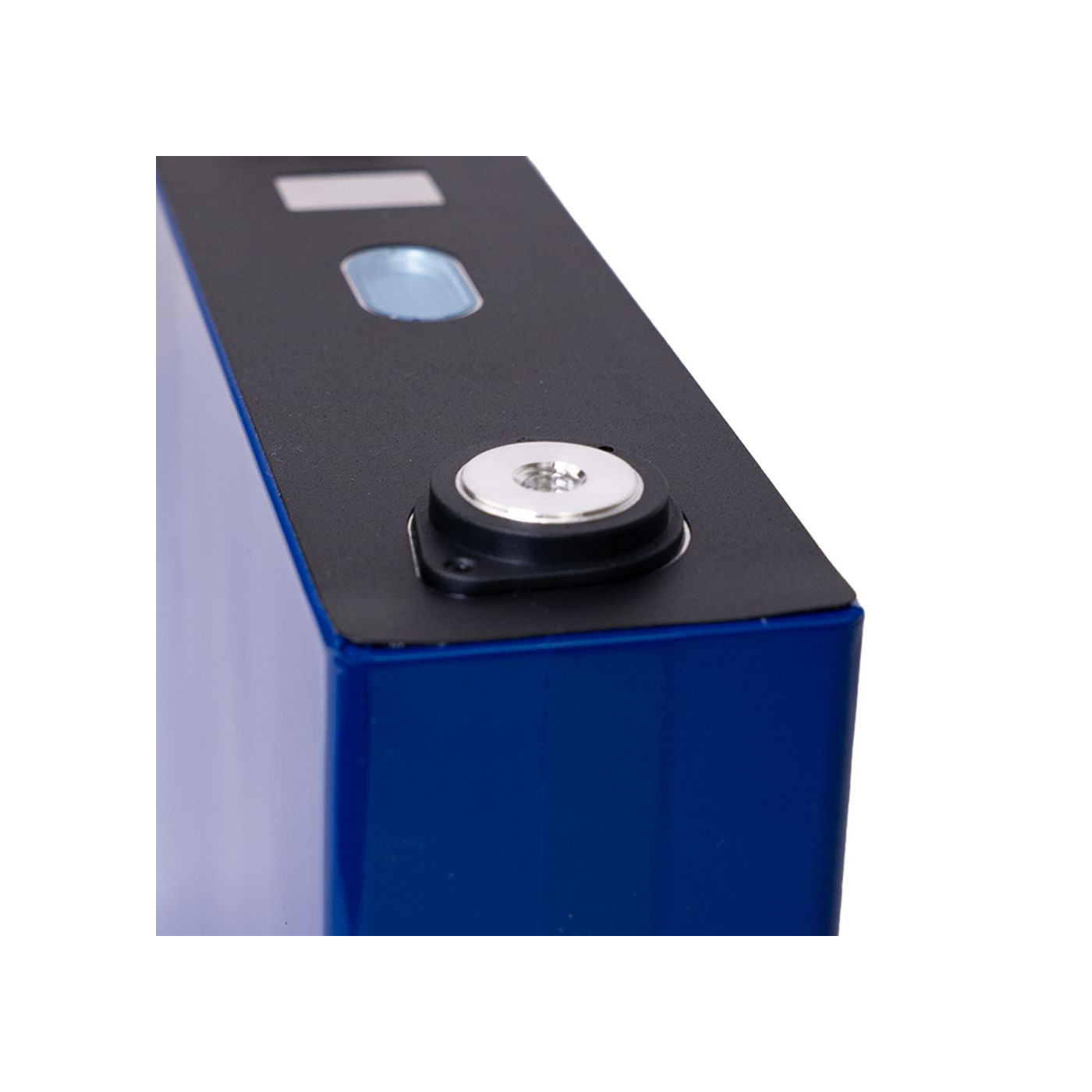

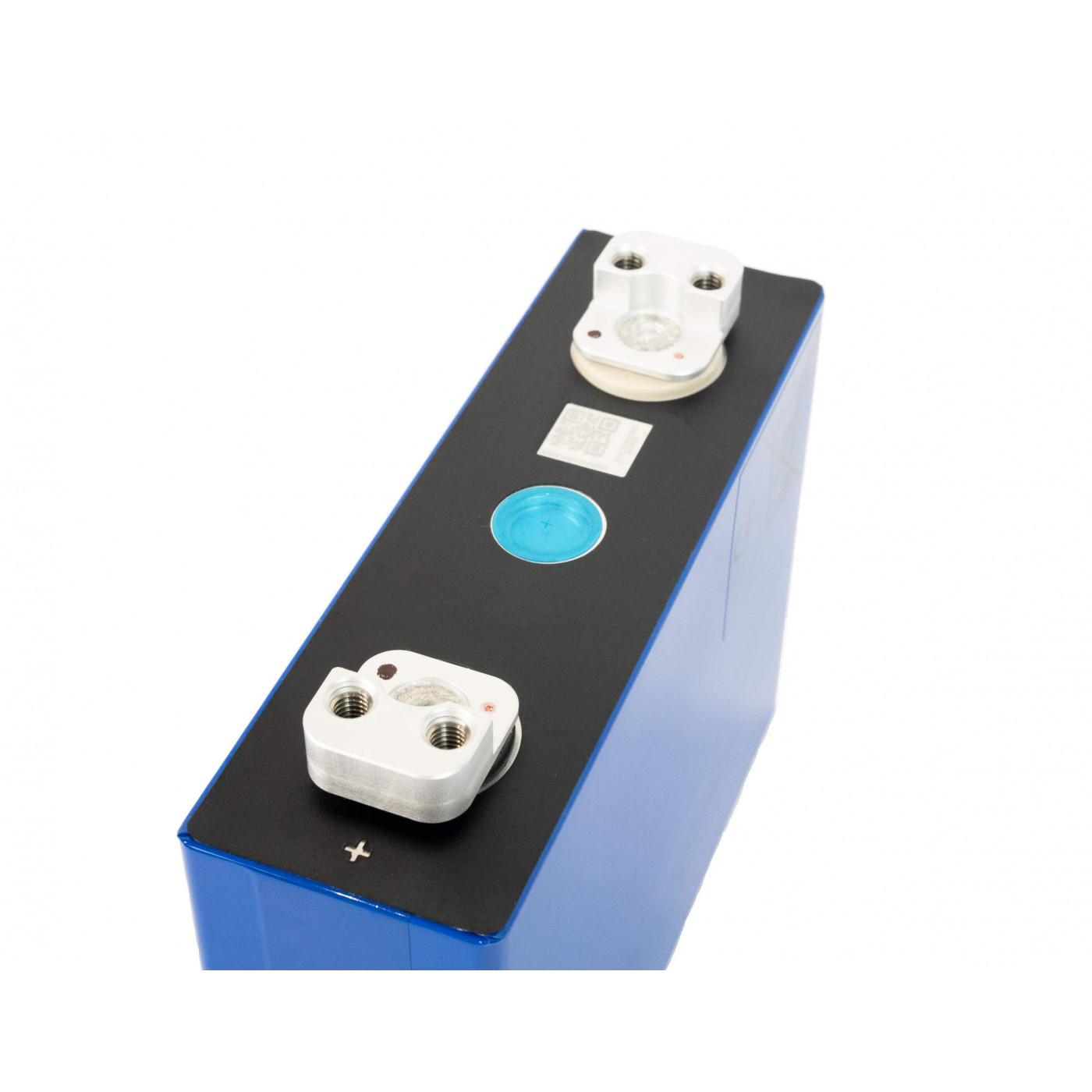

M6 threaded terminals.

Read moreShow less
€50.00 (tax incl.)
In Stock 40 Items
Reference:
000765
You may also like
Cellule Lithium haute performance EVE 21700 50E 5000mAh Cellule Lithium haute performance EVE 21700 50E 5000mAh

€5.90 (tax incl.)
High energy density Lithium cell EVE 21700 50E. This cell efficiently replaces the Sony VT6C cells that we used in high-performance motorcycle or competition karting batteries. Nominal capacity: 5000mAh Weight: 69g...
Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah

€109.00 (tax incl.)
LiFeP04 LFP 3,2V 314Ah grade A cell Capacity: 314Ah Nominal voltage: 3.2V Min / max voltage: 2,5V / 3,65V Lifetime: 8000 charge cycles M6 threaded terminals Dimensions => Height: 217,5mm; Length: 173,7mm; Width:...
EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate

€4.40 (tax incl.)
Cylindrical Lithium Cell 18650 35V EVE 3500mAh This cell is an effective replacement for LG MJ1 or Samsung 35E 18650 cells. Nominal capacity: 3500mAh Weight: 50g Nominal voltage: 3.65V Max / min voltage: 4.2V / 2.5V...
Cell 21 700 4Ah Cell 21 700 4Ah Cell 21 700 4Ah

€6.20 (tax incl.)
High-performance EVE 21700 40P lithium cell with a high discharge rate (12.5C). This cell is one of the best cells for electric vehicle racing applications. It supports a 12.5C discharge rate, meaning 50A per cell......
Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2

€12.90 (tax incl.)
Red power cable 4AWG or 20mm2 coated high temperature silicone for the motor or battery cables of your electric motorcycle, electric car, go-karting, quad, audio, solar, boat... Sale by the meter: increase the...
Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2 Motor - battery cable 4AGW or 20mm2

€14.90 (tax incl.)
Blue power cable 4AWG, or 20mm2 coated high temperature silicone for the motor or battery cables of your electric motorcycle, electric car, go-karting, quad, audio, solar, boat... Sale by the meter: increase the...
Description

Sold individually, this 100 Ah Lithium Iron Phosphate (LiFePO₄) cell allows you to easily build compact and reliable stationary batteries or traction batteries, suitable for many applications.

For example, you can build a battery of approximately 5 kWh with only 16 cells connected in series (16S1P) to obtain a 48V – 100Ah battery.

The assembly is simple and quick thanks to the M6 threaded terminals, allowing a secure connection of busbars and power cables.

Read moreShow less
Product Details
000765

Data sheet

Capacité
100Ah
Dimensions
Height: 128,5mm | Length: 160mm | Width 50.1mm
Plage de température pour la décharge
-30 ~ 60°C
Mass
1985g
Intensité max de décharge
1C (100A)
Intensité nominale de décharge
0,5C (50A)
Plage de température pour le stockage
-30 ~ 60°C
Intensité max de charge
1C (100A)
Plage de température pour la charge
0 ~ 60°C
Intensité nominale de charge
0,5C (50A)
Tension Min
2.5V
Tension Max
3.65V
Attachments
2D plan EVE 100Ah
Download (161.86KB)
Datasheet EVE 100Ah
Download (3.72MB)
