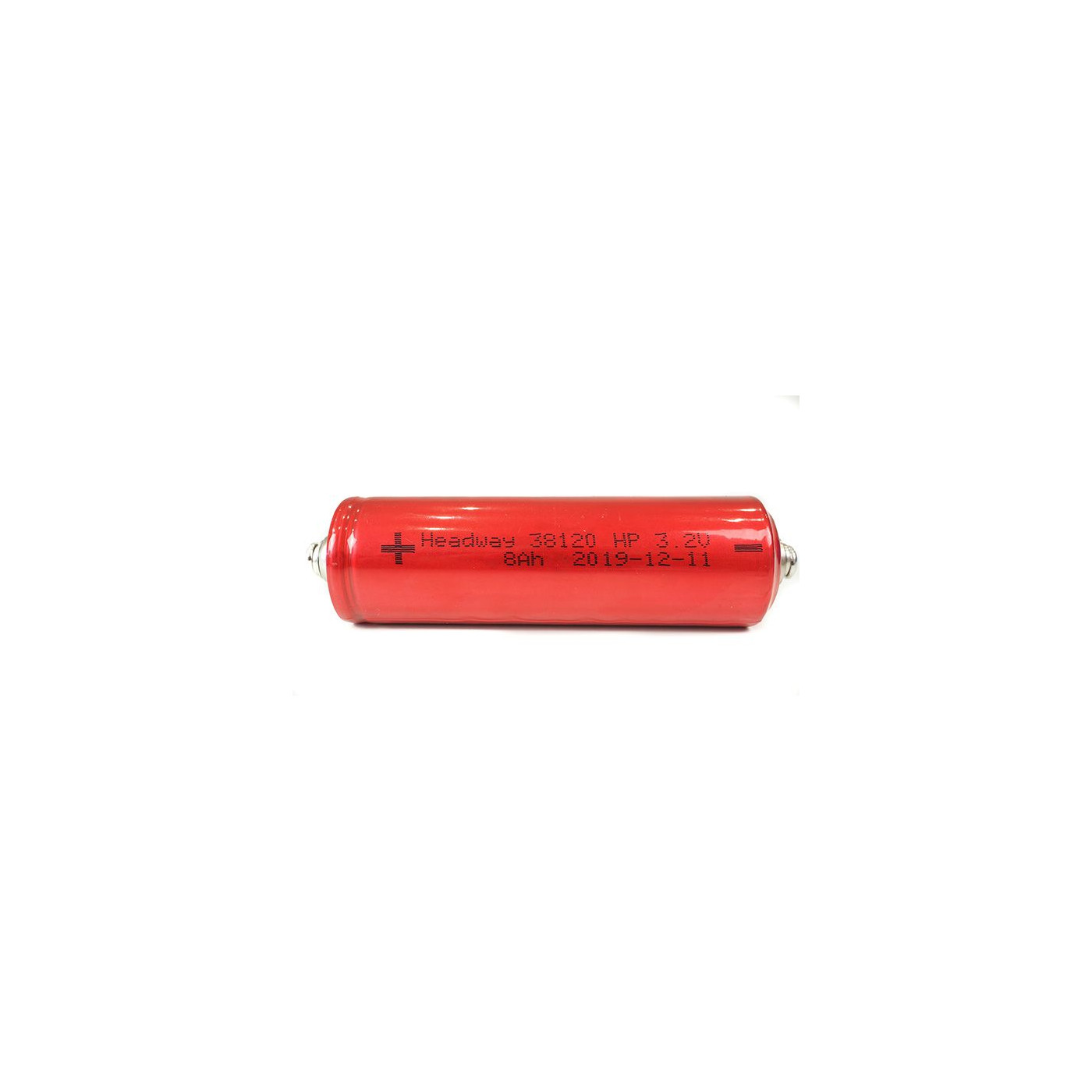

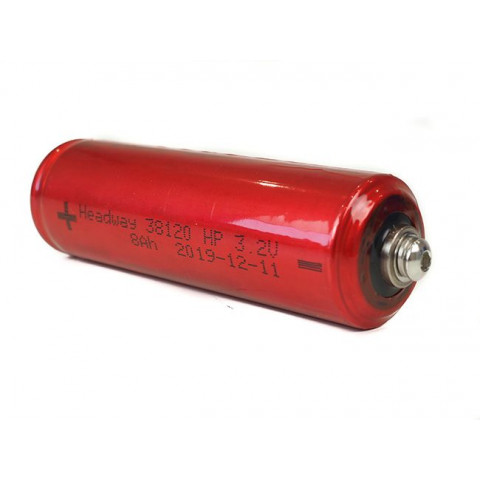

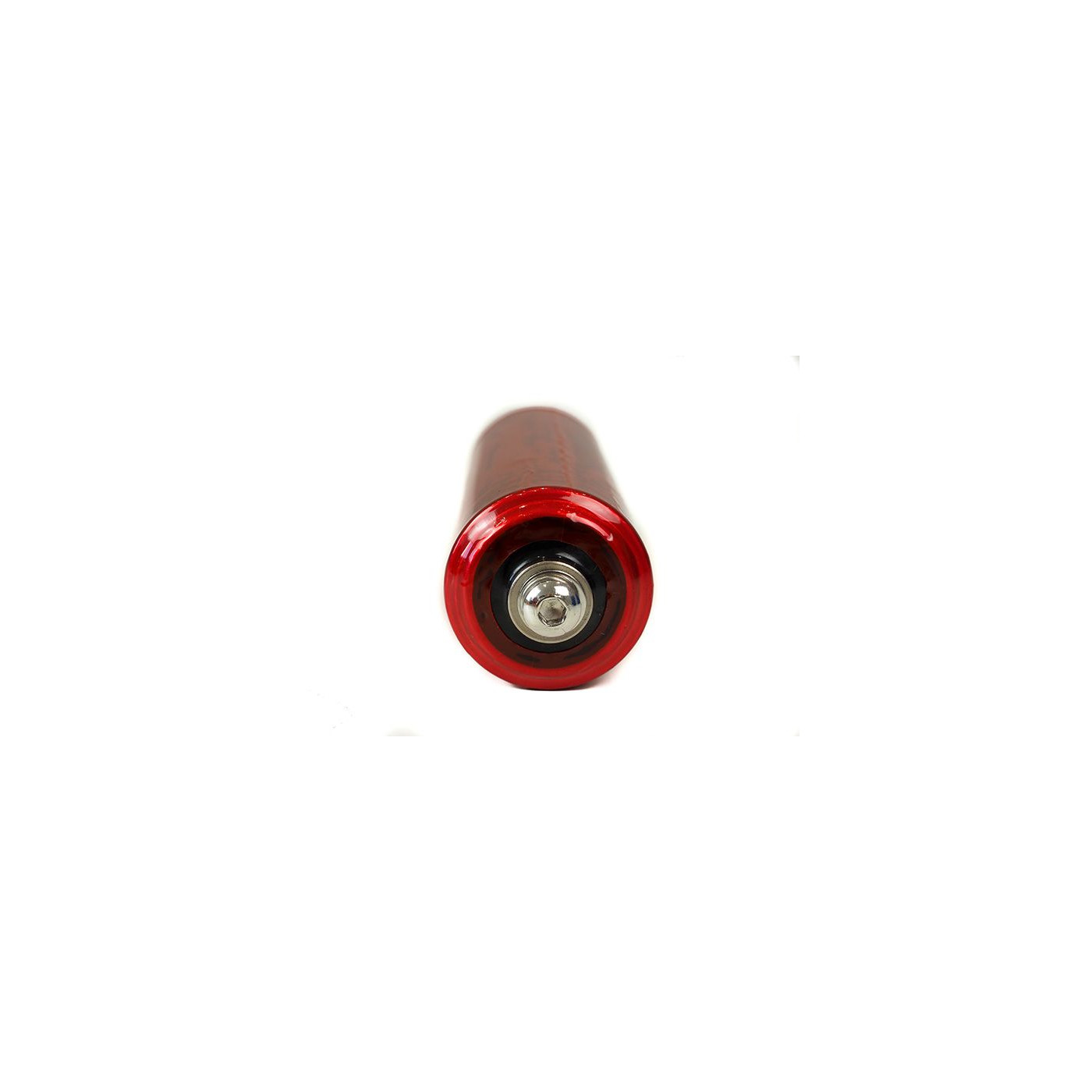

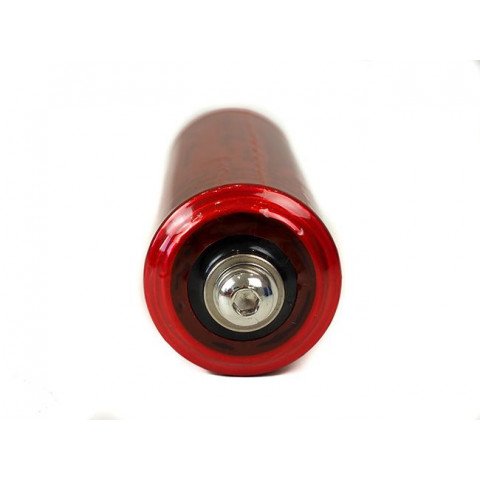

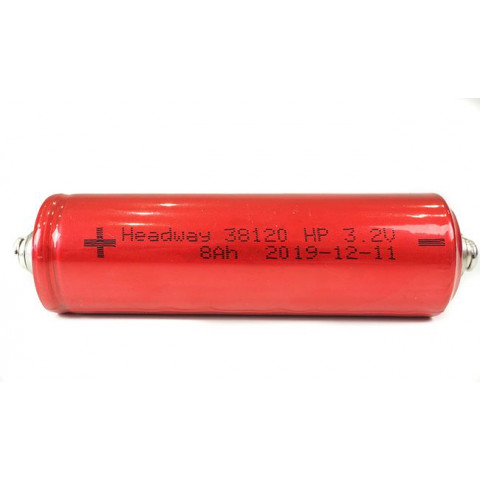

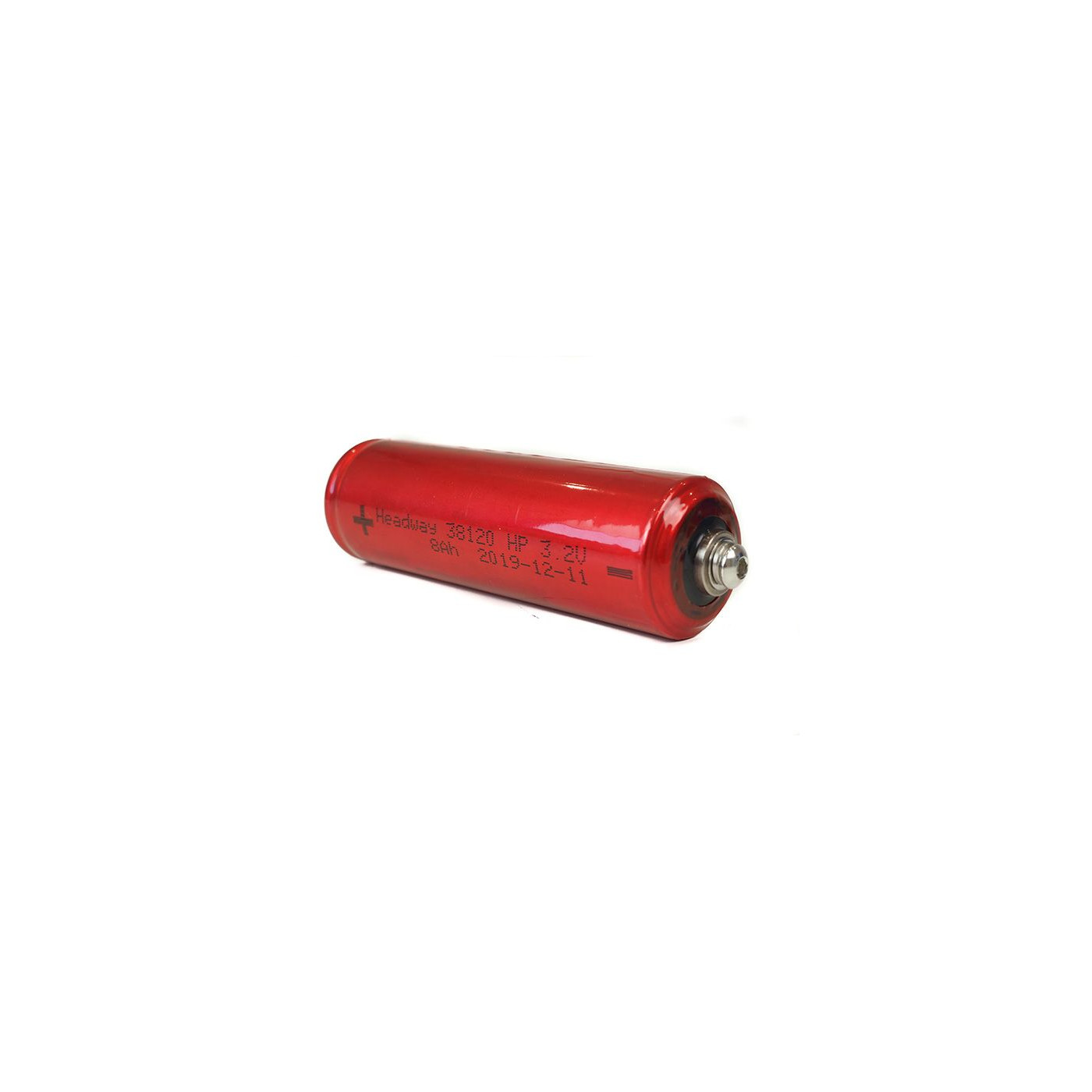

Headway LiFePO4 cell 38120HP 8Ah high power

Headway cylindric cell 38120 LiFeP04 Lithium Iron cells

Capacity : 8Ah

Dimensions => Diameter : 38 mm ; Length : 120 mm (135 mm incl Terminals)

Weight : 335g

Max continuous current = 120A

recommanded discharge current = 40A

Recommanded charge current = 24A
Read moreShow less
€23.00 (tax incl.)
In STOCK 111 Items
Reference:
000569
You may also like
Cellule Lithium haute performance EVE 21700 50E 5000mAh Cellule Lithium haute performance EVE 21700 50E 5000mAh

€5.90 (tax incl.)
High energy density Lithium cell EVE 21700 50E. This cell efficiently replaces the Sony VT6C cells that we used in high-performance motorcycle or competition karting batteries. Nominal capacity: 5000mAh Weight: 69g...
Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah Lithium Iron cell LIFEP04 3.2V 280Ah

€109.00 (tax incl.)
LiFeP04 LFP 3,2V 314Ah grade A cell Capacity: 314Ah Nominal voltage: 3.2V Min / max voltage: 2,5V / 3,65V Lifetime: 8000 charge cycles M6 threaded terminals Dimensions => Height: 217,5mm; Length: 173,7mm; Width:...
EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate EVE Lithium cell 21700 40P 4000mAh high discharge rate

€4.40 (tax incl.)
Cylindrical Lithium Cell 18650 35V EVE 3500mAh This cell is an effective replacement for LG MJ1 or Samsung 35E 18650 cells. Nominal capacity: 3500mAh Weight: 50g Nominal voltage: 3.65V Max / min voltage: 4.2V / 2.5V...
Cell 21 700 4Ah Cell 21 700 4Ah Cell 21 700 4Ah

€6.20 (tax incl.)
High-performance EVE 21700 40P lithium cell with a high discharge rate (12.5C). This cell is one of the best cells for electric vehicle racing applications. It supports a 12.5C discharge rate, meaning 50A per cell......
3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery 3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery 3.6V 3000mAh 18650 SONY VTC6 cell for Lithium battery

€7.00 (tax incl.)
18650 format Lithium cell Brand: SONY Model: VTC6 Capacity: 3000mAh. Nominal voltage: 3.6V Max voltage: 4.2V Discharge current: 30A Dimensions: Diameter: 18mm Height: 65mm Weight : 50 g. Lifespan : 600 charge...
Description

 Headway cylindric cell 38120 LiFeP04 Lithium Iron cells

Capacity : 8Ah

Dimensions => Diameter : 38 mm ; Length : 120 mm (135 mm incl Terminals)

Weight : 335g

Nominal voltage = 3,2V

Max continuous current = 120A

recommanded discharge current = 40A

Max pulse discharge current = 240A

Recommanded charge current = 24A

Max charge current = 80A

Internal resistance = 2.5mOhm

Cycle life = 3000 cycles

Min voltage = 2.0V

Max voltage = 3,65V

Self discharge rate = 2% par mois
Read moreShow less
Product Details
000569

Data sheet

Capacité
8Ah
Mass
335 g l'unité
