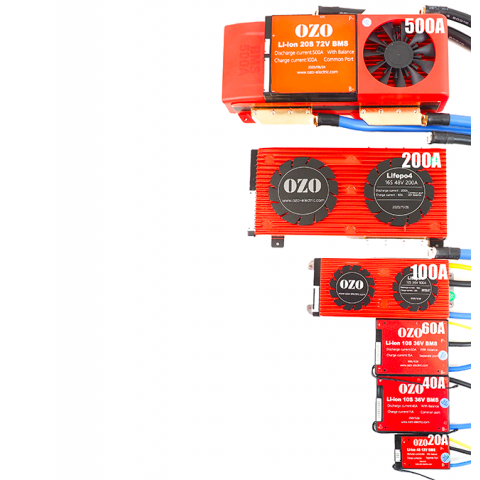

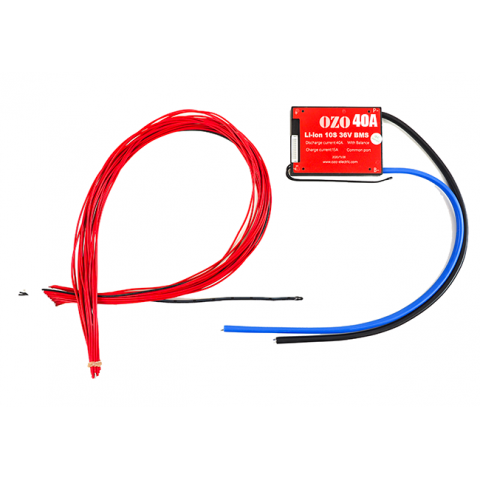

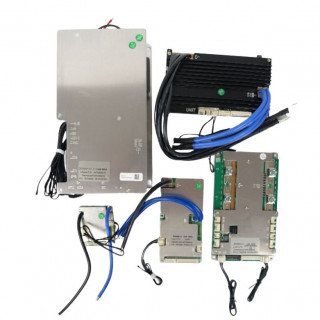

OZO BMS Lithium Battery LiMn ou LiFePO4 LFP 24V 36V 48V 60V 72V
These BMS will meet your most demanding and powerful projects.
You want to make a custom battery for your scooter, bike, vae, your motorcycle, quad, motorhome, home storage, kart, boat, industrial cart, picking cart, stroller, projector
Please contact us on batteries@ozo-electric.com
We offer you our OZO BMS (Battery Management System) after more than a year of development.
Available in several voltages 12V, 24V, 36V, 48V, 60V and 72V.
Compatible with LiMn, LiPo and LFP lithium cells
Nominal discharge current: from 20A to 200A
Peak discharge current: 60A to 500A
Charging current: 5 to 200A
Temperature protection: 70 ° C.
Cable section 16AWG to 6AWG sheathed silicone high temperature protection 200 ° C
Cut off: 2.9V per cell
Passive cell balancing to maximize the life of the cells in your battery pack.

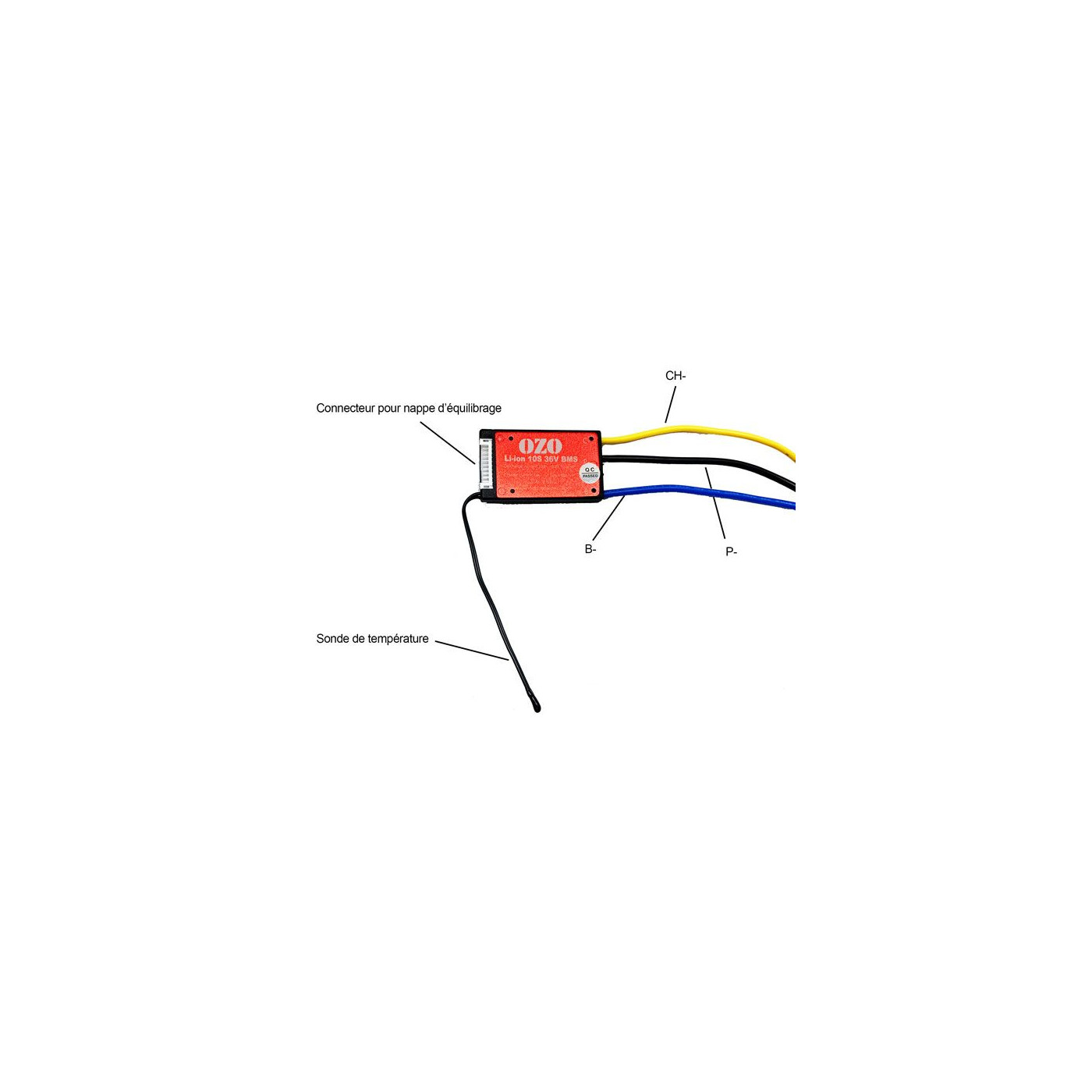

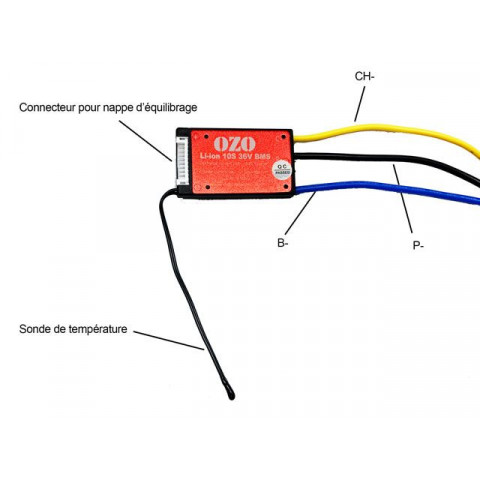

Each BMS is supplied with these power and charging cables, P-, B- and C- and with its own balancing cable.
Optionally, it is possible to have coomon port and discharging. The charge current is then equal to the discharge current! up to 200A charging current.

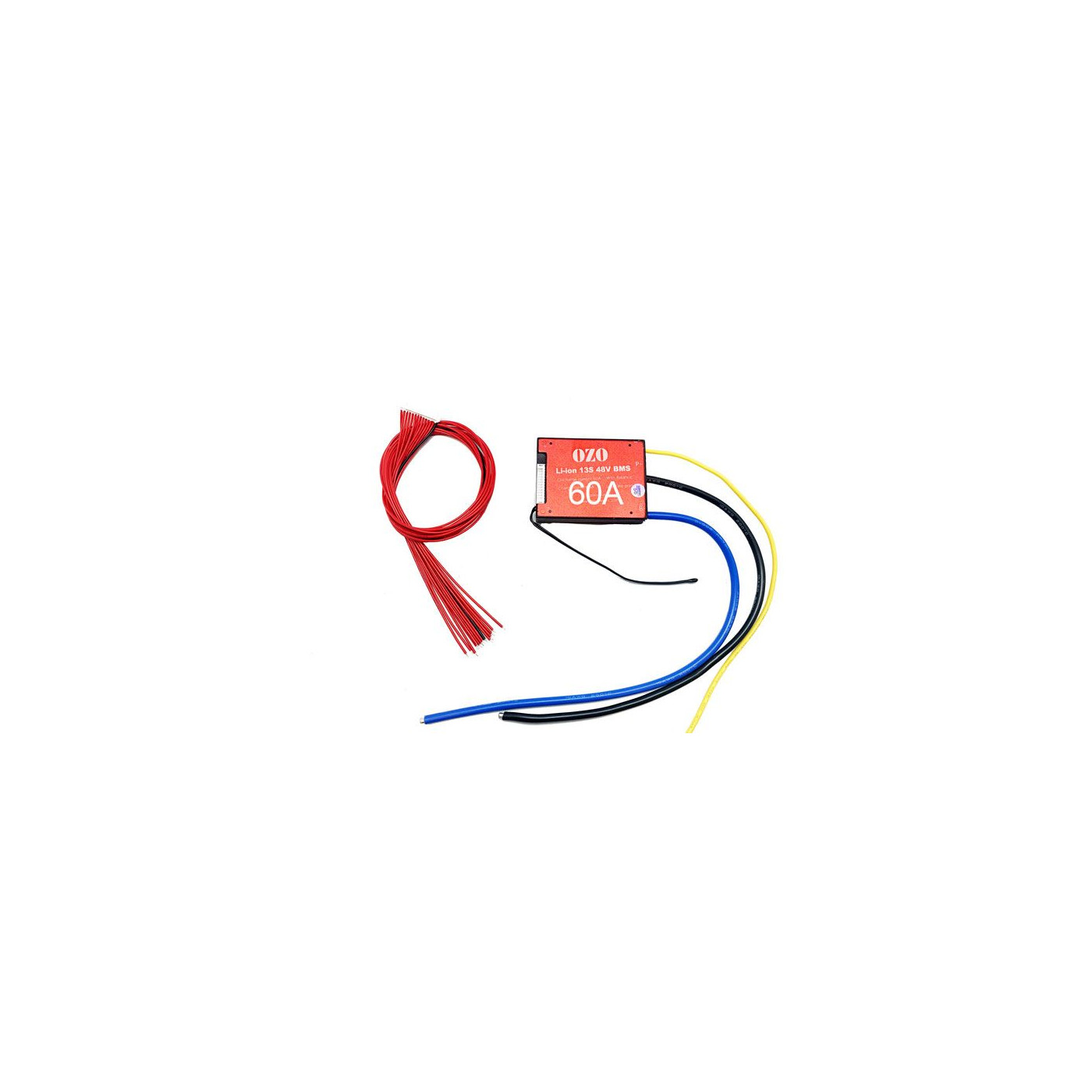

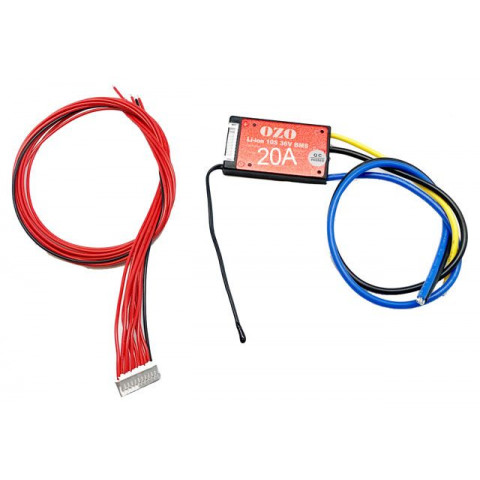

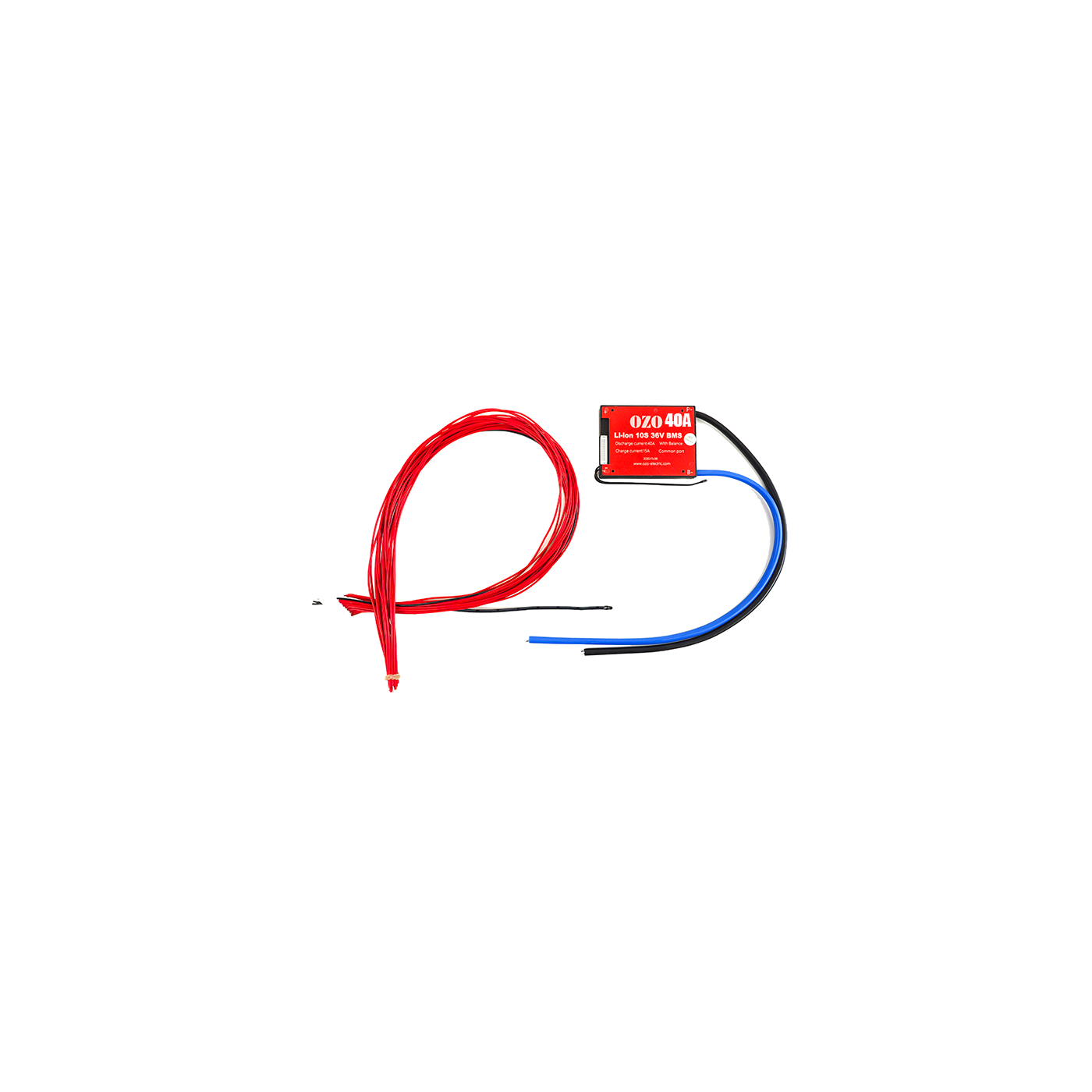

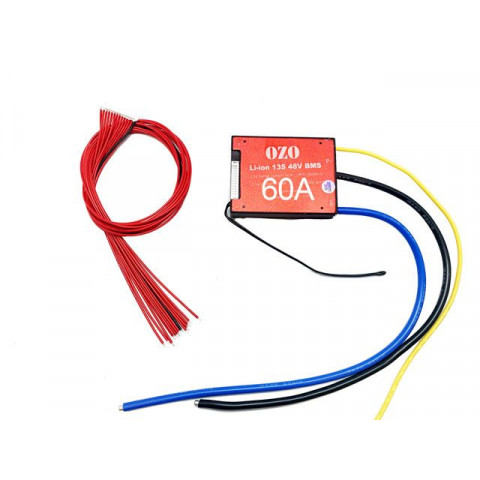

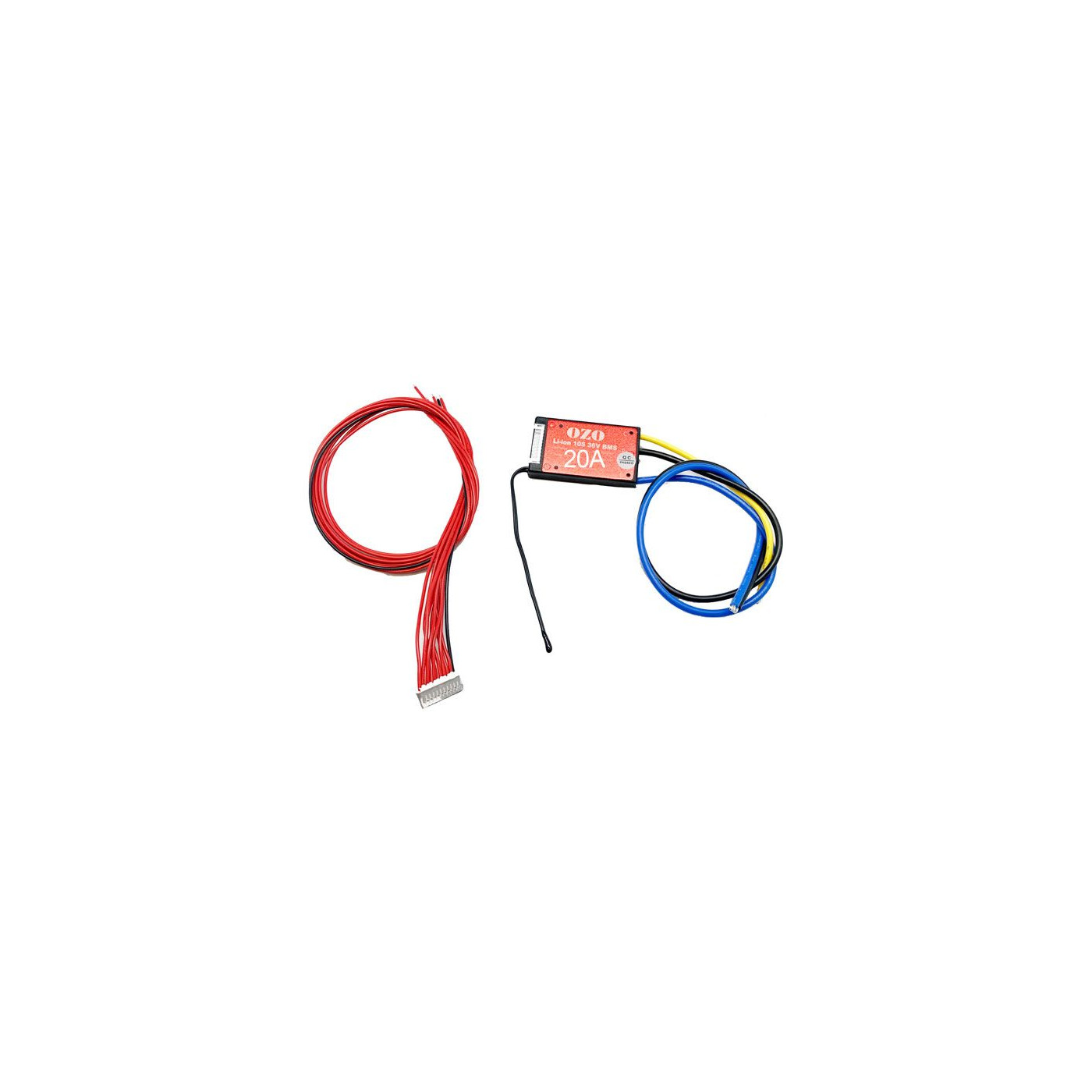

20A and 60A models are designed to meet all the power of pedelecs on the market, golf cart, stroller, chariot, autonomous weather station, scooter, bicycle.

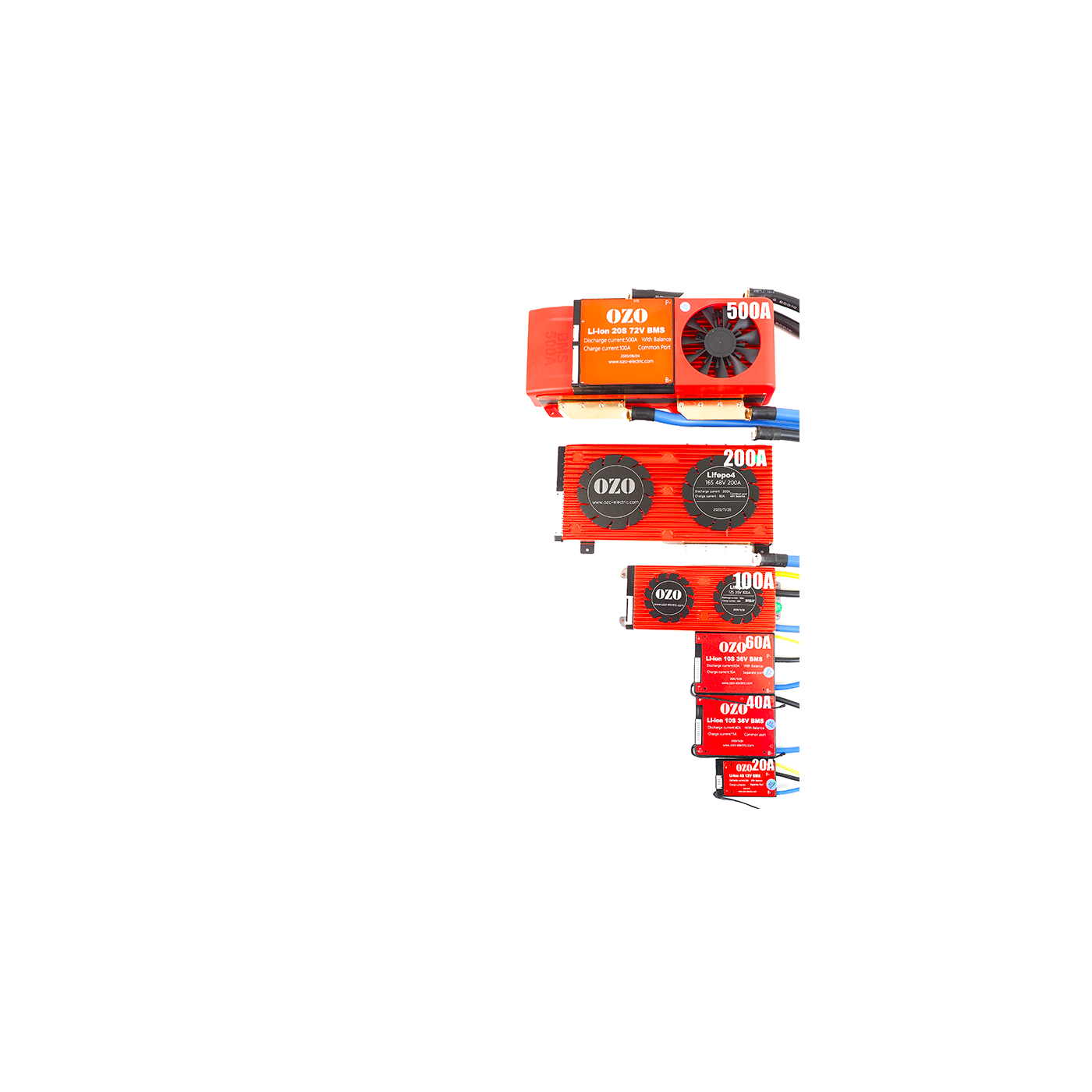

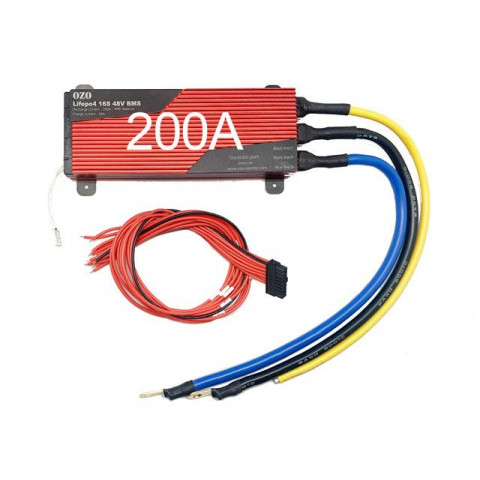

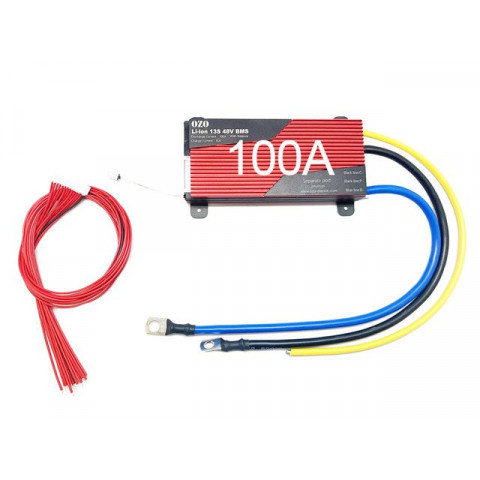

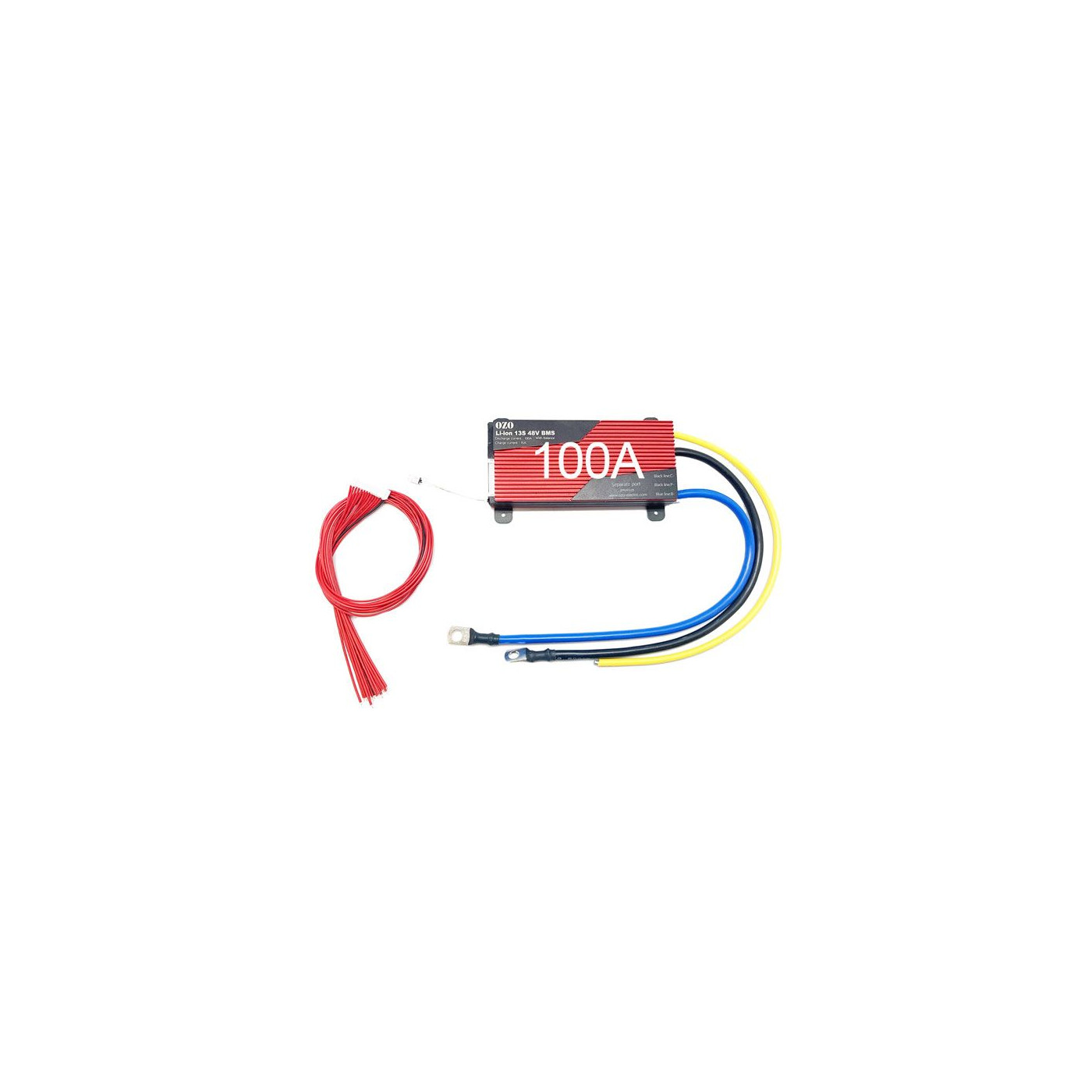

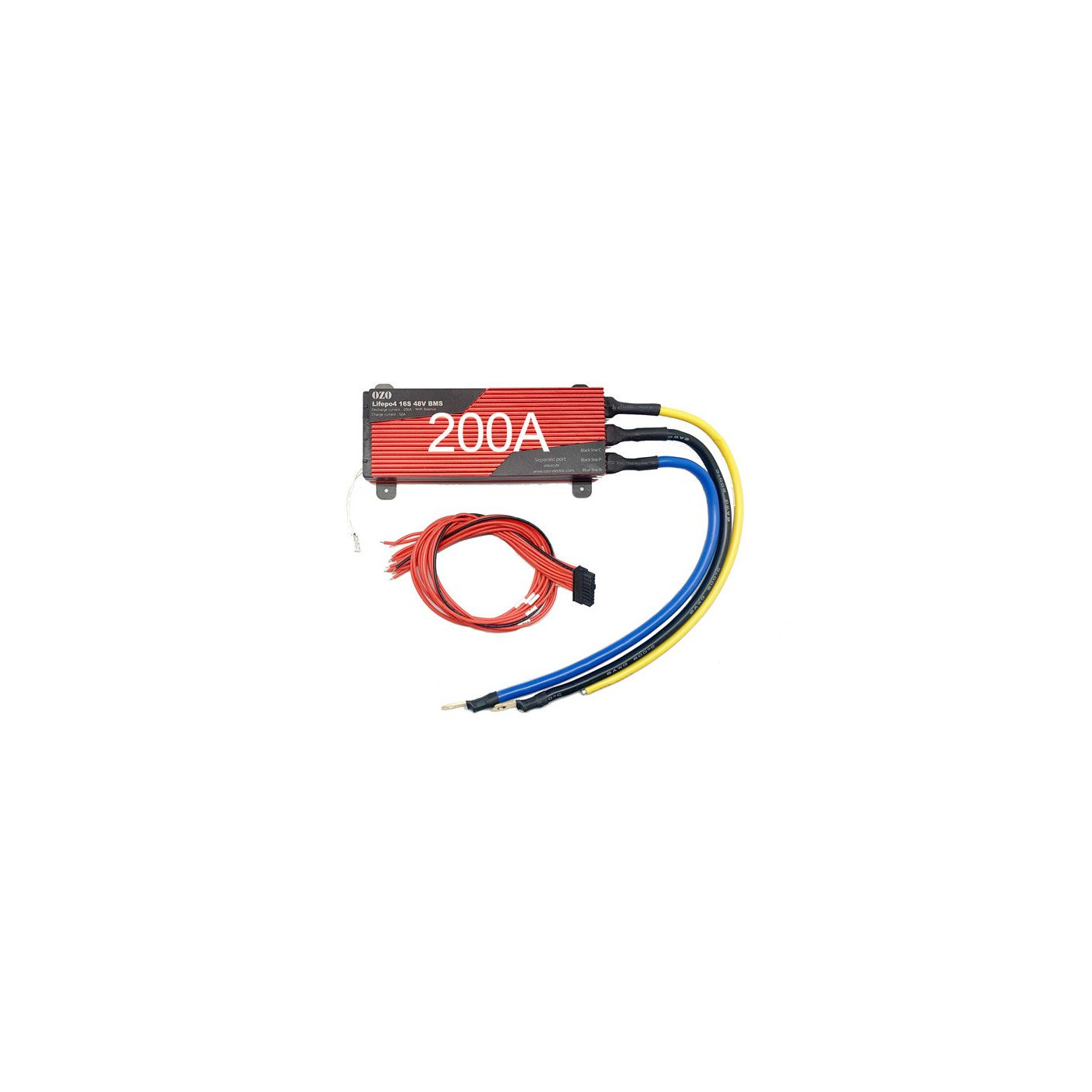

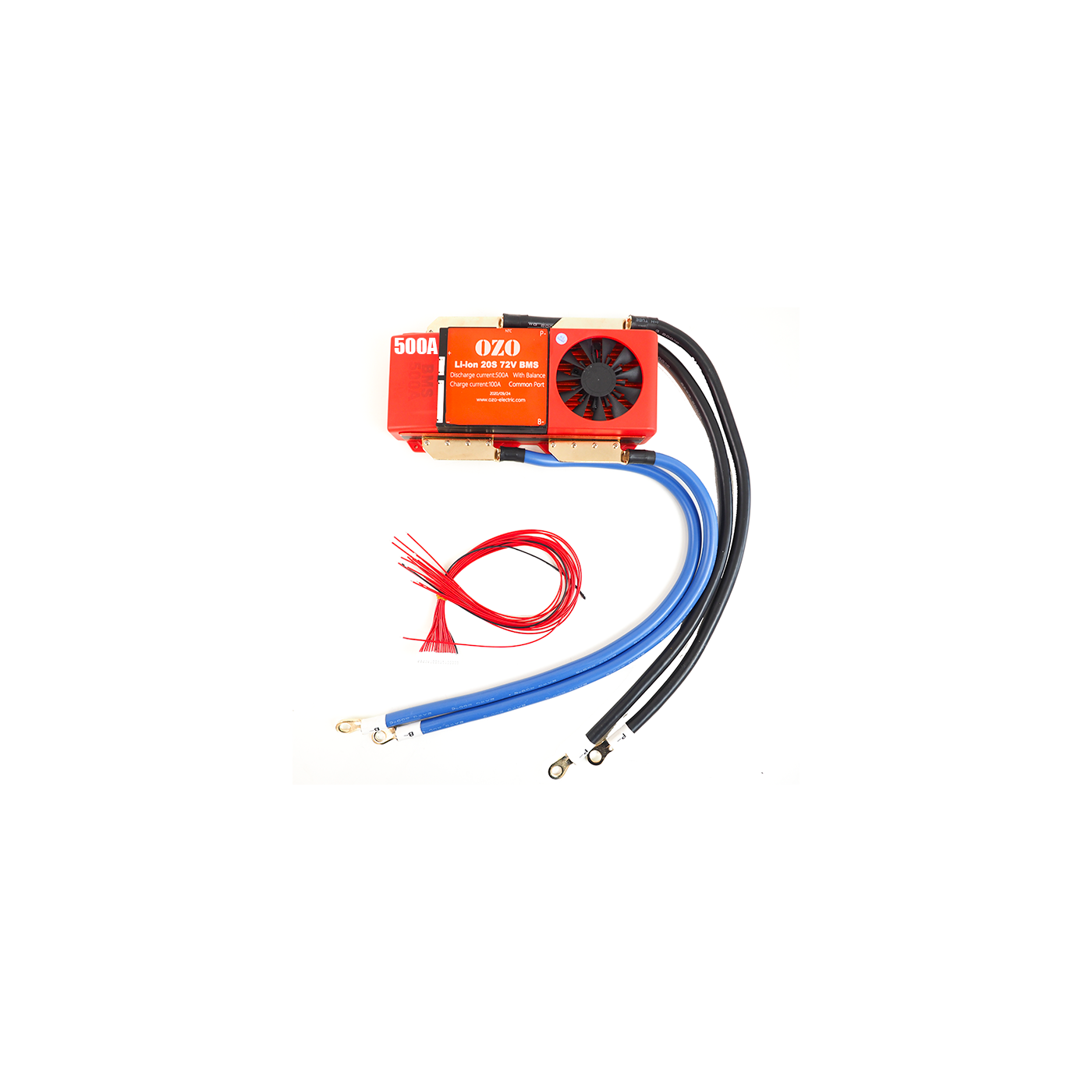

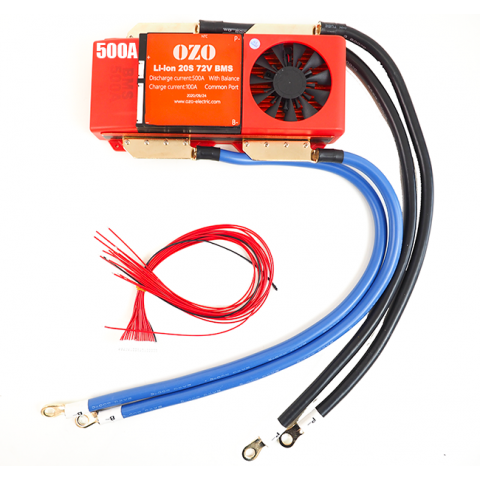

100A and 200A models are perfect for installations requiring strong discharge currents, motorcycle battery, agricultural machine, kart, quad, motorhome, home-storage
| Nominal discharge current | 20A | 60A | 100A | 200A |
|---|---|---|---|---|
| Peak discharge current | 60A | 100A | 300A | 500A |
| Charging current | 5A | 15A | 15A or 100A if common port | 50A or 200A if common port |
| Dimension | 60x35x9 | 80x60x16 | 148x65x29 | 180x60x28 |
| Weight | 60 g | 190 g | 580 g | 800 g |
| Cell Technology | LiMn oo LiFePO4 (LFP) | |||
| Assemblies available (LiMn) | 4S , 7S , 8S , 10S , 13S , 16S , 20S | |||
| Assemblies available (LFP) | 4S , 12S , 16S , 20S | |||
| Temperature sensor | Yes | Yes | Yes | Yes |
| Protection temperature | 70°C | 70°C | 70°C | 70°C |
| Cut off | 2.9V / cellule | |||
| e Switch | No | No | No | No |
| Common port | No | No | Yes depending model | Yes depending model |
| Balancing cable length (inclused) | 450mm | 350 ou 450mm | 450mm or 500mm | 450mm or 500mm |
| Lenght B-/P-/CH- | 350mm | 350mm | 350mm or 500mm ( 20S) | 350mm or 500mm ( 20S) |
| Cable section B-/P- | 14AWG (2.5mm²) | 10AWG (6mm²) | 7AWG (8mm²) | 6AWG (16mm²) |
| Cable section CH- | 16AWG (1.5mm²) | 16AWG (1.5mm²) | 10AWG (6mm²) | 8AWG (10mm²) |
