OZO Batteries App

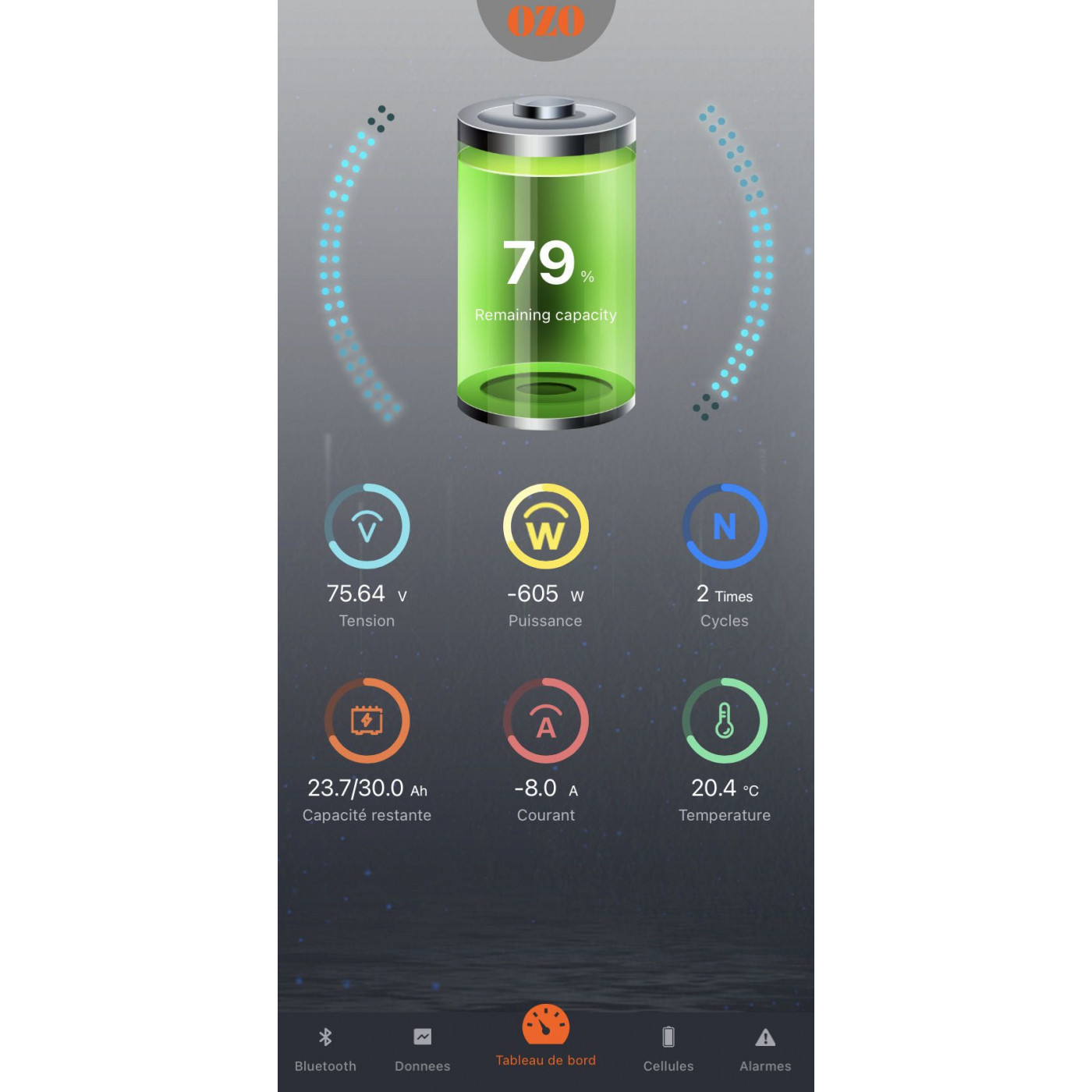

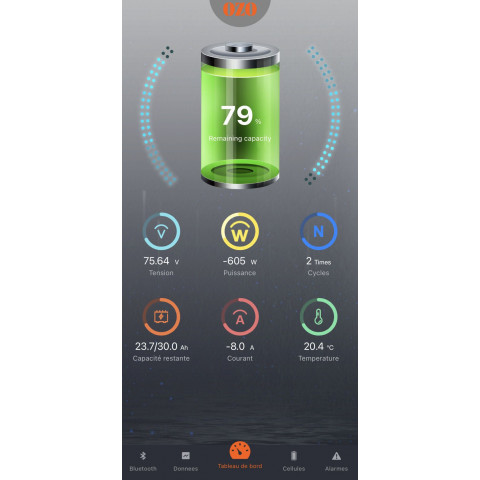

Dashboard

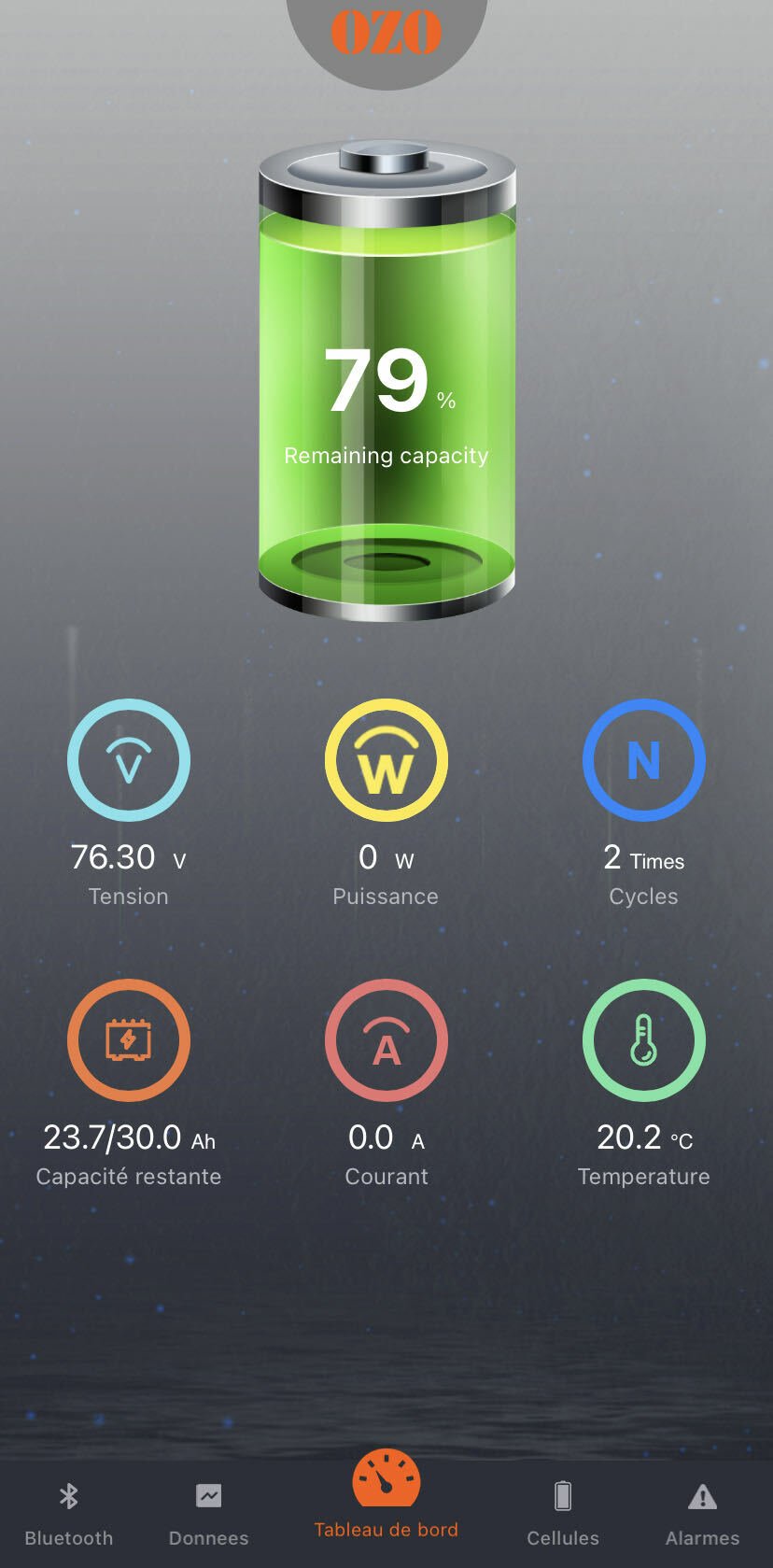

The dashboard view contains all the essential battery information.

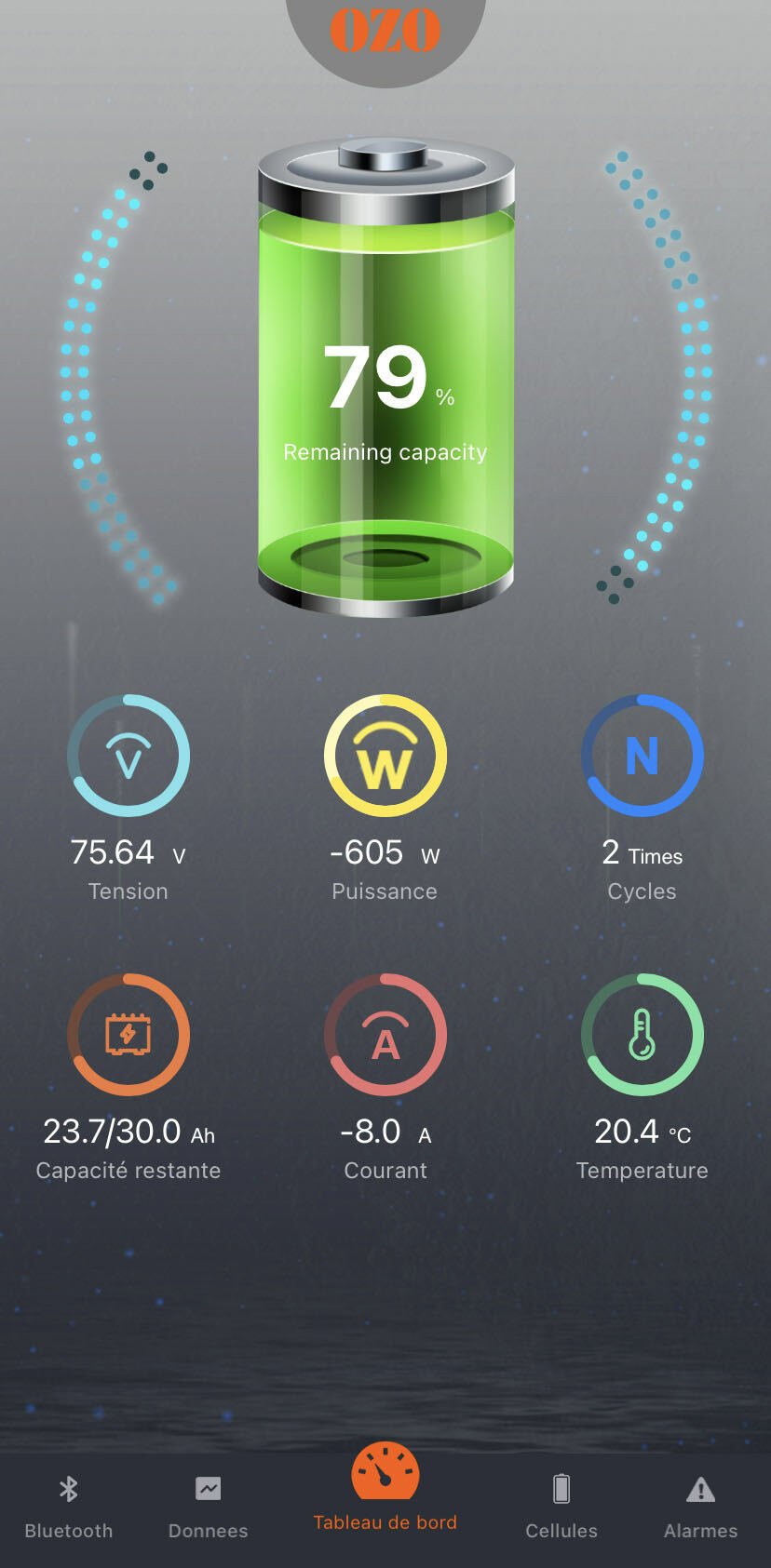

In the center in the form of a battery, is represented the remaining autonomy of the battery in %, it is the SoC (State of Charge). If the battery is running (charging or discharging) an animation appears on either side of the drawing of the one. The color of this cell evolves according to the remaining autonomy (from green to orange then red depending on the state of discharge). We find the voltage in Volt (V), the instantaneous power in Watt (W), this value is present only when the battery is charging (positive value) or discharging (negative value).

There is also the number of operating cycle of the battery (number of charge/ discharge with a difference of 80% between the empty voltage and the full voltage). On the line below, it is specified the capacity of the battery in Ampere hour ( Ah), the instantaneous discharge current expressed in Ampere. If the value is negative, the current comes out of the battery, it is in discharge. If the value is positive, the current enters the battery, it is charging.

The last value indicates the internal temperature of the value, this value must be between 10°C and 50°C for an optimized lifetime.

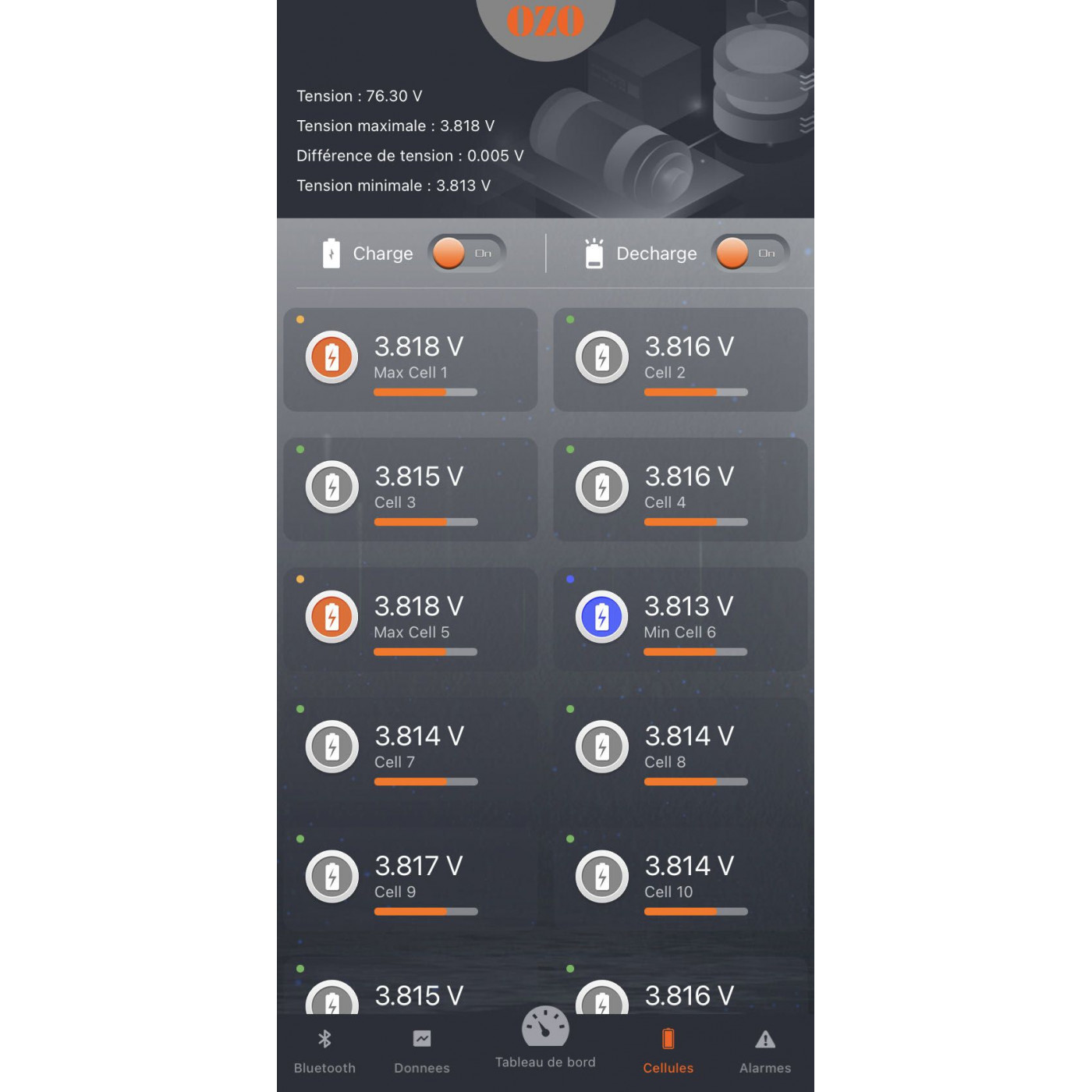

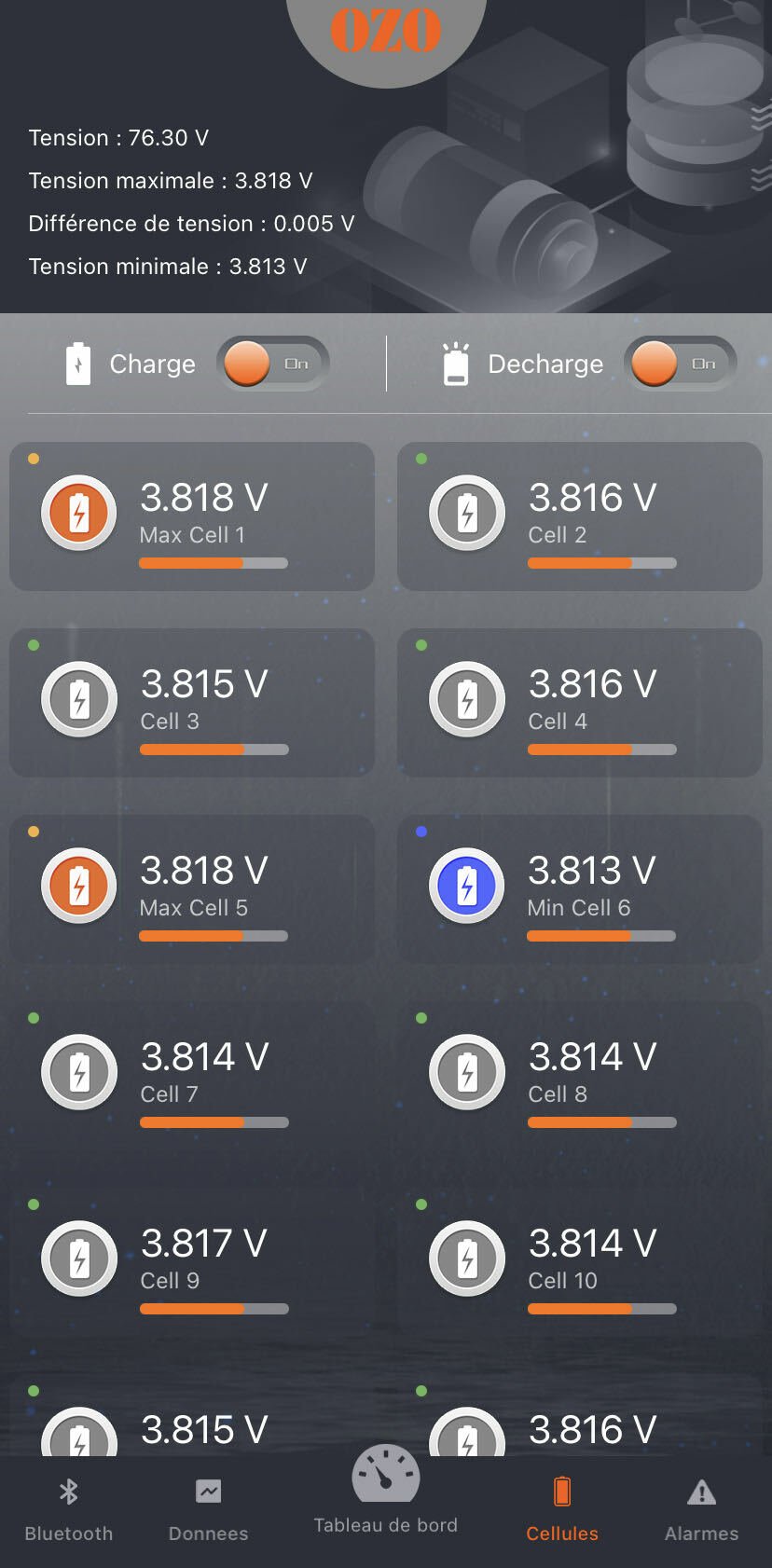

Cells

This menu displays the voltage of each row of battery cells.

If you have a motorhome battery with a voltage of 12V for Lithium Iron Phosphate technology, you can observe 4 cells. The minimum and maximum voltages for this LFP technology are 2.6V and 3.6V.

If you have a VAE battery with a voltage of 36V (Some OZO VAE batteries have this option BMS connected Bluetooth, do not hesitate to contact us on batteries@ozo-electric.com), you can then see 10 cells. The minimum and maximum voltages for this NMC technology are 2.9V and 4.2V.

On the first lines at the top left, you find the instantaneous voltage of the battery; the voltage of the cell/row with the highest battery load ( «Maximum voltage»), the voltage of the cell with the lowest battery load («Minimum voltage») and the most important value to monitor the status of your battery, the voltage difference between the minimum and maximum value («Voltage difference»).

If this value is less than 0.1V, the battery is in perfect health. If this is not the case, you will need to contact us at batteries@ozo-electric.com to further investigate the diagnosis. Also on this tab, 2 interesting features to turn off the charging function and stop the charging of the battery and to turn off the discharge in order to turn off the power of the organ connected to the battery. These are the 2 On/OFF switches present next to the 2 cell logos «load» and «discharge».

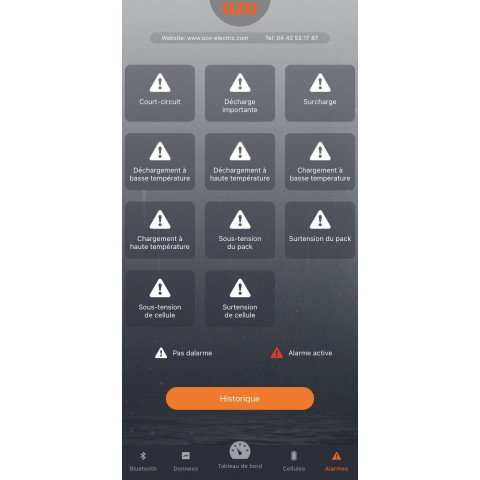

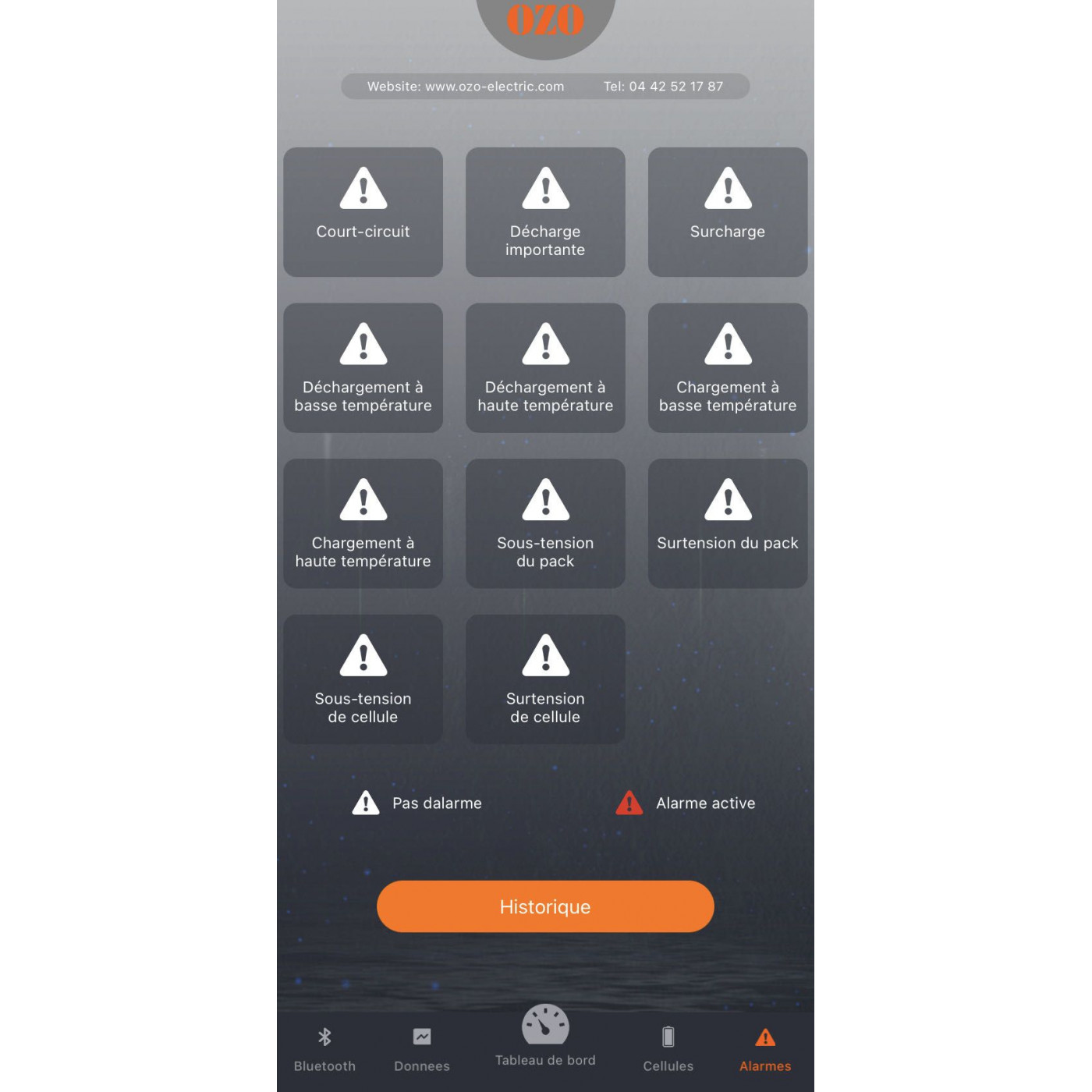

Alarms

In case of default, you will have to go to this tab.

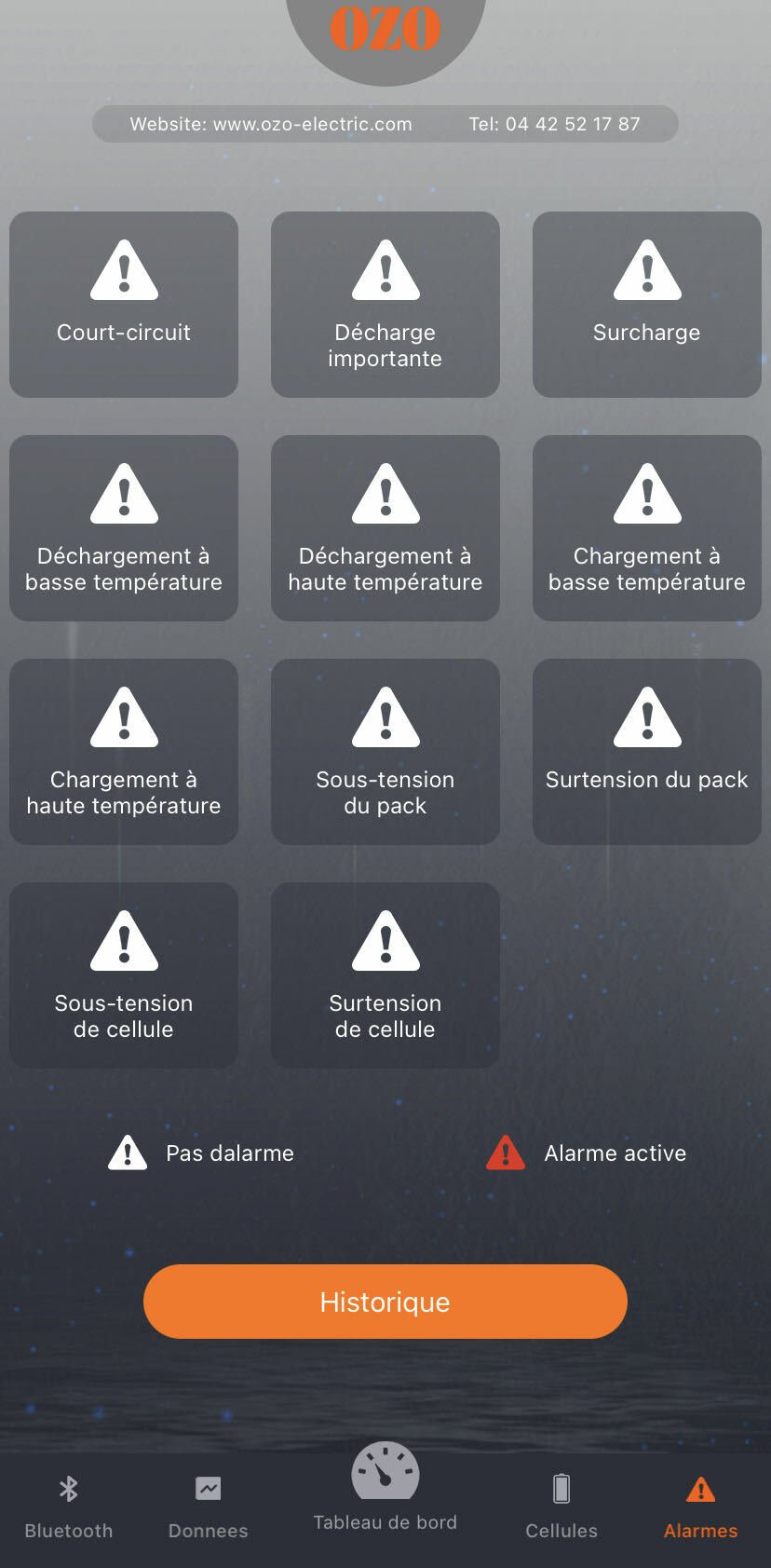

The current fault will be in red specifying the alarm to be treated. The various alarms are: «Short circuit», «Heavy discharge», «Overload», «Low temperature unloading», «High temperature unloading», «Low temperature loading», «High temperature loading», «Under-voltage pack», "Pack Overvoltage", "Cell Undervoltage", "Cell Overvoltage".

After the default disappears, it remains saved in the "History" tab accessible by the button of the same name in this tab. In case of a defect not related to the ambient temperature of the battery, do not hesitate to contact us by email by sending us screenshots of the different tabs at batteries@ozo-electric.com

Data

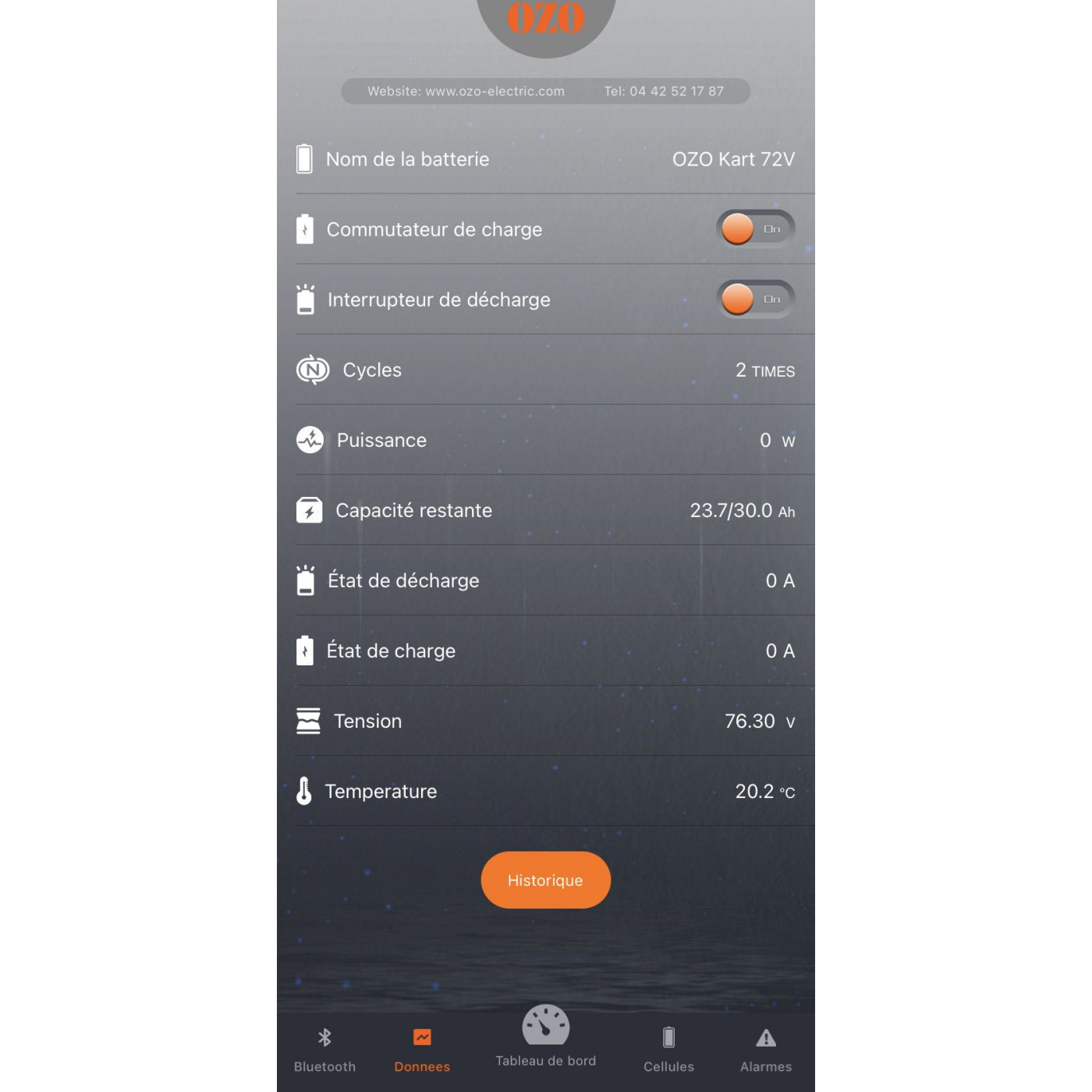

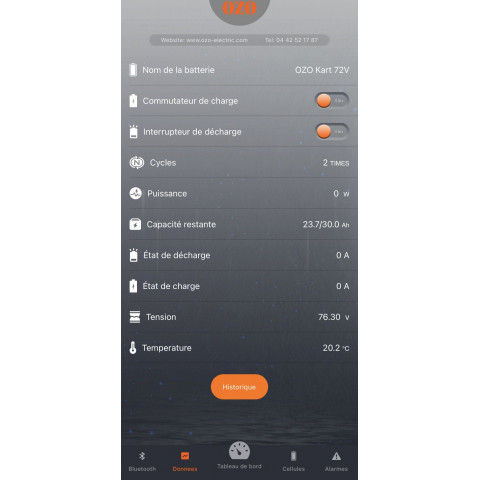

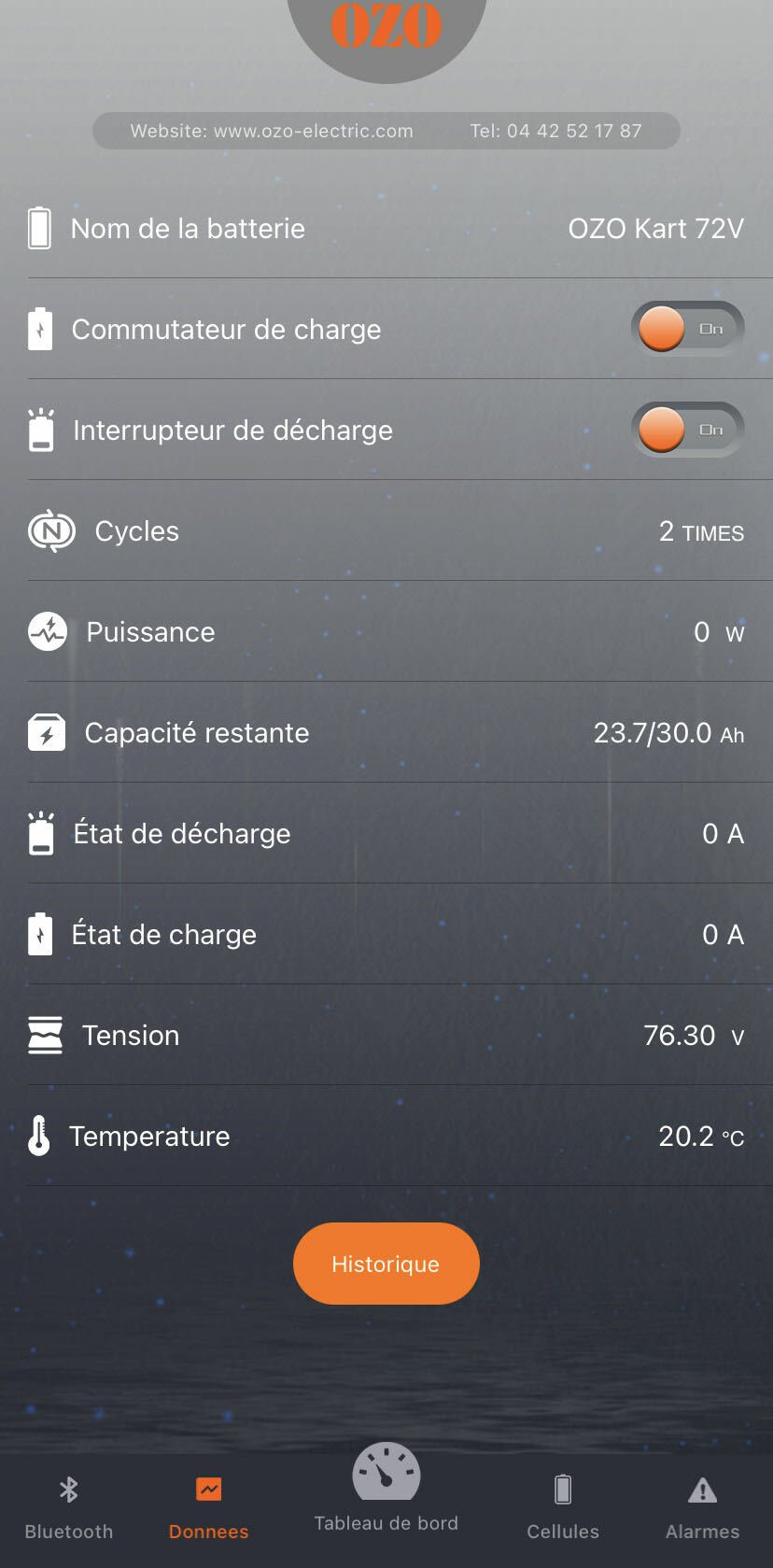

This tab allows to retrieve the information already present on the Dashboard tab but in text format and without the tab. You also find the 2 switches to turn off and turn on the function recharge and discharge the battery.

The main feature of this tab is to be able to change the name of your battery. The number of characters in this field is limited to 15. You can also access the defect history at the bottom of the page by clicking on the «History» button

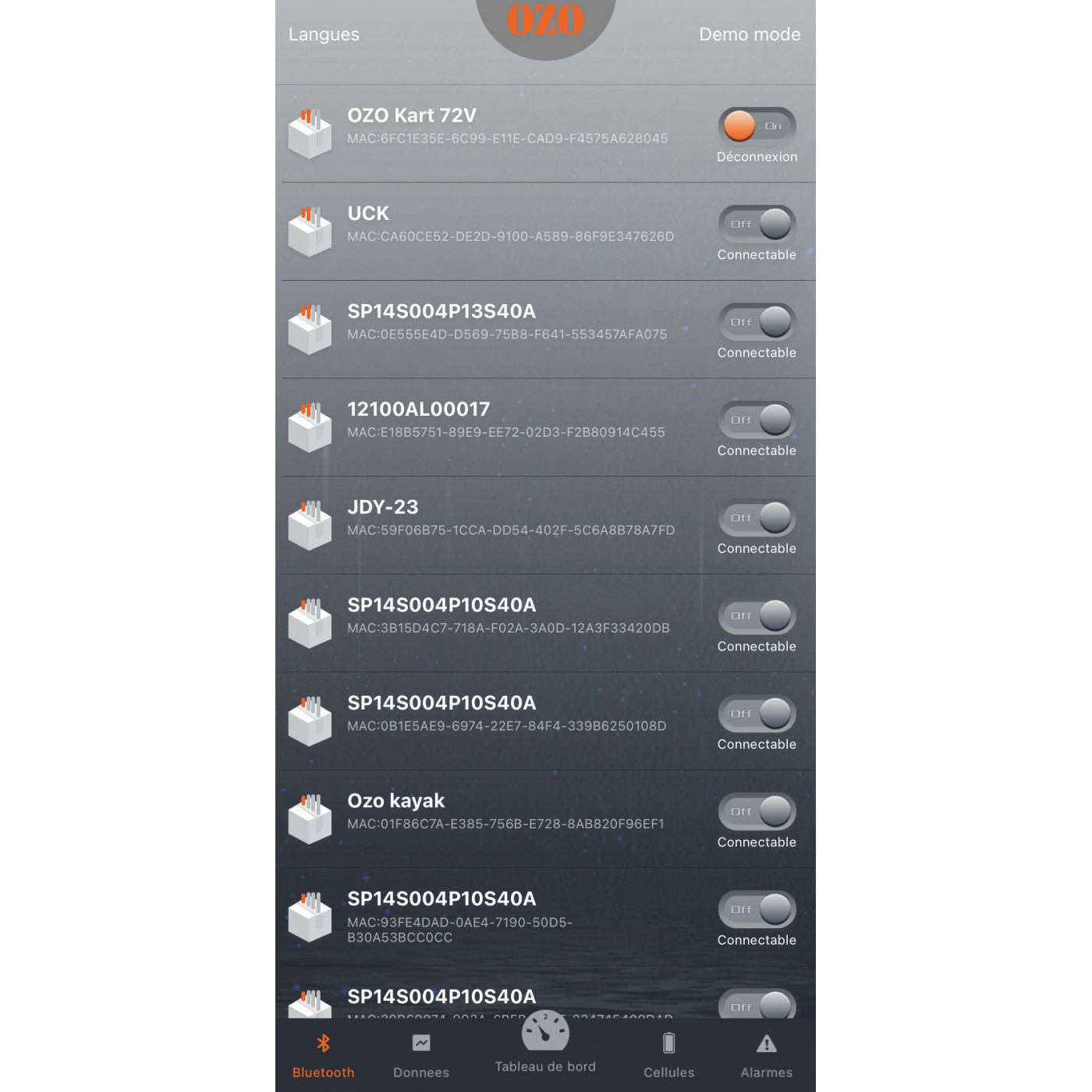

Bluetooth

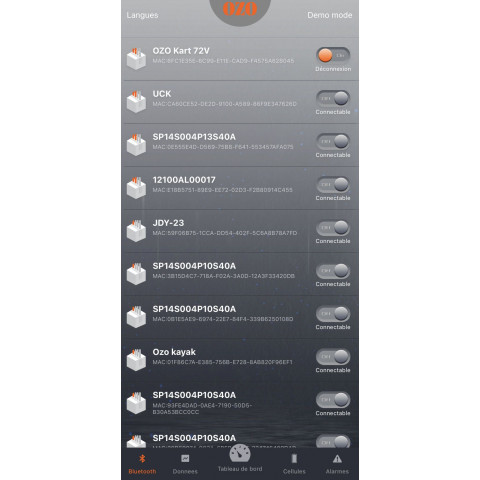

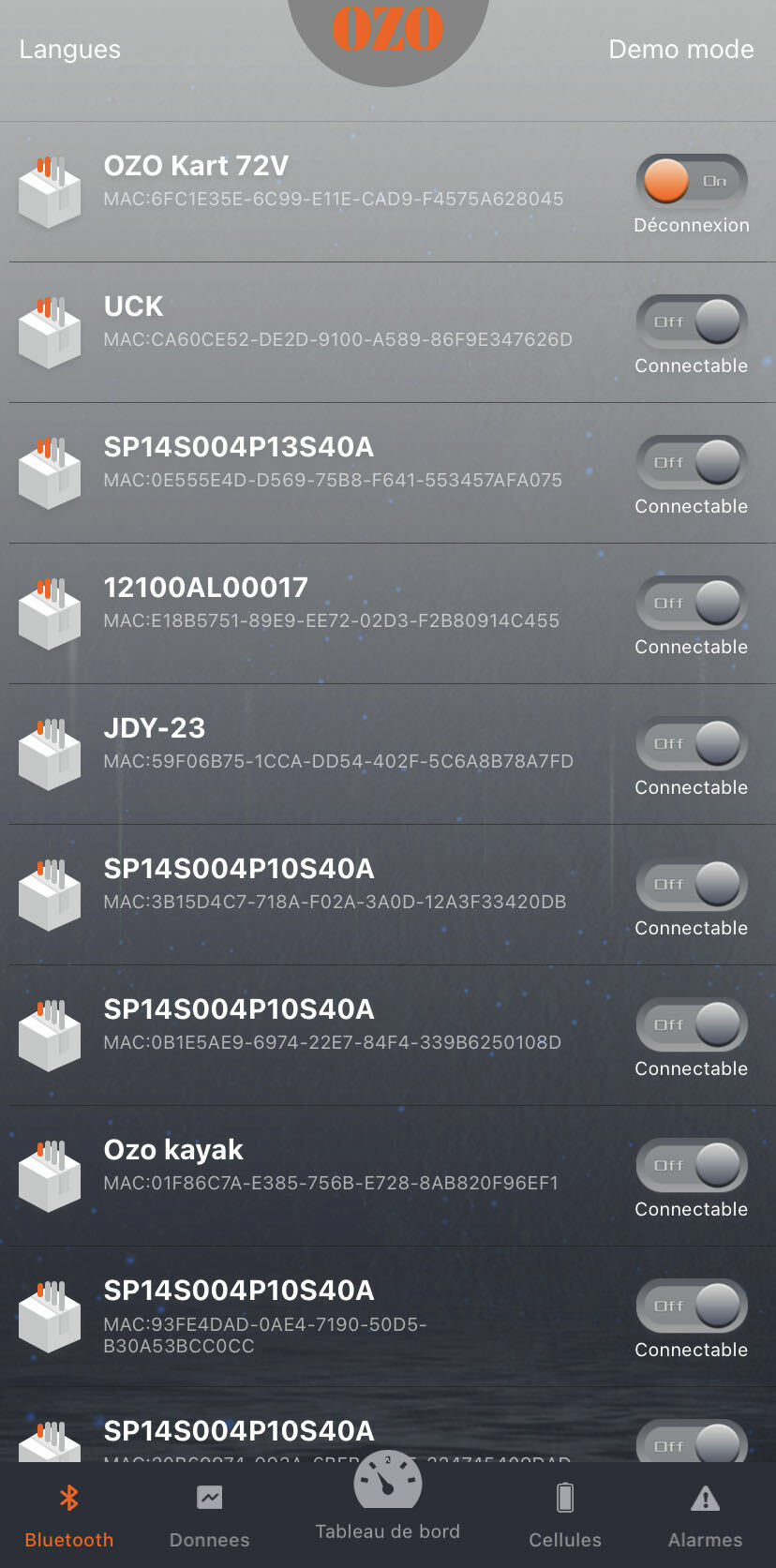

As soon as the application opens, the first active tab is that of Bluetooth with the list of detectable batteries nearby (range about 10m without obstacle).

To select the battery, simply click on the line of the battery name you want to display. If you change the name of your battery in the «Data» tab, the new battery name will be displayed in this menu.
