Electric Industrial motor wheel for trolley 8" pusher puller medical bed
Brushless motor wheel to convert into electric any industrial trolley :
- Industrial (rolling base, industrial serving trolleys pusher puller, refrigerated carts; rack, kitting)
- Logistics (picking trucks)
Power : 800W | Dropout : 100mm / outside diameter 210mm.
This electric wheel can be installed easily on any industrial trolley to decrease the human effort and noise level and answer to new RSE politics.
You can convert into electric any pusher puller, serving trolley, hospital bed, medical machine, racks, kitting carts...
800W power and natural rubber tire.
3,6 RPM/Volt so you can get a maximum speed of 5Km/h under 36V.
NTC temperature sensor to protect overheating when using under heavy load.
Zero noise with our Field oriented controller (FOC) 25A
You can drive backward / Forward and get regenerative braking.
2D plan :
| Guarantee | 2 ans |
| Couple max en 36V | 45 Nm for 3.3 RPM |
| poids en 26 pouces | 5.8 kg |
| Technologie | Brushless direct drive |
| Puissance max | 900W |
| Rendement max | 81% |
| Tension Min | 24V |
| Tension Max | 48V |
| Entraxe fourche min/max | 100mm / 140mm |
| Motor Kv (RPM / V) | 3.6 RPM / Volt |
| Hall sensors | OUI |
| Ipmax | 25A |

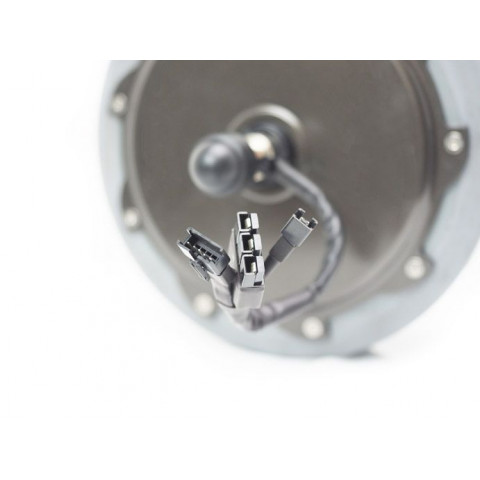

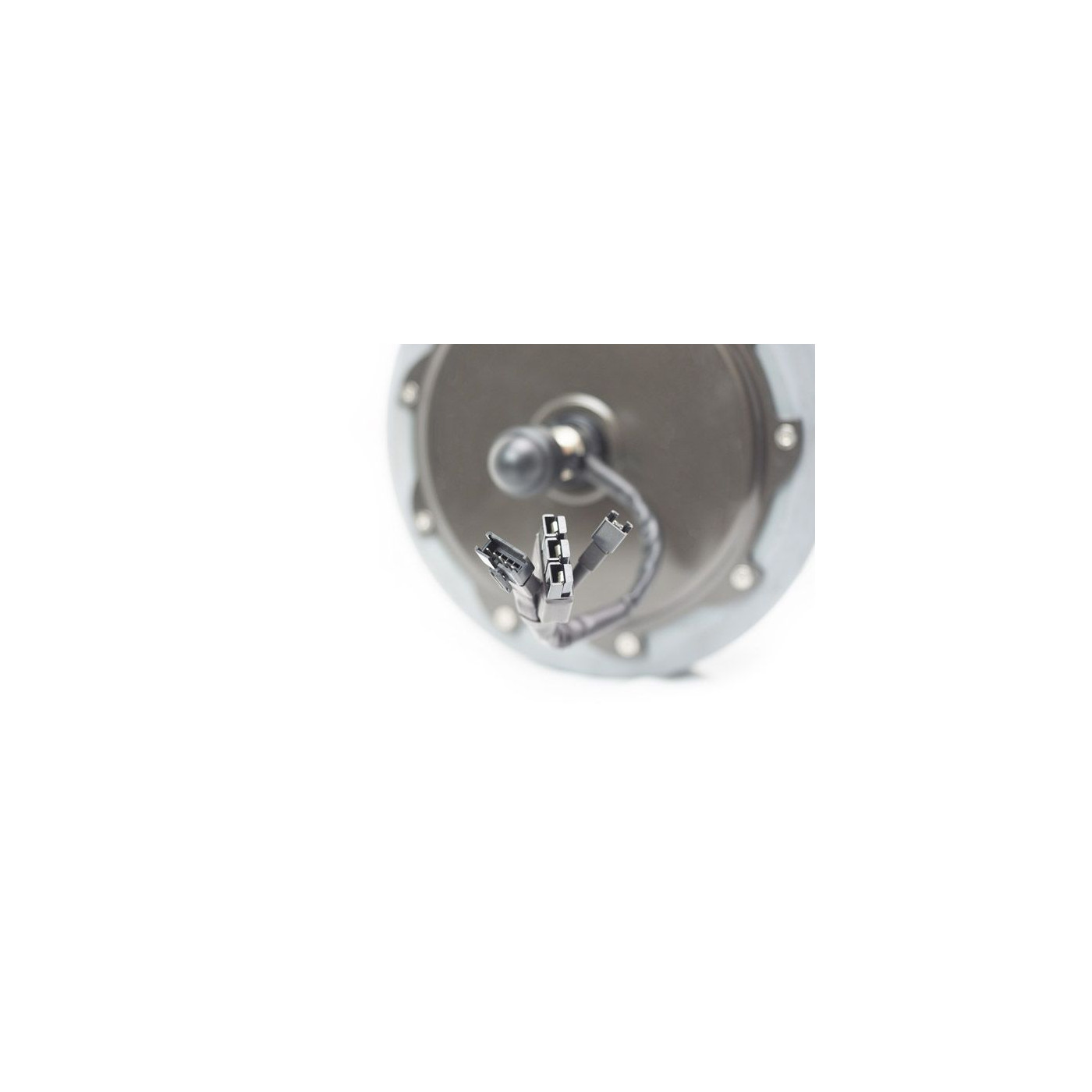

| connecteur moteur | Anderson PP30 pour les phases, JST pour les capteurs et la sonde de température |
| Nombre d'aimants | 40 |
| Motor axle | 14x10mm |
| Vitesse max sous 24V | 3,3 km/h |
| Vitesse max sous 36V | 5 km/h |
| electromagnetic resistance torque | 0,42 N.m |
