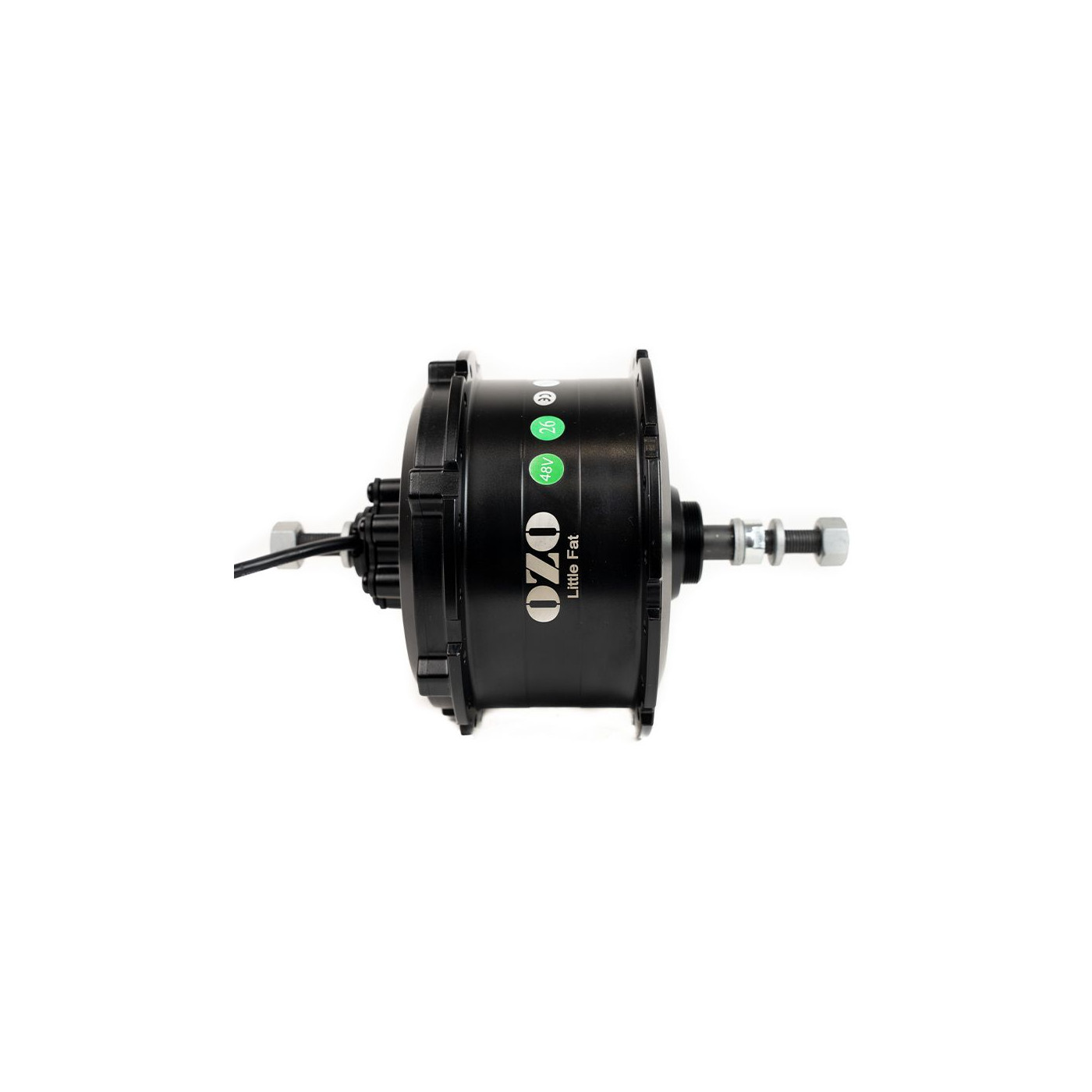

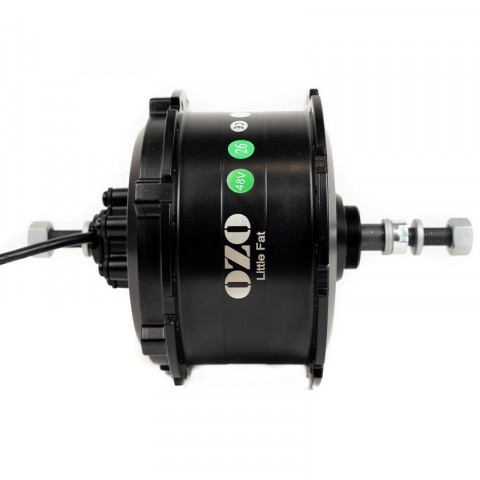

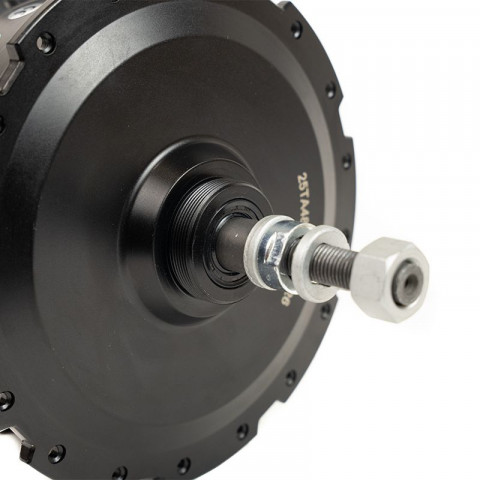

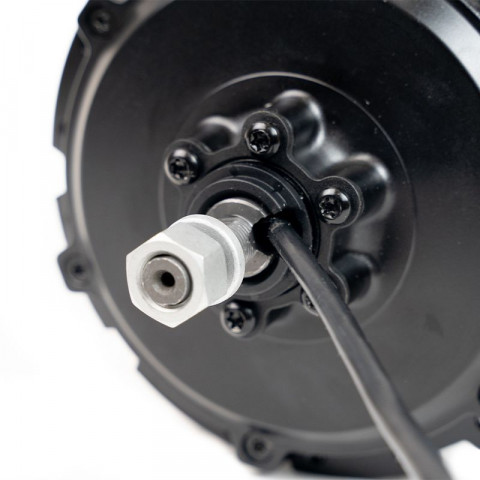

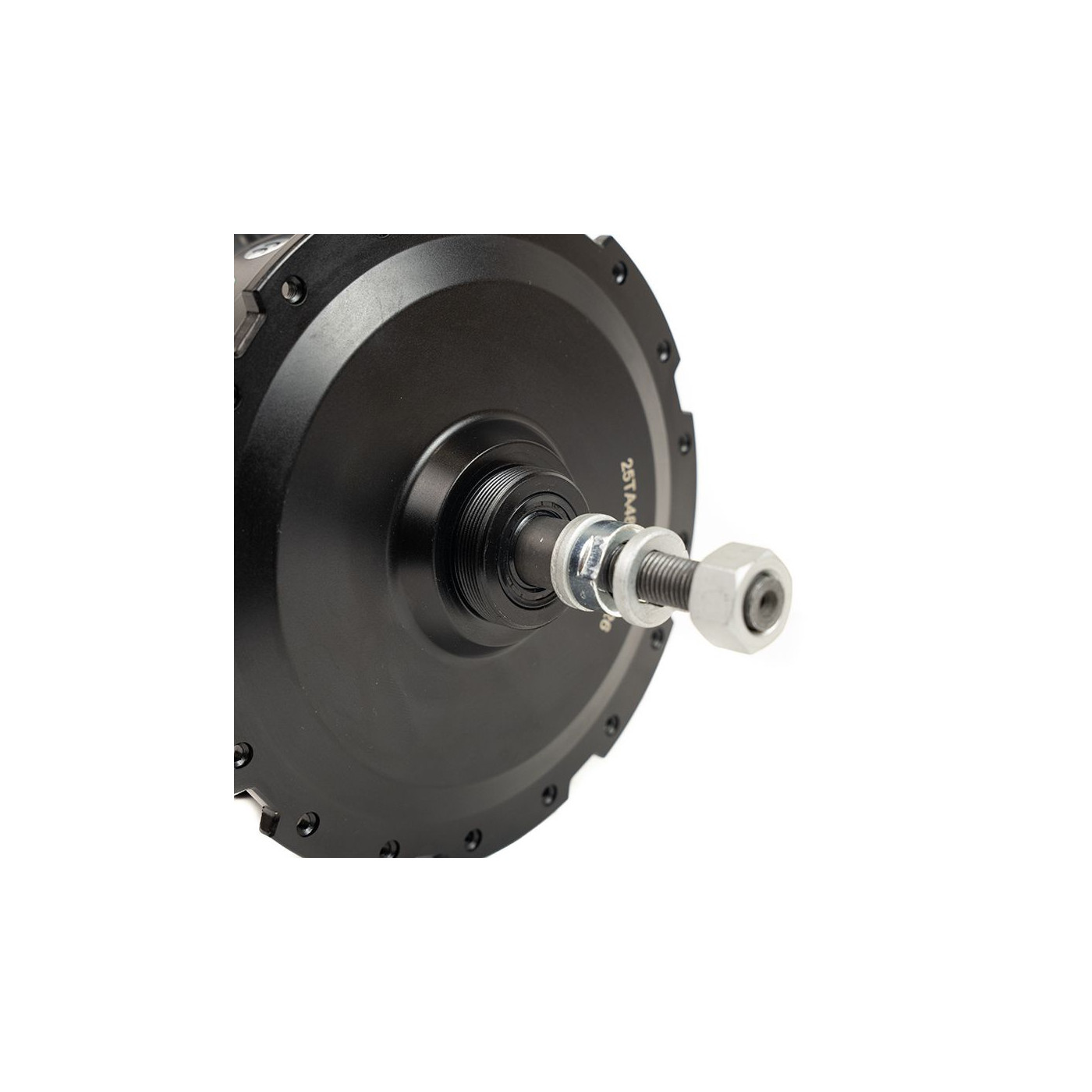

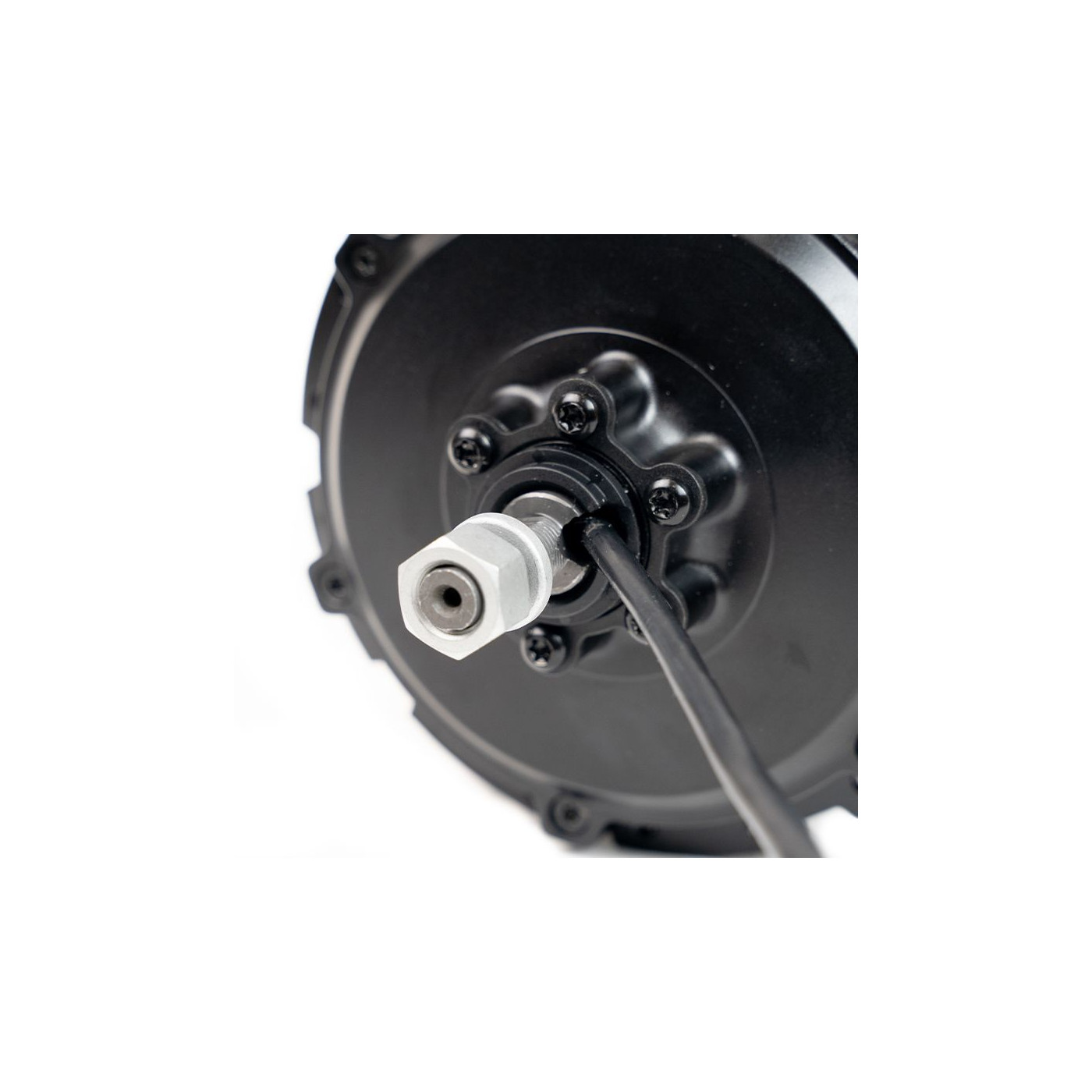

Little Fat Bike 250W engine, light rear wheel

The "little Fat" engine is the little brother of the "FATTY".

3.6kg for 55 Nm of torque

It can accept between 250W and 500W of power.

We advise you to power it with a 36V 15A or 36V 22A or 48V 15A controller.

On a 26'' wheel, its maximum speed is 34km/h under 36V and 45km/h under 48V.

Reduced brushless motor.

This engine is designed to receive a free wheel to be screwed in.

Center distance of 170mm and 180mm

It can be used in sensorless or sensored.

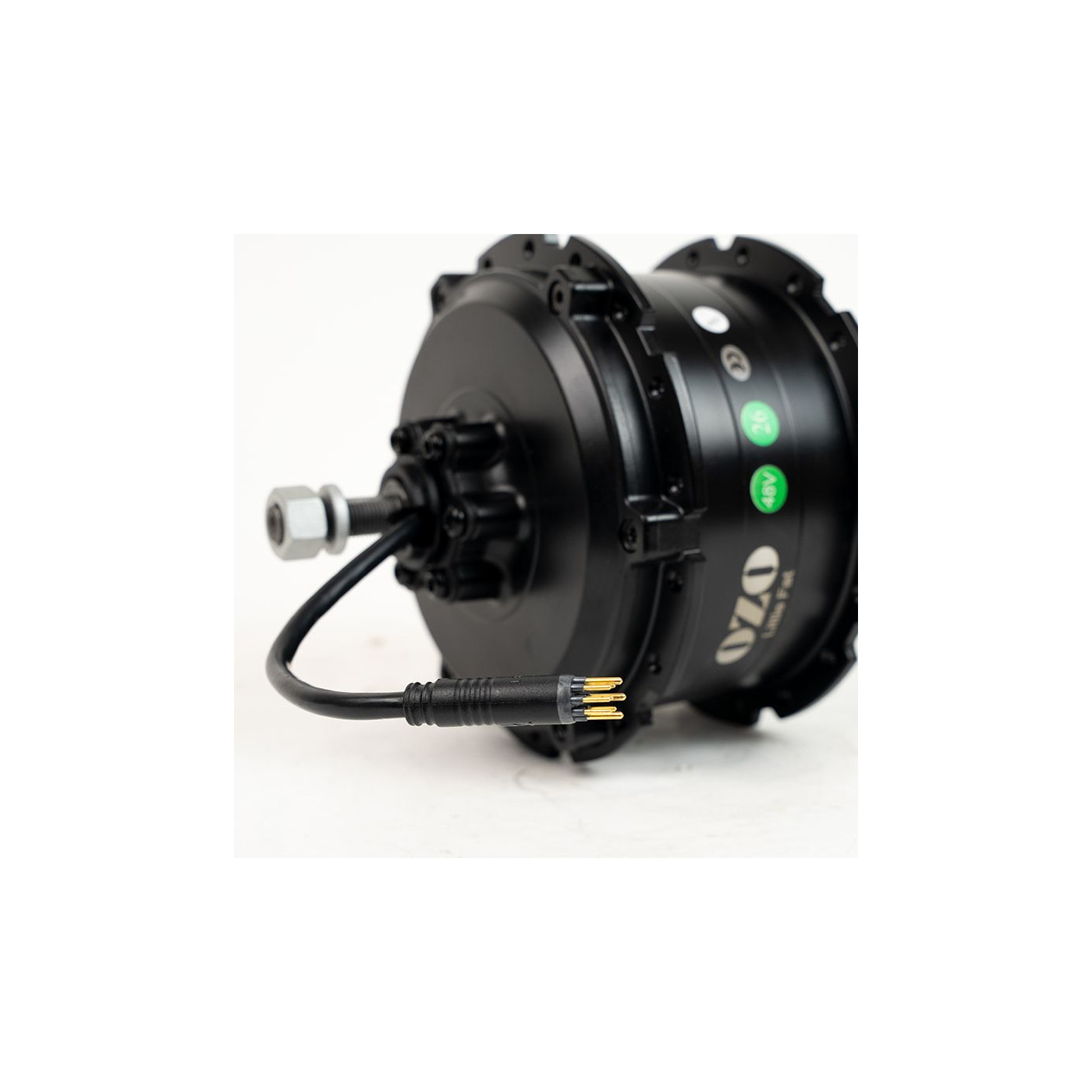

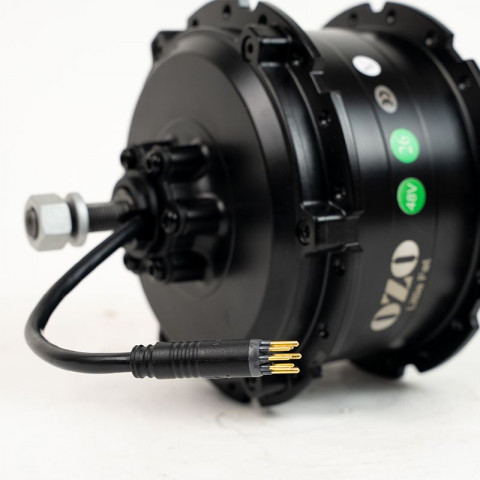

9-pin Julet Z910 male waterproof connector

Read moreShow less
€199.00 (tax incl.)
IN STOCK 8 Items
Reference:
000257
You may also like
rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight

€299.00 (tax incl.)
Powerful, robust and ready for adventure, this 750W OZO wheel engine is designed especially for Fat Bikes. Suitable for demanding terrains, it combines high torque, reliability and freewheel compatibility. This engine...
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv =...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Moteur BOBBER thru-axle Moteur BOBBER thru-axle Moteur BOBBER thru-axle

€299.00 (tax incl.)
Bobber is rear hub electric motor 36V 250W Light and efficient it's the right choice for city bike, folding bike or road bicycle. Bobber is available in 200RPM to reach 25Km/h. It's a geared motor with 1:4,43 ratio....
Moteur roue avant BOBBER Moteur roue avant BOBBER Moteur roue avant BOBBER

€304.10 (tax incl.)
The ROLLER front-wheel motor is a 250W electric hub motor of the reduced type, delivering 40N.m of torque. This motor is designed for the ROLLER BRAKE brakes generally found on Dutch bikes (Gazelle, Batavus,...
Description

This engine can be ordered alone or radiated on 65mm, 80mm or 100mm wide rims in double wall 20', 24' or 26'.

Motor reduced, it integrates a planetary gear with internal freewheel that disengages the motor when it is not powered, allowing you to drive freely.

Supplied with a waterproof Julet Z910AG connector, it has an integrated speed sensor (1 pulse per revolution) and a temperature sensor CTN 10kOhm integrated into the stator to prevent overheating of the motor winding.

The little Fat motor can accommodate a standard 6-hole brake disc.

2D motor plan :

Moteur XOFO Fat bike RL

Read moreShow less
Product Details
000257

Data sheet

Guarantee
2 ans
Intensité max
X A
Motor position
Back
puissance nominale et puissance max sous 48V
500W
Vitesse max en 48V
45km/h
Vitesse max en 36V
35km/h
Mass
3,6 Kg
Puissance max
X W
entraxe cadre Min / Max
XXXX
Compatibilité frein à disque
OUI
Diamètre de roue mini
X"
Tension Max
X V
Motor power range
250W - 1000W
Hall sensors
OUI
