Electric motor wheel 12" 105mm center distance 500W 600W 750W for mini scooter 24V 36 48V
Mini scooter motor 12" 36V 48V 500W-750W

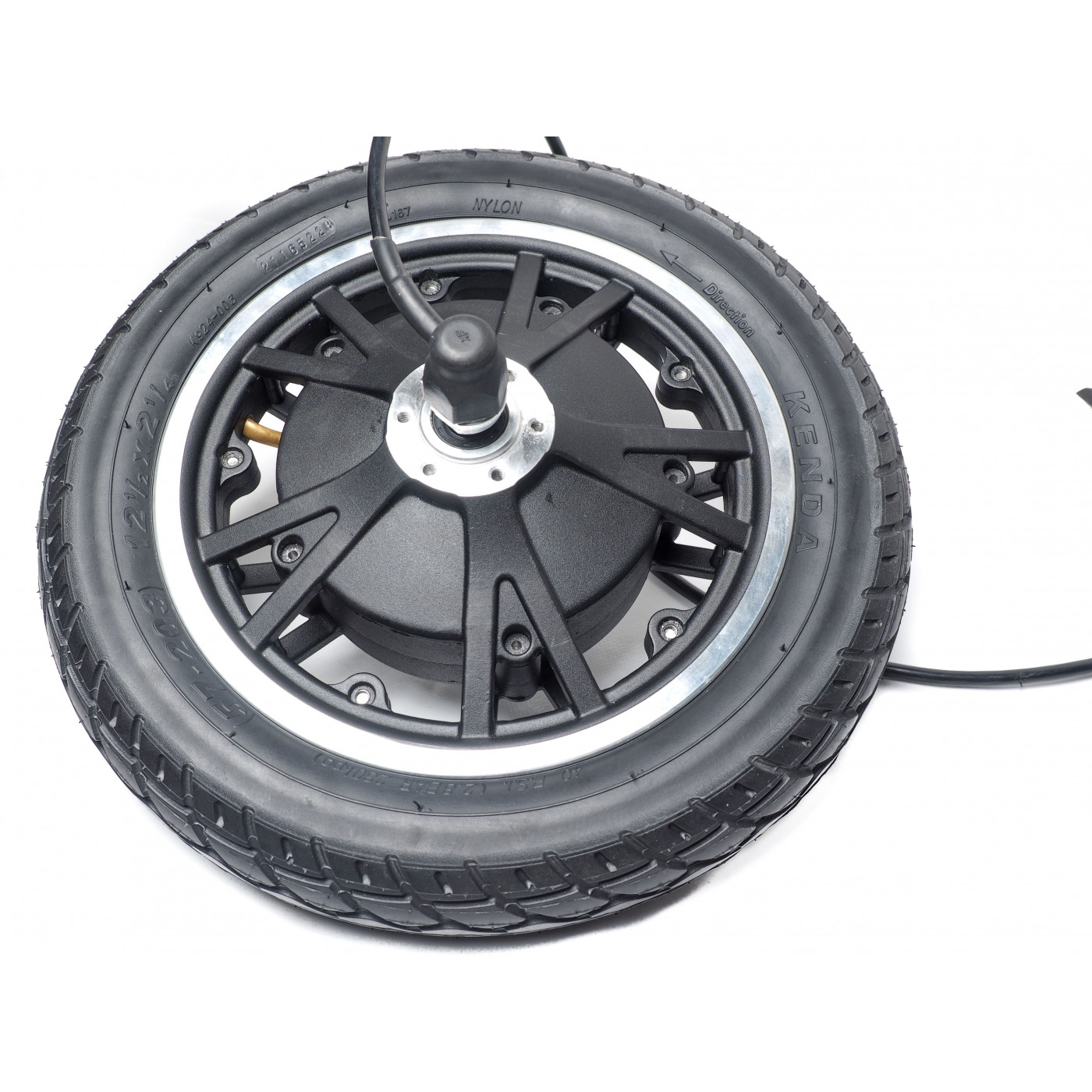

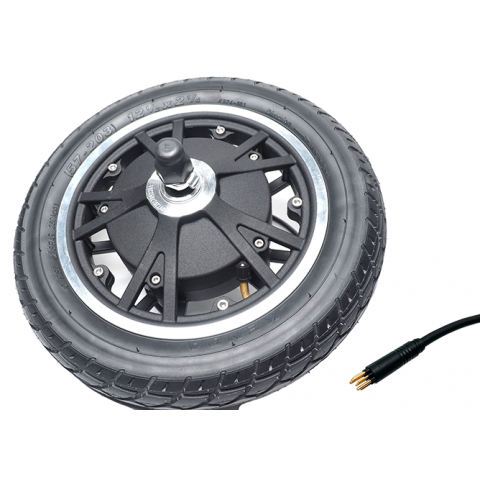

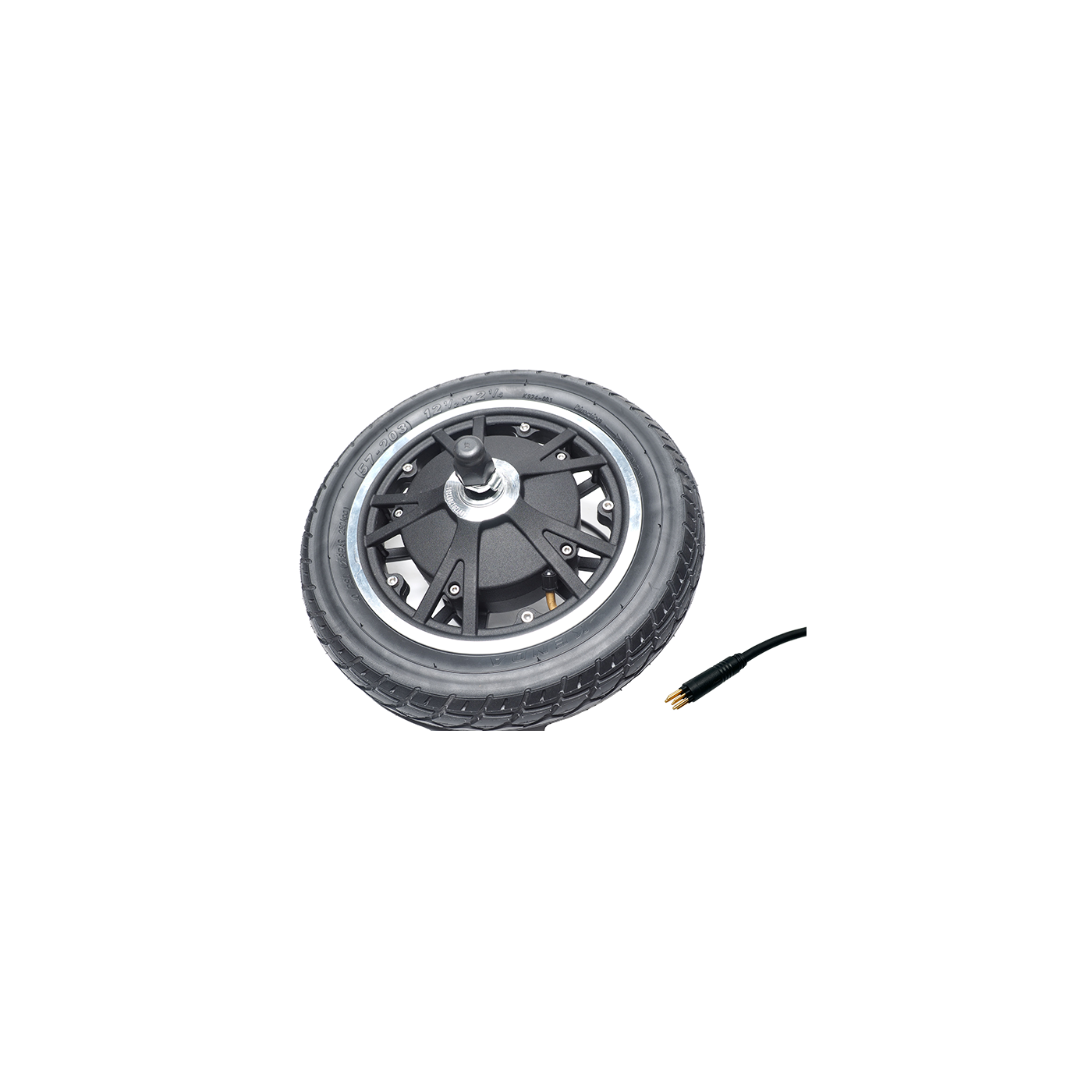

Motor for mini scooter 12"
Sold with 12" tire and inner tube (12,5 x 2,25)
Vmax 40Km/h
Total weight with tire = 3,7 kg
000303
New product
| Guarantee | 2 ans |
| Intensité max | 25A |
| Paires de pôles magnétiques | 15 |
| Masse de la roue motorisée | 3,7 |
| puissance nominale et puissance max sous 36V | 500W / 750W |
| Vitesse max en 48V | 40Km/h |
| Vitesse max en 36V | 30Km/h |
| Technologie | Brushless |
| Rendement | 85% |
| Régime de rotation | 700 RPM |
| entraxe cadre Min / Max | 100 / 120mm |
| Permissible voltages | 24V, 36V et 48V |
| Tension Max | 48V |
| Motor Kv (RPM / V) | 14,6 Tr/min/Volt |
| Motor power range | 250W - 1000W |
| Hall sensors | OUI |
| Waterproof grade | IP54 |
| Nombre d'aimants | 30 |
| Motor axle | 14x10mm |
| Diamètre exterieur Pneu | 31cm |
| Rs | 0,21 Ohm |
| Ls | 333 uHenries |
