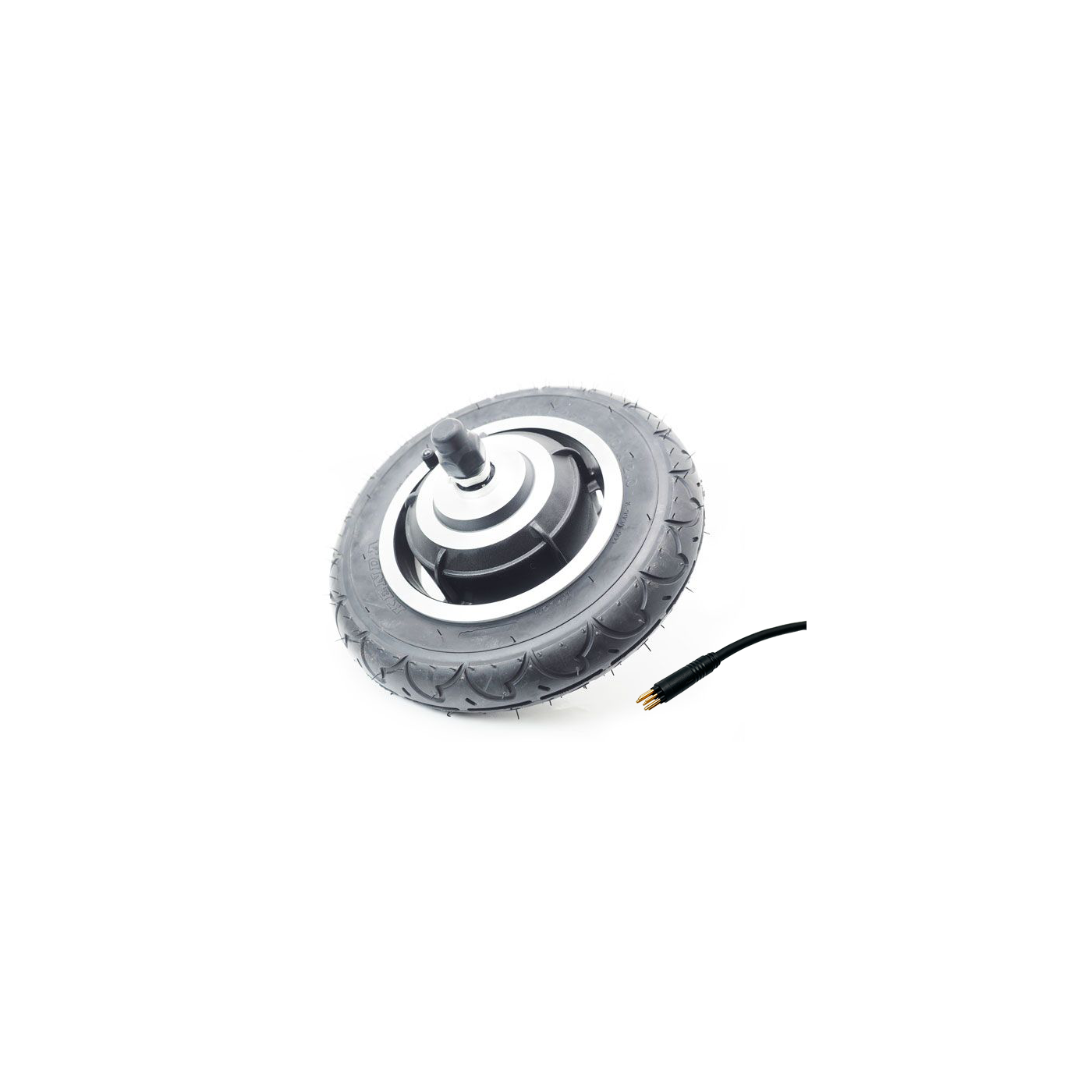

geared 10 " electric brushless wheel motor for medical industry
10" 110mm brushless electric wheel motor suitable for electric conversion of wheelchairs, hospital beds or any rolling machine used in the medical or industry environment to reduce hardness :
- Leisure (Golf cart, stroller, terrestrial drone)
- Medical (wheelchair, medical bed, stretcher)
- Comes with inflatable tire
- 6 holes support for disc brake (delivered without the brake)
Rated power: 300W | Dropout : 110mm | Cable : 20cm
This electric drive wheel has been designed for the electrification of any recreational or medical device.
600W power will allow you to electrified any hospital beds, wheelchairs, stretcher or any other rolling base.
The tire provides shock absorption and a comfortable ride.
This brushless motor is a geared motor, which offer a great torque at low speed.
The external wheel diameter will be between 250mm and 320mm depending on tire choice.
This motor can fully meet the criteria to reduce hardness at work.
You can easily and quickly reduce these risks by electrifying your tools.
2D Drawings of the engine:
| Guarantee | 2 ans |
| Paires de pôles magnétiques | 15 |
| Couple max en 36V | 25 N.m |
| Mass | 3.4 kg |
| Technologie moteur | Brushless direct drive |
| Rendement max | 85% |
| Tension Min | 24V |
| Permissible voltages | 24V, 36V et 48V |
| Entraxe fourche min/max | 115mm / 145mm |
| Motor Kv (RPM / V) | 8.33 Tr/min/Volt |
| Motor power range | 200 - 1000W |
| Hall sensors | OUI |
| Waterproof grade | IP54 |
| Nombre d'aimants | 30 |
| Motor axle | 14x10mm |
| Vitesse max sous 24V | 6 Km/h |
| Vitesse max sous 36V | 10 Km/h |
| 48V max speed | 20 Km/h |
