Mounting pack for electric kit

For any purchase of an electric kit OZO (radiated motor + controller + accelerator or pedal crank) a mounting pack is offered to facilitate the installation of your electric kit and make it reliable.

More details

PACK-M01

New product

14,00 €

- +


More info

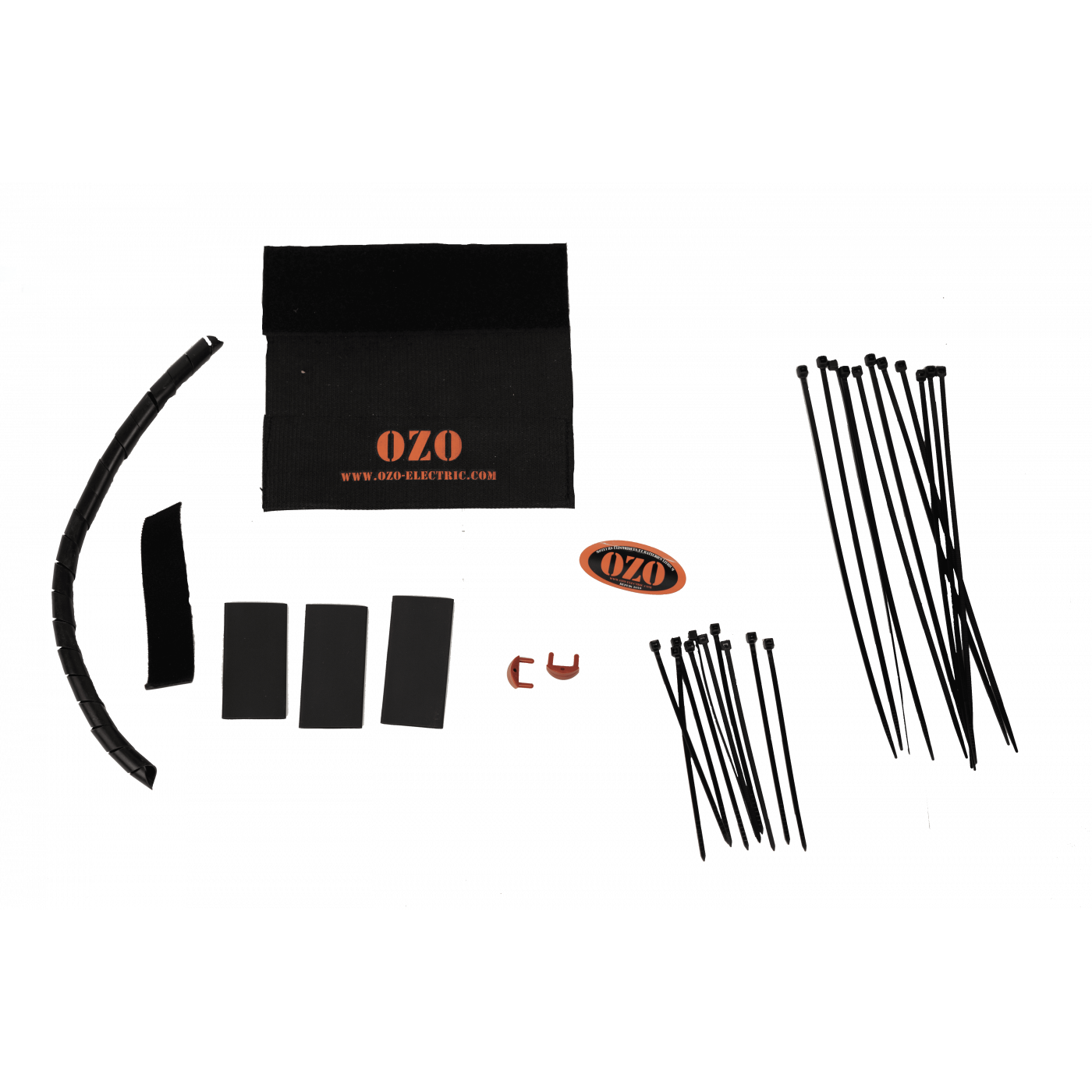

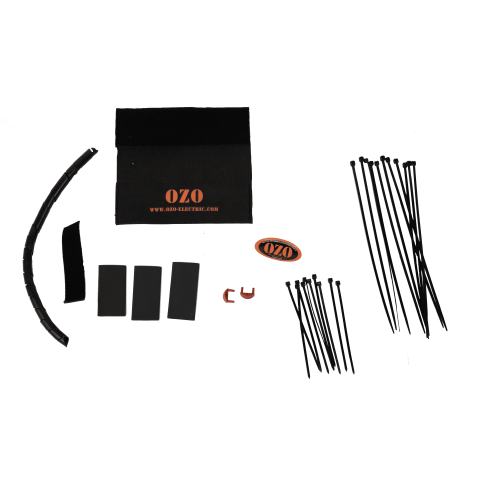

Here is the content of the mounting pack:

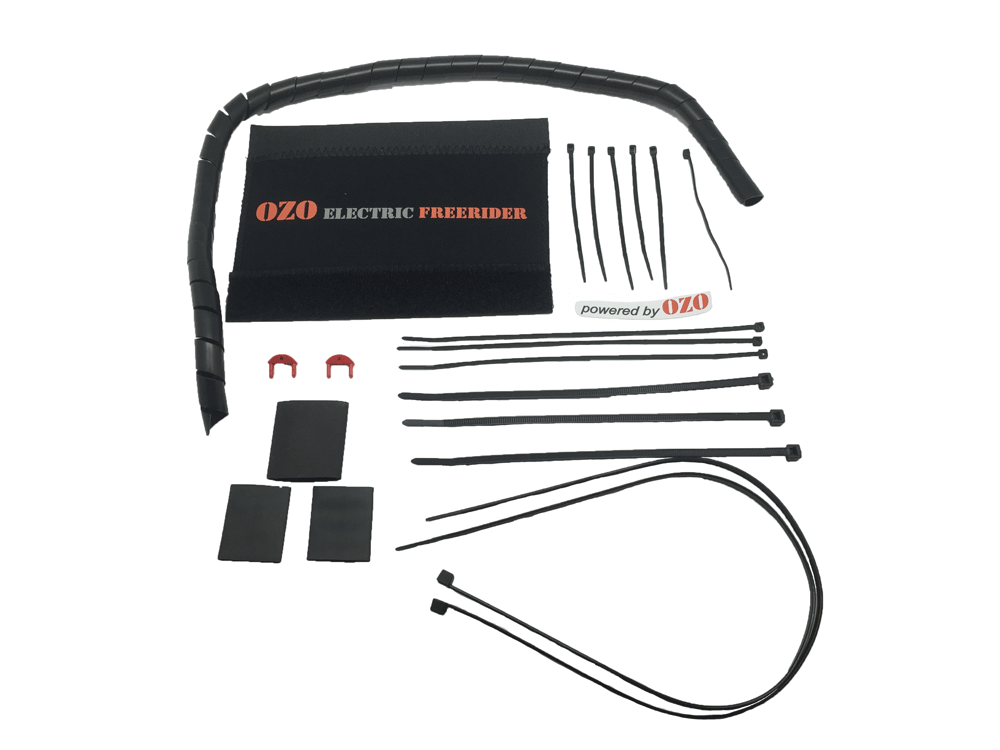

Pack montage detail

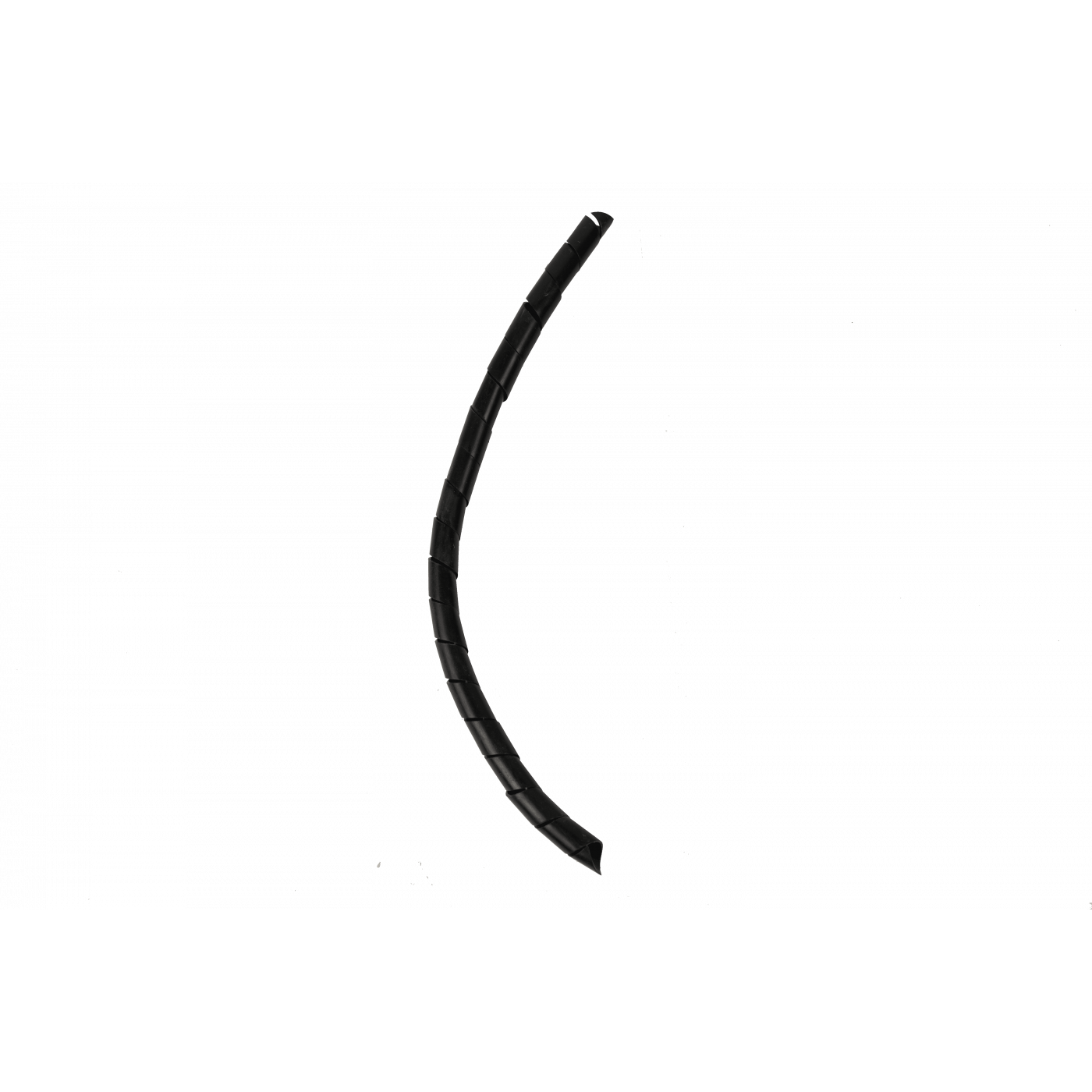

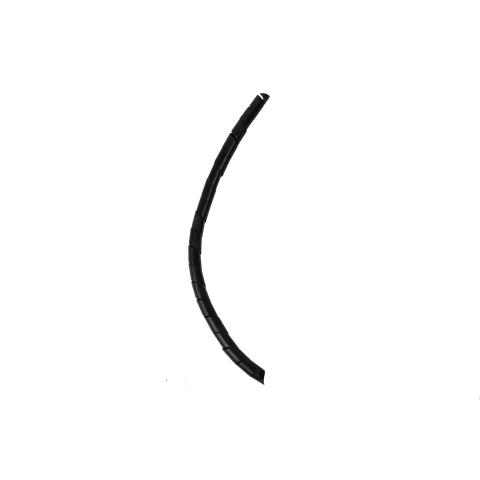

A spiral sheath to group the wires along the frame (65cm long).
Two cable clamps to secure the controller to the frame (445mm long and 4.6mm wide).
A neoprene protection strip used to protect and fix the motor connectors (125mm long and 130mm wide unfolded). This band is elastic and fixed thanks to a Velcro tape (see photos below).

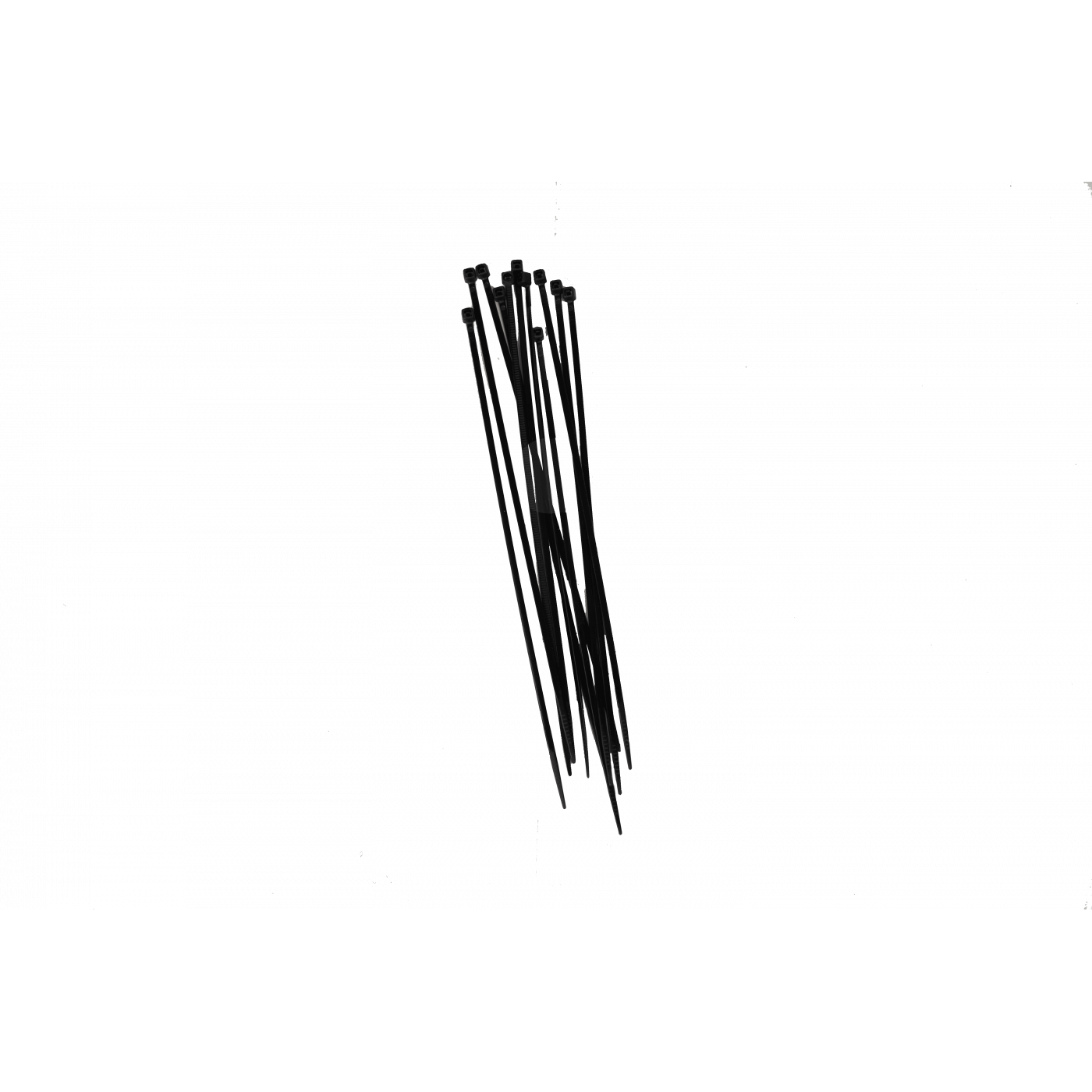

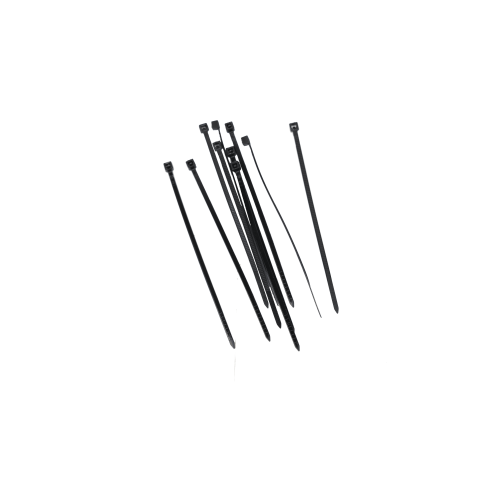

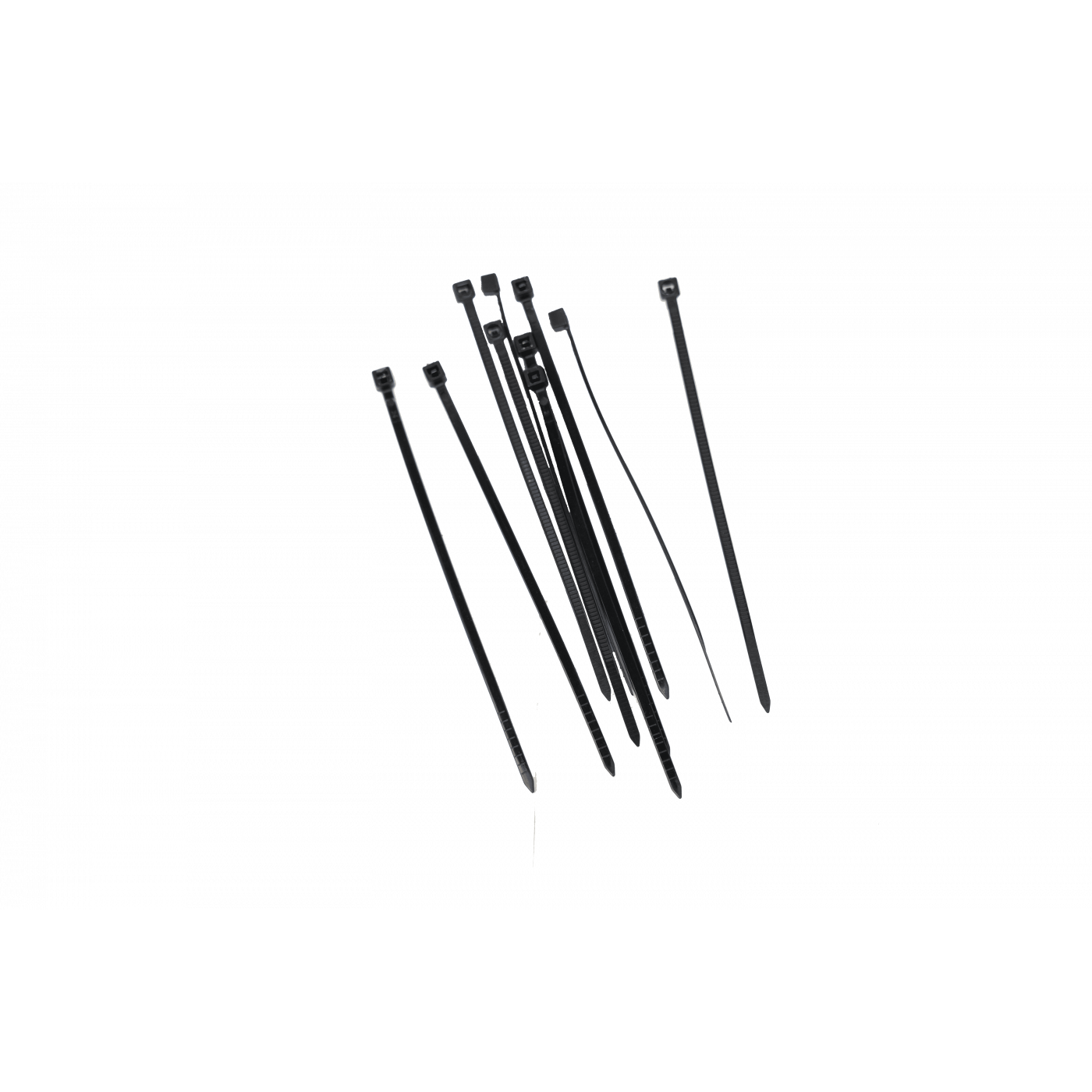

Three cable ties to secure the wires to the bike frame (200mm long and 4.6mm wide).
Three cable ties to secure the wires to the bike frame (205mm long and 2.5mm wide).
Six cable ties to secure the wires to the bike frame (100mm long and 2.5mm wide).

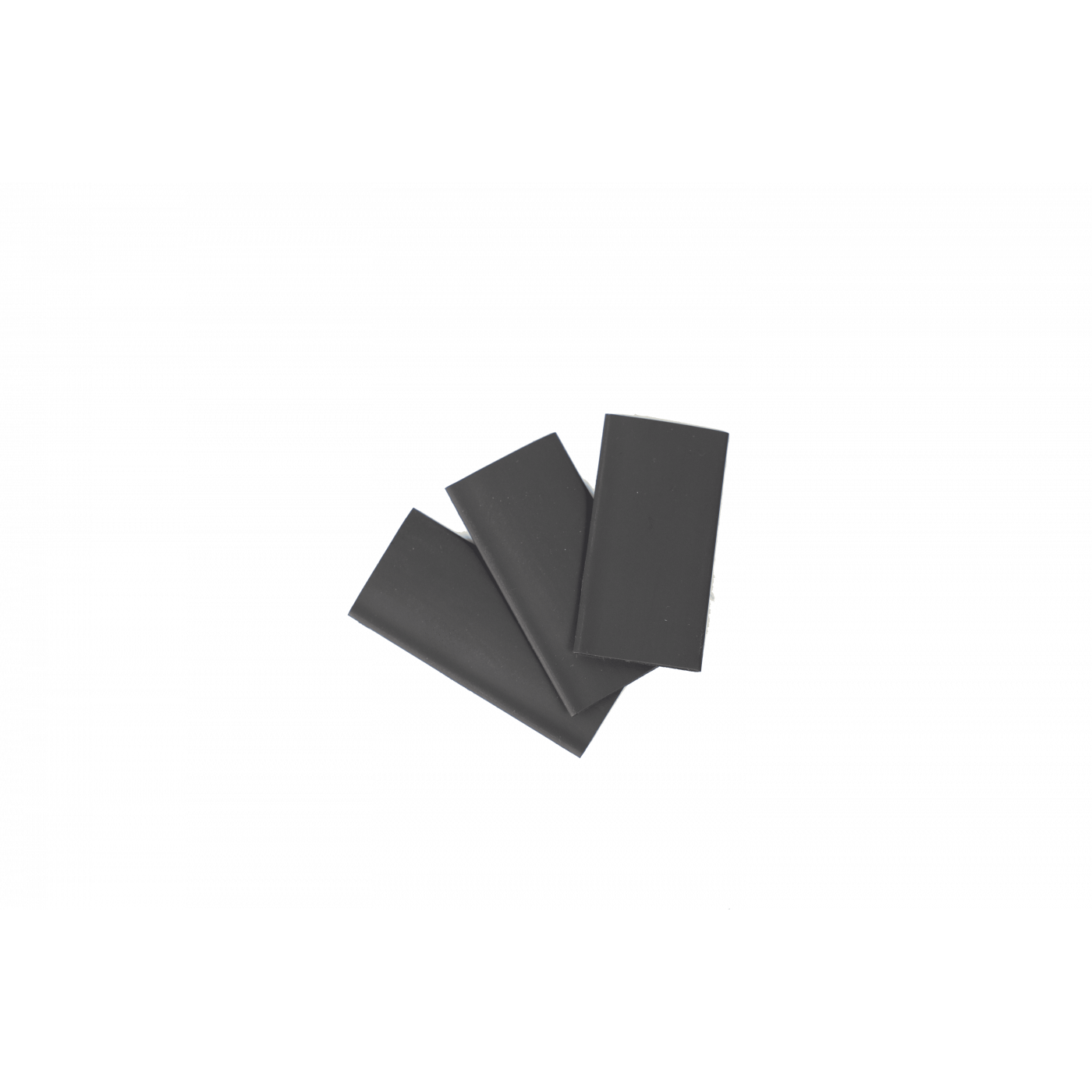

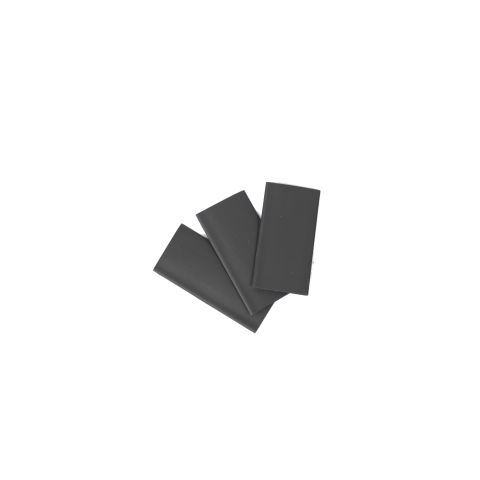

Two pieces of heat shrink tubing to protect the connectors (40mm long and 18mm in diameter with a reduction ratio of 3: 1).

A piece of heat-shrinkable sheath to protect the connectors (40mm long and 24mm in diameter with a reduction ratio of 3: 1).

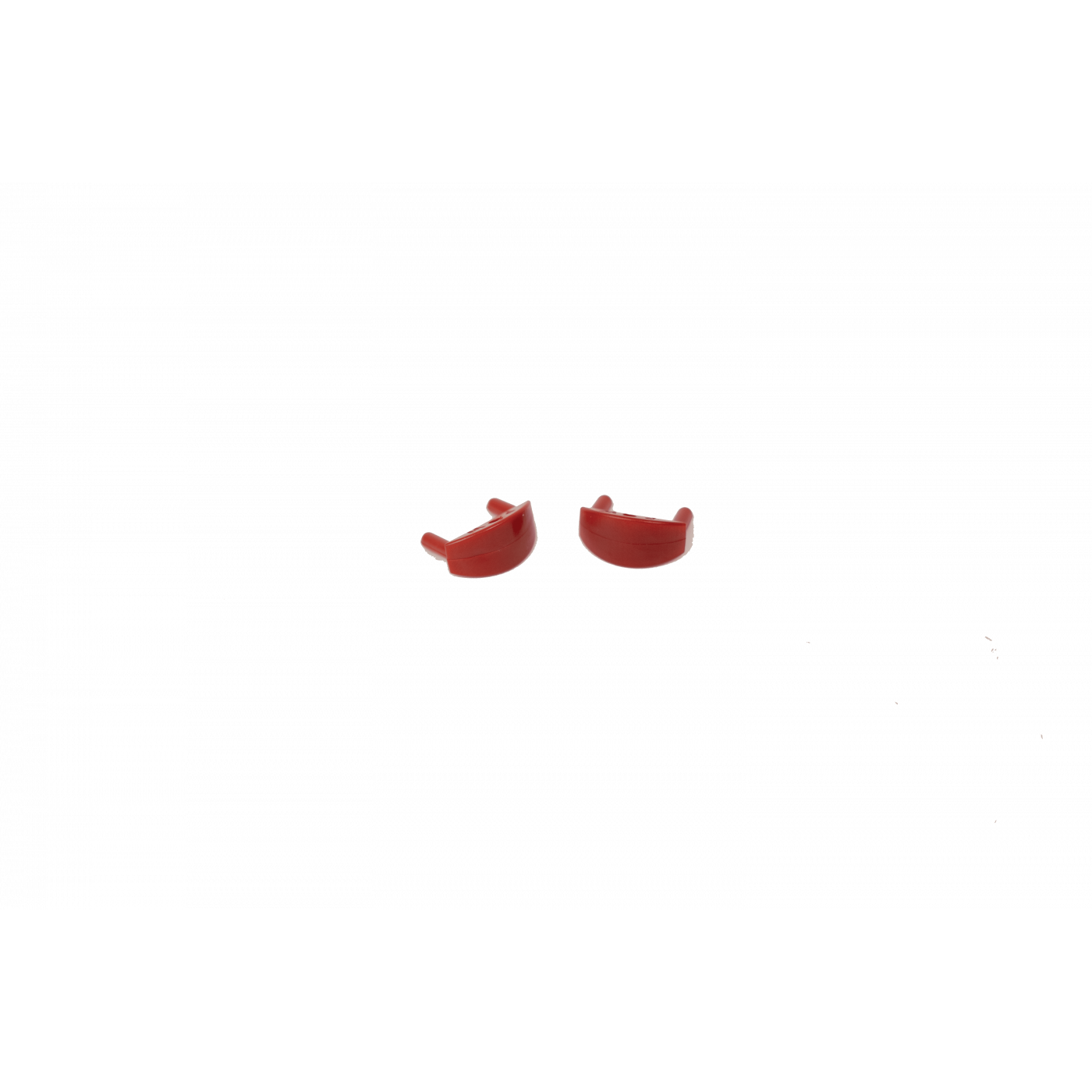

Two Anderson clips to put on the engine connector to prevent disconnection thereof.
Two Velcro straps to attach the motor cable (rather than a rislan), this will allow you to disassemble your wheel more easily.
Velcro fastening
Fixation bande velcro

Fixation gaine neoprene 2
Fixation gaine neoprene 1
Fixation clip Anderson 1
Fixation clip Anderson 2
If you want different lengths and / or additional parts, please specify when ordering.
