Complete set to assemble yourself a 60V 100Ah 6000Wh Lithium Iron battery with 3.2V 100Ah prismatic cells. Ideal for your boat, motorhome, van, caravan, house storage, mobile home, agricultural vehicle.
Easy assembly in just 1 hour, a screwdriver is enough, no knowledge of electronics is required.
The assembly plan is provided upon purchase.
Complete kit to assemble yourself a 60V 100Ah 6000Wh lithium iron battery with prismatic cells 3.2V 100Ah
Approximate mass: 44.2 kg

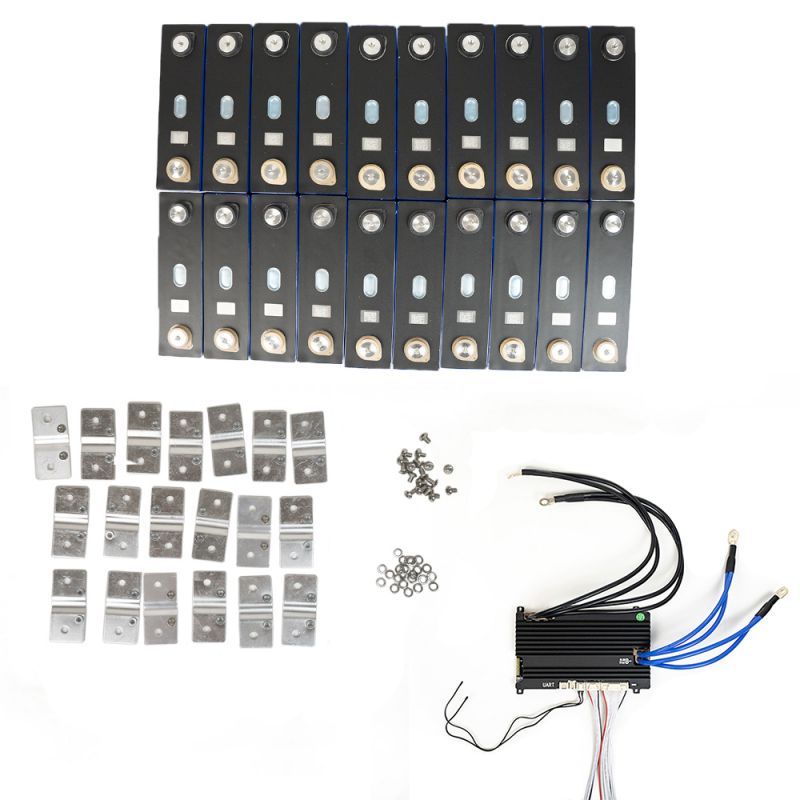

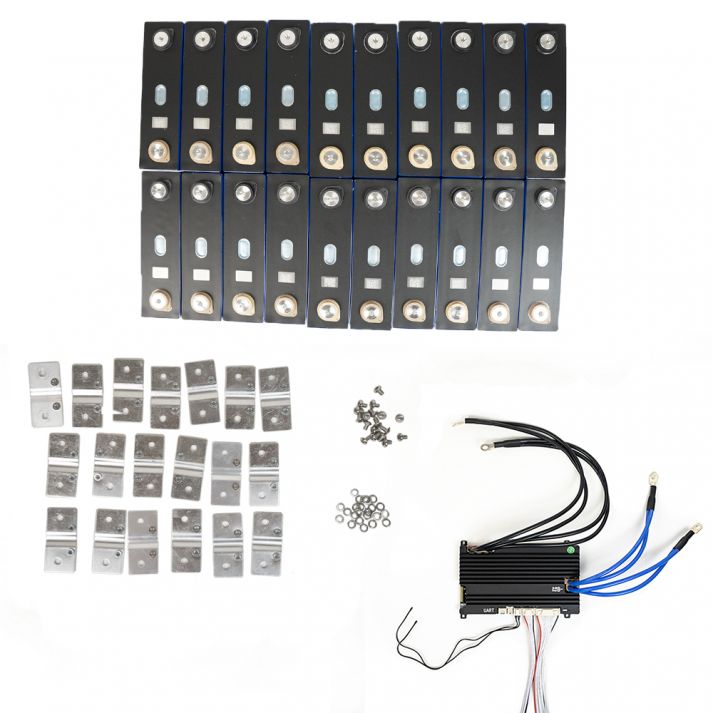

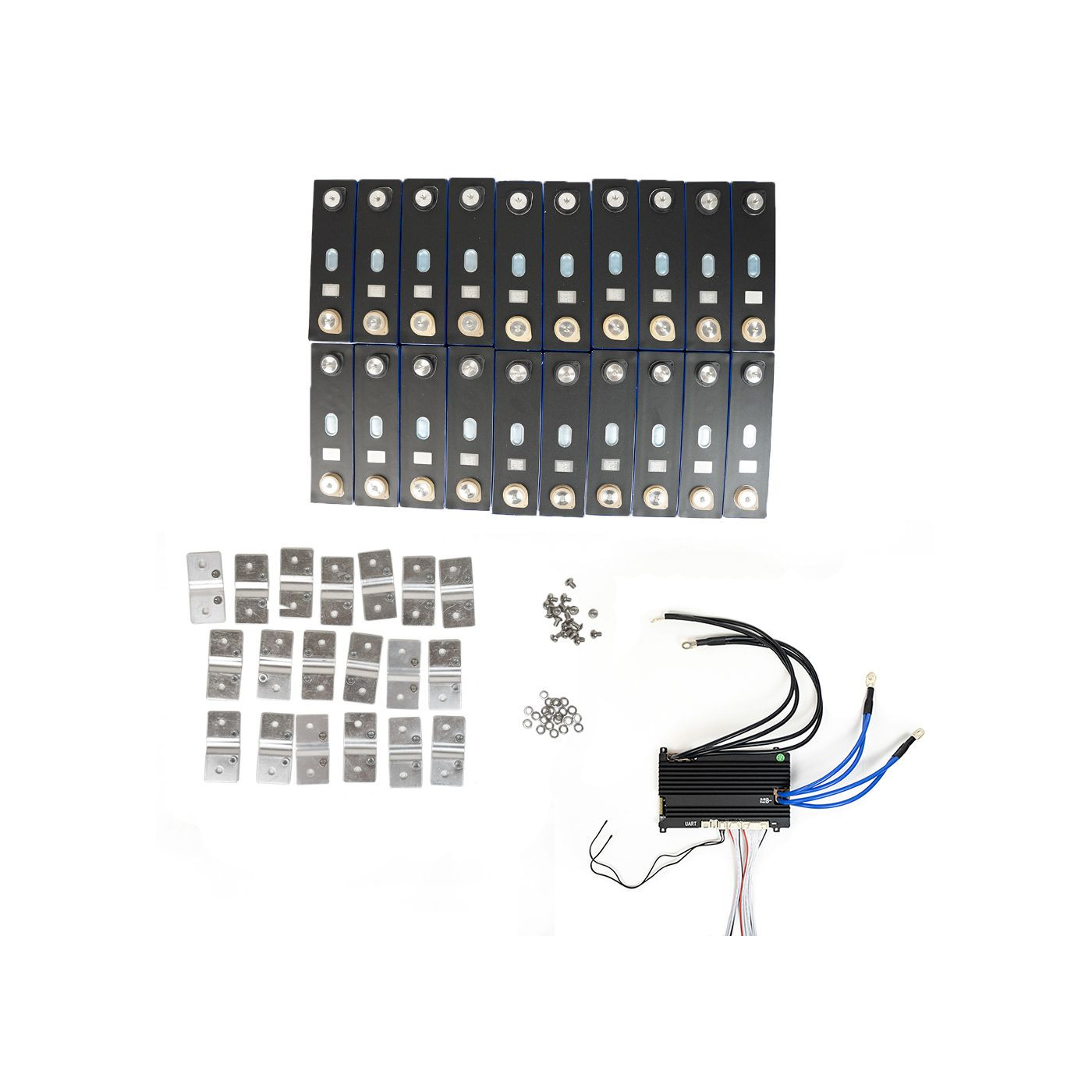

Materials provided:

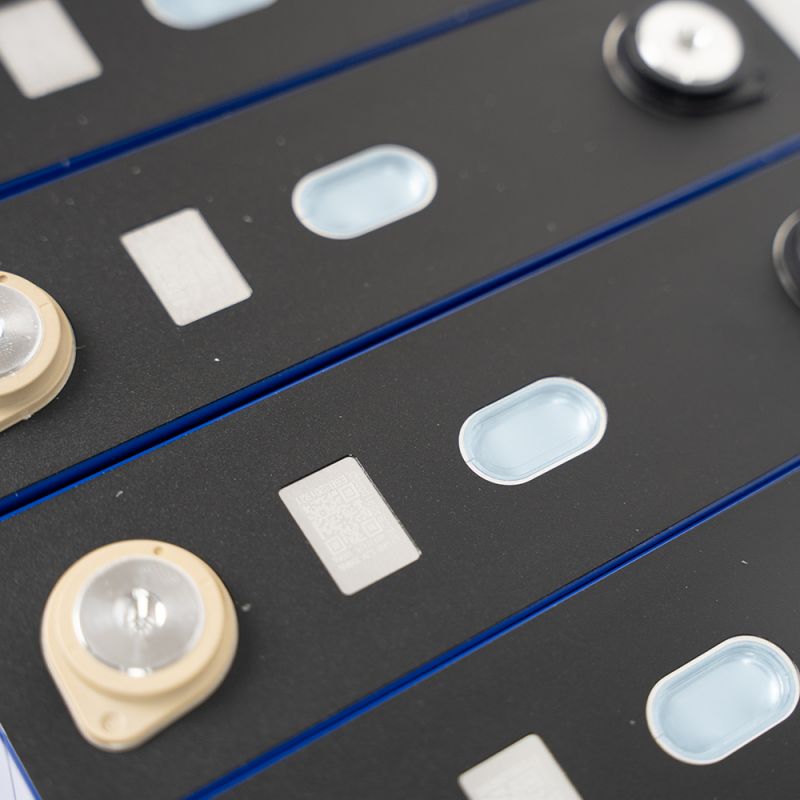

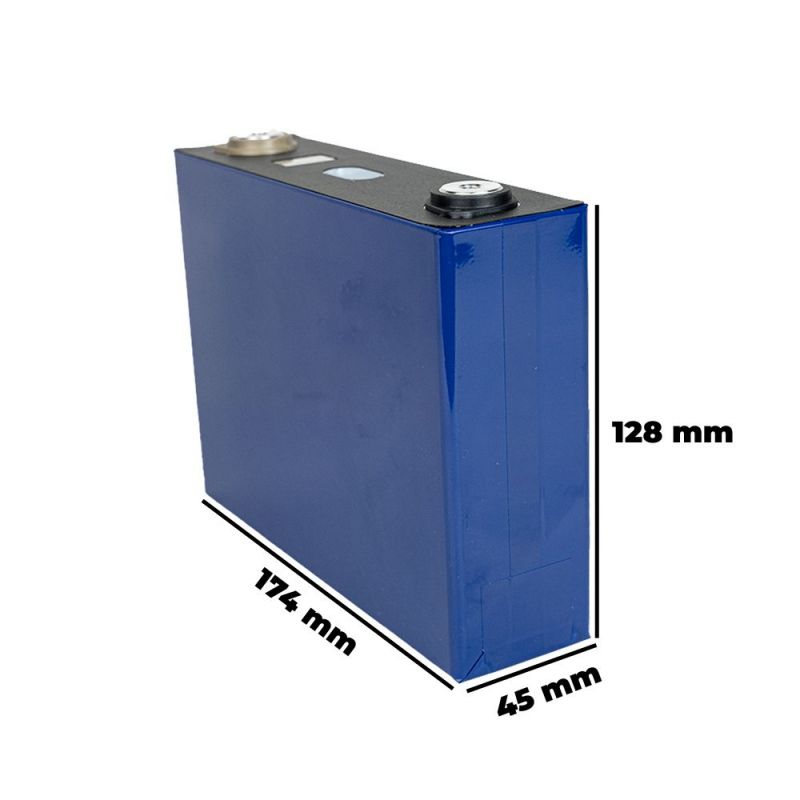

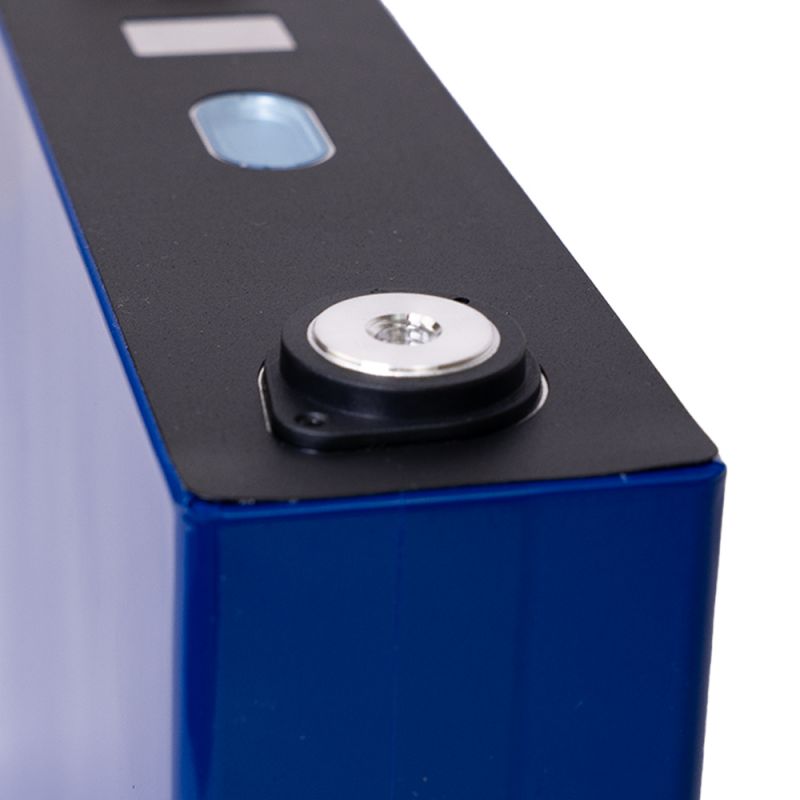

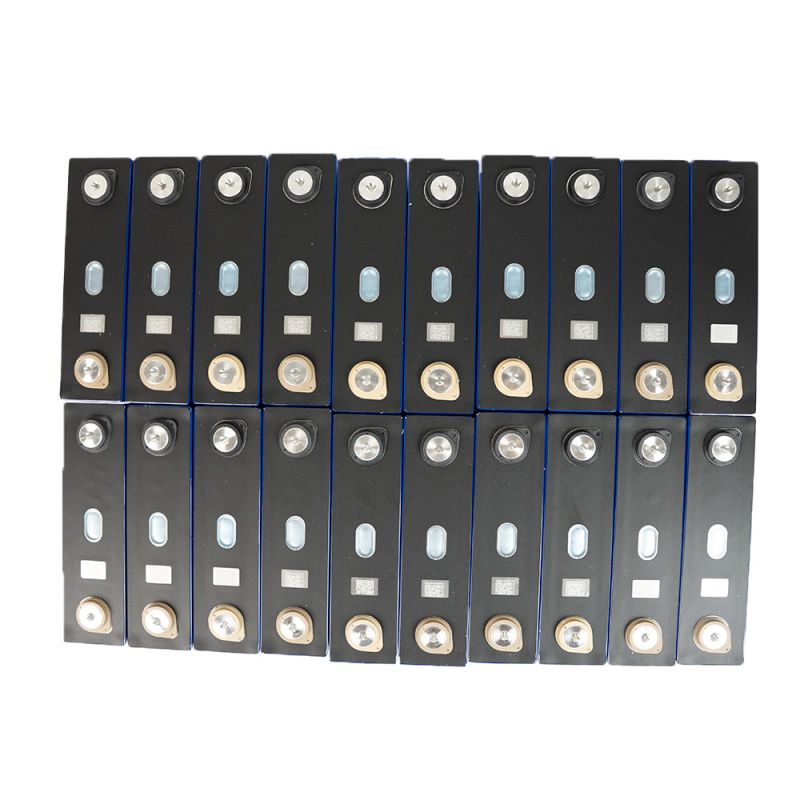

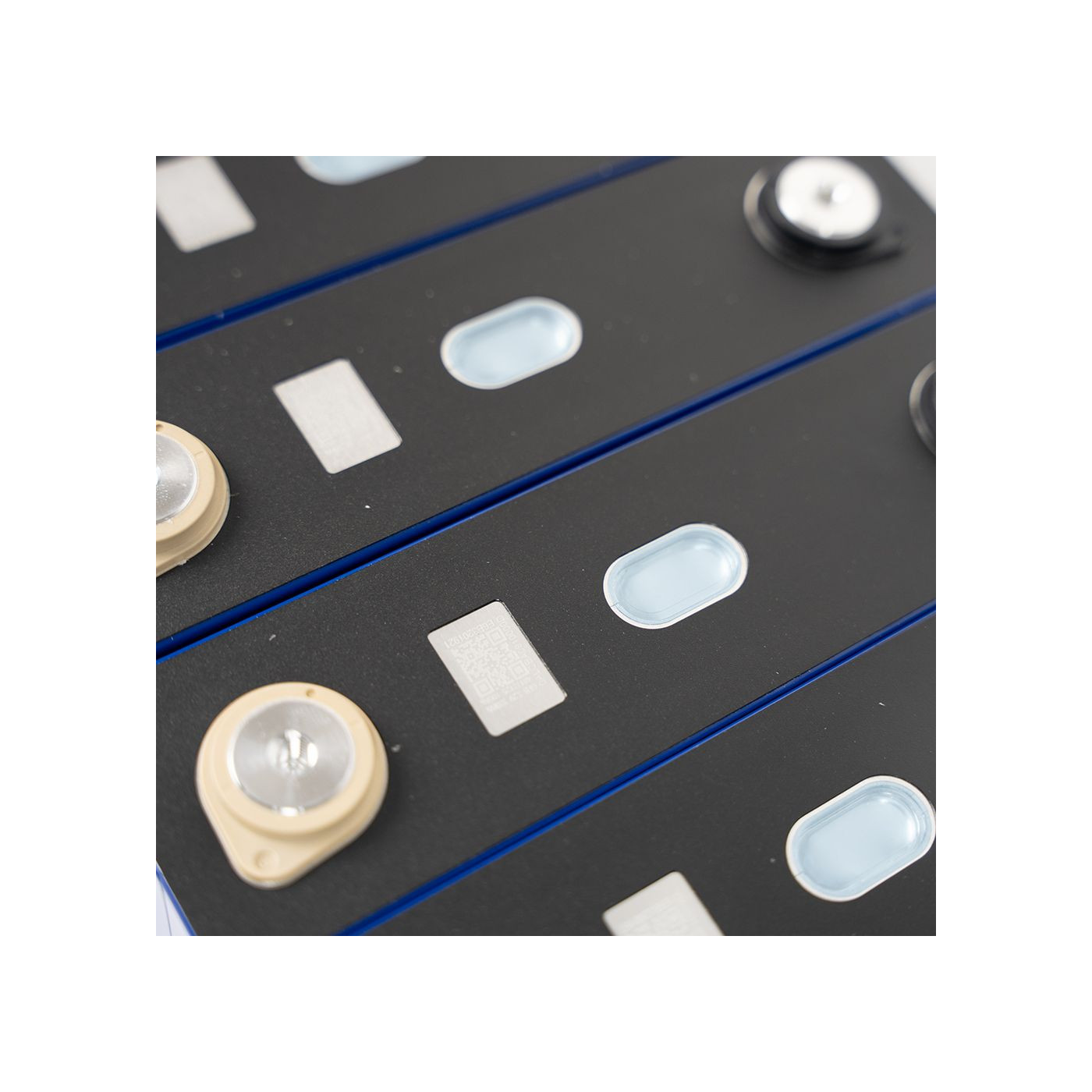

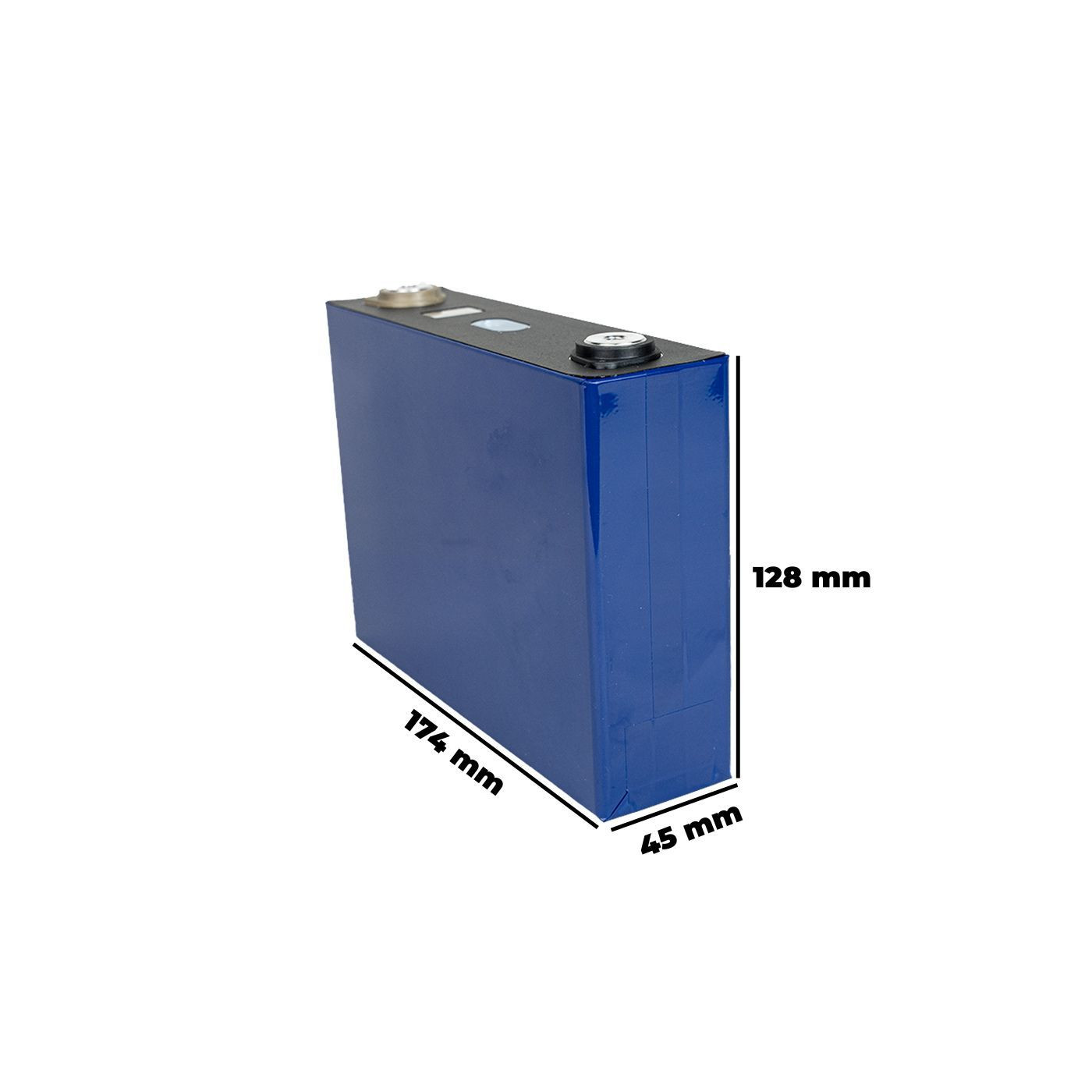

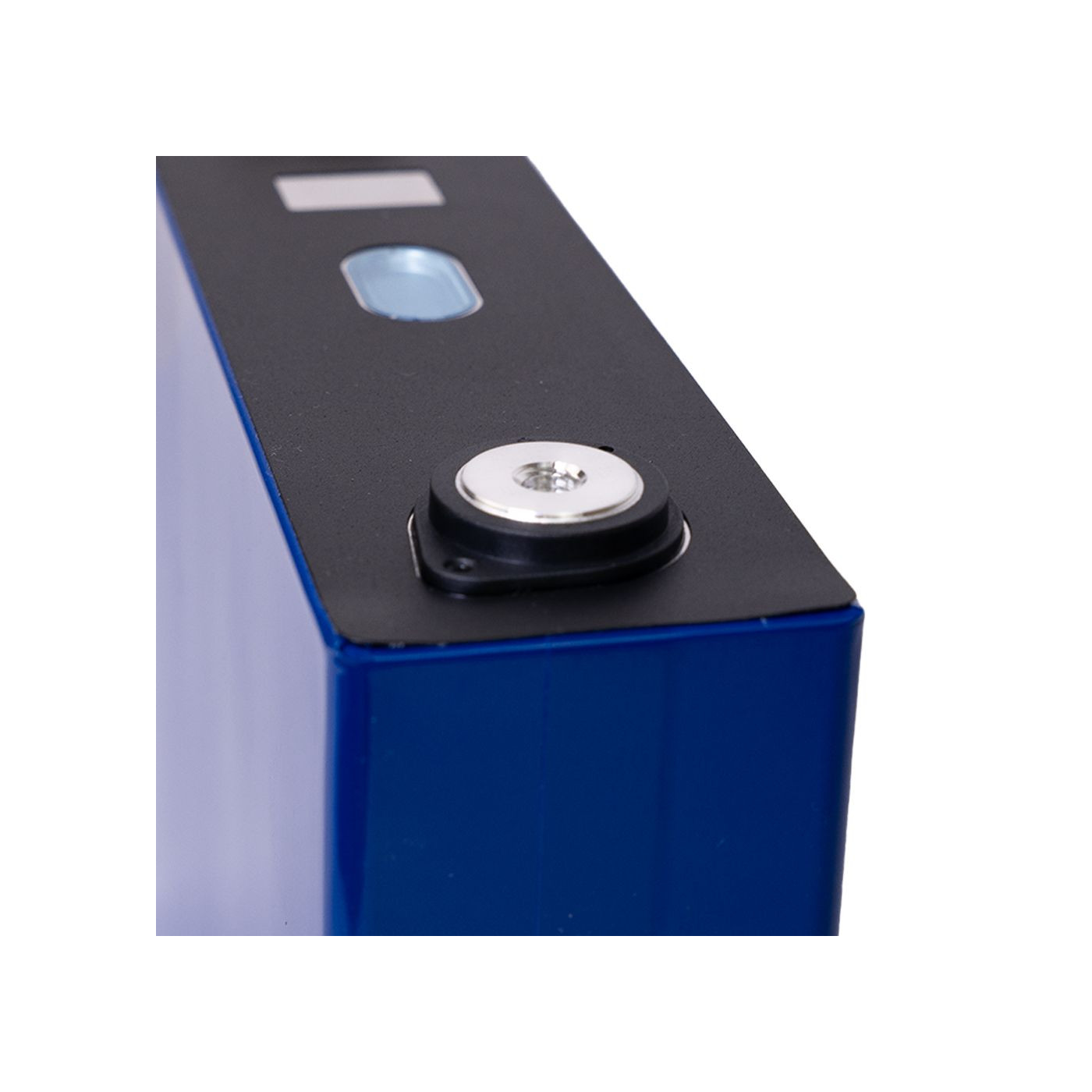

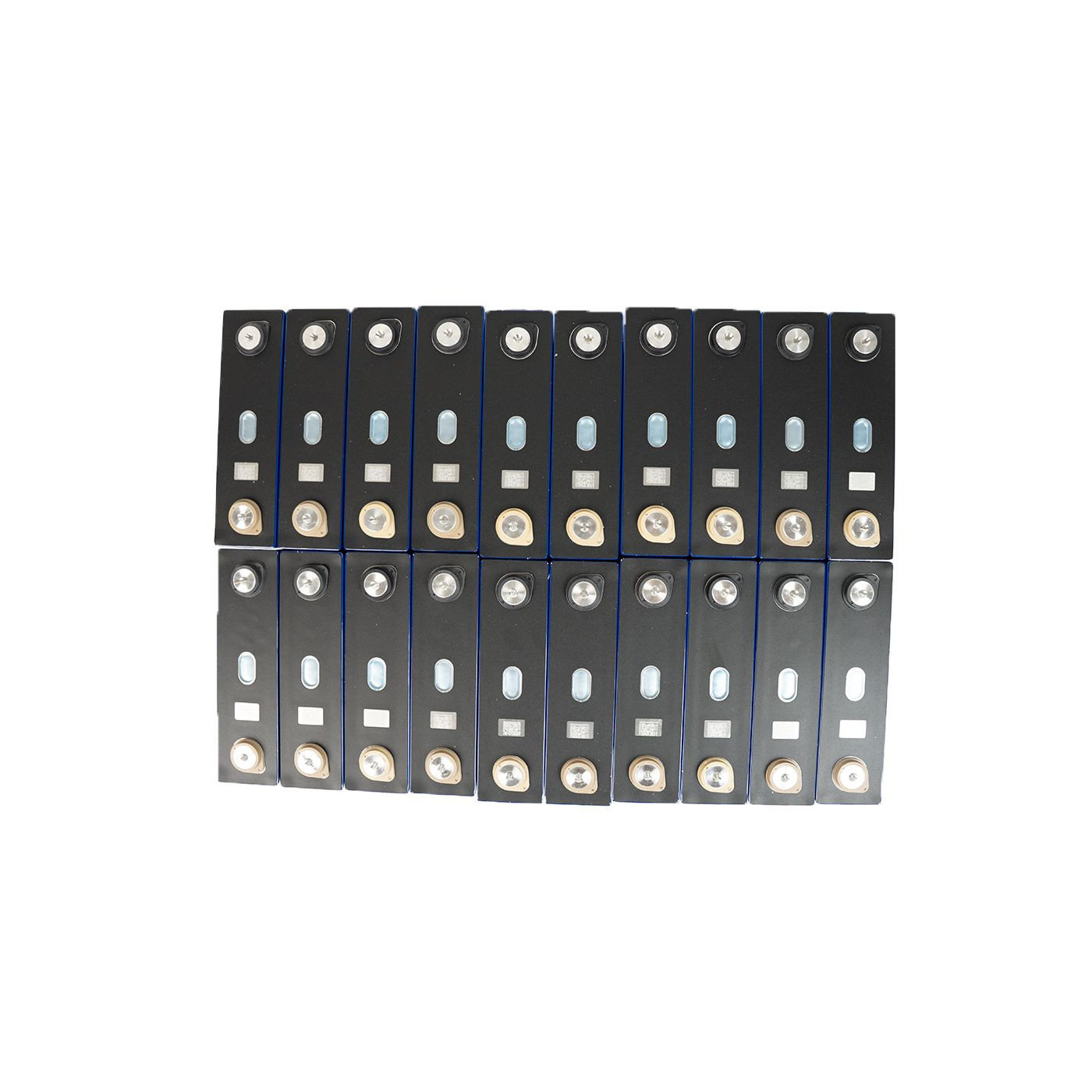

- 20 prismatic cells 3.2V 100Ah. The cells are tested individually before shipment to ensure perfect balance of the pack.

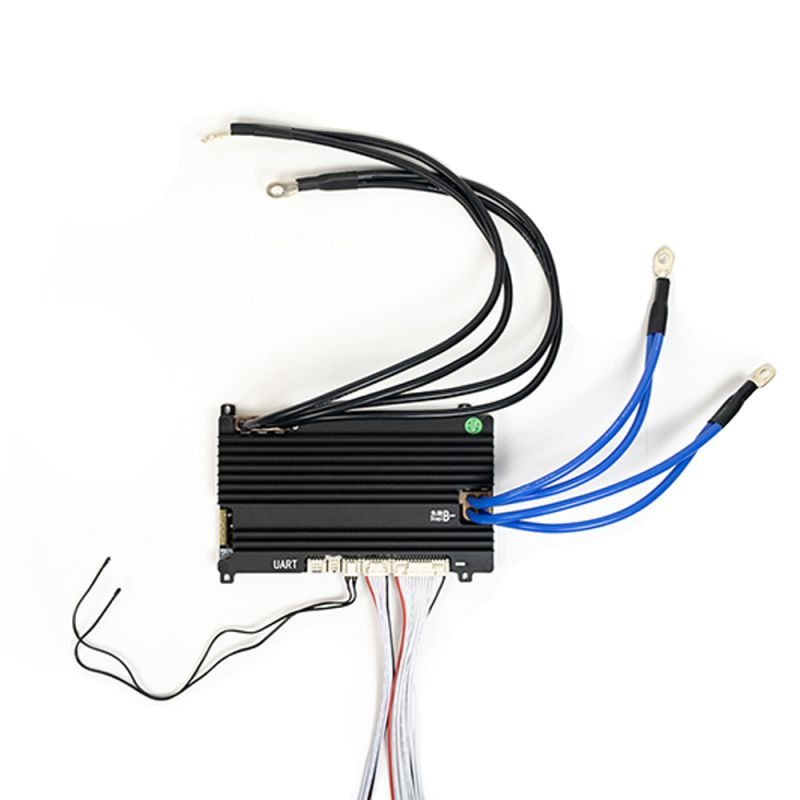

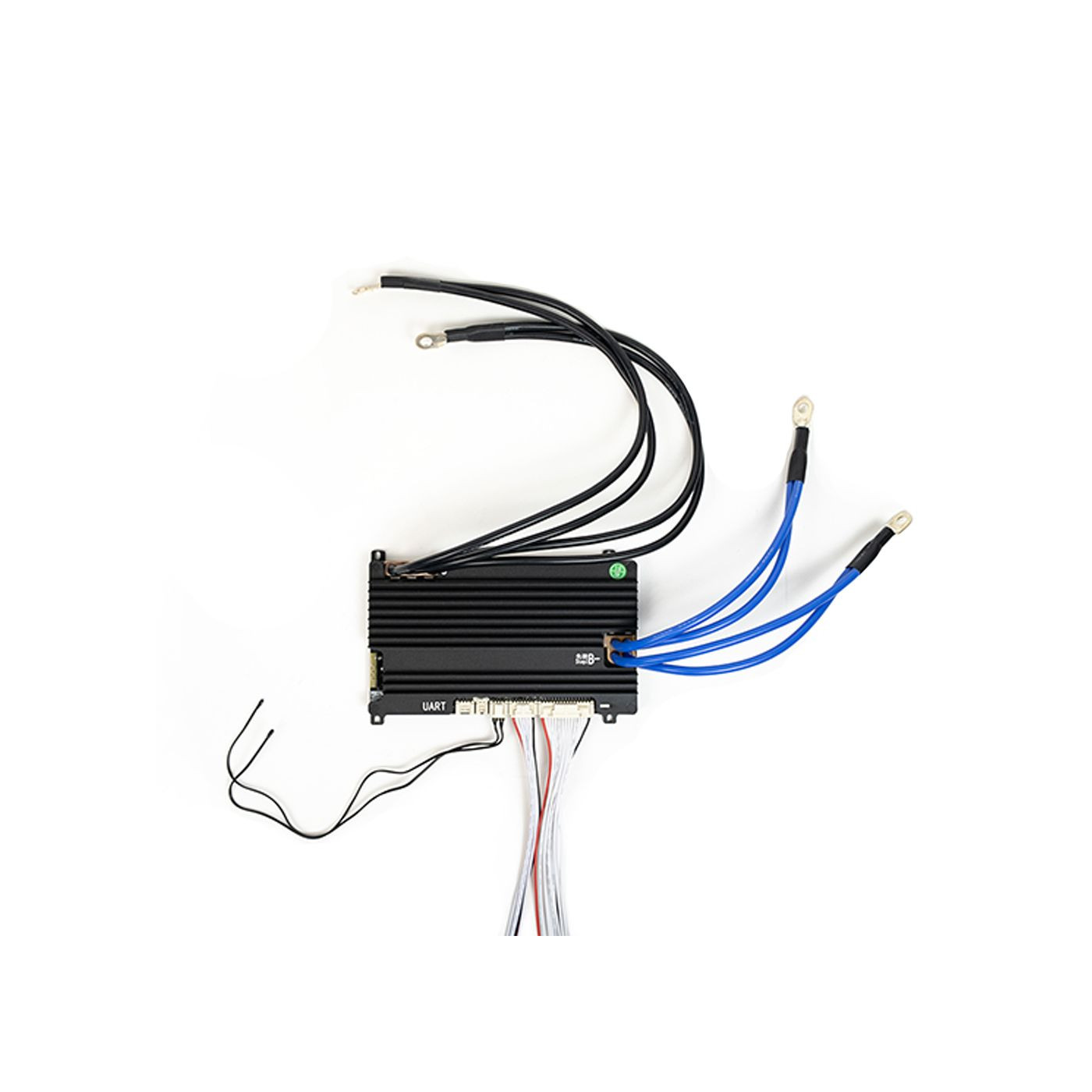

- 1 BMS 100A (Battery Management System) (200A max) with common charging port (50A max), for large charge cycle current and independent discharge cycle. The battery can discharge or recharge but not at the same time.

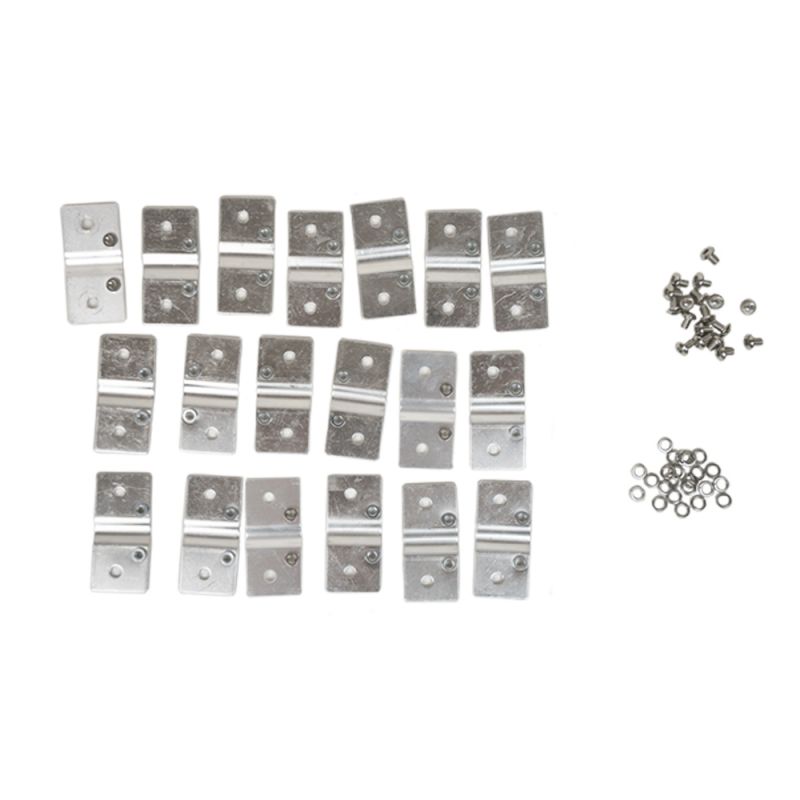

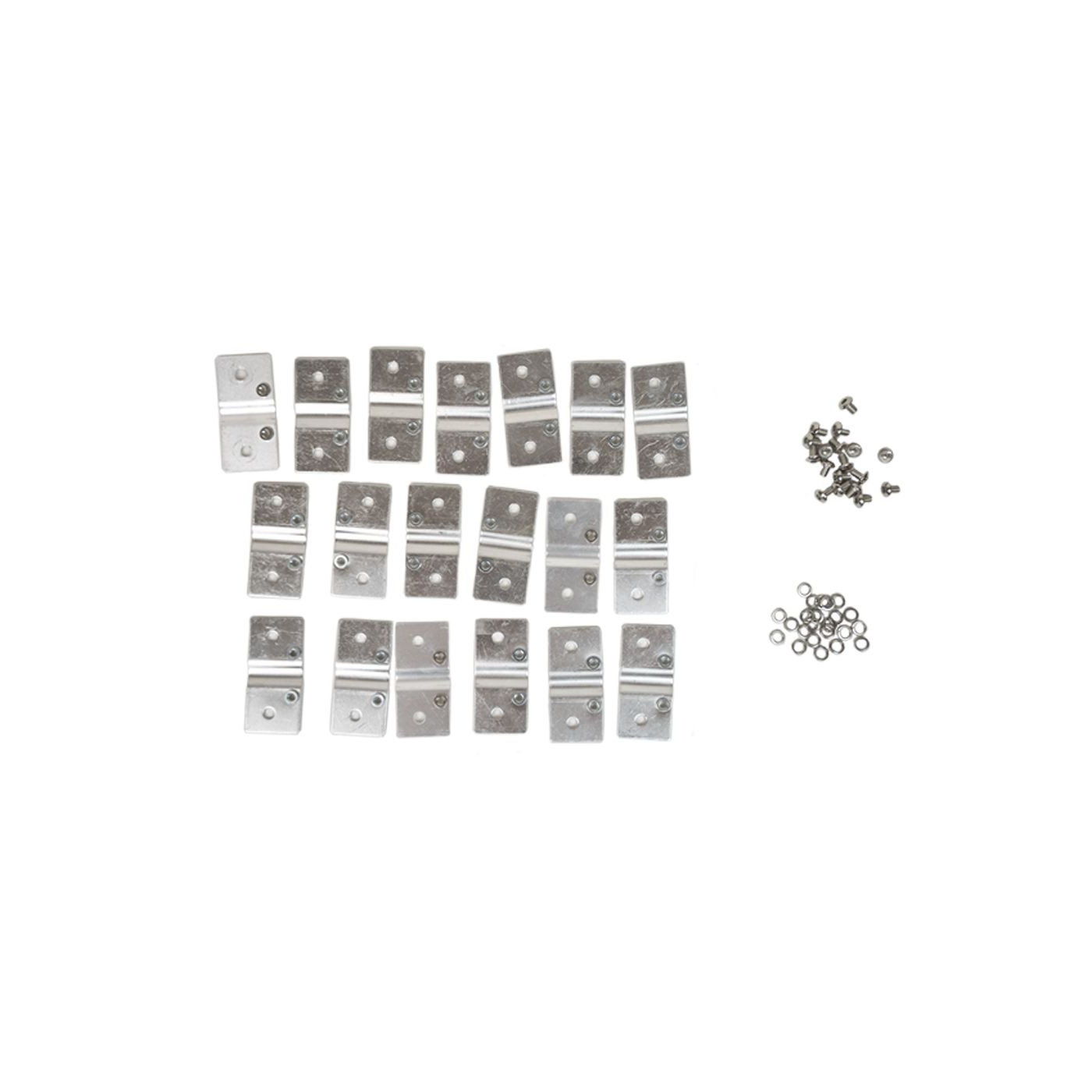

- 19 copper junction plates, thickness 2mm

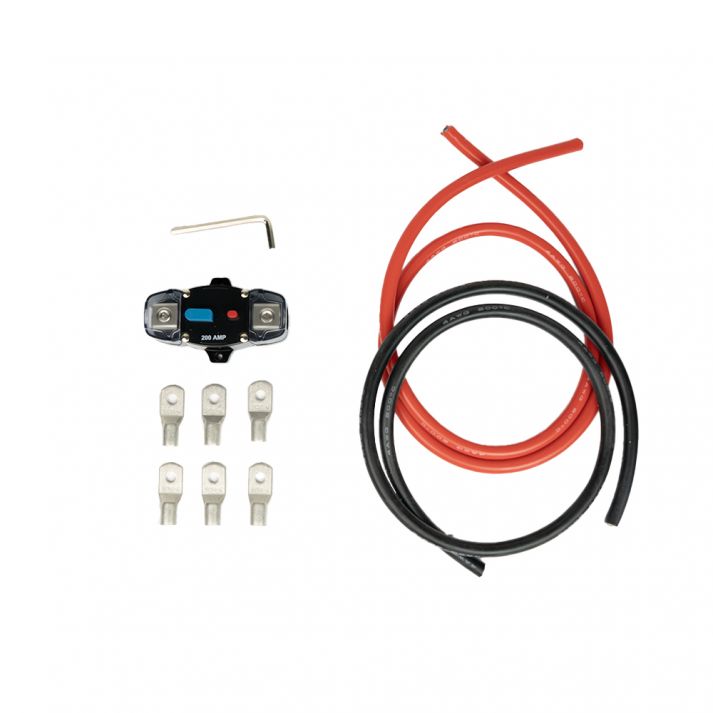

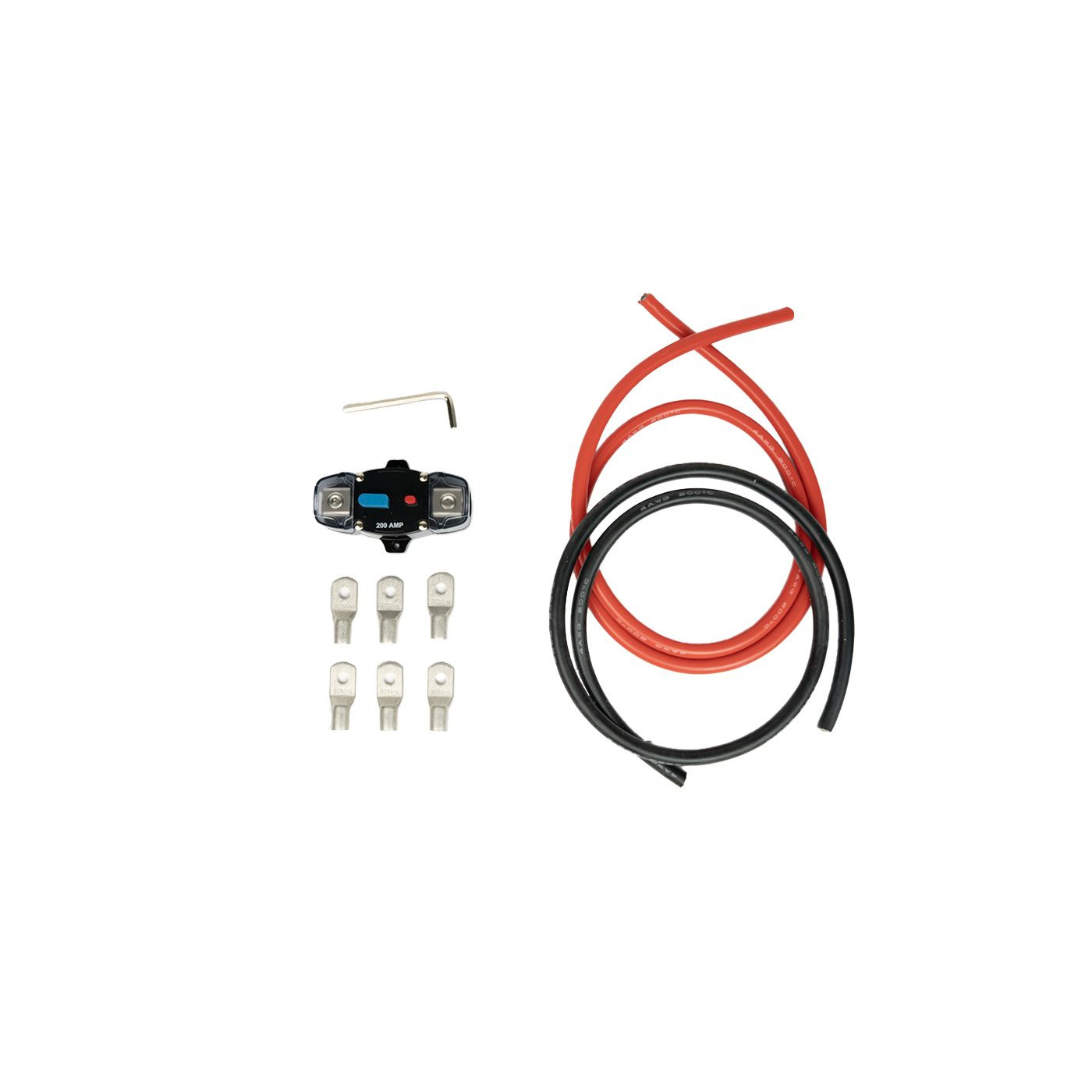

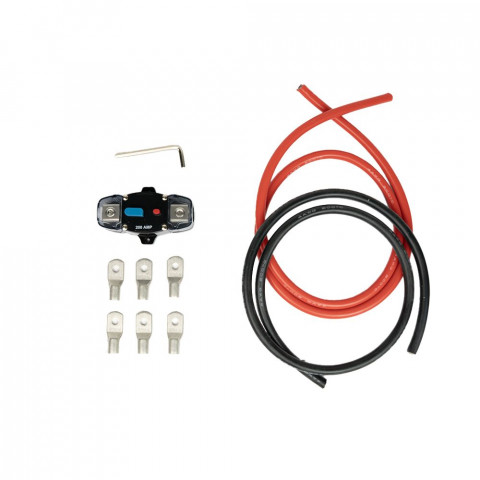

- Power cables: Section 8AWG / Standard length: 40cm, please do not hesitate to contact us if you require different lengths.
- Screws
- Adapted fuse
Required hardware:
- screwdriver
Benefits:
- Easy installation, within everyone’s reach
- Modular, adapts to all locations
- Simplified maintenance, if a cell is out of service, it is possible to replace only this cell without changing the complete battery pack.
- Economic
- Lithium-iron has a lifespan of 2,000 to 3,000 charge cycles, unlike lithium-ion (600 cycles) and lead (300 cycles)
- This lithium battery will perfectly replace your old lead batteries
Specially adapted for home storage, camper, boat, solar sailboat, quad bike, autonomous vehicle, solar installation, mobile home, agricultural vehicle for organic farming.
No knowledge of electronics is required.
The wiring diagram/plan is provided when purchasing the kit.
Precautions:
The battery pack must be stored in a dry and ventilated place. The operating temperature ranges from -20°C to 60°C. We recommend a storage and use range between 0oC and 50oC to preserve and extend the life of your batteries. The positive and negative metal terminals must be protected to prevent a short circuit caused by a falling metal object on the pack.
The nominal current of the cells is 0.5C (50A) on load and 1C (100A) on discharge, a peak current (0.5s) of 2C (200A)
For any further questions, please send us an email at batteries@ozo-electric.com
The OZO Batteries app allows you to communicate with the BMS of your OZO battery via Bluetooth in order to read battery settings such as the instantaneous discharge power, charging current, battery state of charge, battery voltage, and the voltage of each cell, the temperature, the number of use cycles...
You can also remotely control your battery to put it on standby, stop charging or discharging.
For example, you can decide to turn on or off a remote consumer or activate the charging of your remote battery.
The app "OZO BATTERIES" is available on Apple store and Google PlayStore.
