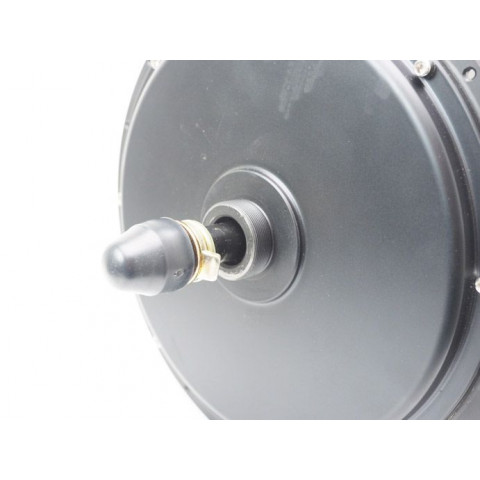

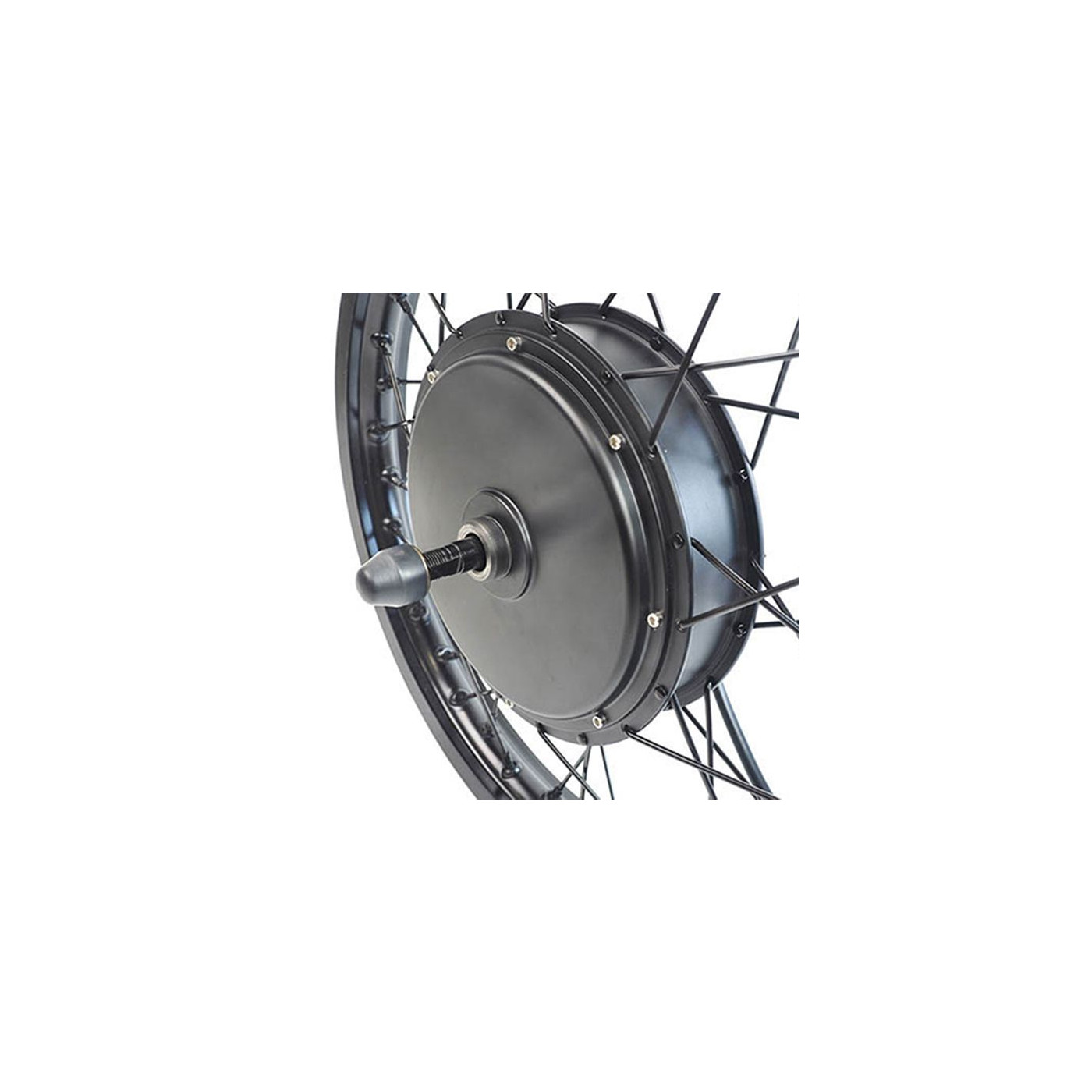

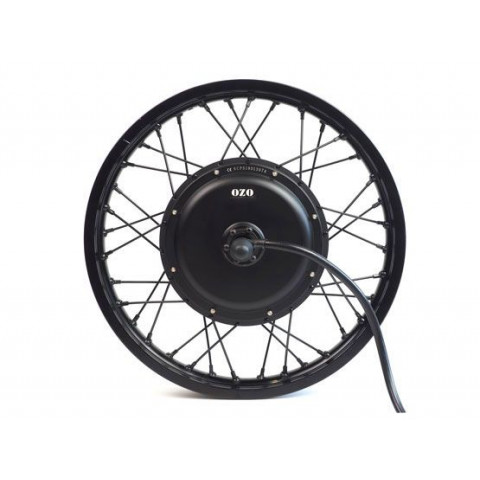

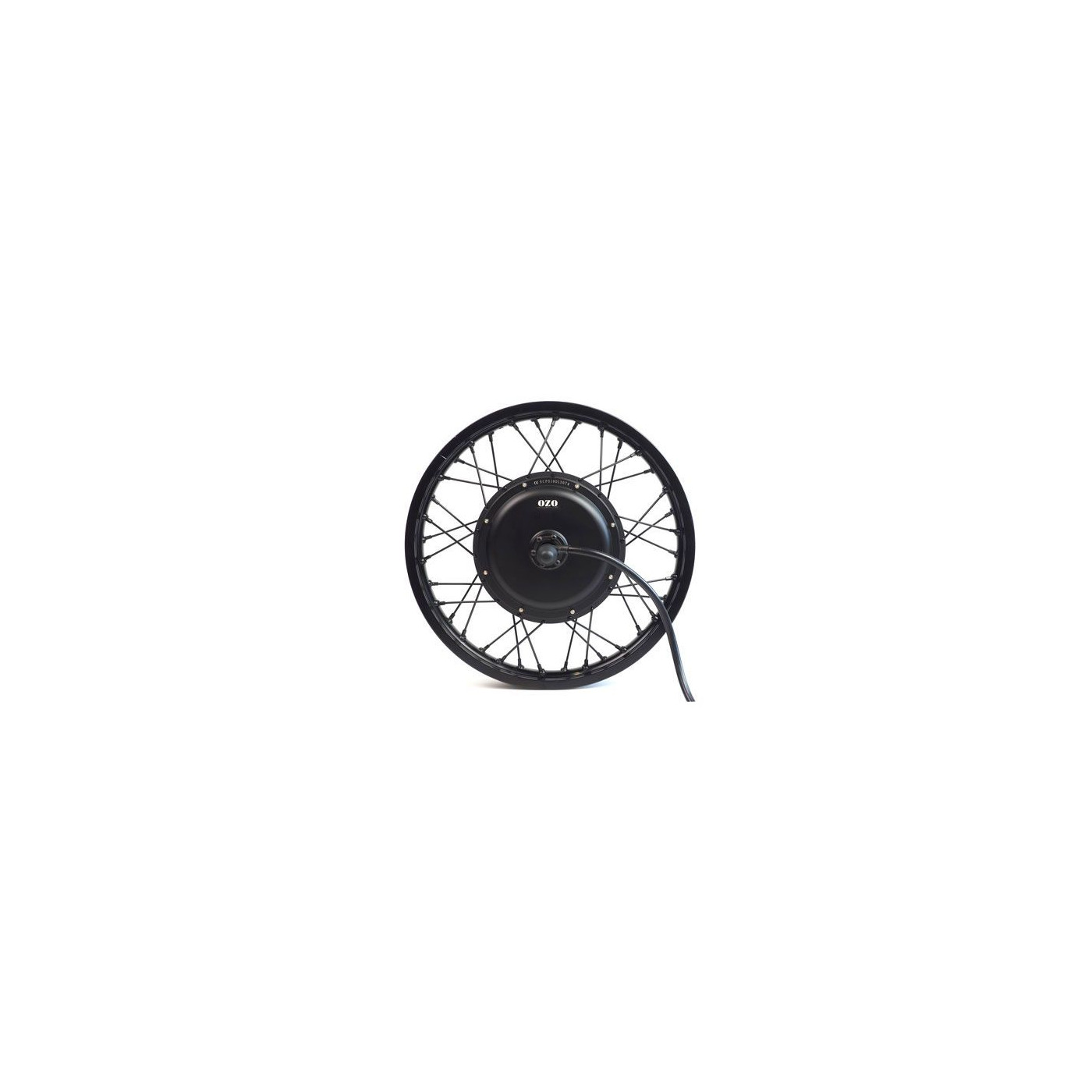

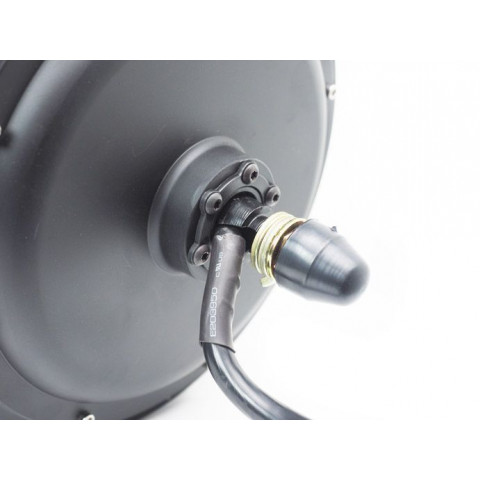

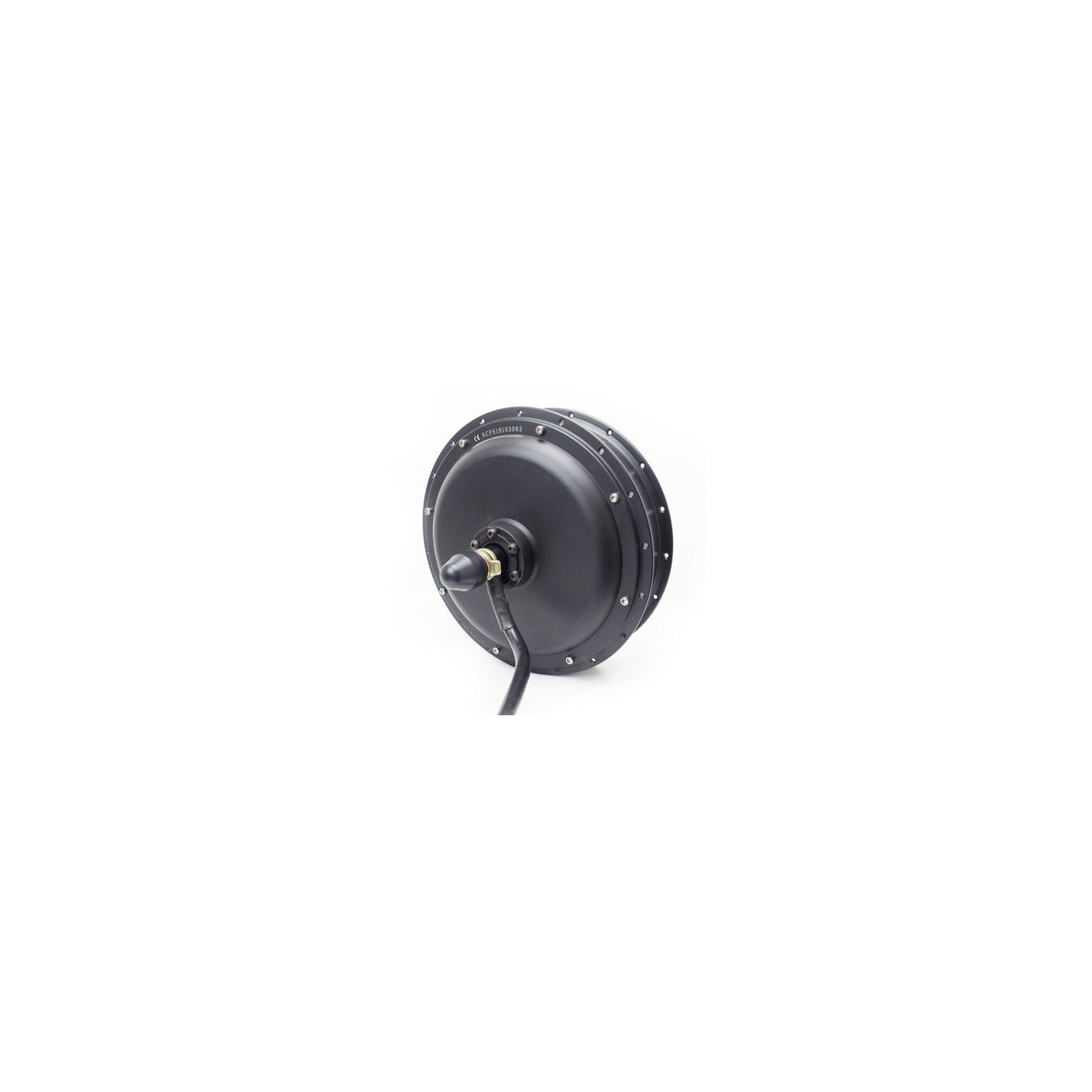

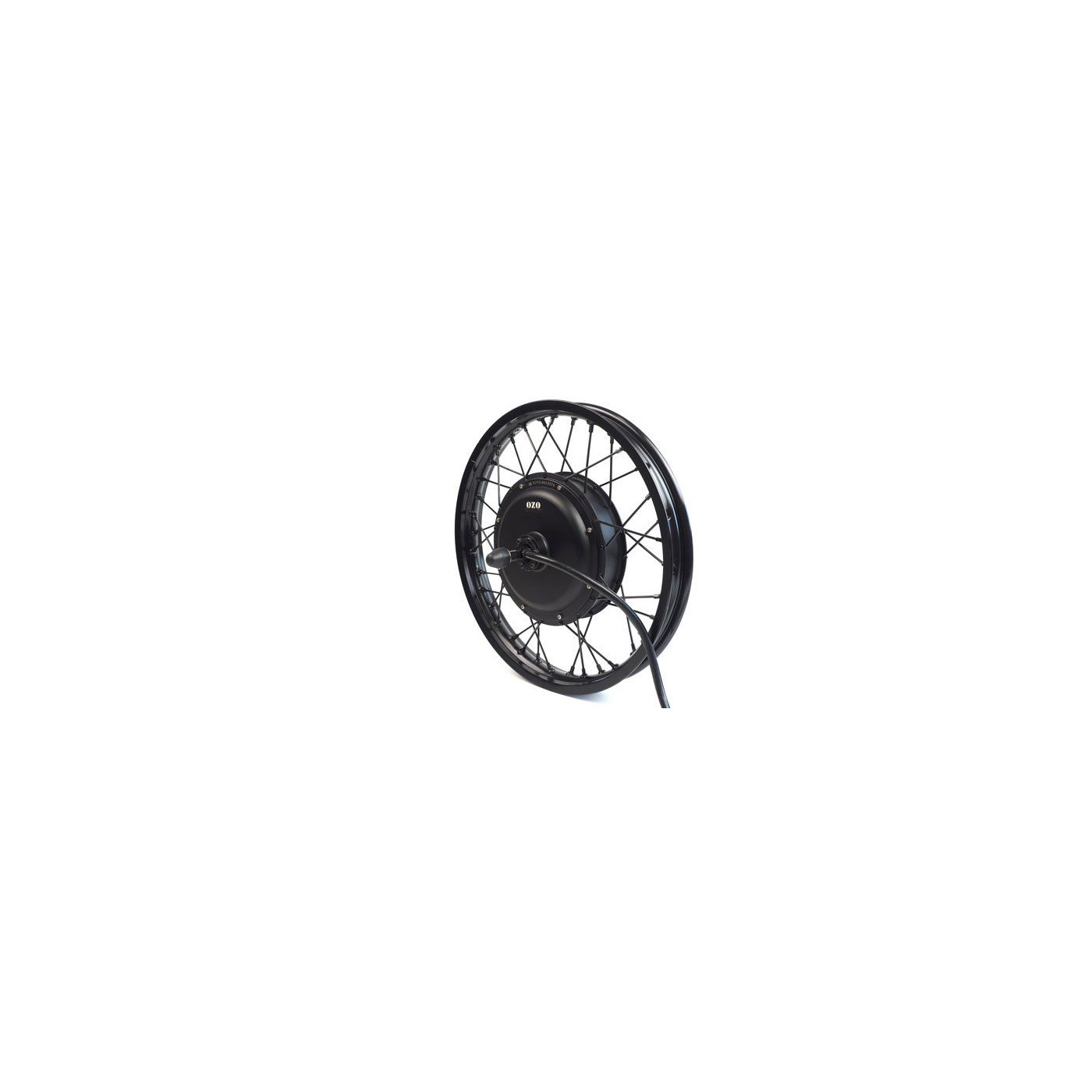

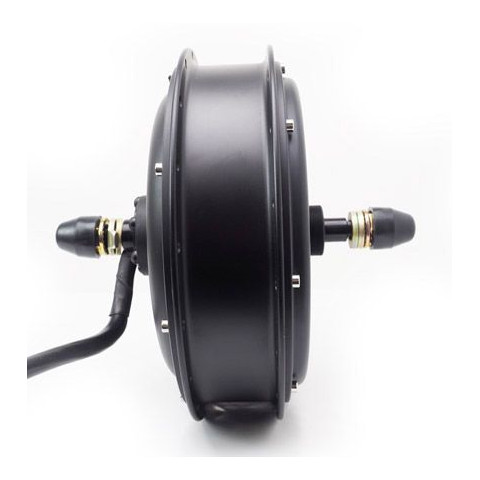

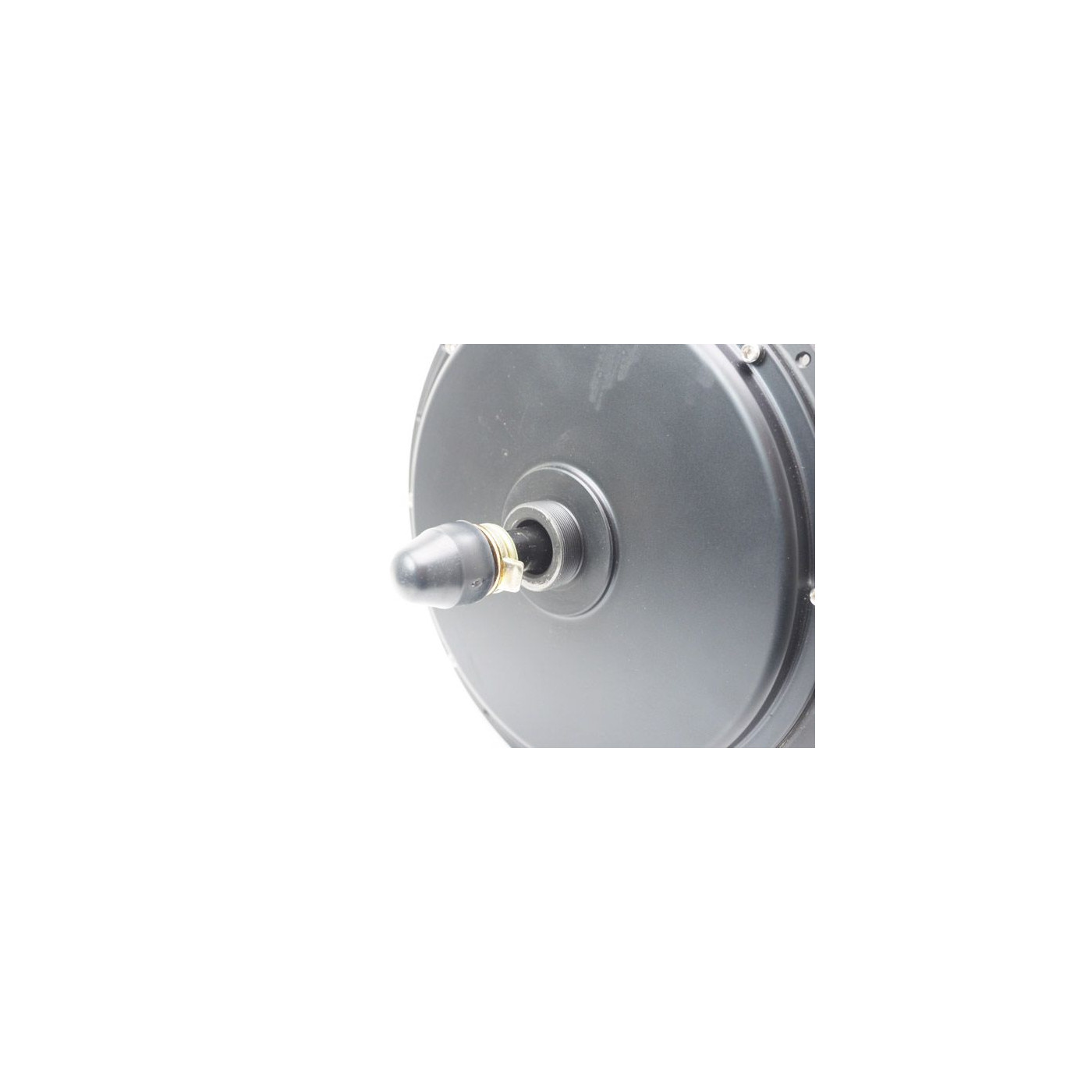

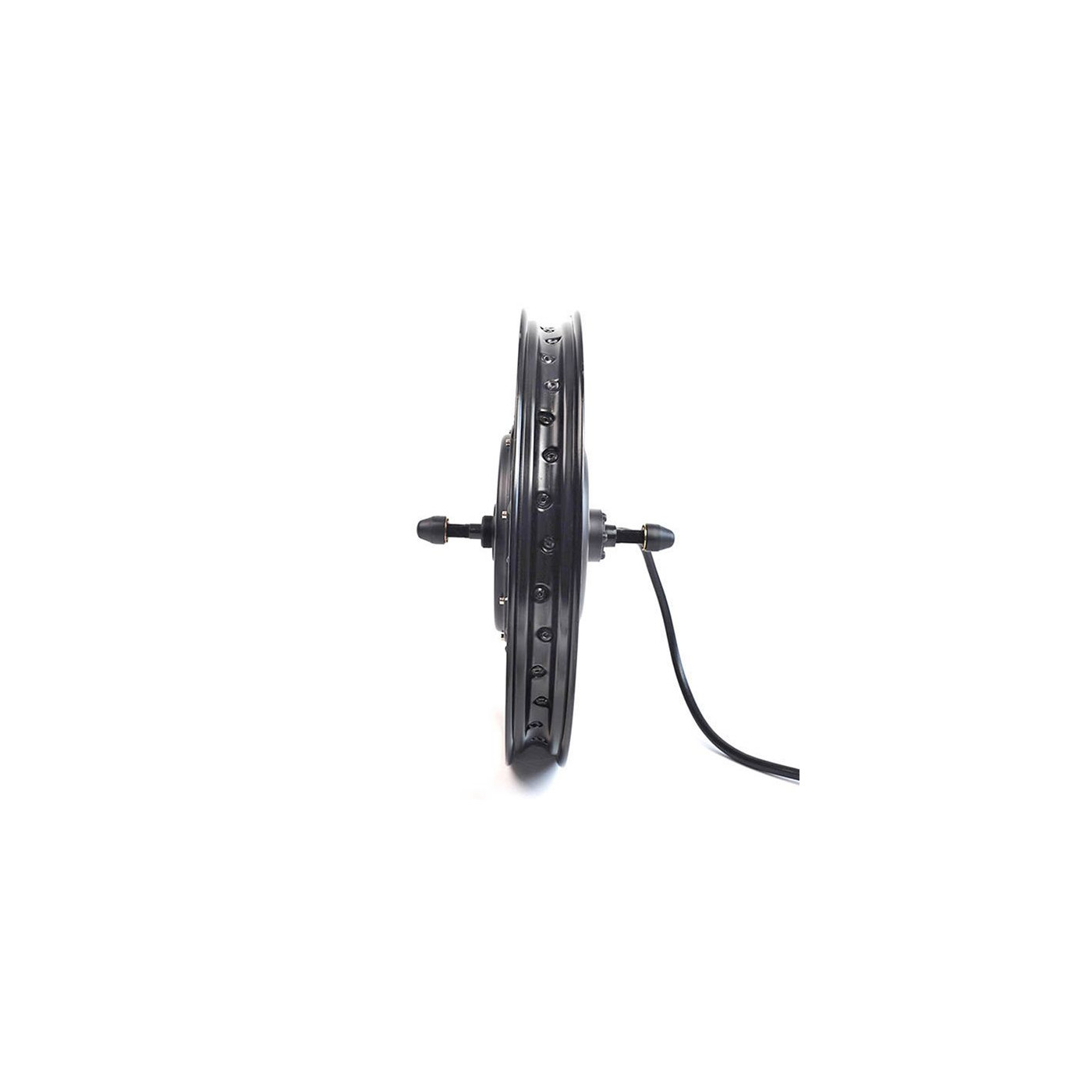

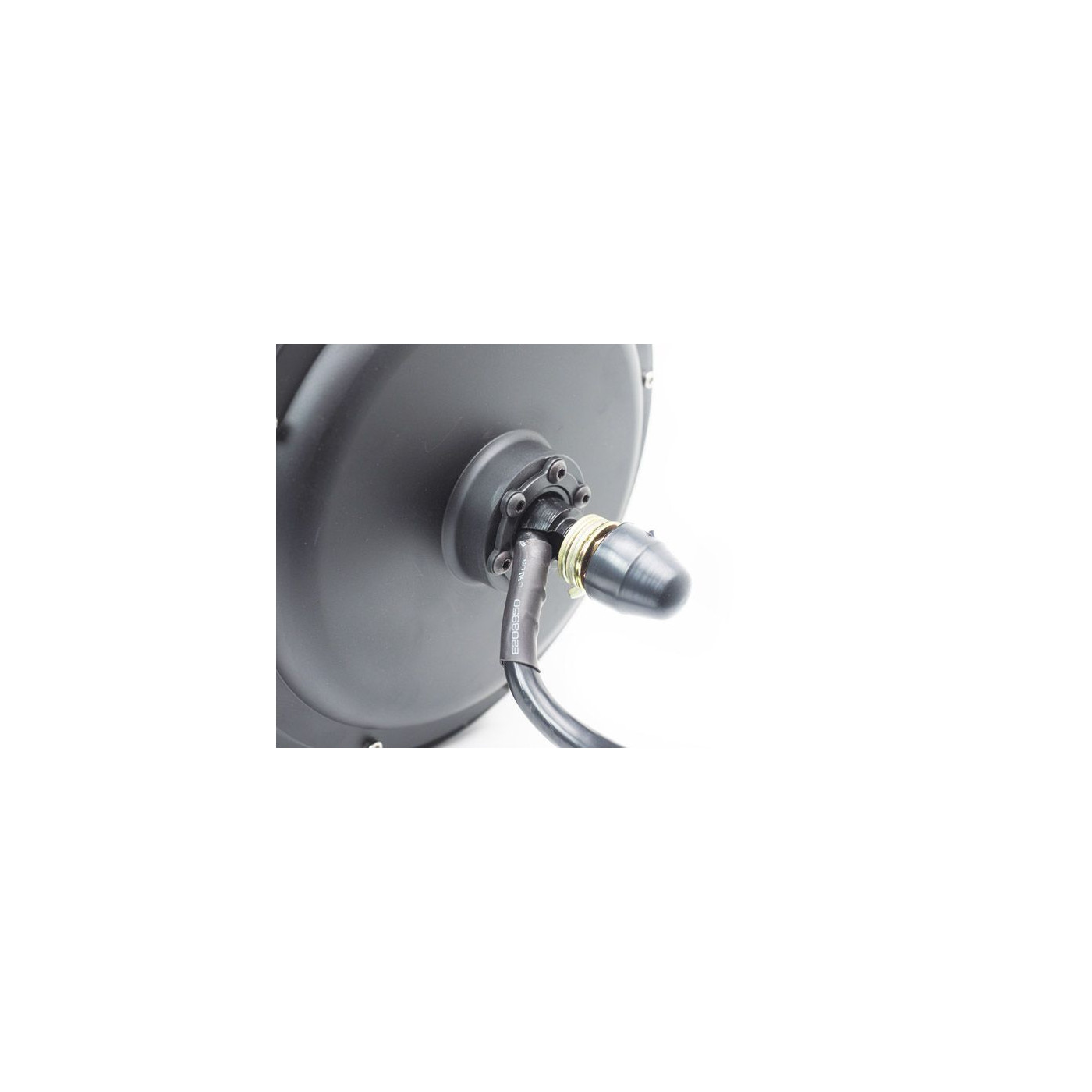

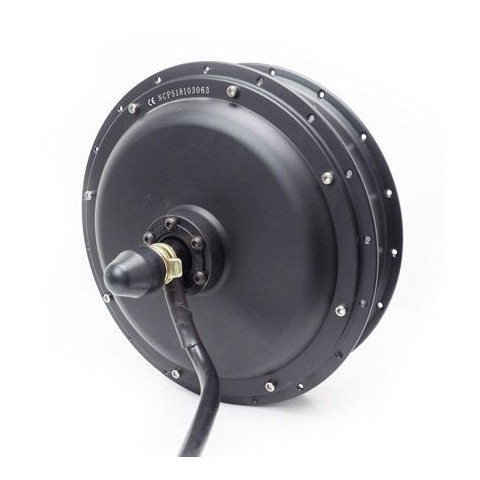

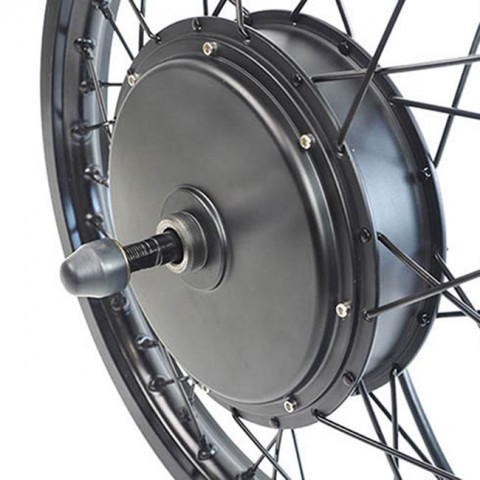

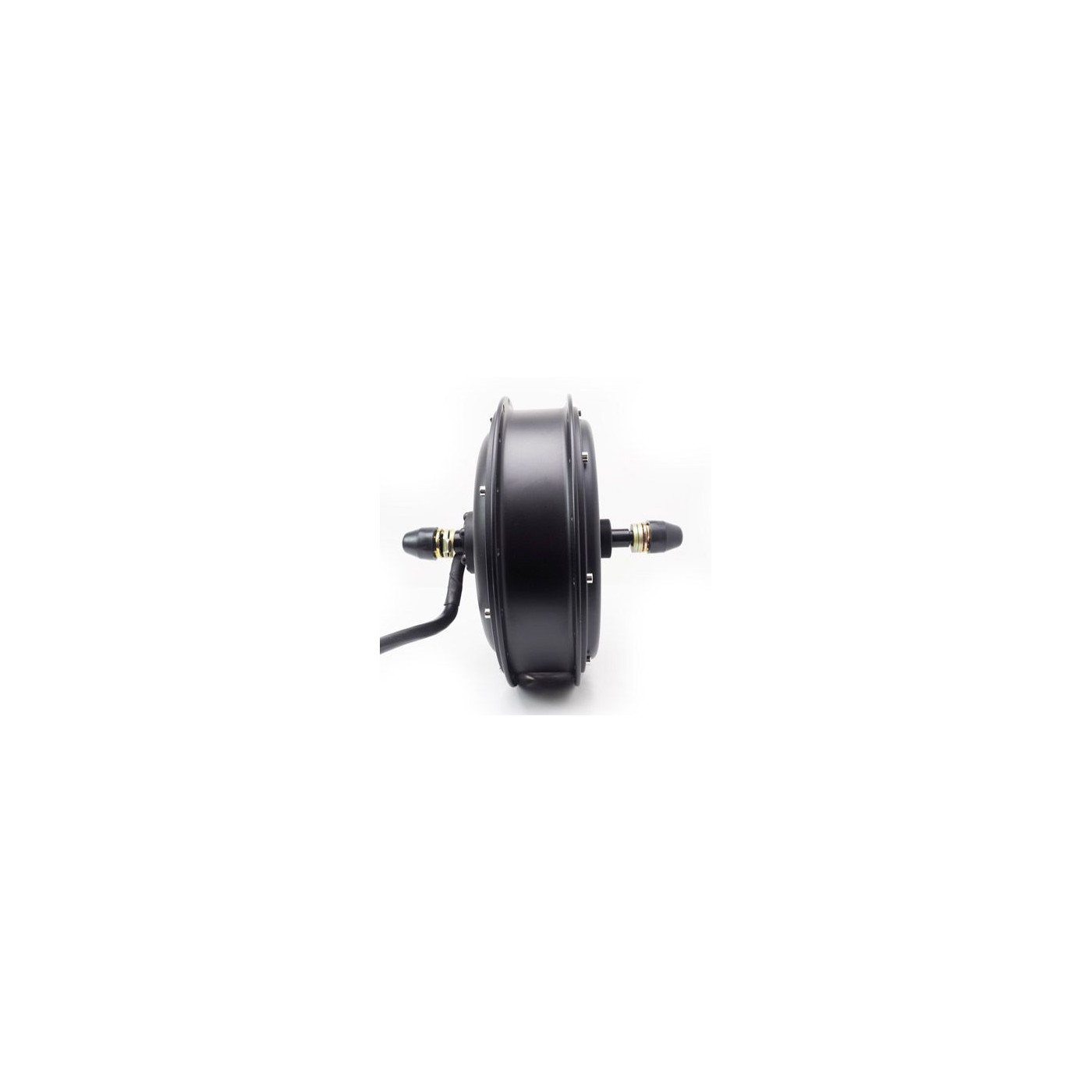

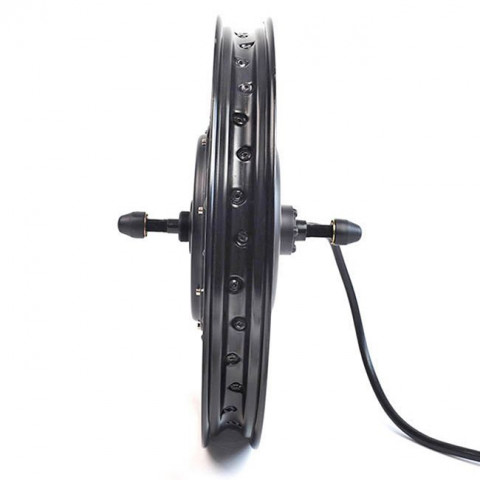

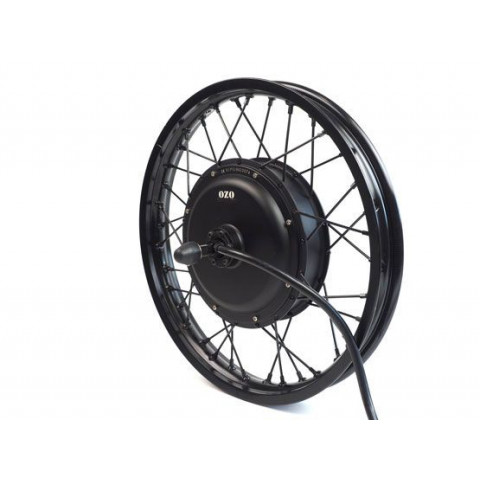

5000W motorcycle bike rear wheel motor

This 5000W motor gets 55mmm magnets and can accepts up to 5000W power and 1000Km/h speed.

Weight : 10, kg | dropout : 150mm

Pmax = 5000W / Pnom = 4000W

Max torque = 145N.m

Kv 10 Tr/min/Volt

Read moreShow less
€399.00 (tax incl.)
Rim size
  • Non spoked
  • 19x1,90
IN STOCK 4 Items
Reference:
002304
You may also like
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Electric Wheel motor 3000W Electric Wheel motor 3000W Electric Wheel motor 3000W

€1,399.00 (tax incl.)
10000W electric hub motor to replace all types of wheels on your agricultural machinery, ideal for making an electric vehicle for intensive use in difficult environments, torque 450Nm Mount your rim in 4x114.3 or...
Electric Wheel motor 3000W 200Nm Electric Wheel motor 3000W 200Nm Electric Wheel motor 3000W 200Nm

€399.00 (tax incl.)
3000W electric hub motor to convert light vehicle into electric. Compatible with any rim drilled 4x100 and at least 10'' in diameter. 1000mm cable length 45km/h under 48V with 10'' wheel and 50km/h with 12'' wheel.
Motorcycle 10KW motor rear wheel Motorcycle 10KW motor rear wheel Motorcycle 10KW motor rear wheel

€2,199.00 (tax incl.)
Special retrofit, OZO presents the first electric motorcycle rim with a power of 15000W to transform your current motorcycle into a clean electric motorcycle. Compatible with most motorcycles with a 17 inch rear...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€369.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including Standard tire 4.00 -...
Description

The DD55 engine is the most powerful in the range. It is intended for use motorcycle or motorcycle.

We can radiate it on rims of motorcycles with rays in 3mm of diameter.

It is a BLDC Brushless motor that can be powered from 24V to 96V and accepts a max current of 90A and 60A continuously.

Its stator has a lamination in 0.35mm which gives it a yield of 91%.

You can reach 45 Km/h under 48V and 70Km/h with 72 V battery.

Center distance: 150mm

Length of axis = 229,5mm

2D plane of the motor :

Read moreShow less
Product Details
002304

Data sheet

Guarantee
2 ans
Intensité max
90A
Maximum speed
100Km/h
Mass
9,8 Kg
Tension d'alimentation
24V to 96V
Rendement
91%
Technologie moteur
Brushless BLDC direct drive
Régime de rotation
9,8 Tr/min/Volt
Compatibilité frein à disque
YES
Roue libre ou cassette
Roue libre mono vitesse
Tension Max
96V
Entraxe fourche min/max
150mm / 180mm
Magnets height
55mm
Hall sensors
OUI
Motor axle
16x10mm
