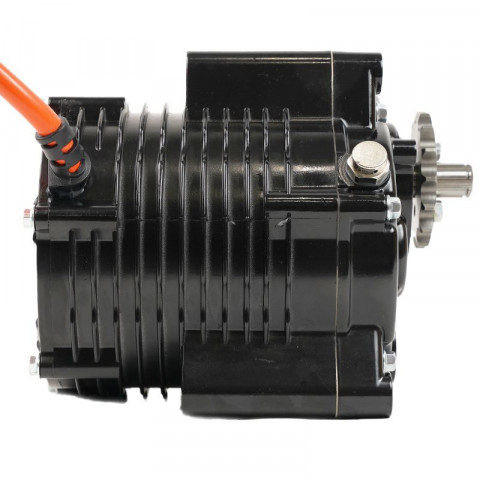

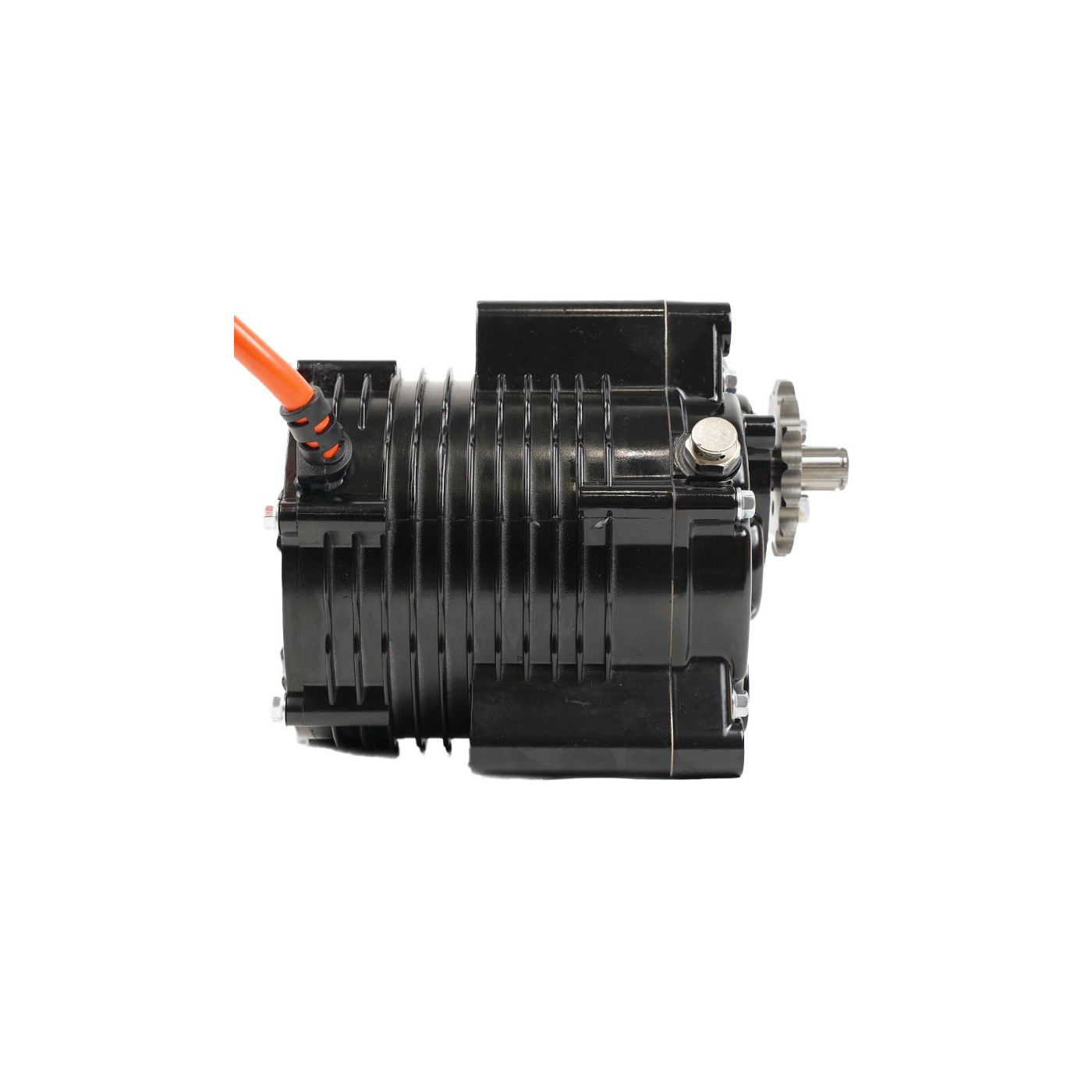

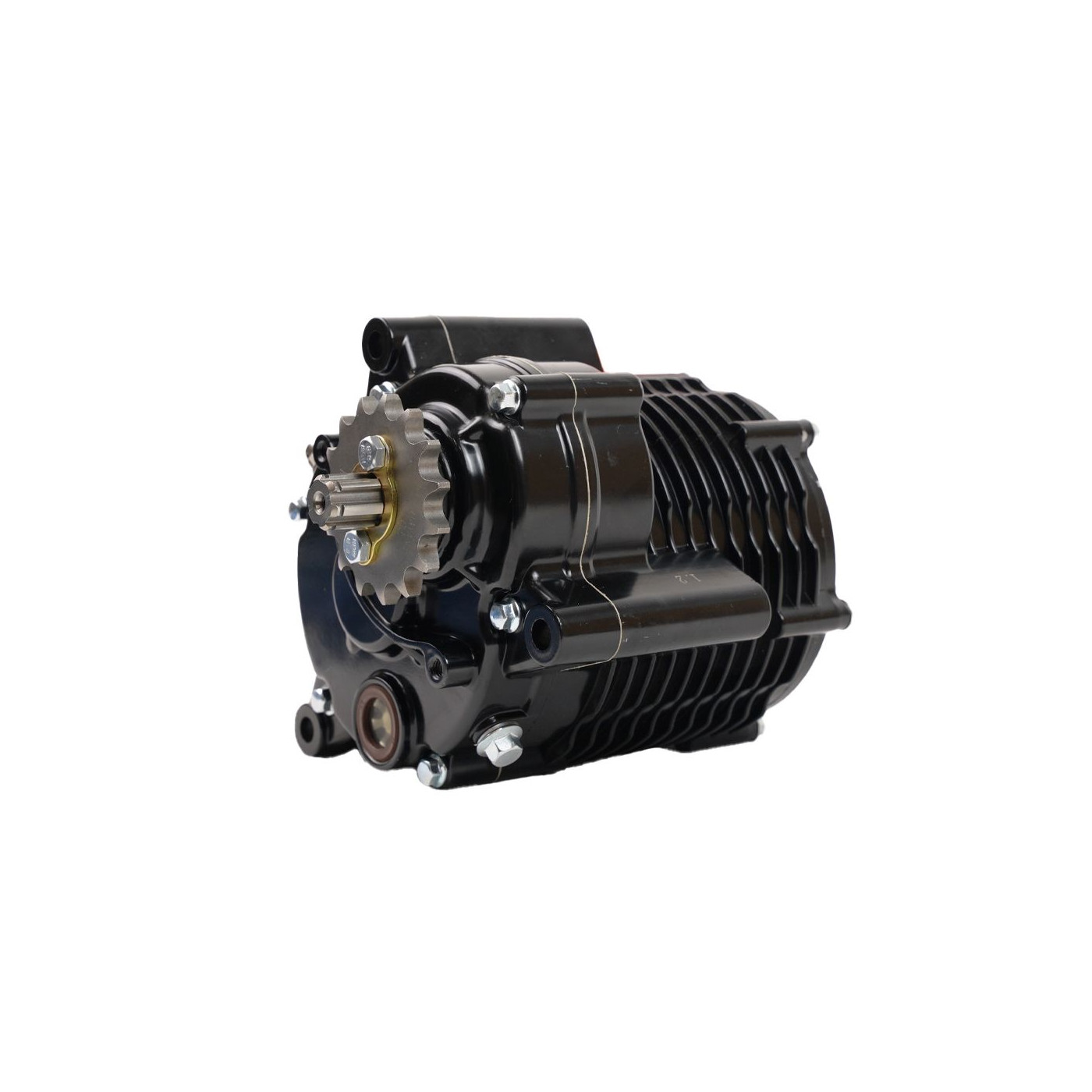

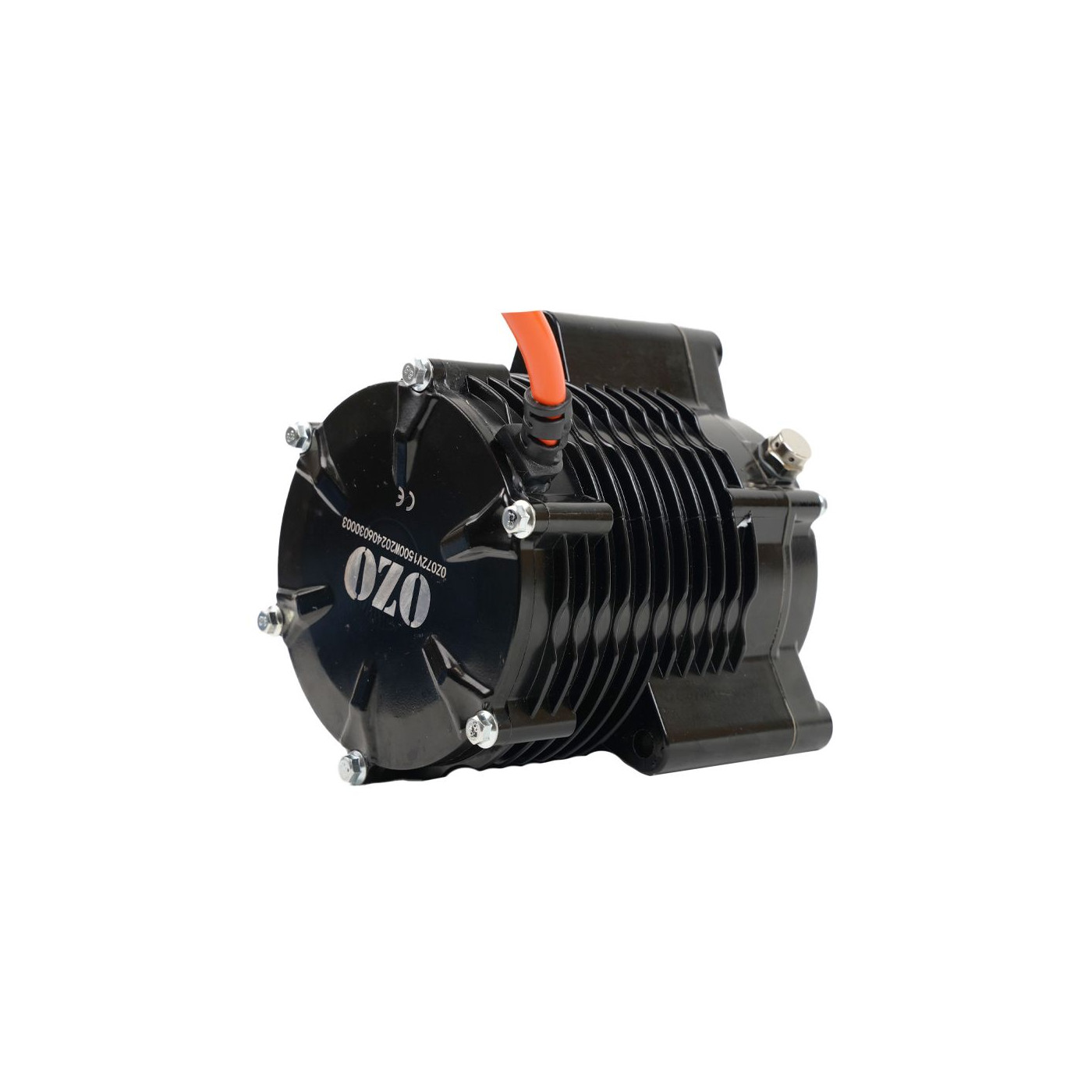

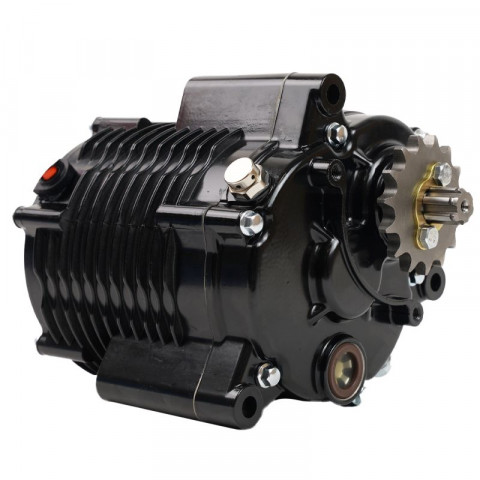

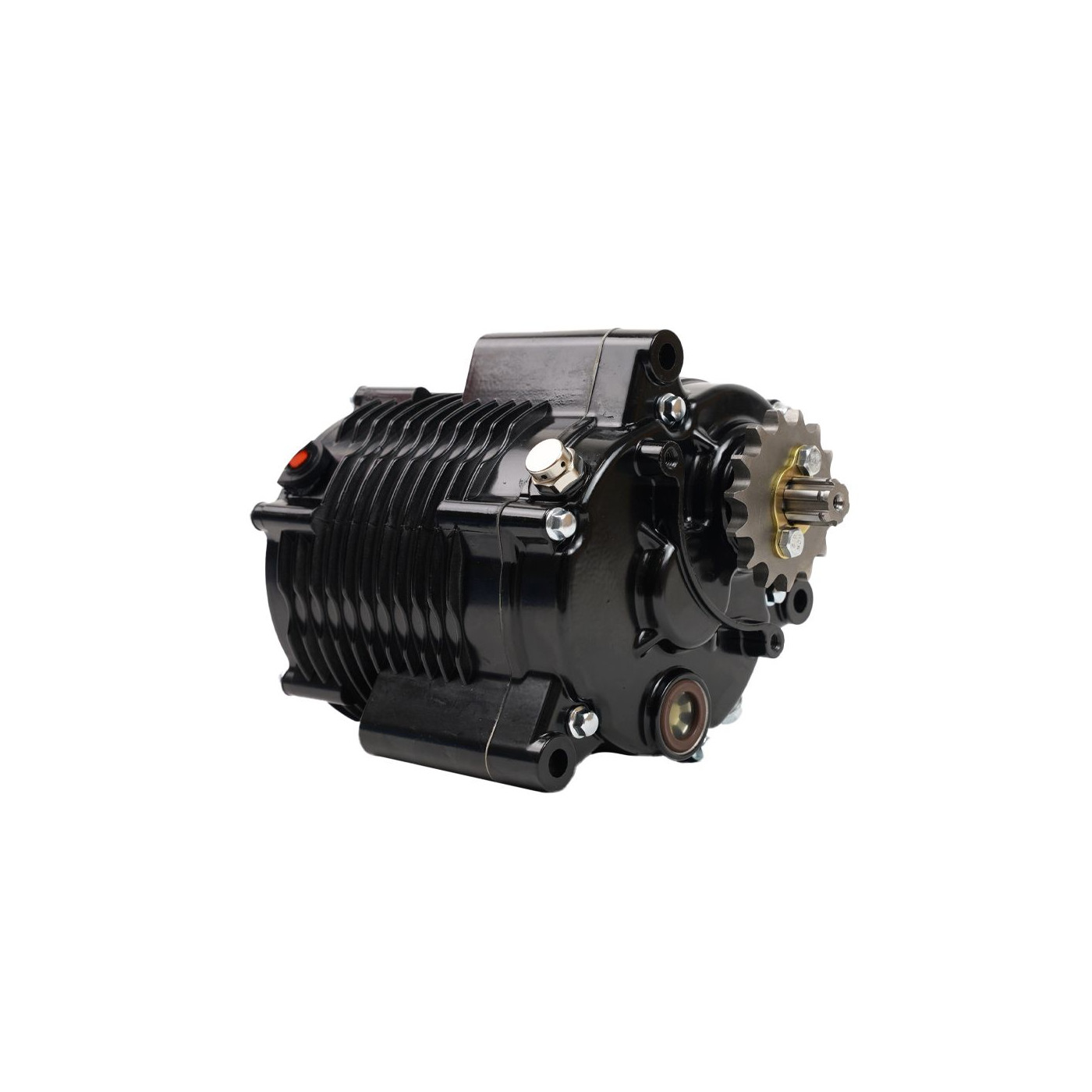

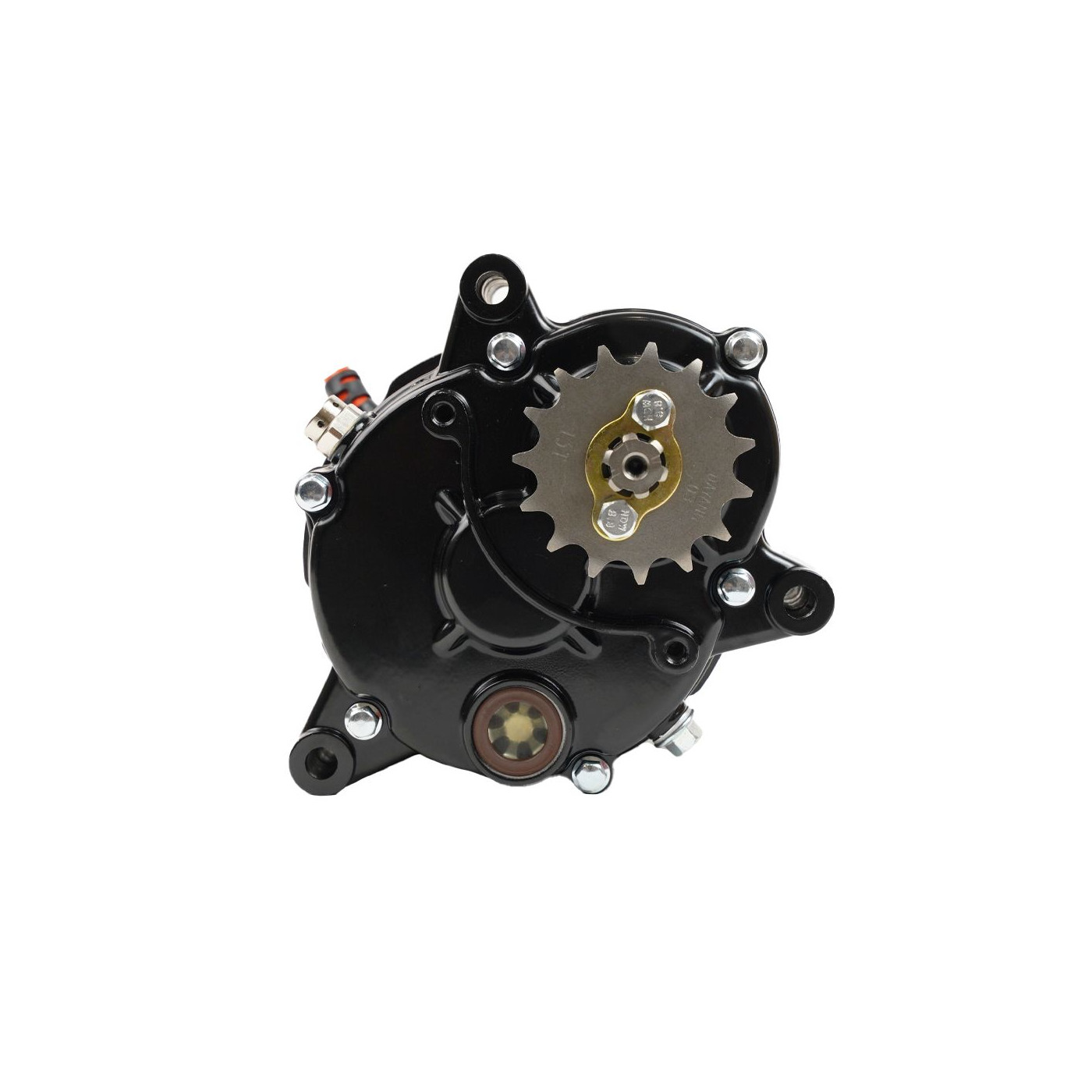

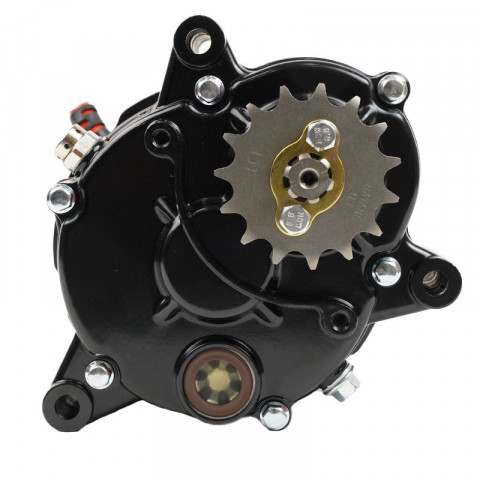

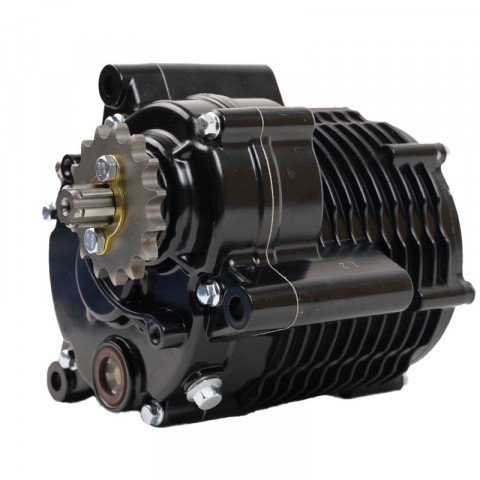

Central 1500W electric motor for small motorcycles, dirt bikes, pit bikes.
This Brushless PMSM Electric Motor (Permanent Magnet Inner Rotor Motor) with Hall effect sensors is designed to deliver a power of 1500W at 48V, generating a torque of 25 N.m and a maximum rotational speed of 4800 rpm. The internal gear system allows it to deliver higher torque compared to a traditional central motor.
The motor is intended to be integrated in place of a thermal engine, using the same frame attachment points.
It will be perfect for retrofitting a thermal motorcycle into an electric motorcycle for children, pit bike, or dirt bike. It can also be used for other electric vehicle projects.
The cable throttle controls can be retained using our electric accelerator for motorcycles.

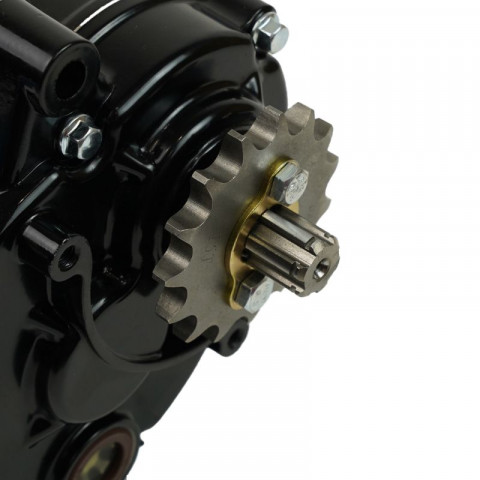

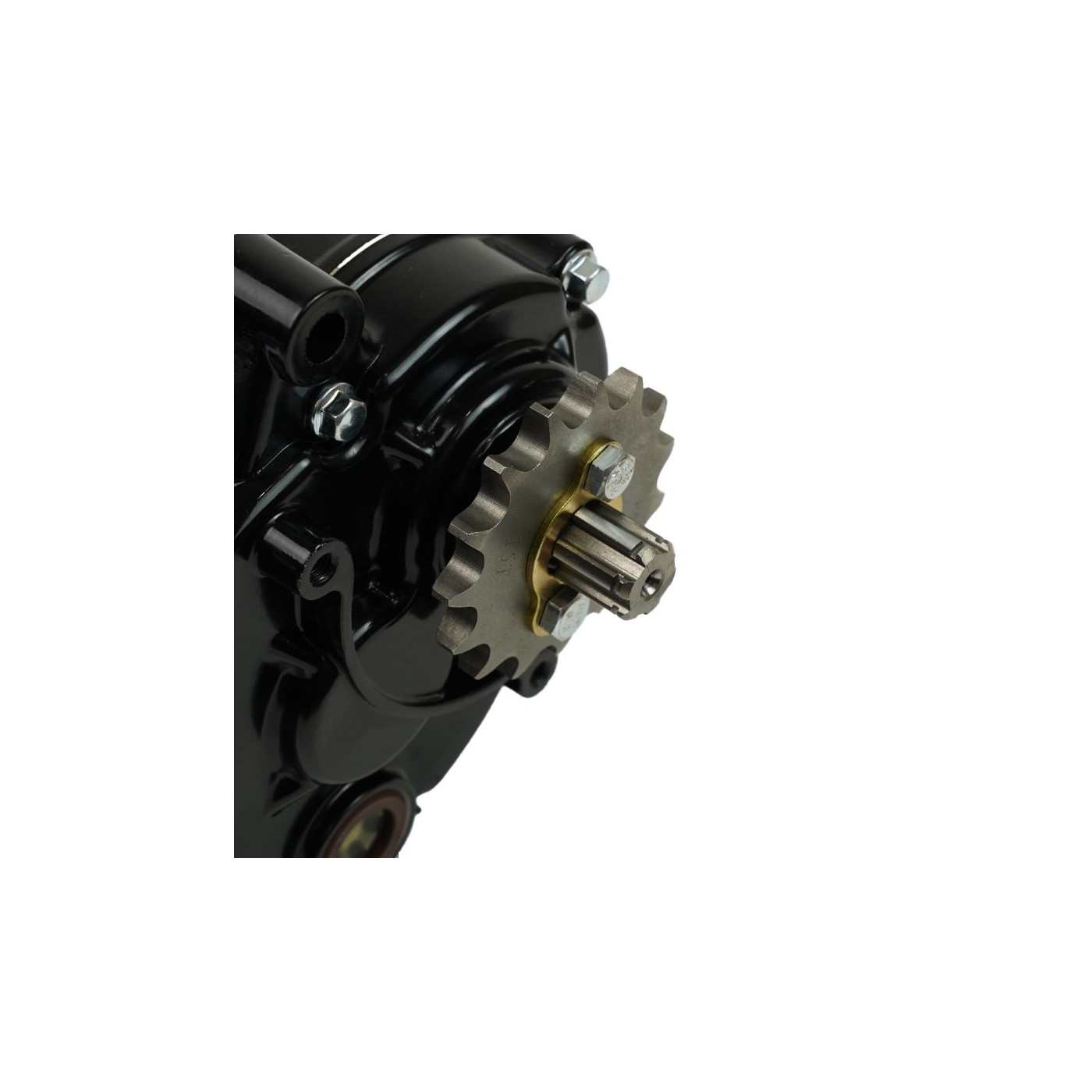

The motor comes with a 16-tooth sprocket with XXX pitch.
Weight: XXXkg
Easily and quickly replace your 2-stroke or 4-stroke thermal engine with an electric motor.
This internal reduction Brushless PMSM motor is designed to deliver a power of 1500W at 48V with a maximum speed of 4800 rpm. This very compact and lightweight motor will fit perfectly in place of the original thermal engine.
Thermal equivalence of 3HP in cruising and 5HP at maximum power.
The advantage with electric motors is that everything is adjustable via power electronics: torque, acceleration ramp, braking ramp, engine braking force, acceleration dead time, engine speed, etc.
We can provide custom-made stainless steel supports through our in-house design office to best meet your needs and simplify the motor installation. Feel free to contact us at technique@ozo-electric.com
You can retain your throttle controls or original accelerator handle since the electronic accelerator is directly connected to the original cable. The cable pull is therefore preserved.

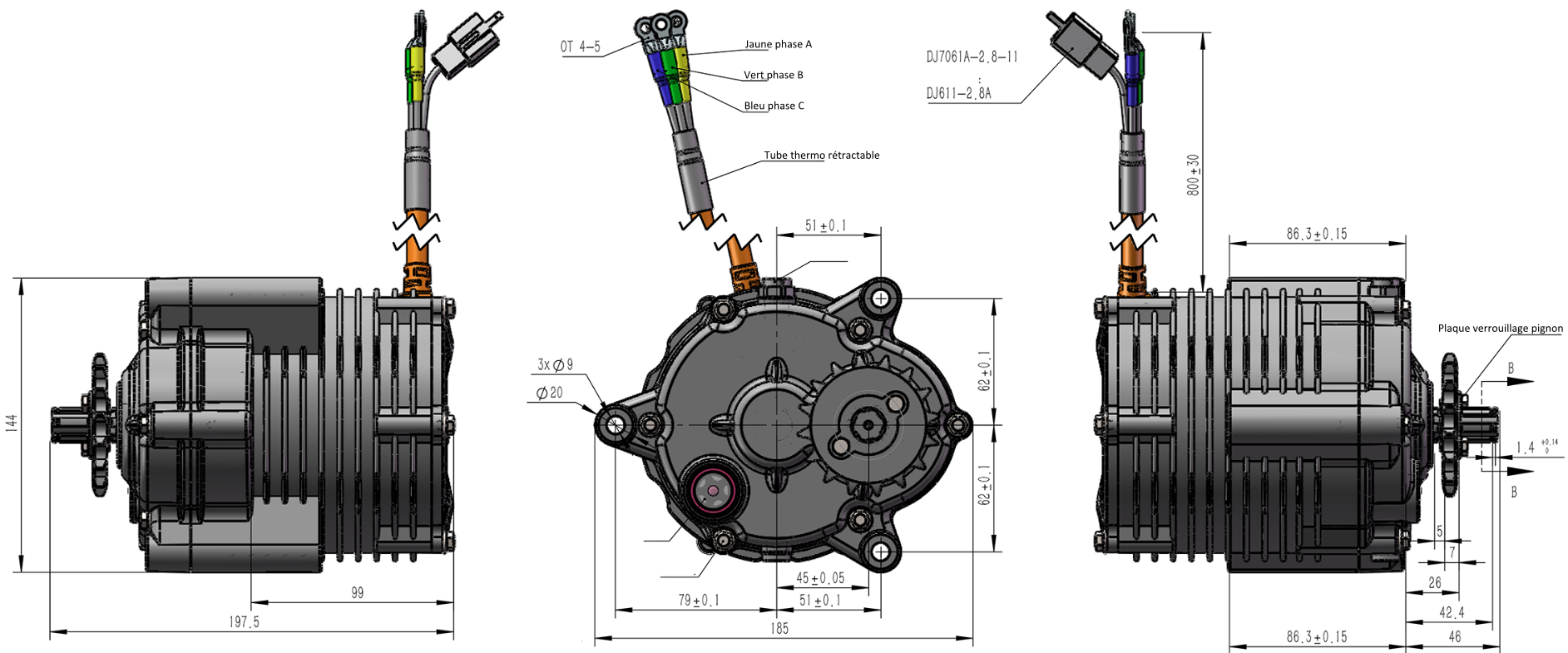

2D PLANS
| Technologie moteur | Brushless |
| technologie | BLDC |
| tension nominale | 48V |
| Tensions admissibles | 48-60-72V |
| intensité nominale | 34A |
| intensité maximale | 60A |
| diamètre de l'arbre | 17mm |
| Longueur de l'arbre | 32mm |
| Masse | 7.3kg |
| Rs | N/C |
| Ls | N/C |
| Indice de protection | IP65 |
| Vitesse de rotation nominale Tr/min | 4800 |
| Puissance nominale | 1500 W |
| Couple nominal | 25 N.m |
| Nombre de paires de pôles | 4 |
| Kv | 0.01 tr/min/v |
| Rendement maximal | 90% |
| Refroidissement | air |
| Codeur | non |
| Capteurs Hall | oui, 120° |
| Longueur des câbles | 800mm |
