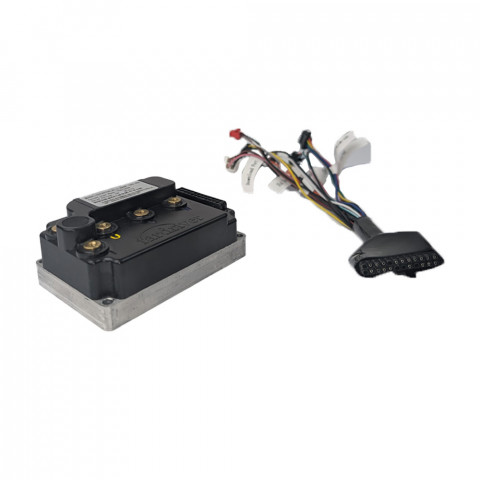

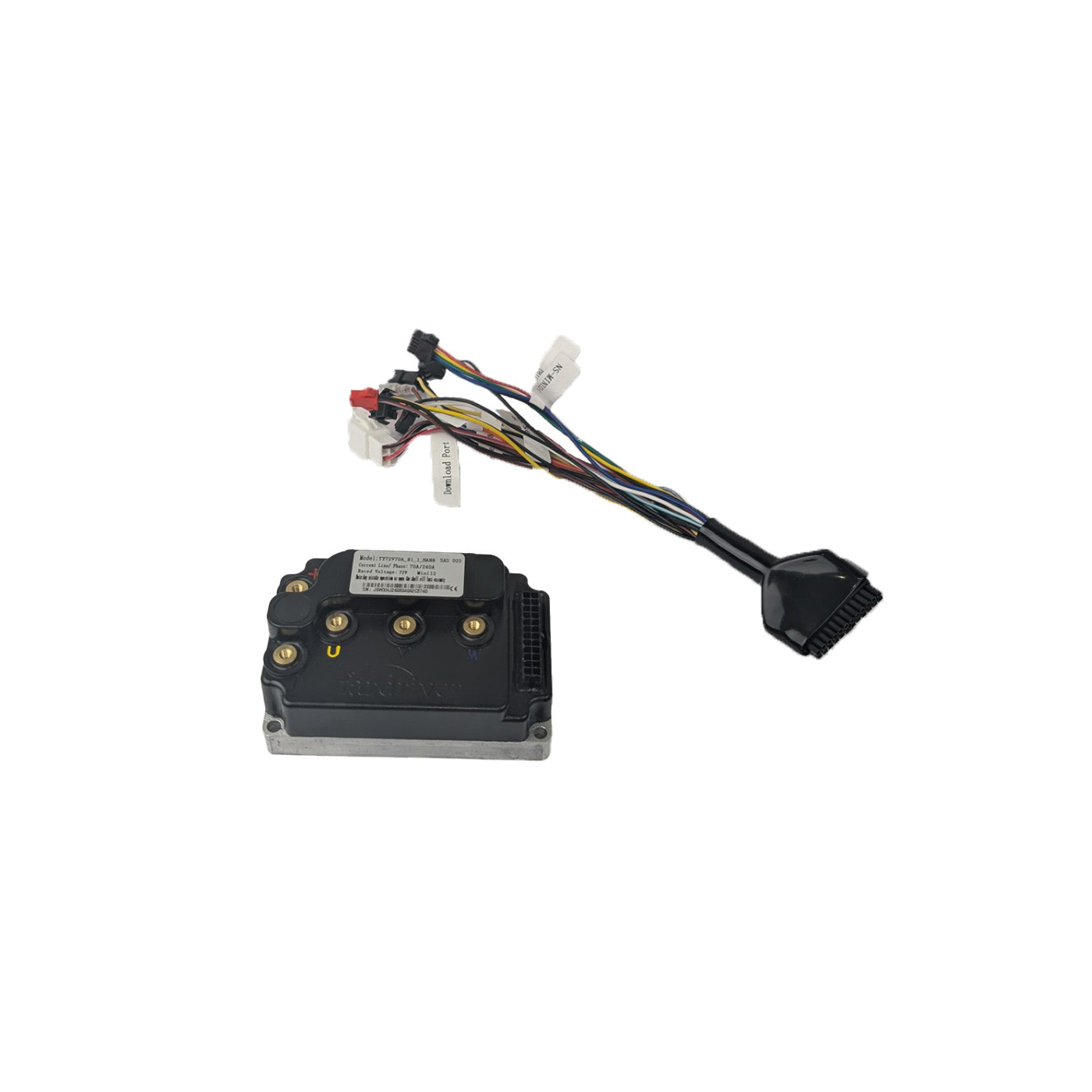

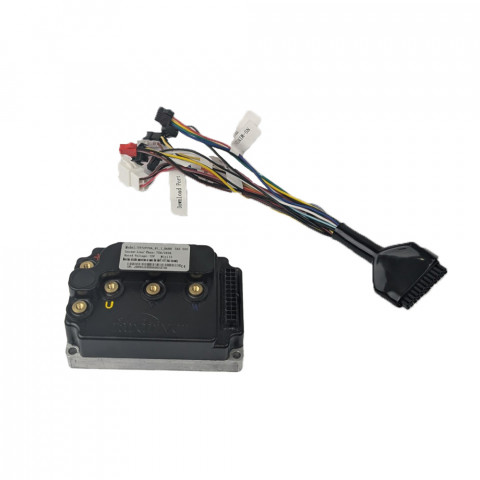

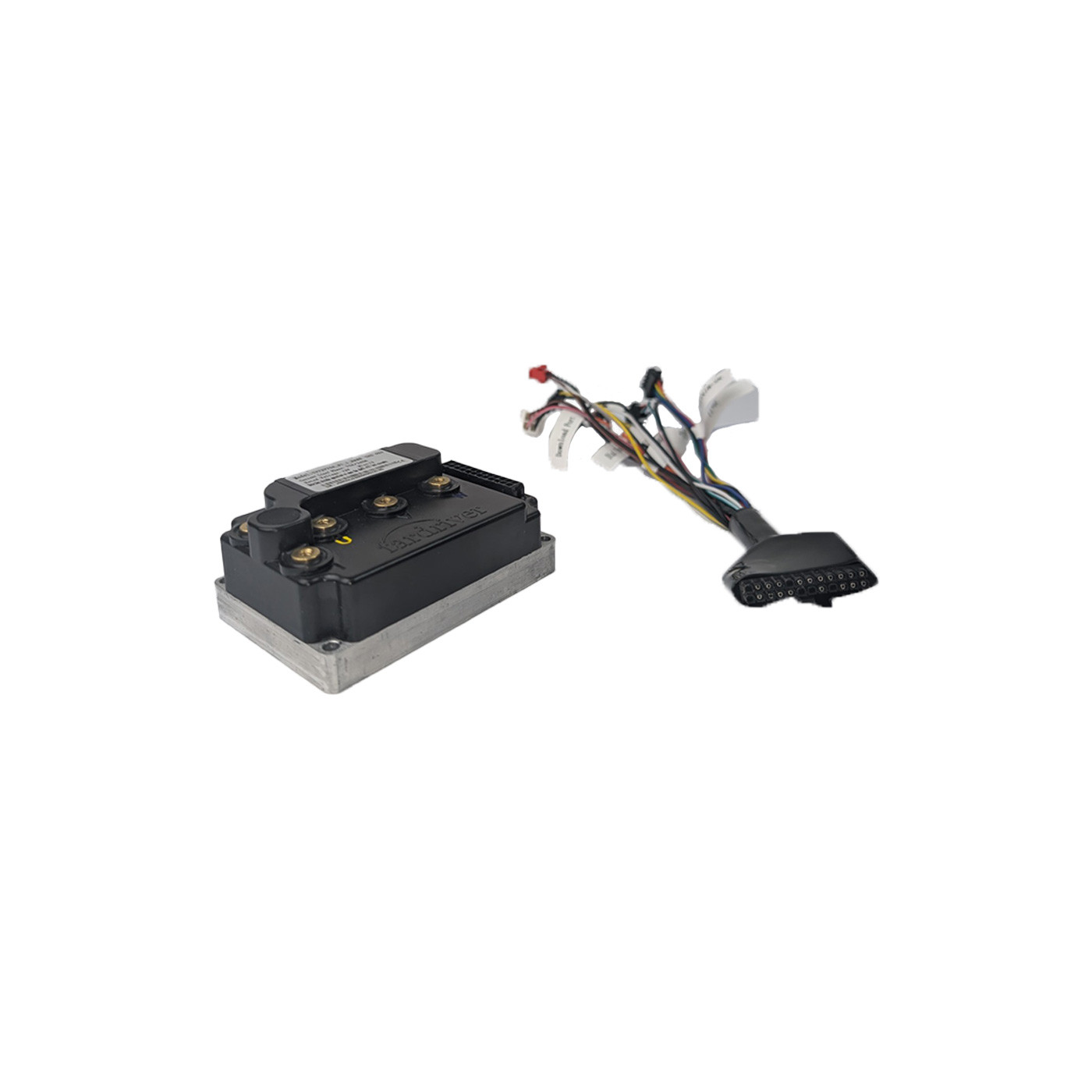

OZO Bluetooth 100A , 190A and 350A controller for Brushless motors with Hall sensors
Bluetooth 100A, 190A and 350A FOC vector controller for brushless motors.
Compatible with 48V, 60V and 72V batteries.
This controller is the perfect choice for electrifying motorcycles, karts, boats or any other project requiring sophisticated management of multiple parameters and high power.
The smartphone application (IOS and Android) makes it quick and easy to set parameters and customize your vehicle's behavior. Engine mapping tailored to your needs at your fingertips.
Supplied with Bluetooth module
MAIN FEATURES
Outstanding performance :
Explore the Brushless Motor Controller, a robust solution designed to drive BLDC or IPSM motors with unparalleled precision. Thanks to the FOC technology (Field Oriented Control, English equivalent of Vector Control), this controller delivers remarkable performance, specially adapted to the 6kW and 15 kW central motors offered in our range. Also allows you to control all types of brushless motors with hall effect sensors. Automatic and fast pairing between the motor and this controller model.
Personnalisation avancée :
Fully customizable thanks to the smartphone application (Android or IOS) In a few minutes, you can drive any type of motor wheel, center, hub Brushless technology with Hall Sensor. Control your motor easily with various interfaces such as a trigger, a handle or even a pedal. Easily switch between forward and reverse via a two-position knob or WigWag-type joystick. Enjoy three speed modes adjustable in power and speed, offering optimal customization. Explore advanced features such as cruise control, boost mode and regenerative braking adjustable in 500 rpm increments. OZO remains at your disposal to help you find the best possible configuration for the chosen engine and your need.
Refroidissement liquide :
The 190A and 350A versions are specially designed for use with a liquid cooling system, ideal for applications requiring continuous high power. Enjoy maximum performance with efficient thermal management for long-lasting performance.

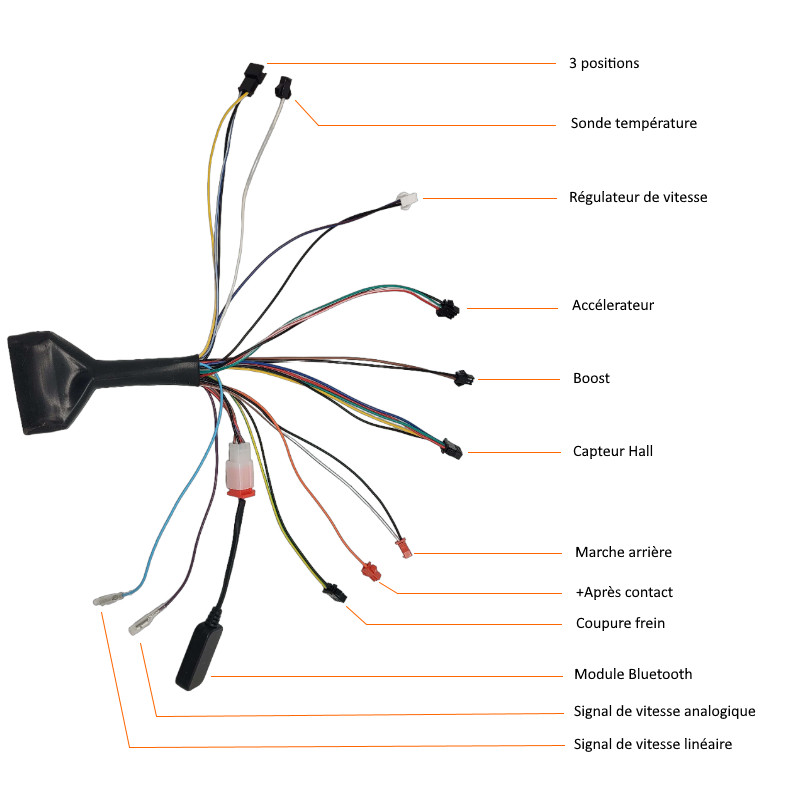

DÉTAIL CONNECTIQUE
APPLICATION CONNECTÉE
Faites votre choix parmi trois versions : 100A, 190A, 350A. Toutes compatibles avec l' application Bluetooth . Cette application permet un réglage des paramètres du contrôleur et la lecture en temps réel des datas moteur, contrôleur et batterie pour répondre parfaitement à vos besoins spécifiques.
Data sheet
- Guarantee
- 2 ans
- Intensité max
- 100A/190A/350A
- Régulateur de vitesse pour vélo électrique
- Oui
- Backward mode
- Oui
- Tension nominale
- 72V
- Masse du contrôleur
- 2kg
- Tension
- 48V/60V/72V
- Technologie
- Commande vectorielle des flux magnétiques
- Accélérateur
- Oui
- Boost
- Yes
- 3 positions
- Oui
