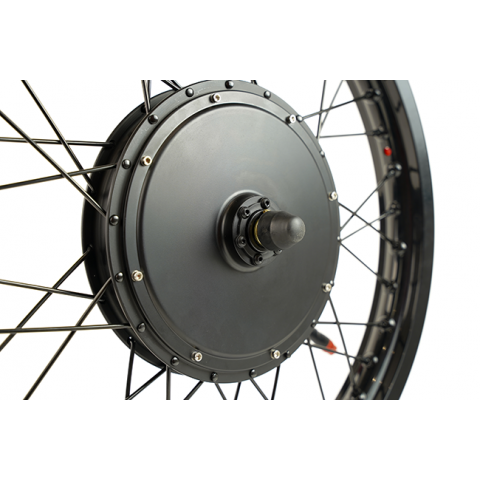

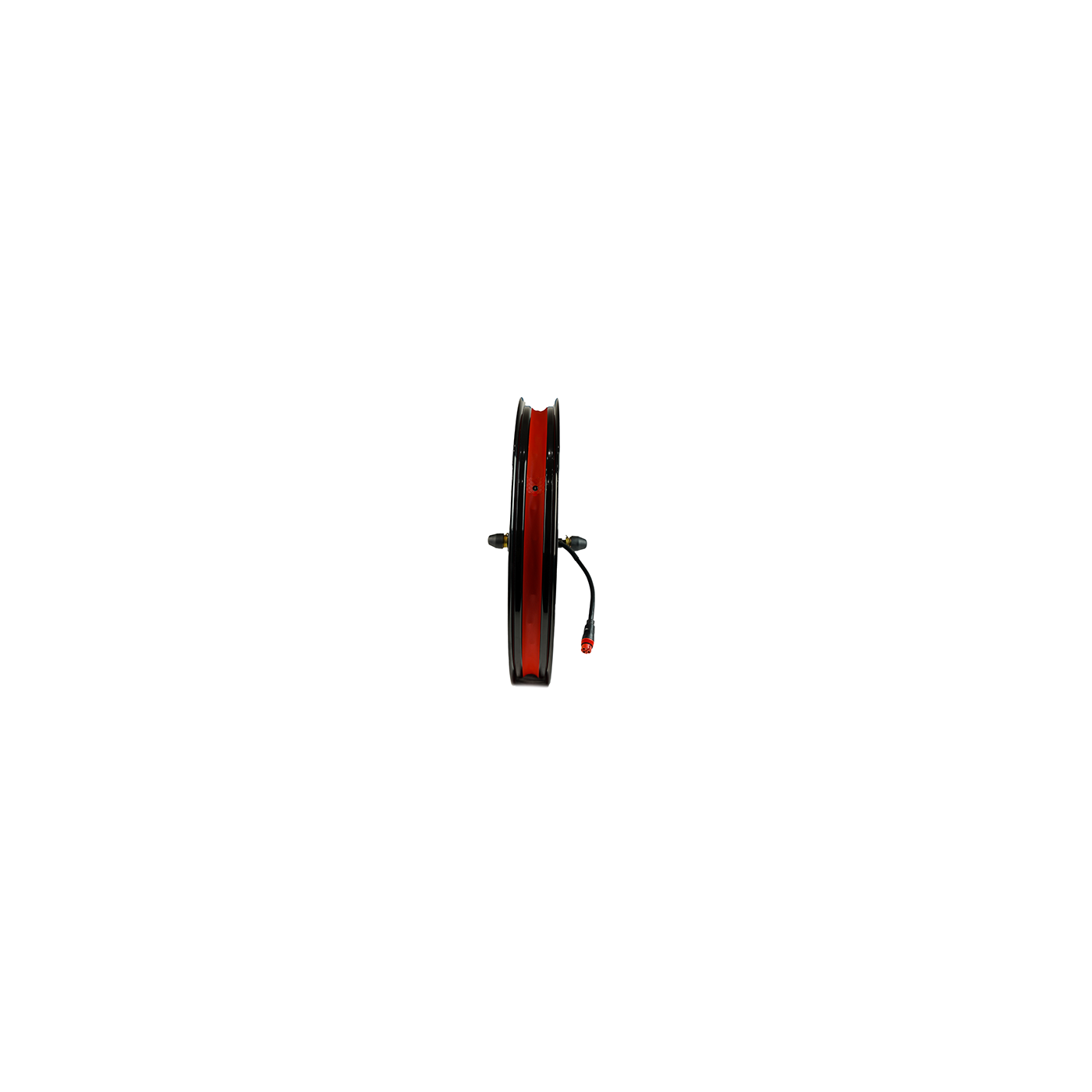

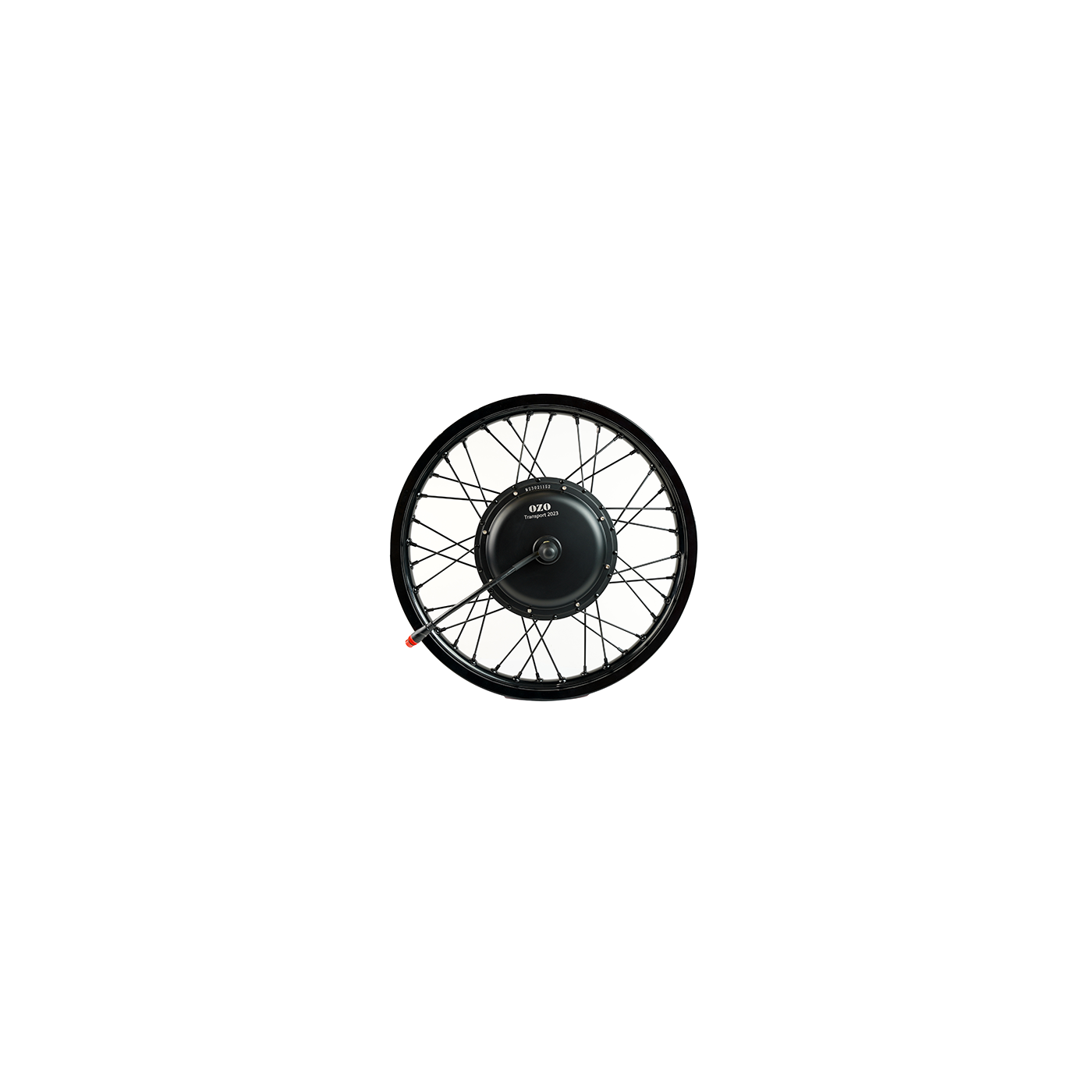

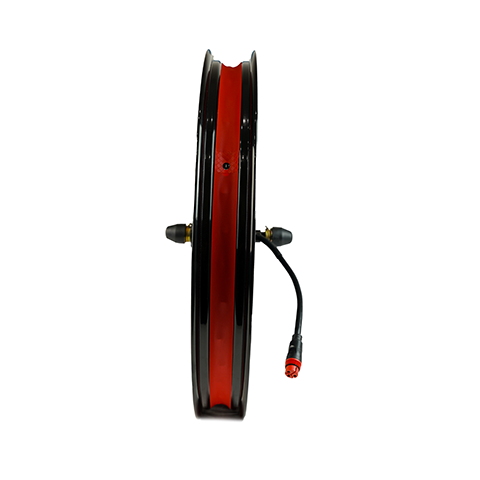

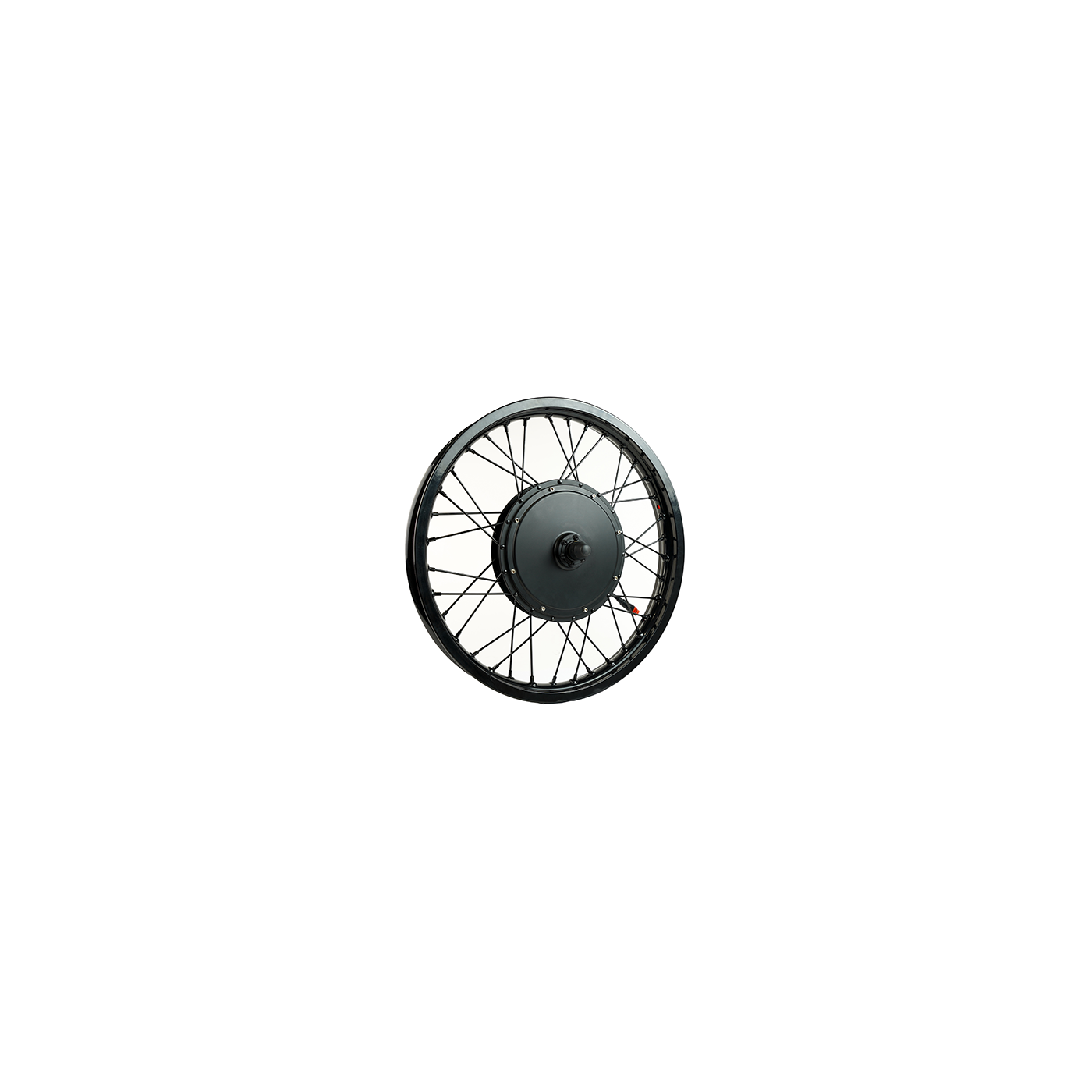

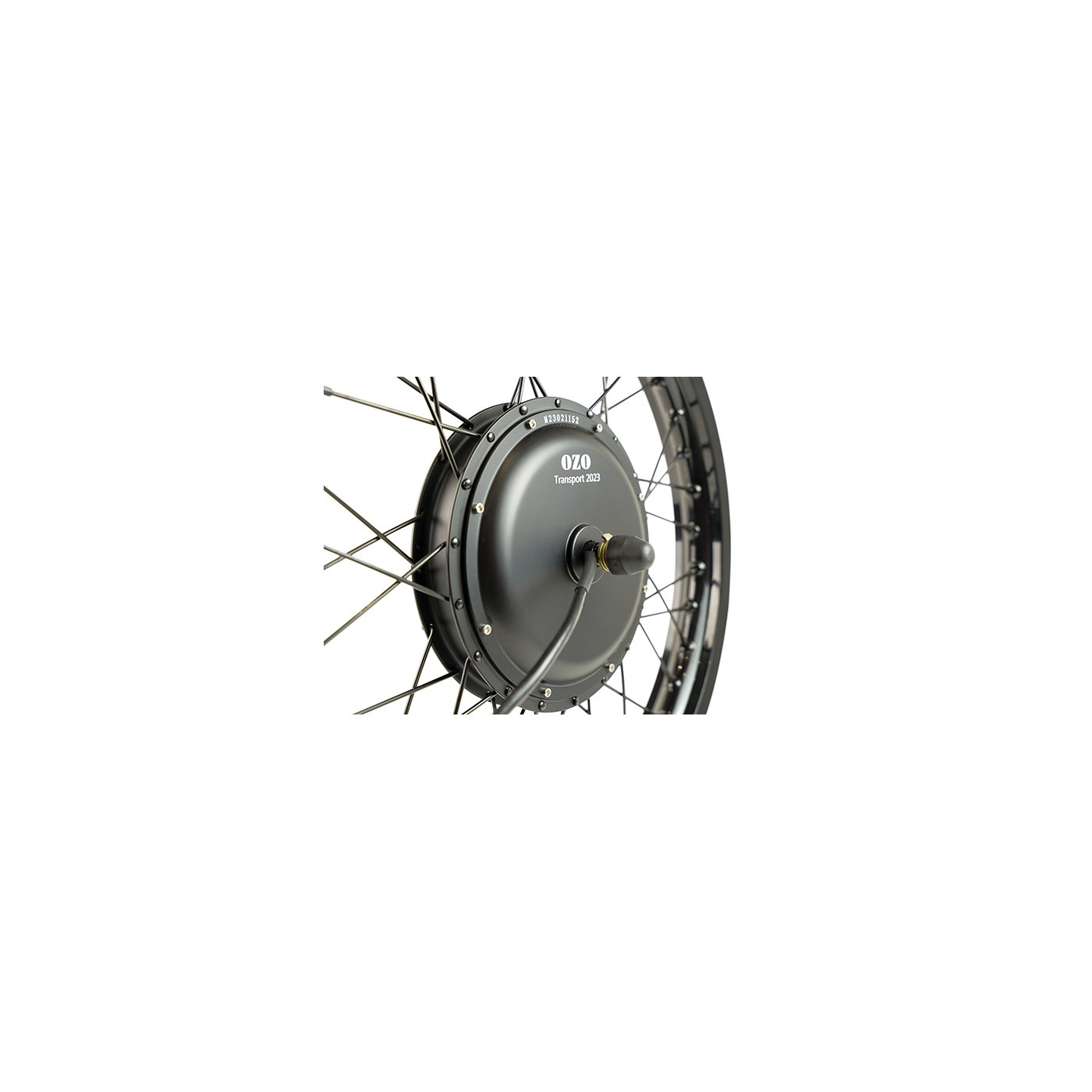

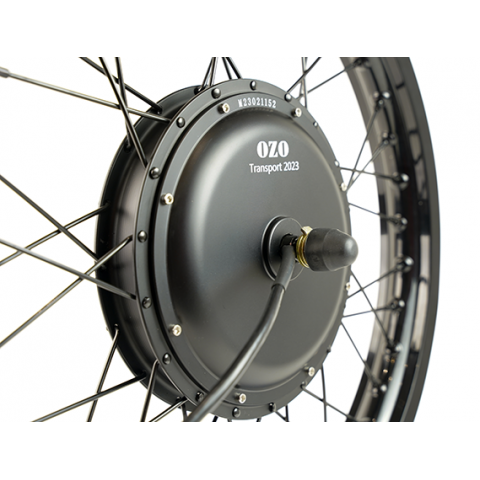

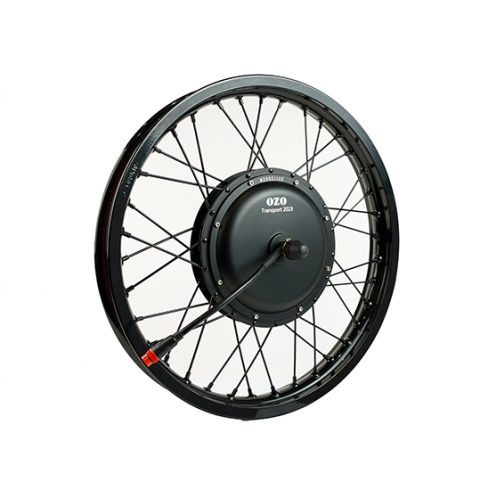

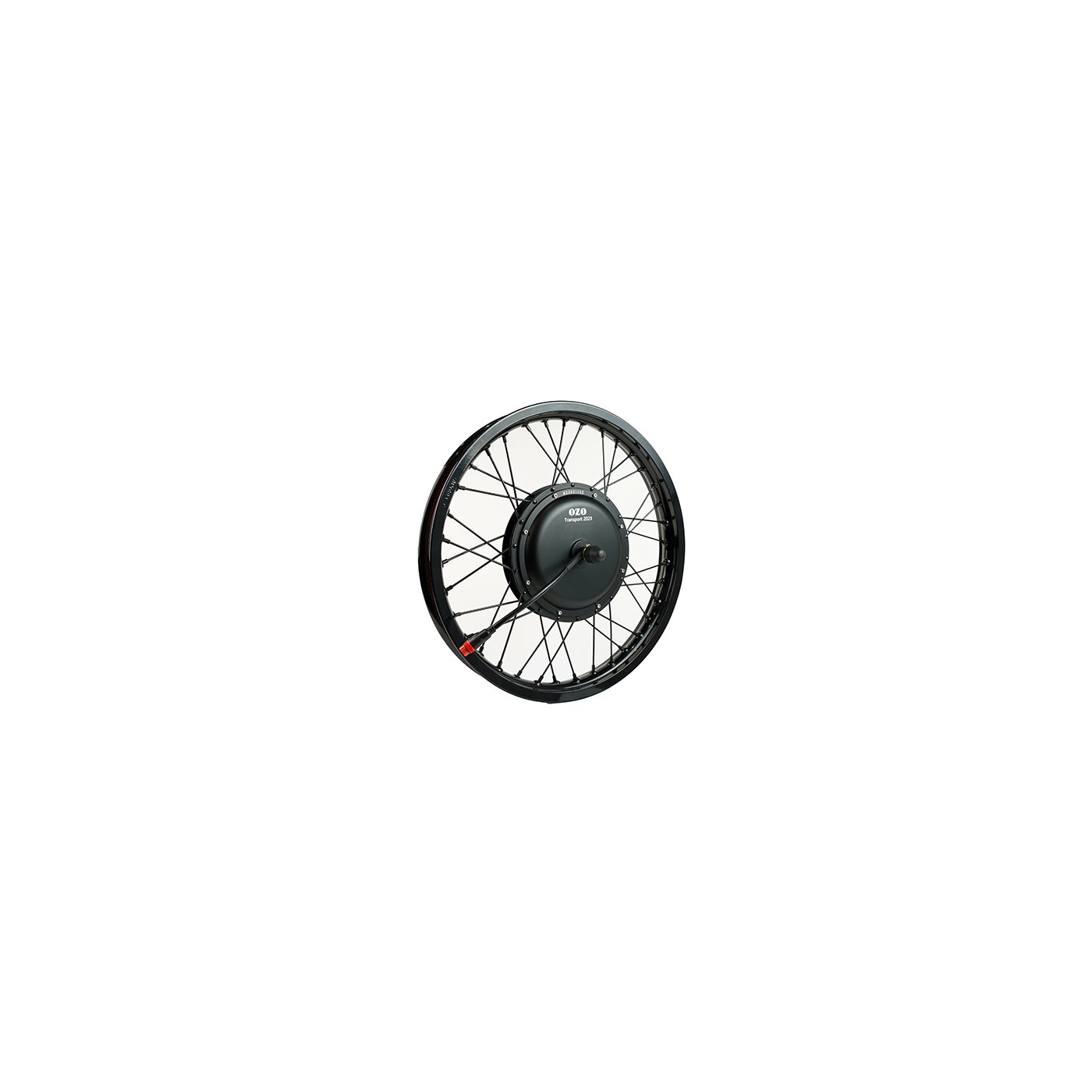

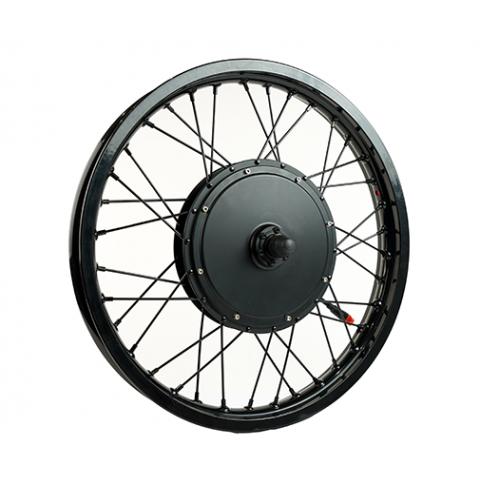

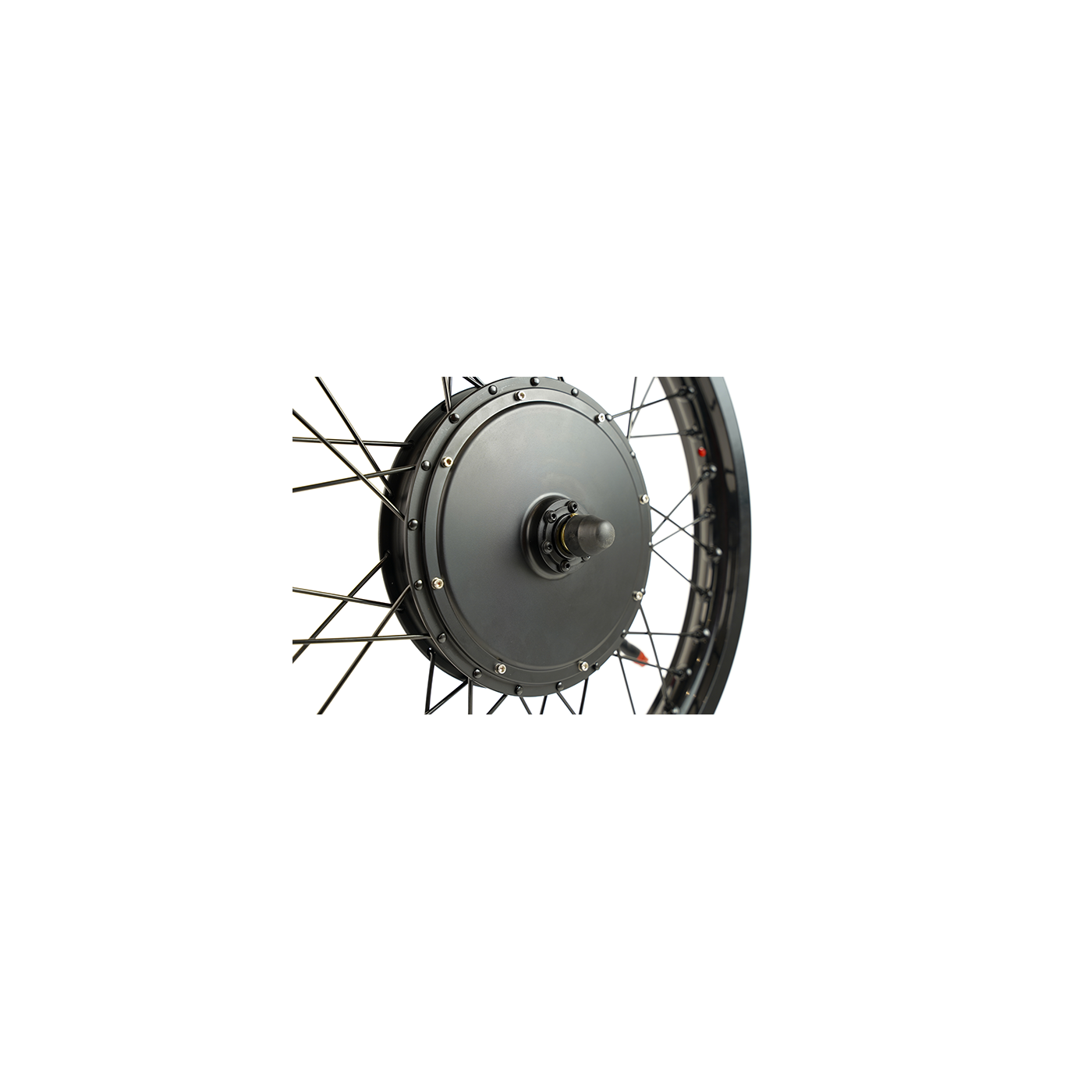

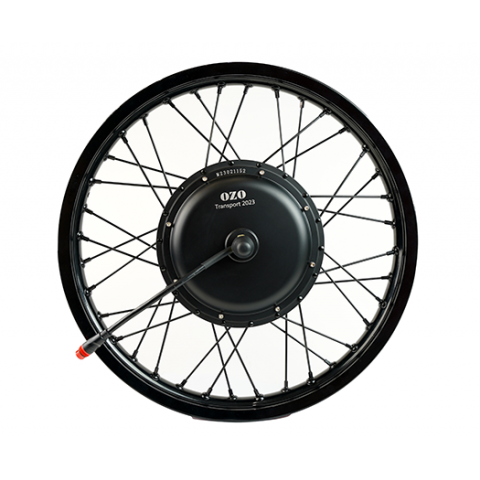

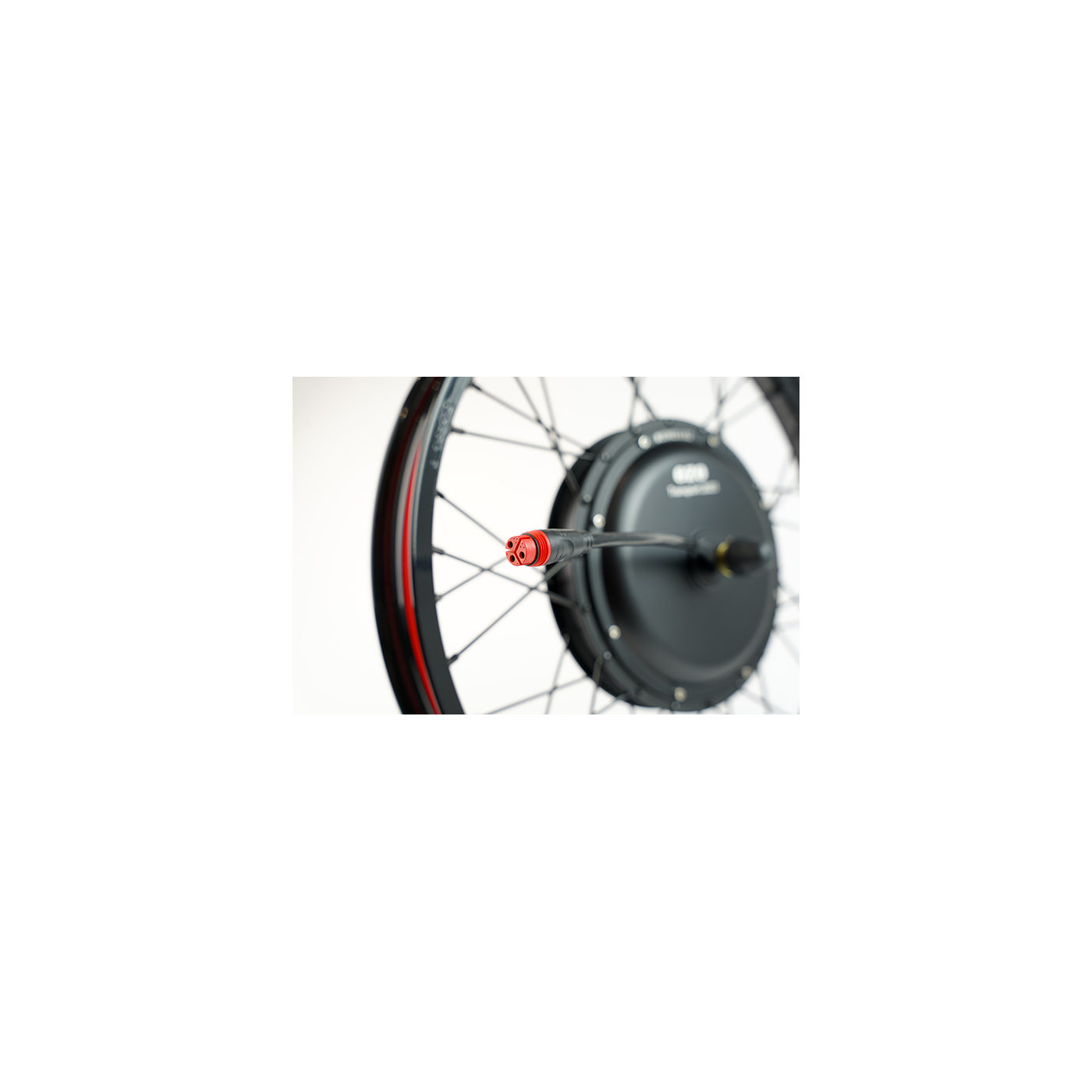

5000W front wheel motor agricultural and industrial

This 5000W motor gets 55mmm magnets and can accepts up to 5000W power.

Weight : 9,8 kg | dropout : 150mm

Pmax = 5000W / Pnom = 4000W

Max torque = 170N.m

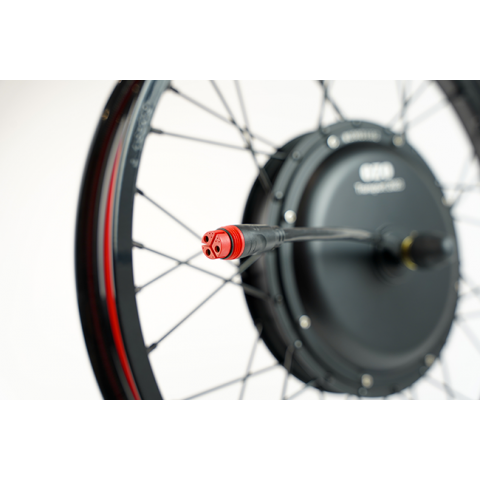

Delivered with a 200mm cable length

Read moreShow less
€460.00 (tax incl.)
Rim size
  • 19x1,90
IN STOCK 7 Items
Reference:
009084
You may also like
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Description

The DD55 engine is the most powerful in the range. It is intended for industrial or agricultural use

It is a BLDC Brushless motor that can be powered from 24V to 96V and accepts a max current of 90A and 60A continuously.

Its stator has a lamination in 0.35mm which gives it a yield of 91%.

Center distance: 150mm

Length of axis = 229,5mm

2D drawing of the motor :

Read moreShow less
Product Details
009084

Data sheet

Guarantee
2 ans
Intensité max
90A
Maximum speed
40 km/h
Mass
9,8 Kg
Tension d'alimentation
24V to 96V
Rendement
91%
Technologie moteur
Brushless BLDC direct drive
Régime de rotation
4 Tr/min/Volt
Compatibilité frein à disque
YES
Tension Max
96V
Entraxe fourche min/max
150mm / 180mm
Magnets height
55mm
Hall sensors
OUI
Motor axle
16x10mm
Cable lenght
1m
