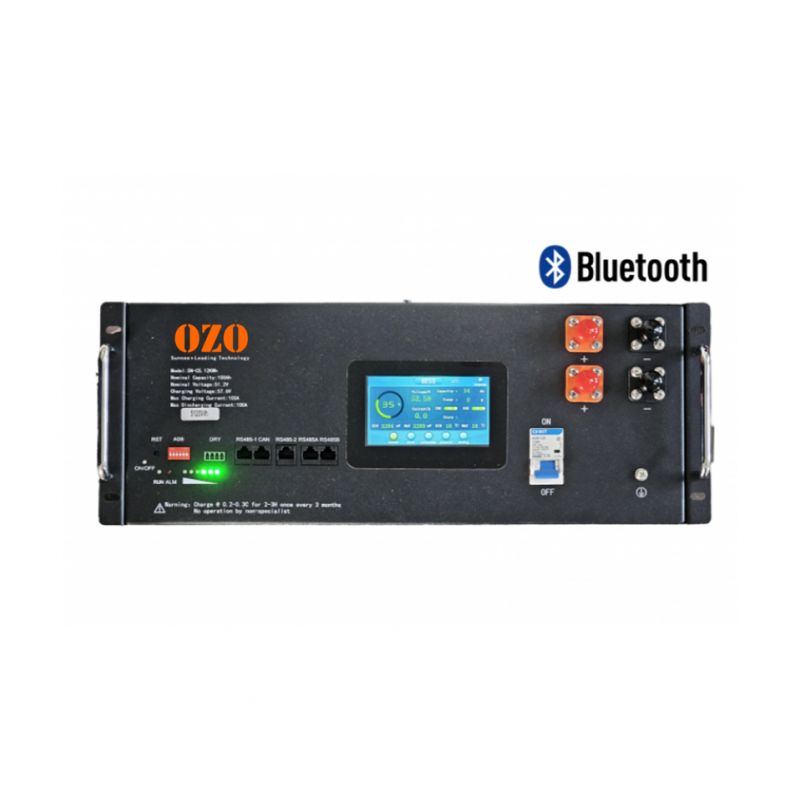

Lithium LiFePO4 48V 5kWh Rackable Home Solar Battery

ADVANTAGES OF THE RACK-MOUNT BATTERY:

The OZO 48V – 5 kWh LiFePO₄ solar battery combines performance, safety and compactness thanks to its 5 kWh usable capacity, expandable up to 80 kWh with 16 modules connected in parallel, while offering exceptional durability of more than 6,000 cycles.

Its rack-mount format weighing only 50 kg, easy rack or wall installation, and integrated LCD screen allowing monitoring of SOC, SOH, voltage and cell temperature make it a modular and practical solution.

Compatible with most hybrid inverters (Victron, SMA, Deye, Growatt, Goodwe, Solis), it benefits from OZO France support and a 10-year warranty, offering a reliable, durable and eco-friendly solution to make your home or business more energy independent.

WEIGHT

50 kg

COMPATIBILITY

Inverters: Victron – SMA – Deye – Growatt – Goodwe – Solis

WARRANTY

10-year warranty

CAPACITY

5 kWh

DISCREET

Modern and stylish design

EASY TO INSTALL

Rack-mountable

HOW TO SIZE MY INSTALLATION?

BLUETOOTH CONNECTIVITY & OZO BATTERY APP

The OZO 5kWh solar battery is equipped with an integrated Bluetooth module, allowing full monitoring and configuration directly from your smartphone.

Thanks to the OZO Batteries app, available on the Apple Store  and Google Play Store , you can access your battery’s essential data in real time.

• State of Charge (SOC)
• Voltage and current
• Charge cycles
• Cell temperature
• Alerts and protection status

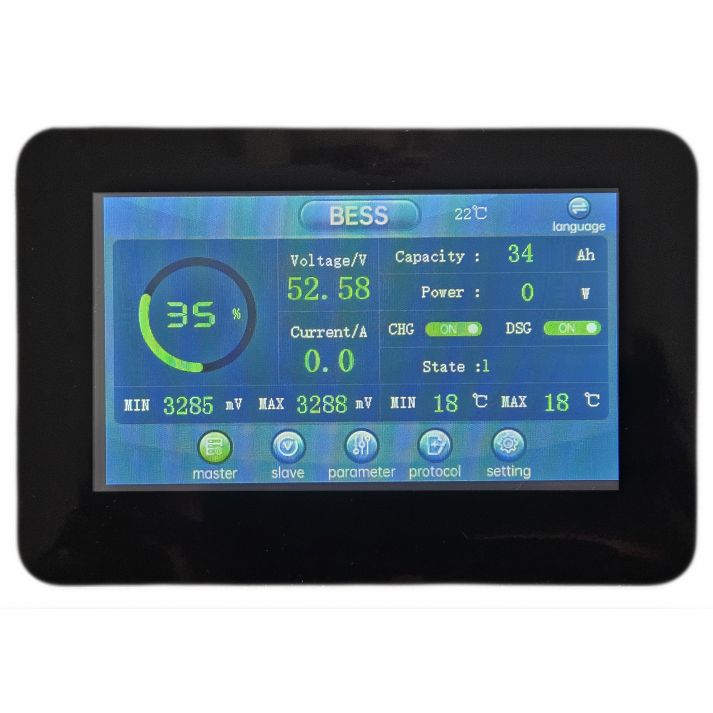

INTEGRATED FRONT TOUCHSCREEN

The OZO 5kWh solar battery features a front-mounted color touchscreen, providing direct and intuitive access to system settings and operating data.

This screen allows quick and easy configuration without the need for an external device.



Integrated touchscreen – easy system configuration

PACKAGE CONTENTS

ONE BATTERY

One rack-mounted battery, expandable up to 16 units.

SUPPORT

Battery support bracket.

CABLES

2 power cables for inverter – 1 m / 2 parallel connection cables – 1.10 m / 1 communication cable – 1 m

FEATURES

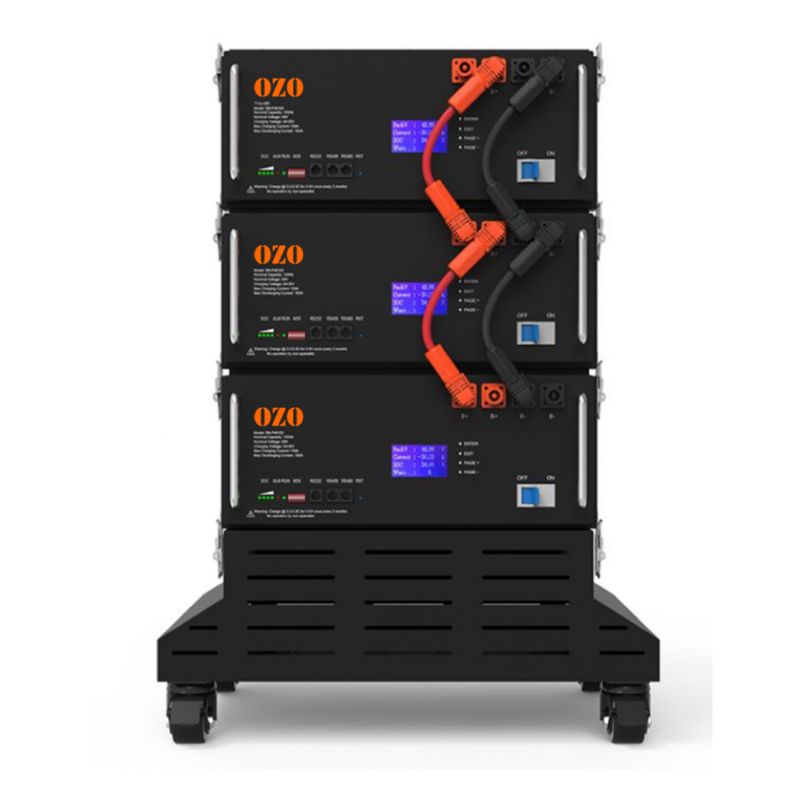

Easily increase your energy autonomy: connect up to 16 OZO batteries in parallel to reach up to 80 kWh. A reliable LiFePO₄ home solar battery solution to protect your equipment and make your home more independent and eco-friendly.

Easily and safely connect your ESS batteries using 200 A quick-lock connectors, ensuring a stable and autonomous home with seamless communication between all your solar equipment.

Stay in full control of your energy! The integrated screen allows you to monitor your battery status and set up your system in just a few seconds. Compatible with the leading inverters on the market, your solar installation becomes simple and safe.

The solar batteries integrate 100Ah LiFePO₄ prismatic cells, laser-welded to ensure stable and reliable energy output. Thanks to this high-precision assembly, the battery delivers more than 6,000 charge/discharge cycles, excellent stability and optimal performance, enhanced by low internal resistance and individual cell monitoring via the BMS.

PRINCIPLE DIAGRAM
