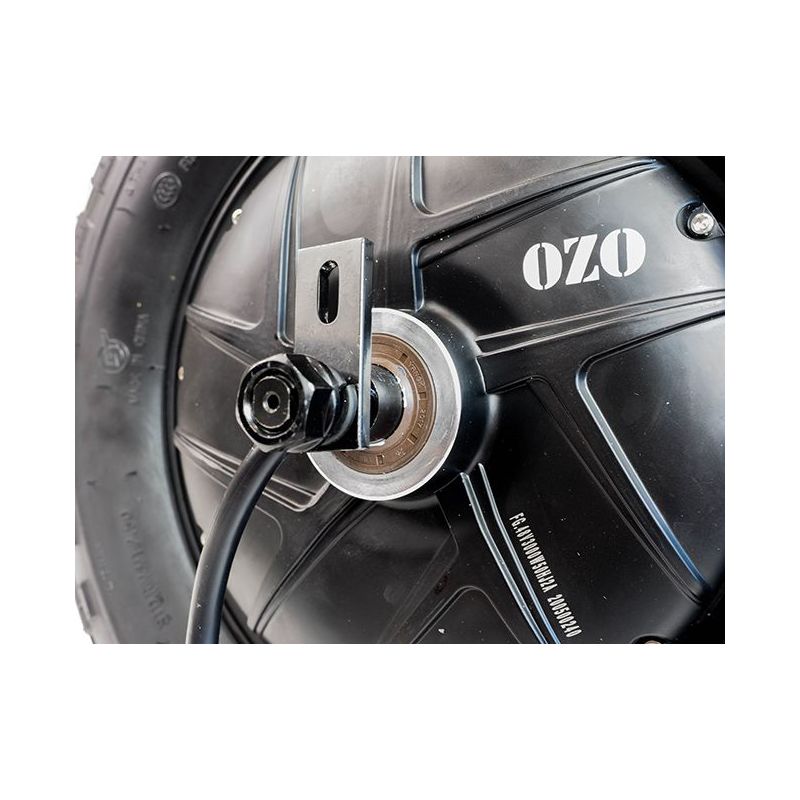

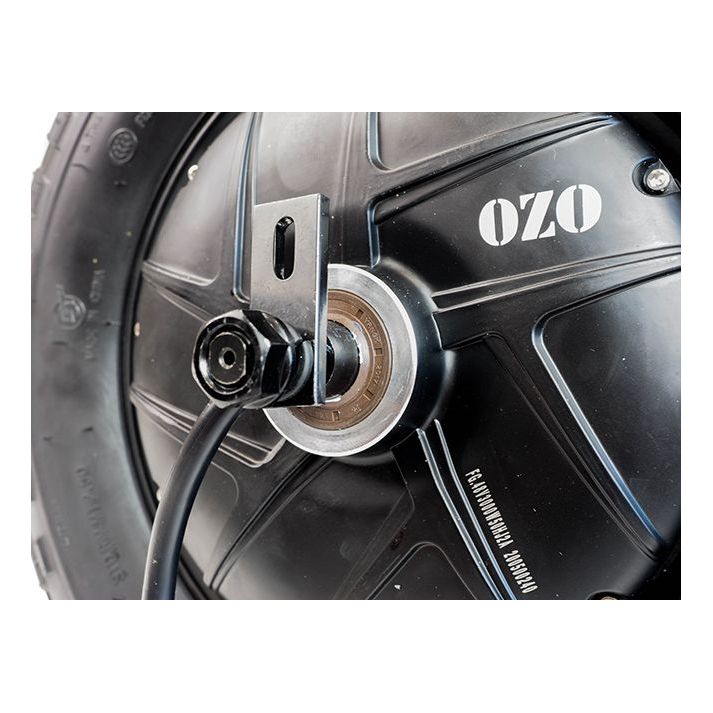

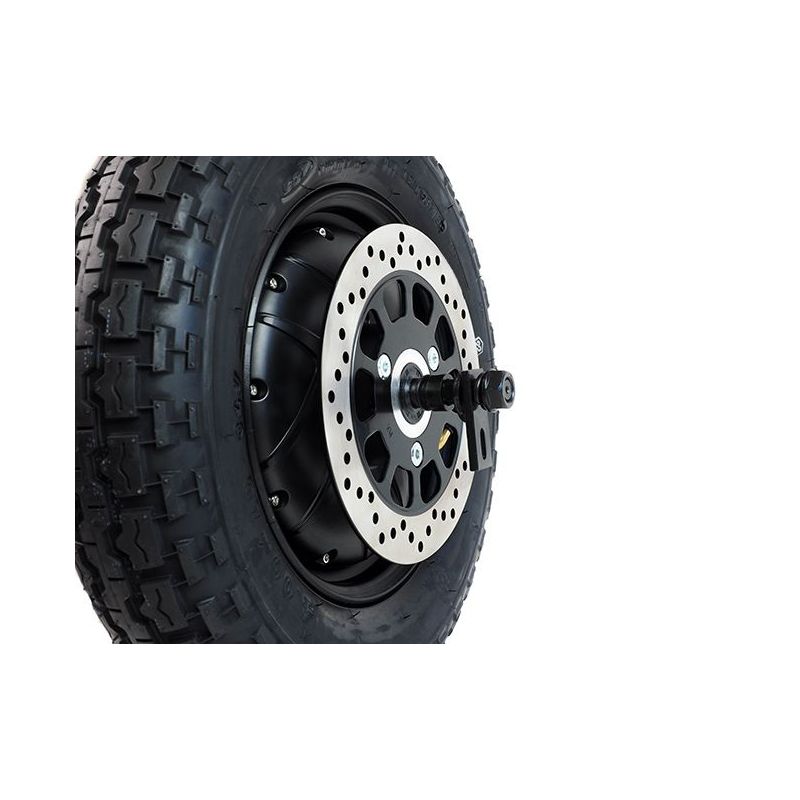

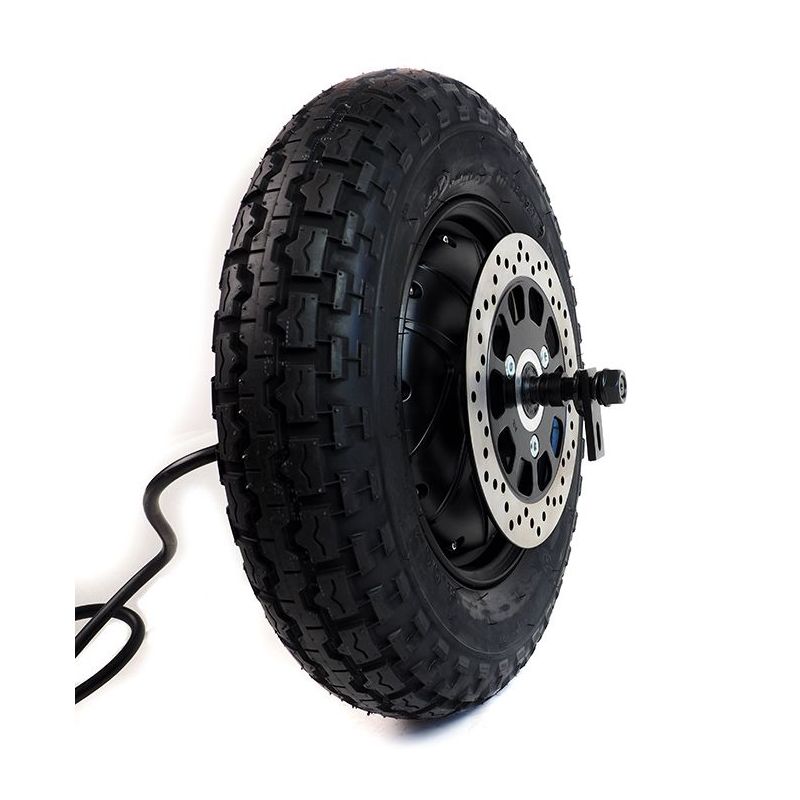

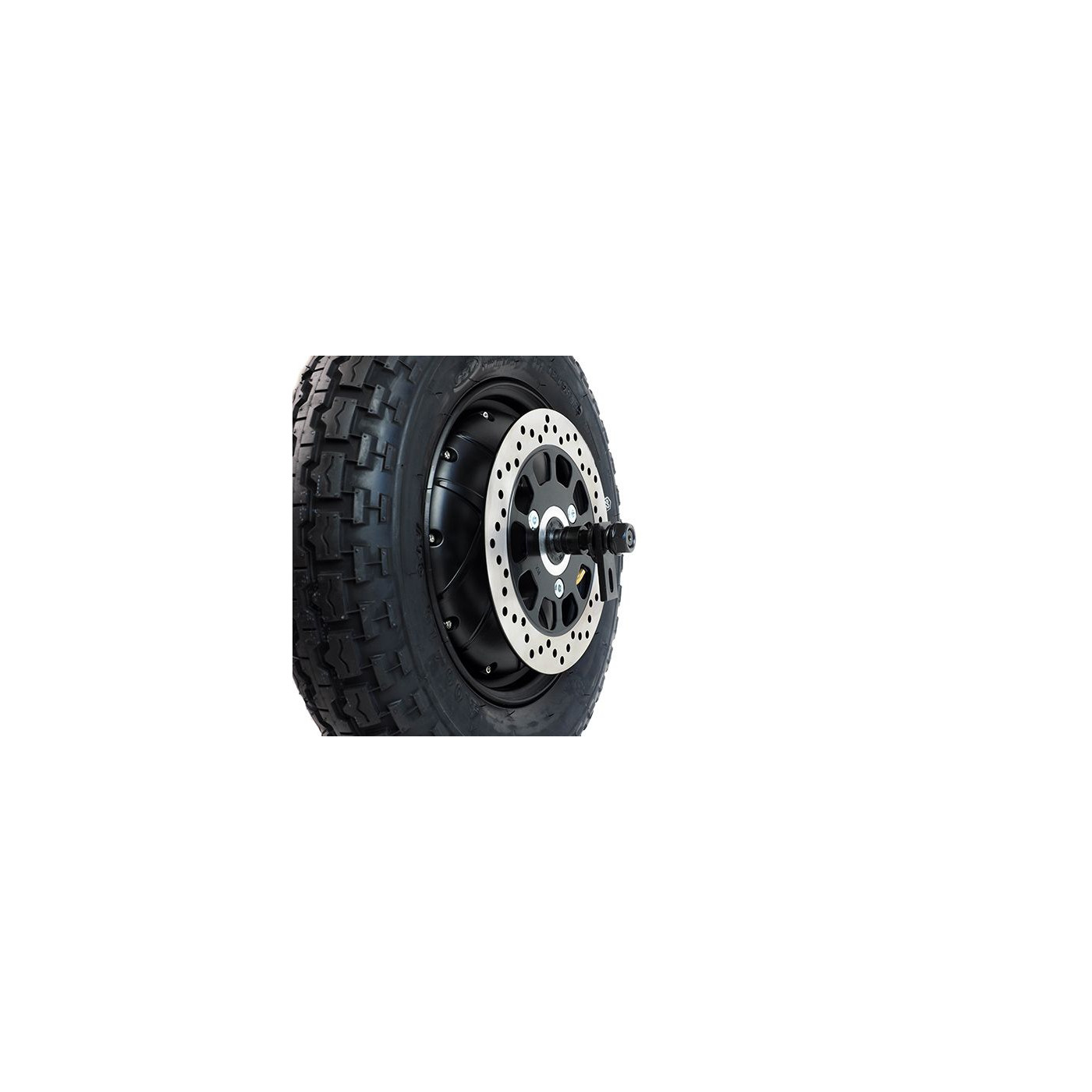

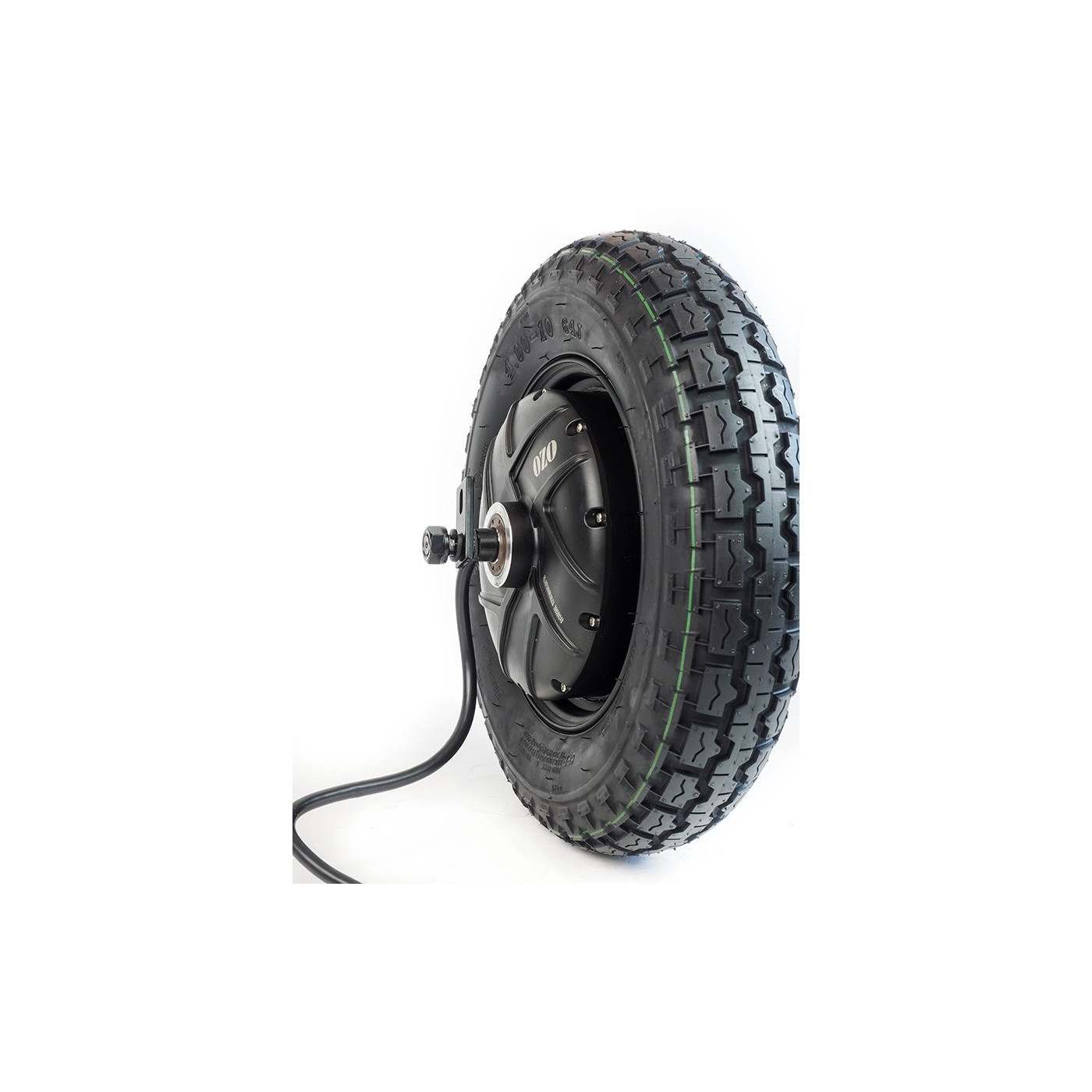

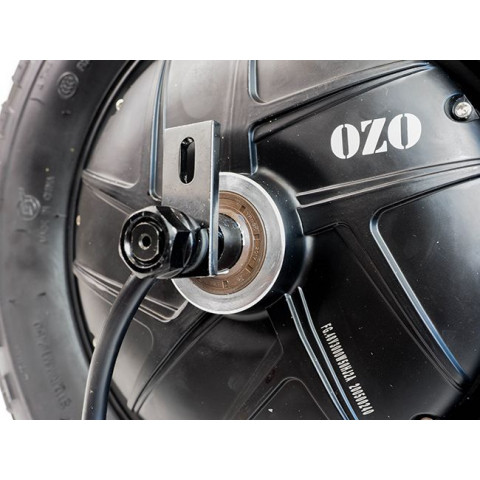

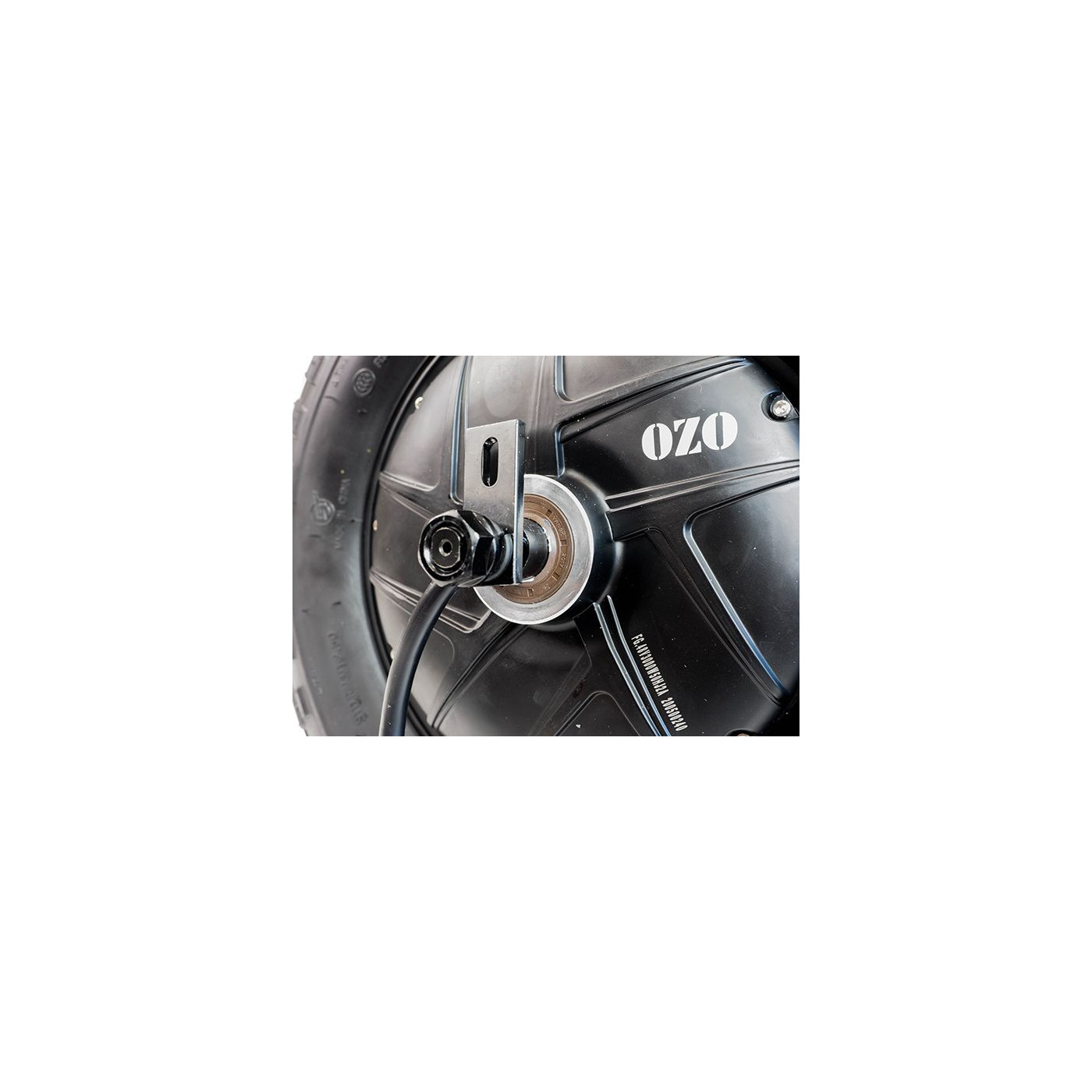

3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm

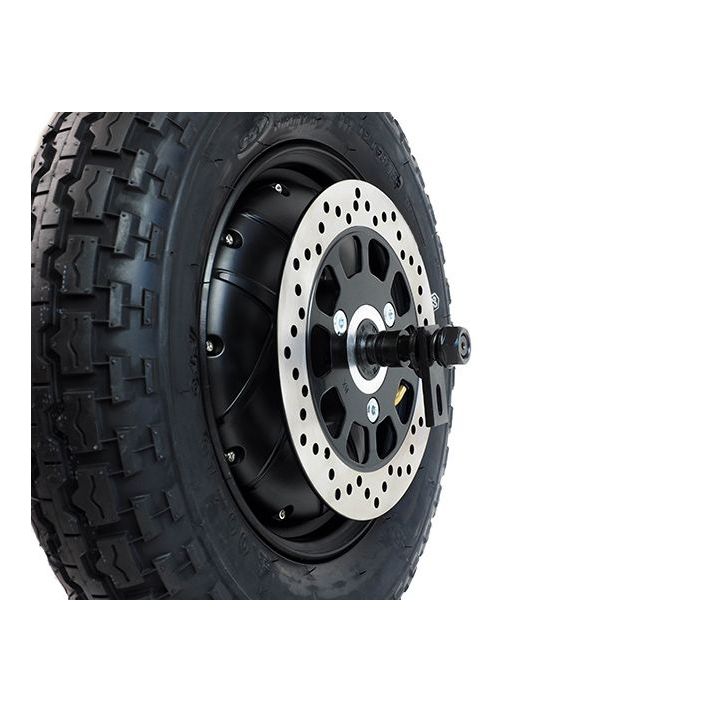

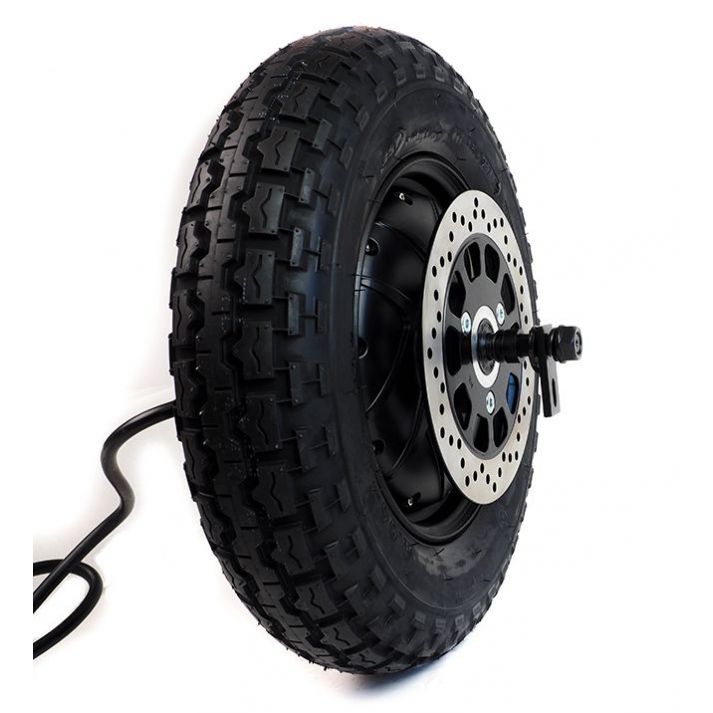

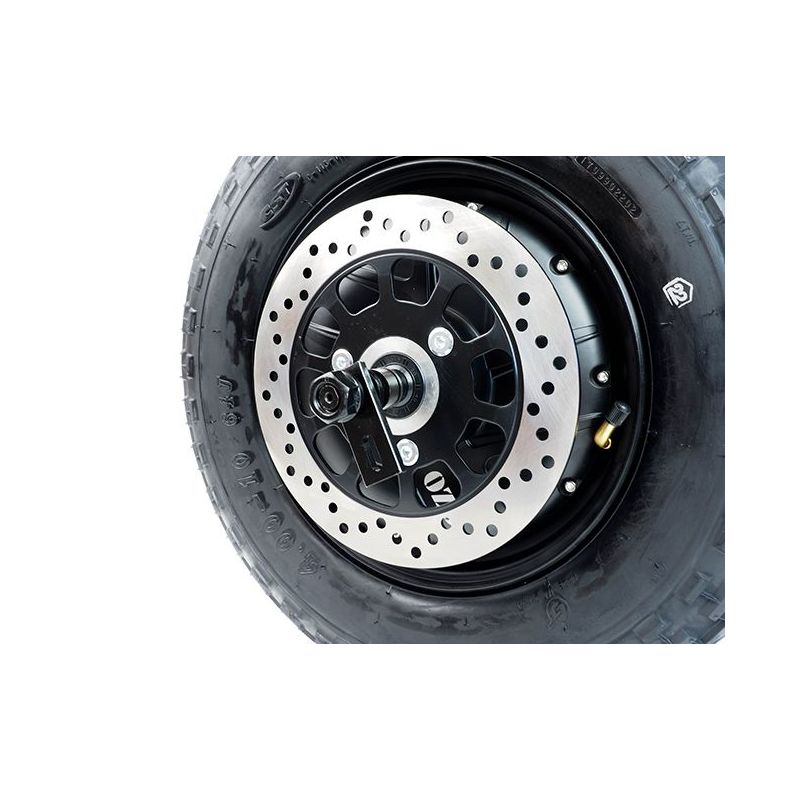

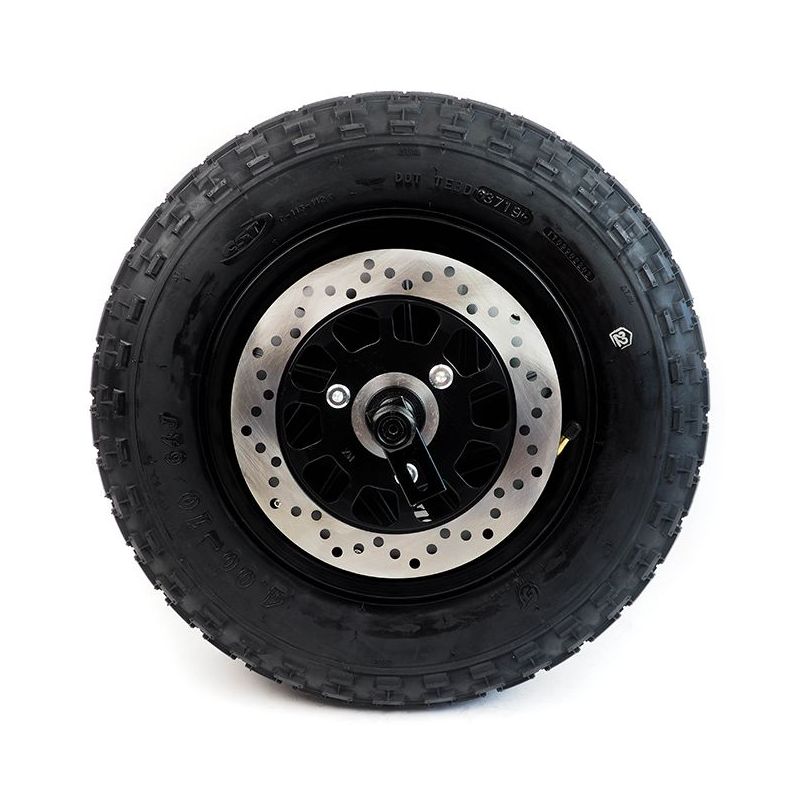

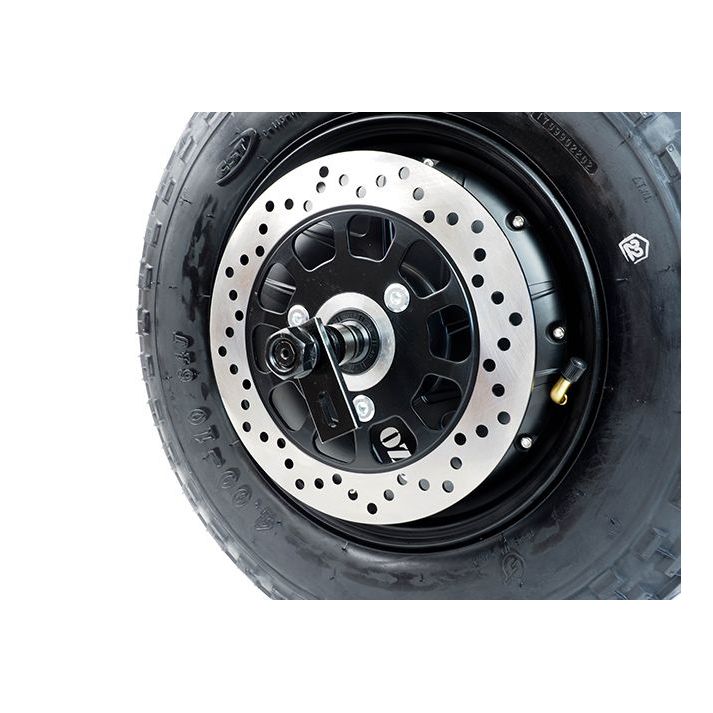

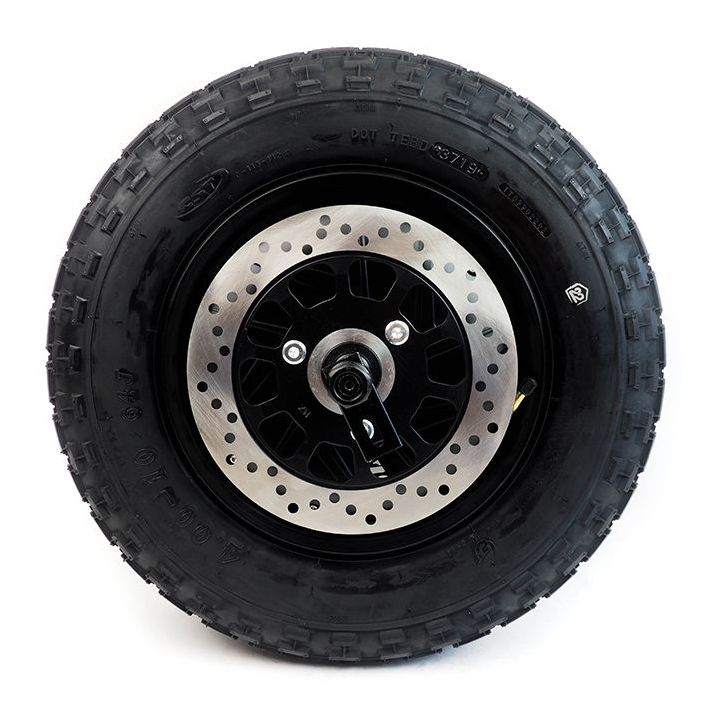

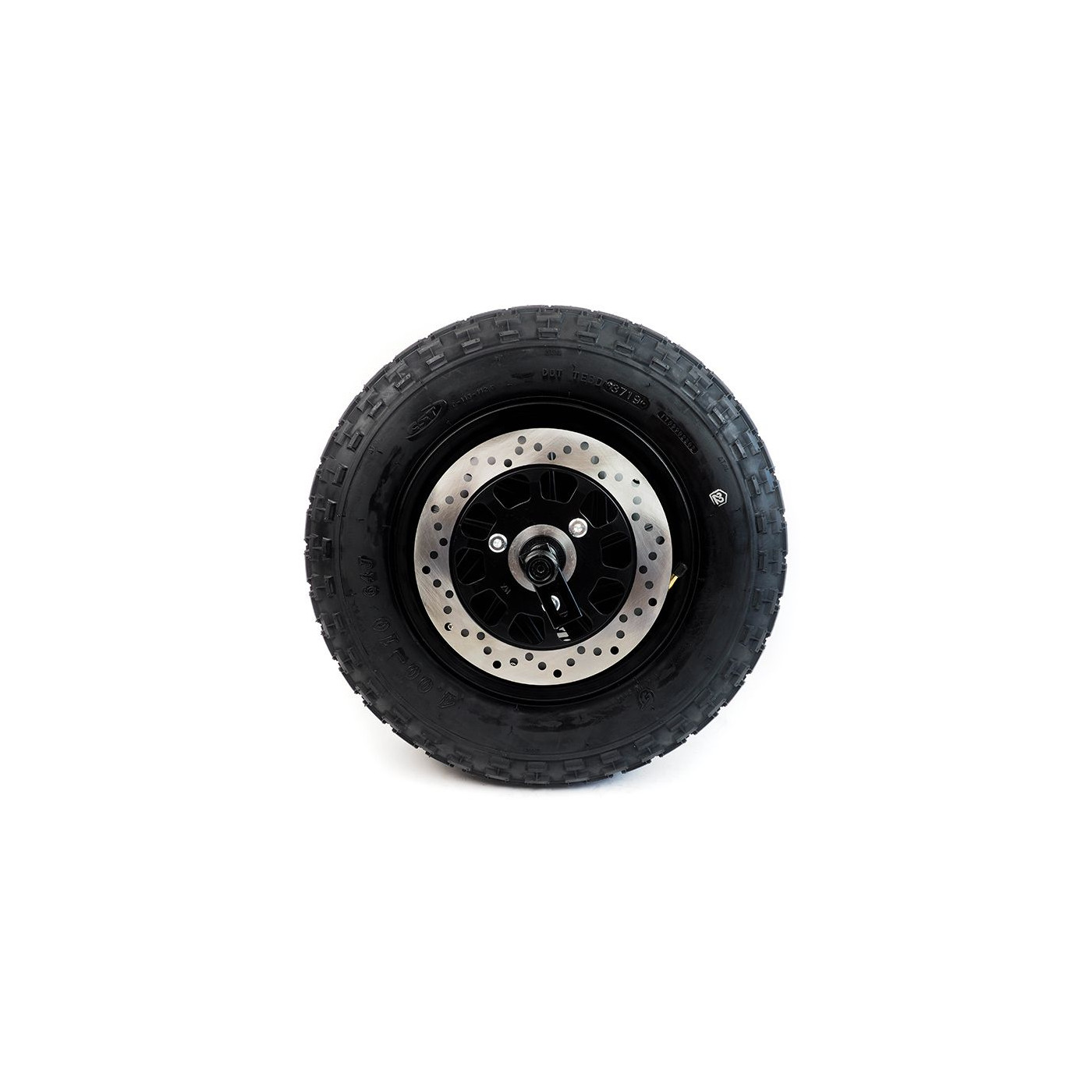

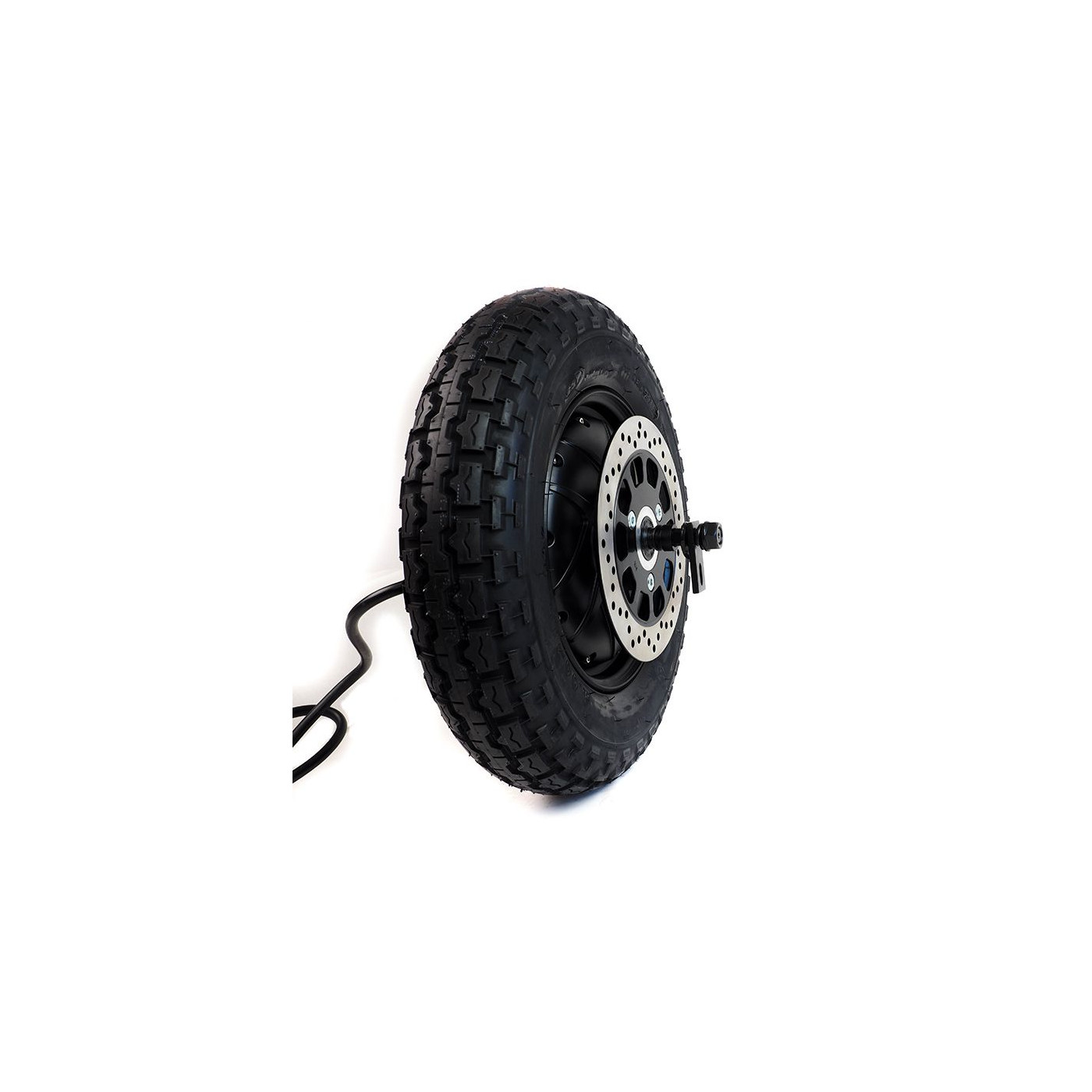

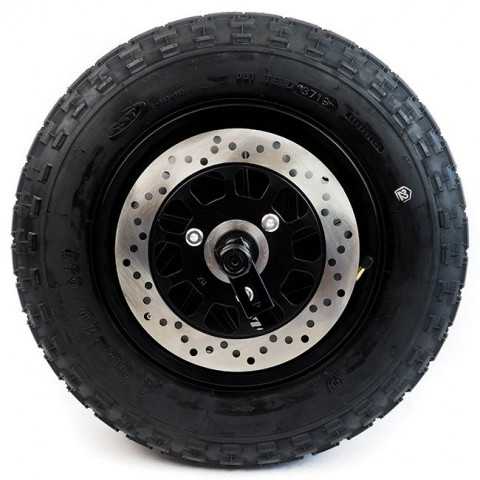

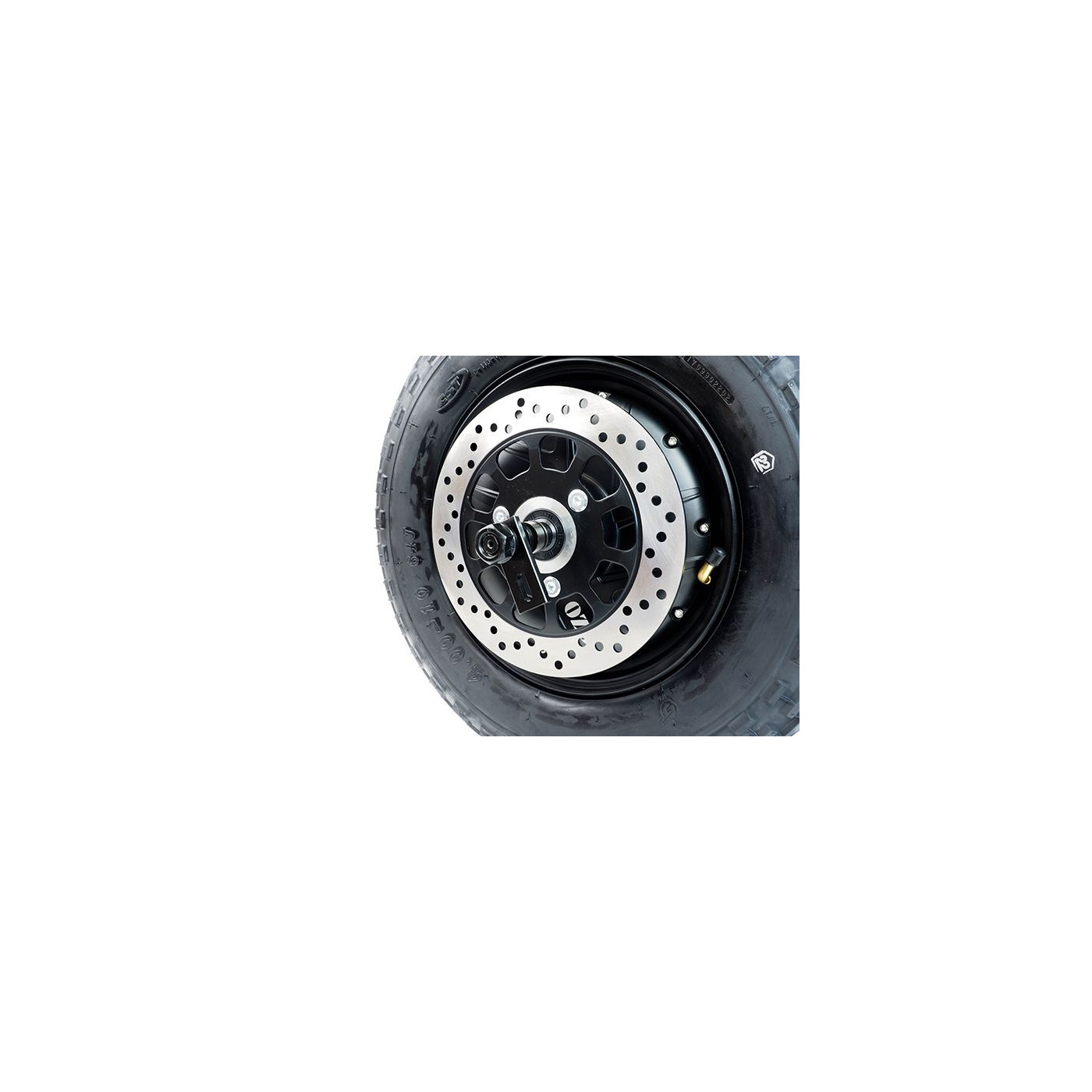

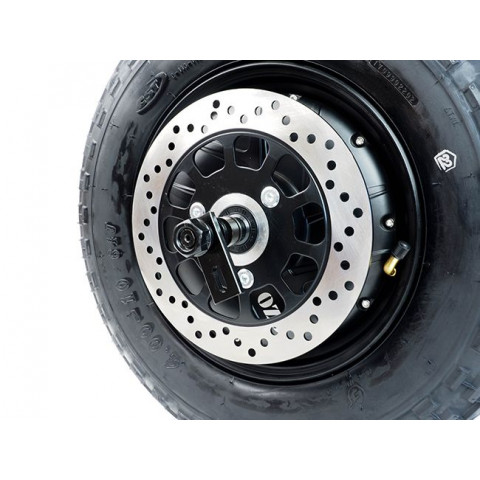

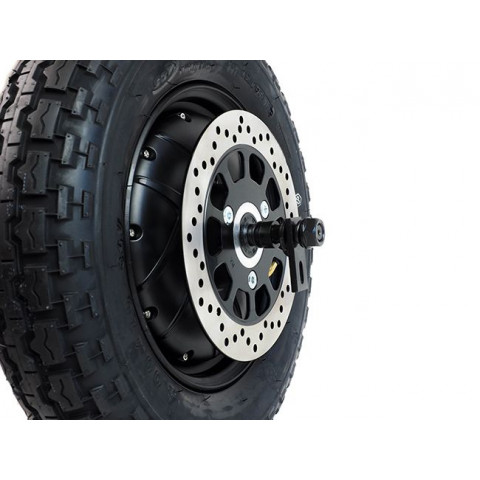

Including Standard tire 4.00 - 10 and Disc or drum brake.

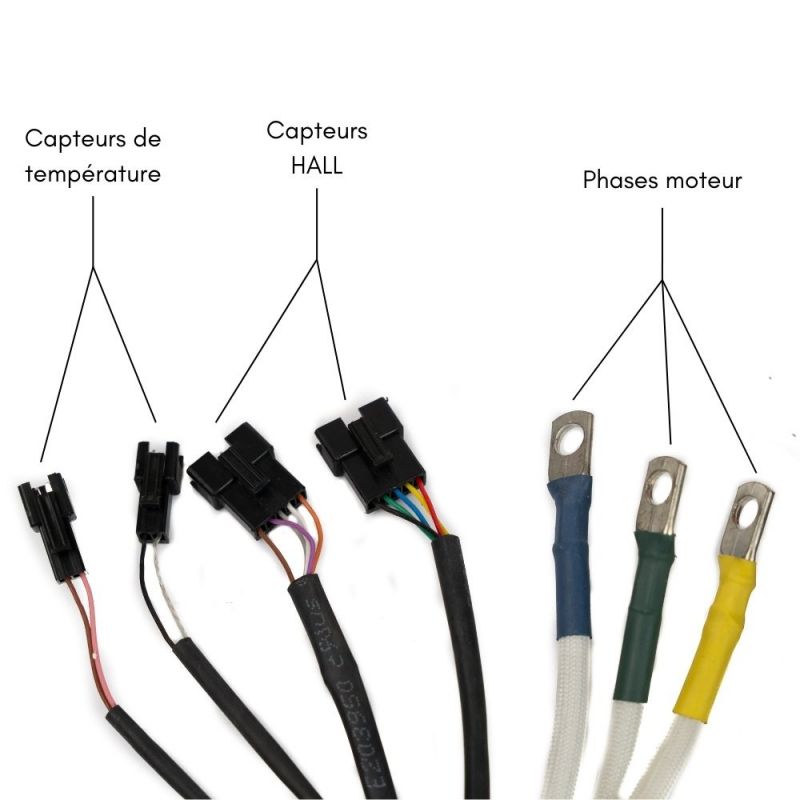

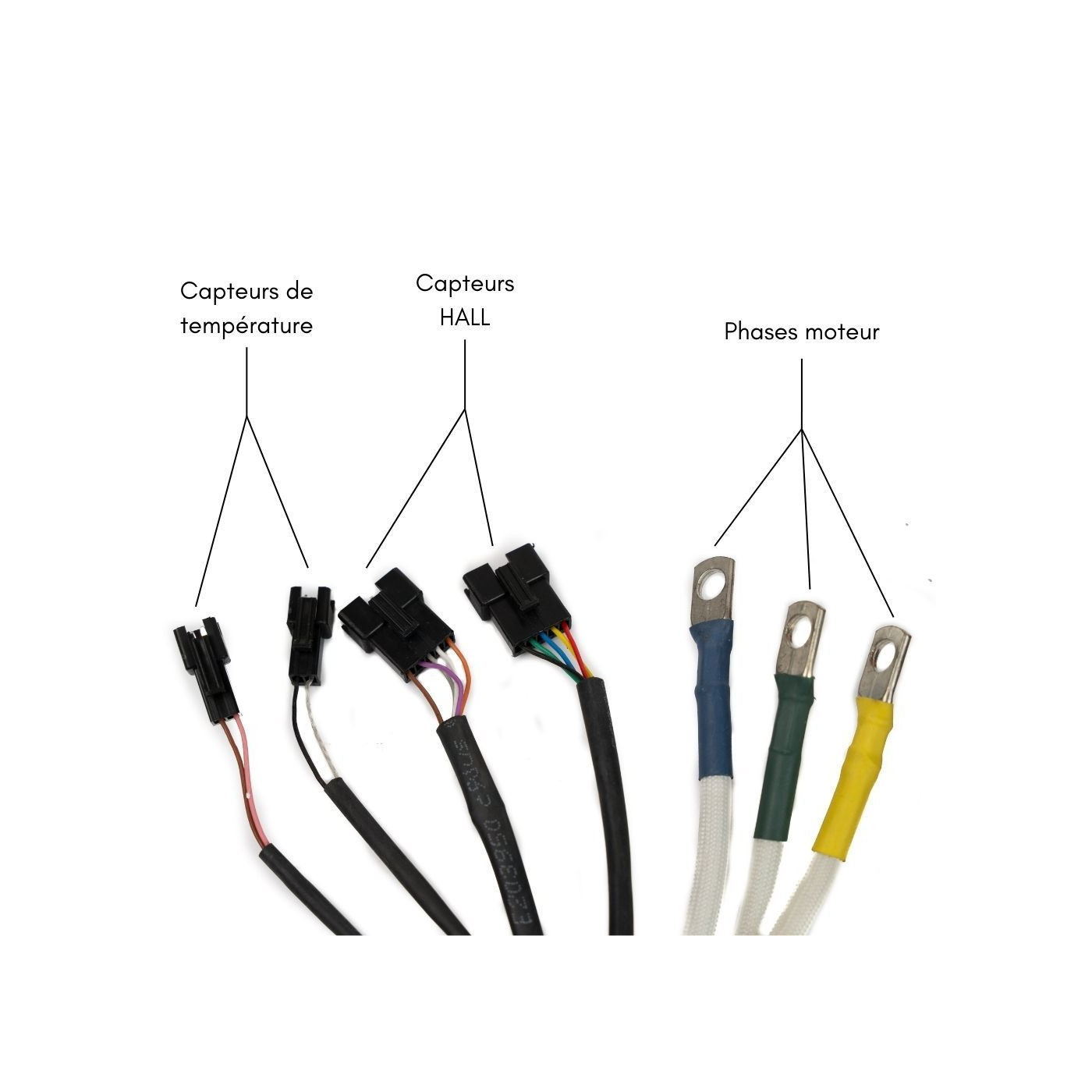

Weight: 15 kg | Diameter: 455 mm | Dropout: 200 mm | 10 "wheel | Axle: 16x12 | Cable length : 1m
Electrify any rolling base with this powerful 3000W motor delivering 125 N.m of peak torque.
Ideal for converting your agricultural tools to electric so as not to pollute your crops.
Also ideal for industrial environments such as production lines or logistics centers.

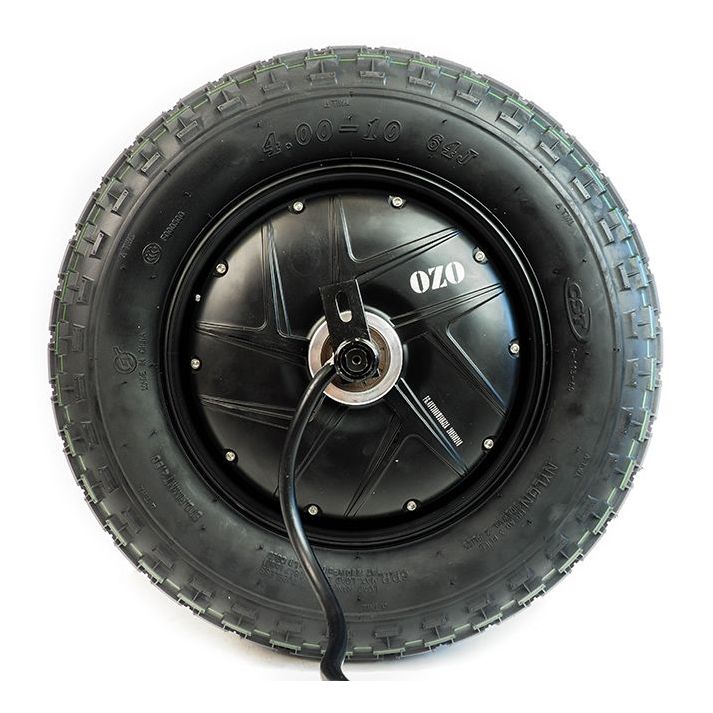

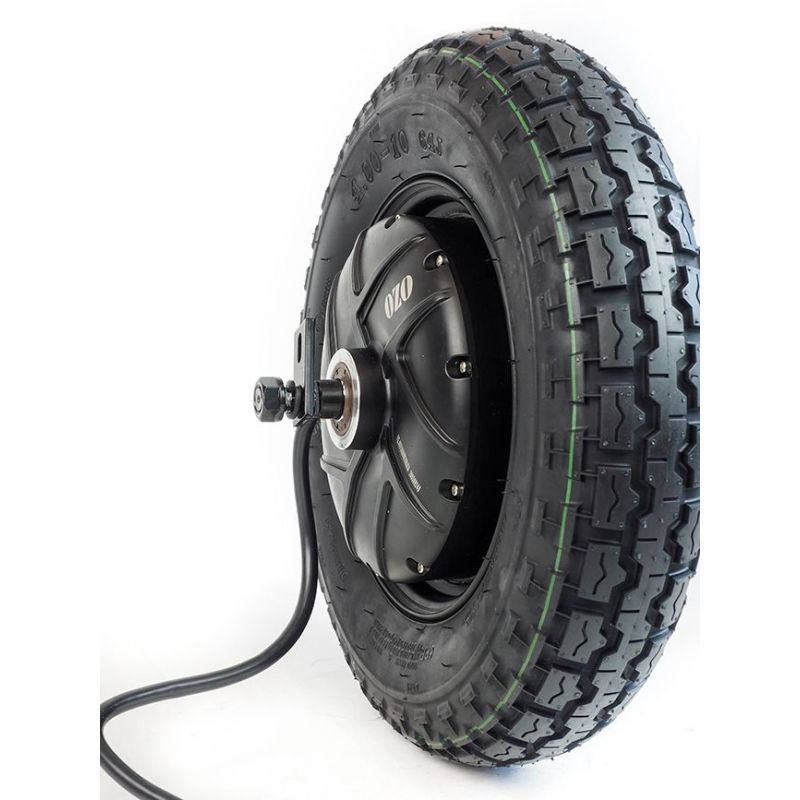

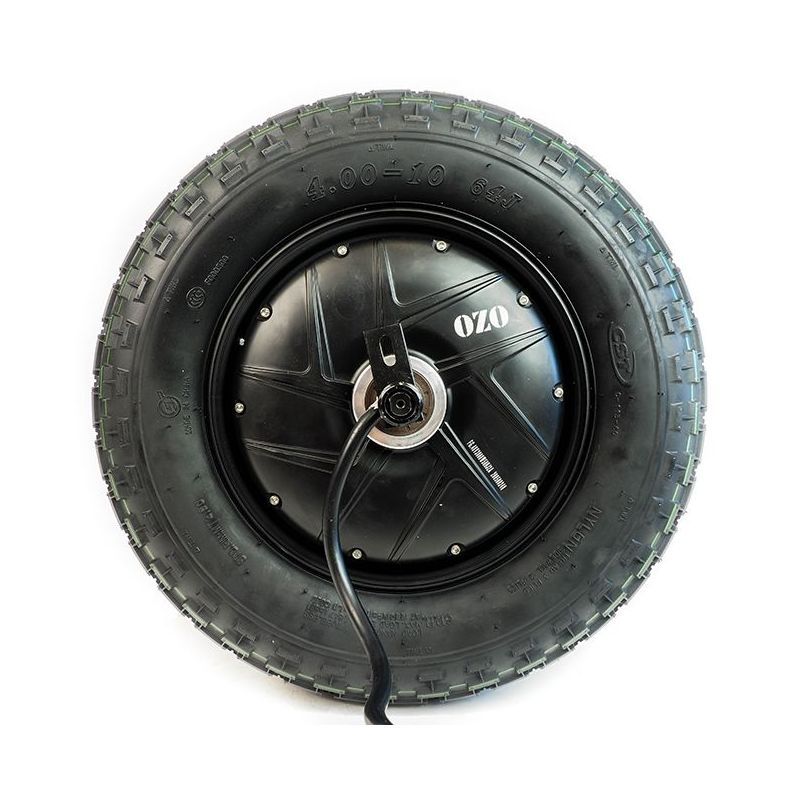

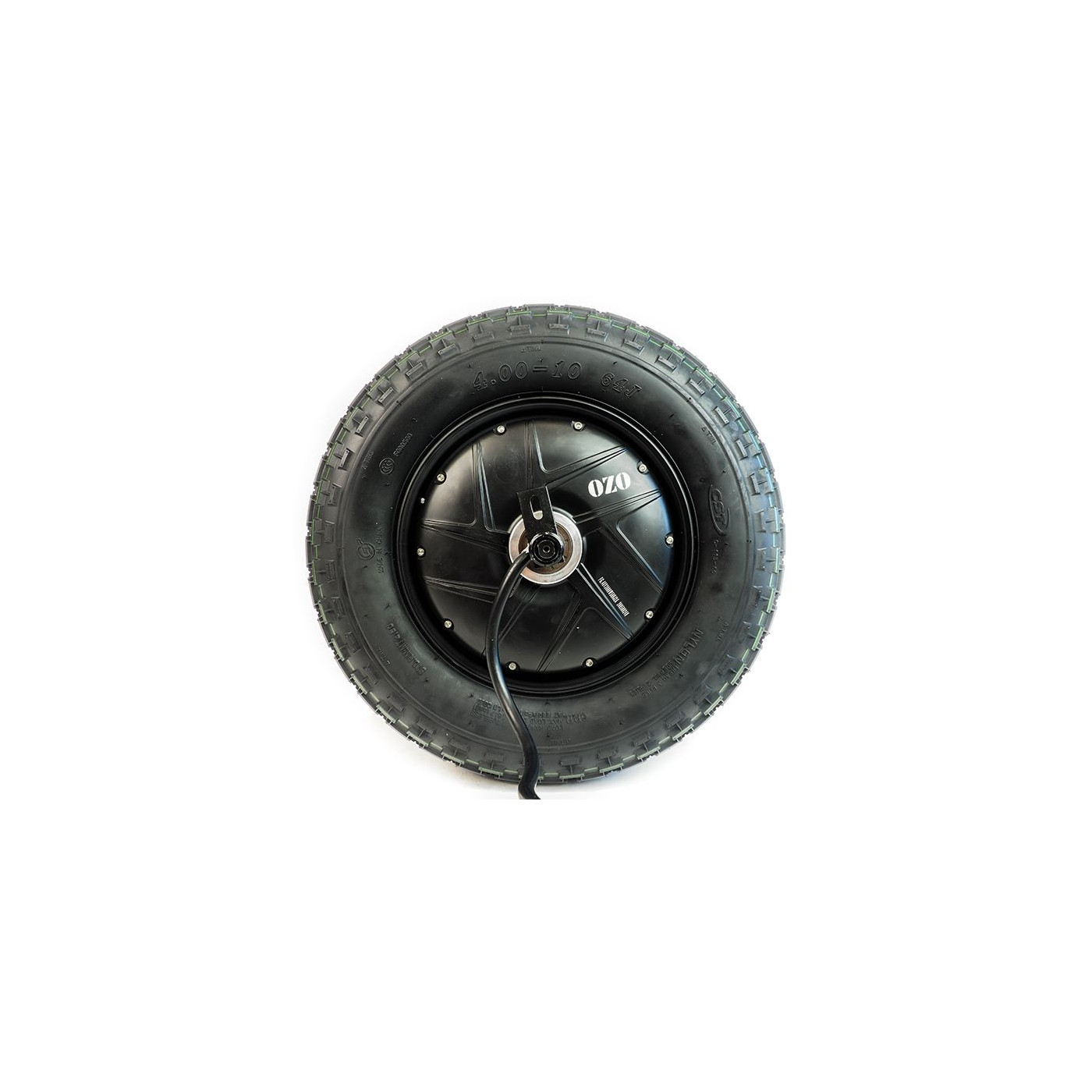

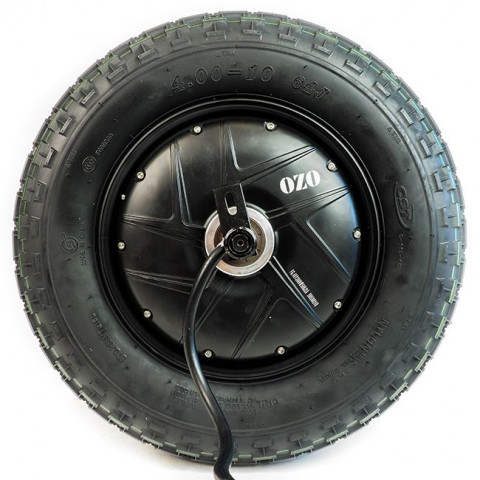

Brushless 3000W wheel motor supplied as standard with a standard 10 - 4.00 tire (455 mm outer diameter) allowing to tow a load up to 300 kg.
This brushless electric motor with direct drive technology is one of the most robust motors on the market: no maintenance required, high endurance and maximum efficiency.
The maximum permissible load by the engine in dynamic is 500 kg.
The maximum load of the tire supplied with the engine is 300 kg.
The speed constant of this engine is 5.8 RPM/Volt, which allows driving up to 25 km/h under 48V and 20 km/h under 36V.
Ideal for special machines, agricultural carts, log transporters, animal husbandry, use in vineyards or fields with unevenness. Perfect for organic farming without the use of fossil fuel, transporting bags of fertilizer, champagne crates, wine crates or hay.
With its IP 65 sealing class, this motorized wheel will be able to face all the bad weather and tropical atmospheres of your greenhouses.
This assistance will help protect your health and that of your employees by significantly reducing the effort at work. This will allow you to increase your work rate without overdoing it and will make you more productive.
This brushless motor for agricultural wheelbarrow must be powered with a 36V or 48V DC battery.
We of course offer a complete kit (controller, battery, control system) adapted to this engine that will allow you to add an electric motor on your vehicle in less than ten minutes.
The controller allows you to control the brushless motor. A 60A controller is required for this motor. The choice will be made according to the desired features among the OZO controller.
Mixed thumb trigger: Classic thumb trigger, can be installed on the right or left of the handlebars very easily. Consult the product sheet here.
3-position switch: If you want several power modes, you can connect the three-position switch which will allow you to choose between 30%, 60%, or 100% of the maximum power (programmable values). It will act on the maximum speeds of the accelerator or the control box, depending on the selected control mode.
ON/OFF switch: If you want an On/Off switch, simply connect a two-position switch to the connector provided for this purpose.
WALKING AV / AR:
ACCELERATOR SUPPORT: You have the option to add a support for your accelerator. This support, easy to install, fits all types of accelerators (mixed, quad or with gauge).
