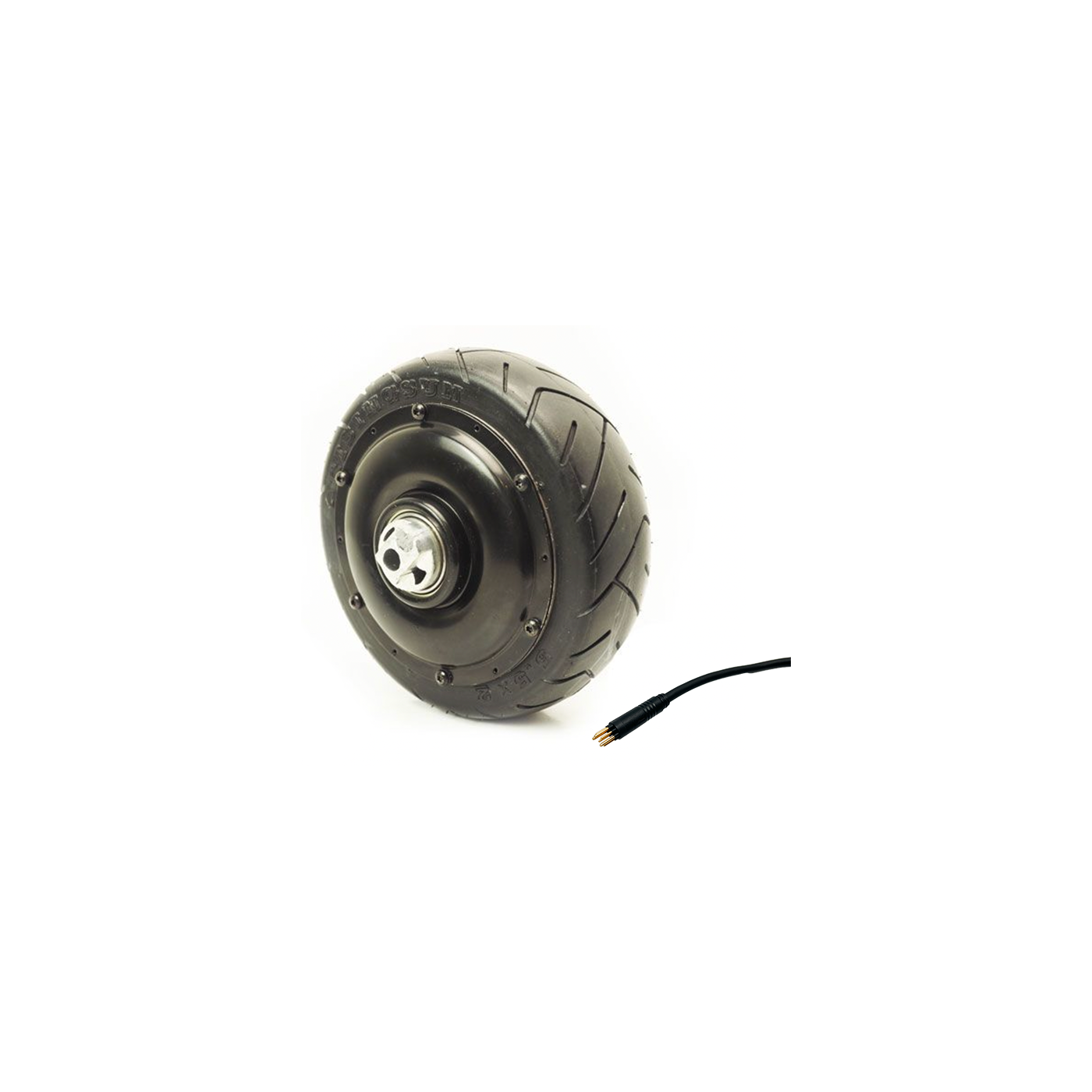

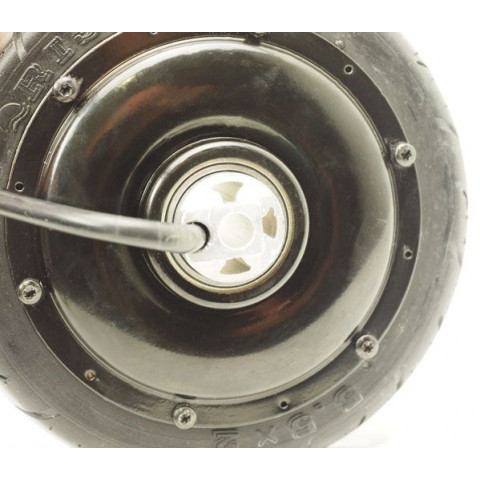

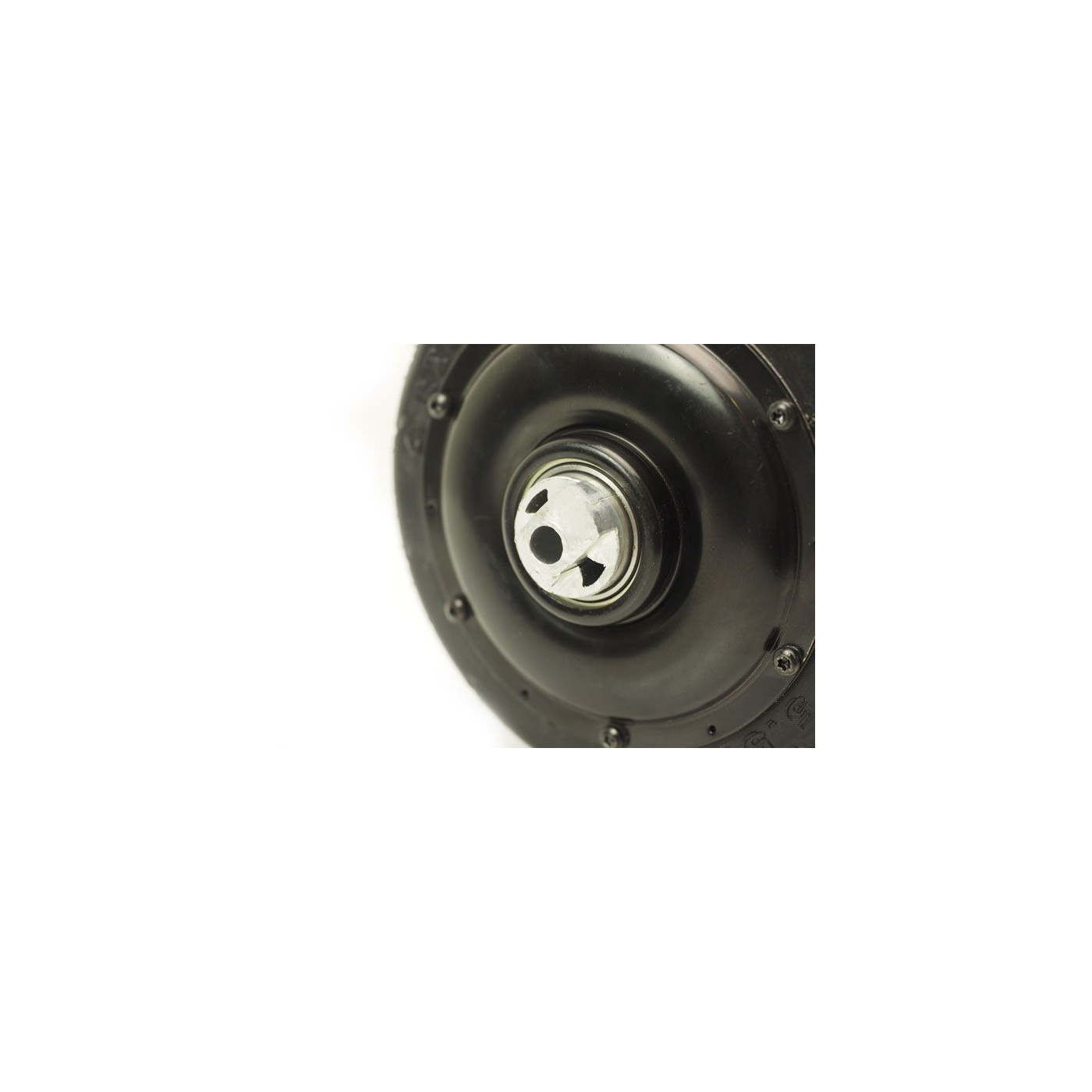

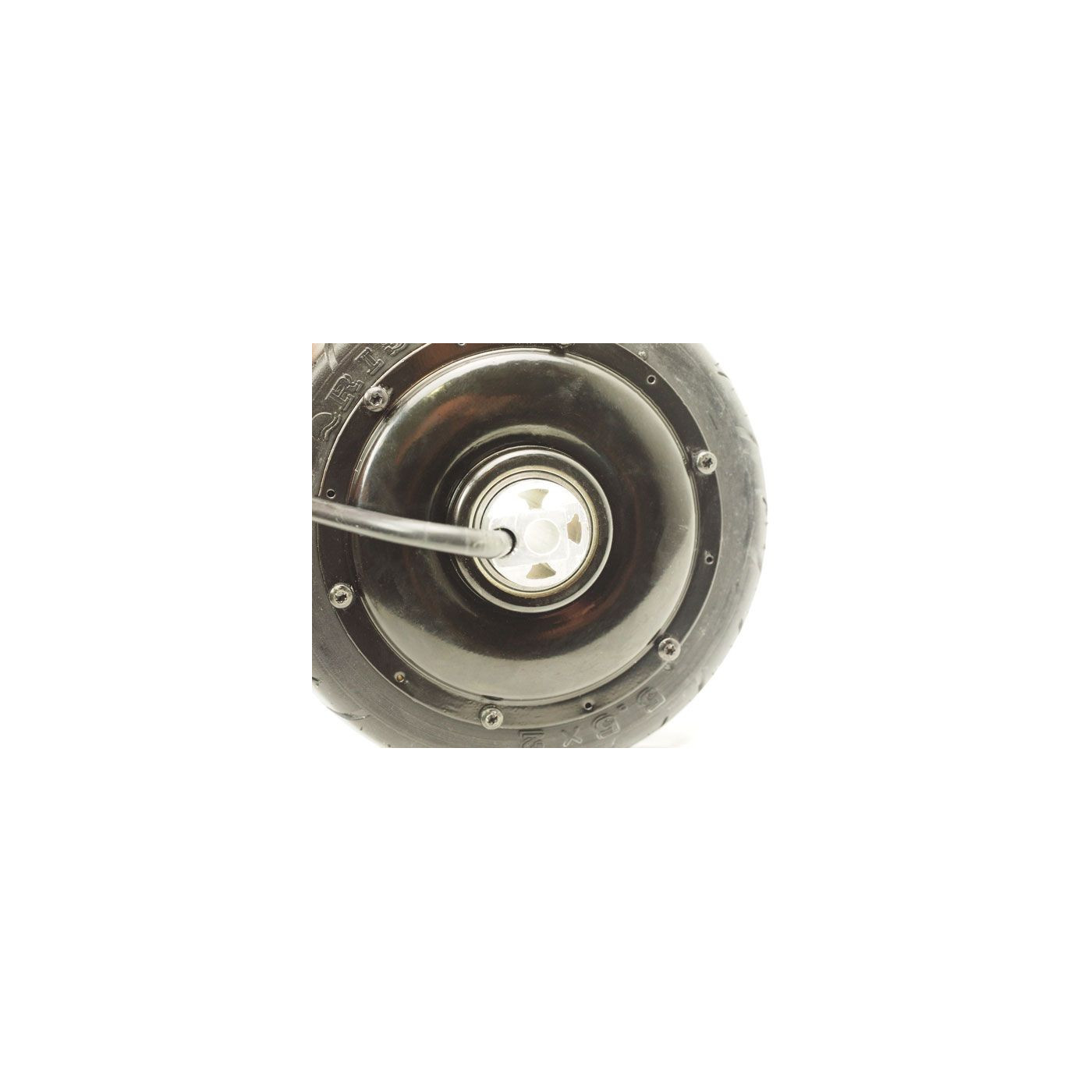

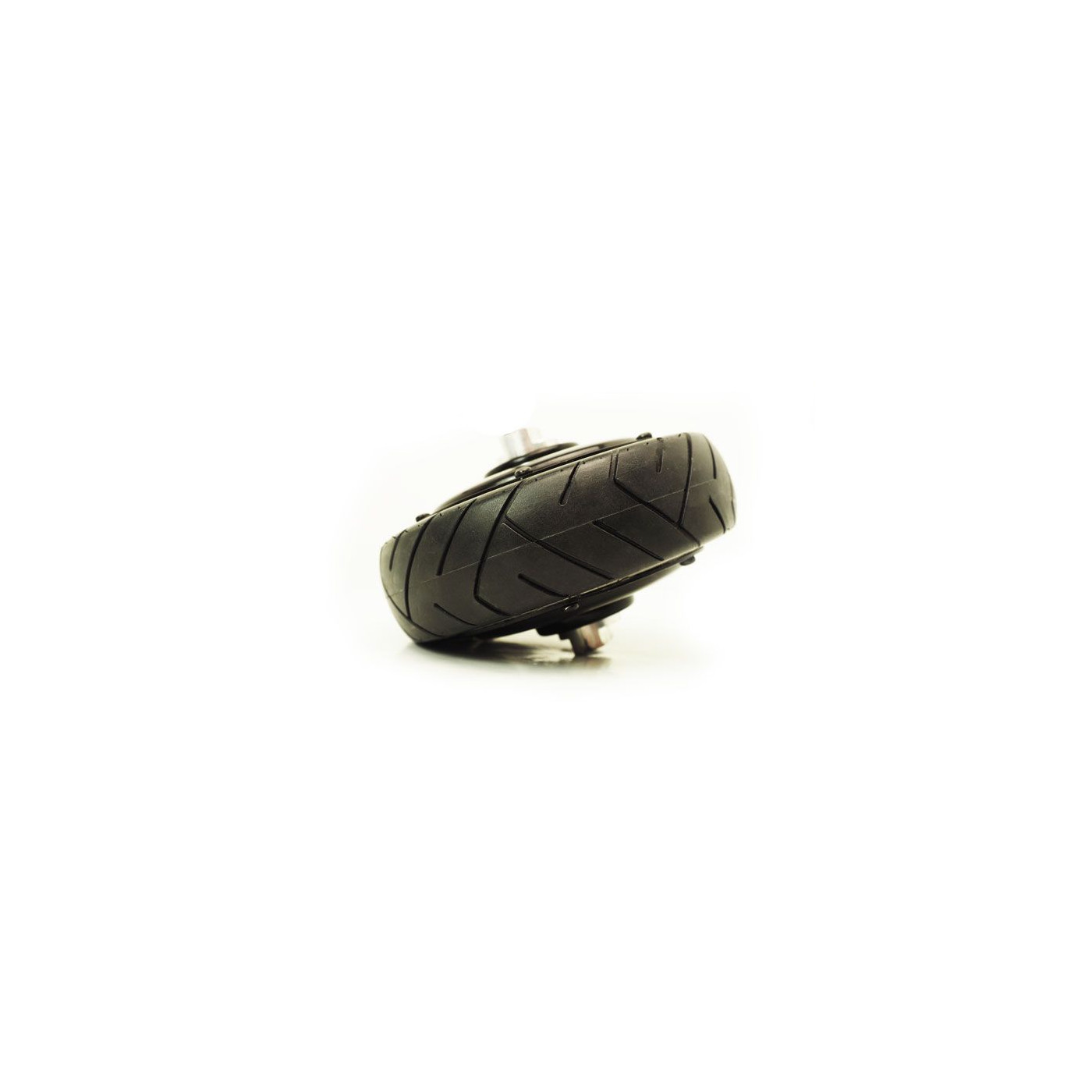

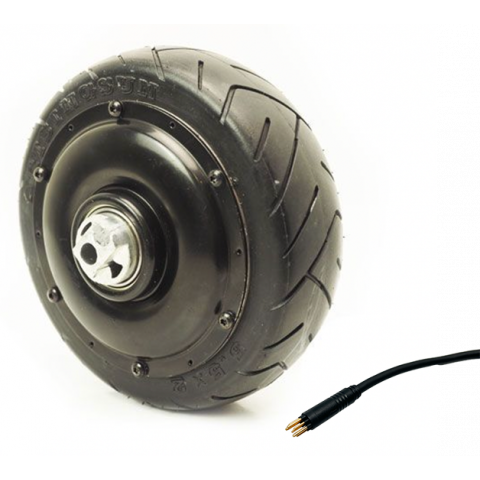

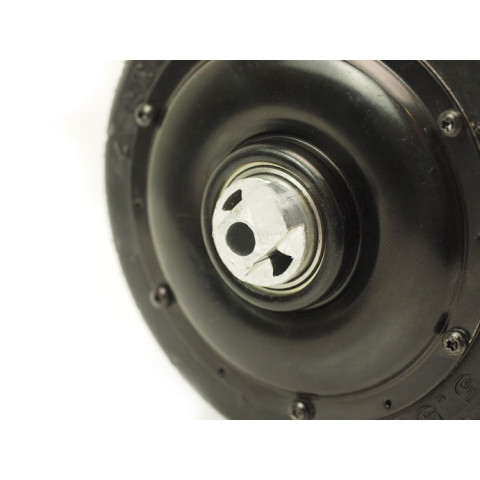

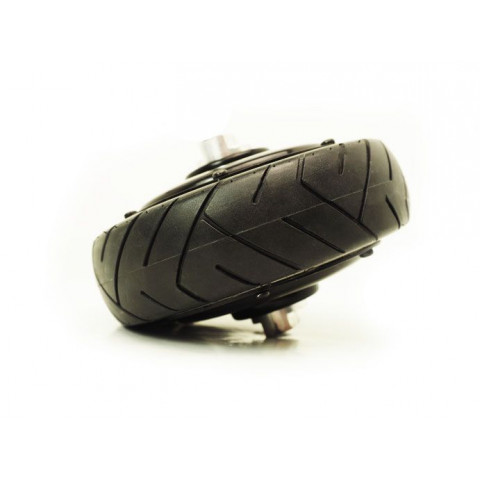

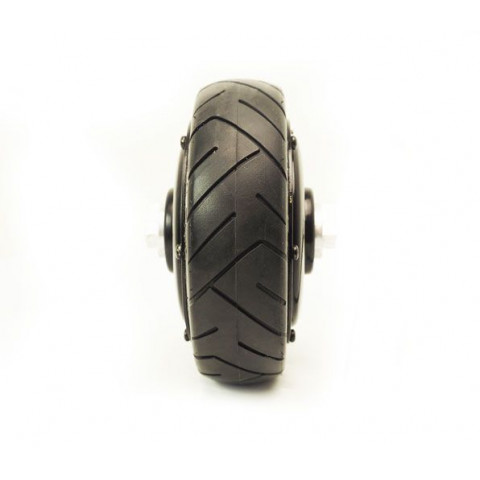

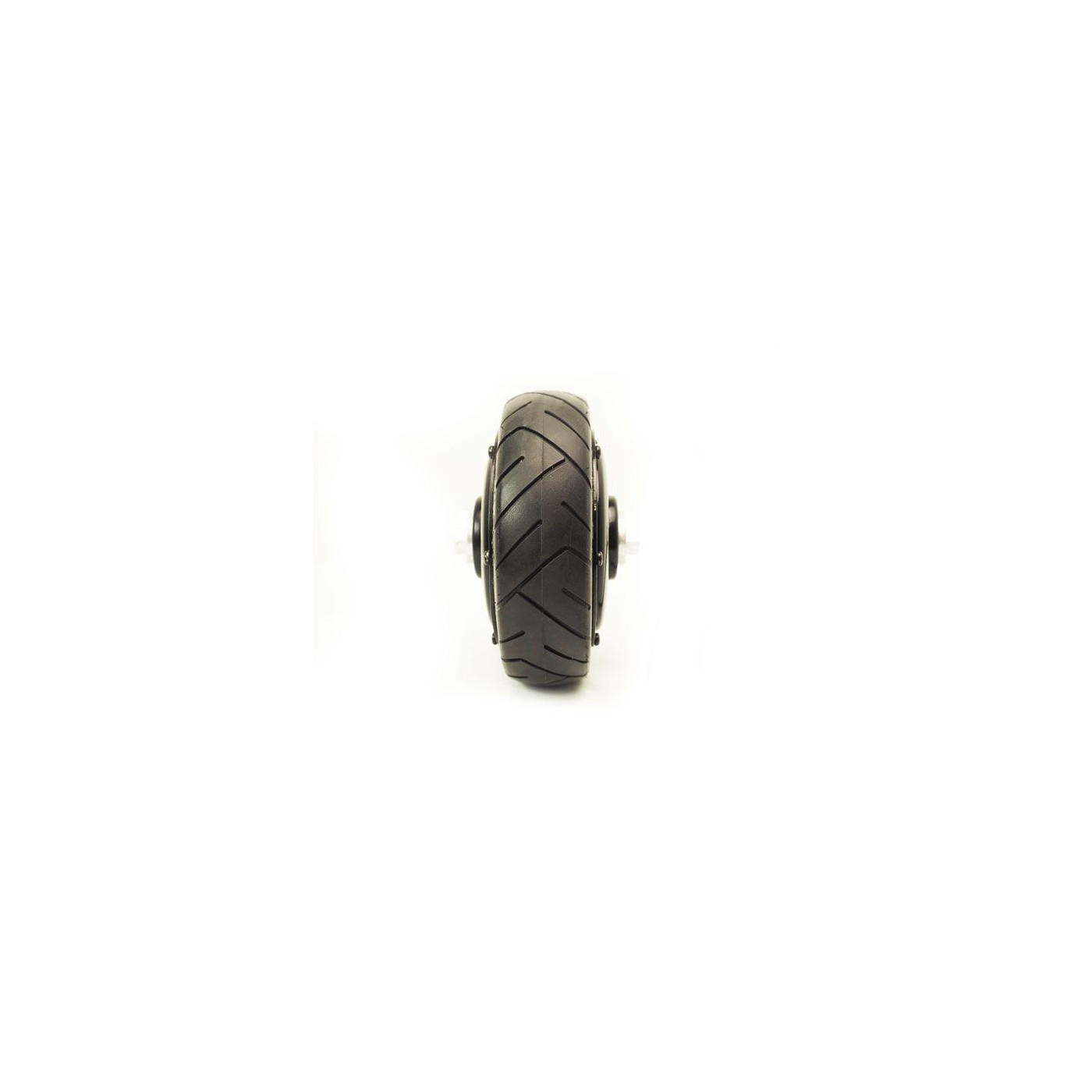

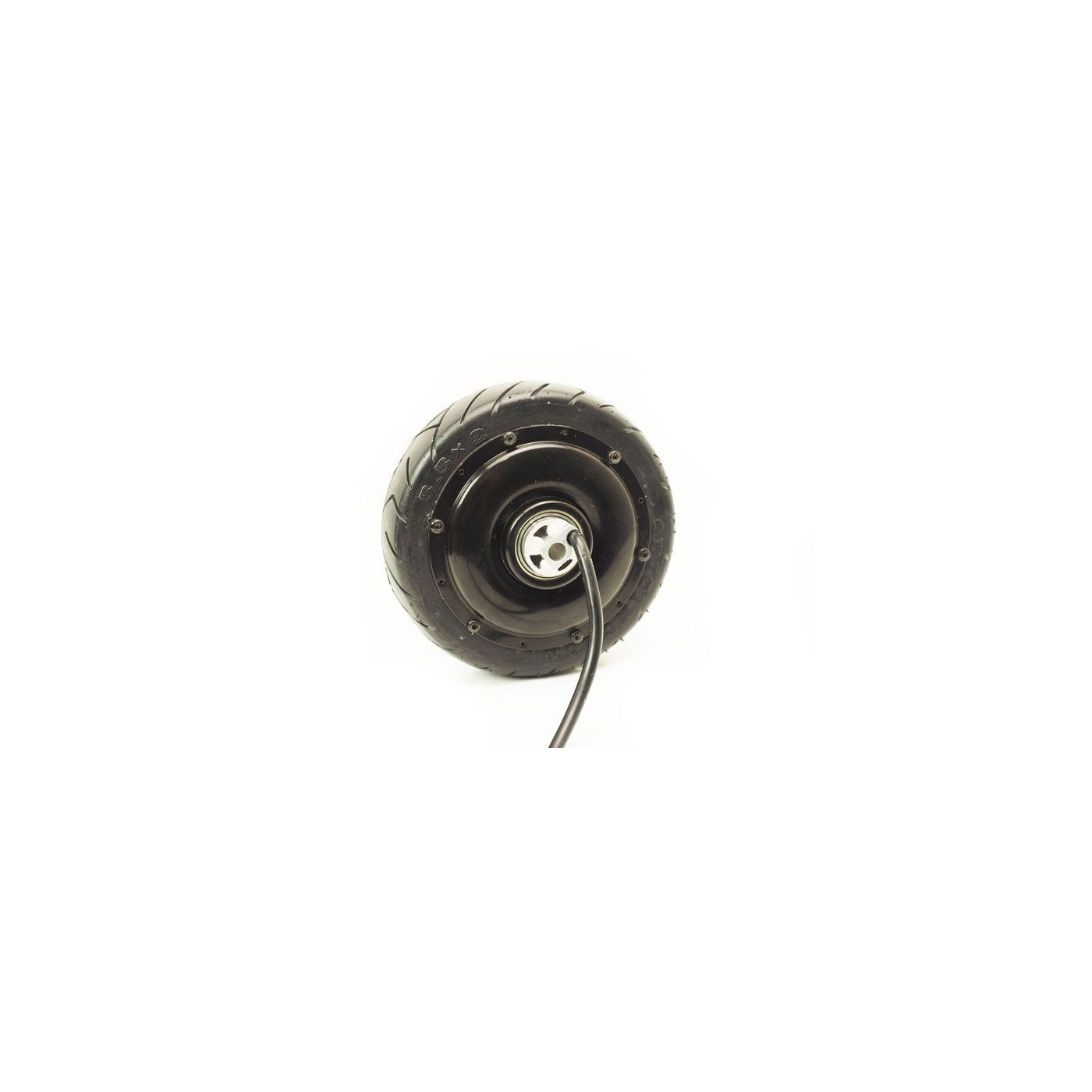

Electric industry and leisure motor wheel 5"

Brushless motor wheel to convert into electric any industrial trolley :

  • Leisure and service (golf cart, refrigerated cart, stroller, prototyping)
  • Industrial (rolling base, industrial serving trolleys pusher puller)
  • Logistics (picking trucks)

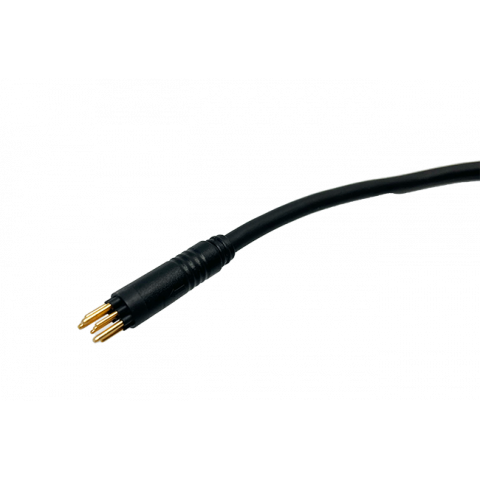

Power : 250W | Dropout : 65mm | Cable : 20cm

Read moreShow less
€139.00 (tax incl.)
IN STOCK 10 Items
Reference:
000391
You may also like
Roue trottinette 12" 1/2 Roue trottinette 12" 1/2 Roue trottinette 12" 1/2

€299.00 (tax incl.)
Mini scooter geared motor 12" 36V 48V 500W-750W Motor for mini scooter 12" Sold with 12" tire and inner tube (12,5 x 2,25) Vmax = 25km/h under 36V / 35Km/h under 48V Total weight with tire =  3,6 kg Cable length =...
Roue trottinette 8 Roue trottinette 8 Roue trottinette 8

€119.00 (tax incl.)
This 200mm diameter motor (8'') is ideal for electrifying your classic scooter or any other cart or stroller equipped with 200mm wheels. Center distance = 45mm Power supply possible in 24V 36V and 48V. Comes with a...
Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V

€299.00 (tax incl.)
Electric brushless motor wheel 14" 1000W. Vmax 32Km/h under 48V - 25km/h under 36V (can be customized for B2B projects) Weight =  6,5 kg / Kv = 10 RPM/Volt / Poles number = 30
kit trott 20" jante en aluminium kit trott 20" jante en aluminium kit trott 20" jante en aluminium

€319.00 (tax incl.)
For heavy or special applications such as tricycles, taxi bikes or drift trikes, we offer electric motors made of aluminum to prevent spokes from breaking.  Compatible with all 20" bicycle tires Available in two...
Description

This electric wheel can be installed easily on any industrial trolley to decrease the human effort and noise level.

You can convert into electric any pusher puller, serving trolley, hospital bed, medical machine...

250W power and natural rubber tire.

NTC temperature sensor to protect overheating when using under heavy load.

Zero noise with our Field oriented controller (FOC) 25A

You can drive backward / Forward and get regenerative braking.

Plan 2D :

Read moreShow less
Product Details
000391

Data sheet

Guarantee
2 ans
poids en 26 pouces
1.9 kg
Technologie
Brushless direct drive
Puissance max
__W
Entraxe fourche min/max
65mm
Motor Kv (RPM / V)
29 RPM/Volt
Hall sensors
OUI
Motor axle
Boulon de 8mm
Diamètre exterieur Pneu
134mm
Vitesse max sous 12V
7km/h
Vitesse max sous 24V
15km/h
Vitesse max sous 36V
30km/h
Tread width
39mm
