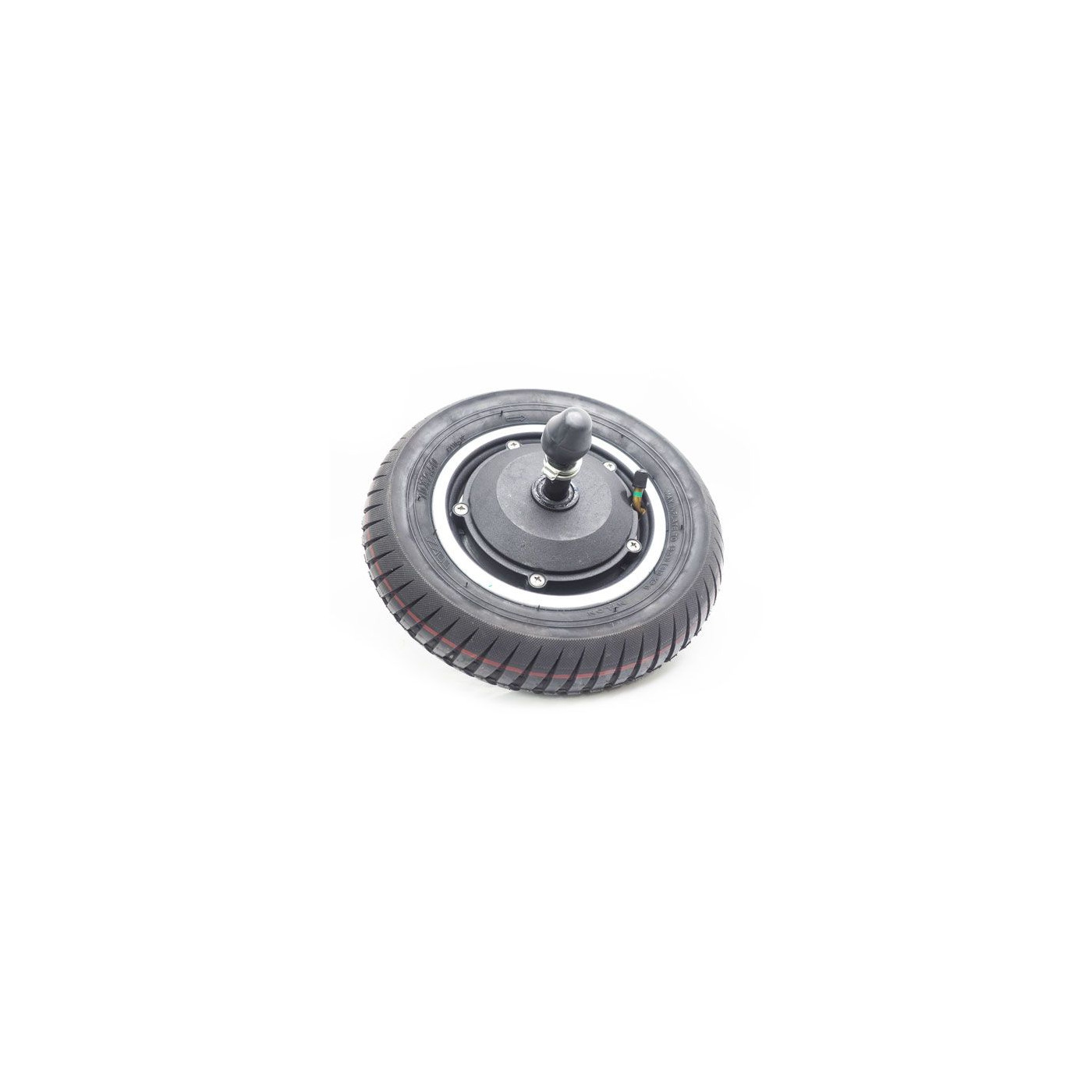

Wheel motor 10'' brushless direct drive 750W

Electric wheel 10" 500W 750W for mini scooter or carrier.

Can be powered on 24V 36V 48V - 500W 600W 750W

Dropout 110mm

Read moreShow less
€249.00 (tax incl.)
Rupture de stock
Reference:
000304
You may also like
Roue trottinette 12" 1/2 Roue trottinette 12" 1/2 Roue trottinette 12" 1/2

€299.00 (tax incl.)
Mini scooter geared motor 12" 36V 48V 500W-750W Motor for mini scooter 12" Sold with 12" tire and inner tube (12,5 x 2,25) Vmax = 25km/h under 36V / 35Km/h under 48V Total weight with tire =  3,6 kg Cable length =...
Roue trottinette 8 Roue trottinette 8 Roue trottinette 8

€119.00 (tax incl.)
This 200mm diameter motor (8'') is ideal for electrifying your classic scooter or any other cart or stroller equipped with 200mm wheels. Center distance = 45mm Power supply possible in 24V 36V and 48V. Comes with a...
Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V

€299.00 (tax incl.)
Electric brushless motor wheel 14" 1000W. Vmax 32Km/h under 48V - 25km/h under 36V (can be customized for B2B projects) Weight =  6,5 kg / Kv = 10 RPM/Volt / Poles number = 30
Electric Industrial motor wheel for trolley 5" Electric Industrial motor wheel for trolley 5" Electric Industrial motor wheel for trolley 5"

€139.00 (tax incl.)
Brushless motor wheel to convert into electric any industrial trolley :  Leisure and service (golf cart, refrigerated cart, stroller, prototyping) Industrial (rolling base, industrial serving trolleys pusher...
kit trott 20" jante en aluminium kit trott 20" jante en aluminium kit trott 20" jante en aluminium

€319.00 (tax incl.)
For heavy or special applications such as tricycles, taxi bikes or drift trikes, we offer electric motors made of aluminum to prevent spokes from breaking.  Compatible with all 20" bicycle tires Available in two...
Description

2D plan :

Read moreShow less
Product Details
000304

Data sheet

Guarantee
2 ans
Maximum speed
35 km/h
Paires de pôles magnétiques
15
Technologie moteur
Brushless direct drive
Rendement max
85%
Tension Min
24V
Permissible voltages
24V, 36V et 48V
Tension Max
48V
Entraxe fourche min/max
115mm / 145mm
Motor Kv (RPM / V)
27 Tr/min/Volt
Motor power range
200 - 1000W
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Motor axle
14x10mm
Vitesse max sous 24V
17 Km/h
Vitesse max sous 36V
25 km/h
48V max speed
30 km/h
Rs
0,25 Ohm
Ls
305 uHenries
