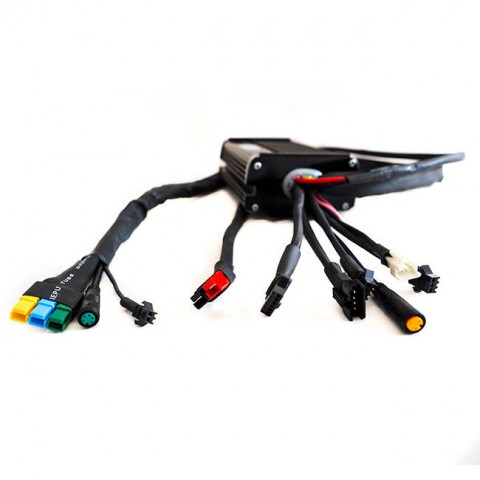

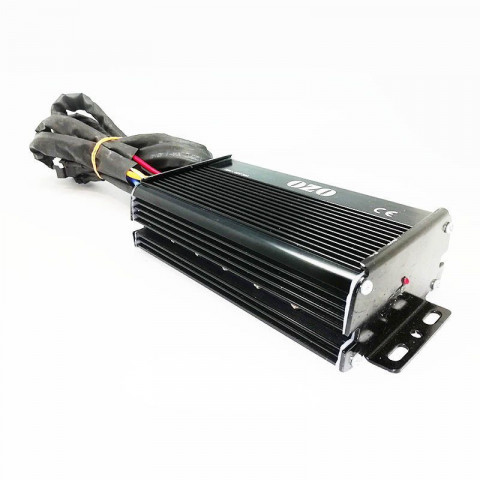

| This OZO 30A controller is specific for the MAC motor. This is the unique controller which is able to exploit the MAC motor at 100%. |
The OZO 30A controller dedicated to the MAC motor is a concentrate of technology. It integrates high-quality electronic components from the automotive industry.
This power variator is the brain of your kit. It will allow you to achieve everything you want to do with your electric bike.
Featuring Field-Oriented Control (FOC) technology, the output curve of the three phases is sinusoidal. This provides a smoother ride and much quieter motor operation.
You can control the motor via a pedal assist sensor (PAS) if you want pedal assistance, via a throttle, or both.
You can use an on-board computer (Cycle Analyst) to adjust all the parameters of your motor setup yourself.
Fully upgradeable, you will be able to add a multitude of features over time: Cycle Analyst V2 or V3, 3-position switch, cruise control, ON/OFF switch, regenerative braking, brake cut-off, PAS sensor, throttle...
Connector: White 2-way female JST for connecting a temperature sensor. Most OZO motors integrate an NTC 10kOhm temperature sensor. If the motor temperature reaches 110°C, the power will be halved to avoid any risk of motor overheating.
Motor Cable (2): Anderson Powerpole PP30 connectors for power. Length: 80 cm.
Hall Sensors (3): 5-pin female JULET connector. If your motor does not have a sensor, leave this connector free (heat shrink tubing is recommended to ensure waterproofing).
Image 2
Image 3Connectors: Anderson Powerpole PP30. Length: 90 cm.
● Red: Positive terminal
● Black: Negative terminal
Connector: Orange 3-pin female JULET for connecting a 6 or 12-magnet pedal assist sensor. Length: 15.5 cm.
Connector: 3-way JST. Length: 15.5 cm.
Red: +5V | Black: Ground | Green: Signal
Connector: 4-way JST for connecting a brake lever with cut-off switch or a push button.
Cuts the motor power during braking or deactivates the cruise control. Length: 18 cm.
Blue: Grounding | Black: Ground
Connector: 6-way JST for connecting a Cycle Analyst V2 or V3. Length: 18 cm.
Red: +battery | Black: Ground | Blue: Shunt input | White: Shunt output | Yellow: Hall sensors signal | Green: Throttle signal
Connector: White 3-way male JST to connect our 3-position switch.
Provides three different power modes: 30%, 60%, and 100%. Length: 15.5 cm.
Connector: 5-way JST to connect our cruise control. Length: 16 cm.
If you want an ON/OFF switch on the handlebar or on the controller, simply cut this pink loop and connect our waterproof 2-position switch.
