Electric retrofit motor for motocycle or karting

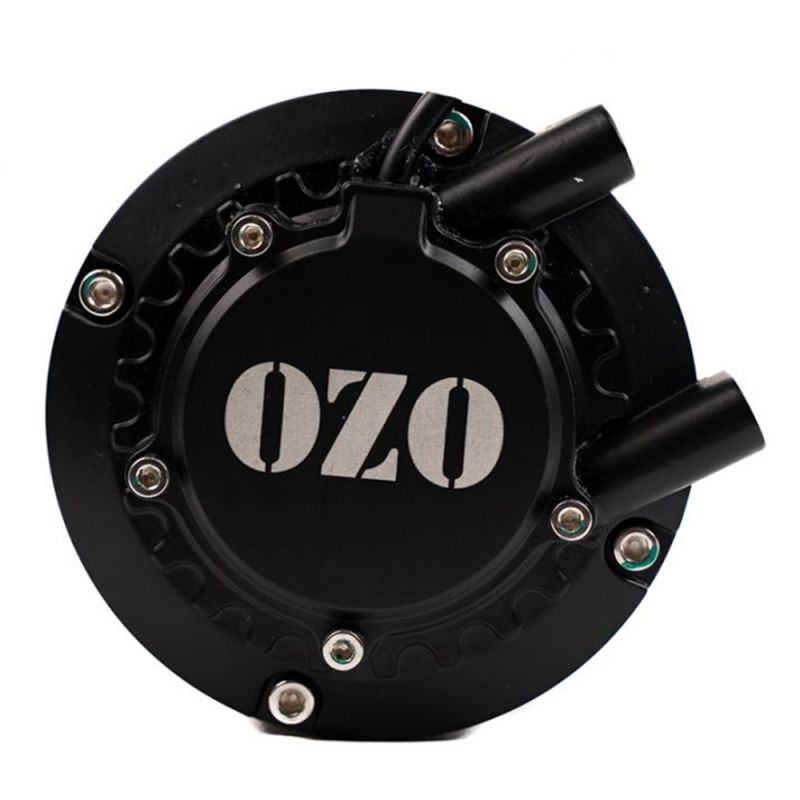

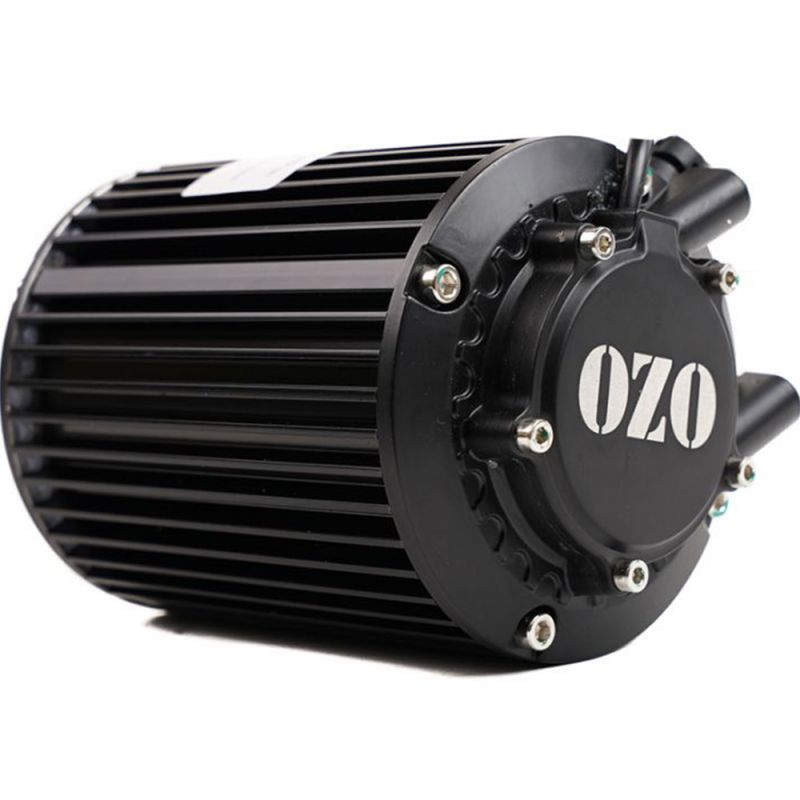

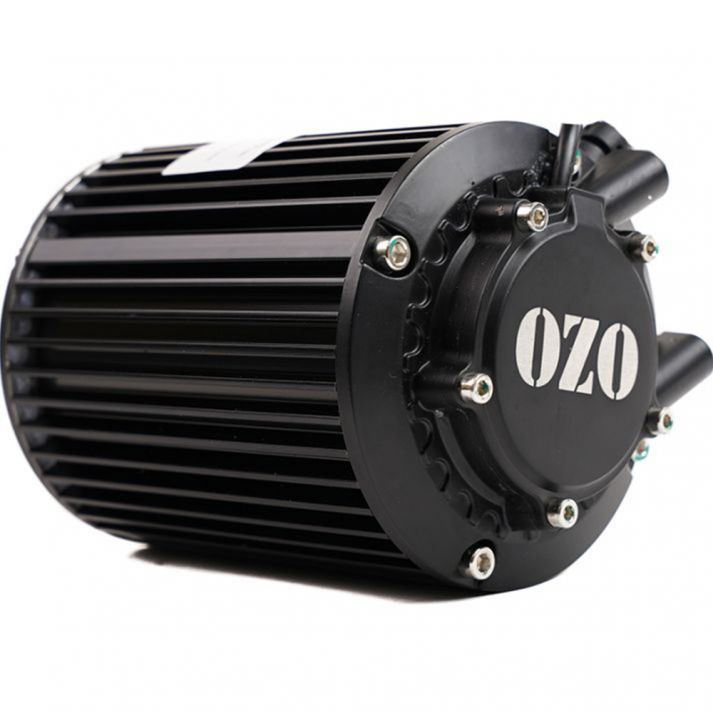

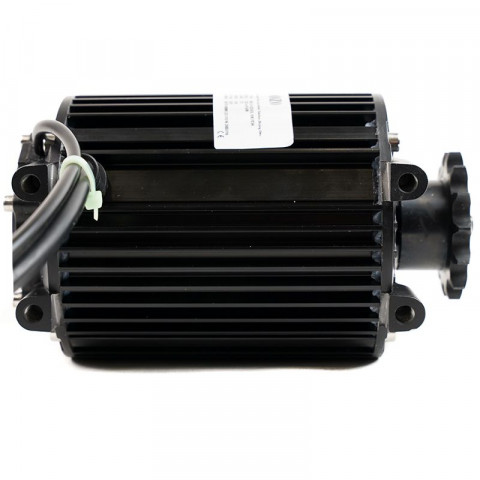

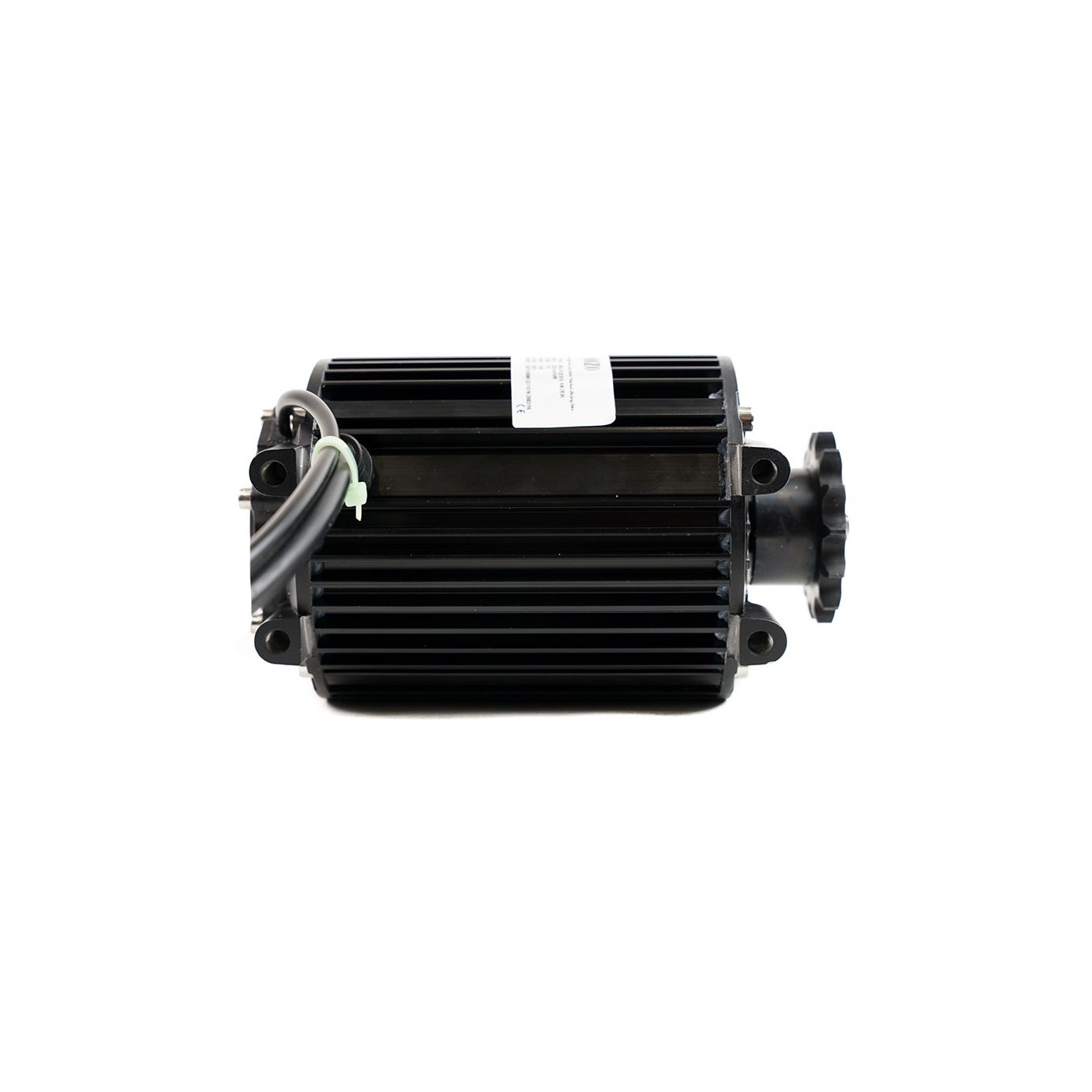

This central rotor Brushless PMSM electric motor is designed to deliver a power of 1000W at 72V, generating a torque of 12 Nm. This is equivalent to a thermal power of 2CV.

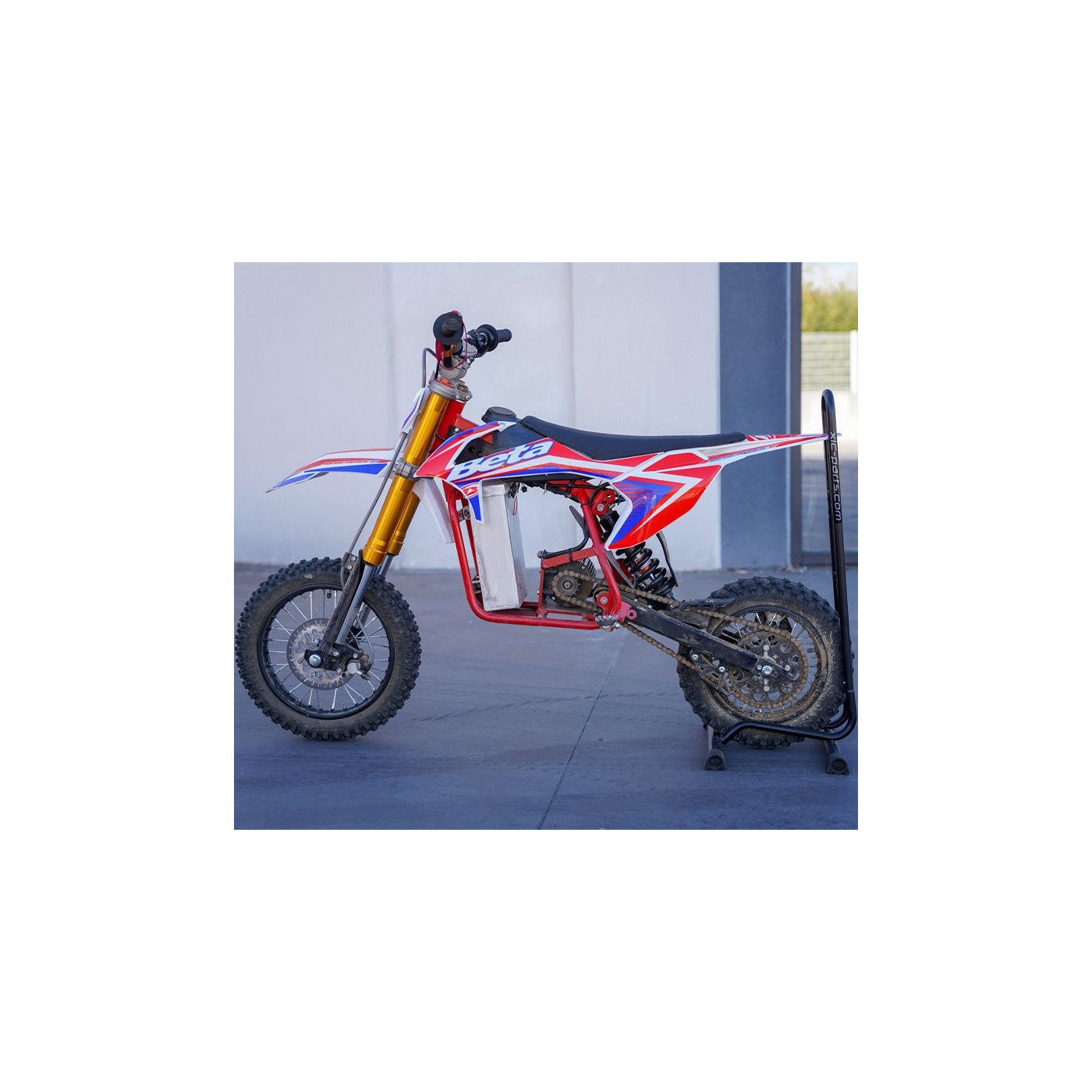

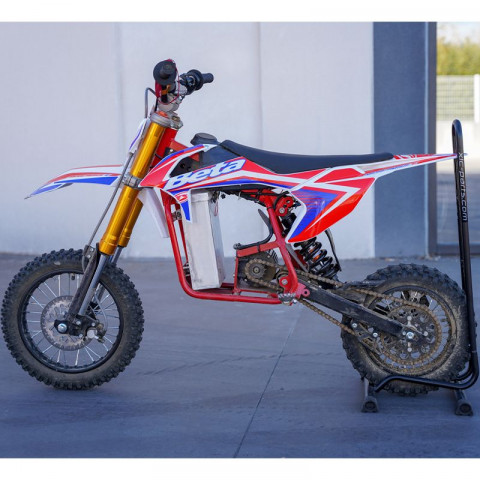

It will be perfect for retrofitting a thermal motorcycle into an electric motorcycle for children, karting, or any other electric vehicle project.
To be installed in place of the internal combustion engine. Cable throttle controls can be retained with our electric accelerator for motorcycles.

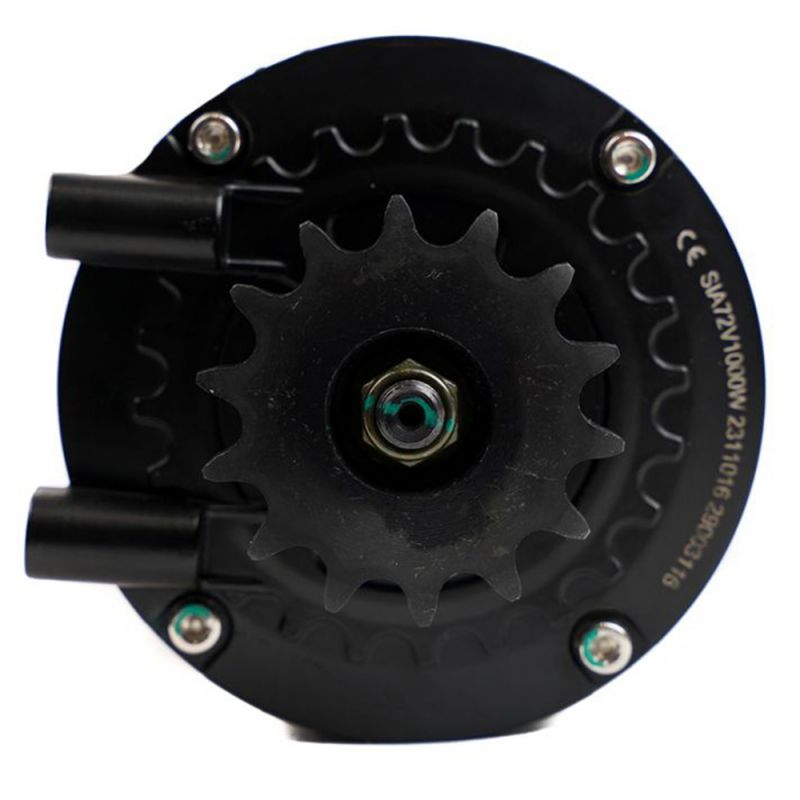

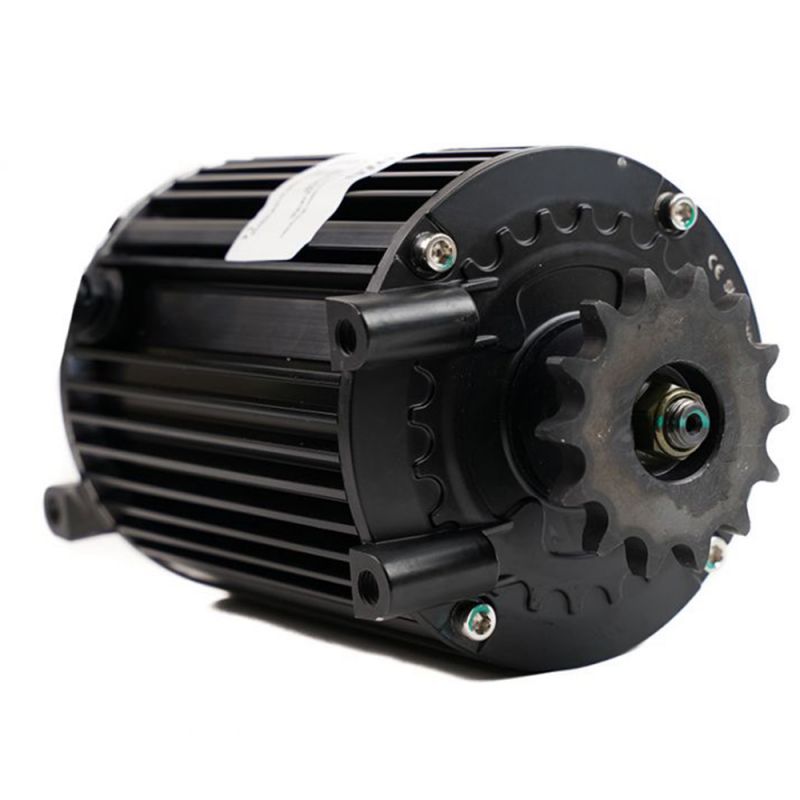

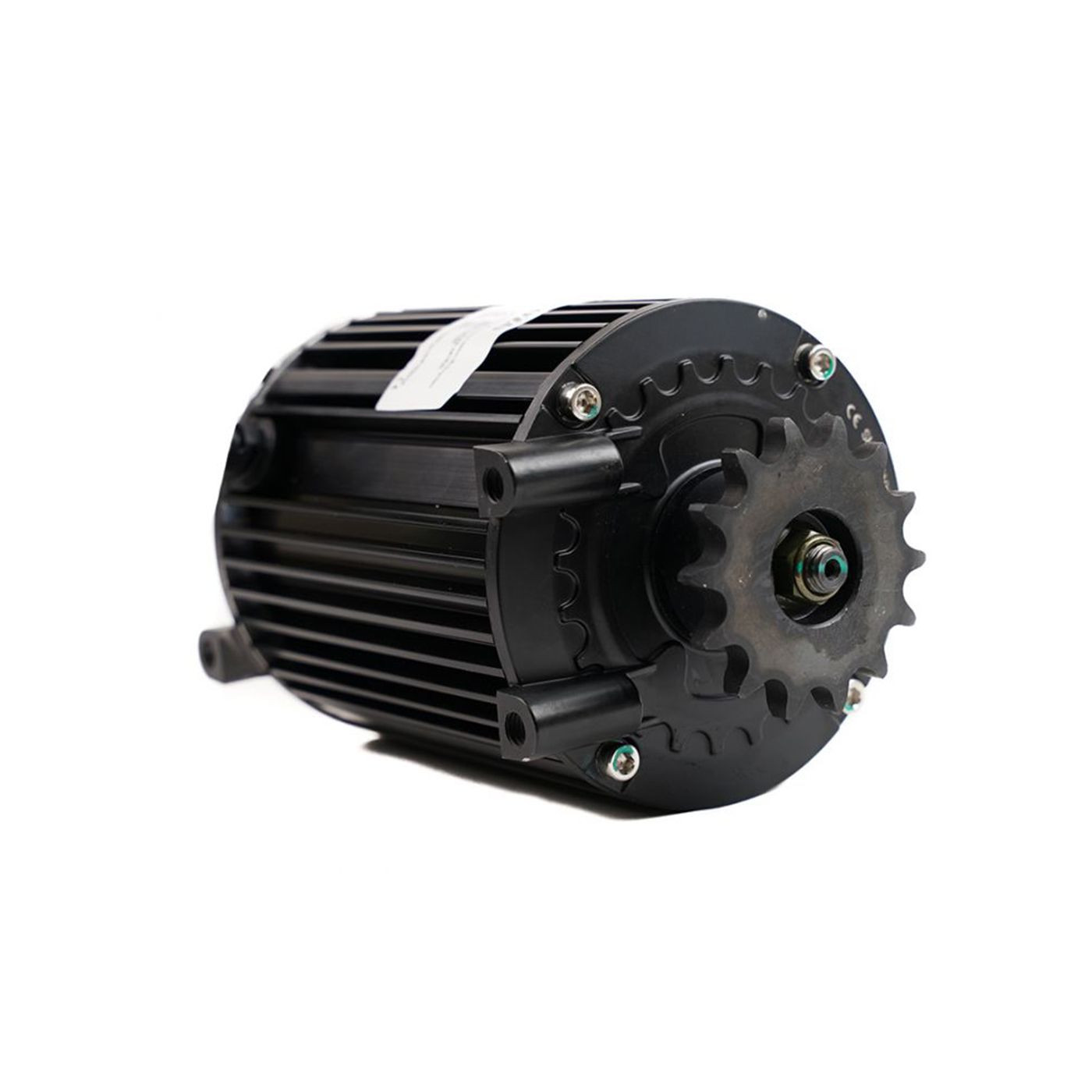

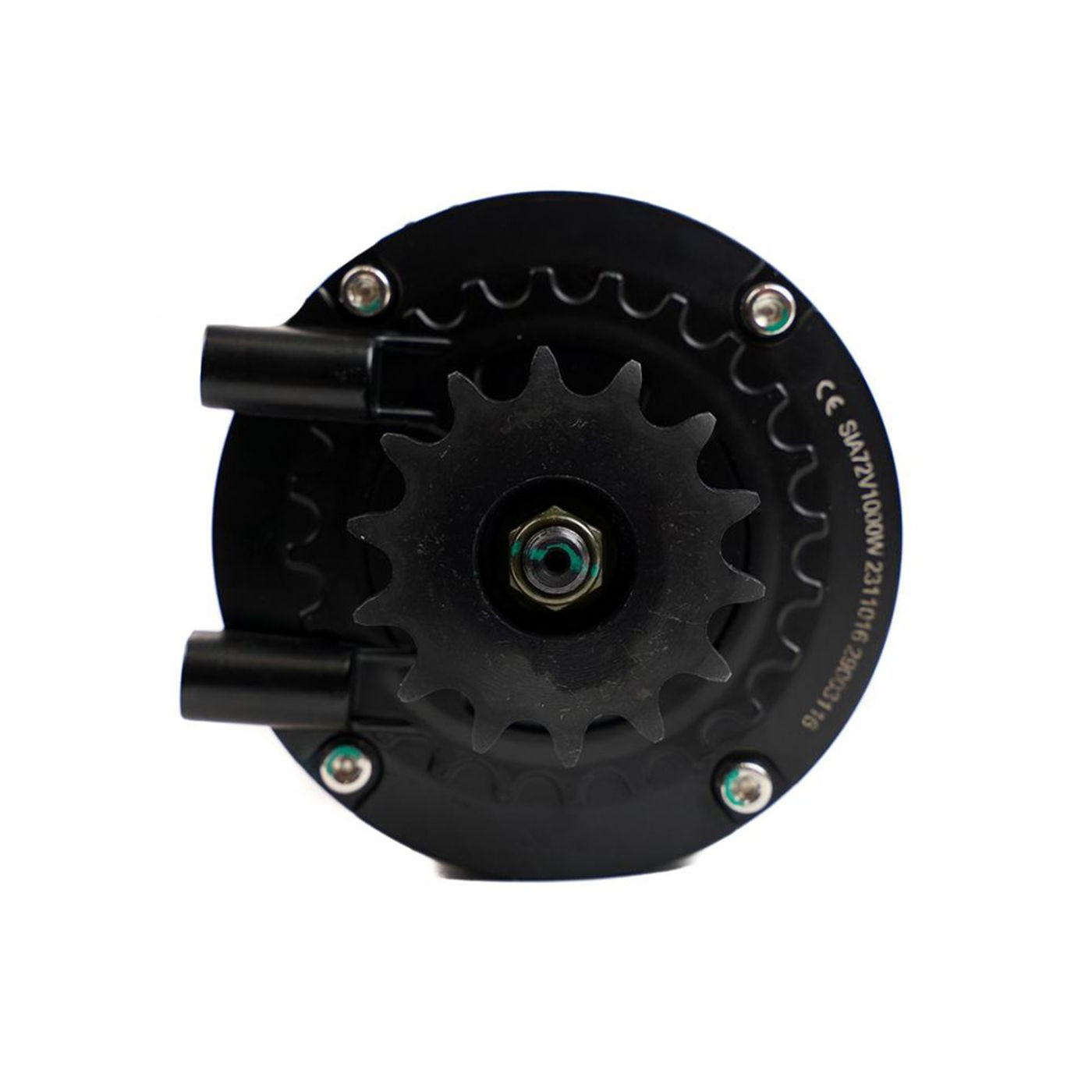

The original mounted pinion has 14 teeth with a pitch of 428.
Weight: 5.1 kg
Replace your 2-stroke or 4-stroke internal combustion engine easily and quickly with an electric motor.

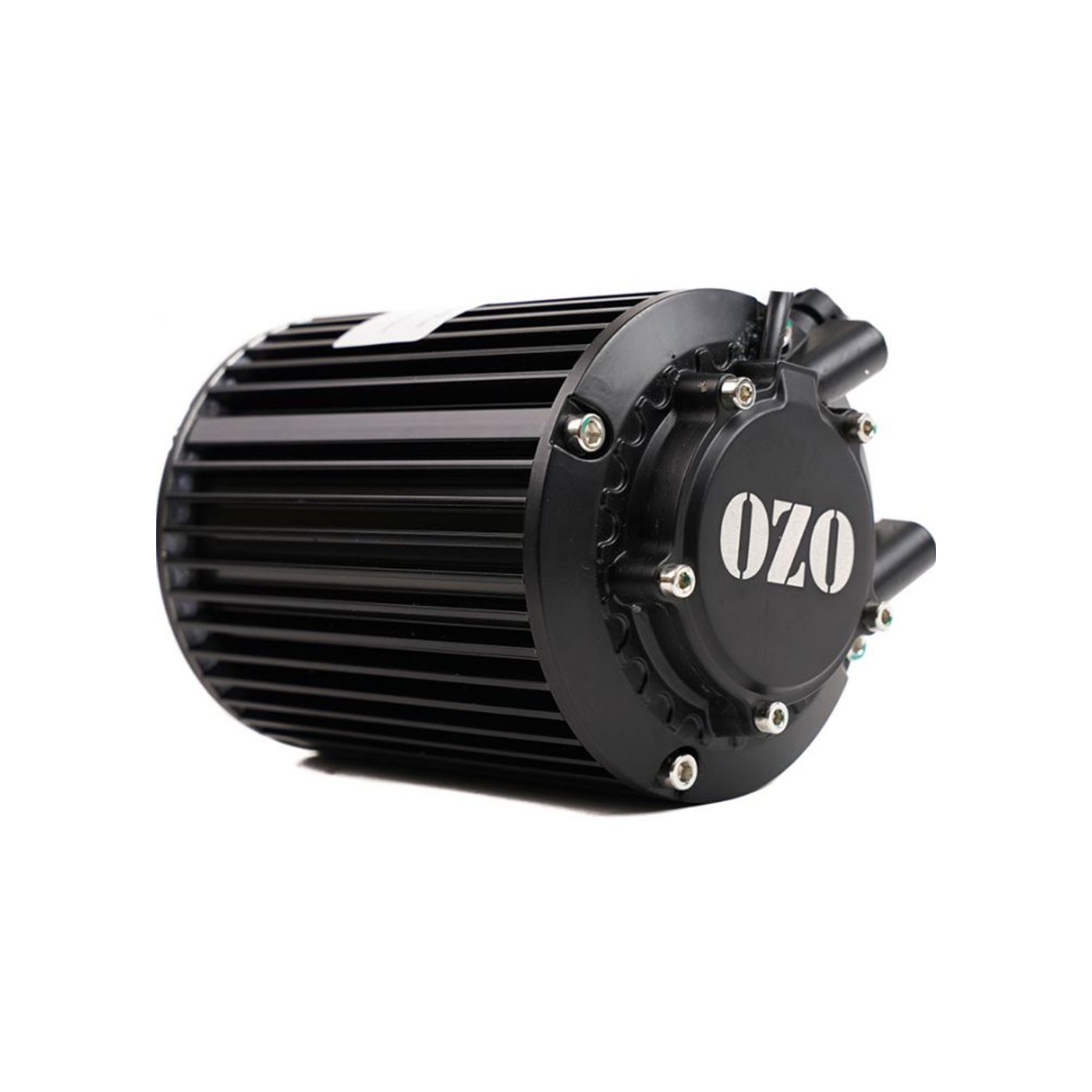

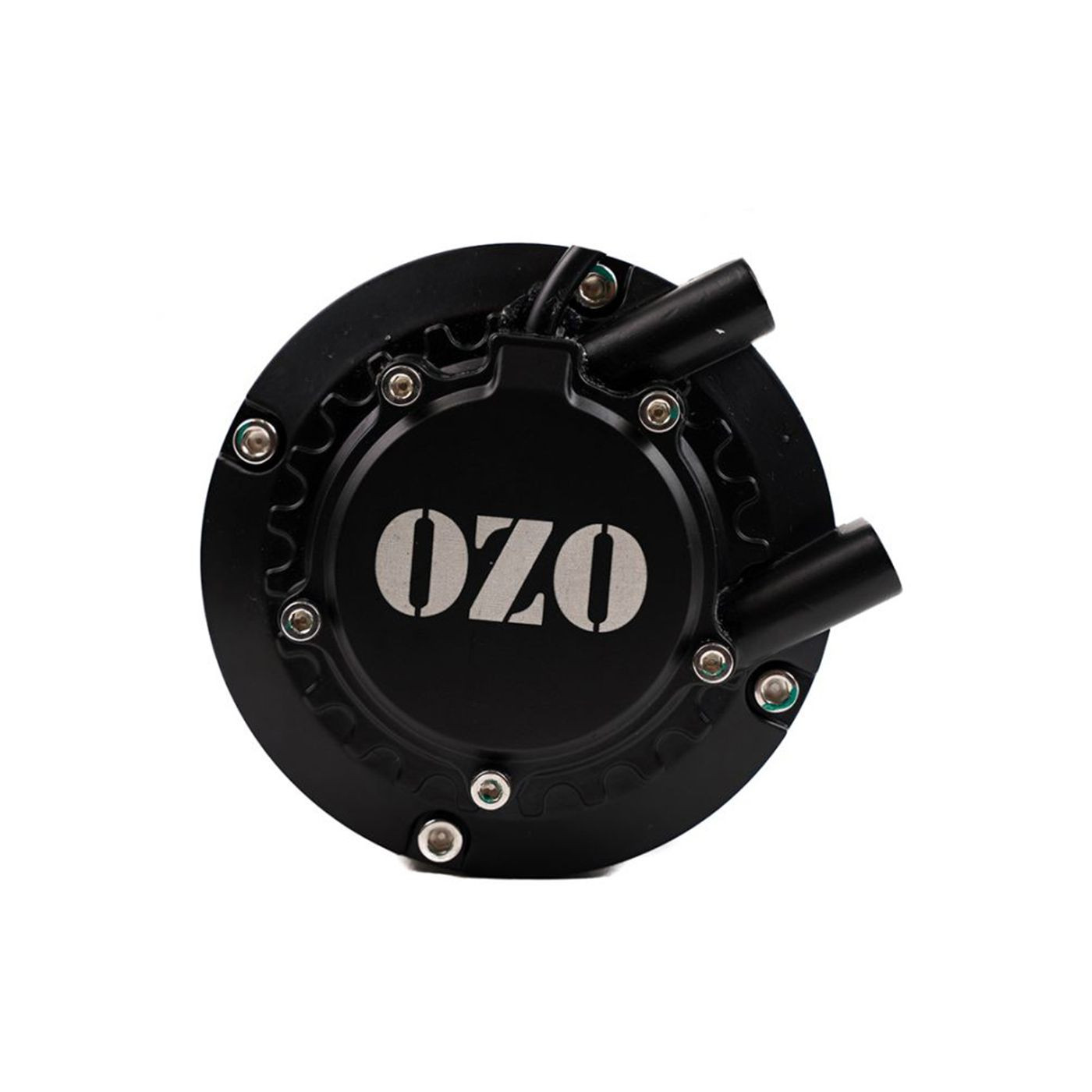

This Brushless PMSM central rotor motor is designed to deliver a power of 1000W at 72V with a maximum speed of 720 RPM. It will fit in place of the original combustion engine.
Thermal equivalence of 2CV at cruising speed and 4CV at maximum power.
The advantage with electric motors is that everything is adjustable via the power electronics: torque, acceleration ramp, braking ramp, motor braking force, acceleration dead time, engine speed, and more.

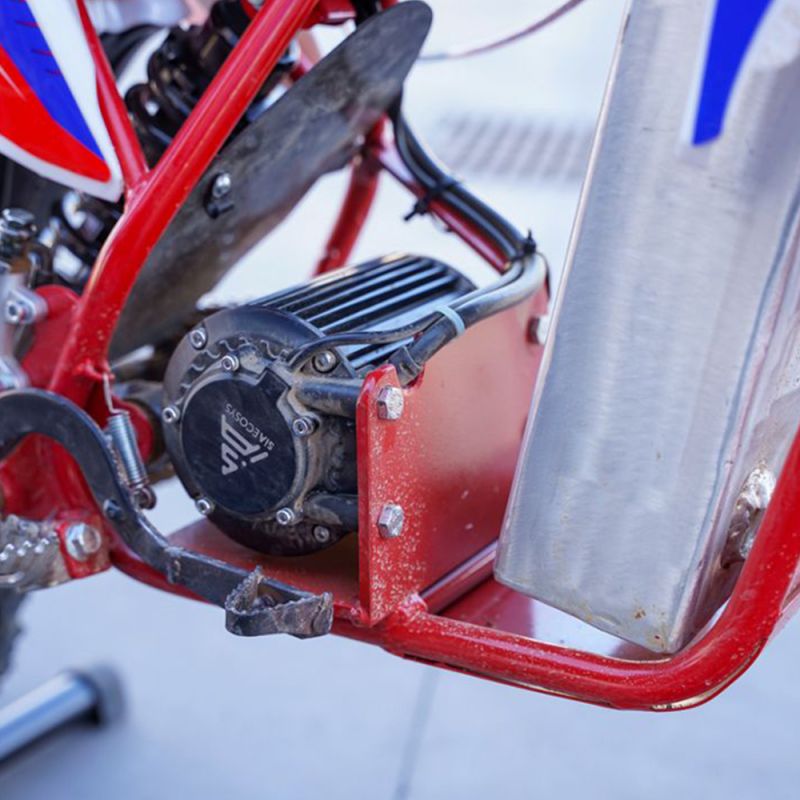

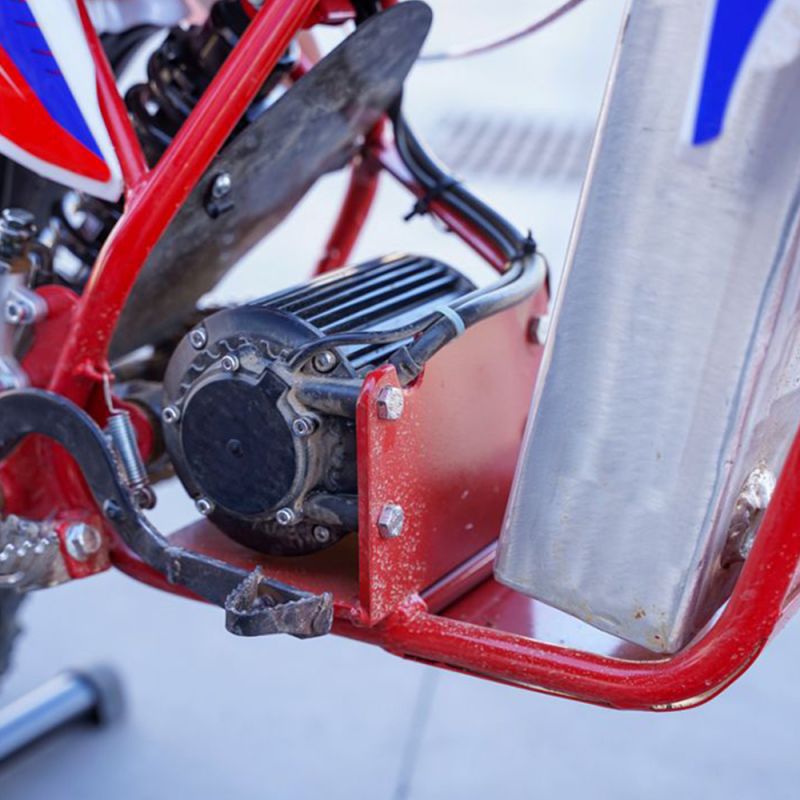

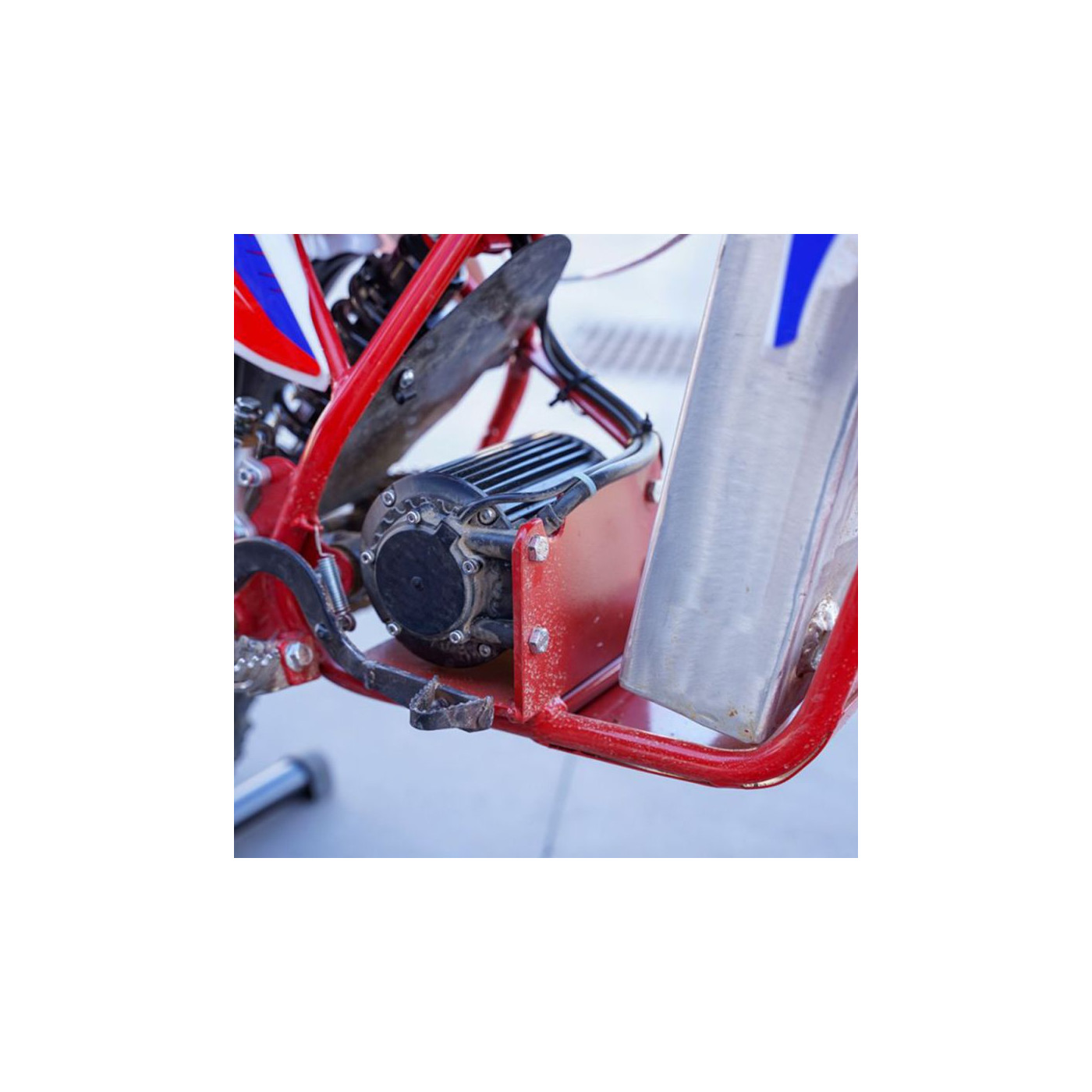

The installation is very easy. We can additionally deliver a support in 304L Stainless Steel to bolt directly onto your chassis.
Custom Stainless Steel supports can be provided through our in-house design office to best match your needs and simplify the motor installation.
You can keep your original throttle controls or accelerator handle since the electronic throttle is directly connected to the original cable. The cable pull is therefore retained.

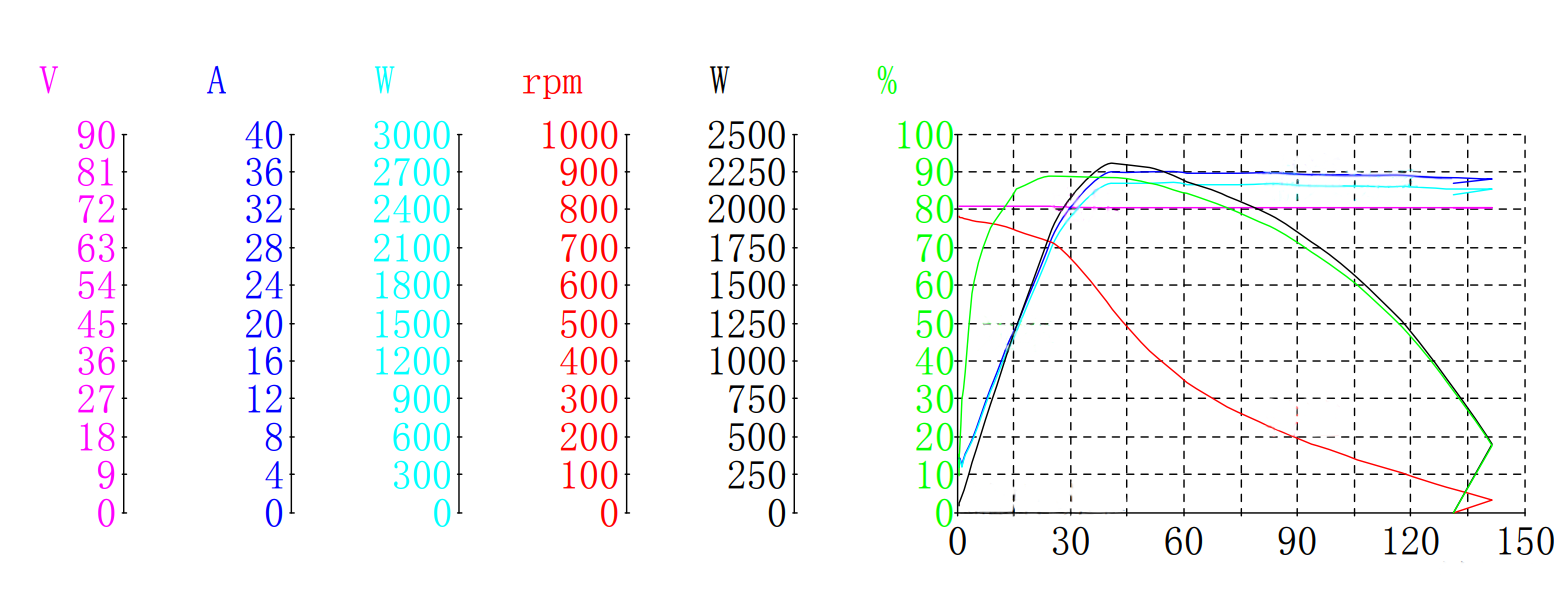

ENGINE PROGRESSION CURVES
2D PLAN
| Puissance | 1000W |
| Tension nominale | 72V |
| Intensité | 15 |
| Paires de pôles magnétiques | 5 |
| poids en 26 pouces | 21kg |
| Technologie moteur | Brushless |
| Rendement max | 80% |
| couple nominal | 12N.m |
| intensité max | 35 A |
| Tension admissibles | 48/60/72 V |
| Vitesse de rotation nominale Tr/min | 781 Tr/min |
