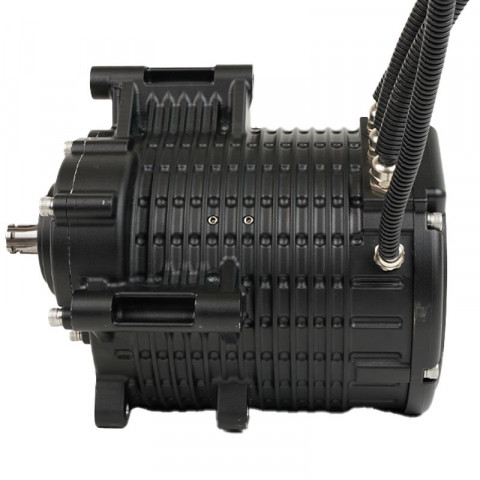

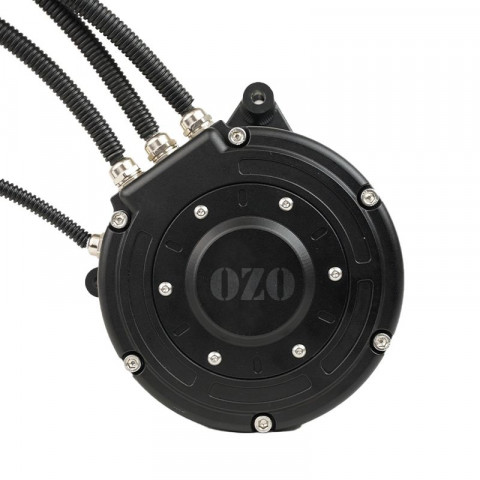

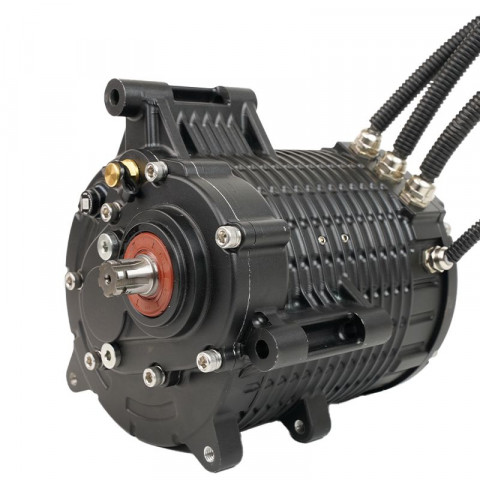

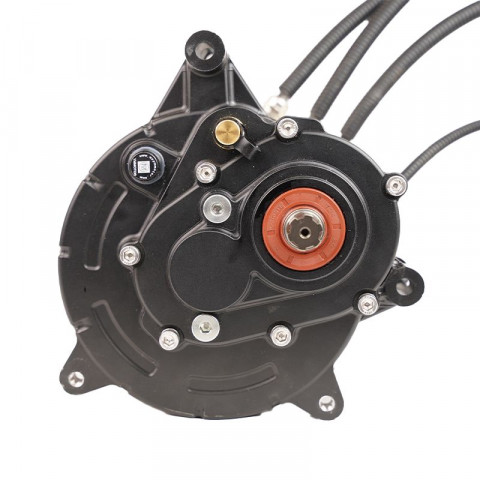

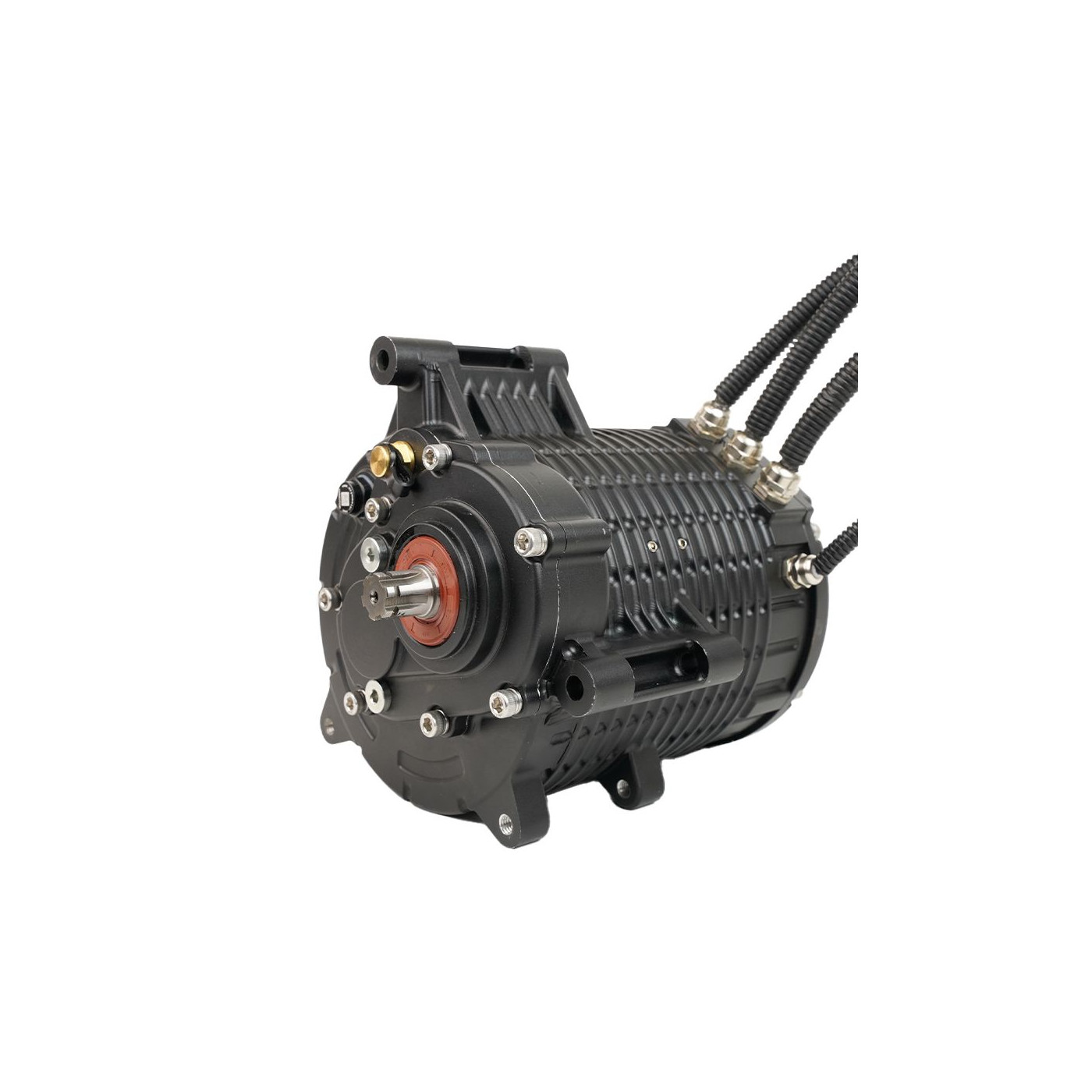

Geared brushless central motor 5000W for electric motorcycle
This Brushless electric motor PMSM (Permanent Magnet Inner Rotor Motor) with Hall effect sensors is designed to deliver a power of 5000W at 48V, generating a torque of 130 N.m and a maximum rotational speed of 3500 rpm. The internal gear system allows it to deliver higher torque compared to a traditional central motor.
The motor is intended to be integrated in place of a thermal engine, using the same frame attachment points.
It is ideal for a retrofit from a thermal motorcycle to an electric motorcycle, and can also be used for other electric vehicle projects.
The cable throttle controls can be retained using our electric accelerator for motorcycles.

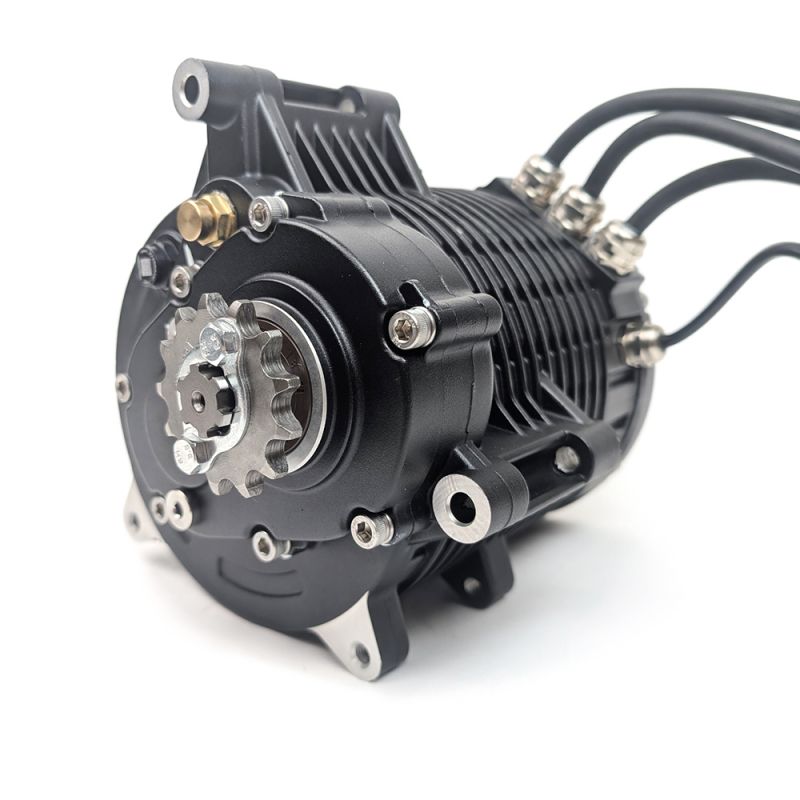

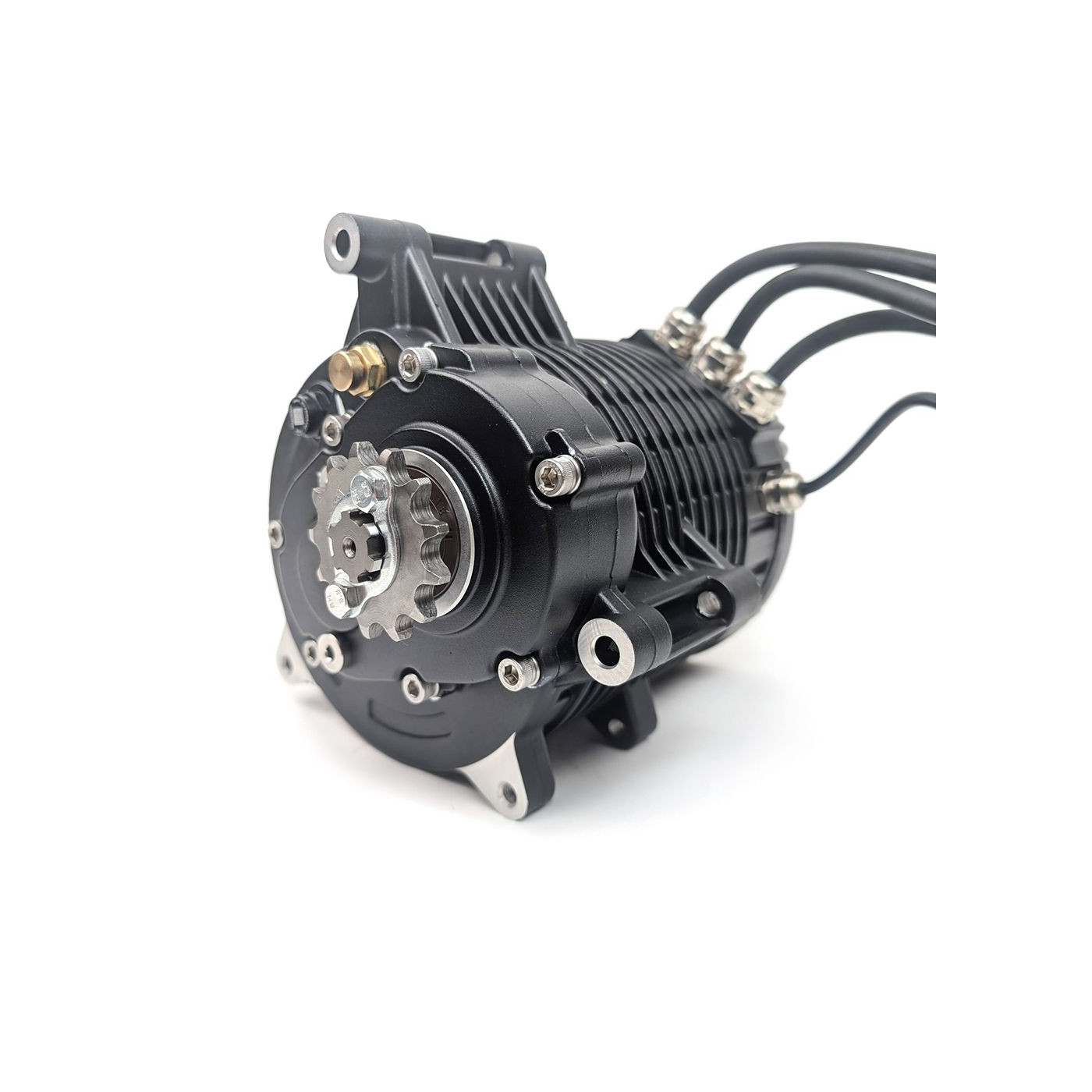

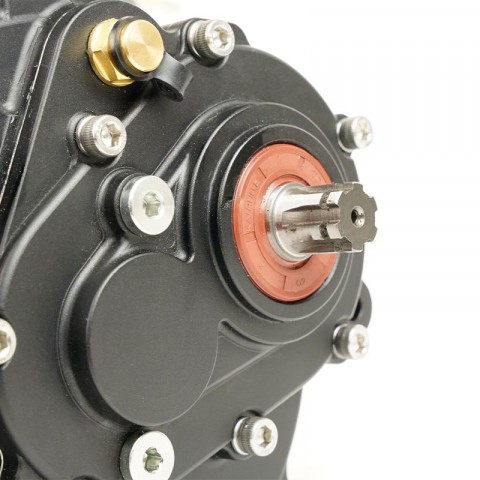

The motor comes with a 13-tooth sprocket 428.
max torque = 130N.m
max speed = 3580 tr/min under 72V
KV = 49 rpm/volt
Easily and quickly replace your 2-stroke, 4-stroke thermal engine with an electric motor.
This Brushless PMSM internal reduction motor is designed to deliver a power of 5000W at 48V with a maximum speed of XXX rpm. This very compact and lightweight motor will fit perfectly in place of the original thermal engine.
Thermal equivalence of 10 HP in cruising and 14 HP at maximum power.
The advantage with electric motors is that everything is adjustable via power electronics: torque, acceleration ramp, braking ramp, engine braking force, acceleration dead time, engine speed, etc.
We can provide custom-made stainless steel supports through our in-house design office to best meet your needs and simplify the motor installation. Feel free to contact us at technique@ozo-electric.com
You can retain your throttle controls or original accelerator handle since the electronic accelerator is directly connected to the original cable. The cable pull is therefore preserved.
| Guarantee | 2 ans |
| Intensité max | 350A |
| Puissance | 5000W |
| Tension nominale | 72V |
| technologie | Brushless |
| tension nominale | 72V |
| Tensions admissibles | 48-72V |
| intensité nominale | 51A |
| Masse | 13kg |
| Indice de protection | IP65 |
| Vitesse de rotation nominale Tr/min | 3000 |
| Couple nominal | 50N.m |
| Nombre de paires de pôles | 4 |
| Kv | 41,6 RPM/min/V |
| Rendement maximal | 92% |
| Refroidissement | air |
| Codeur | oui |

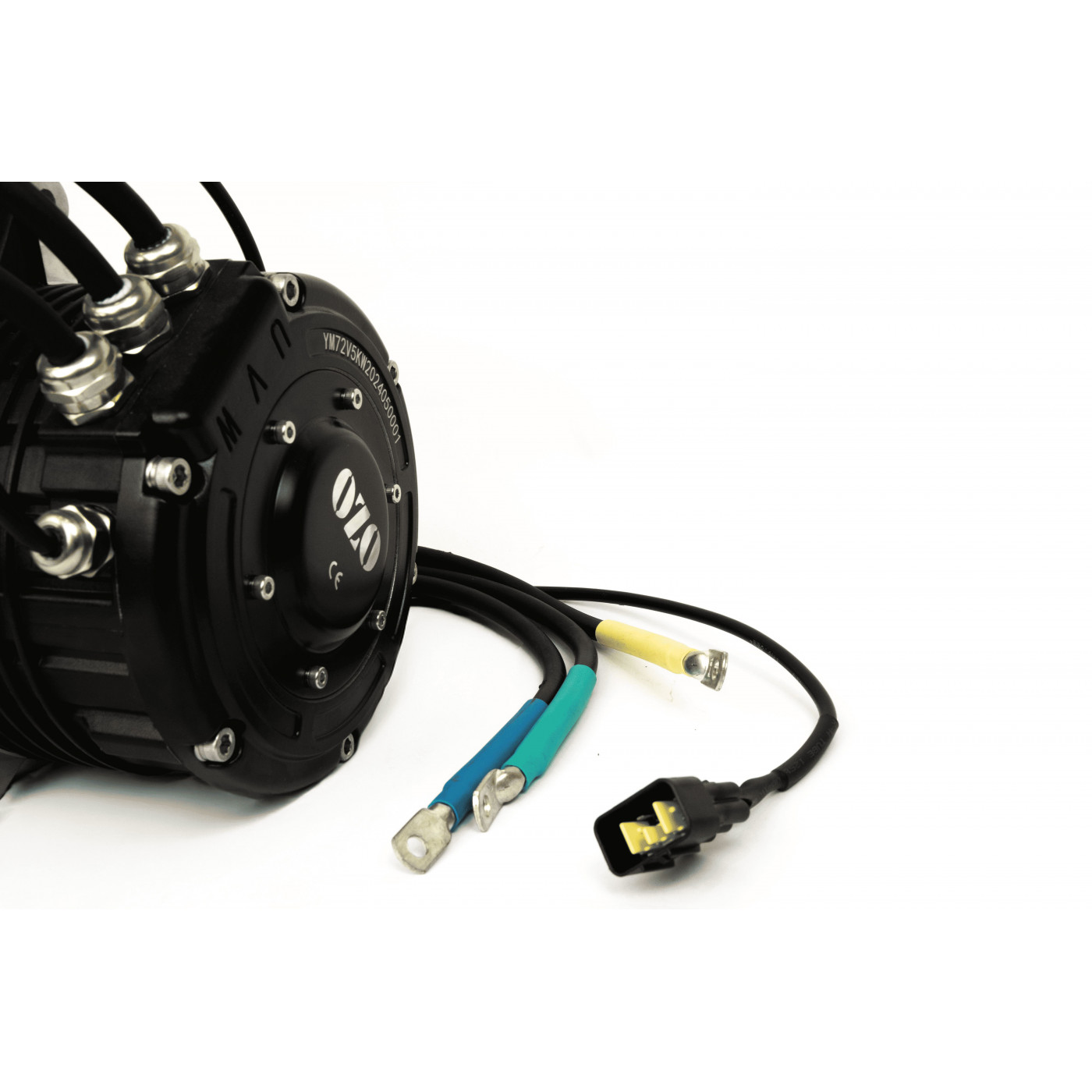

| Longueur des câbles | 700mm |
