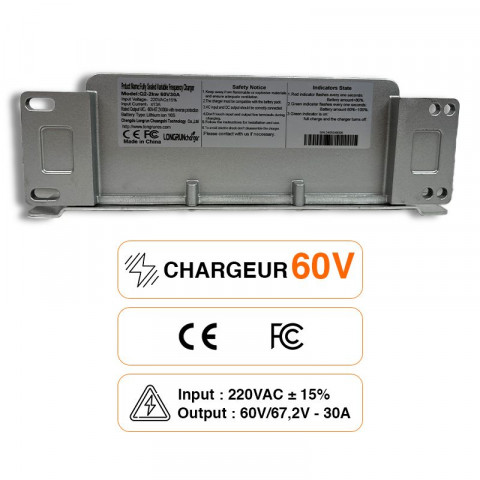

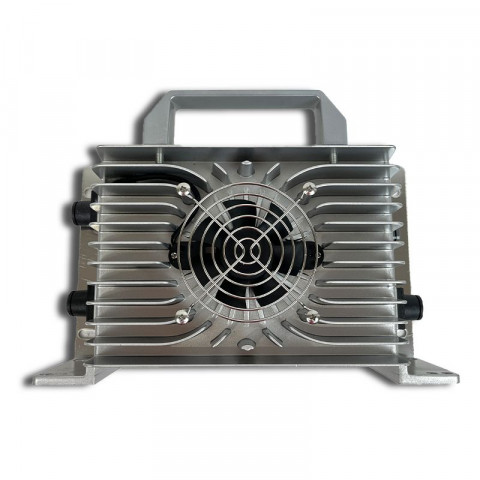

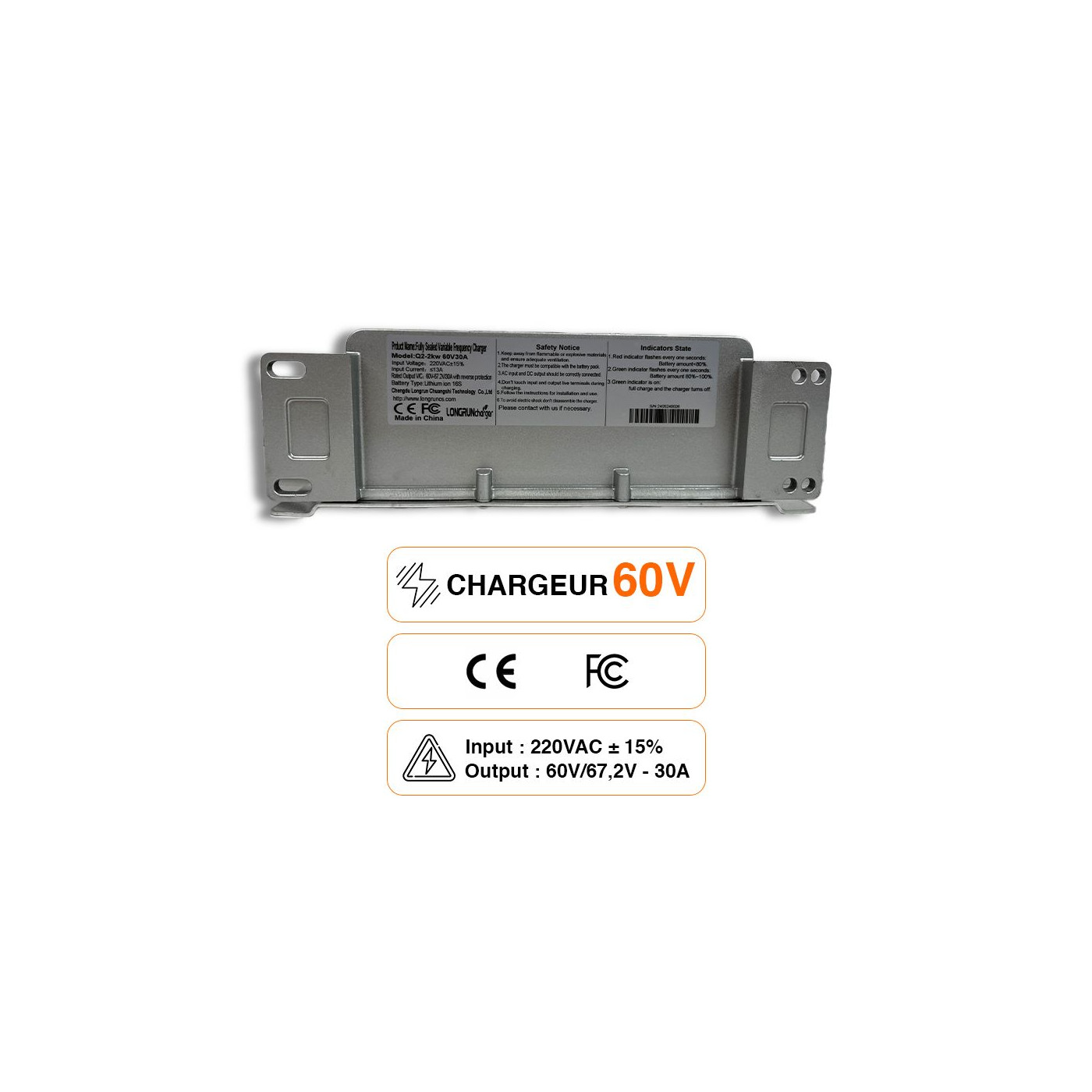

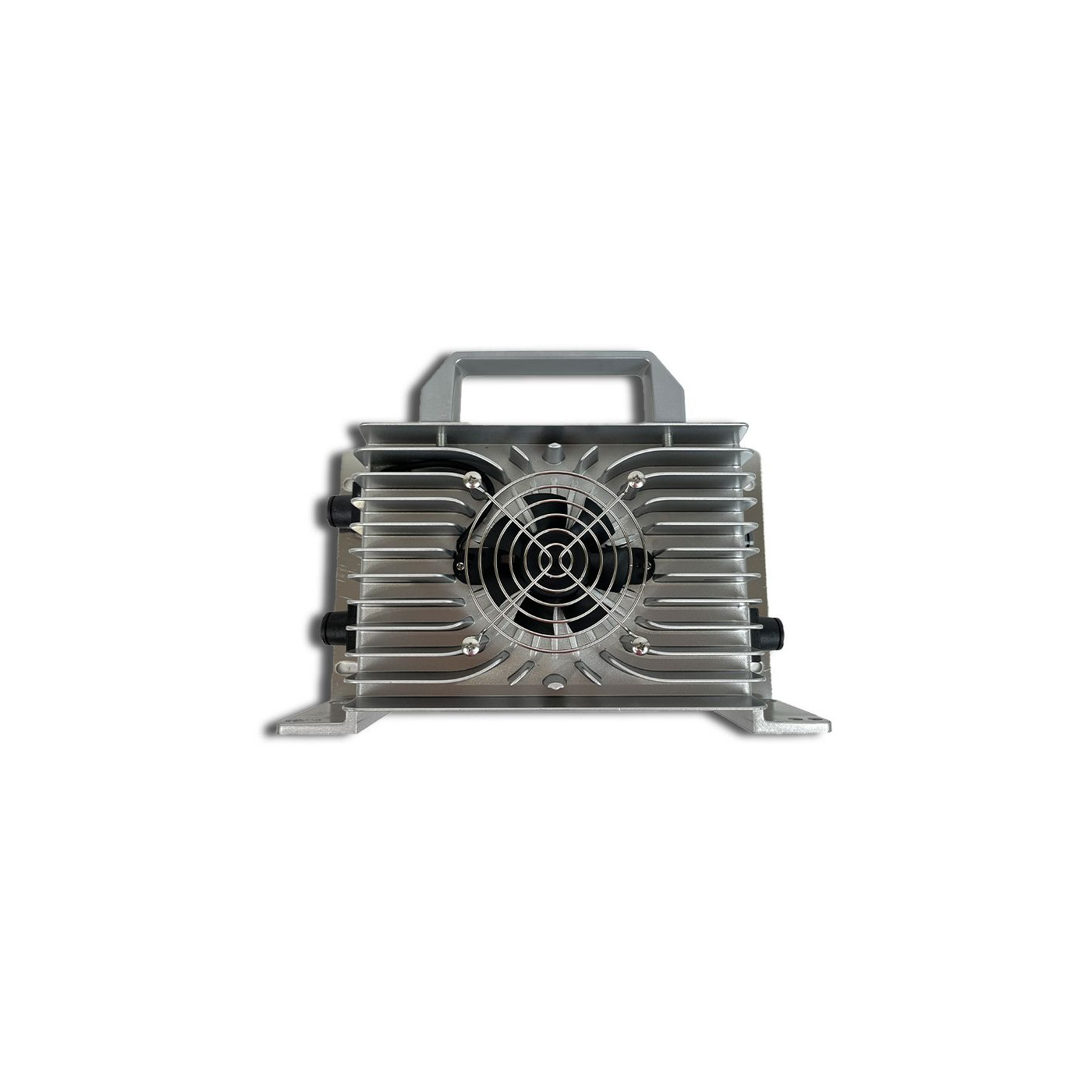

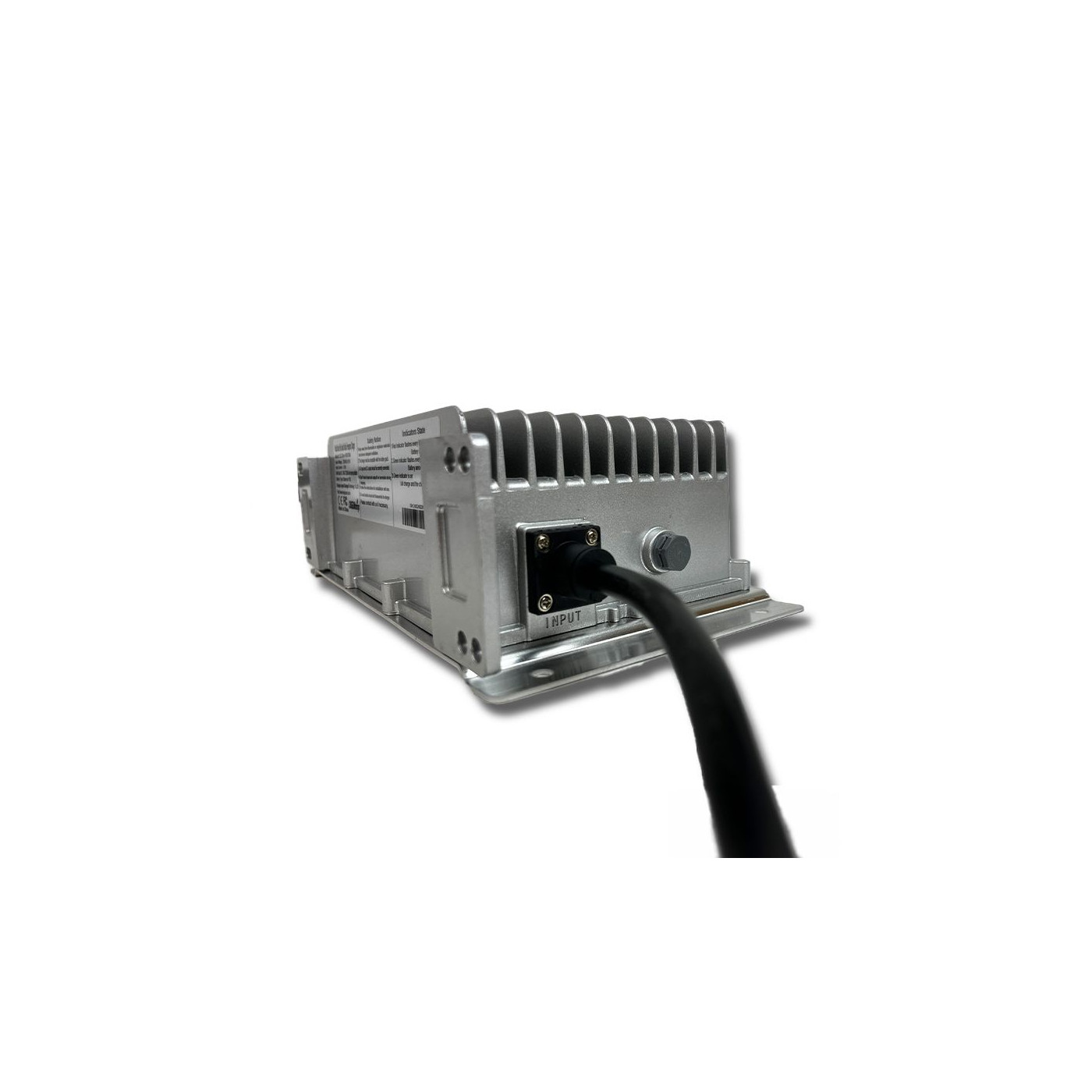

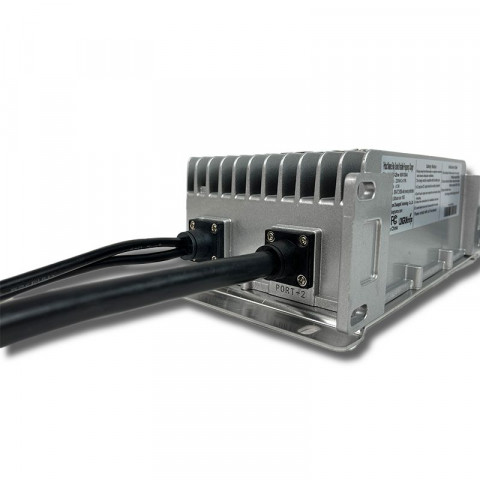

60V 30A waterproof charger for Lithium battery

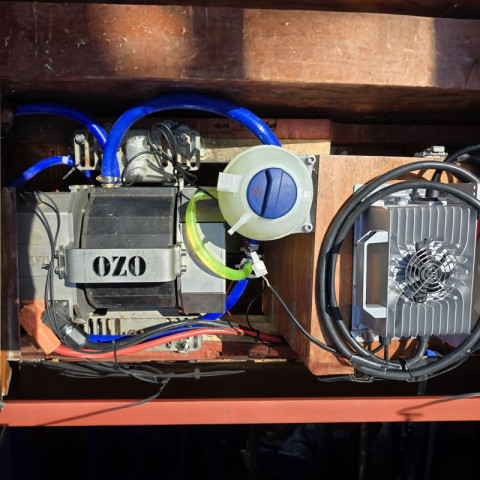

60V 30A Waterproof IP66 Charger for Lithium LiMn or LiFePO4 batteries for electric motorcycles or boats.

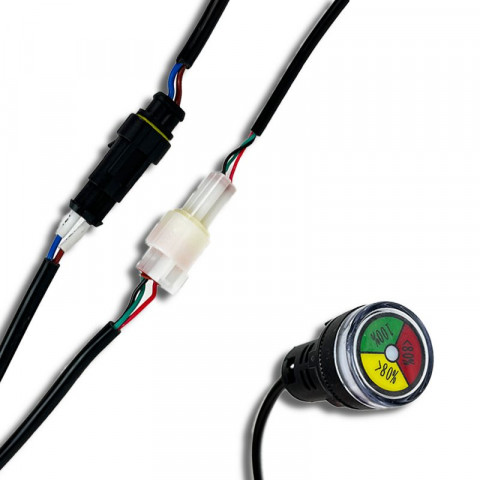

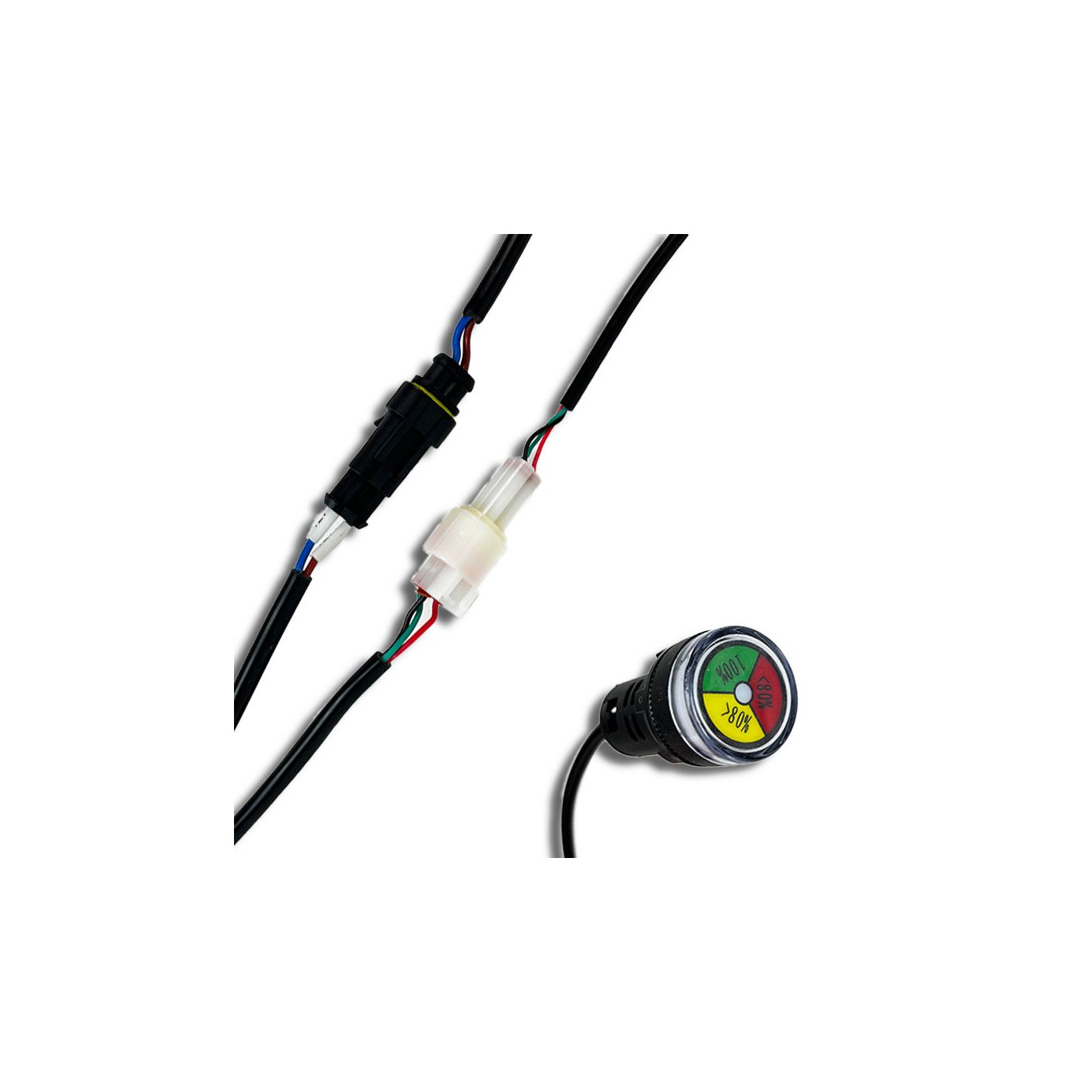

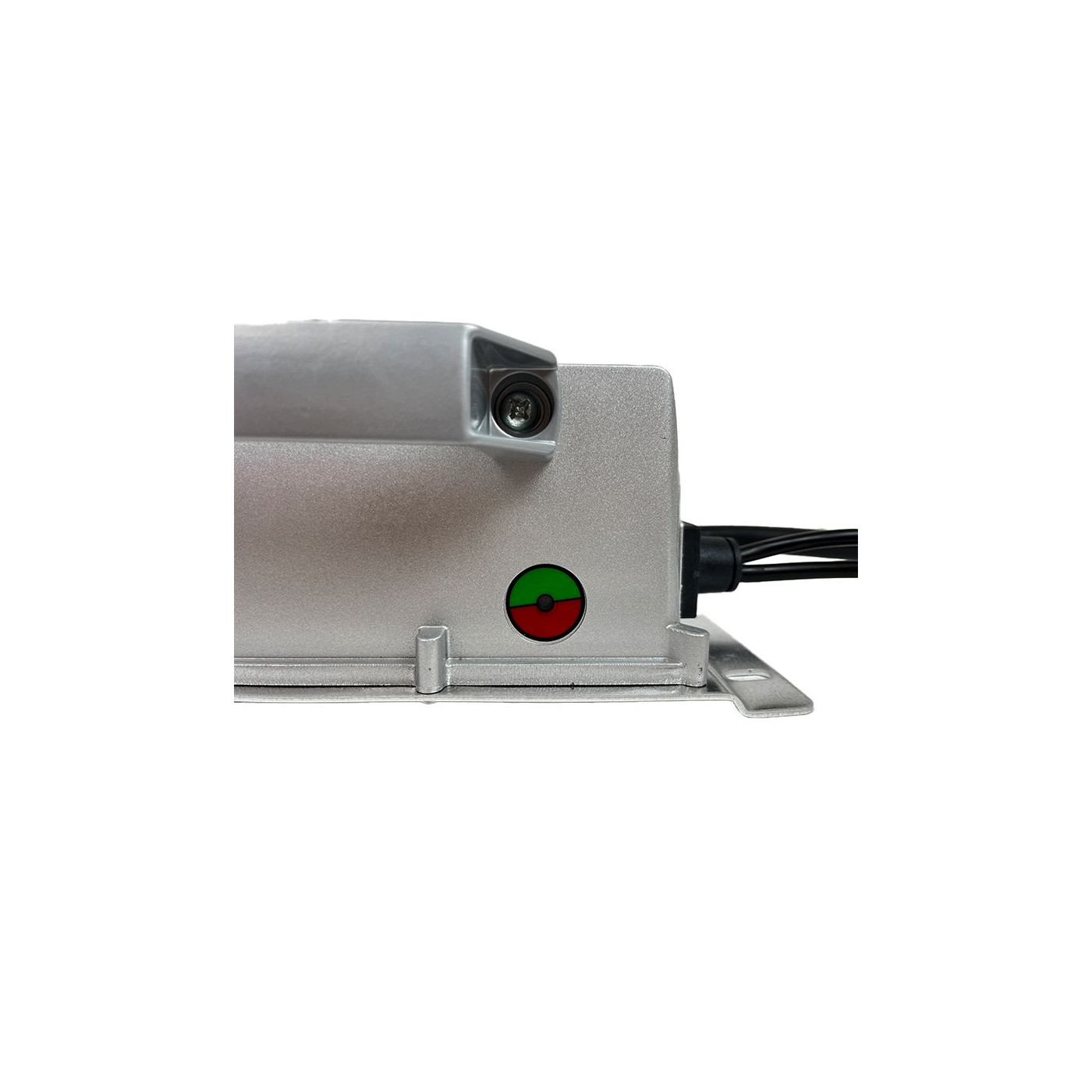

Remote charge gauge allows monitoring of the charging progress.
The charging voltage is 67.2V DC for the LiMn version, which corresponds to a 16S assembly.
The charging voltage is 72V DC for the LiFePO4 version, which corresponds to 20S.

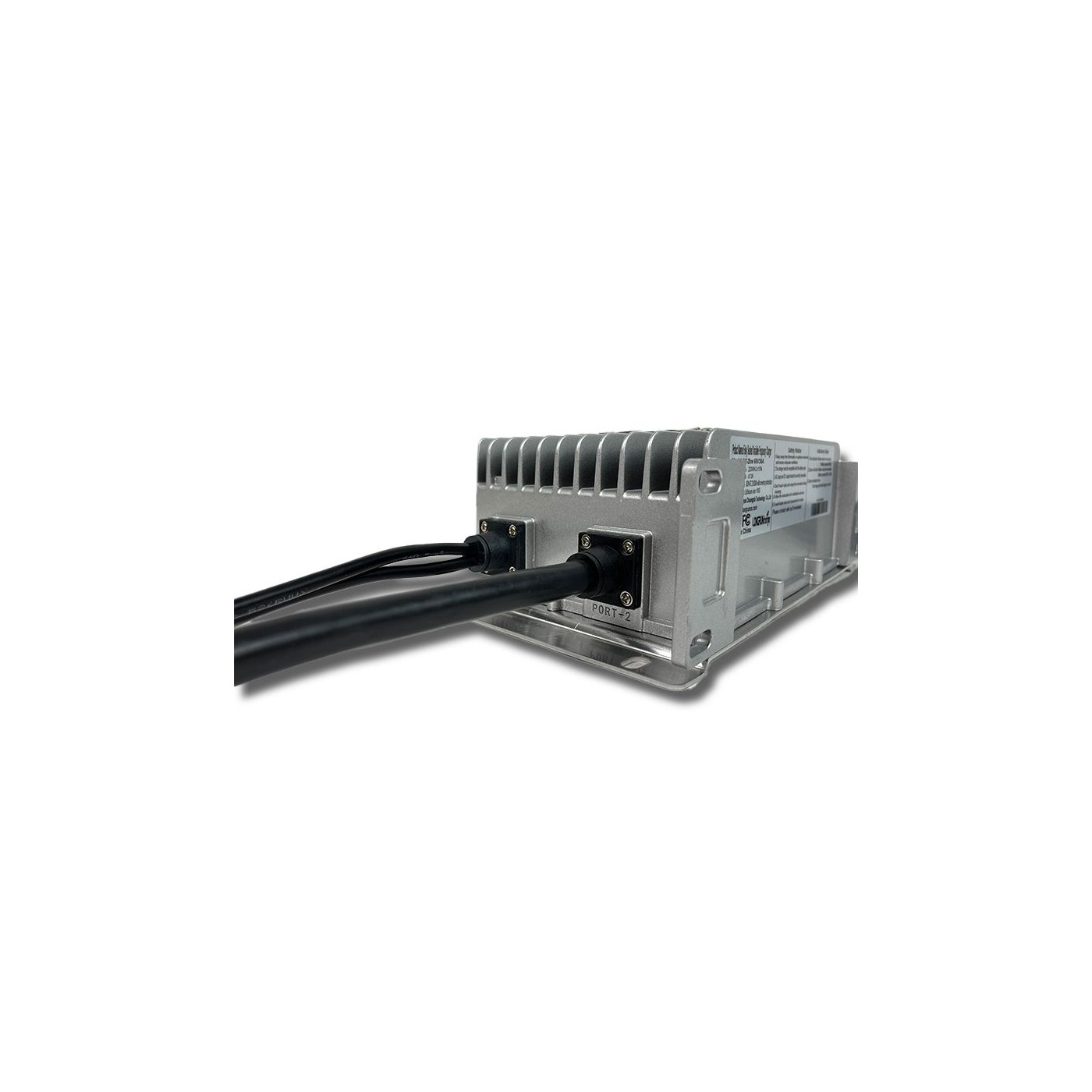

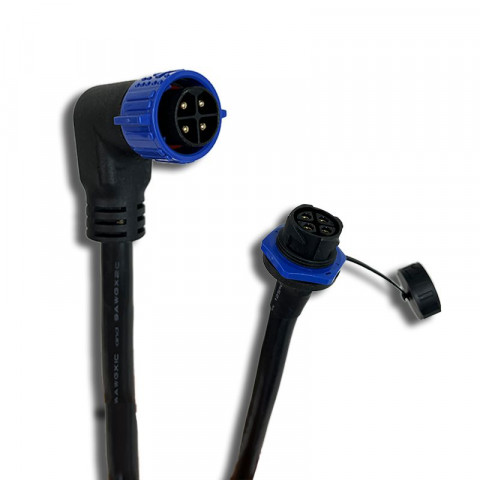

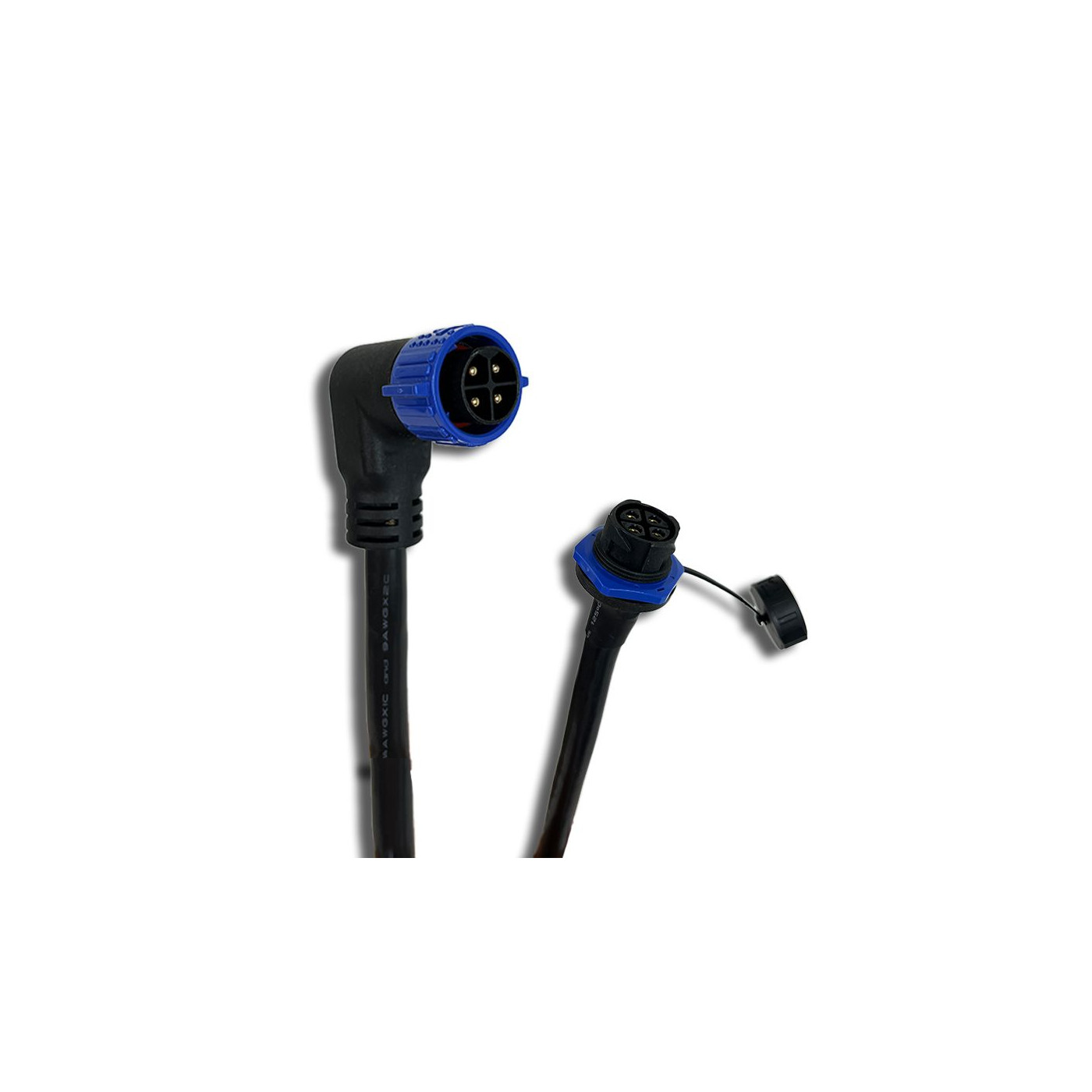

Waterproof charging connector IP67. Waterproof charger IP66.
Note that the female side of the connector is delivered with the charger in "base" format.
€399.00
(tax incl.)
Reference:
009255
You may also like
€199.00
(tax incl.)
Chargeur 24V 10A étanche IP66 pour batterie Lihtium LFP (LiFePO4) ou NMC.
La tension de charge est de 28,8V DC pour une batterie Lithium Fer (LiFePO4) en assemblage 8S.
La tension de charge est de 29,4V DC pour une...
€399.00
(tax incl.)
Waterproof 72V 25A IP66 charger for Lithium LiMn or LiFePO4 batteries for electric motorcycles or boats.
Remote charge gauge allowing you to monitor the charging progress.
The charging voltage is 84V DC for the LiMn...
€399.00
(tax incl.)
Waterproof 48V 30A IP66 charger for Lithium LiMn or LiFePO4 batteries for electric motorcycles or boats.
Remote charge gauge allowing you to monitor the charging progress.
The charging voltage is 54.8V DC for the LiMn...
€149.00
(tax incl.)
Chargeur 24V 10A étanche IP66 pour batterie Lihtium LFP (LiFePO4) ou NMC.
La tension de charge est de 28,8V DC pour une batterie Lithium Fer (LiFePO4) en assemblage 8S.
La tension de charge est de 29,4V DC pour une...
€159.00
(tax incl.)
Fast and Efficient Charging: This LiMn 60V 5A charger offers rapid charging, fully charging in 4 hours, with an 80% charge in just 2 hours.
With a 1200Wh - 20A capacity, this charger enables you to get back on the...
€39.90
(tax incl.)
Charger for Lithium battery of VAE, electric bike and electric scooter equipped with a Lithium 48V LiMn battery.
We offer 3 charging current values, directly influencing the speed of the battery recharge.
The standard...
€30.00
(tax incl.)
36V 2A or 36V 4A charger (charges 2x faster than the 2A version), light and silent for Lithium battery of electric bike, VAE, electric scooter or any 36V LiMn Lithium battery.
The 36V 2A charger is very compact. We...
Waterproof Charger IP66 60V 30A, specially designed for Lithium Ion LiMn or LiFePO4 (LFP) batteries for electric motorcycles or electric boats.
This charger delivers 30A of charging current, meaning it can charge a 30Ah battery in one hour and a 300Ah battery in ten hours.
LiMn CHARGER FEATURES
- Battery Type: Lithium Ion (LiMn, Lipo, NMC)
- Nominal Voltage: 60V DC (16x cells in series)
- Charging Current: 30A

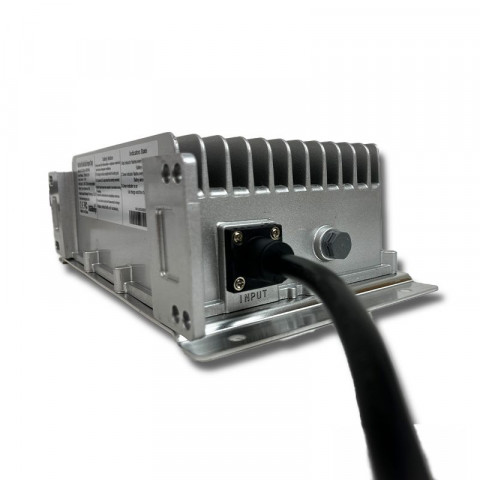

- Input Connector: EU Plug
- Input Cable Length: 3 meters
- Input Voltage: 220V AC
- Output Connector: JNICON 4-pin (PIN 1 and PIN 2)
- Output Voltage: 67.2V DC
- Output Cable Length: 2 meters
- Secondary Output: 12V 3A

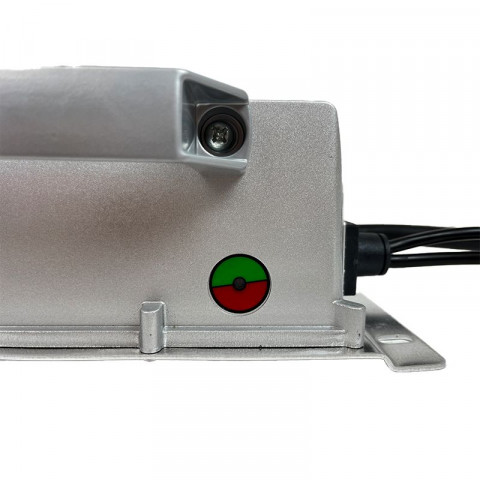

- External Indicator: Yes
- Closed Relay (NC): Yes
- Waterproof Rating: IP66
LiFePO4 CHARGER FEATURES
- Battery Type: Lithium Iron Phosphate (LFP, LiFePO4)
- Nominal Voltage: 60V DC (20x cells in series)
- Charging Current: 30A
- Input Connector: EU Plug
- Input Cable Length: 3 meters
- Input Voltage: 220V AC
- Output Connector: JNICON 4-pin (PIN 1 and PIN 2)
- Output Voltage: 72V DC
- Output Cable Length: 2 meters
- Secondary Output: 12V 3A
- External Indicator: Yes
- Closed Relay (NC): Yes
- Waterproof Rating: IP66
CHARGING PORT
009255
Data sheet
- Guarantee
- 2 ans
- Dimensions
- 80 x 200 x 90 mm
- Mass
- 3,762
- Waterproof grade
- IP66
- Cable lenght
- 1m (LiMn) 2m (LiFePO4)
- tension nominale
- 220V
- Charging Plug
- Jnicon 4 PINS Male
- NC Relay
- YES
- 12V Output
- YES
