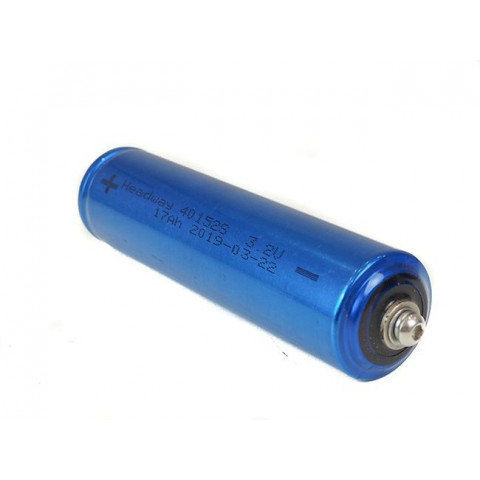

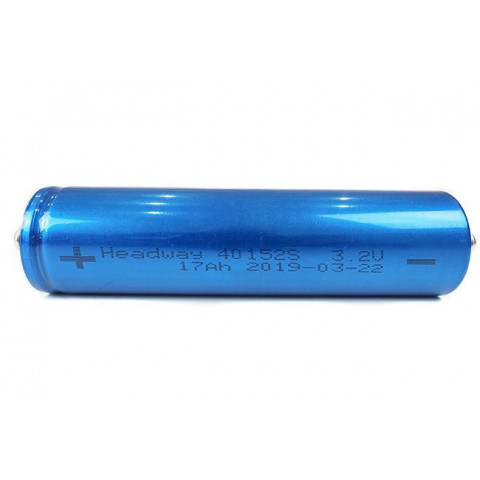

Headway LiFePO4 cell 40152S 17 Ah 3,2V

Headway cylindric cell 40152S LiFeP04 Lithium Iron cells

Capacity : 17Ah

Dimensions => Diameter : 40 mm ; Length : 152 mm (165mm incl Terminals)

Weight : 485g

Nominal voltage = 3,2V

Max continuous current = 34A

recommanded discharge current = 17A

Max pulse discharge current = 100A

Recommanded charge current = 8,5A

Max charge current = 17A

Internal resistance = 4mOhm

Cycle life = 2000 cycles

Min voltage = 2.0V

Max voltage = 3,65V

Self discharge rate = 2% par mois
