Bottle battery 12V 7Ah 101Wh for industrial

BAT-BOUT127

This 12V 7Ah bottle format Lithium battery is supplied with a support allowing it to be installed on any type of trolley, frame, chassis. Its metal packaging makes it solid and robust for daily and easy handling thanks to its grip handle. You can easily move it with a pair of handling glove.

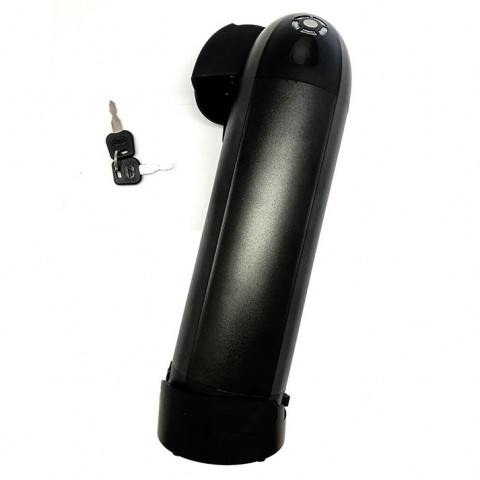

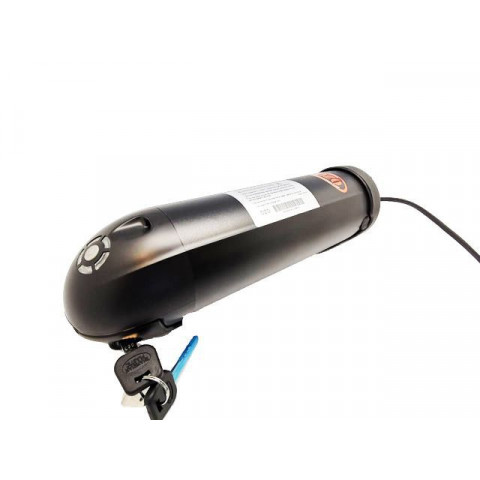

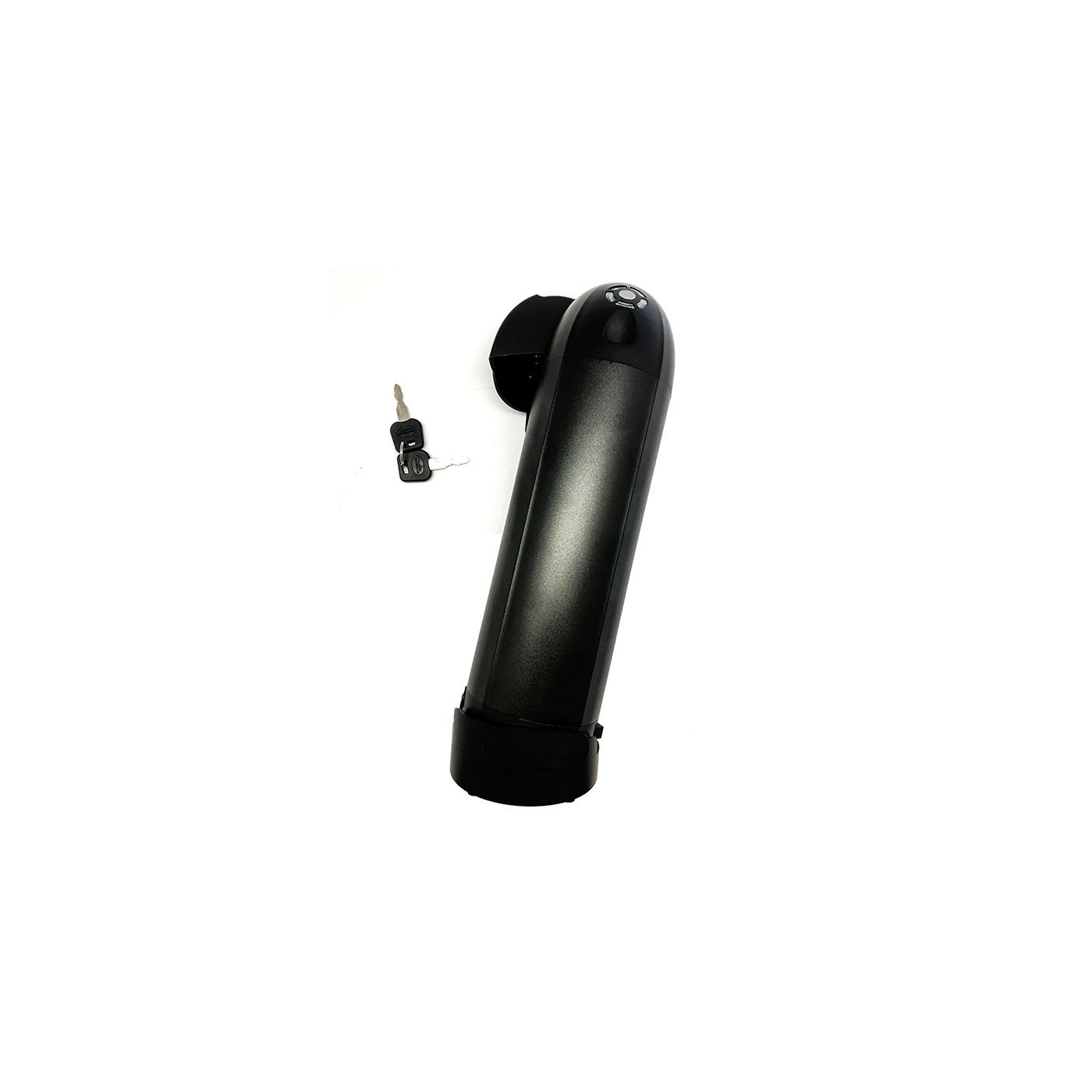

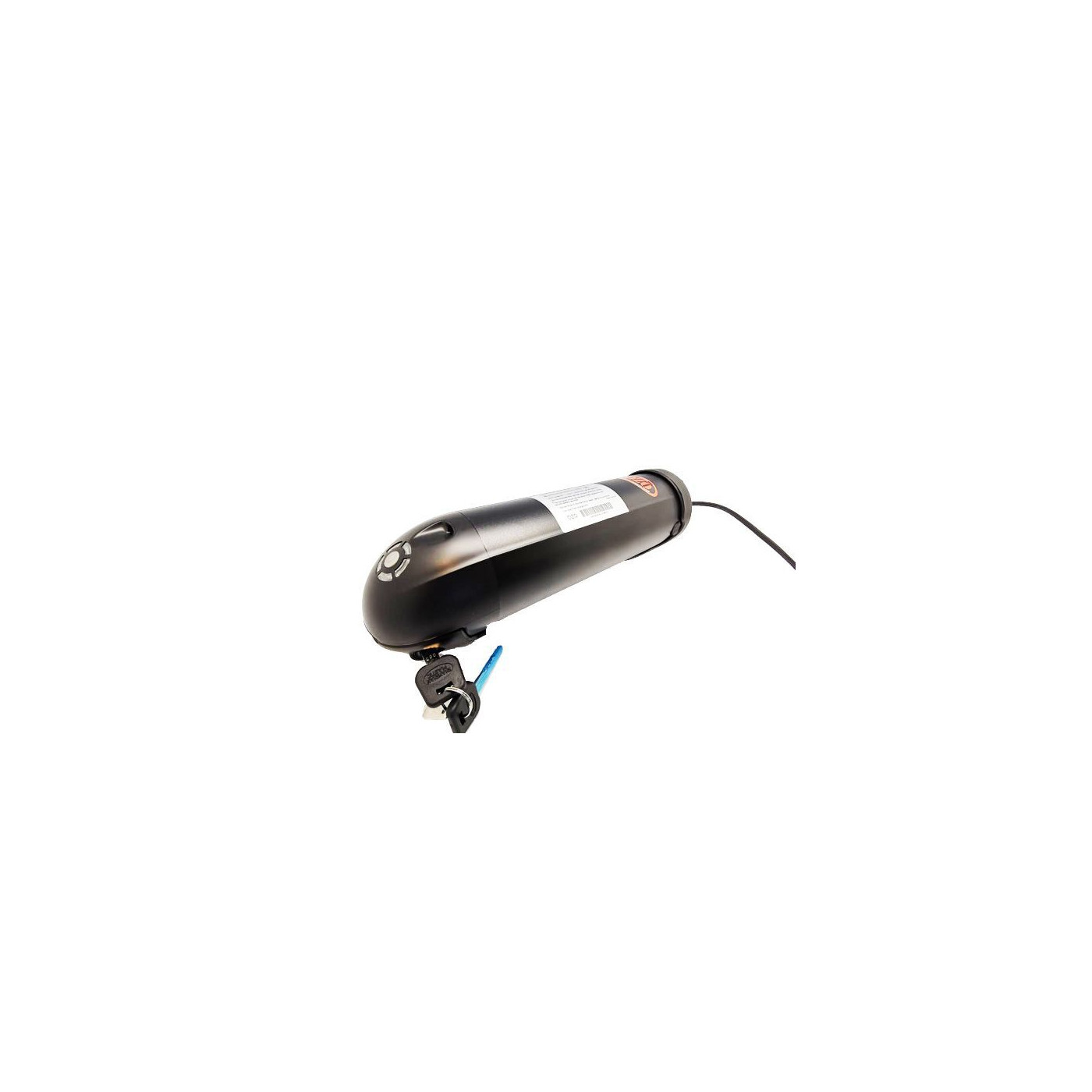

Its key lock prevents theft and loss.

More details

239,00 €

Free delivery

Expert after-sales service

Warranty 2 years

Secure payment : by CB, check or transfer

Presentation

Botle Lithium Battery 12V 7Ah 101Wh

Dimension: 325 * 96mm without support / 330 * 110mm with support

Mass : 1.4 kg

The 12V 7Ah 101Wh OZO bottle battery is manufactured in our battery laboratory located in FRANCE, if you want a longer autonomy, a tailor-made model, do not hesitate to contact us on batteries@ozo-electric.com.

This battery, already acclaimed by major manufacturers, will integrate perfectly with your machine, lifting table, logistics trolley, handling, your stand-alone installation, independent weather station, remote projector, portable electric camping device.

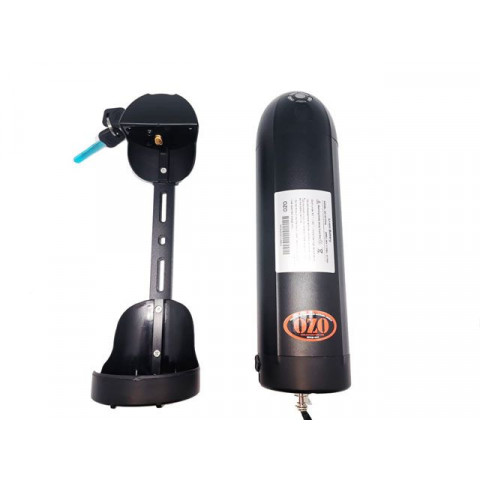

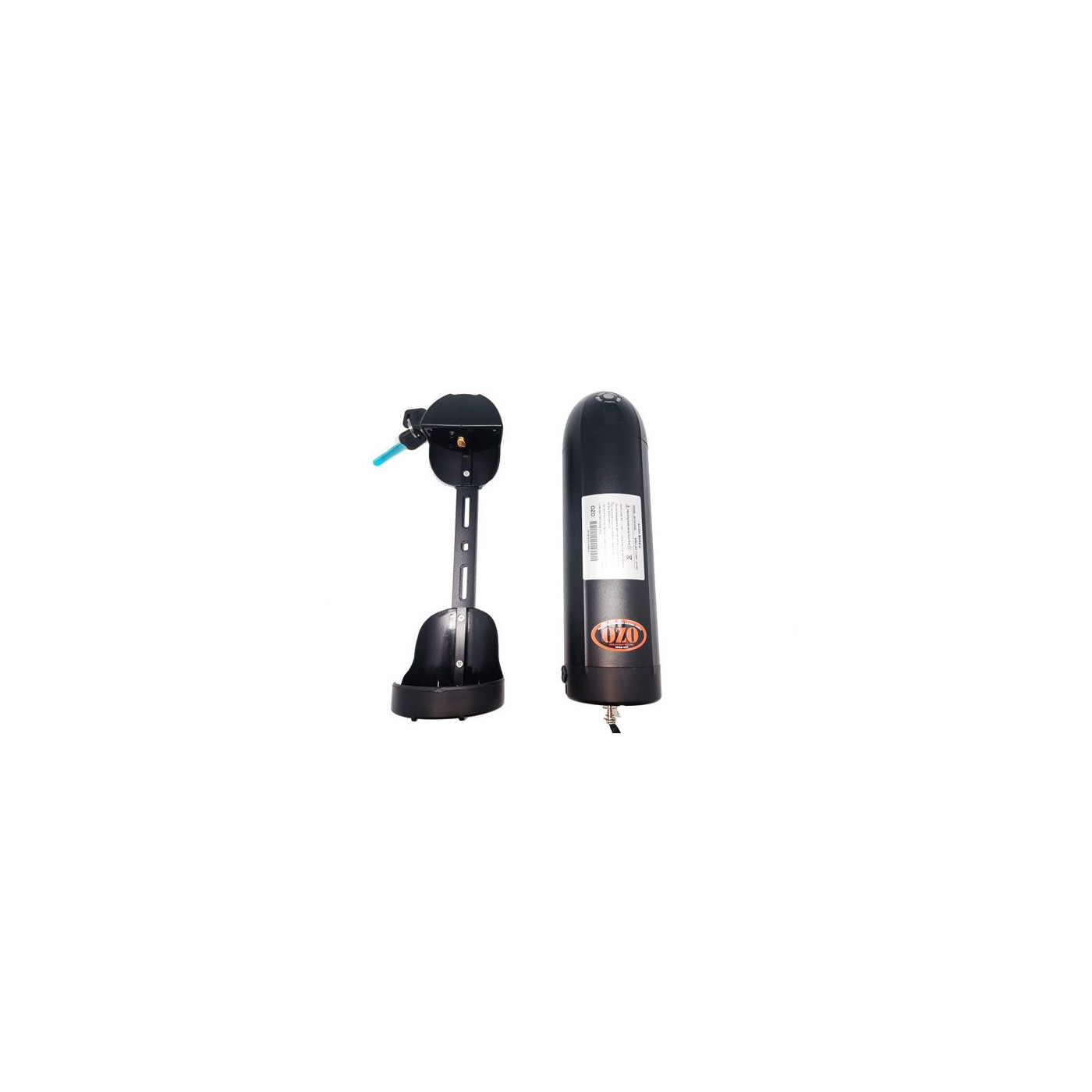

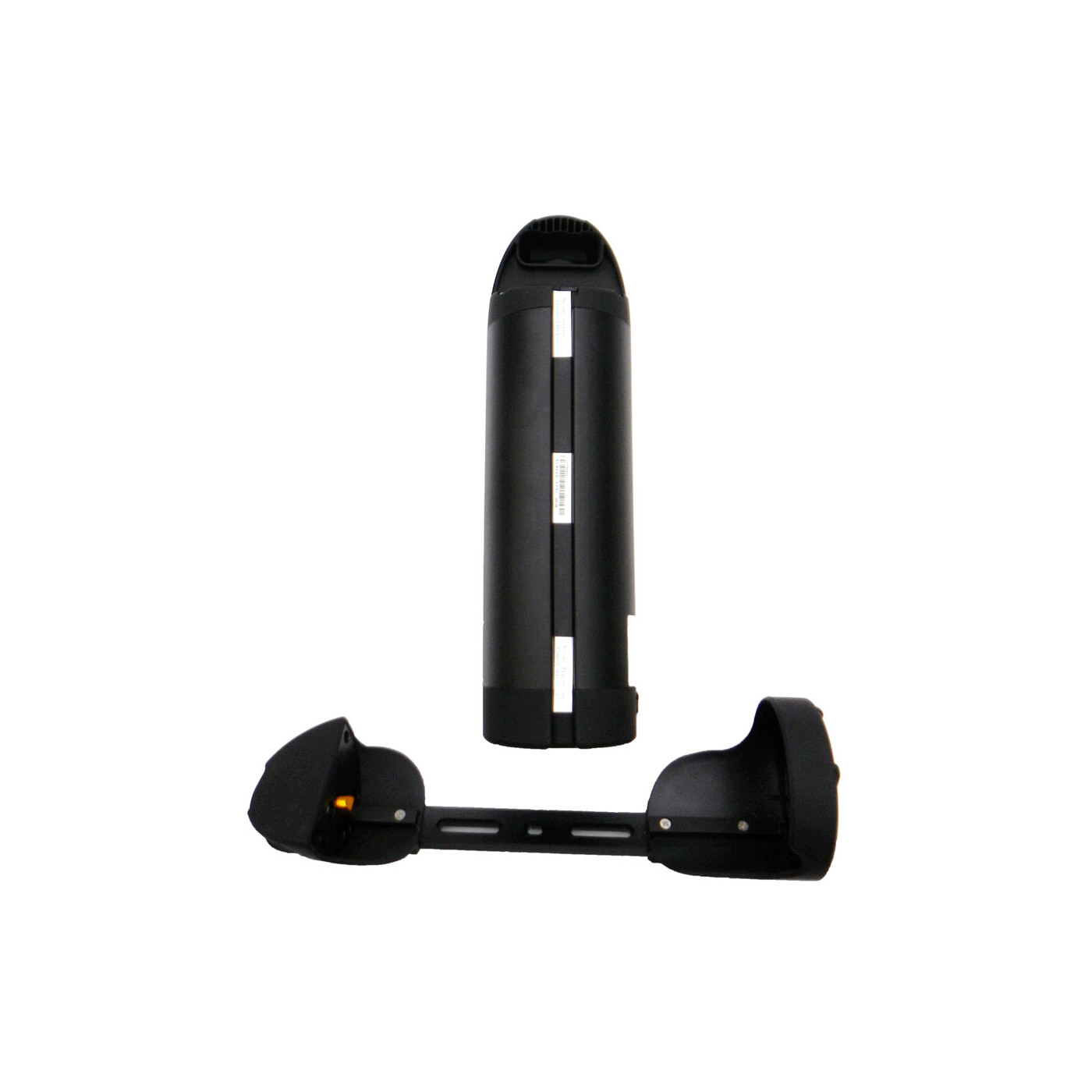

The battery is delivered with a support allowing to install it instead of the bottle cage of your bike. You can then lock the battery on the holder with a key.

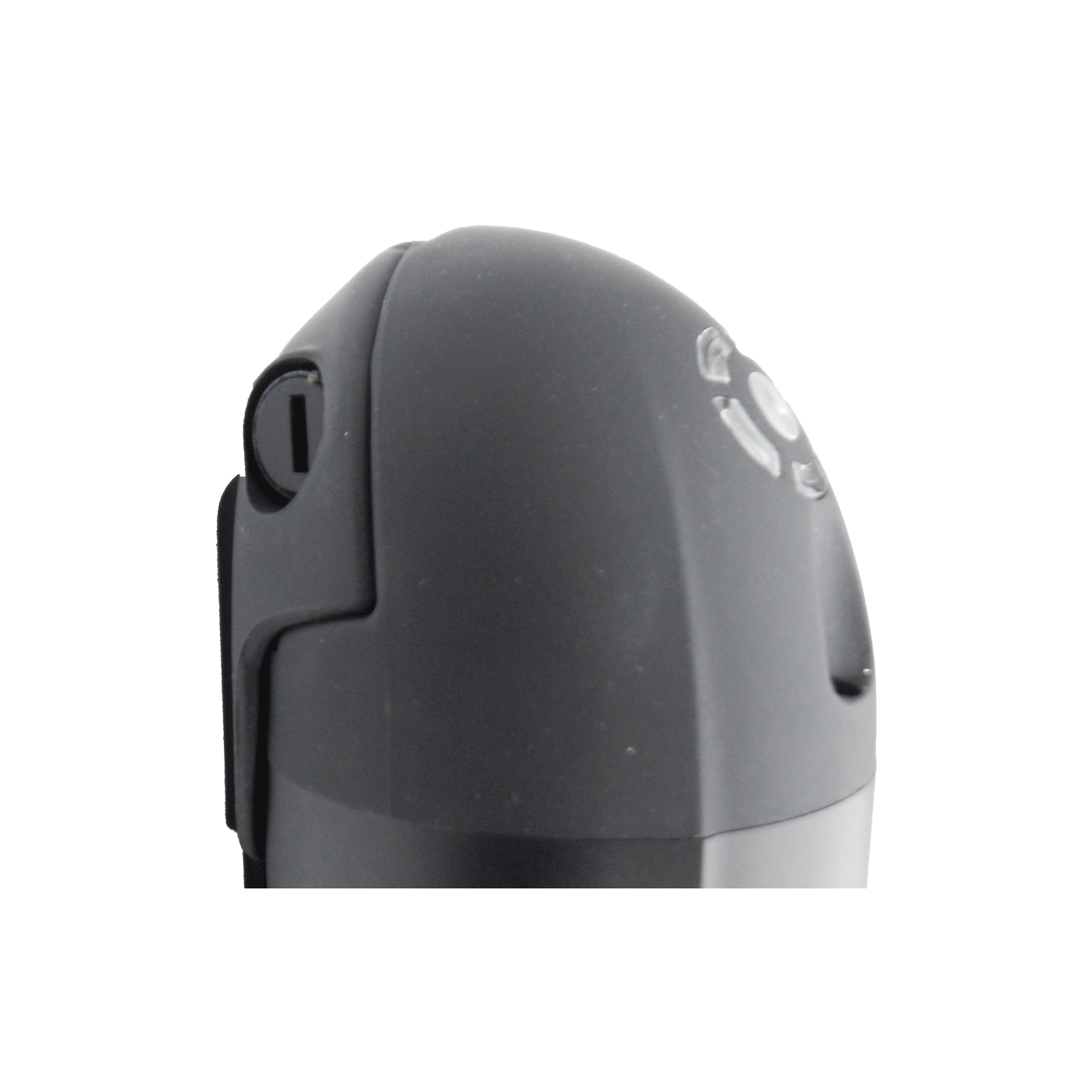

The head of the battery includes an Leds autonomy gauge.

The cylinder is aluminum and the ends are plastic. The weight of the battery is 1.4kg.

The charging time is 3h 30min with a 12V 2A charger.

This battery is equipped with a BMS (Battery management system) which regulates charging and discharging in order to preserve its lifespan.

The battery is assembled with the best cells of big brands like LG and Sanyo.

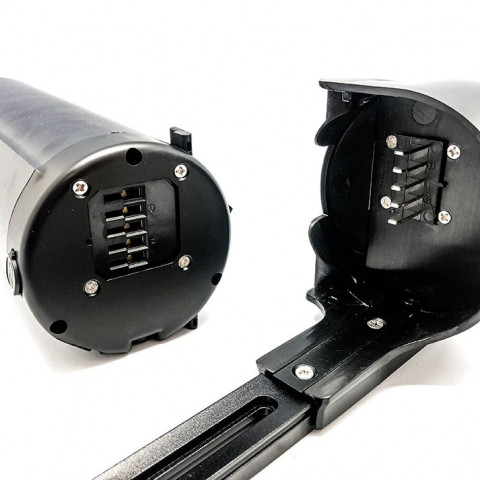

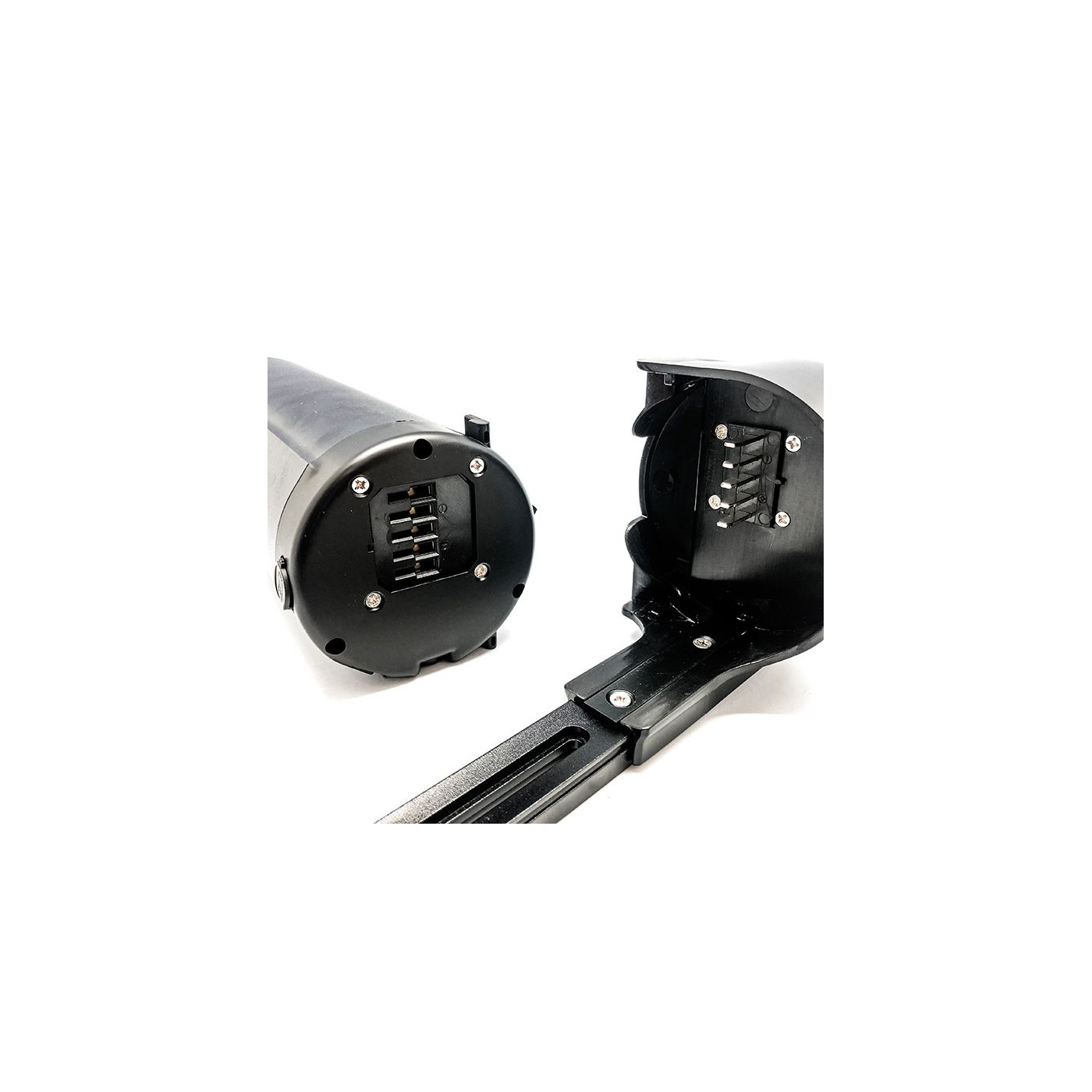

Supplied with support, locking key and cable for connection to the controller with Anderson connector for power and Jack for load.

The power cable has a length of 400mm. If you want a different length please contact us on batteries@ozo-electric.com.

Details

Fonctions batterie bouteille ozo

1- charge

2- Power

3- ON/OFF switch

4- support

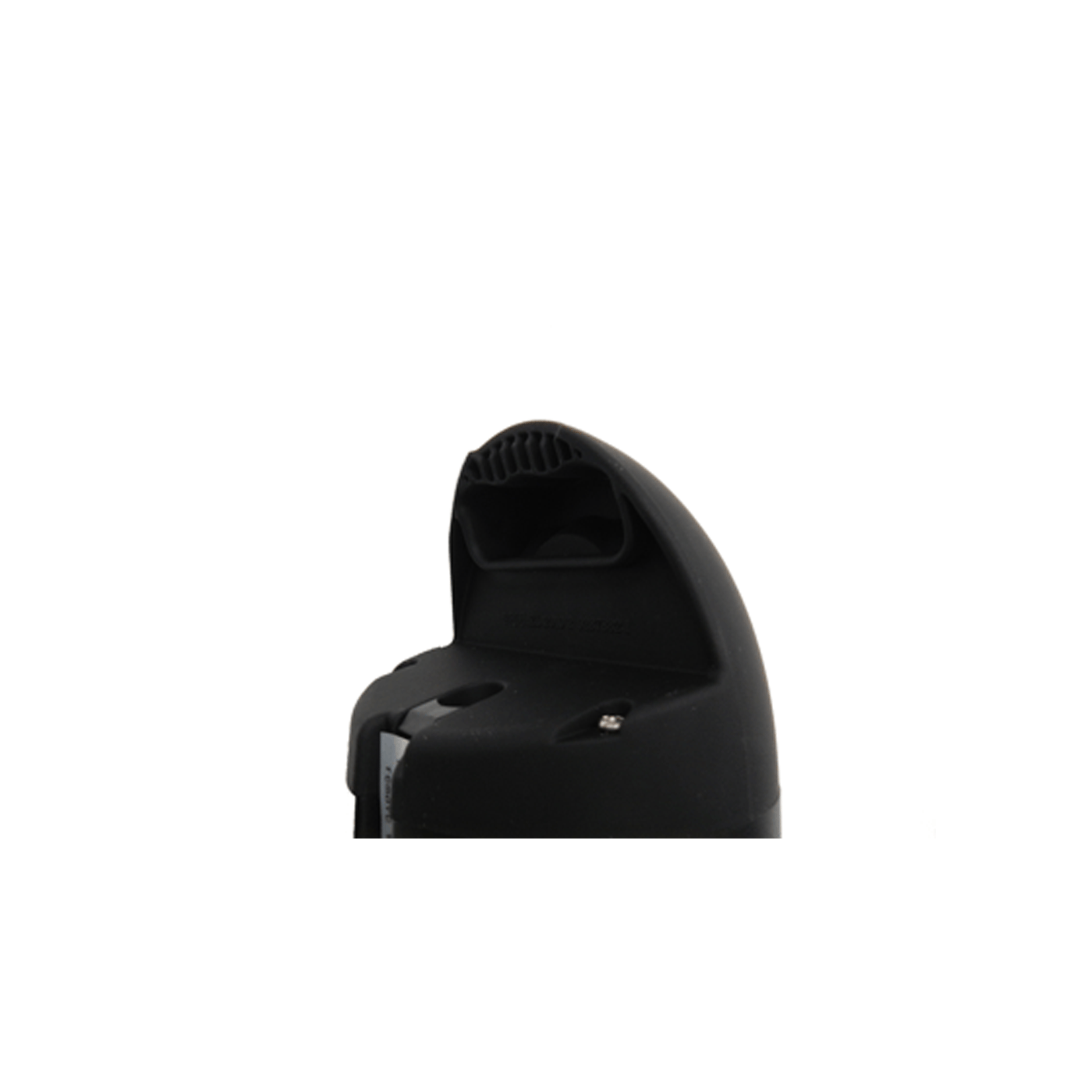

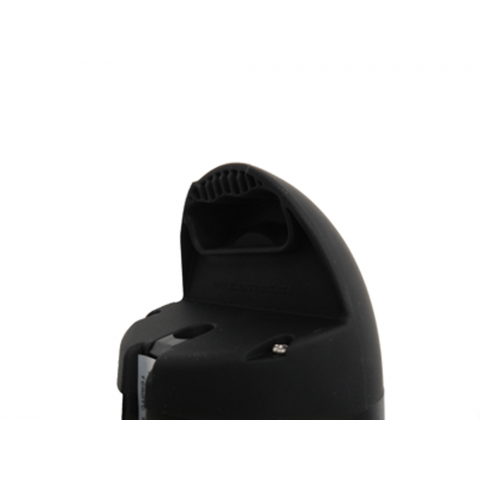

5- Carry handle

6- LED gauge

Dimension

(pattern to print pdf file in A3 format to have the battery at 1: 1 scale, actual size)

Dimension without support

Dimension with support

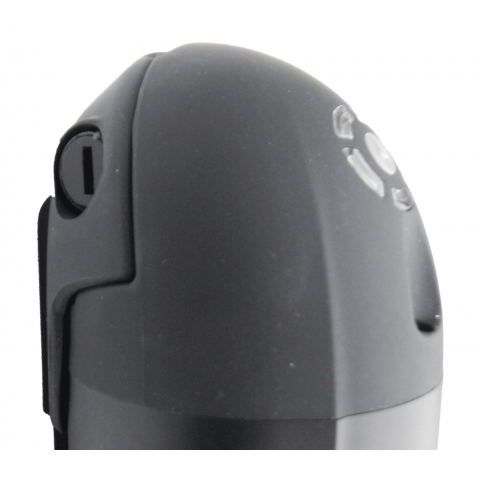

Leds gauge

jauge d'autonomie batterie ozo 100 100

100%

Jauge d'autonomie batterie ozo 70 100

70%

Jauge autonomie batterie 45 ozo

45%

Jauge autonomie batterie 20

20%

Jauge d'autonomie batterie 5

5%

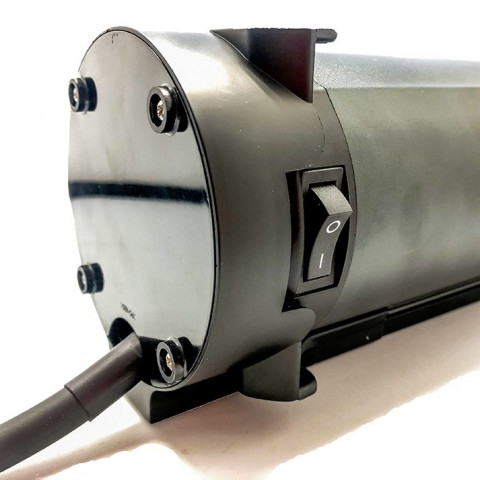

On/Off switch

On off batterie bouteille

Power connector

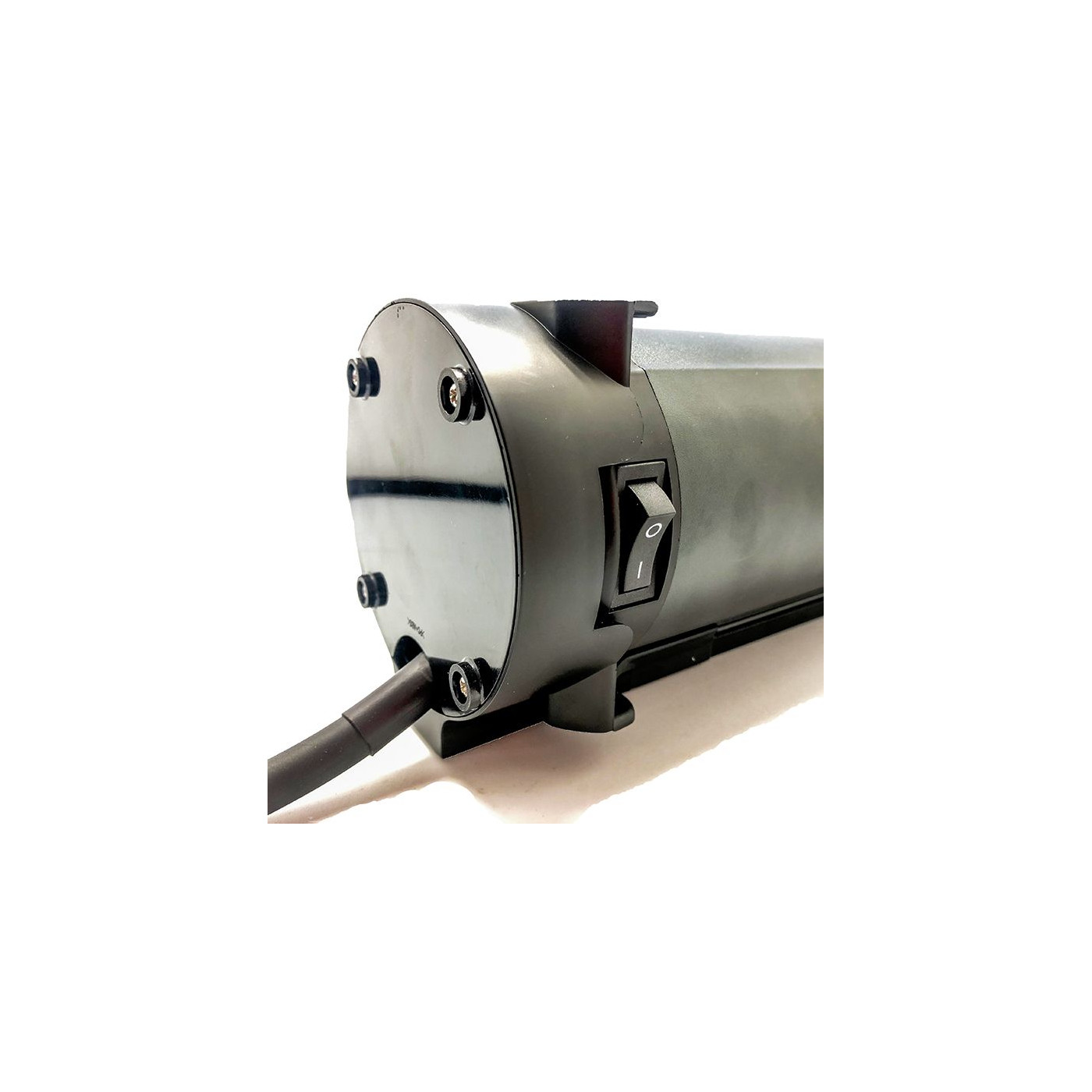

On/off switch and power cable with Anderson connector.

Concentrique puissance batterie bouteille

Charge connection

Jack DC 2.1 directly on battery tube

Prise de charge batterie bouteille

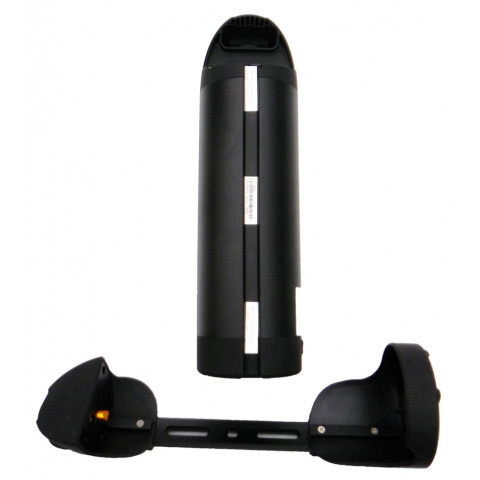

Support

Data sheet

Garantie2 years
Tension nominale1V
Dimensionswithout support : 325*96mm / with support : 330*110mm
Capacité7Ah
Technologie Li-Mn
Plage de température pour la décharge-5°C à 45°C
Masse1,8 kg
Intensité max de décharge20A
Intensité nominale de décharge15A
Plage de température pour le stockage10°C à 30°C
Jauge batterie intégrée????
intensité de charge 2A
Plage de température pour la charge0°C à 45°C
Connecteur de puissanceAnderson
Support de fixationYes
poigné de portageYes
