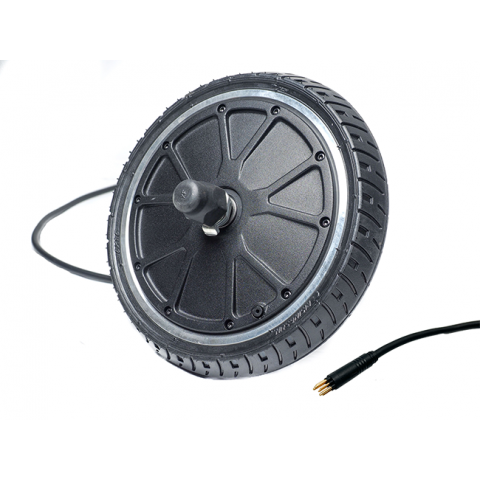

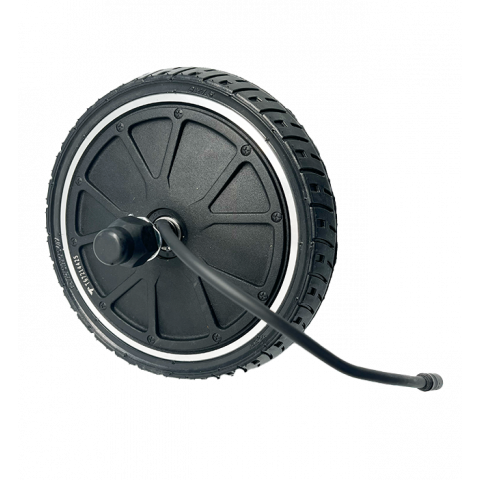

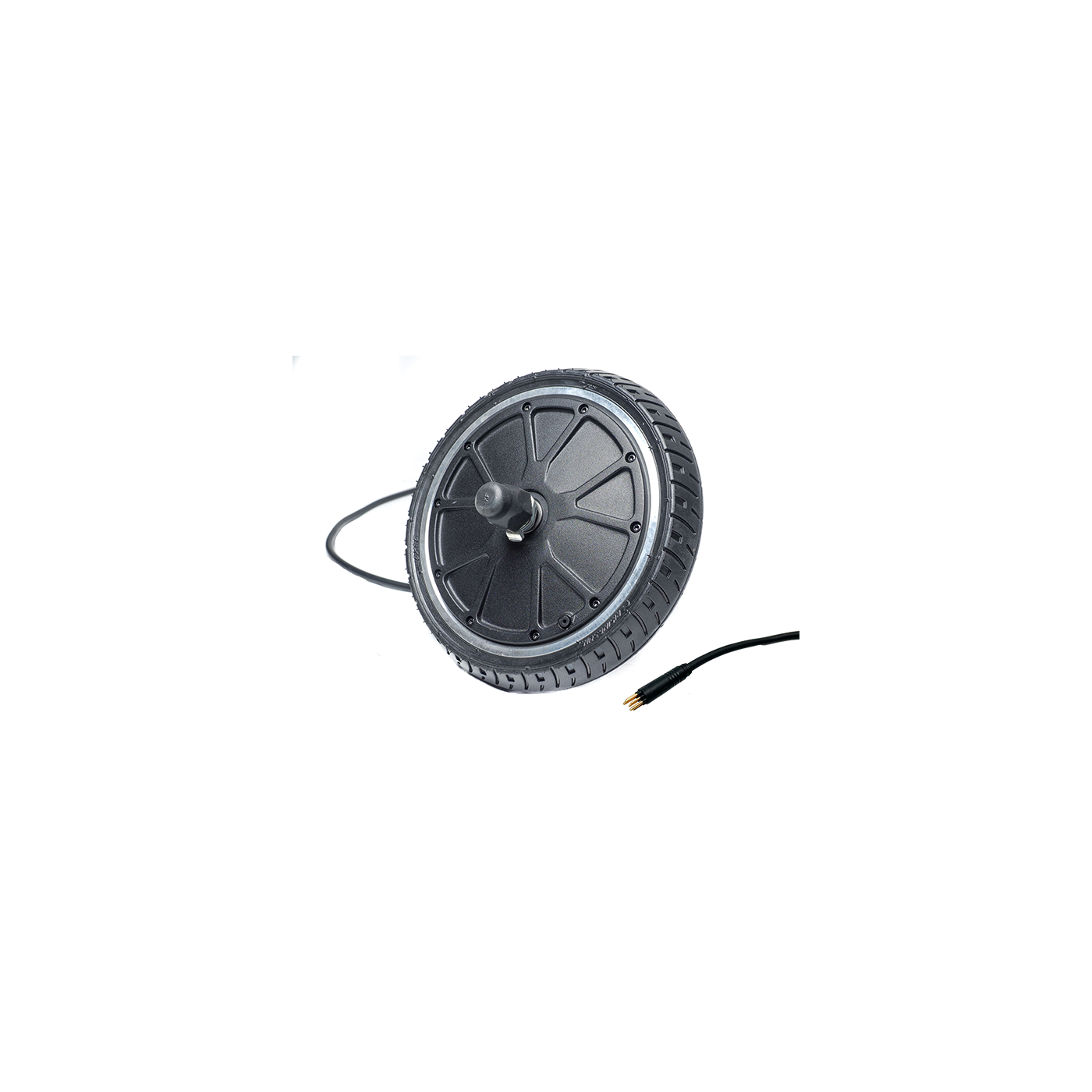

Electric motor 200mm scooter 8'' 250W 350W

This 200mm diameter motor (8'') is ideal for electrifying your classic scooter or any other cart or stroller equipped with 200mm wheels.

Center distance = 45mm

Power supply possible in 24V 36V and 48V.

Comes with a puncture-proof solid tire that requires no inflation.

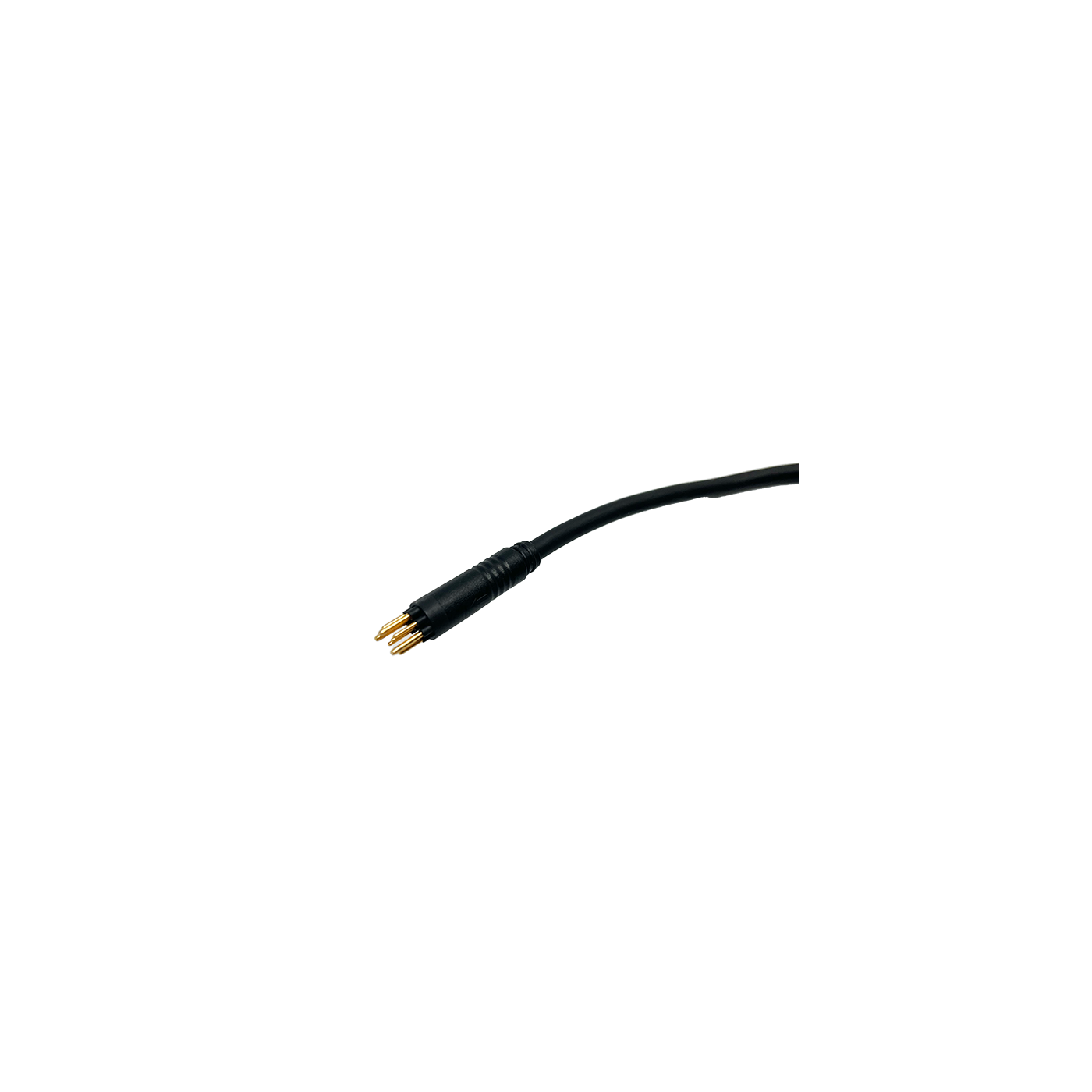

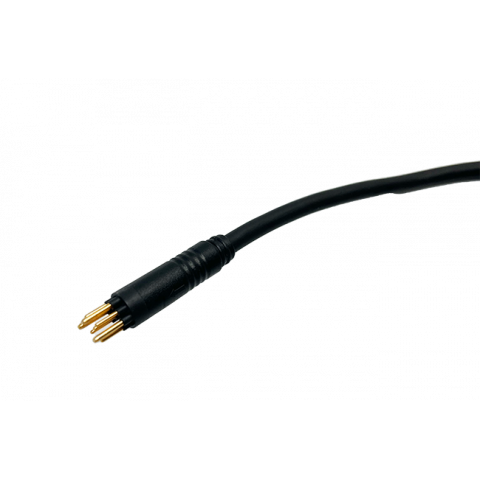

20cm cable length

Mass 2.2 kg

Read moreShow less
€119.00 (tax incl.)
In stock 19 Items
Reference:
001001
You may also like
€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
€109.00 (tax incl.)
LiFeP04 LFP 3,2V 314Ah grade A cell Capacity : 314Ah Nominal voltage : 3.2V Life : 8000 cycles M8 terminals Dimensions with terminals : 222x174x72mm Nut torque : 9N.m weight = 5,7kg
€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
€97.40 (tax incl.)
Optimized mapping by OZO. The Original Bafang mapping is focused on energy economy and doesn't pull the maximum power of this wonderful motor. Over time, OZO has developed an optimized mapping for Bafang BBSHD motor...
Product Details
001001

Data sheet

Guarantee
2 ans
Intensité max
20A
Maximum speed
25Km/h
Masse de la roue motorisée
2,2
Type de frein
E-abs ou disque
Technologie
Brushless direct drive
Rendement
85%
Régénération au freinage
OUI
Permissible voltages
12V, 24V et 36V
Entraxe fourche min/max
45mm
Motor Kv (RPM / V)
27 Tr/min/Volt
Motor power range
250W / 350W
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Nombre de paires de pôles
15
Codeur
NON
Capteurs Hall
OUI
