Julet Z509 5 pins green female to female adapter for display
Chargement des images...
Displays selection for wheel motor 250W to 750W
OZO offers 3x different display models. The display is the screen on the ebikes handlebar. It shows all electrical and run datas such as battery state of charge, speed, distance and allows to select the assist power between 9 different levels.
€79.00
(tax incl.)
Reference:
009461
You may also like
€79.00
(tax incl.)
OZO offers you to choose from three models of displays with Bafang protocol UART 5.2 and 5.8 with cylindric green 5 pins female connector.
Compatible with all bbs series central motor from Bafang and some OZO hub...
OZO displays
 |
 |
 |
|
|
Name |
Display vertical colors |
Display Compact colors |
Display vertical black&white |
| Colors |
Color |
Color |
Black and white |
| Screen dimensions | 3,2 inchs | 2,5 inchs | 2,8 inchs |
| Position on the handlebars | Center | Left side | Center |
| Modes elector | Deportated | Integrated | Deportated |
| USB port integrated | Yes | No | No |
|
Back lighting |
Yes | Yes | Yes |
|
Power display |
Yes | Yes | No |
| Autonomy display | Yes | Yes | Yes |

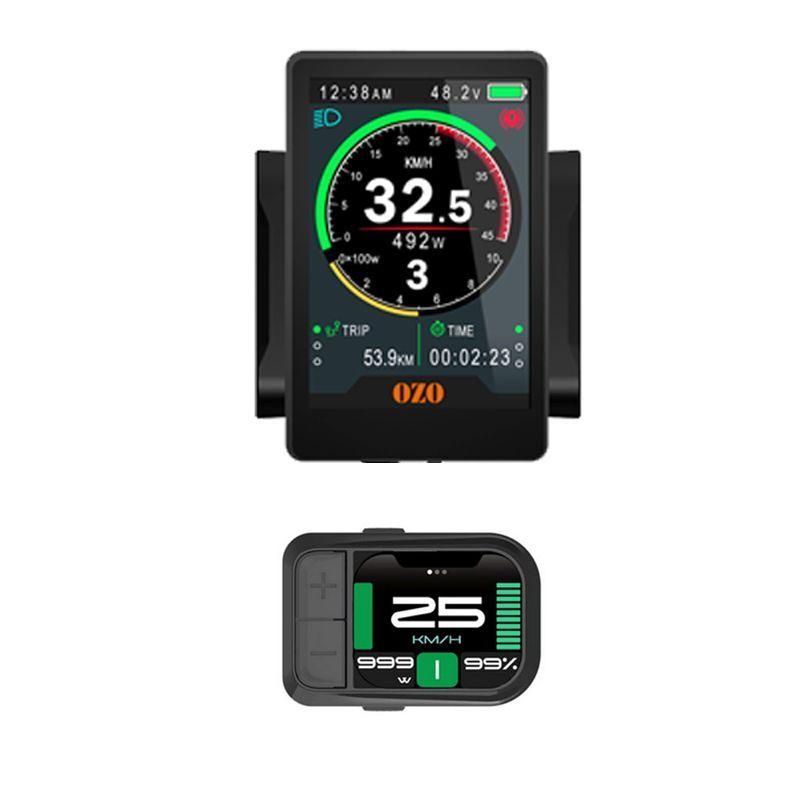

Our displays models
The vertical colors display :
|
|
 |
|
A : Hour B : Battery voltage or percentage of remaining energy C : Daily or total distance D : Instantaneous power E : Speed F : Assistance level selected (among 9 levels) G: Travel time H: USB socket to charge your phone |
A : Selection of assisstance level B : On/Off button |
Note: the vertical color display is the only display that will allow you to configure the power distribution yourself on each of the 9 assistance modes.

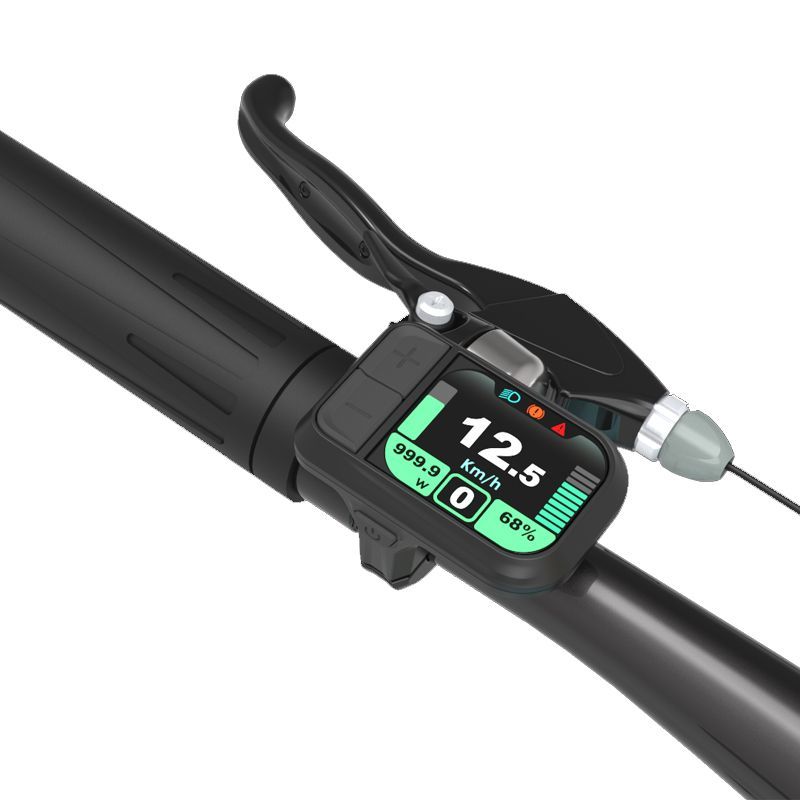

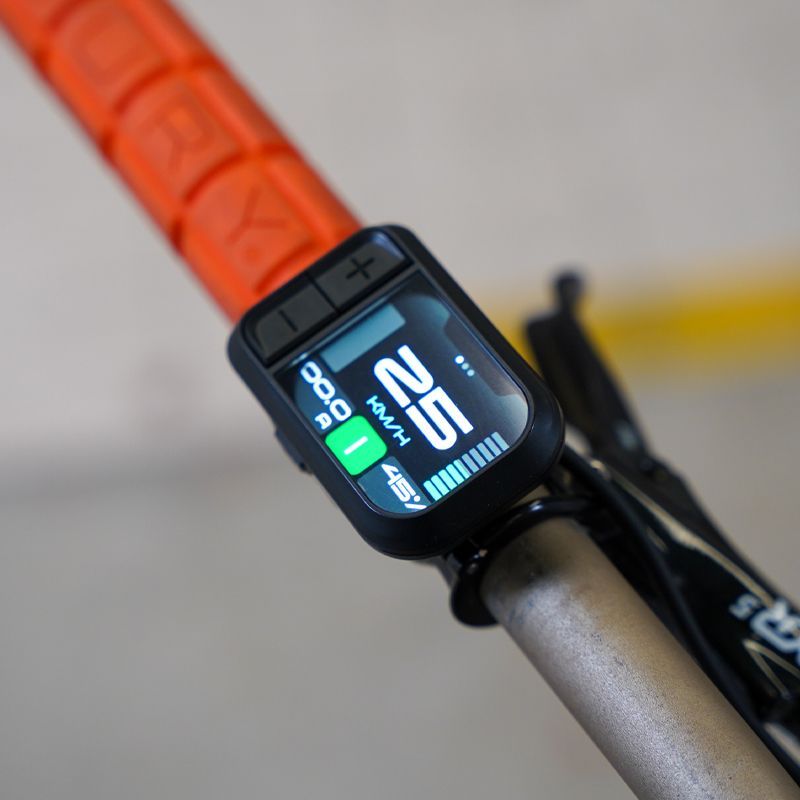

The compact colors display :
|
A: Instantaneous power B: Battery life jauge C: Daily or total distance D: Assistance level selected (among 9 levels) E: Speed F: Selection of assisstance level G: On/off button |
The vertical LCD display :
|
|
|
