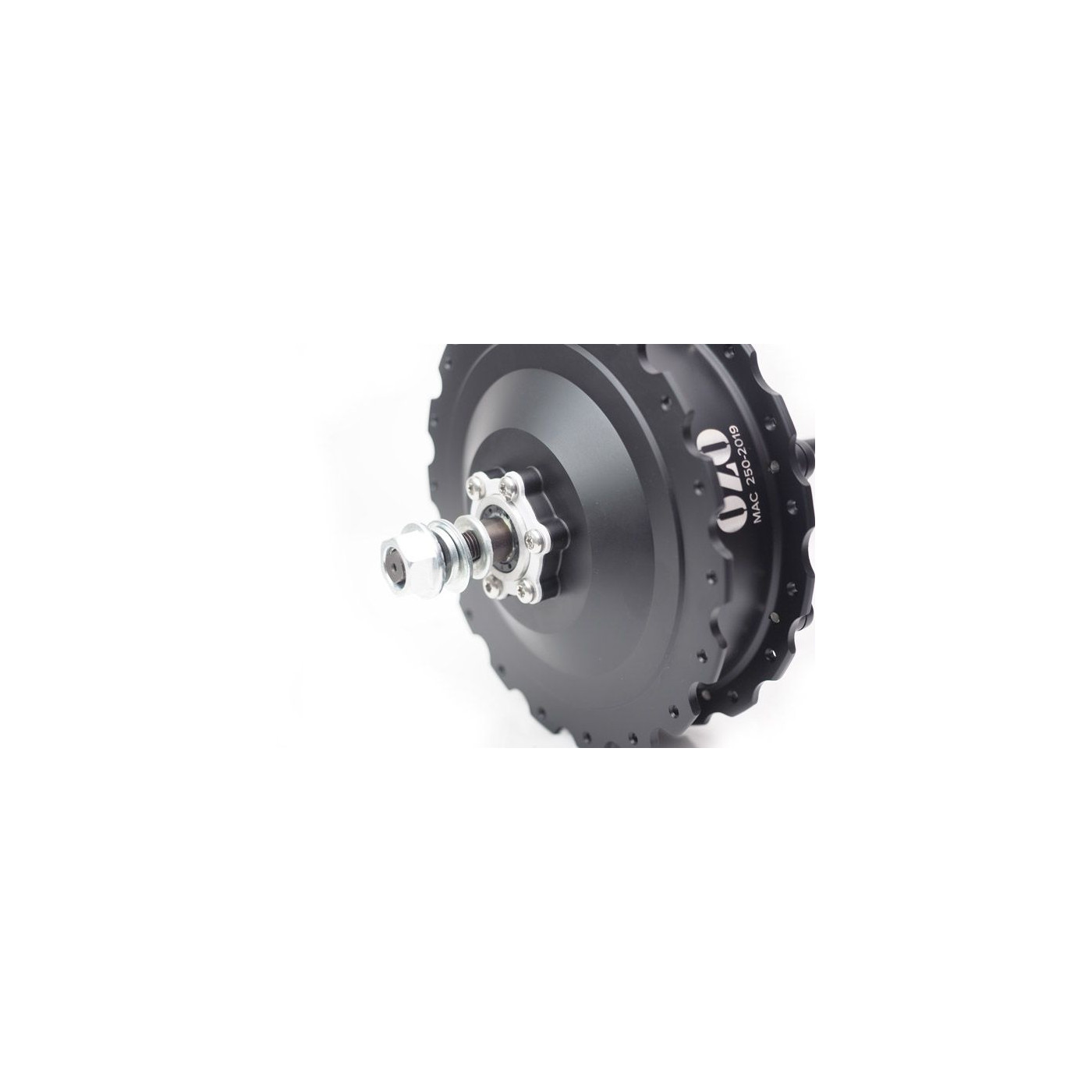

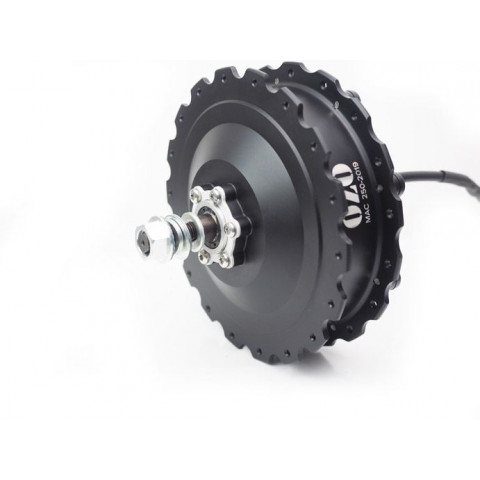

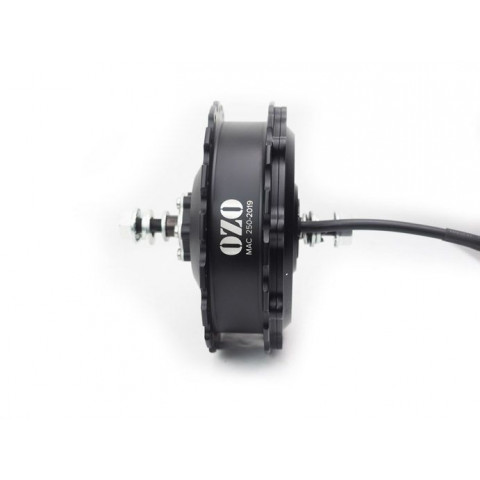

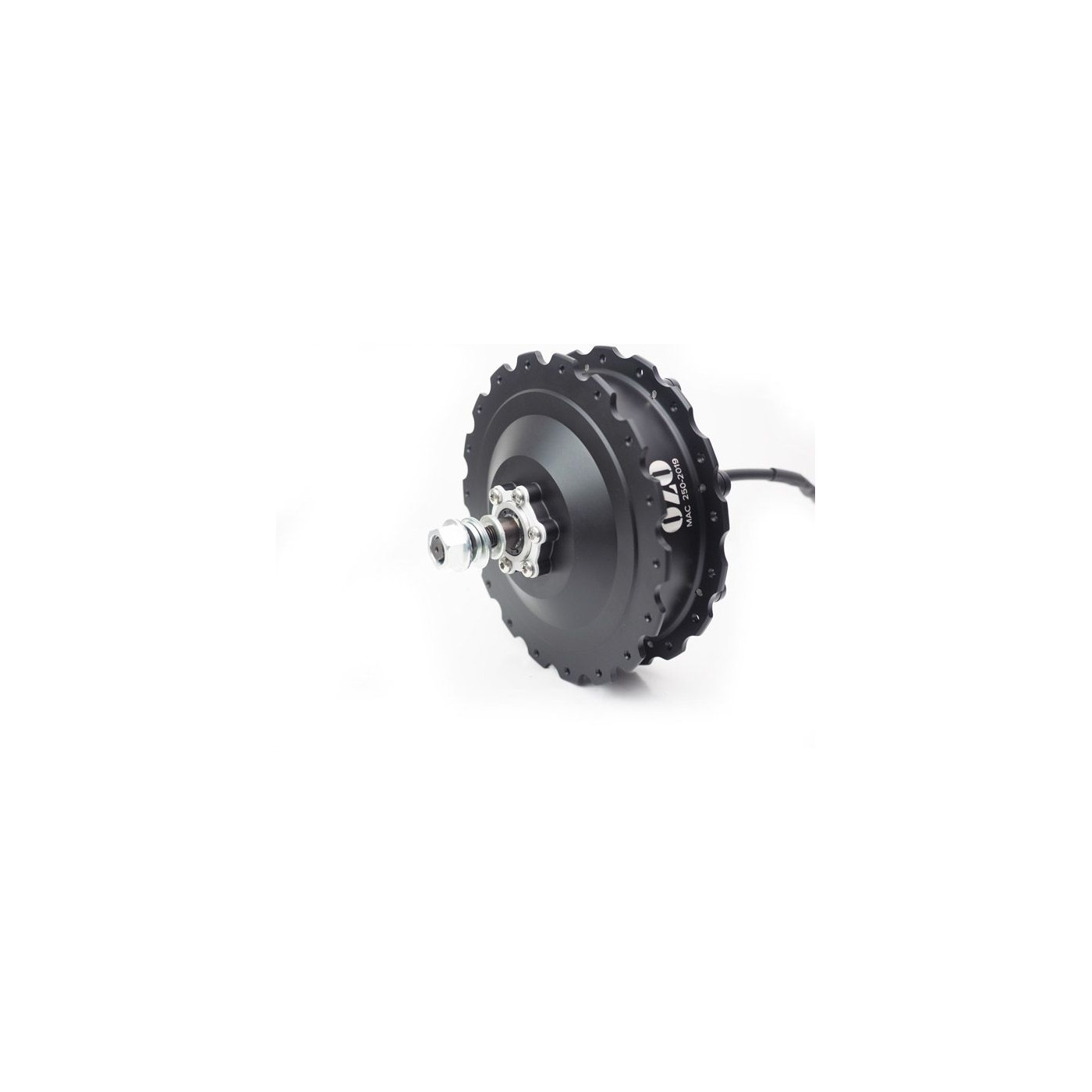

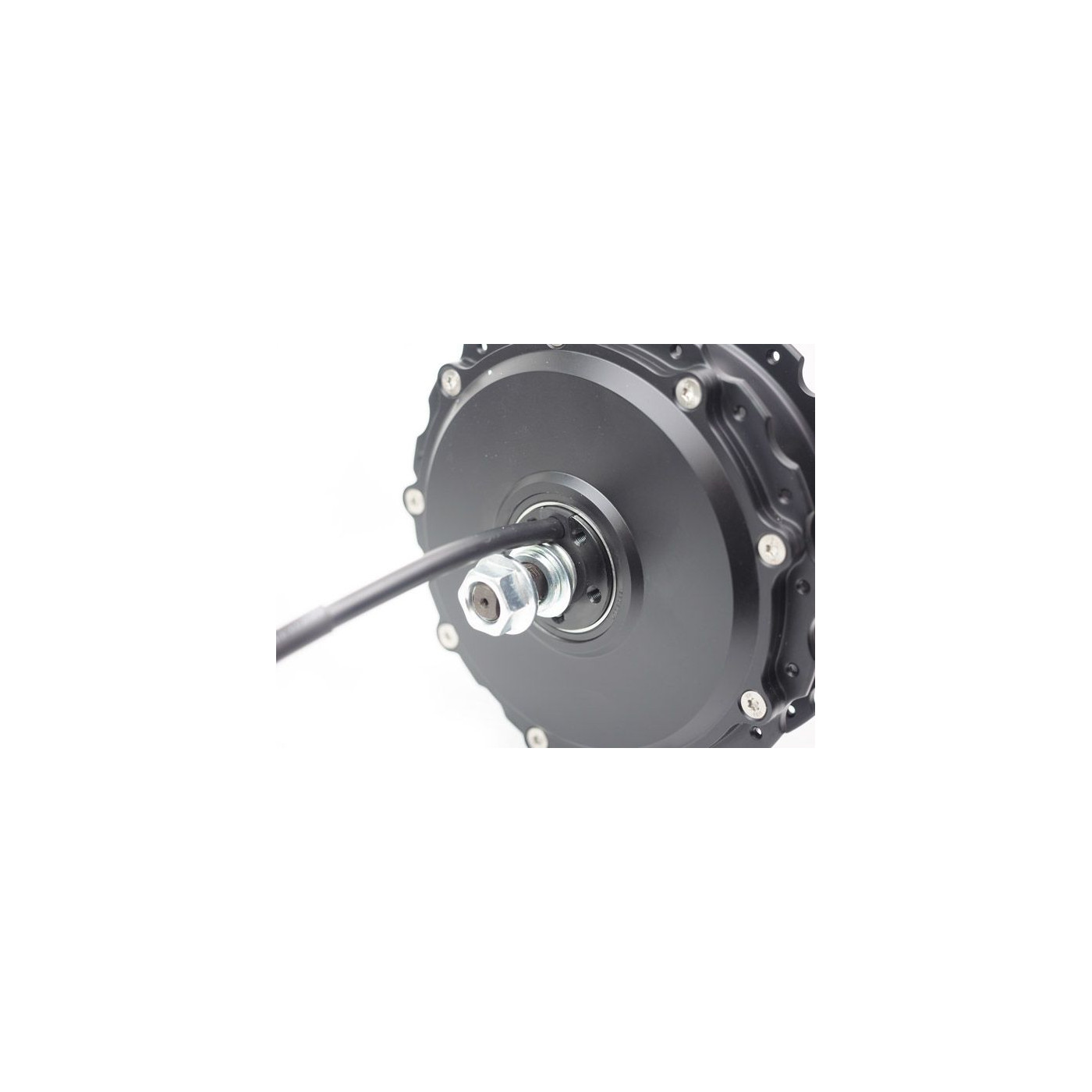

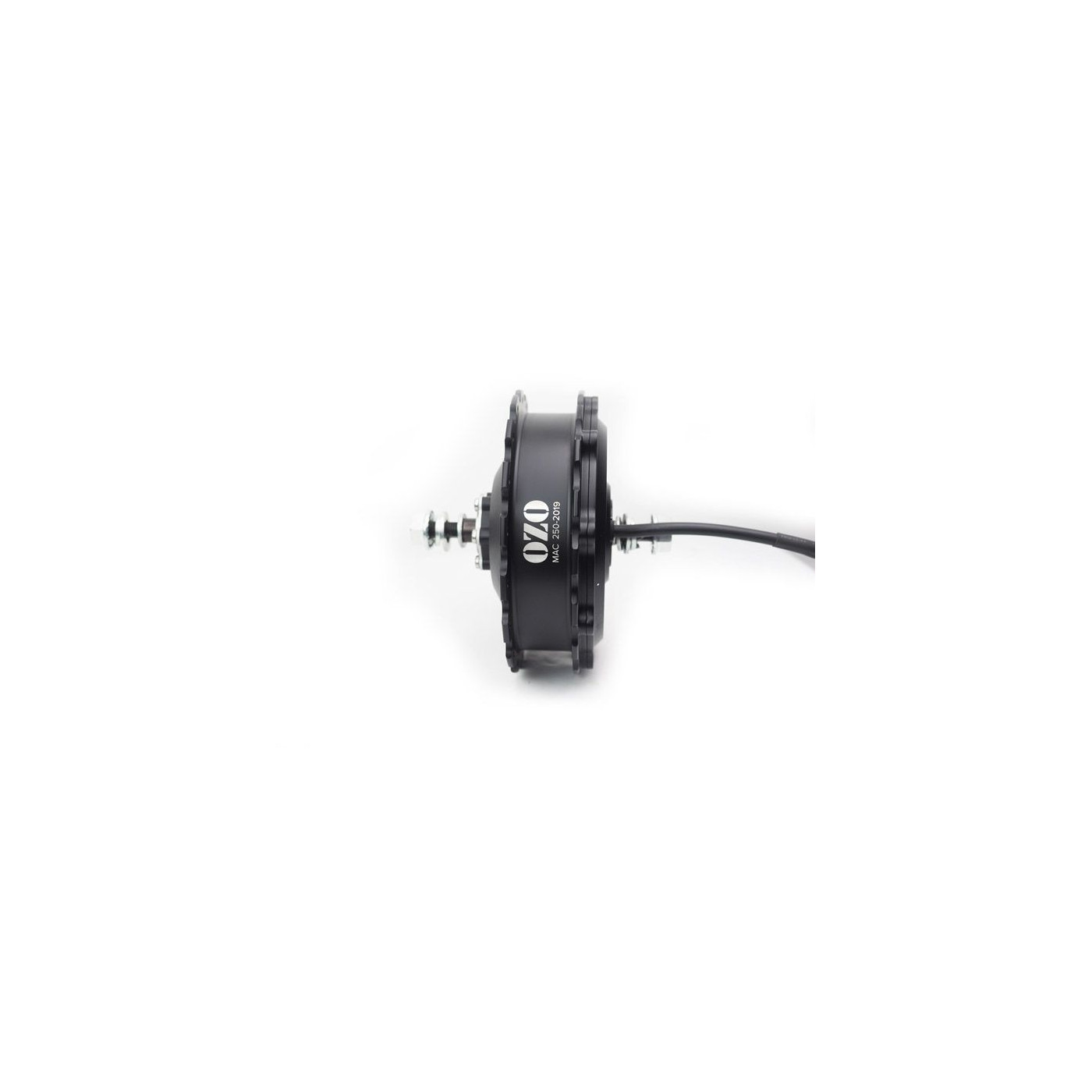

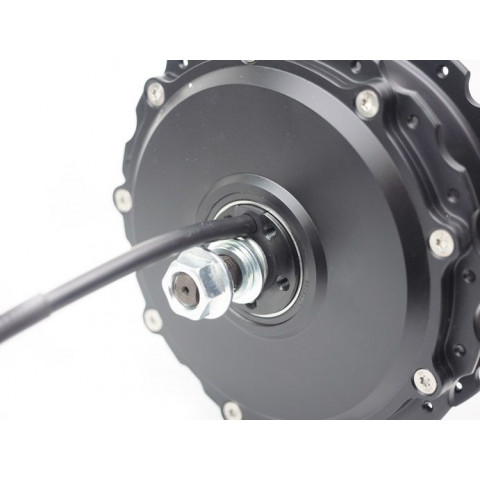

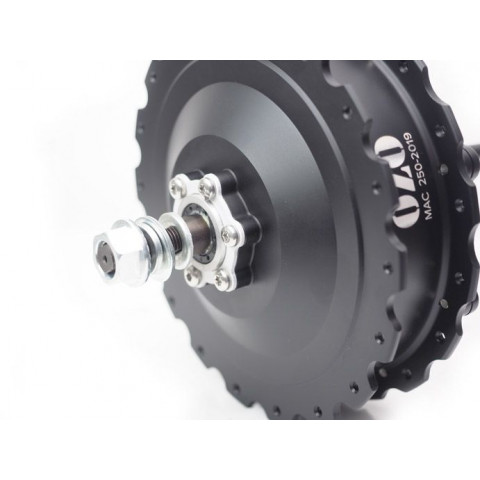

Front MAC motor 1000W 1500W
MAC motor is the best geared motor of the market.
Ultra efficient and powerful with 32 magnets his application range is really wide.
This motor has to be powered with OZO FOC sinewave controller 30A special mapping for MAC motors.
Temperature sensor inside the motor and waterproof Julet connector for hall sensors.

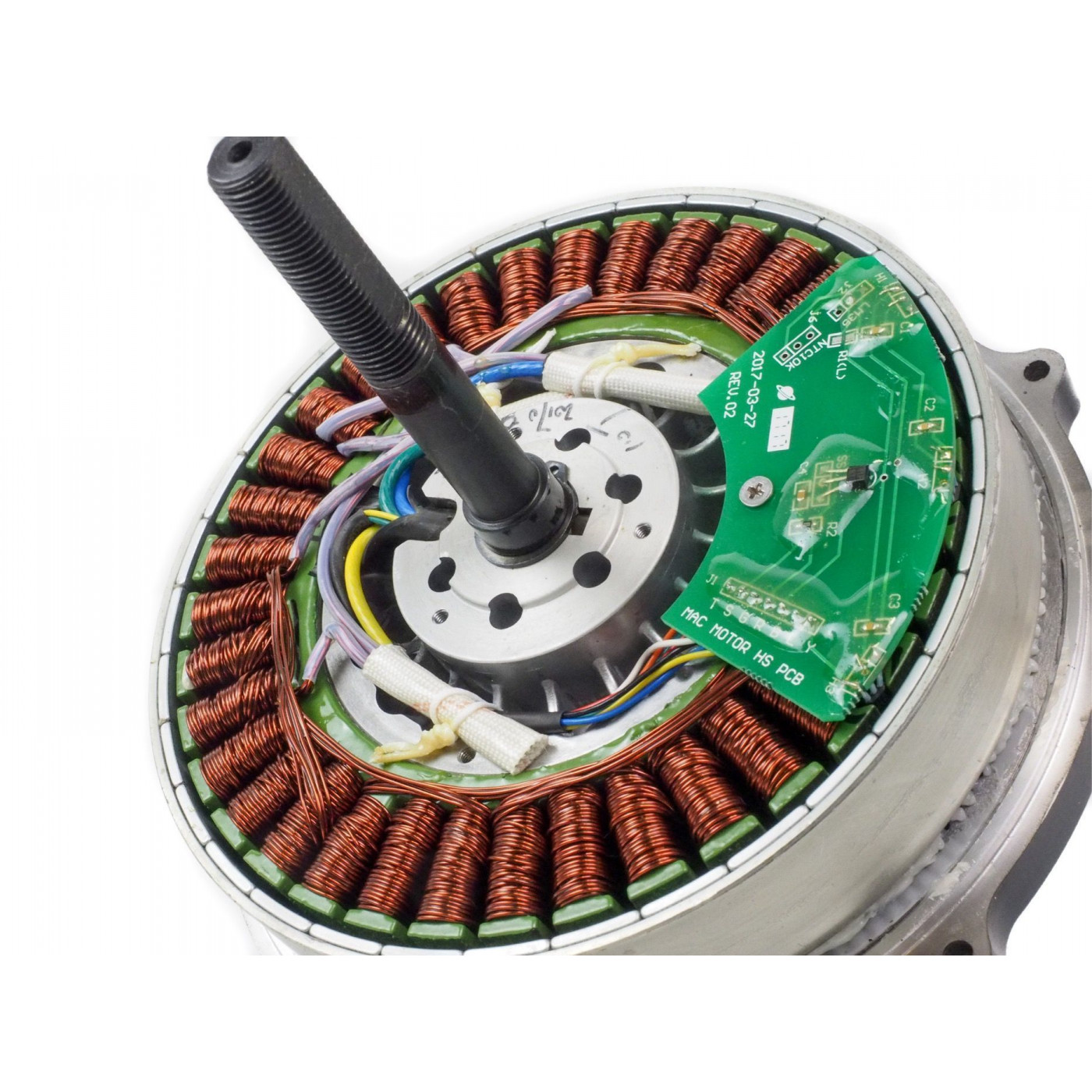

MAC motor front hub get 32 magnets and 0,27mm lamination sheets on stator that give high torque and high efficiency.
Torque is 30% more than all others geared motors on the market.
2D drawing :
3D
| Guarantee | 2 ans |
| Intensité max | 30A |
| Vitesse max en 48V | 40Km/h |
| Vitesse max en 36V | 32Km/h |
| poids en 26 pouces | 4,2 kg |
| Technologie | Brushless réducté |
| Permissible voltages | 36V et 48V |
| Tension Max | 72V |
| Motor Kv (RPM / V) | 8,1 RPM / Volt |
| Motor power range | 1000W - 1500W |
| Hall sensors | OUI connecteur Julet étanche |

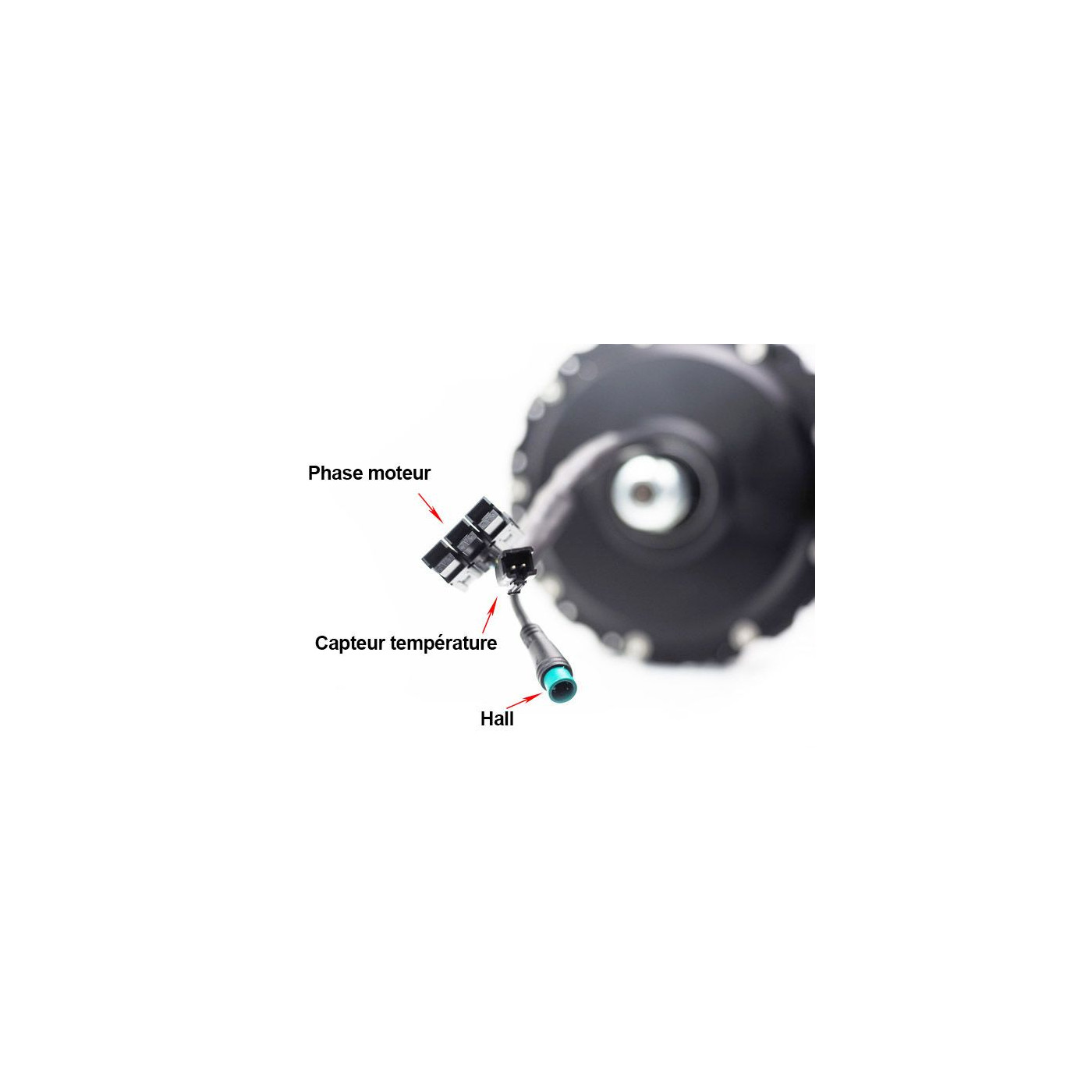

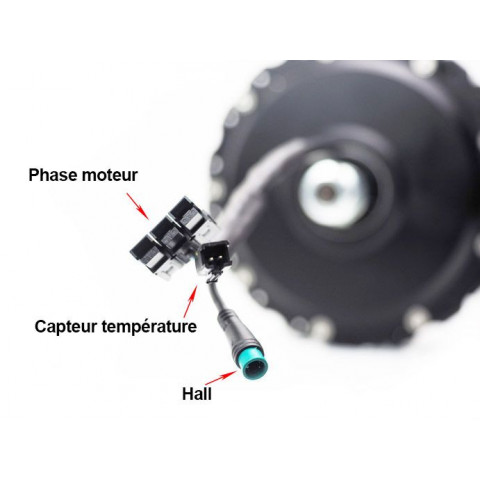

| connecteur moteur | Anderson pour la puissance / Julet étanche pour les capteurs Hall et JST pour la sonde de température |
