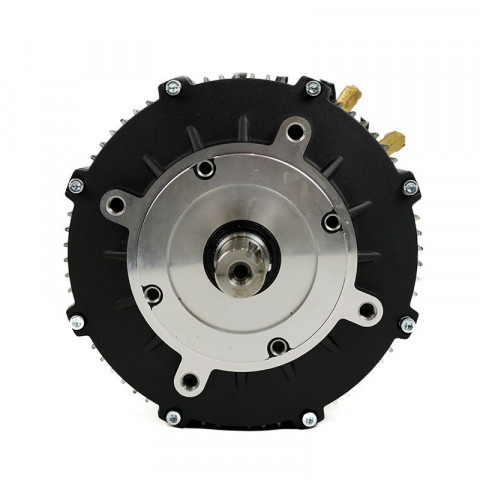

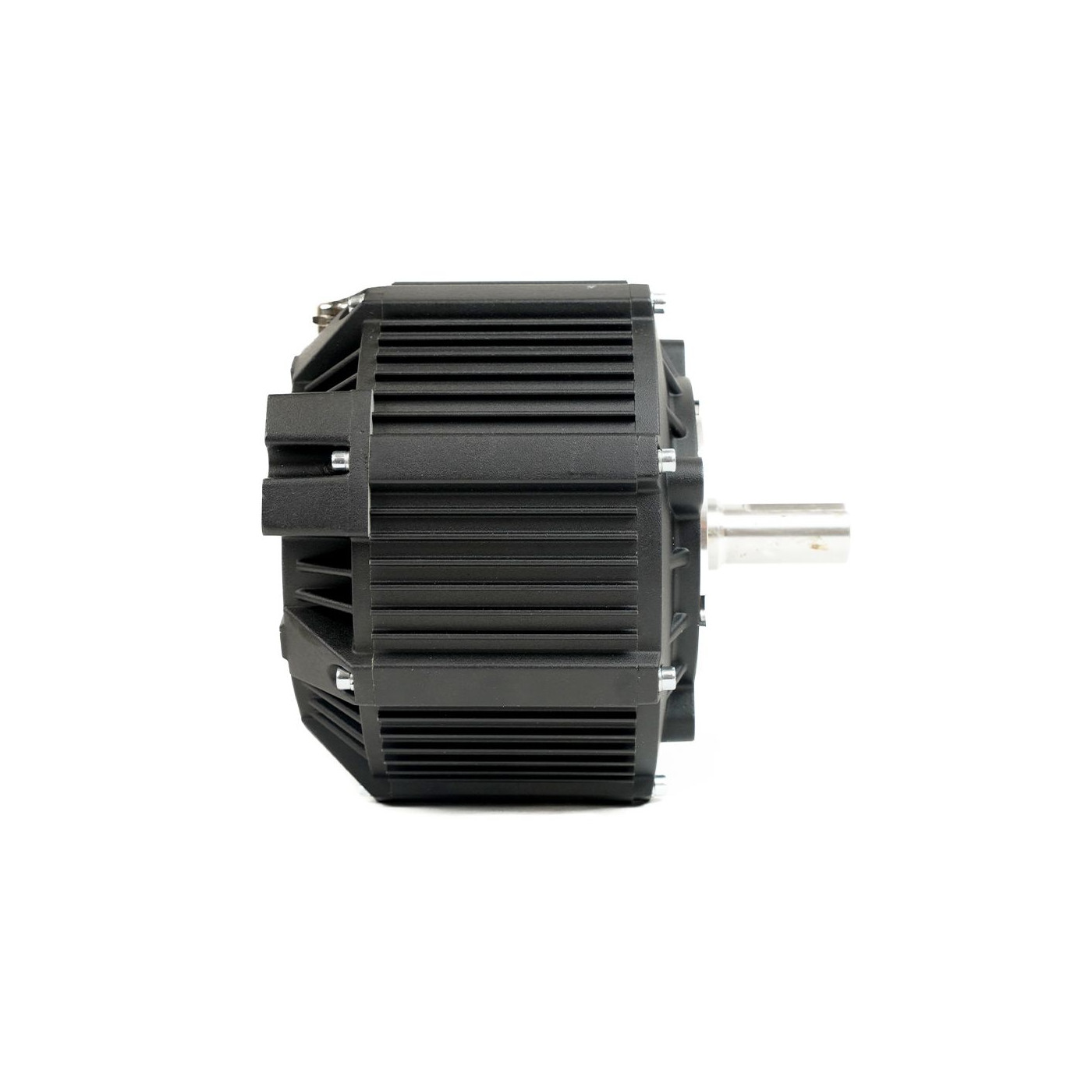

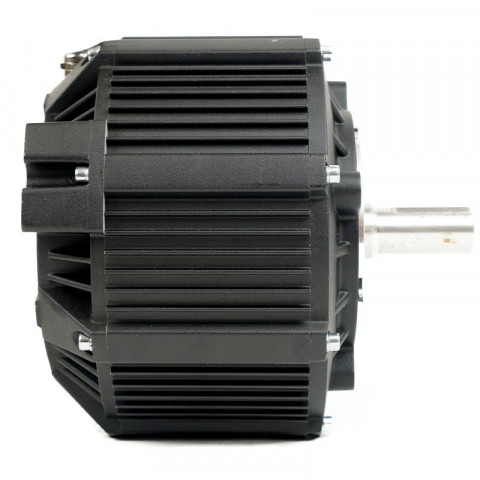

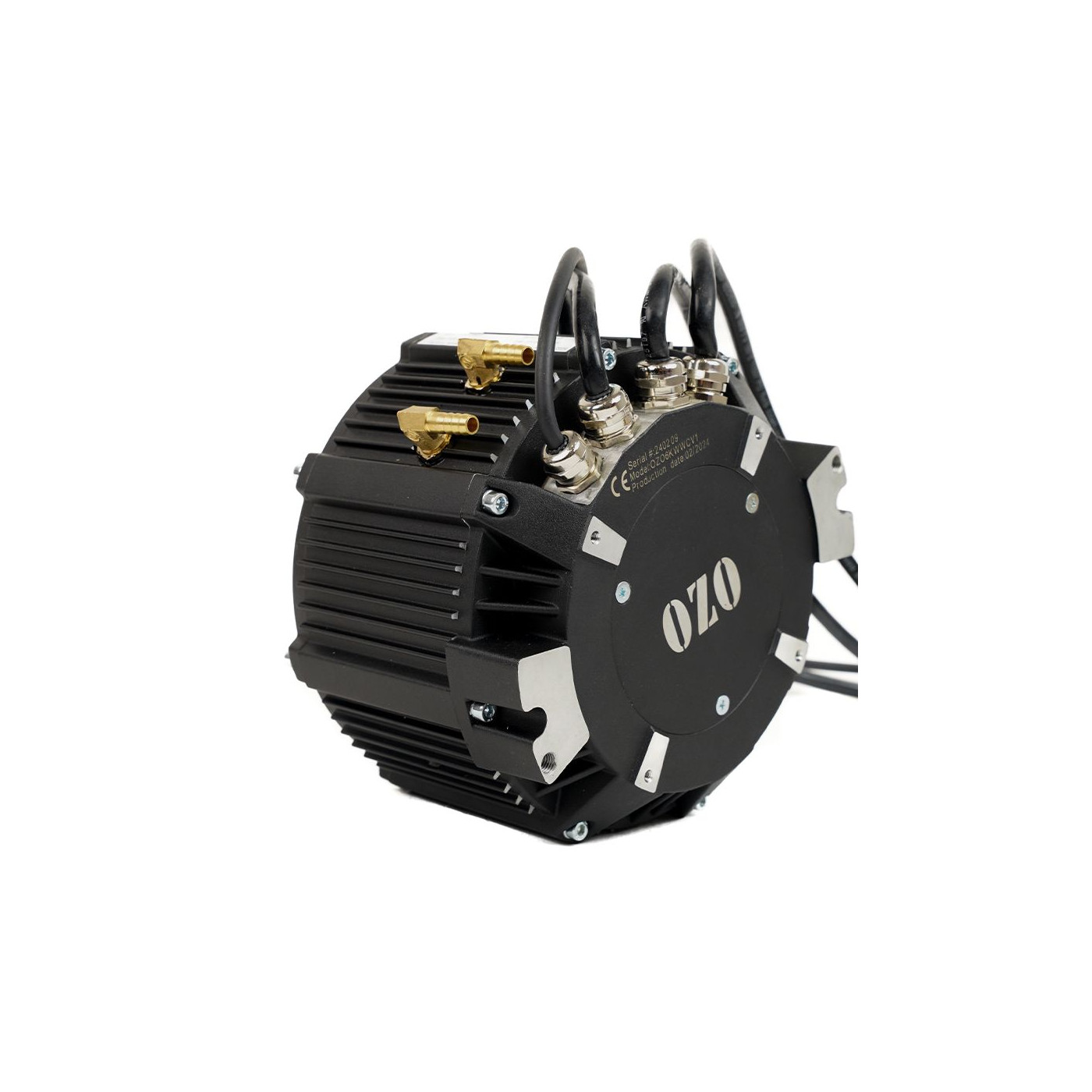

Central electric motor 10kW brushless liquid cooling
Special retrofit for boats, motorcycles, go-karts, ATVs, or sailboats, this IPM brushless electric motor with a central rotor is designed to deliver a power output of 6kW to 10kW depending on the supply voltage of 48V, 60V, or 72V and whether or not a liquid cooling system is added.
This motor is ideal for converting a boat with a power output between 15 and 20 horsepower, a sailboat under 12 meters, or for retrofitting a racing go-kart, an ATV, a buggy or a motorcycle.

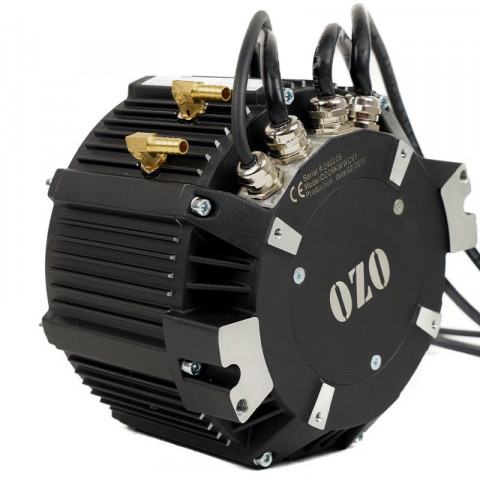

The motor is designed to operate with a liquid cooling system to improve performance and allow use in enclosed environments such as the hold of a boat or in high-temperature conditions.
Do not hesitate to contact us if you would like the liquid cooling system with air-water or water-water exchanger, the transmission sprocket, the pulley for belt transmission, or the power controller as an additional option.
Weight: 12.8kg
This brushless BLDC motor with a central rotor is designed to deliver a power output of 6000W with air cooling and 10kW with liquid cooling.
Nominal line current of 100A and a maximum of 200A.
It allows you to perform an electric conversion of any type of vehicle or machine, whether it's a tractor, sailboat, boat, ATV, buggy, car, train, motorcycle, go-kart, carousel...
Note that to make the installation easier, OZO can offer motor mounts or supports in stainless steel 304 or 316, suitable for an electric go-kart or a retrofit on a boat or sailboat, and assist you in setting up the liquid cooling system.
The mount is to be bolted or welded onto your hull or chassis in place of the thermal engine.
This brushless IPM motor with a central rotor has a maximum rotational speed of 4000 rpm.
This motor has 5 pairs of poles.
OZO offers a power driver (controller) suited to this motor and the liquid cooling system. This controller can be easily programmed via a smartphone with the dedicated app.
You can specifically adjust: torque, acceleration ramp, braking ramp, engine braking force, acceleration delay, engine speed, maximum power...

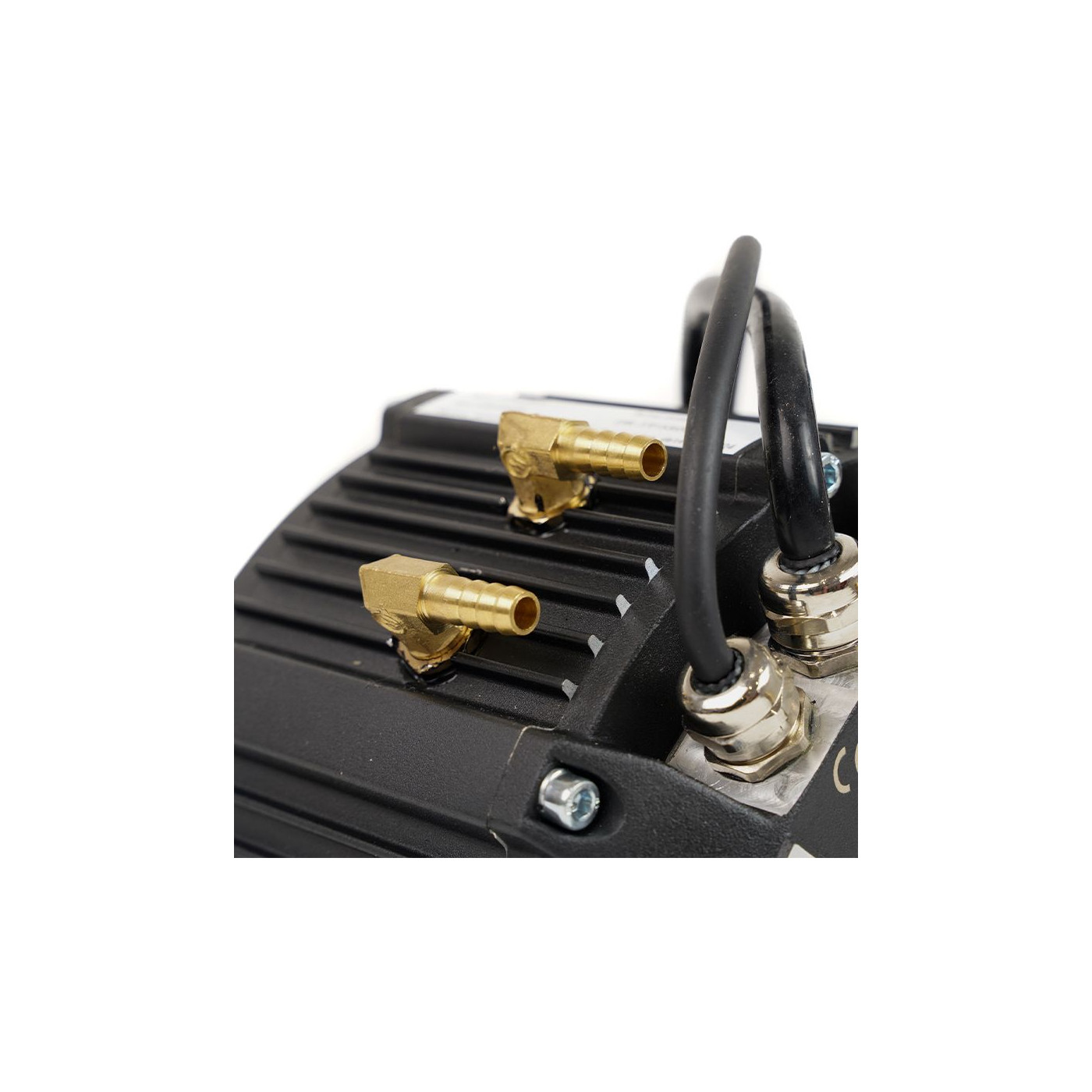

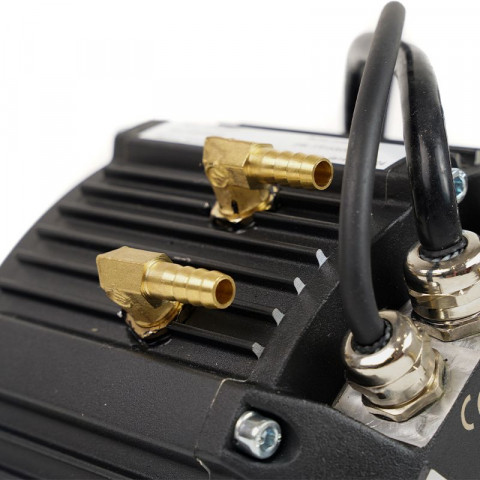

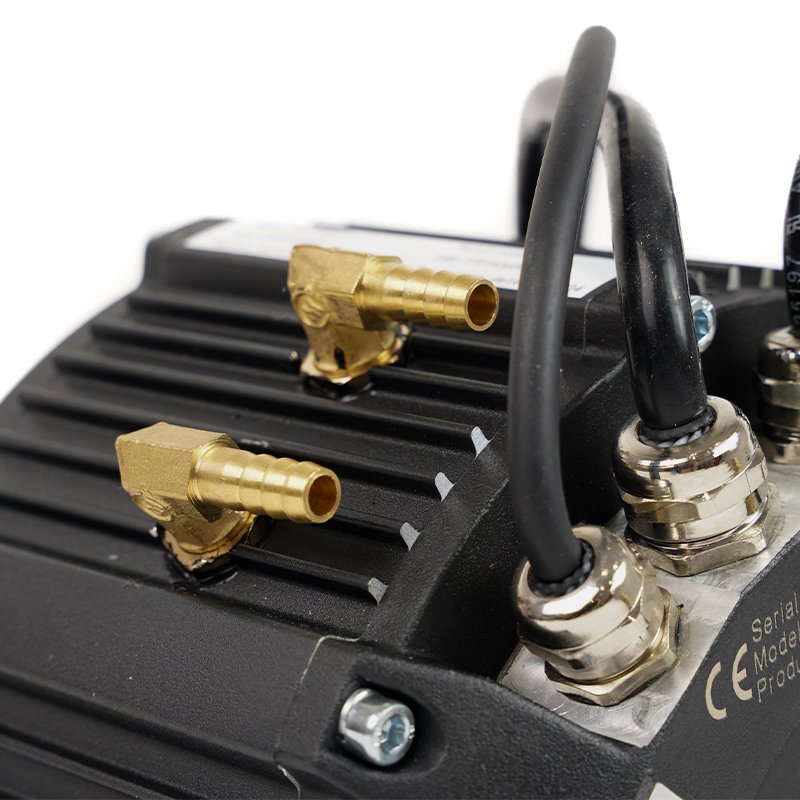

LIQUID COOLING SYSTEM
This motor can be liquid-cooled to ensure better performance without overheating.
Note that for inboard motor boat retrofit projects, we strongly recommend the liquid cooling kit.

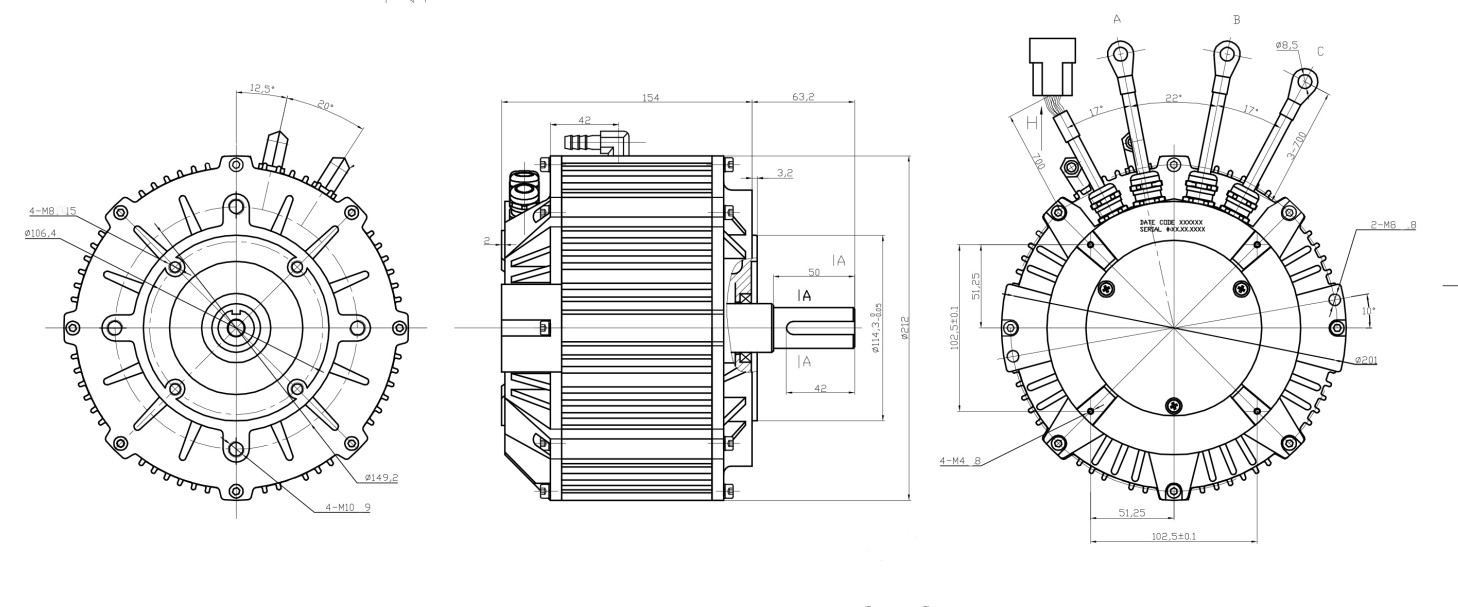

2D PLANS
| Guarantee | 2 ans |
| Intensité max | 200A |
| Mass | 12,8kg |
| Technologie moteur | Brushless |
| Tension Max | 72V |
| Waterproof grade | IP65 |
| technologie | brushless |
| Vitesse de rotation nominale Tr/min | 4000 |
| Puissance nominale | 6kw air / 10kw liquide |
| Nombre de paires de pôles | 5 |
| Refroidissement | eau |
| Codeur | Oui |
| Capteurs Hall | Non |

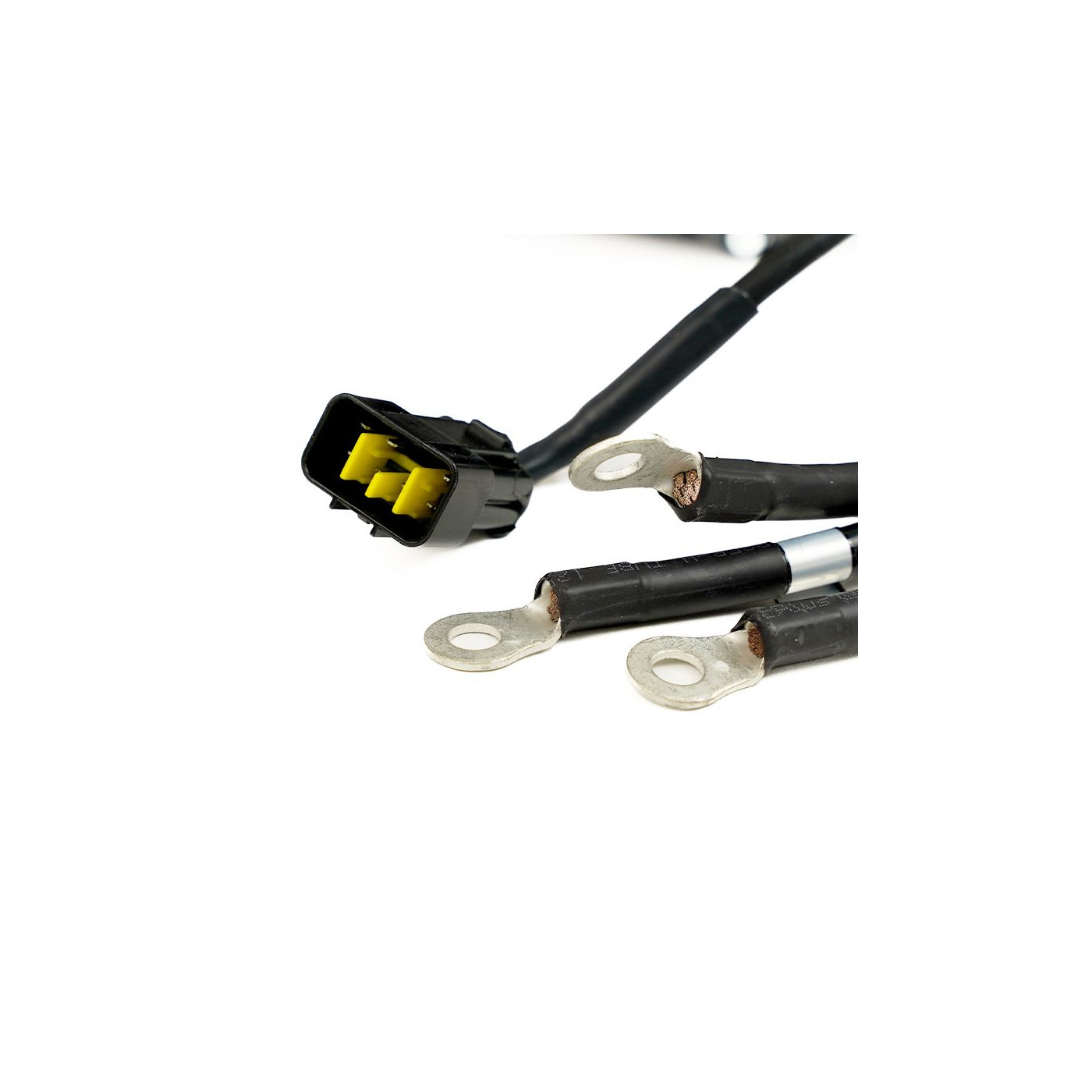

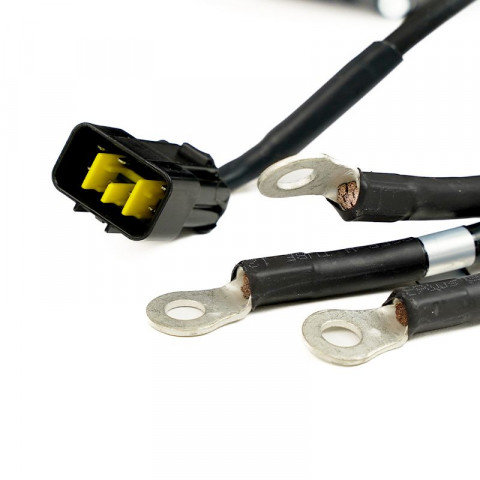

| Longueur des câbles | 700mm |
