Generic control system to repair electric bikes 250W 36V-48V with LCD Display

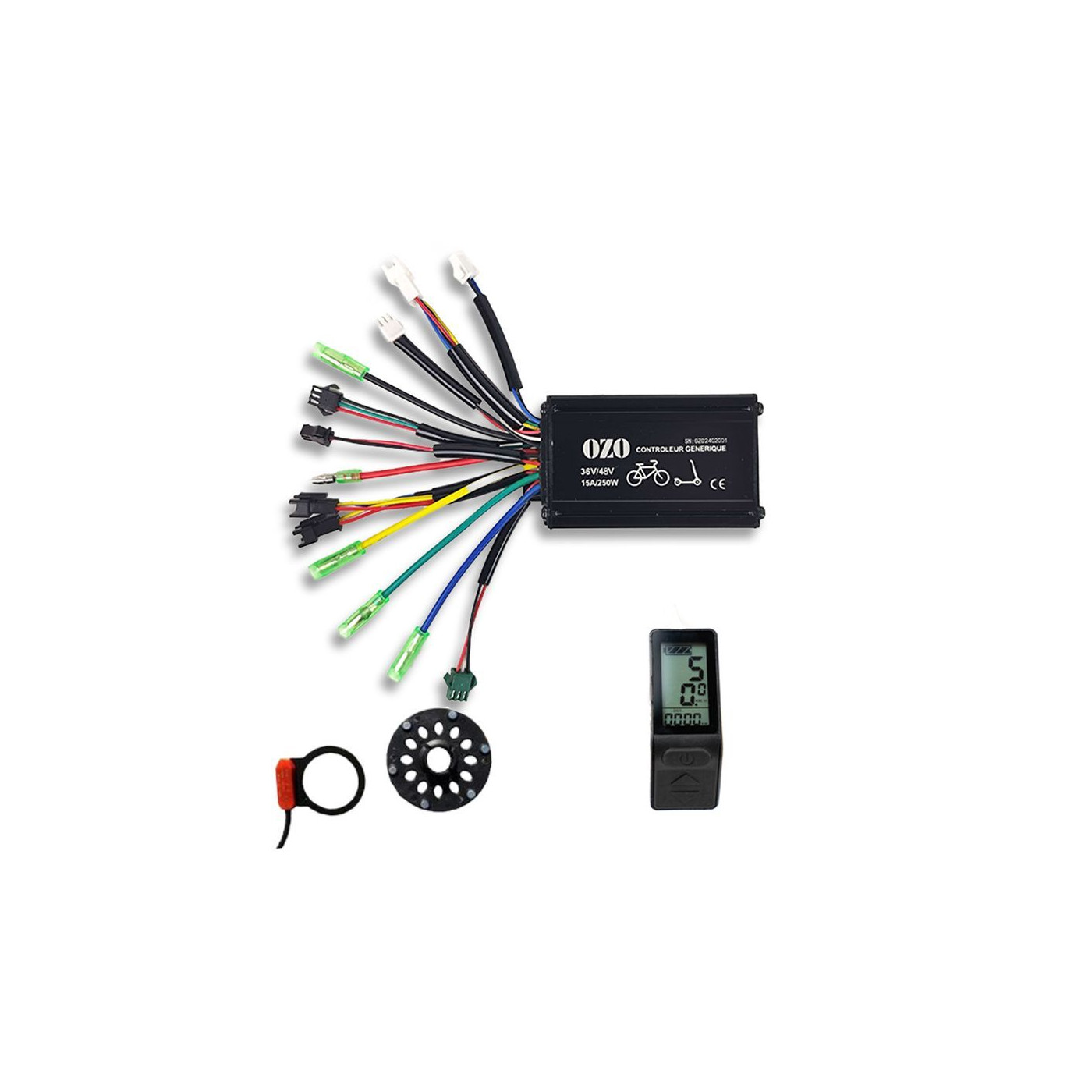

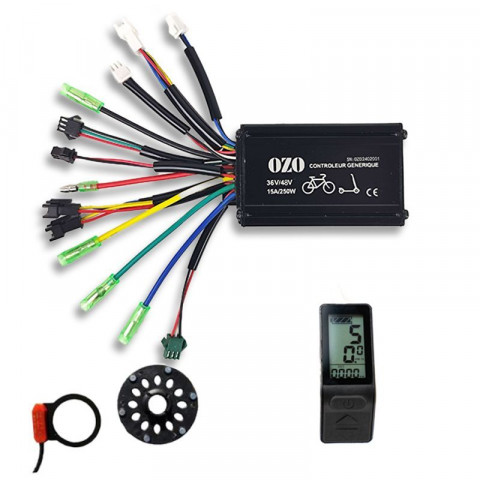

Generic control system to repair electric bikes 250W 36V-48V is composed of :
Contenu de ce pack:
 | Generic controller 250W 36V - 48V to repair any ebikes and mini scooter Quantité : 1 70,00 € |
 | Display for 15A generic controller Quantité : 1 45,00 € |
 | Pedal sensor for generic OZO controller Quantité : 1 19,00 € |
 | Sonde de vitesse Quantité : 1 5,00 € |

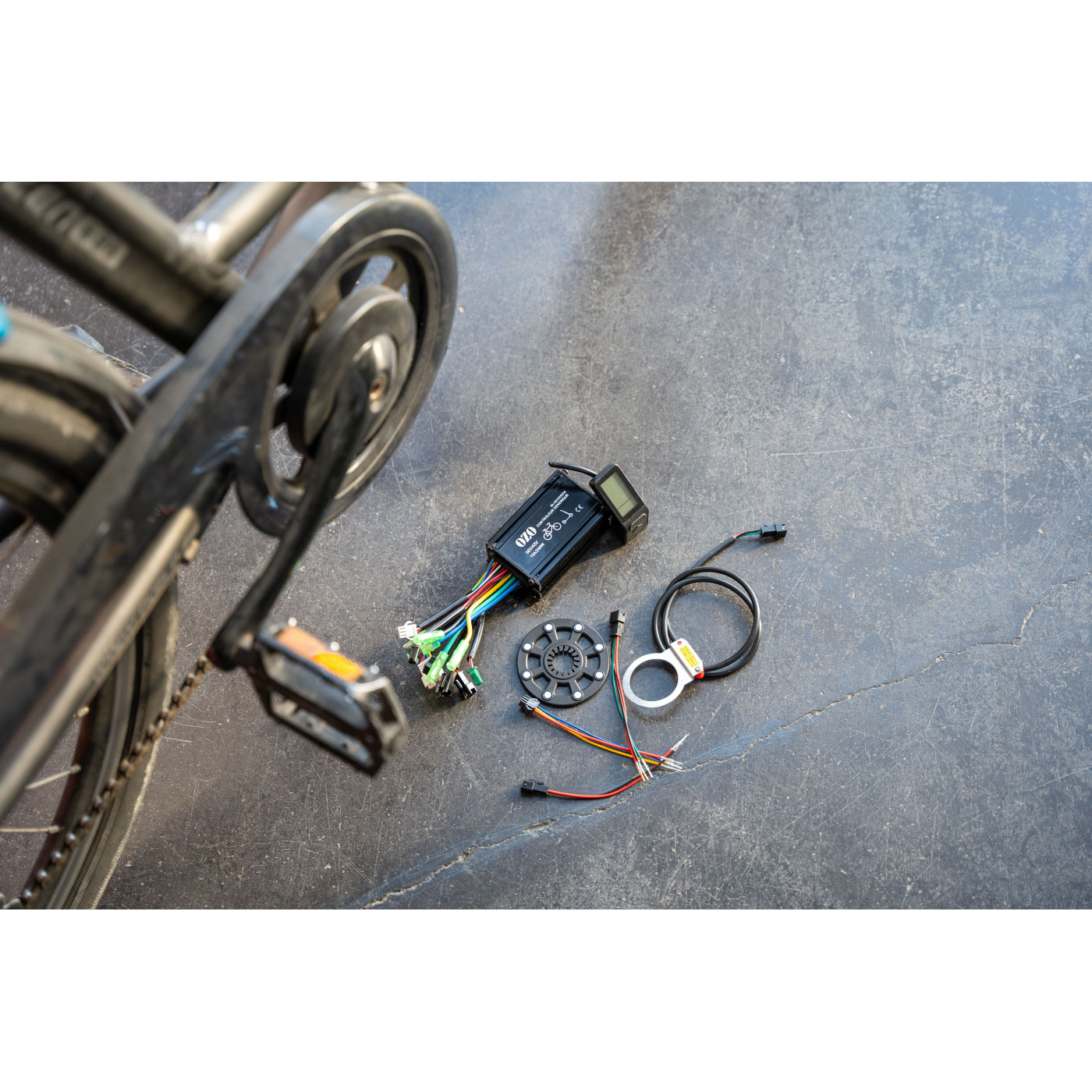

CONTENTS OF THE KIT

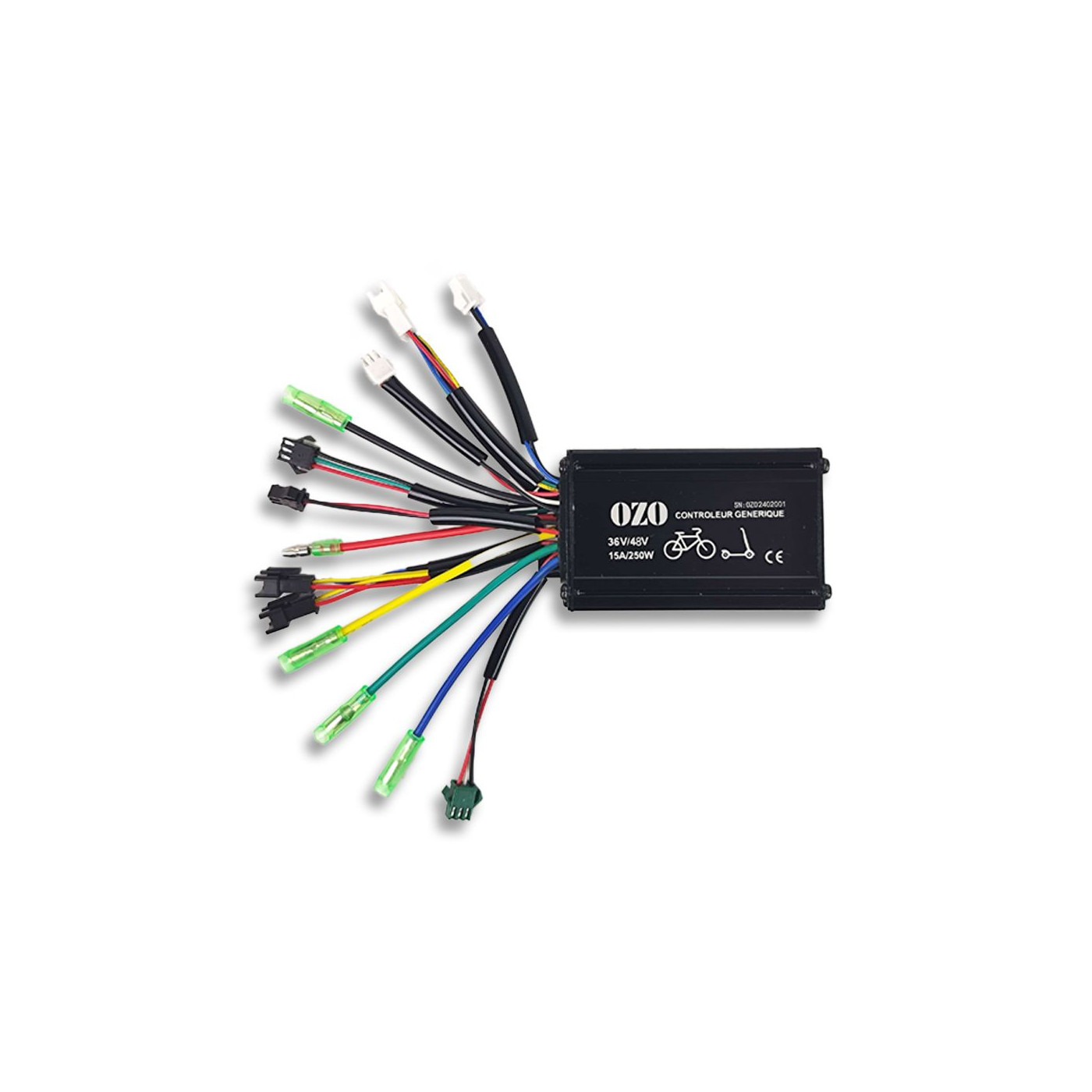

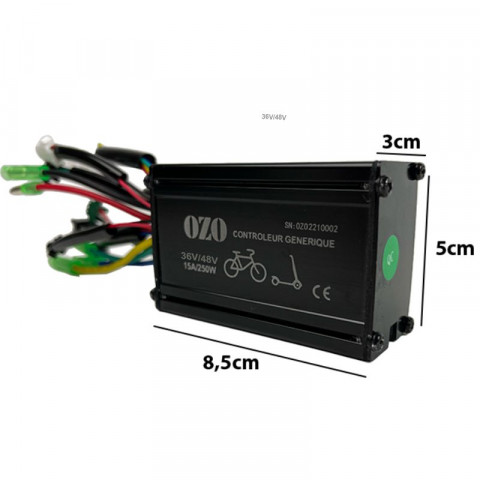

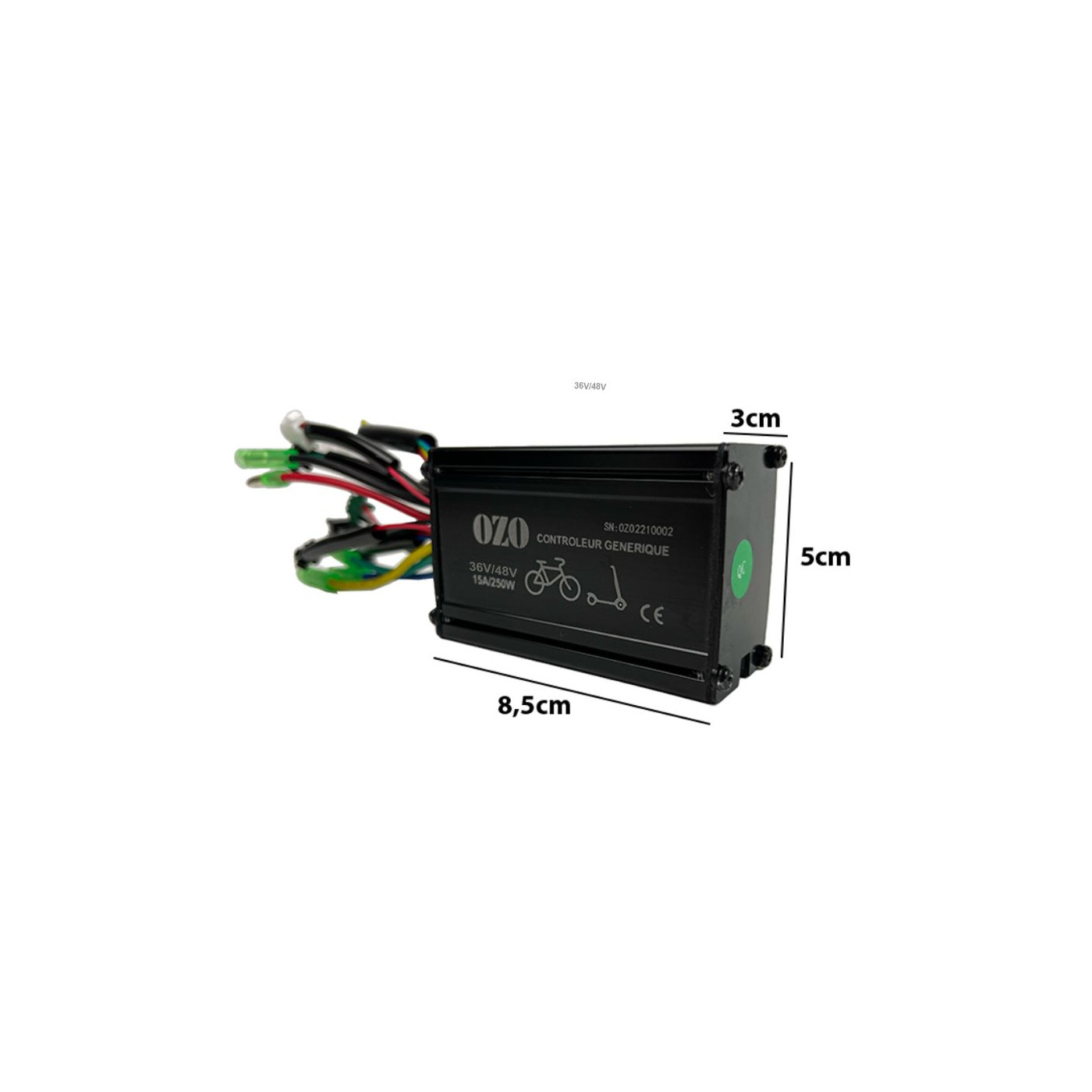

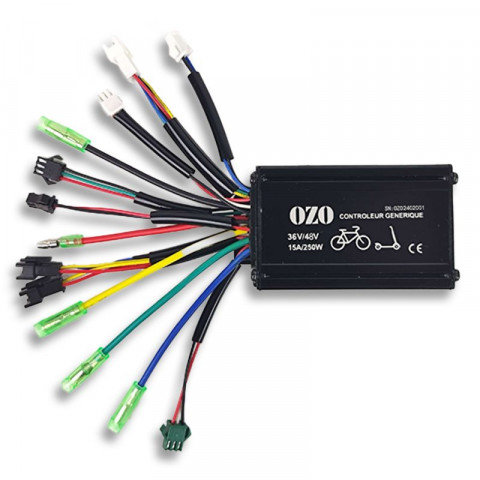

THE GENERIC CONTROLLER 250W 24V-36V
| This 15A controller allows you to repair any electric bike at a good price. It works in sensorless mode, which enables it to run a motor with Hall sensor issues (broken sensor or wire). Installation is simplified as only 3 wires need to be connected instead of 8. These controllers can only be used with a pedal sensor. 6V lighting output. |

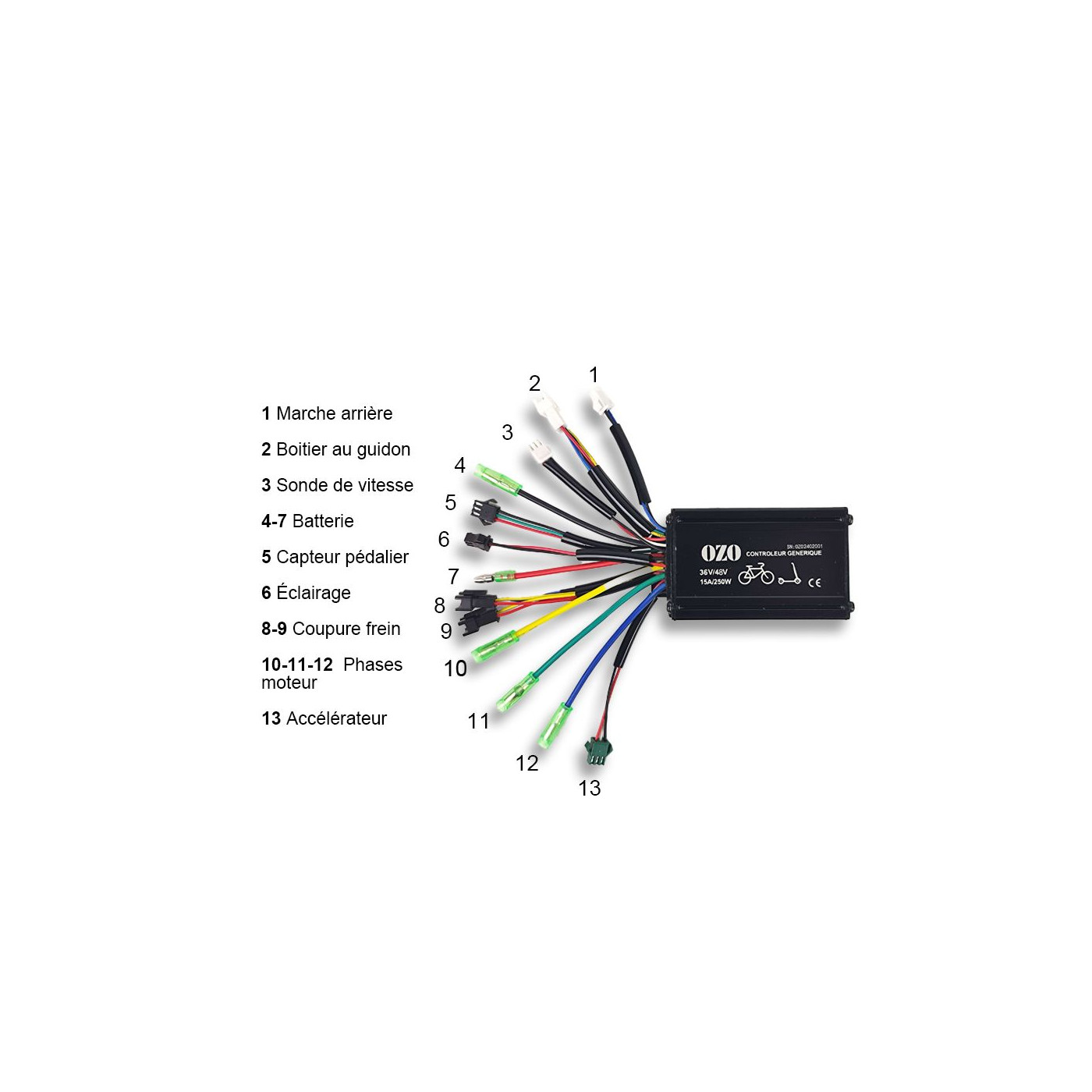

Controller Diagram

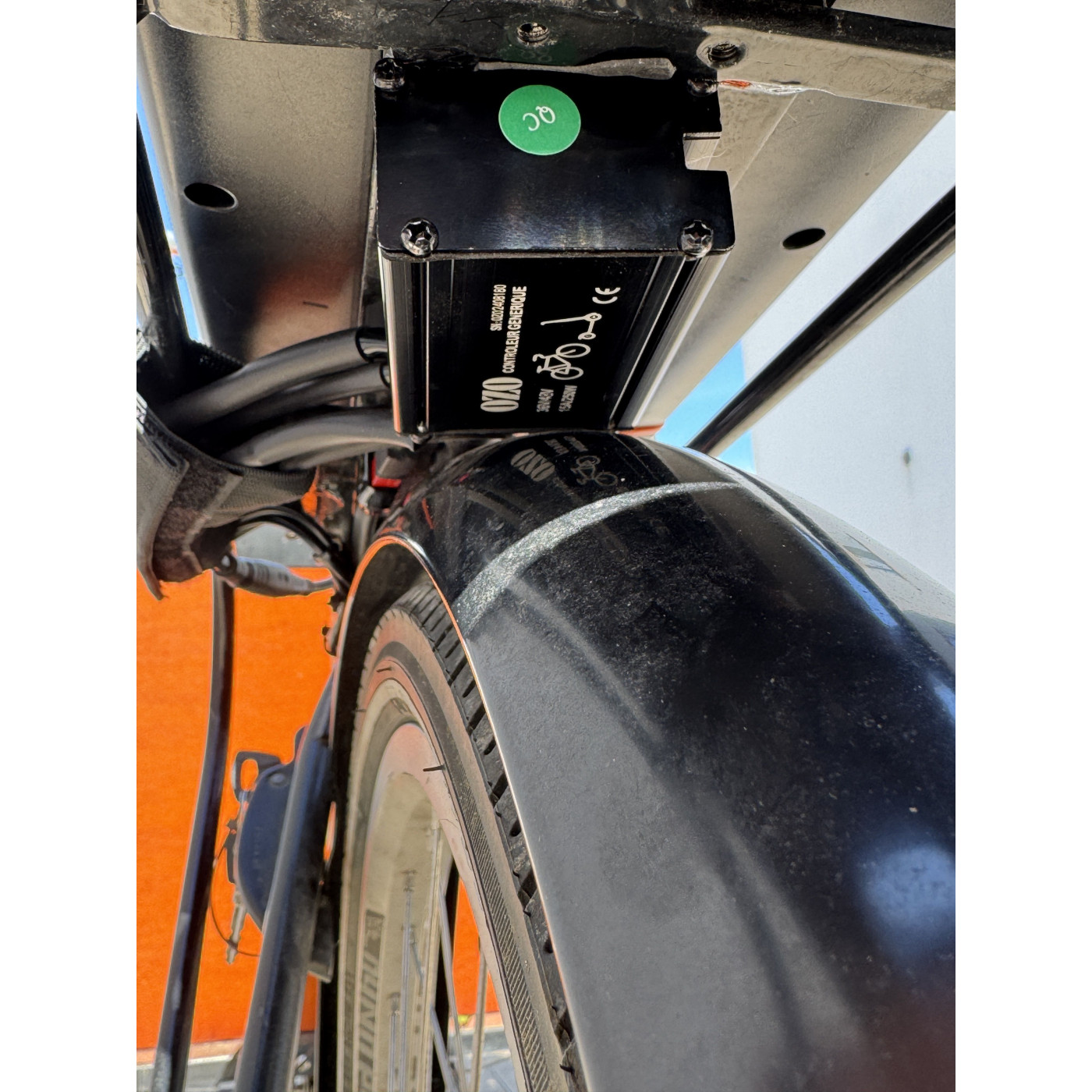

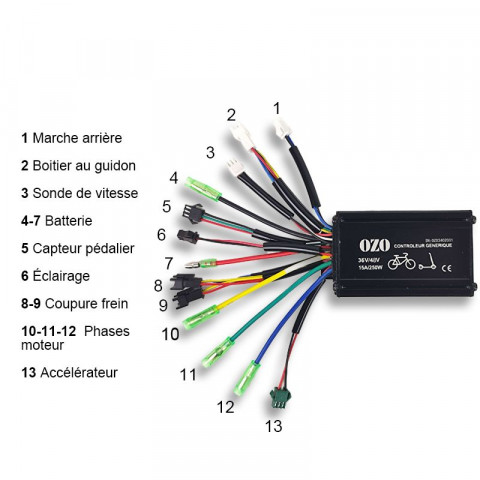

Controller Wiring

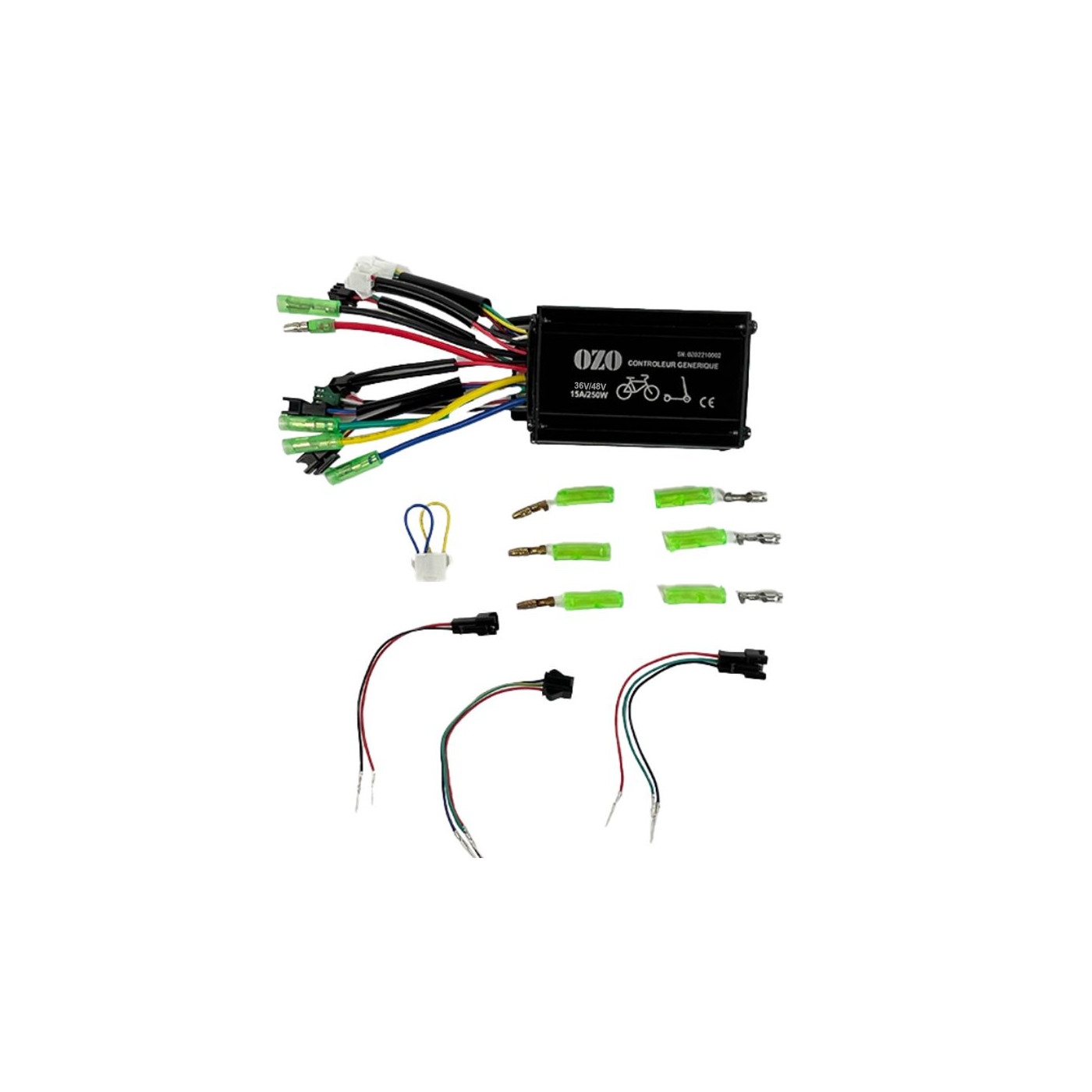

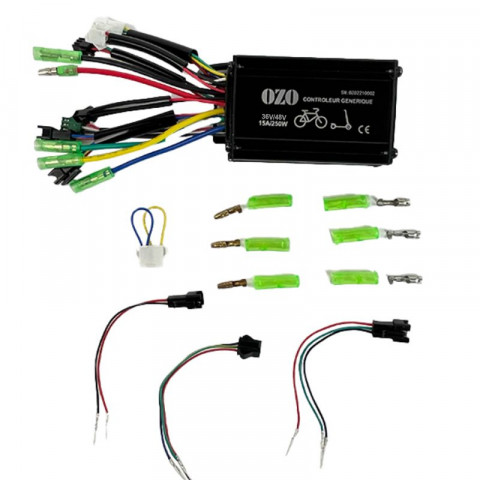

With the generic controller, we provide various adapters to facilitate installation. This avoids cutting the controller's plugs.
The shunt allows the controller to be used without a display. It is installed in place of the display.
The lighting output provides 6V.

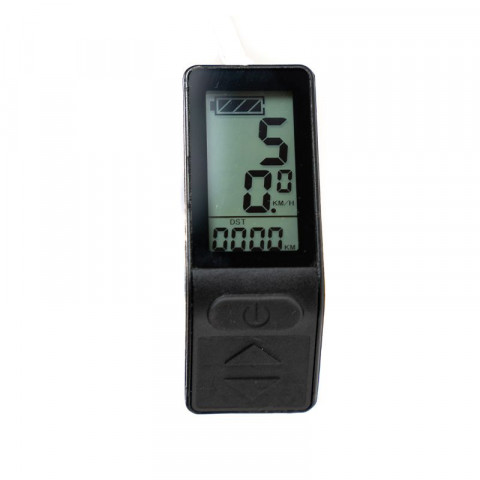

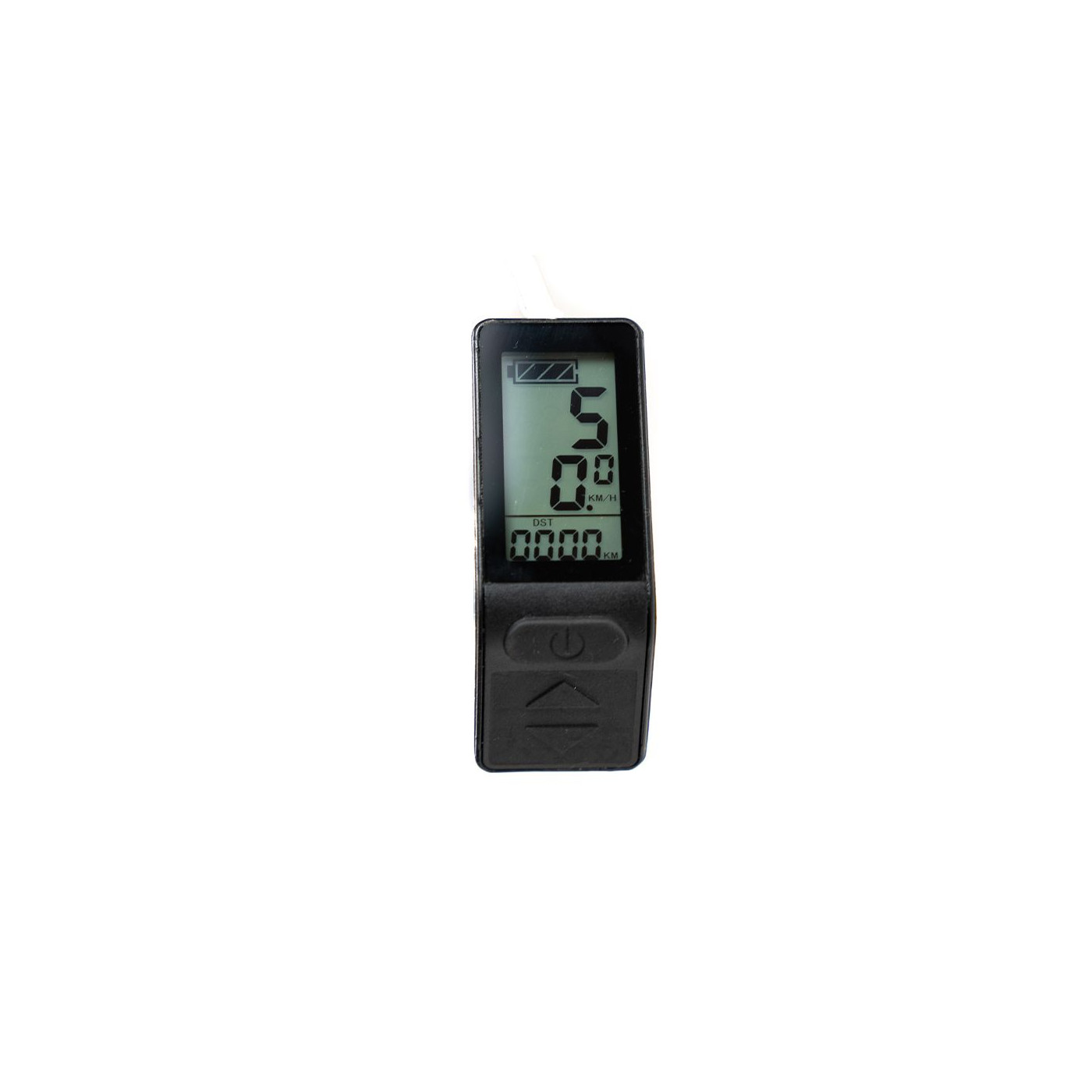

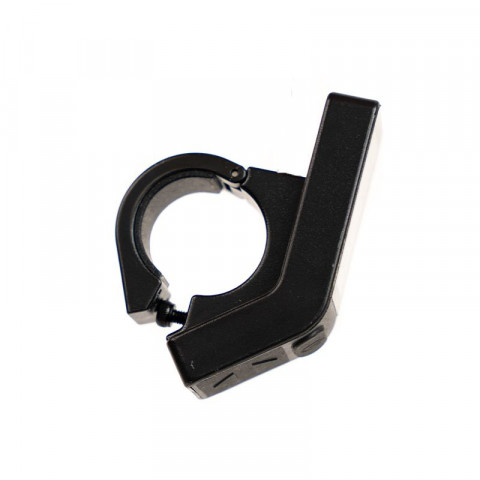

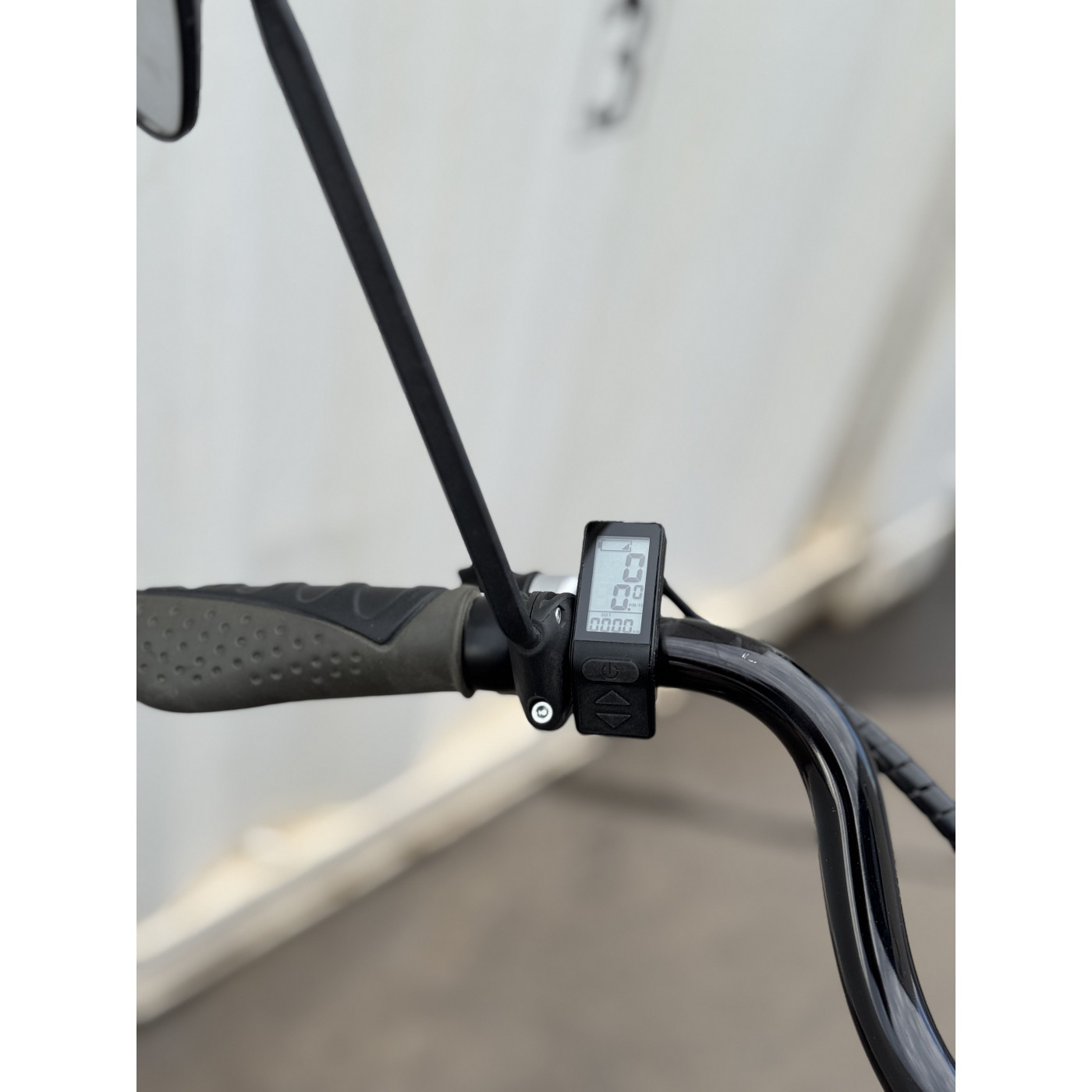

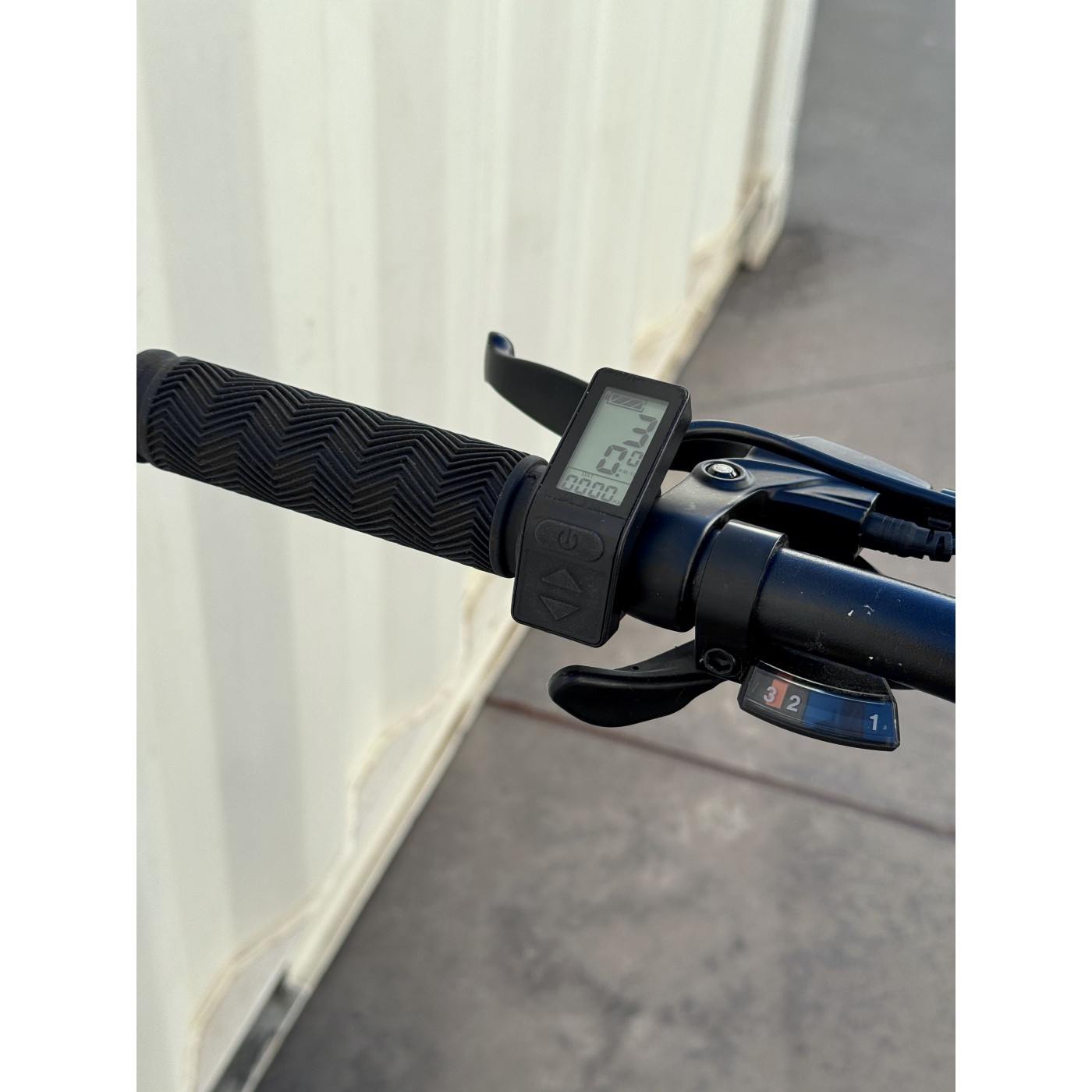

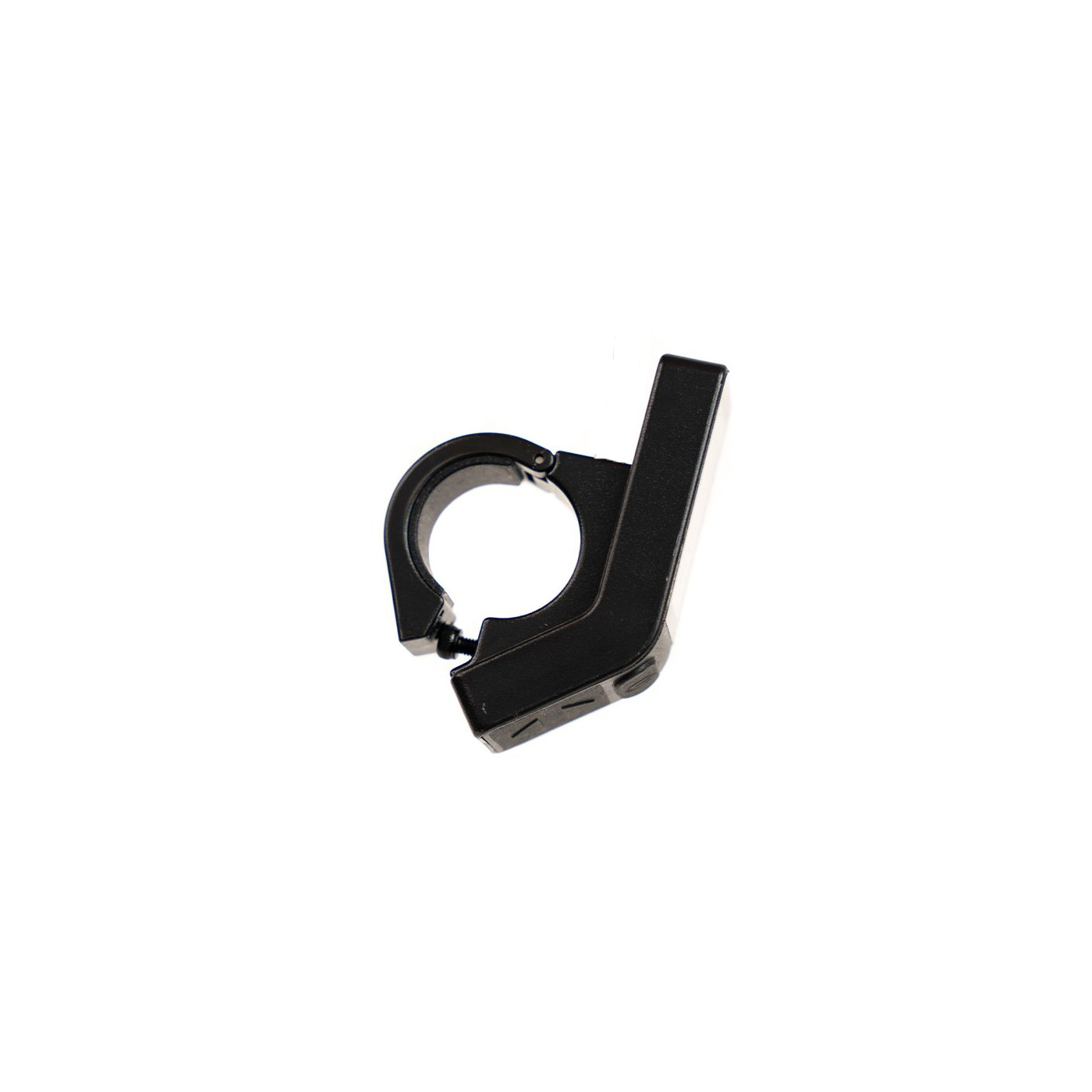

THE DISPLAYS
 | The LCD Display 1 allows you to:
|
 | The LCD Compact Display allows you to:
|

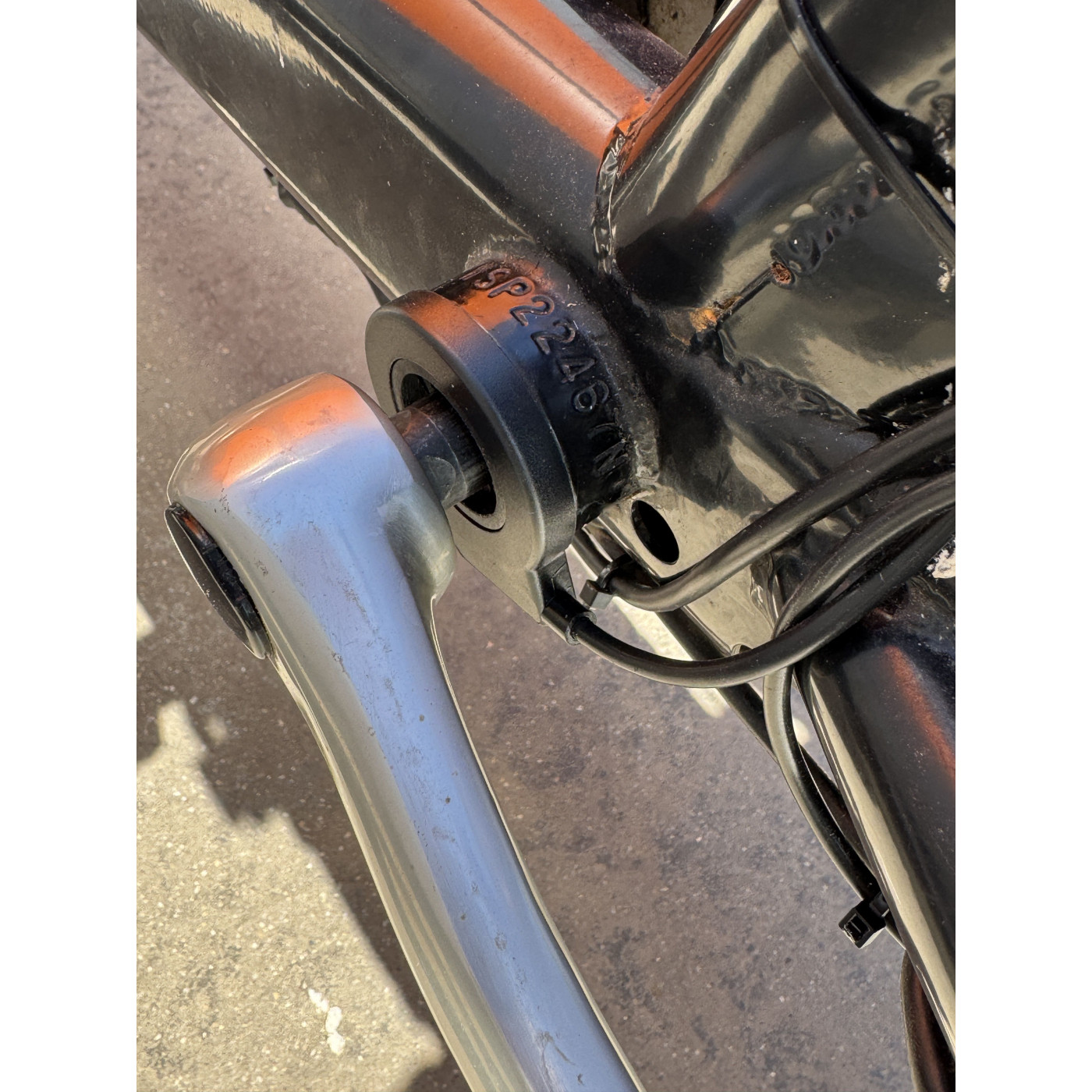

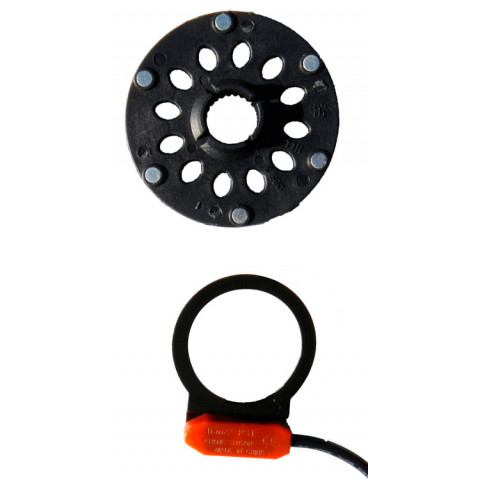

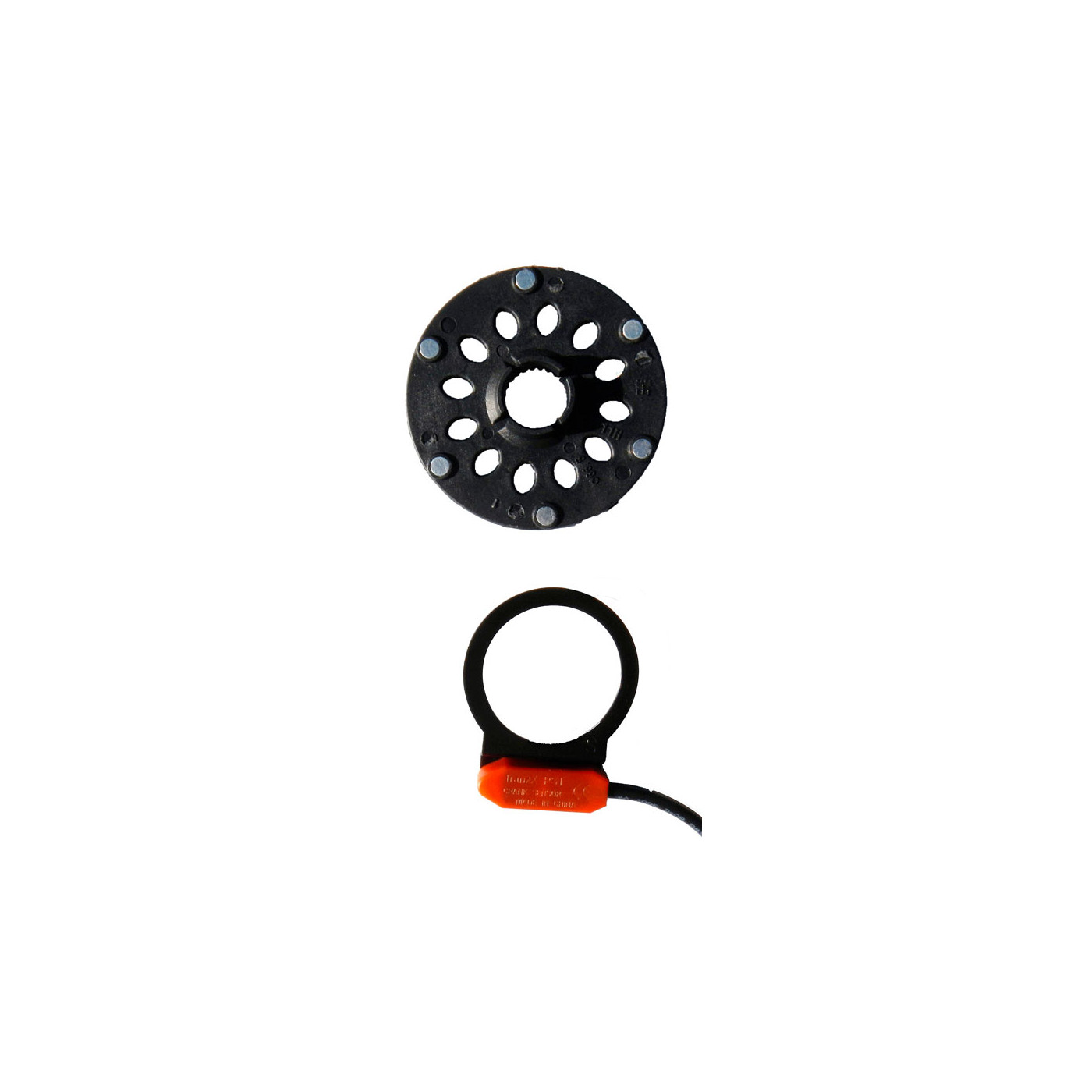

THE PEDAL SENSORS
 |  | The pedal sensor allows you to engage the motor and thus the bike's assistance. It is a rotation sensor, meaning you must pedal to receive assistance. Several types of sensors are available to fit 99% of bikes on the market. Cable length: 59 cm |
