Cycle analyst V3 DPS

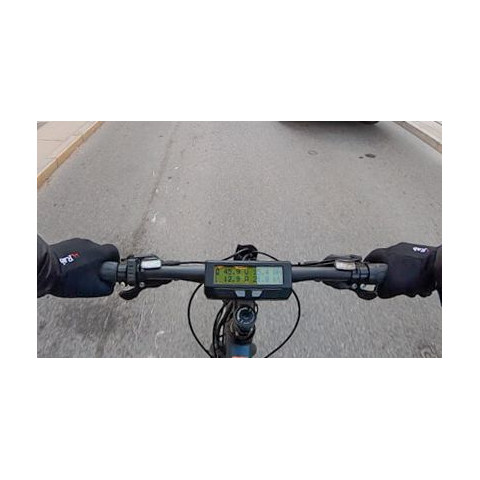

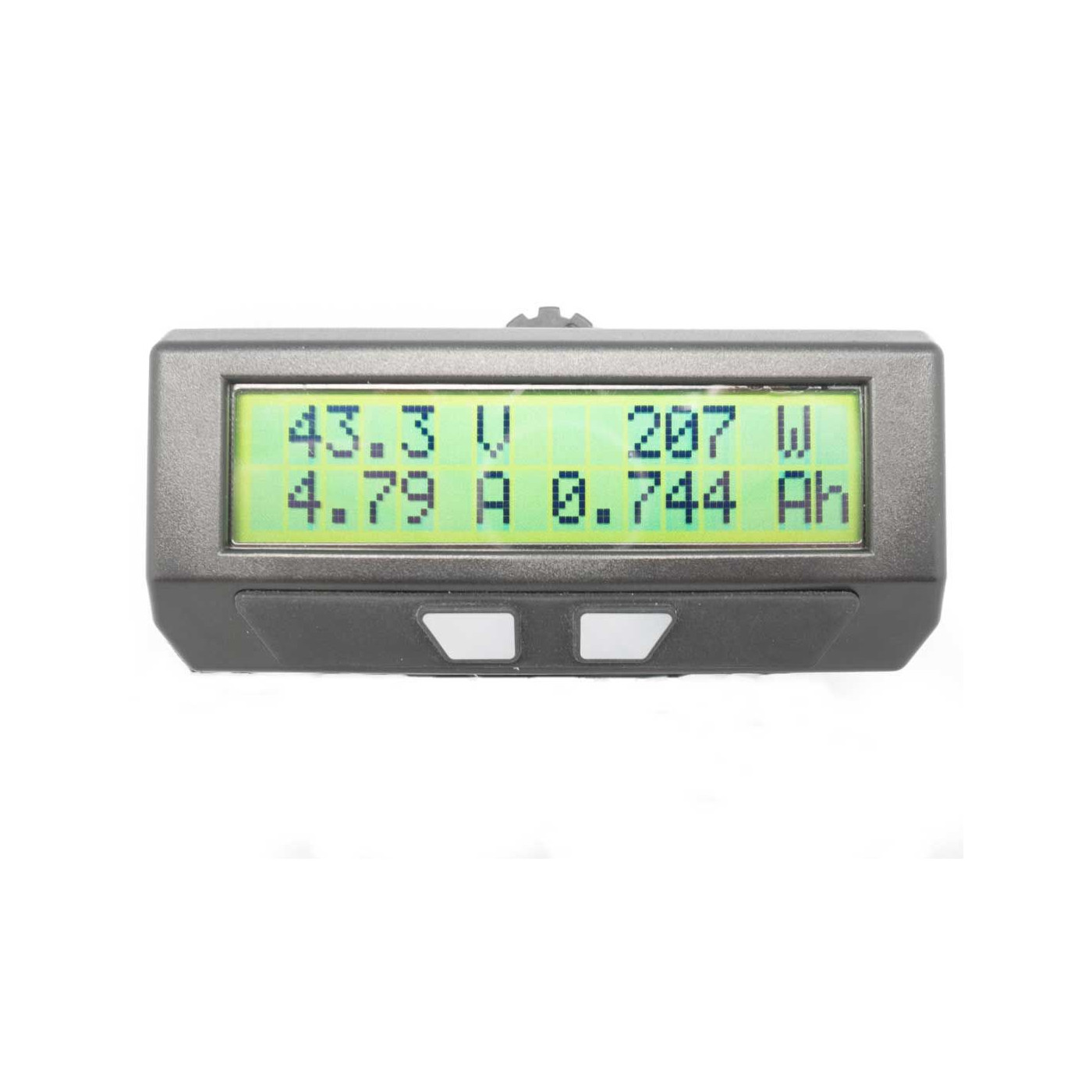

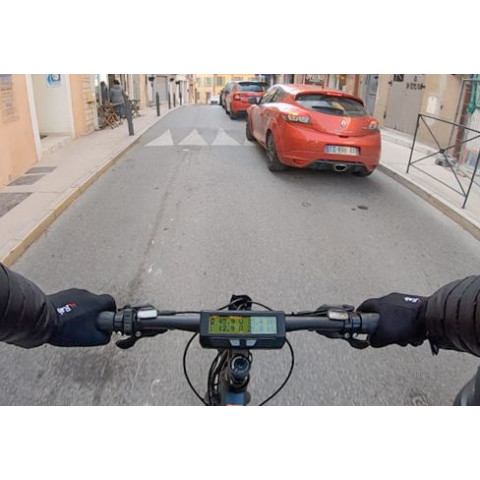

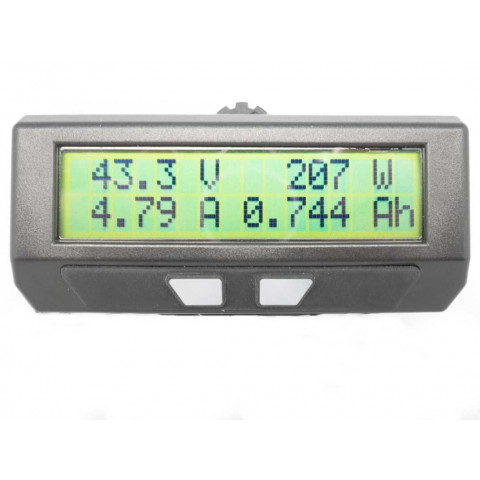

The V3 Cycle Analyst is the next step for the CA product line to not only monitor what is going on in an ebike, but also control it. In the V2 CA we included basic throttle over-ride capabilities for speed, current, and low voltage limiting that proved quite popular, but fundamentally it was mostly a passive display. With the V3 Cycle Analyst, all the ebike signals, from your brake cutoffs to your throttle to your pedal sensor, are first intercepted at the Cycle Analyst. The CA then processes all of these inputs to determine how to control your bike, which it then does via one standard throttle output signal to the controller

More details

000116

New product

209,00 €
ou 3 x 70,82 €

- +

Add to wishlist

More info

There are many advantages to this arrangement. In the traditional setup, any features that you wanted on the ebike, be it cruise control, torque sensing pedalec modes, temperature rollback etc. had to be supported by your particular motor controller. An OEM ebike company can design a custom controller that works with a specific set of input sensors, but DIY projects don’t have this luxury. With the V3 Cycle Analyst, you have access to all these advanced sensor and control schemes no matter what model motor controller powers your system.

Here are some of the more popular features you can include by using the V3 CA as your central ebike/EV console:

  • Thermal Rollback: A temperatures sensor input allows the V3 Cycle Analyst to scale back power as a motor heats up and prevent overheating damage.
  • PAS Sensor: The V3 Cycle Analyst can take the pedal pulse inputs of almost any ebike pedal rotation sensor to display your pedal cadence. It can use this to provide automatic power whenever you pedal (PAS mode) .
  • Torque Sensor: There is an analog input to sense a pedal torque sensor (such as the THUN bottom bracket), display your human power input, and give proportional no-throttle pedalec control.
  • Ebrakes: A digital input for ebrake sensors to plug in directly to the CA3, without needing to run another set of cables all the way down the bike to the controller.
  • Throttle Input Mapping: The CA3 can map your input throttle range to an output range suitable for the controller in order to eliminate dead-band zones at the beginning and end of the throttle motion.
  • Throttle Modes: Setup your throttle in Pass-Thru mode for conventional voltage control, or have your throttle directly regulate the battery current or motor power instead.
  • Throttle Ramps : Reduce the sensitivity and off-the-line kick of high power systems by setting ramp limits on the CA’s output throttle signal.
  • On the fly Limit Adjustments: Use a potentiometer or multi-position switch to instantly adjust any of your current/power/speed or pedal assist limits.
  • Mode Presets: Configure up to three distinct power mode presets each with their own limit settings and PAS/Throttle behaviors, and then easily switch between them with a double button press.
  • Battery SOC and LVC: Accurate State Of Charge (SOC) estimator based on your cell chemistry and voltage. Configure up to two batteries each with their own details and Low Voltage Cutoffs.

Data sheet
Affichage distance parcourue depuis l'achat du systèmeOUI
Temps d’utilisationRésolution 1s
Affichage vitesseActuelle, max, moyenne: 0 à 99 Km/h (affichage possible en MPH)
Affichage intensité et tension max ayant parcourues le systèmeOUI
Affichage capacité consommée0 à 19 999 Ah (résolution 0,01 Ah)
Affichage tension batterie10 à 150V (résolution 0,01 V)
Affichage distance parcourue0 à 99 999 Km (résolution 1 mètre)
Affichage energie totale consommée depuis l'achat du systèmeEn Wh
Affichage capacité récupérée au freinageEn Ah
Affichage Courant de décharge instantané0 à 100A (résolution 0,01 A)
Affichage nombre de cycle de la batterieOUI
Affichage capacité totale consommée depuis l'achat du systèmeEn Ah
Affichage energie consommée0 à 199 999 Wh (résolution 0,01 Wh)
Affichage energie conssomée par kilomètreEn Wh/Km
Affichage energie récupérée au freinageEn Wh
Affichage puissance instantané0 à 15 000 W (résolution 1 W)
Pourcentage de l'energie récupérée au freinage par rapport à l'énergie consomméeOUI
Connecteur contrôleur1500 mm
